CHISUNG CSKL07 DC24V Servo Planetary Fast Barrier Gate | 0.6s Ultra Fast Opening Max 4m Boom 100% Continuous Duty Toll Station Vehicle Access Boom Barrier
Ultra-fast 0.6s adjustable servo planetary parking barrier gate, DC24V 240W brushless motor, max 4m boom arm, 100% continuous duty, anti-crush rebound safety, IP44 cold steel cabinet, -35℃~80℃ wide temp, compatible LPR camera/loop detector for toll stations & busy commercial parking lots.
- Overview
- Recommended Products
Product General Information
| Place of Origin: | China,Shenzhen |
| Brand Name: | CHISUNG |
| Model Number: | CSKL07 |
| Certification: | CE |
Product Commercial Terms
| Minimum Order Quantity: | 1unit |
| Packaging Details: | Carton/Wooden,According to customer requirements |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000units/Month |
Quick Detail:
Barrier Gate
boom barrier gate automatic
automatic barrier gate
barrier gate parking
parking barrier gate
automatic parking barrier gate
Gate Barrier
Boom Gate
Traffic Barrier
Intelligent Barrier Gate
Automatic Gate Barrier
Anti-collision Barrier Gate
Straight Bar Barrier Gate
Folding Arm Barrier Gate
Fence Barrier Gate
Traffic Gate
Vehicle Barrier
Car Park Barrier
Boom Barrier
Parking Gate
rising arm barrier
automatic barrier
toll barrier
toll gate
toll boom
expressway toll gate
highway barrier gate
toll plaza barrier
lane barrier
ETC lane barrier
automatic toll barrier
vehicle access barrier
barrier gate machine
road barrier
CSKL07 Servo Fast Parking Barrier Gate 0.6s Quick Lift Anti-Crush Automatic Vehicle Boom Barrier for Highway Toll & Bus Station
fast servo parking barrier gate, 0.6s boom barrier, DC24V planetary barrier gate, toll station fast barrier, high speed vehicle access control gate
Product Introduction

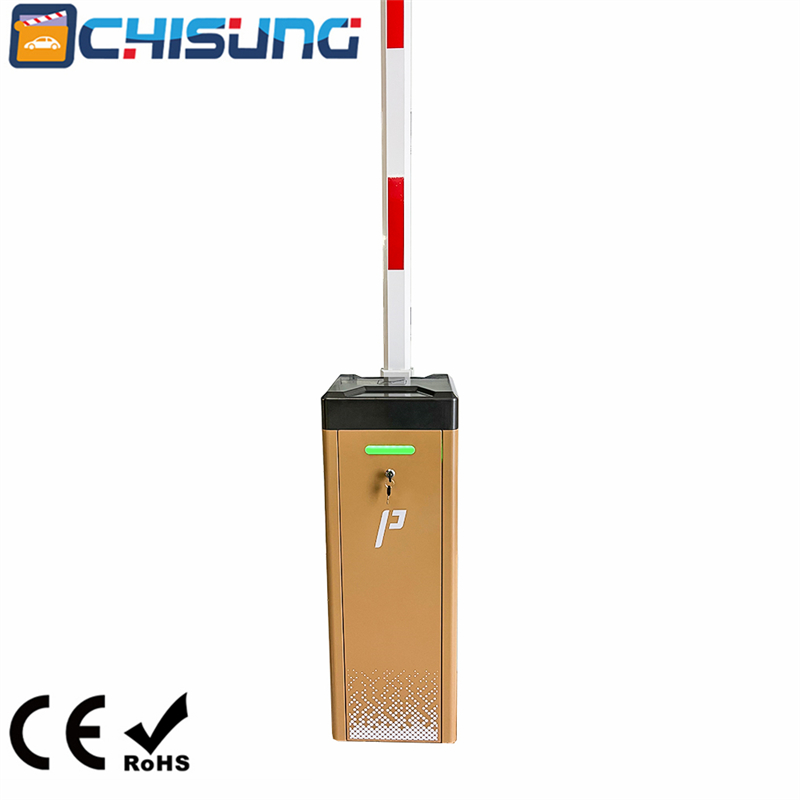

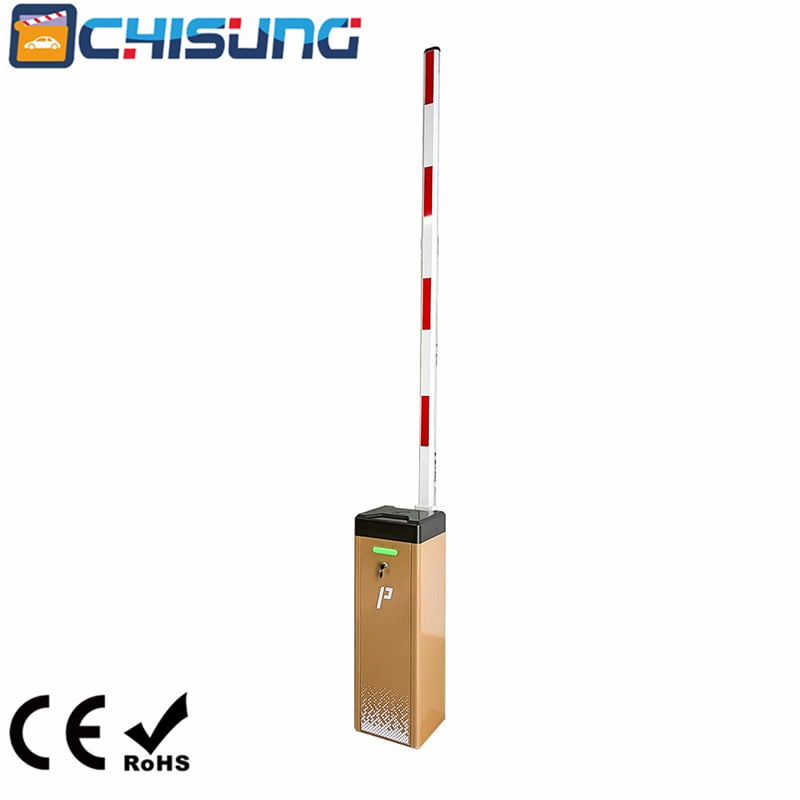

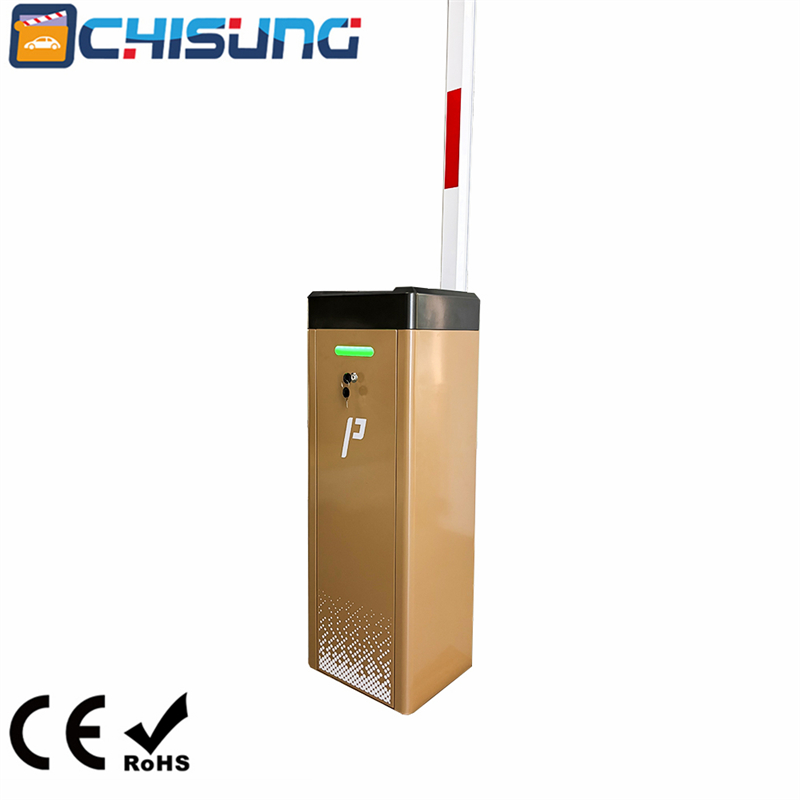

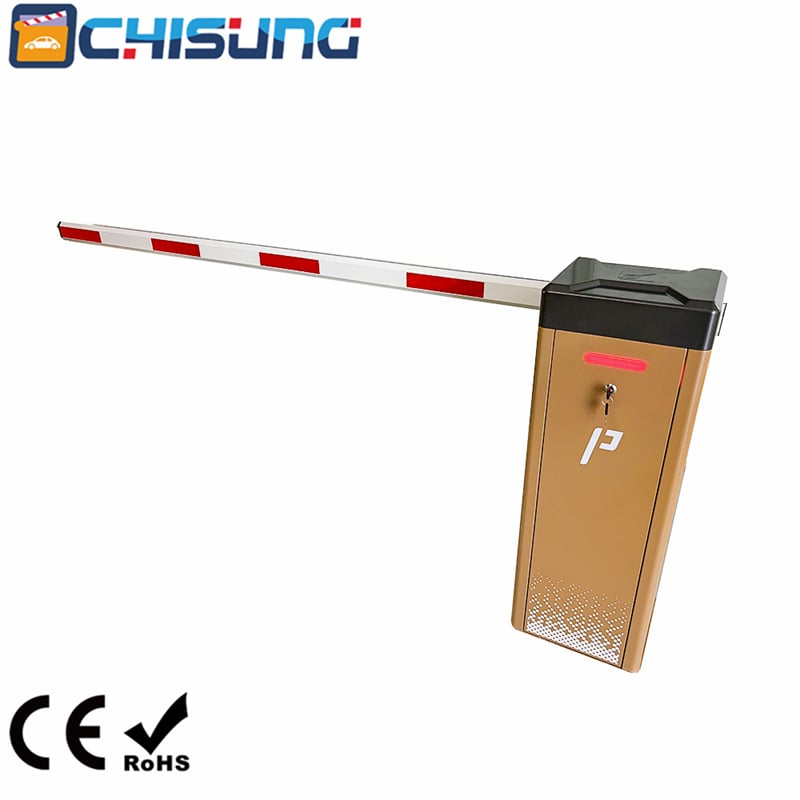

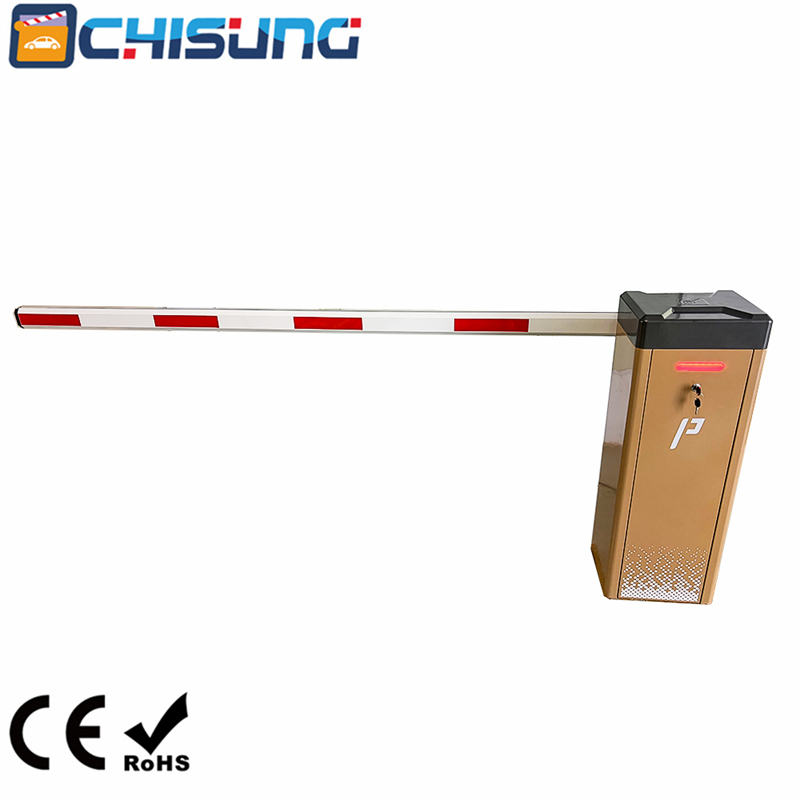

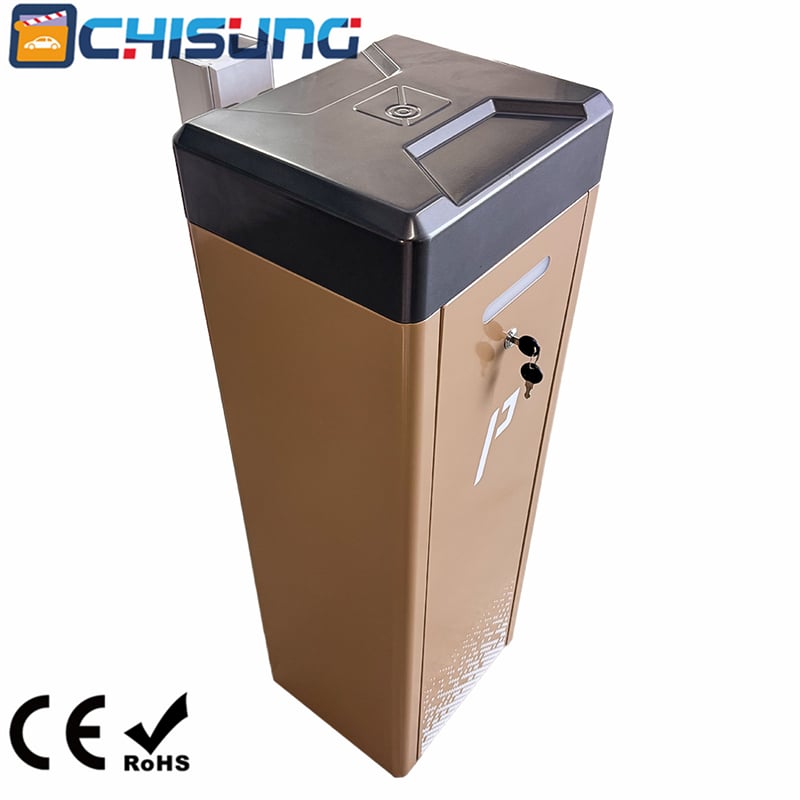

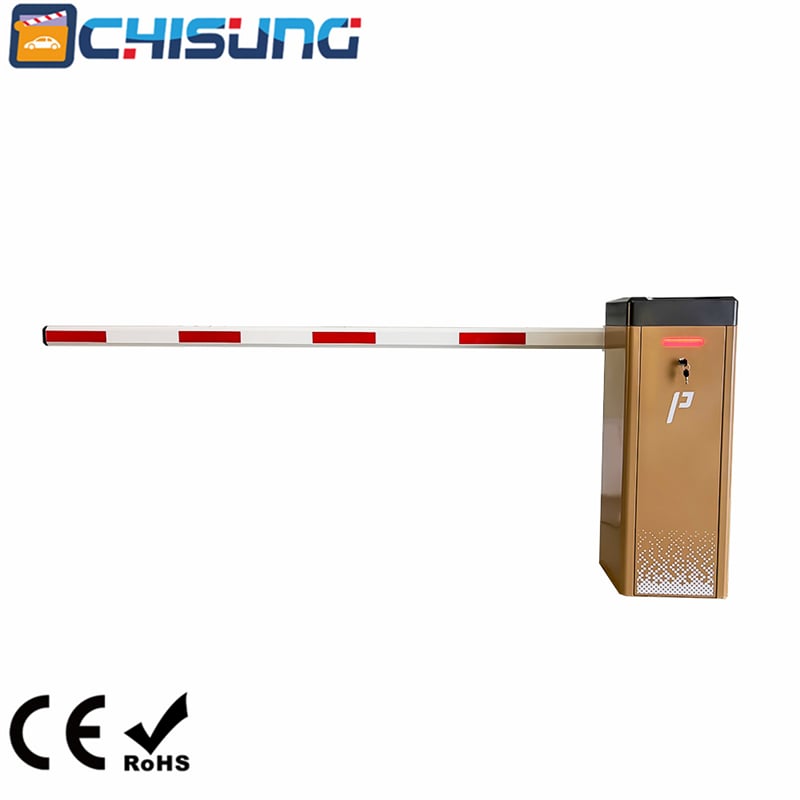

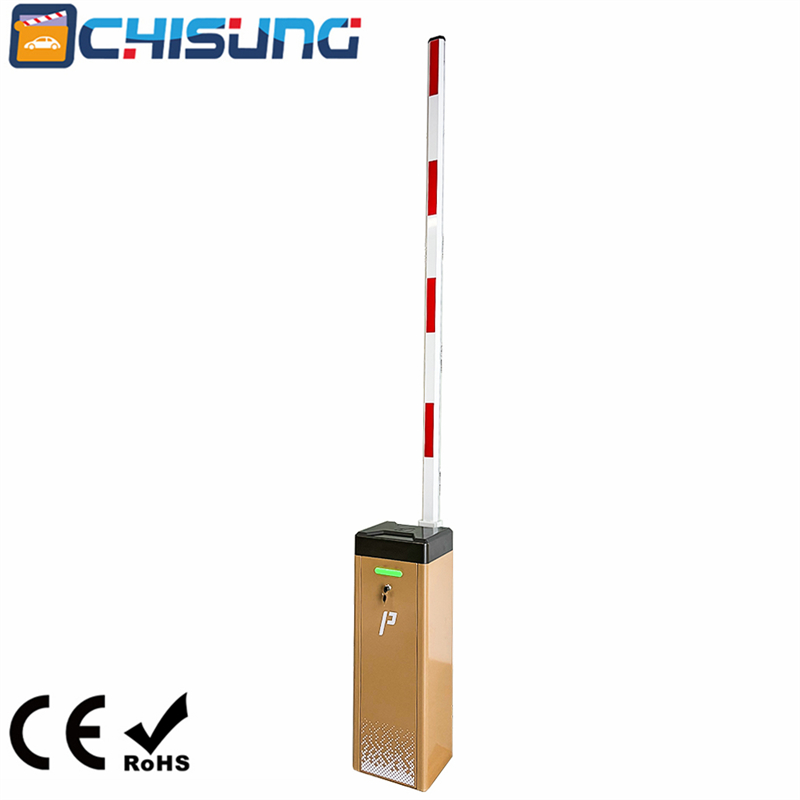

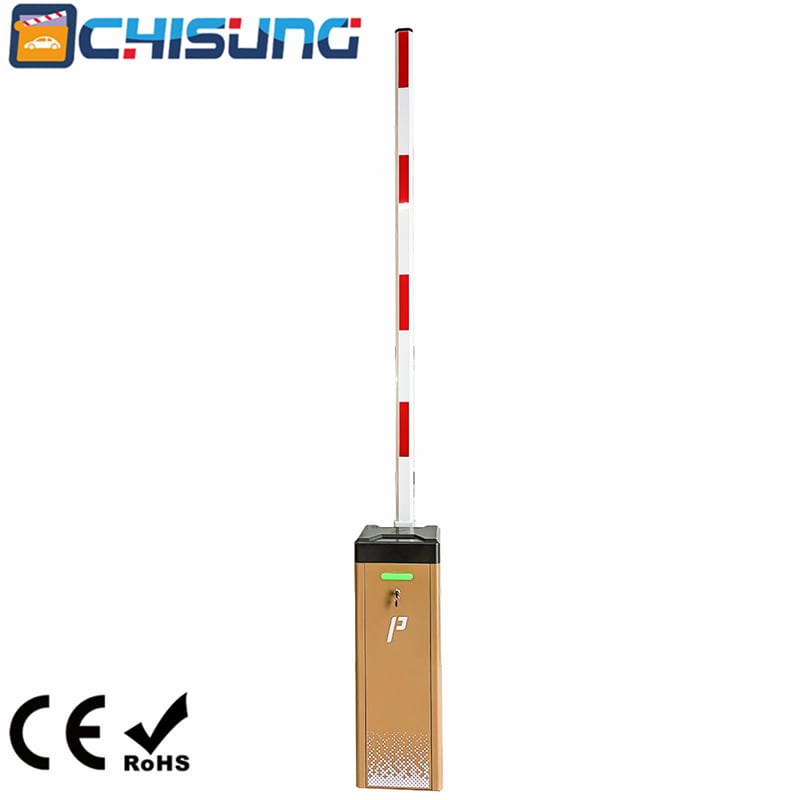

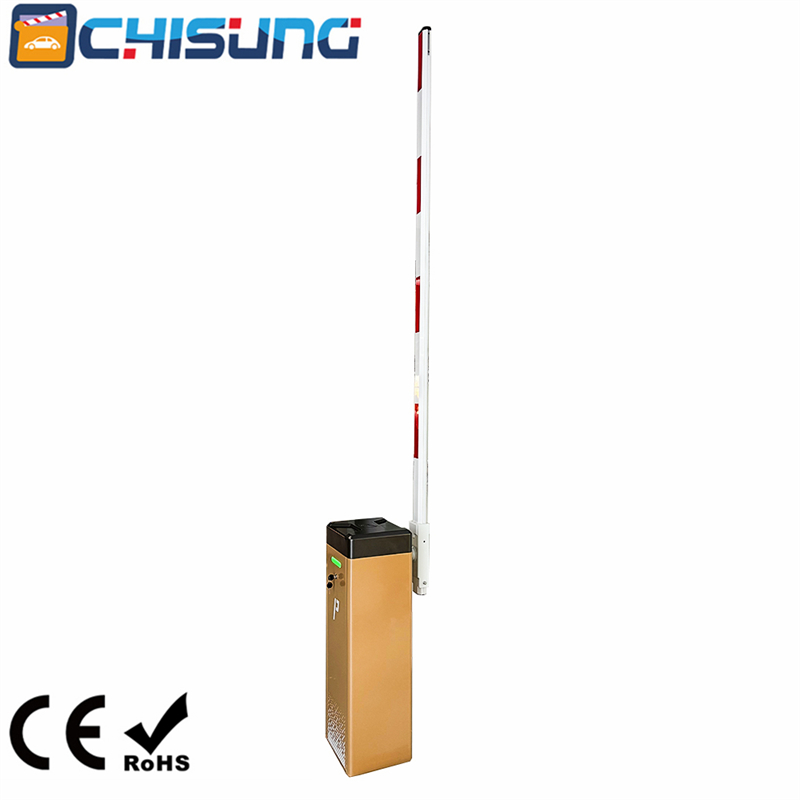

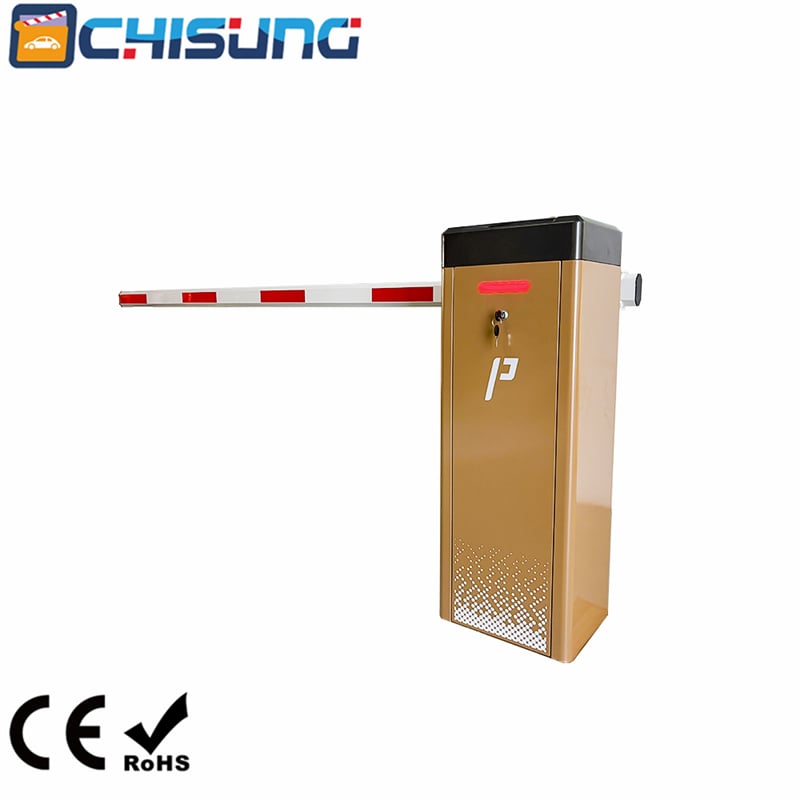

CHISUNG CSKL07 is a high-speed servo planetary automatic parking barrier gate specially designed for high-traffic toll stations, bus terminals and busy commercial parking lots. Equipped with 240W DC24V brushless servo planetary motor, it supports ultra-fast 0.6s opening speed and 100% full continuous working frequency with over 10 million service cycles. It features full anti-crush auto rebound protection, adjustable lift/lower speed, built-in incremental deceleration buffer. Supports multiple boom arms up to 4m, abundant reserved signal interfaces to match license plate recognition, radar and loop detectors. IP44 dustproof & waterproof cabinet runs stably from -35℃ to 80℃, ideal for high-flow vehicle passage scenarios requiring fast passing to avoid fare evasion.
Description:

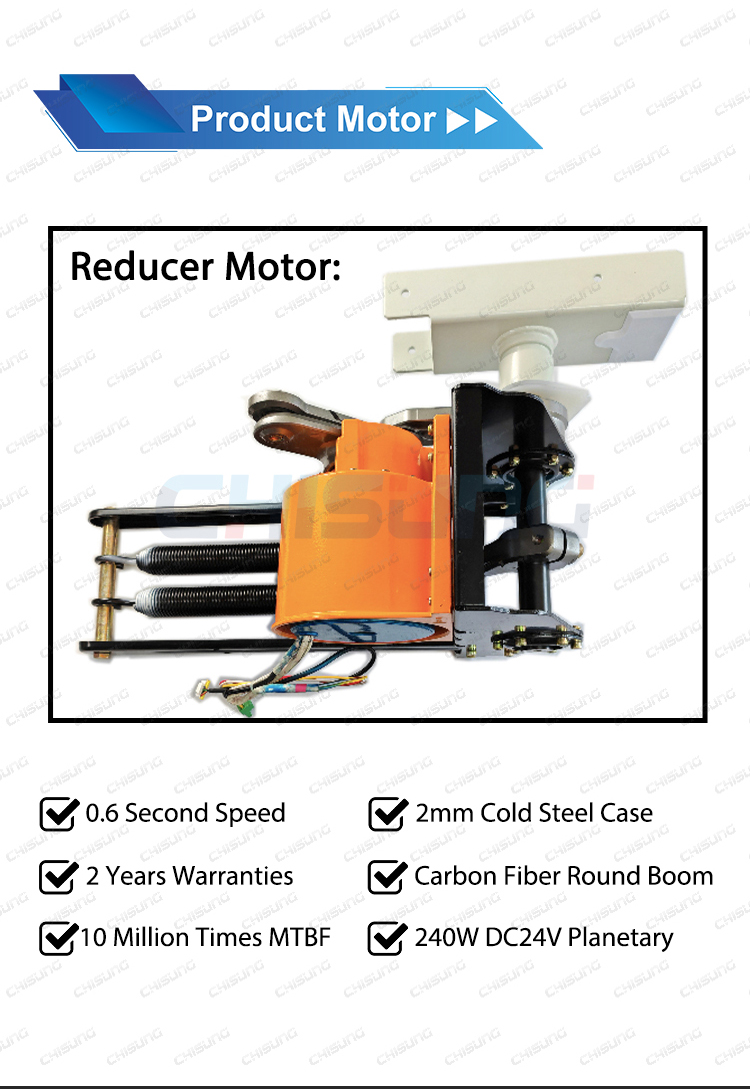

1.Servo Planetary Ultra-Fast High-Frequency Operation Core
Built for high-traffic sites that demand ultra-quick vehicle passage:
l 240W DC24V brushless servo planetary motor, ultra-fast adjustable opening speed from 0.6s to 6s, 0.6s speed for 3m boom drastically cuts vehicle waiting time and prevents toll evasion at toll stations.
l 100% continuous full-duty working frequency, no overheating under 24-hour non-stop heavy traffic, MTBF reaches over 10 million cycles for ultra-long service life.
l Precision planetary gear transmission structure, stable torque output, smooth boom lifting and lowering without jitter or shaking.
l Integrated incremental deceleration inside the motor, slow buffer at the end of rise/fall to eliminate violent boom impact and reduce mechanical wear.
2.Full Multi-Layer Anti-Crush Safety Protection System
All-round safety design eliminates collision and clamping risks for vehicles and pedestrians:
l Resistance Rebound Anti-Crush Function When the boom hits cars, people or obstacles during descending, the barrier instantly lifts upward to avoid crash damage and personal injury.
l Emergency Manual Release & Super Capacitor Backup Built-in super capacitor for temporary power supply during sudden blackouts; manual mechanical release available for long-time power failure to evacuate vehicles.
l Wide Temperature All-Weather Stable Operation Operating range -35℃ ~ +80℃, works normally in frigid cold northern winters and high-temperature tropical summers; 30%~80% humidity tolerance without condensation.

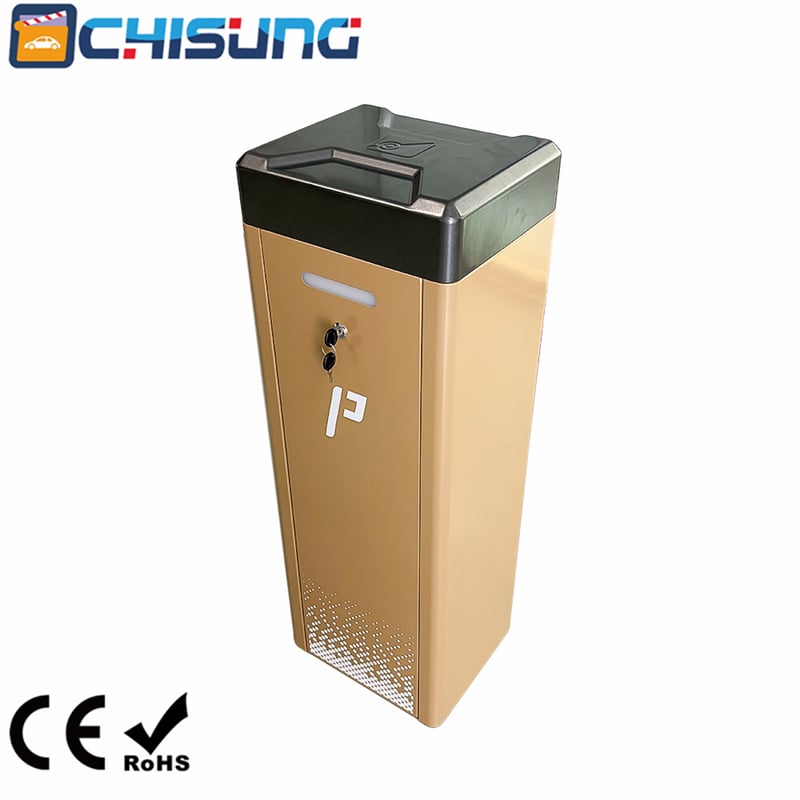

l IP44 Cold Steel Dustproof Cabinet 2mm thick cold steel cabinet with 15μm polyester dust-proof spray coating, scratch, rust and UV resistant for long-term outdoor exposure.
3.Diversified Optional Boom & Customized Appearance
Multiple boom options to match different road width limits, customizable cabinet colors and logos:

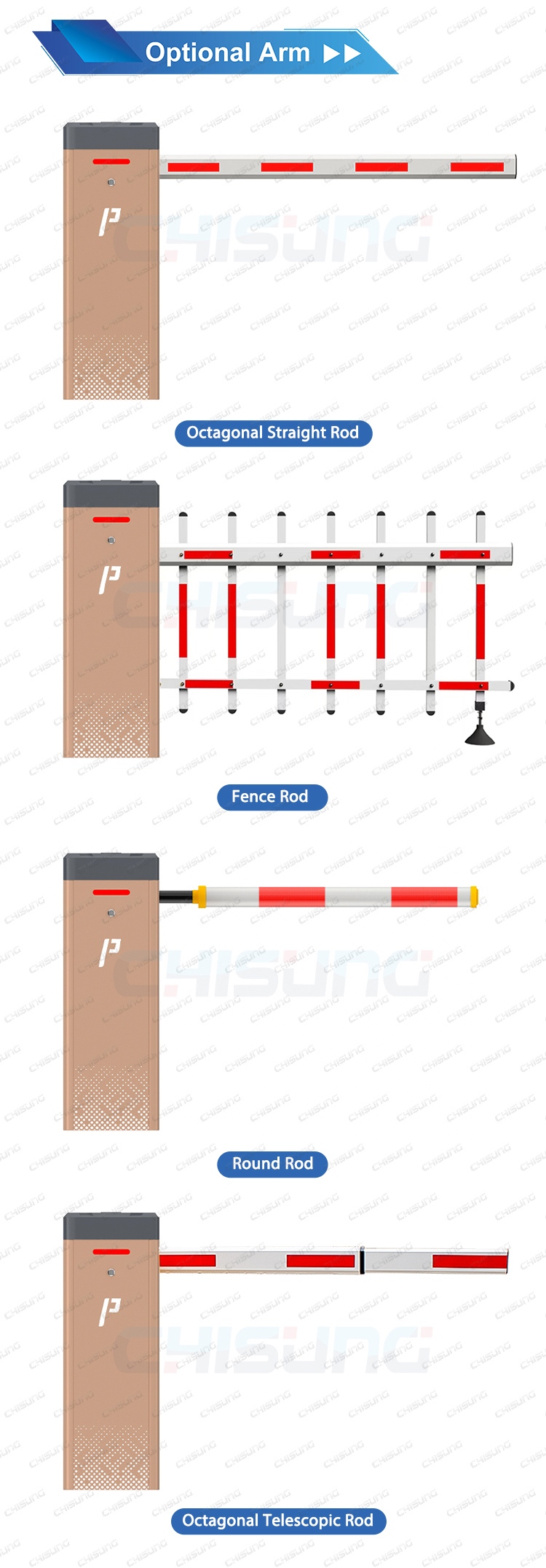

l Four optional boom types: Octagonal straight rod(max3m), Round rod(max4m), Fence rod, Telescopic rod

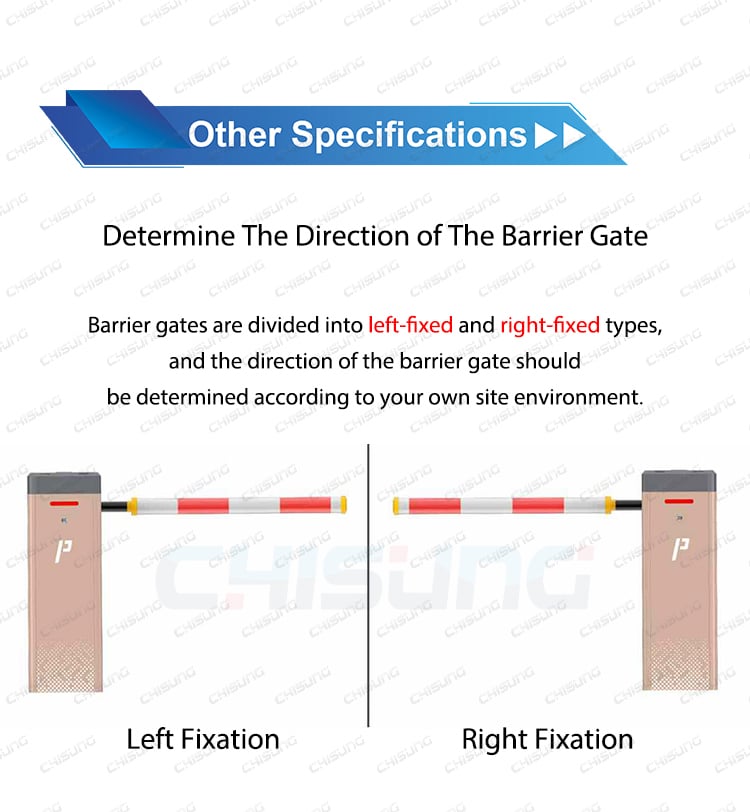

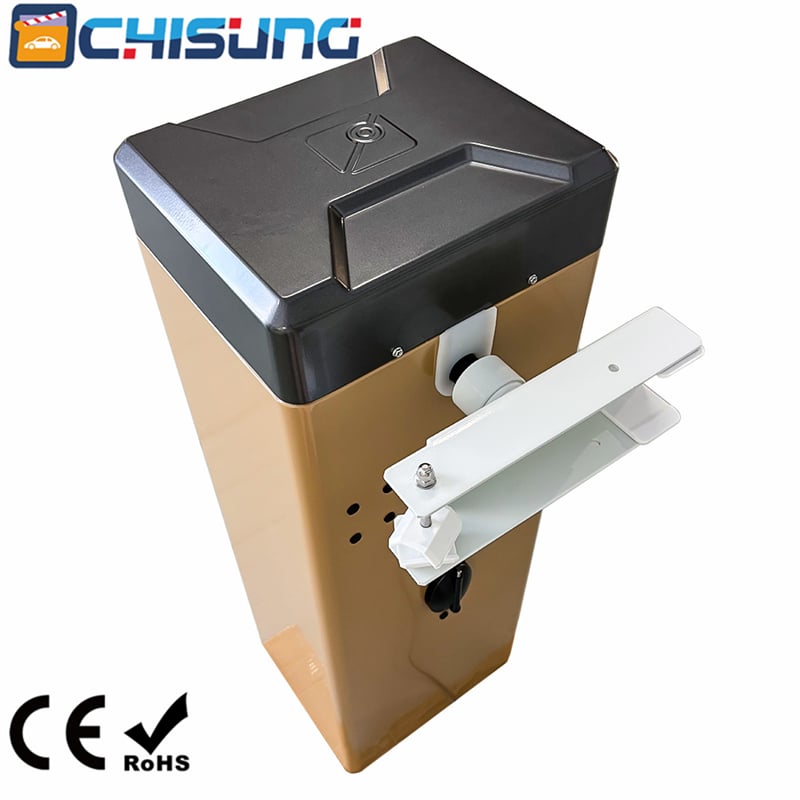

l Adjustable left/right fixed installation direction, fits all site road layout demands

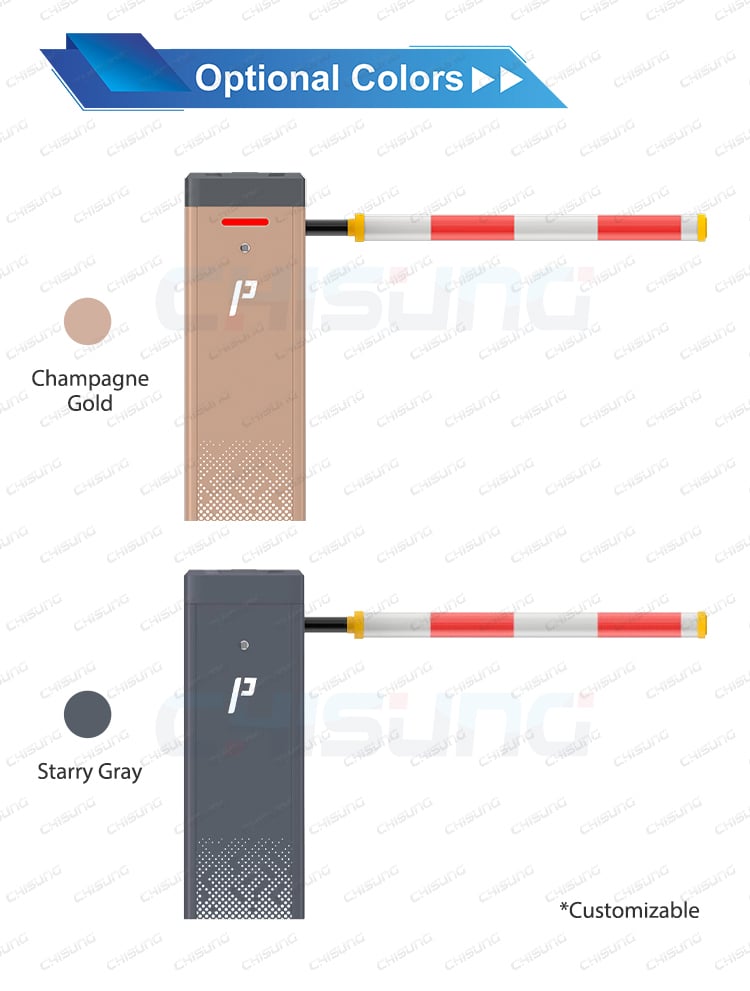

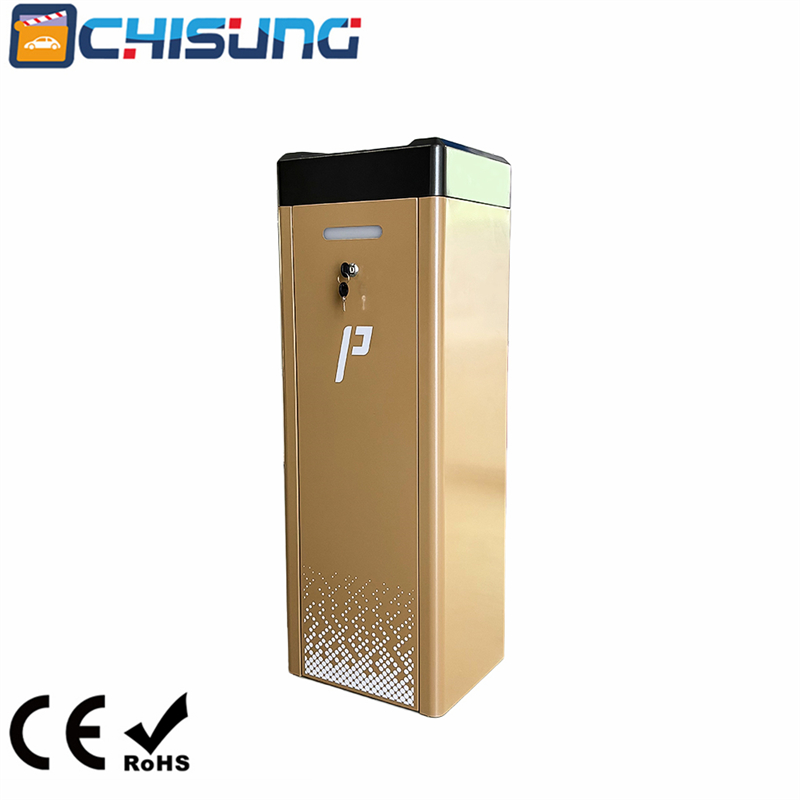

l Cabinet color optional: Champagne Gold, Starry Gray; custom brand logo printing supported
l 30-meter long-distance wireless remote control without signal blockage, 2 remotes included in standard kit
4.Abundant Expandable Signal Interfaces for Unmanned System
l Rich reserved multi-functional ports to connect all mainstream intelligent parking peripheral equipment:
l Compatible accessories: License plate recognition camera, vehicle loop detector, radar sensor, infrared photocell, traffic indicator light, exit push button, counter
l Multiple signal output: RS485 communication, relay output, DC12V power supply for peripherals, traffic light control port

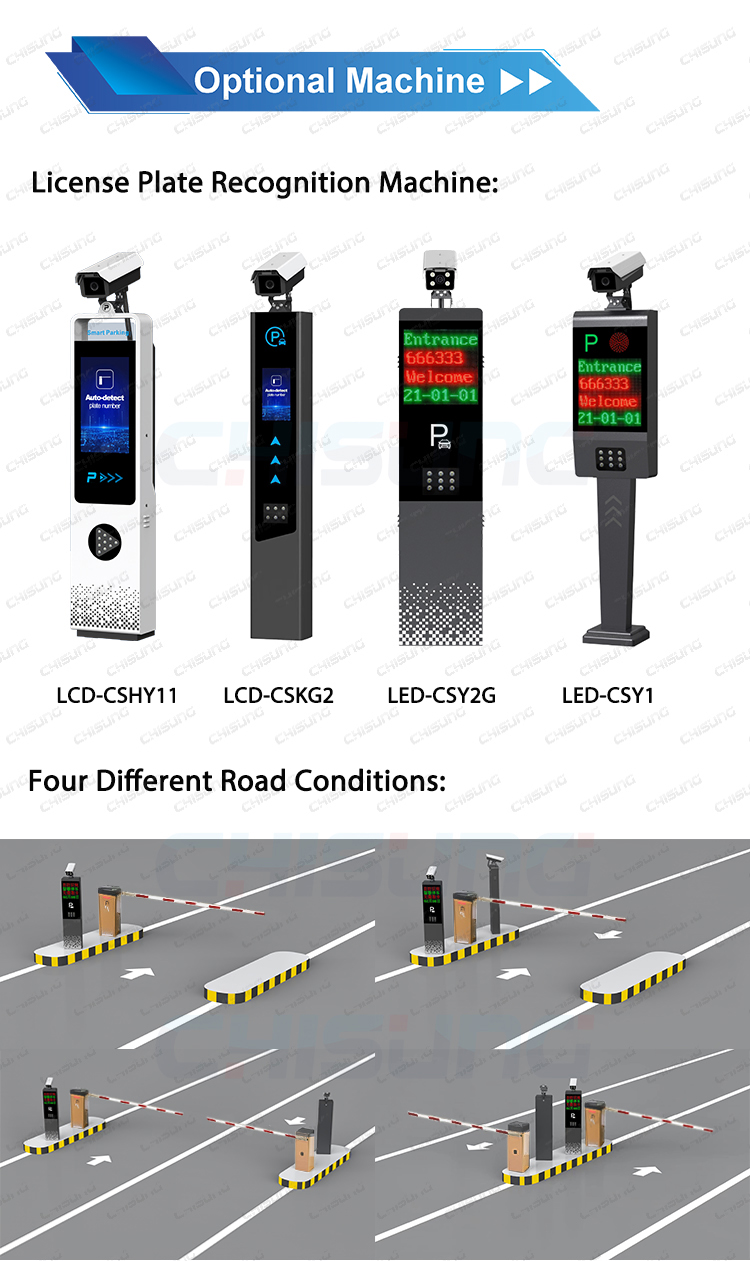

l Perfectly matched with full series CHISUNG LPR cameras (LCD-CSHY11, LCD-CSKG2, LED-CSY2G, LED-CSY1) to build complete unmanned toll parking management system
5.Complete All-In-One Standard Kit, Easy Maintenance & Installation

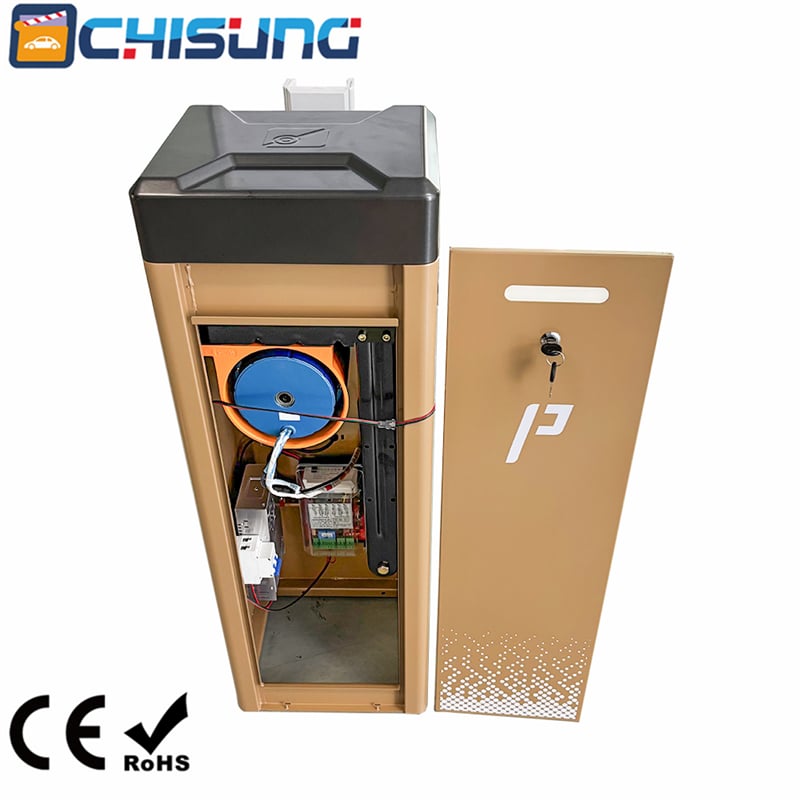

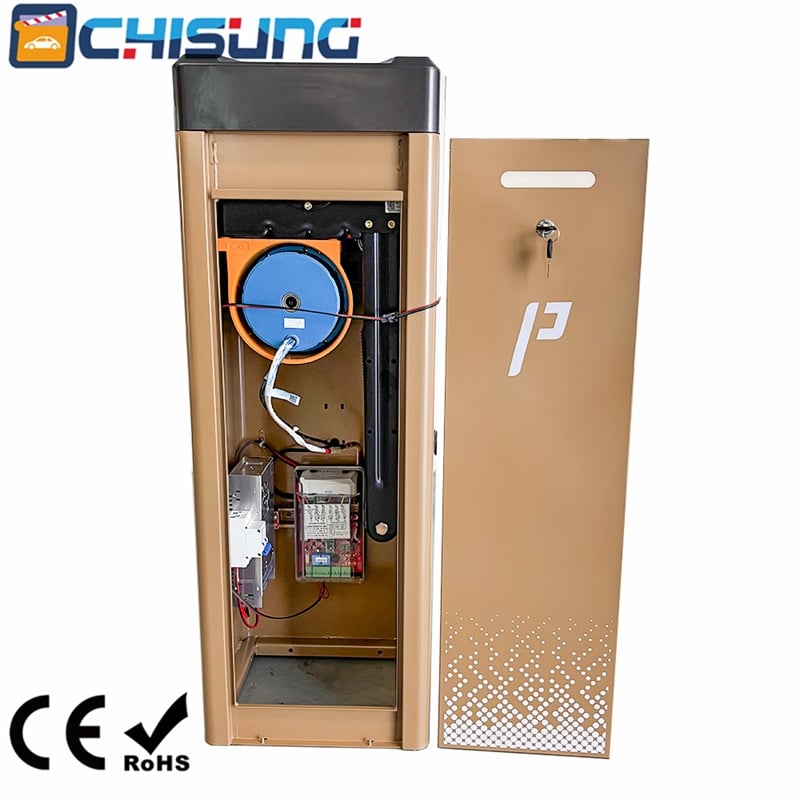

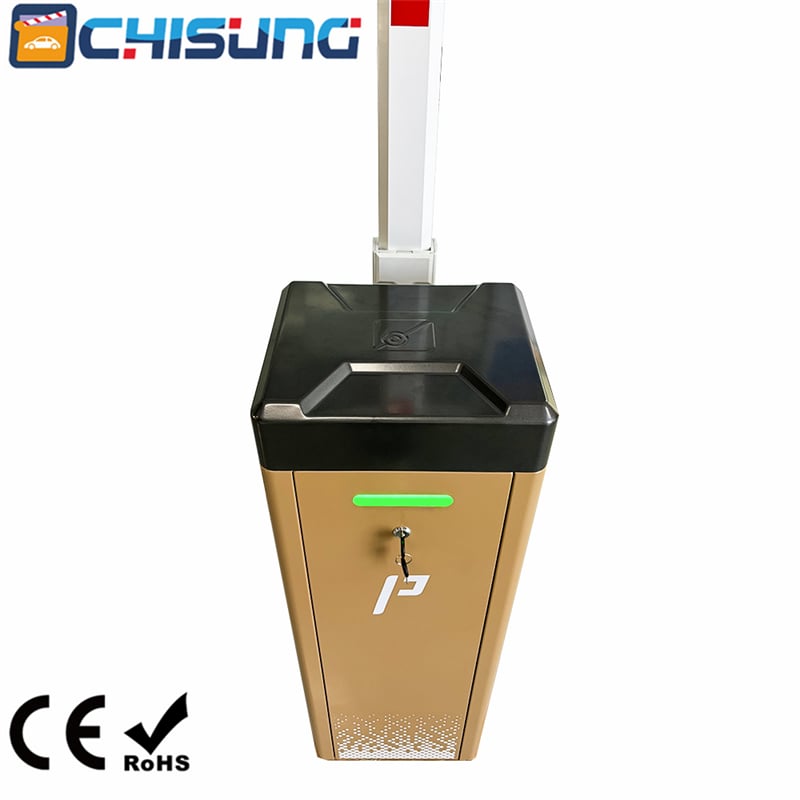

l Integrated control unit on the upper cabinet for intuitive programming and convenient daily maintenance; full set components included with no extra purchase needed:
l Barrier cabinet, DC brushless servo planetary motor & transmission assembly, DZBL-B control board, built-in super capacitor

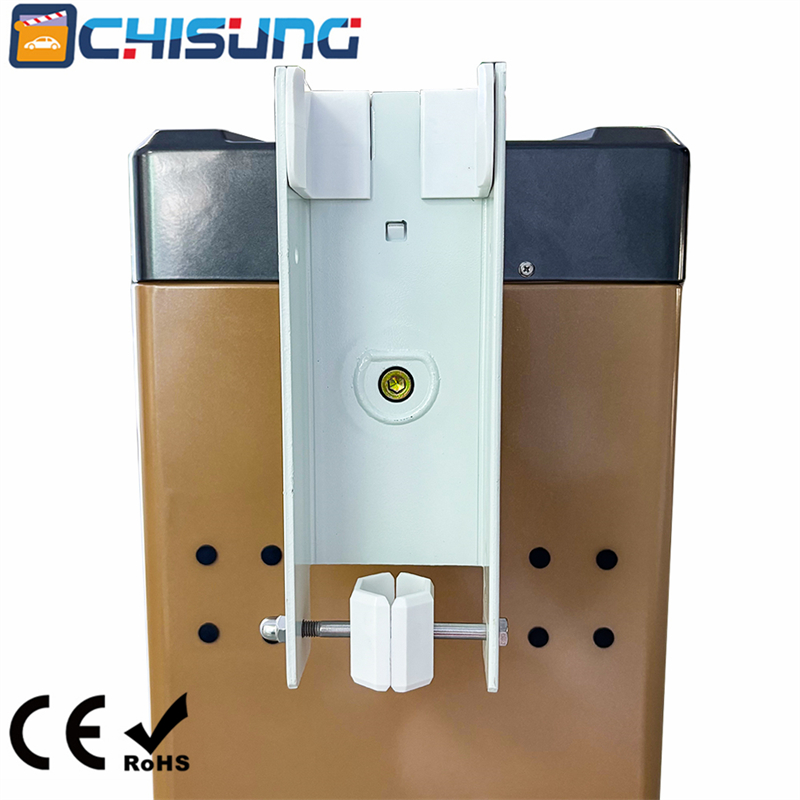

l Selected boom arm, 2 wireless remote controls, receiver, all installation brackets & screws
l Illustrated multi-language installation & programming manual for quick on-site debugging

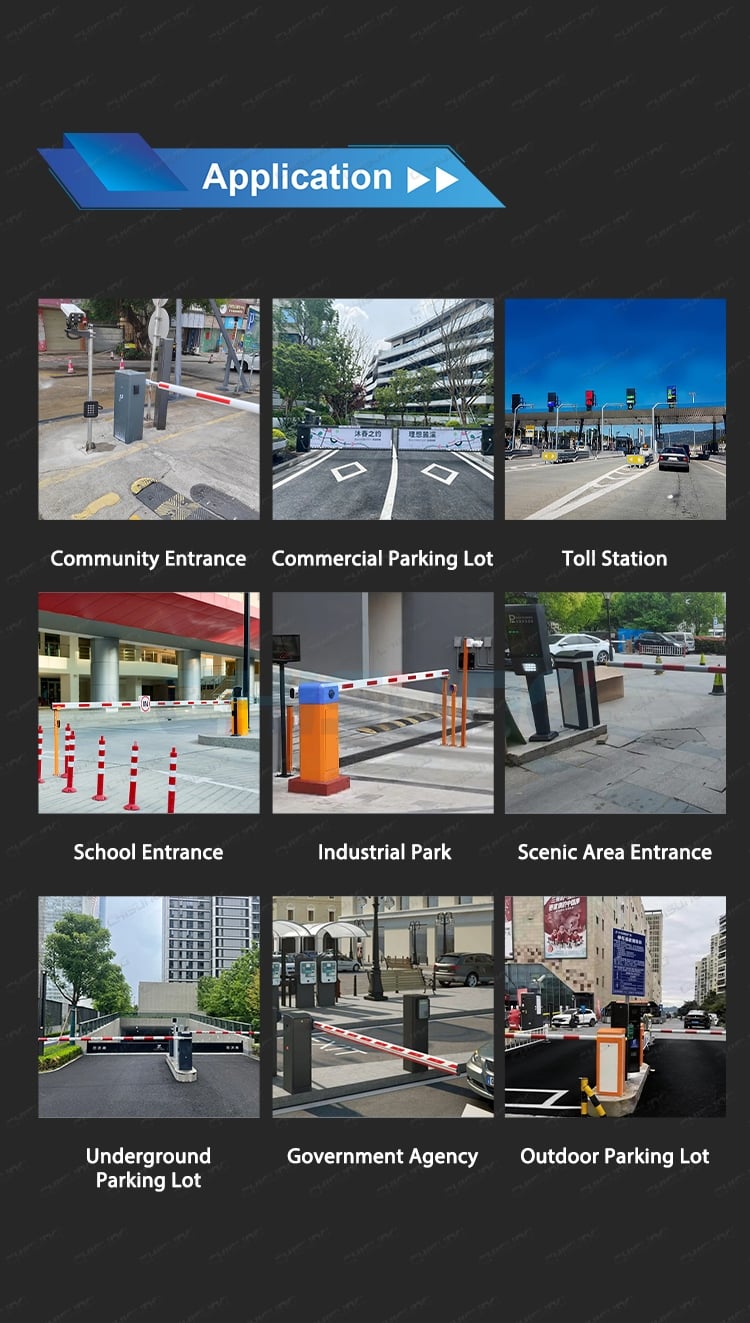

Applications:

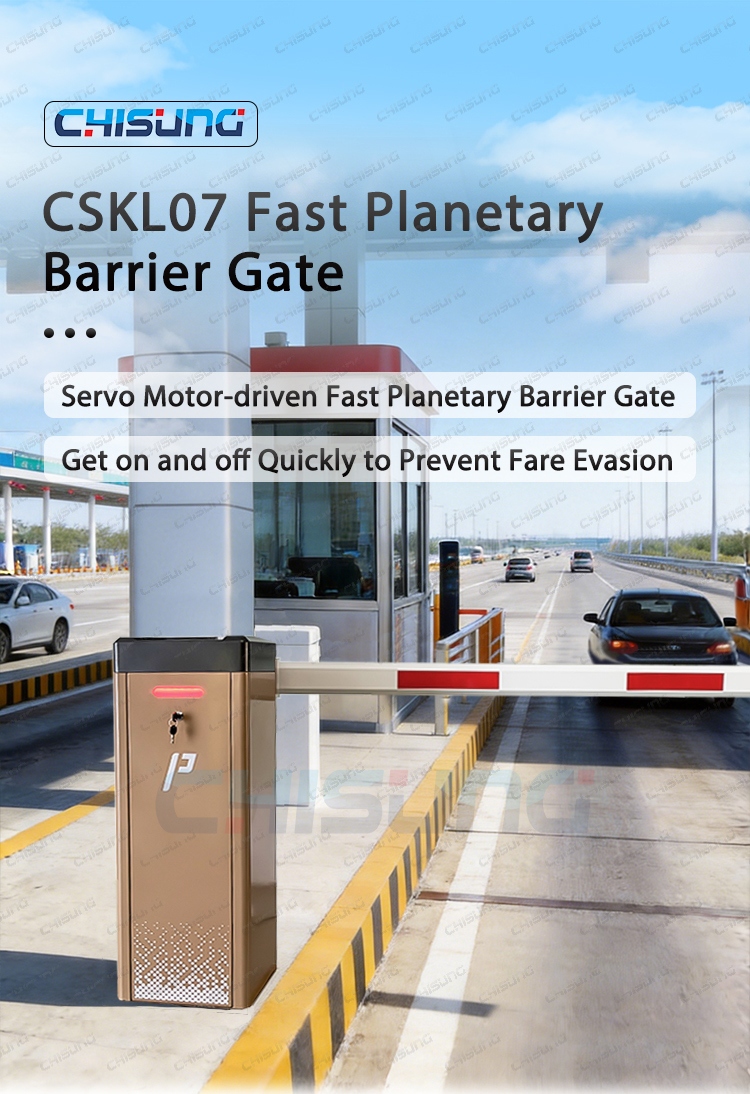

Highway & Traffic Toll Sites
Highway Toll Stations, Expressway Service Areas, Bus Terminals, Ferry Terminals, Airport Toll Lanes
High-Flow Commercial Parking
Shopping Malls, Large Office Buildings, Hotel Underground Parking, Supermarket Entrance Lots
Public & Educational Premises
School Campus Vehicle Gates, Hospital Parking Zones, Government Agency Entrances, Scenic Spot Toll Gates
Industrial & Logistics Parks
Factory Main Entrances, Logistics Distribution Parks, Warehouse Vehicle Access Gates

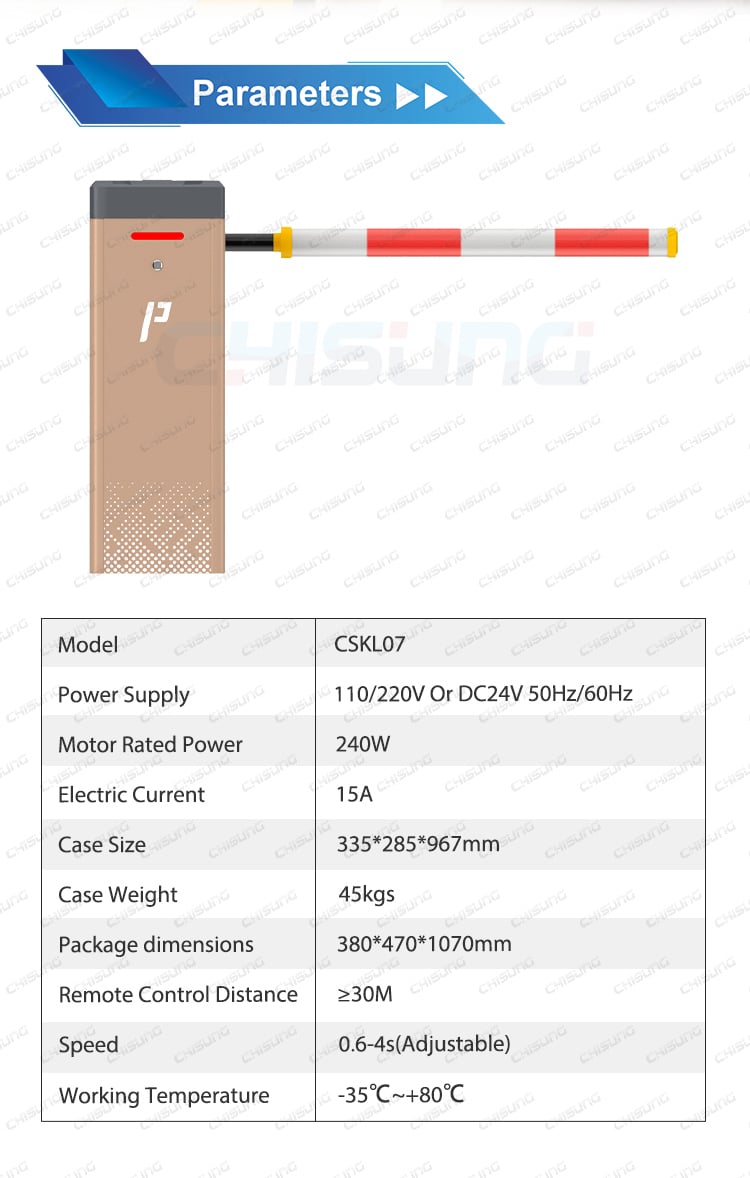

Specifications:
| Item | CSKL07 Parameter |
| Model | CSKL07 |
| Power Supply | AC110V/220V 50/60Hz |
| Motor Type | DC24V Brushless Servo Planetary Motor |
| Rated Motor Power | 240W |
| Opening Speed | Adjustable 0.6s~6s (0.6s for ≤3m boom) |
| Max Boom Length | Octagonal rod ≤3m; Round rod ≤4m |
| Working Frequency | 100% Continuous Full Duty |
| Cabinet Material | 2mm Cold Steel with 15μm Polyester Dust Painting |
| Protection Class | IP44 |
| Working Temperature | -35℃ ~ +80℃ |
| Relative Humidity | 30%~80%, No Condensation |
| Safety Function | Anti-crush resistance rebound, soft start&stop, super capacitor backup power, manual mechanical release |
| Remote Control Distance | ≤30m (no signal obstacle) |
| Reserved Interfaces | RS485, Loop Detector, Radar, Photocell, Traffic Light, Exit Button, Counter, Relay Output |
| Cabinet Weight (Without Boom) | ≈45kgs |

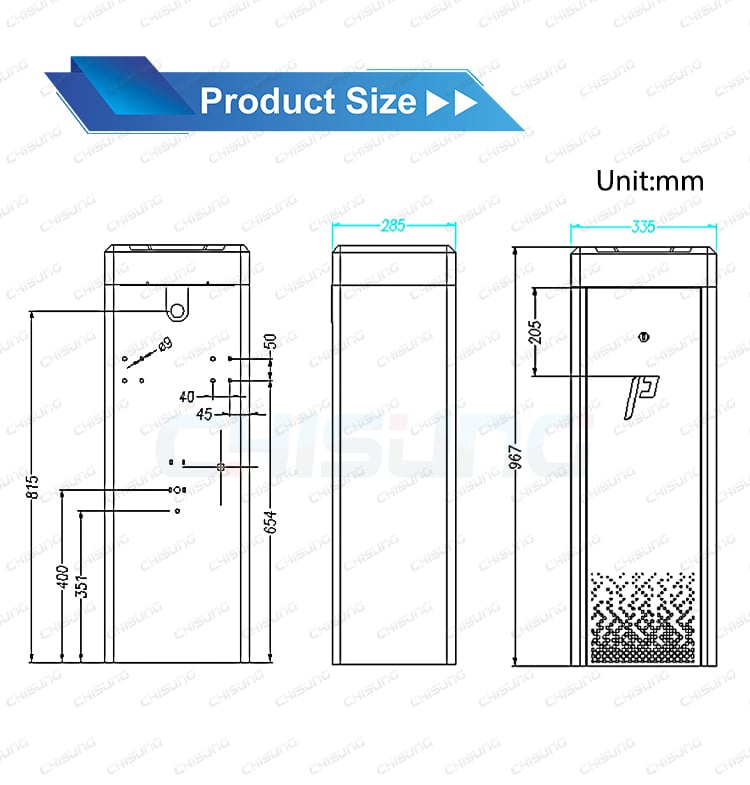

| Cabinet Dimension(L×D×H) | 335*285*967mm |
| Service Life | ≥10 Million Cycles MTBF |
| Standard Kit Contains | Cabinet, Servo Motor Assembly, DZBL-B Control Board, Super Capacitor, Receiver, 2 Remotes, Boom, Full Installation Hardware |

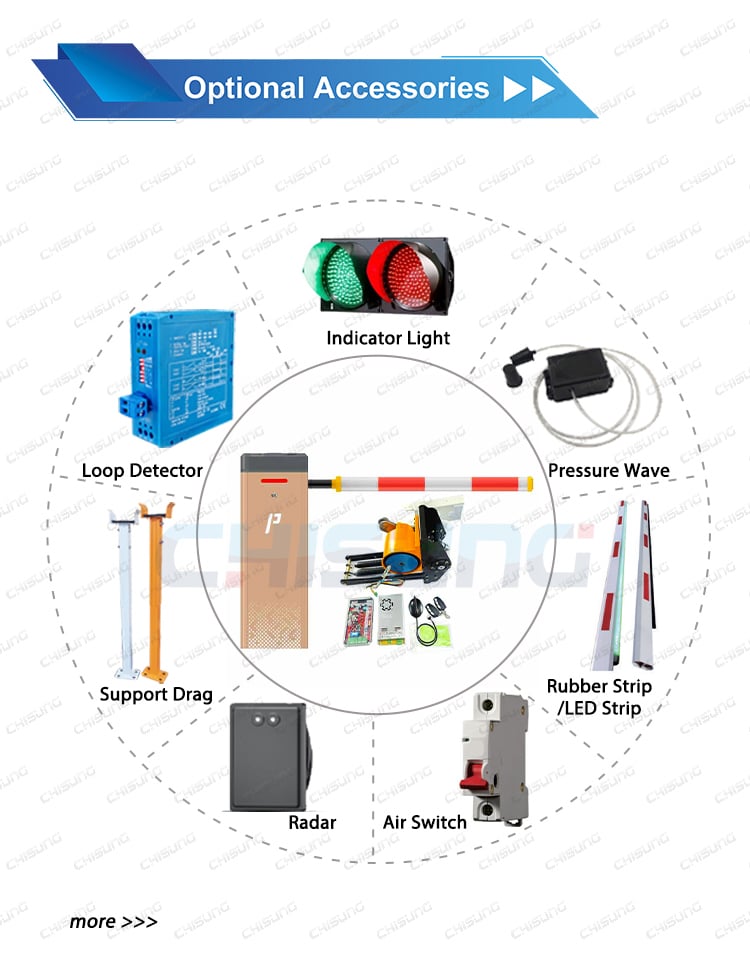

Optional Matching Accessories：
1. License Plate Recognition Camera – Automatic plate capture for unmanned toll passage
2. Vehicle Loop Detector – Inductive vehicle trigger without ground wiring restriction
3. Radar Sensor – Non-contact wireless vehicle detection
4. Traffic Indicator Light – Red/green passage warning for drivers
5. Infrared Photocell – Secondary anti-collision safety protection
6. Exit Push Button – Indoor manual opening button for staff
7. Rubber LED Boom Strip – Night reflective warning for boom arm visibility
8. Air Switch – Circuit overload short-circuit protection
9. Counter Module – Automatically record vehicle passing volume
Competitive Advantage:
1.Industry-Leading 0.6s Ultra-Fast Servo Speed
Most common AC barrier gates only support 3s/6s slow lifting, unable to handle high-flow toll stations. CSKL07’s 0.6s quick opening drastically improves vehicle passage efficiency and solves fare evasion pain points for highway toll projects, capturing exclusive high-value traffic engineering orders.
2.DC Servo Planetary Motor, 10 Million Ultra-Long Service Life
Ordinary AC barrier motors wear quickly under 24h continuous operation, while our servo planetary gear structure achieves over 10 million cycle lifespan, cutting long-term maintenance and replacement costs for property and toll management clients.
3.100% Full Continuous Duty, Stable 24h Non-Stop Operation
Most low-cost barriers only support 30%-50% intermittent use and easily overheat in busy sites. CSKL07 realizes full-time non-stop operation, perfectly matching 24-hour highway toll stations and large commercial parking lots.
4.Ultra-Wide Global Temperature Adaptability
-35℃ ~ +80℃ working range covers cold northern Europe, high-temperature Middle East and humid coastal regions, wider applicable scenarios than competitors’ standard -20℃~60℃ temperature limits; IP44 thick steel cabinet resists all outdoor weather erosion.
5.Built-In Super Capacitor Emergency Power Backup
Unique super capacitor temporary power supply design avoids vehicle jams caused by sudden power cuts, a feature rarely equipped on ordinary barrier gates, greatly reducing project safety hidden dangers.
6.Complete Unmanned Parking System Matching Ability
Abundant reserved signal ports fully compatible with all intelligent parking peripherals, can form a one-stop unmanned toll management solution with our LPR cameras, more attractive to system integrators and engineering wholesalers.
7.Customizable Appearance & Complete OEM Support
Dual cabinet color options and customizable brand logos help distributors develop private label business; factory stable mass supply, customized packaging and dedicated technical installation drawings for global engineering partners.
