- Red-green dual-color LED display with 4-line mode for clear status visibility.
- Customizable voice broadcast volume and timing, ensuring quiet nights and clear daytime prompts.
- Software-controlled fill light brightness and schedule for energy efficiency.
Product Information:
| Place of Origin | China,Shenzhen |
| Brand Name | CHISUNG |
| Model Number | CSY1 |
| Certification | CE |
| Minimum Order Quantity | 1unit |
| Price | 525USD |
| Packaging Details | Carton/Wooden,According to customer requirements |
| Delivery Time | 7-15days |
| Payment Terms | L/C ; T/T ; MoneyGram |
| Supply Ability | 3000units/Month |
Quick Detail:
License Plate Recognition Camera,
LPR Machine
LPR Camera
LPR Camera License Plate Recognition
License Plate Recognition
LPR System
ANPR LPR camera
LPR Parking System
Automatic Number Plate Recognition System
ANPR Camera
License Plate Recognition All-in-One Machine
Integrated LPR Device
Intelligent Capture Unit for License Plates
License Plate Recognition System
Vehicle License Plate Recognition
CSY1 is an ultra-high-definition license plate recognition all-in-one machine specifically designed for intelligent capture and recognition at vehicle entrances and exits worldwide. Its classic dark gray, one-piece molded structure integrates a high-definition license plate recognition camera, outdoor high-brightness LED display module, built-in time-controlled fill light, intelligent voice module, and other core smart modules. This product ensures easy operation and debugging, helping parking lot operators reduce maintenance costs. It is widely used in various scenarios such as parking lot entrances and exits, residential complex entrances and exits, mall entrances and exits, and highway toll gates.
Description:

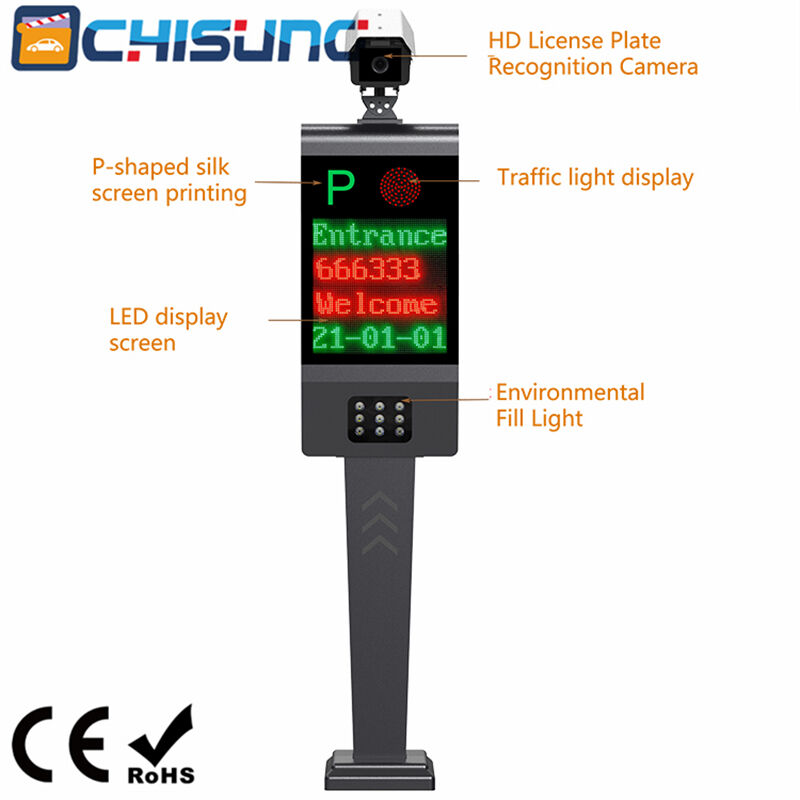

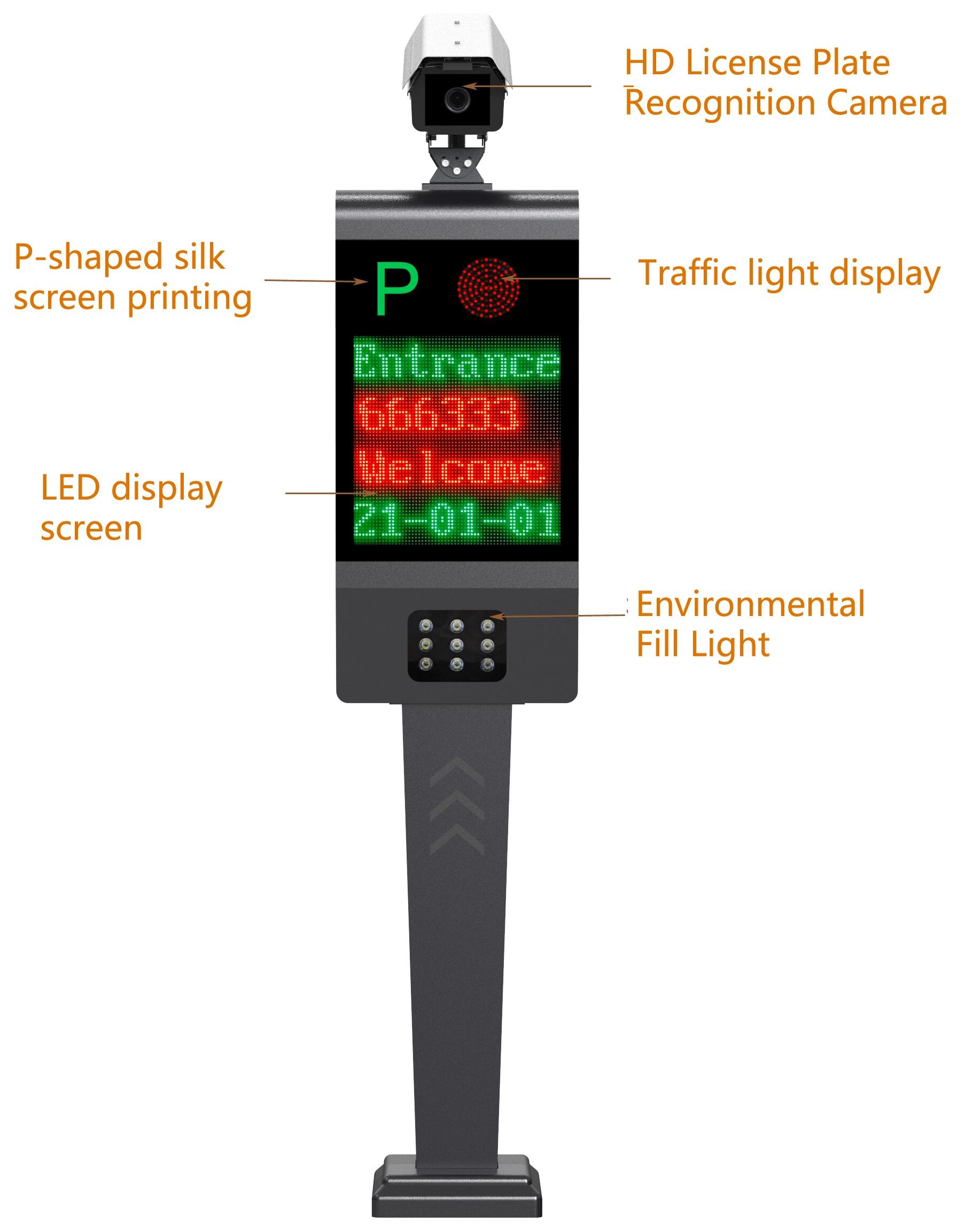

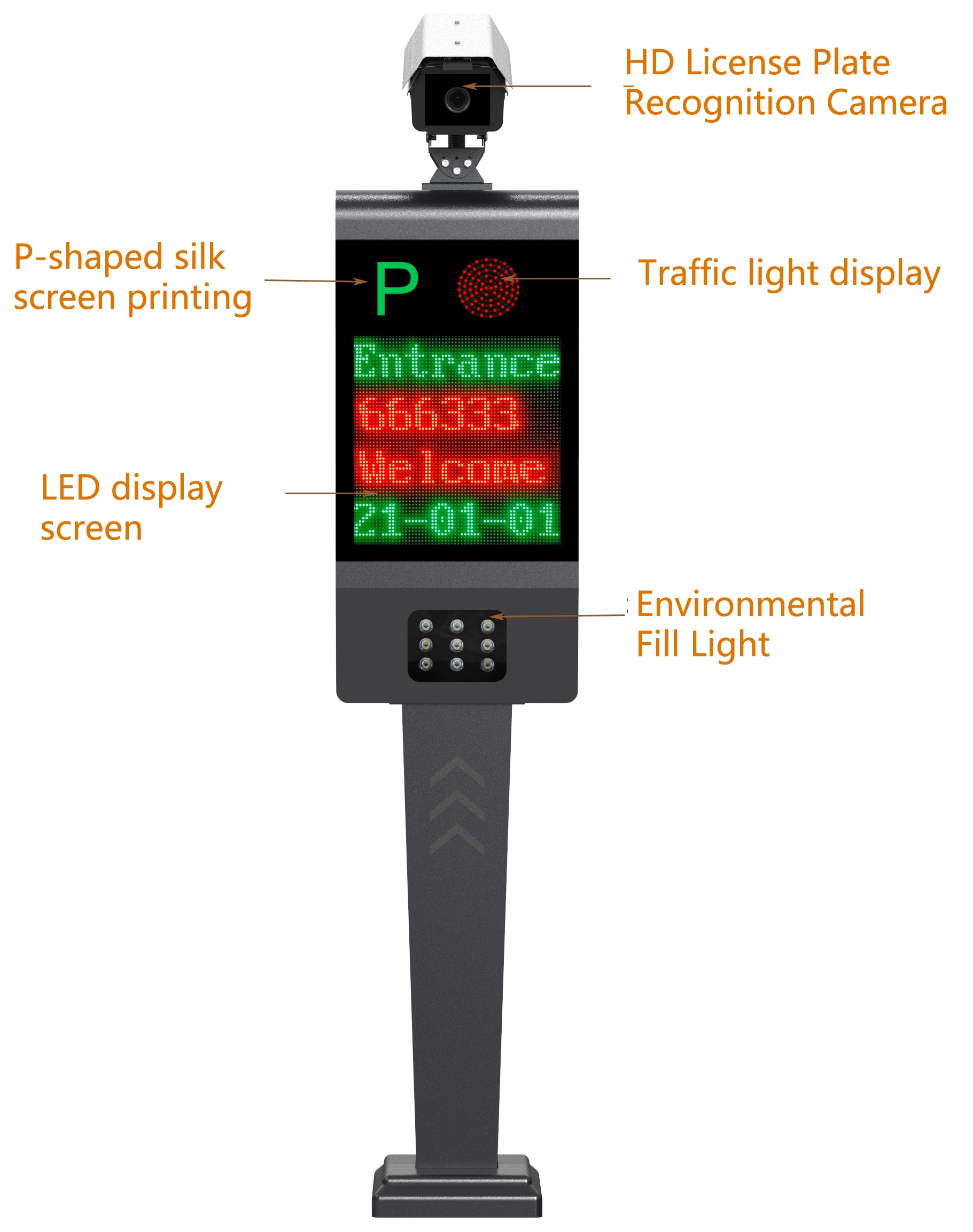

Structural Layout

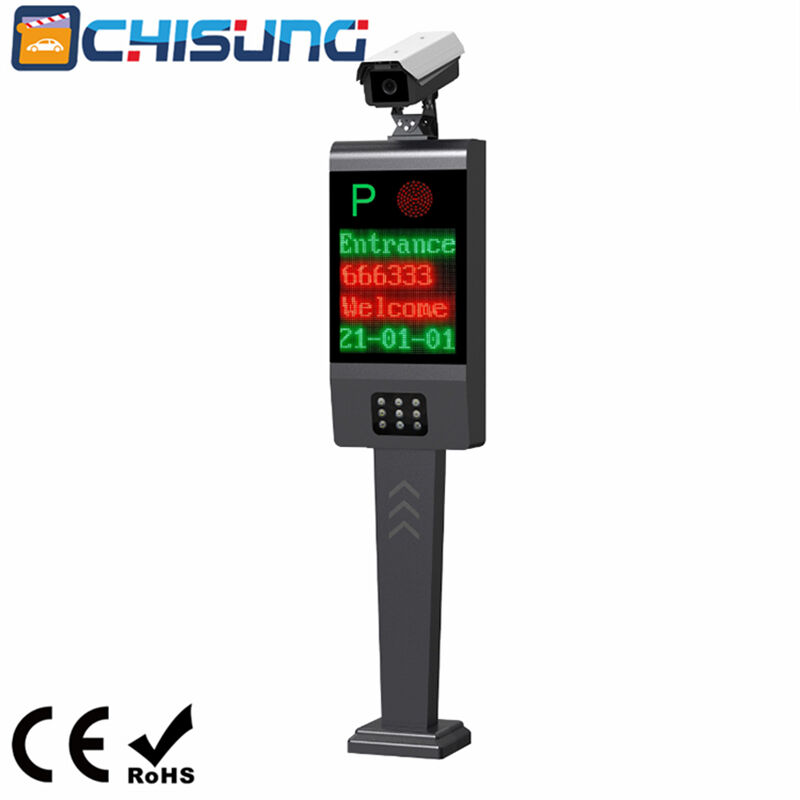

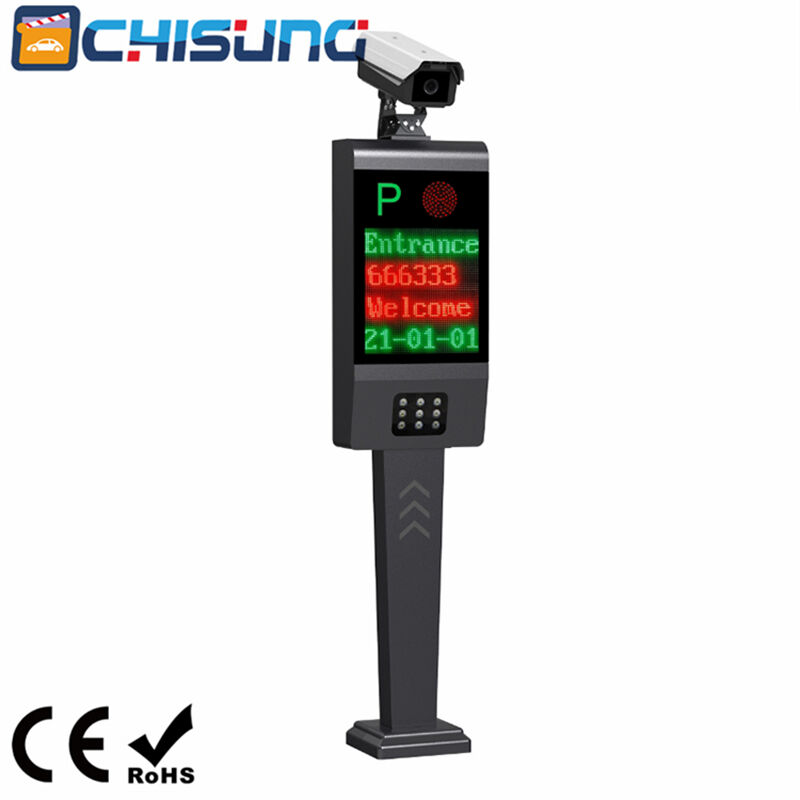

Product Photographs
 |
 |

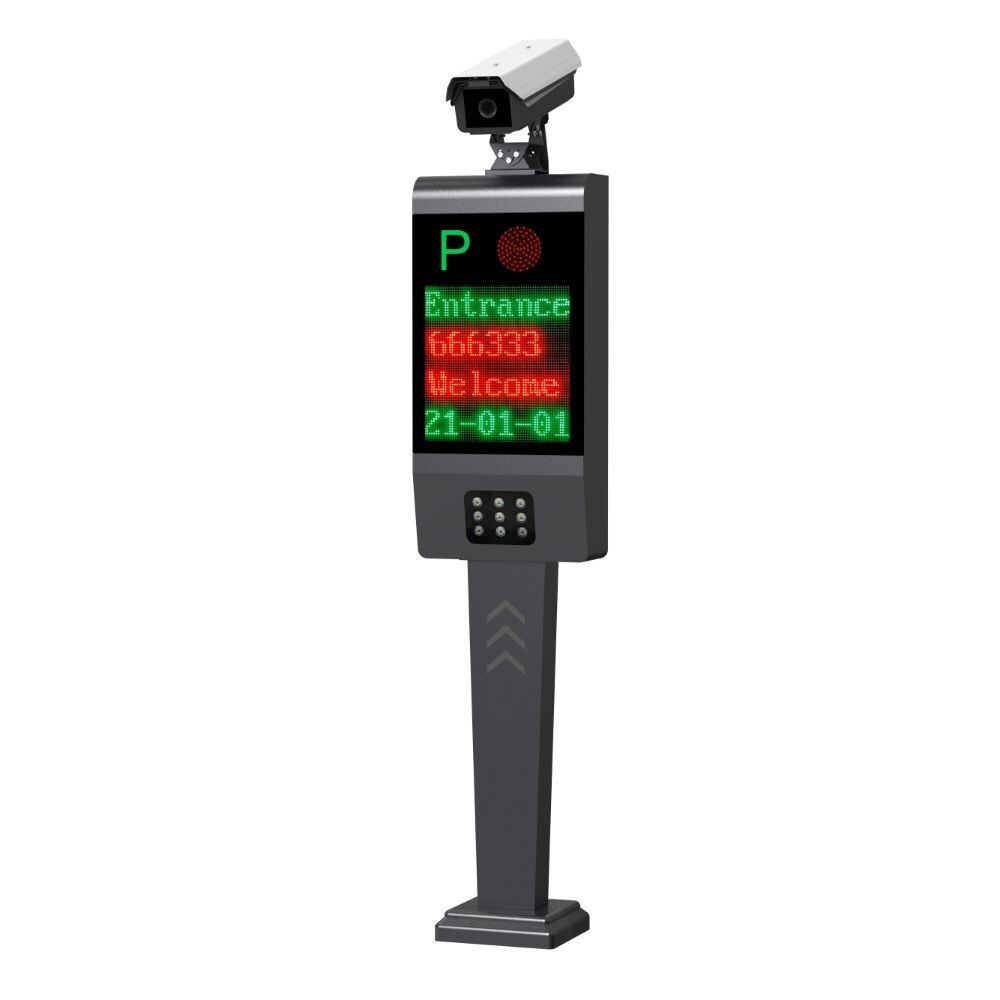

Side View |

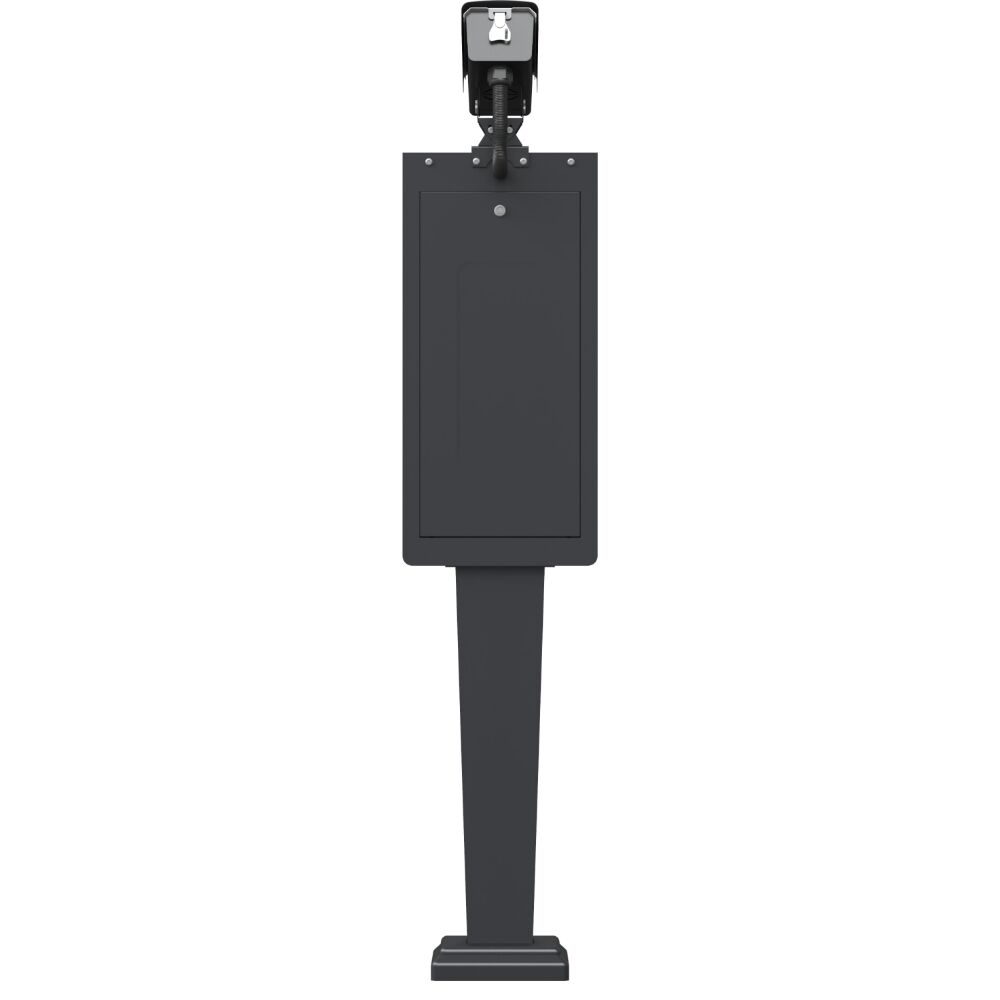

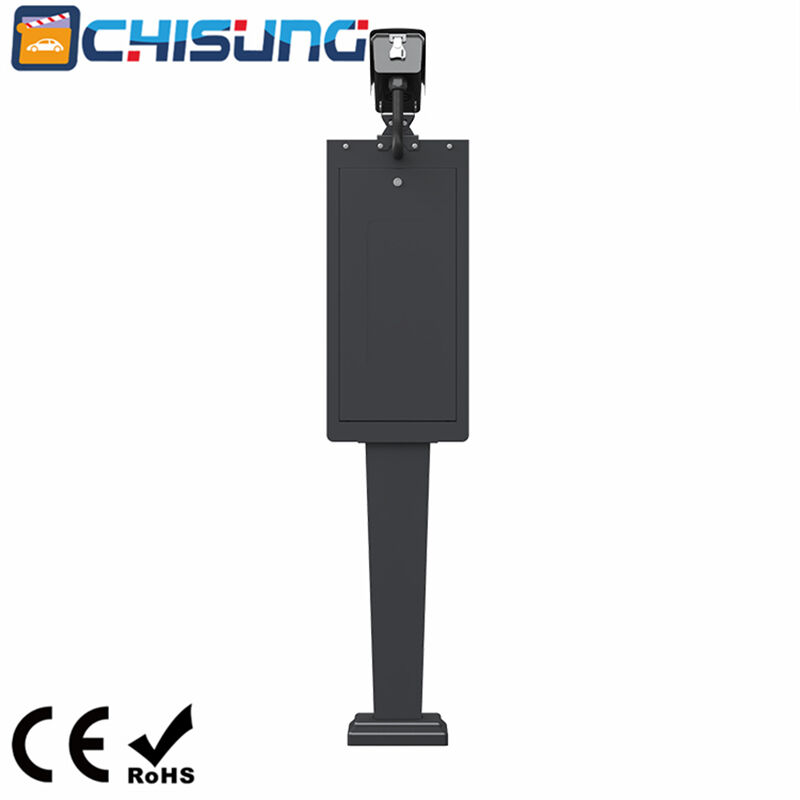

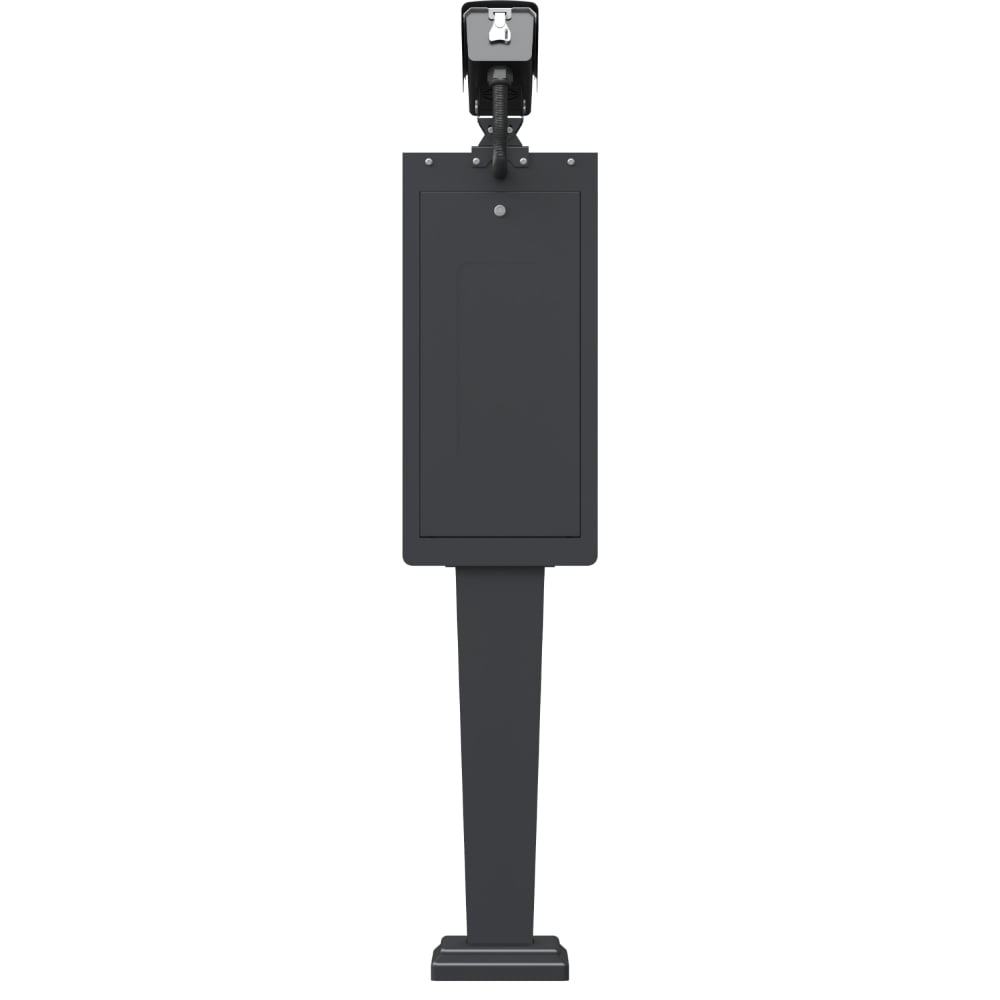

Rear View |
Product Features
●Excellent hardware architecture and stable license plate recognition algorithm, achieving a comprehensive recognition rate of over 99.8%.
●2 Megapixel starlight-level imaging with a dual-core processor for CNN acceleration.
●Intelligent imaging adjustment, automatically tracking and adapting to light changes, effectively handling challenging scenarios like backlight, frontlight, and ultra-low light. Fill lights are controlled based on image analysis algorithms for more precise illumination.
●Supports wide-angle recognition, expanding the range and adaptability of application scenarios.
●Video stream recognition ensures maximum recognition response speed and accuracy.
●The all-in-one machine adopts a dark color scheme for a more unified and coordinated appearance.
●Equipped with the T312 display module driver board.
●Features an upper red and lower green outdoor high-brightness display module with a 4-line display mode.
●Humanized voice broadcast allows for customizable volume levels and time periods.
●Software-controlled customization of fill light brightness levels and on/off time periods.
●Simple installation and commissioning requiring only one Ethernet cable, one power cable, and one gate opening cable.

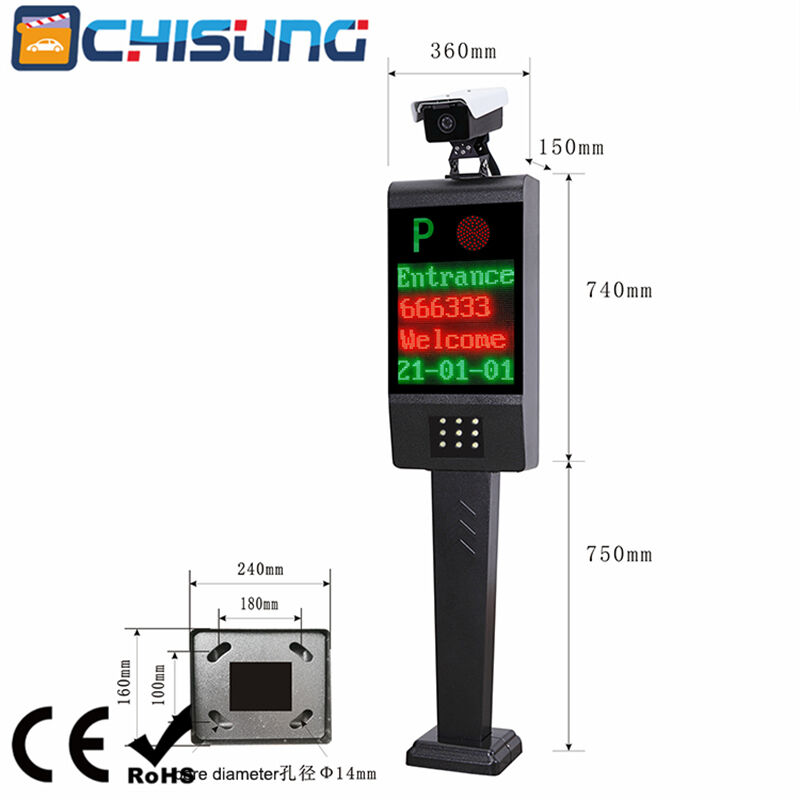

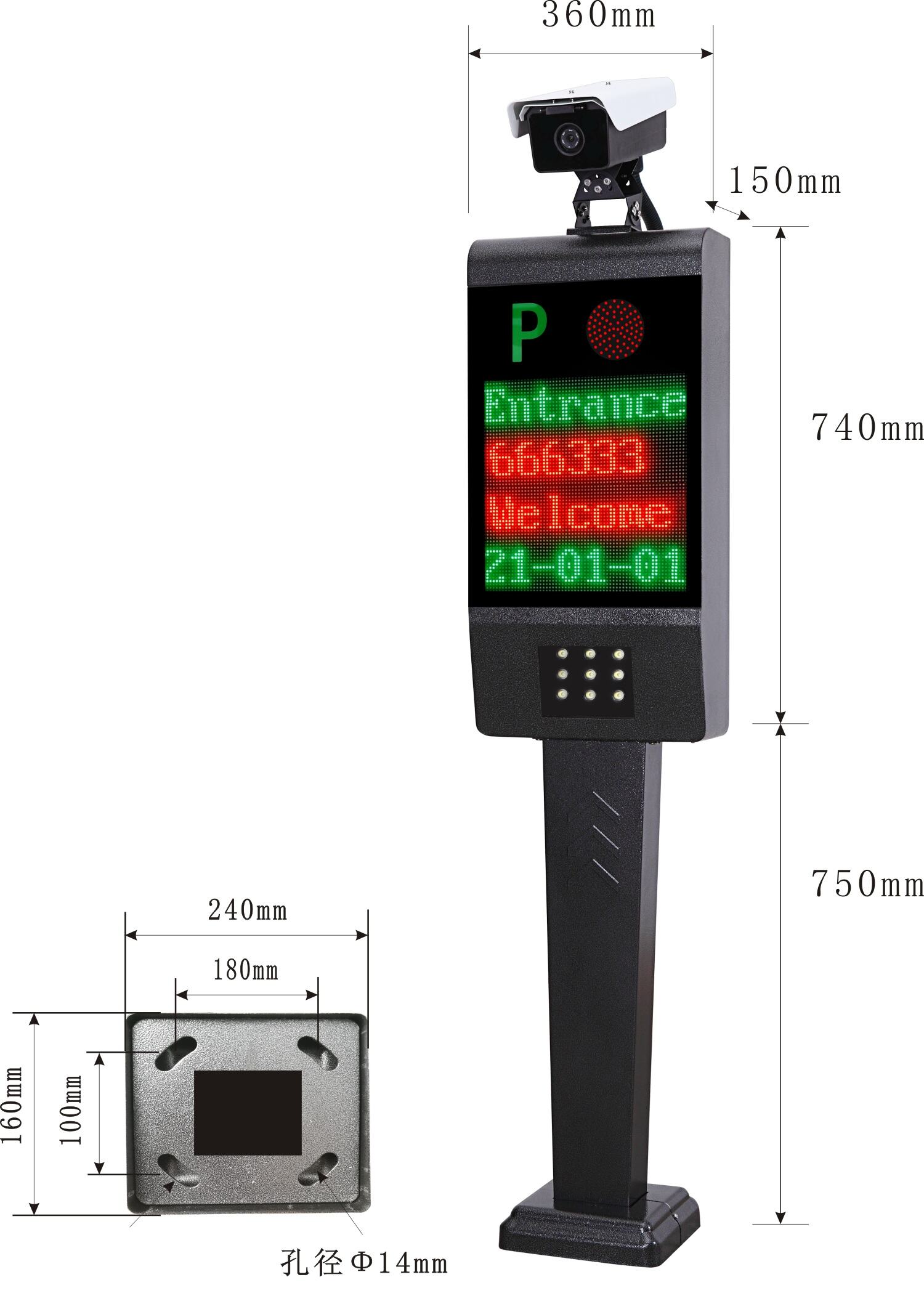

Dimensions and Mounting Hole Sizes
Applications:
Commercial Parking Lots: Enhance customer experience, reduce queues, and increase revenue.
Premium Residential Communities: 24/7 seamless entry for property owner vehicles, automatic alerts for strangers.
Urban Malls: Integrate with membership systems—license plate becomes a VIP ID for targeted promotions.
Highway Toll Gates: Dual recognition (ETC + license plate) eliminates missed payments, boosting efficiency by 40%.
Client Testimonials
"CSY1 transformed our airport’s entry system. The wide-angle recognition and multi-language support handle thousands of vehicles daily with zero downtime." — Munich Airport Logistics Team
"In our mall, CSY1 cut entry times by 50%. Customers love the instant feedback on the LED screen." — Shanghai Shopping Center Manager
CSY1: See Clearly, Recognize Instantly, Manage Effortlessly
Deploy CSY1 today and experience the future of vehicle entry—where every plate is recognized, every entry is smooth, and every operation is smarter.
Contact us now for a tailored solution!
Specifications:
| Basic Parameters | |
| Operating Voltage | AC220V±10% |
| Operating Temperature | -20℃ to +60℃ |
| Relative Humidity | ≤95% without condensation (at room temperature) |
| Rated Power | ≤60W |
| Communication Method | TCP/IP、RS485 |
| Display Type | 10.1-inch outdoor high-brightness LCD screen |
| Screen Resolution | 600*1024 |
| Enclosure Protection Class | IP54 |
| Material and Craftsmanship | High-strength carbon steel, sheet metal spraying |
| Dimensions | 360*150*1490mm (Height * Width * Depth, excluding external camera) |
| Camera Parameters | |
| CPU | dual-core 900MHz processor+CNN hardware acceleration engine (0.5Tops) |
| Image Sensor | 1/2.8" starlight-level CMOS |
| Max Resolution | 1920(H)×1080(V) |
| Lowest Illumination | 0.01Lux (Color) |
| ISP | intelligent ISP,scene-adaptive |
| Data Output | H265\H264\MJPEG\intelligent detection structured data output |
| Standard Confifiguration | Standard 6mm prime lens; |
| Comprehensive capturing recognition rate | Comprehensive capturing rate≥99.99%; comprehensive recognition rate≥90% |
| License Plate Recognition Regions | Poland, Germany, France, Brazil, Kenya, Ukraine, Indonesia, Vietnam, Denmark, Israel, Romania, Moldova, |
| Azerbaijan, Switzerland, Slovakia, Netherlands, Serbia, Uzbekistan, Turkey, Kyrgyzstan, Urkaine, Greatbritain, Italy, | |
| Croatia≥90% | |
| Monaco, Estonia, Czechrepublic, Portugal, Bulgaria, Luxembourg, Finland, Montenegro, Thailand, Slovenia, | |
| Hungary, Latvia, Russia, Kazakhstan, Lithuania, Norway, Belgium, Cyprus, Sweden, Georgia, Belarus, Spain≥95% | |
| Malaysia, Singapore, Taiwan, Hongkong≥98% | |
| License Plate Recognition Function | White list of license plates, intelligent calibration |
| Network Interface | 1-channel 10/100Mbps adaptive RJ45 |
| Other Interfaces | IO output: 2-channel, IO input: 4-channel, RS485: 1-channel |
| USB | 1 USB Type-A interface (optional 4G module) |
| TF Card Slot | 1l TF card slot, supporting 512G at maximum) |
| Service | Basic services, supporting various types of secondary development |
| Fill Light Parameters | |
| Number of LED Beads | 9 pieces |
| Maximum Power | 10W |
| Fill Light Control | Intelligent light sensitivity control, adjusts brightness based on ambient light intensity |
| Fill Light Distance | Illuminance greater than 50LUX at a distance of 5 meters |
| Adjustment Angle | Supported |
Competitive Advantage:
99.8%+ Recognition Rate: Stable algorithm + dual-core CNN acceleration ensures precise capture in complex light or high-speed scenarios.
All-Weather Adaptability: Intelligent light tracking auto-adjusts imaging and fill light, tackling backlight, glare, and ultra-low light effortlessly.
Wide-Angle Recognition: Expands coverage, reducing device count and investment costs for operators.
Ultra-Simple Installation: Just one Ethernet cable, one power cable, and one gate opening cable—30-minute setup cuts maintenance costs by 50%.
Humanized Interaction:
