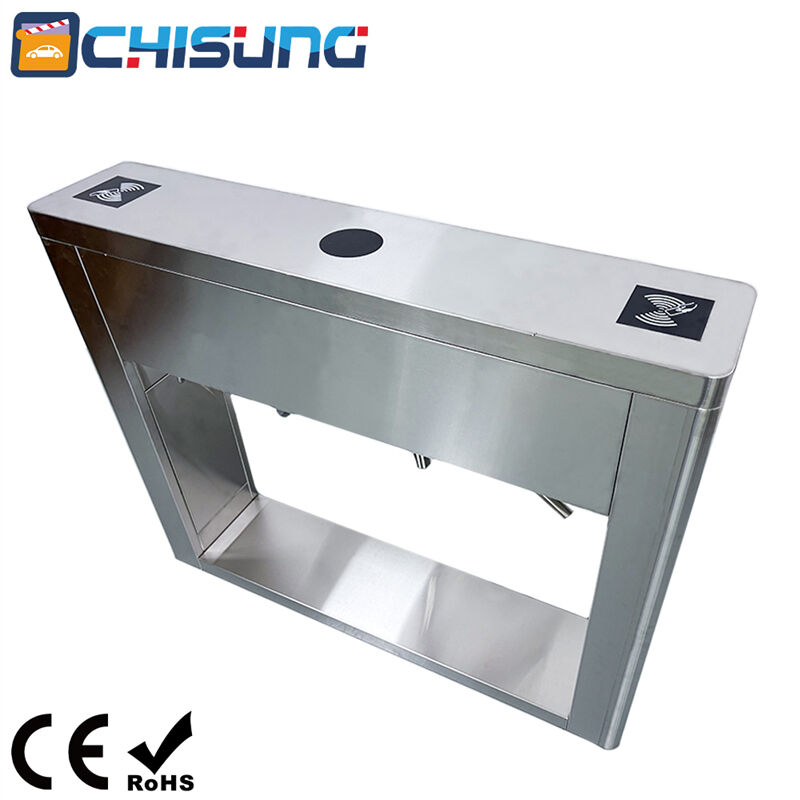

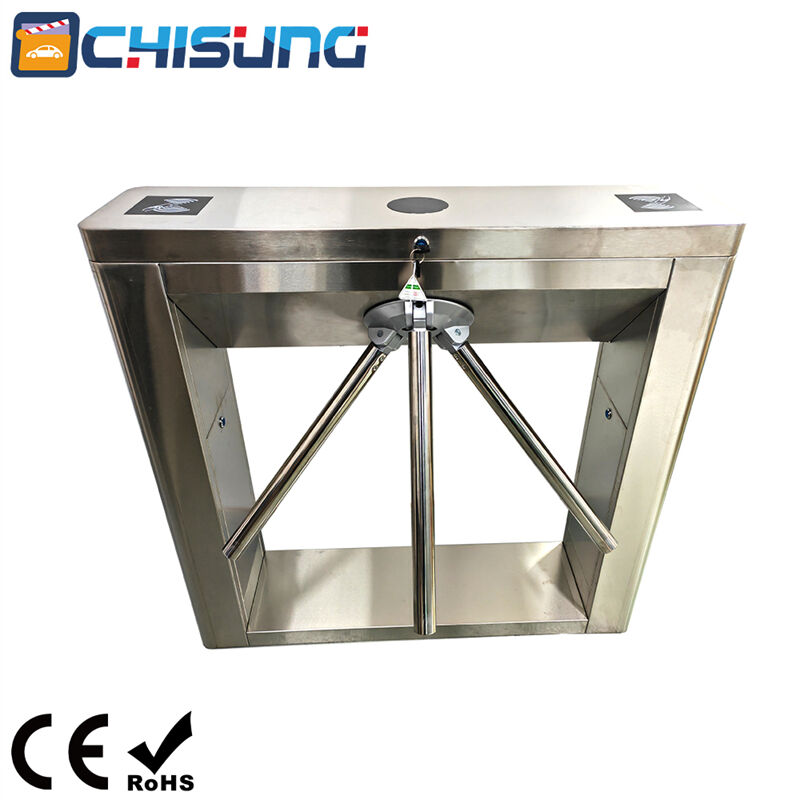

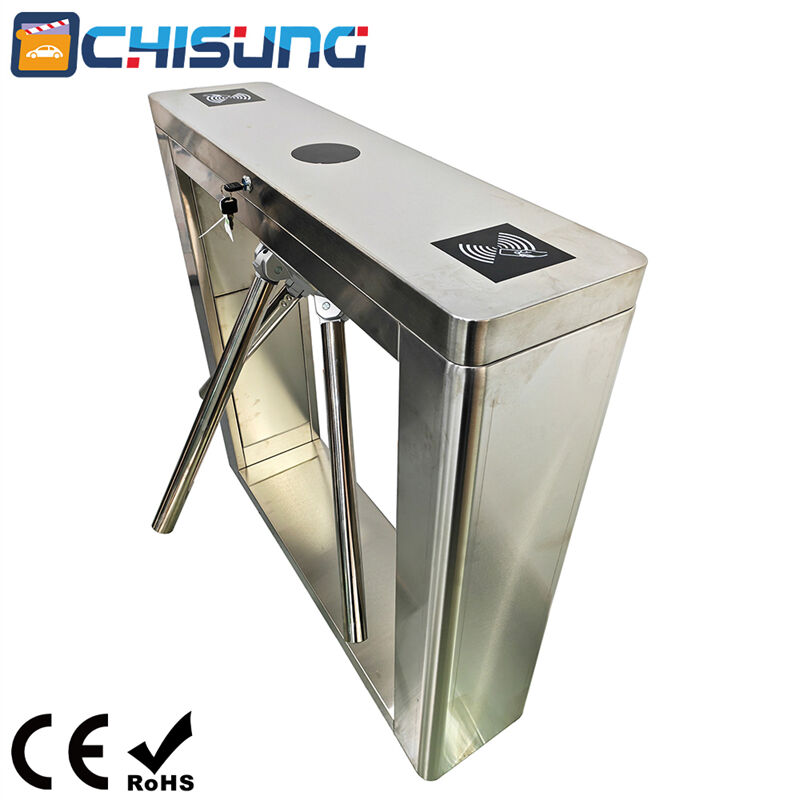

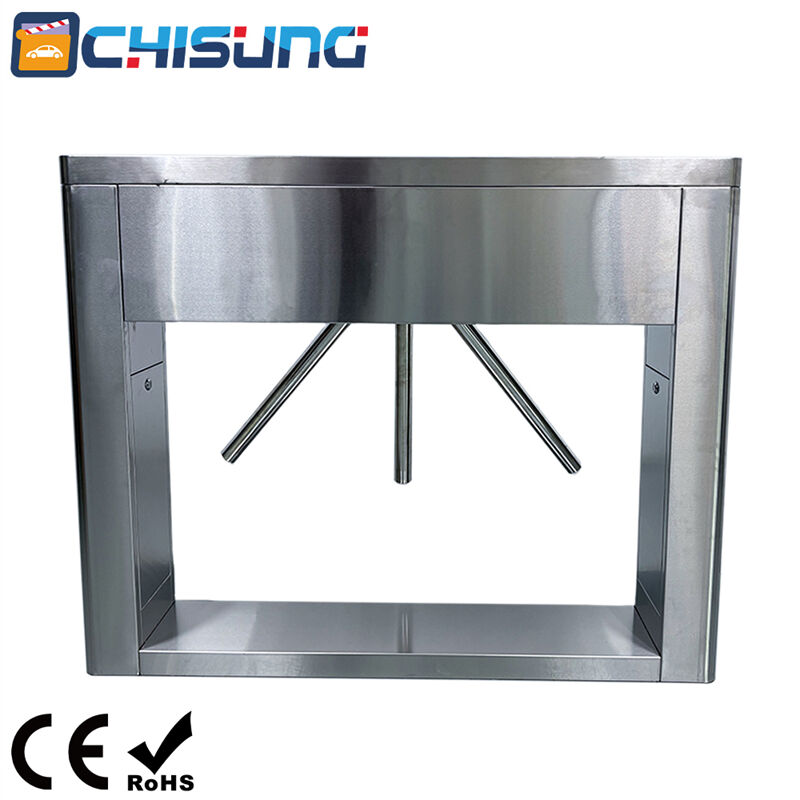

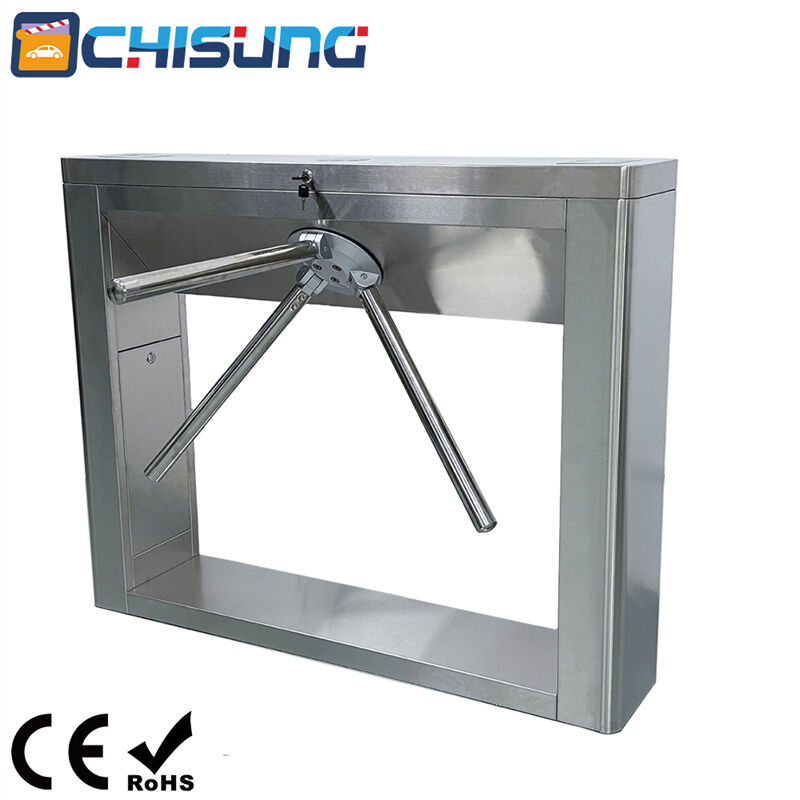

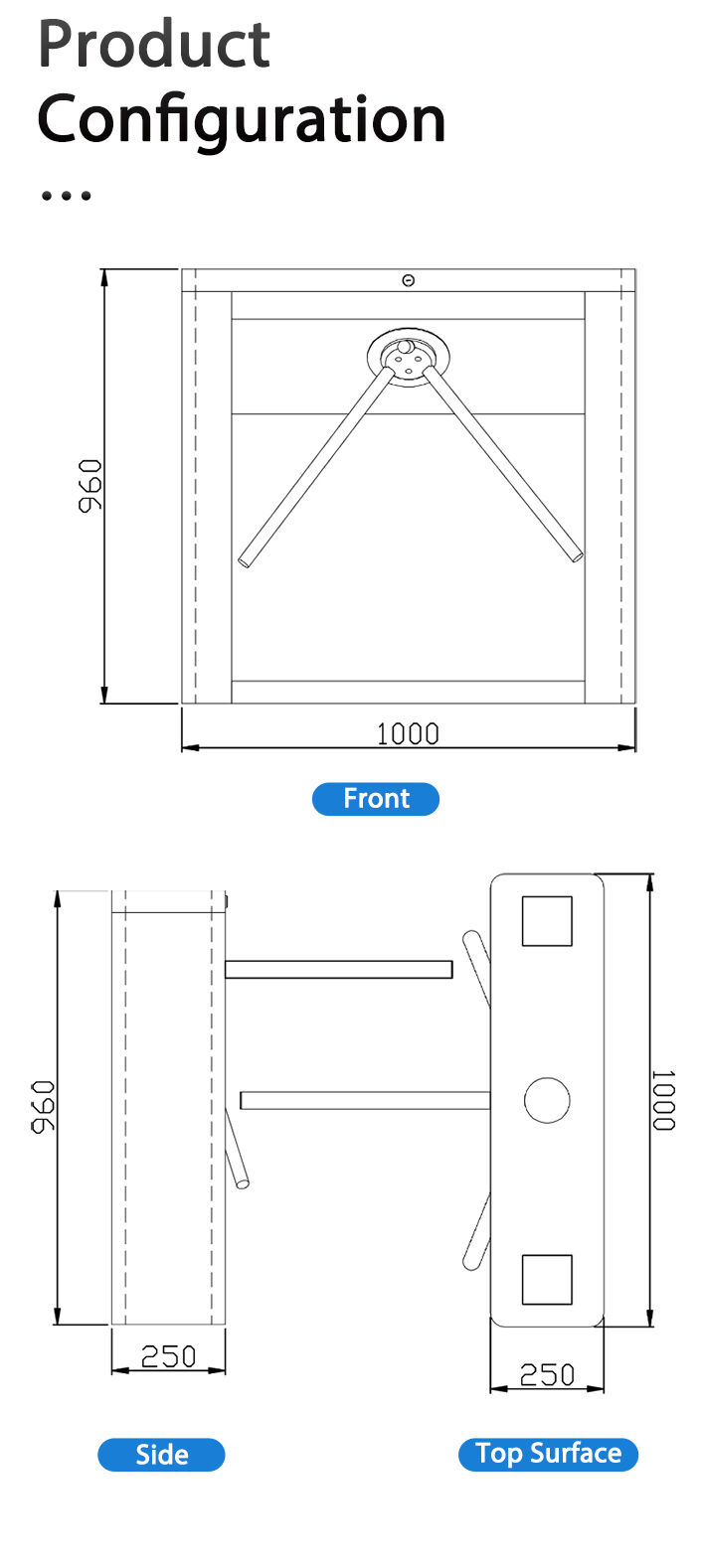

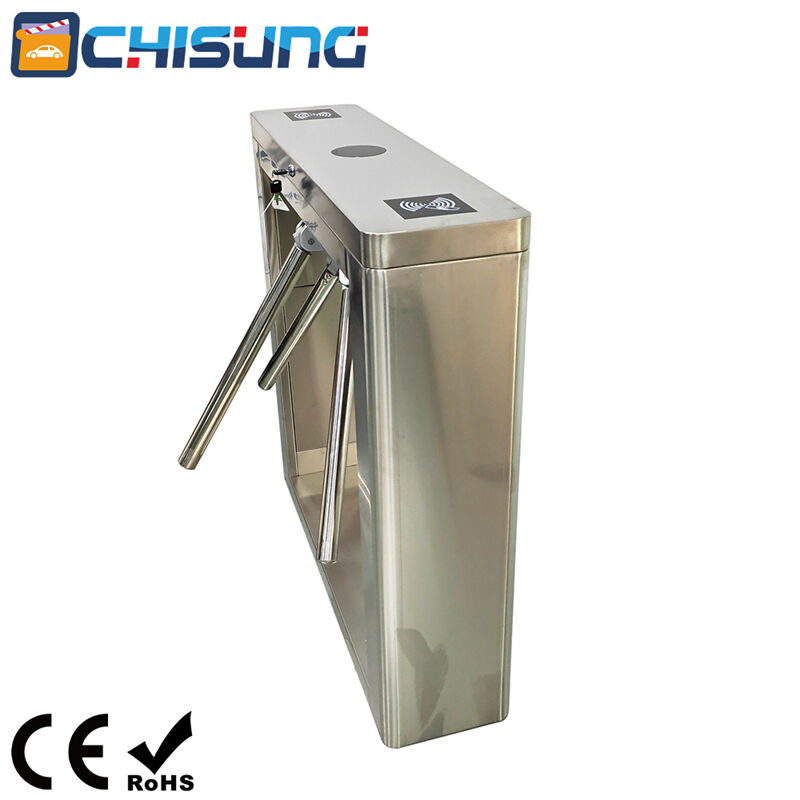

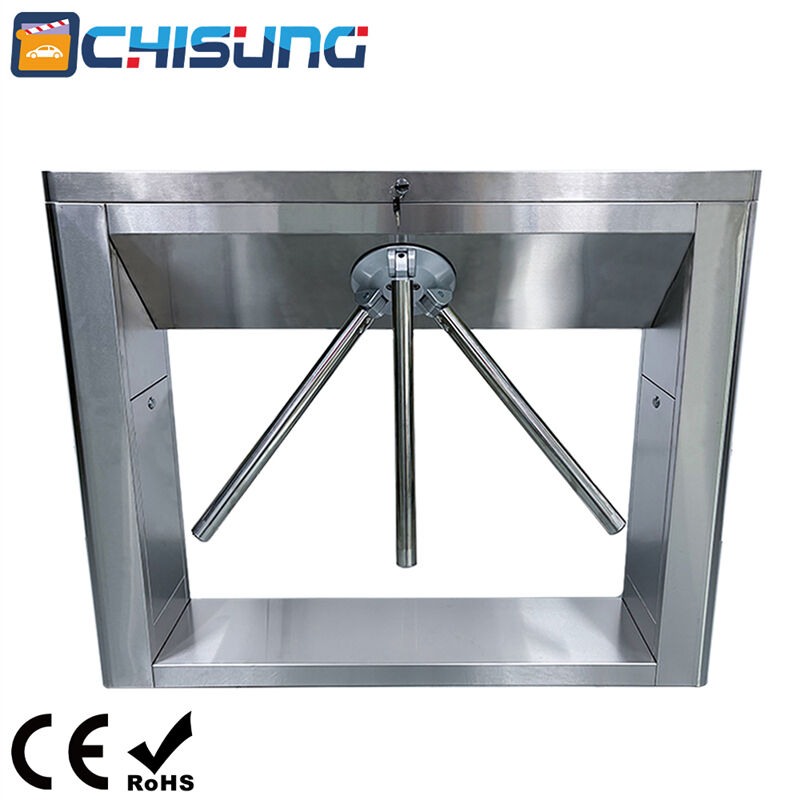

CSTSE011B Semi-Automatic Tripod Turnstile 1000mmL*250mmW*960mmH Customized Right Angle for Customers

Product Information:

Quick Detail:
Different names for products：
Tripod Turnstile
three-roller gate
Tripod Turnstile Series
Three-Arm Turnstile
Truncate Turnstile
Automatic Roller Turnstile
‌Three-barrier Turnstile
Three-roller Turnstile
Ticket-checking Tripod Gate
Scenic Spot Entry Barrier
Three-roll Gate Ticketing System
Three-roller Barrier Gate
Tri-roller Gate‌‌‌‌
This series of three-roller turnstiles adopts a modular design and production process, featuring precise photoelectric positioning, simplicity, reliability, durability, and silent operation. It can be seamlessly integrated with intelligent management systems such as access control systems, attendance systems, and parking lot systems. The design complies with fire safety standards and can be linked with fire emergency systems.

Description:
Features:

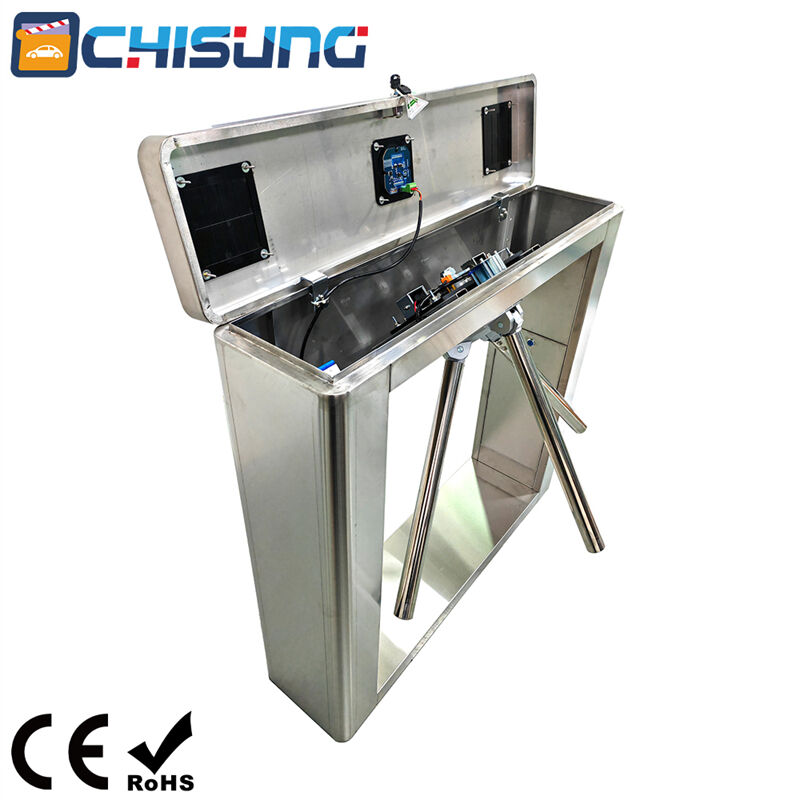

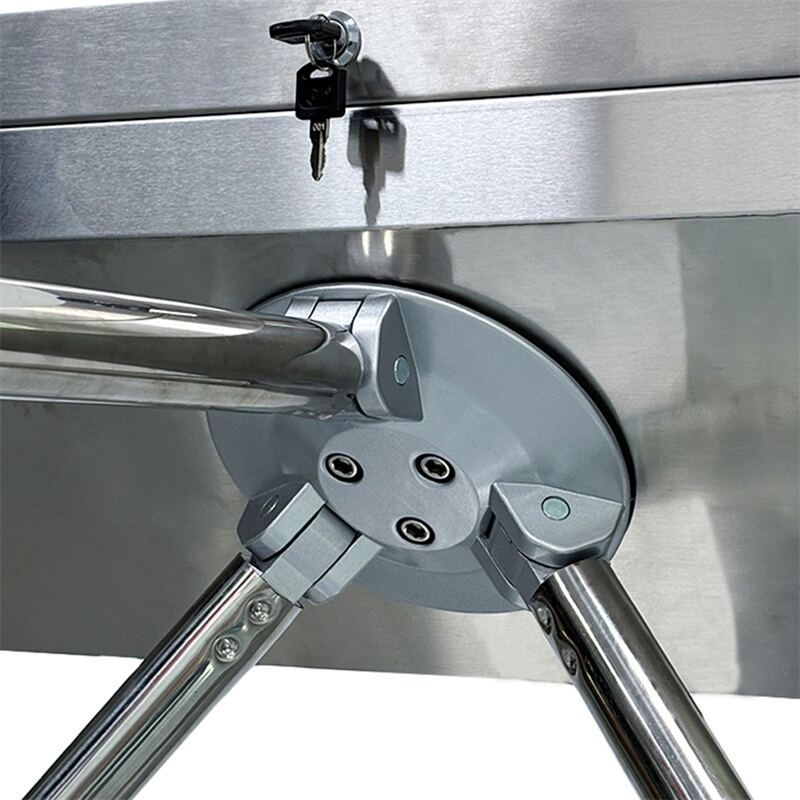

1. Mechatronic structural design, featuring a specially crafted turntable and a stable and reliable mechanical self-locking mechanism
2. It has bidirectional traffic function
3. If the gate is not passed through within 5 seconds after the gate-opening signal is given, it will automatically lock again
4. It features automatic rod lowering upon power loss, and manual rod raising is required to restore power (optional)
5. It can be externally connected to a bidirectional flow counter, which can display the number of people passing in each direction. When a person passes through, the corresponding counting port outputs a pulse width signal with a width of about 200. If no one passes through, there will be no output from the corresponding counting port for 200ms
6. Anti-reverse passage

Applications:
The tripod turnstile gate is primarily used for crowd control and access verification, commonly found in places such as stations, subways, tourist attractions, and factories. It enables authorized access through integration with access control and attendance systems, supporting both single-direction and bi-directional passage modes. Additionally, it is suitable for venues requiring authorized entry, such as factory attendance systems, canteen consumption areas, golf courses, monthly card recreational centers, and units requiring stringent security measures, such as anti-static control zones in electronic factories.

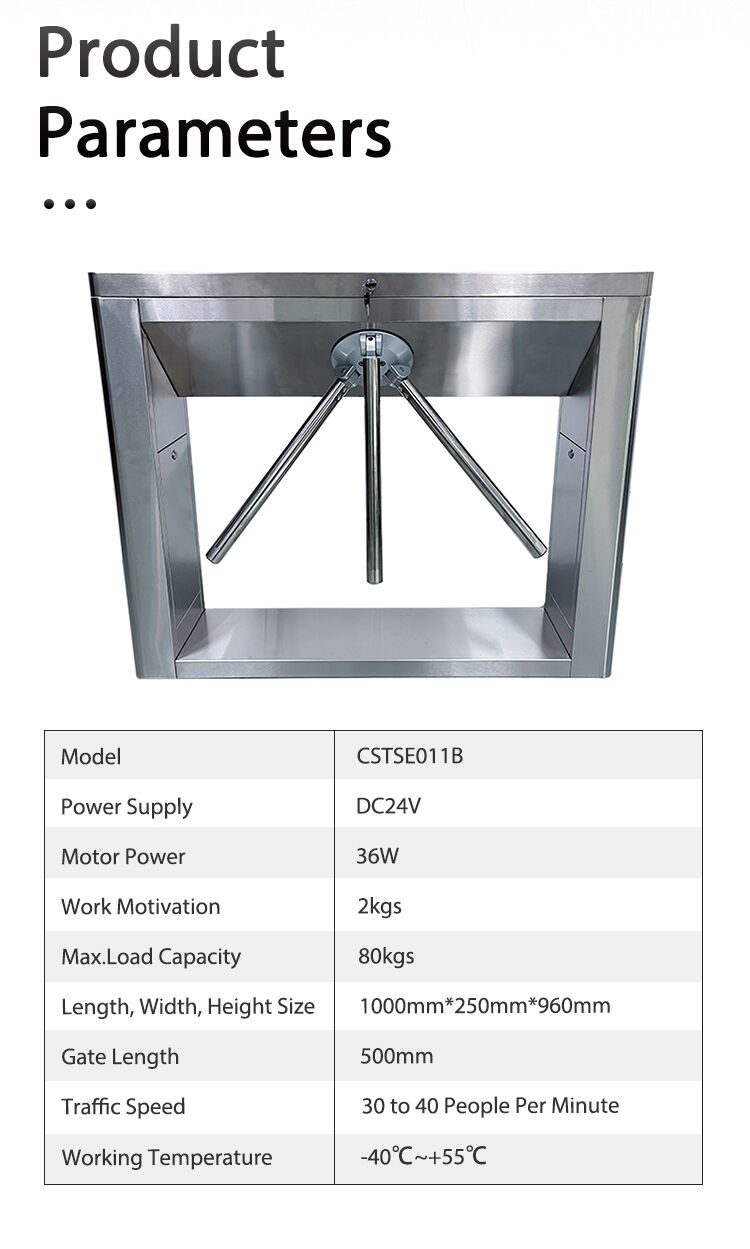

Specifications:

Competitive Advantage:

Cost and Structural Advantages
Cost-effective‌: Key components are sourced domestically, reducing both initial purchase and maintenance costs compared to wing gates or swing gates, without the need for additional anti-tailgating modules.
Anti-tailgating design‌: The precise spacing between the three rods, combined with a mechanical locking mechanism, physically prevents tailgating, eliminating the need for extra equipment.


Operational and Maintenance Advantages
Easy installation‌: Standardized interfaces allow for quick setup by general technicians without specialized training, featuring simple wiring and a fully Chinese-language software interface.
Low maintenance‌: With a low failure rate of core components and a self-checking function for rapid troubleshooting, the simple and clean design ensures intuitive user guidance, requiring no learning process for first-time users.

Functional and Adaptability Advantages
Stable operation‌: Smooth and quiet performance, with automatic drop-bar on power-off and lift-bar on power-on, along with time and self-protection functions.
Flexible integration‌: Supports standalone operation or wireless communication with intelligent management systems, allowing for scalable channel quantities tailored to various settings such as shopping malls, construction sites, and office buildings.
These advantages make CHISUNG tripod turnstiles a reliable and efficient solution for access control needs.

Tag:CSTSE011B
