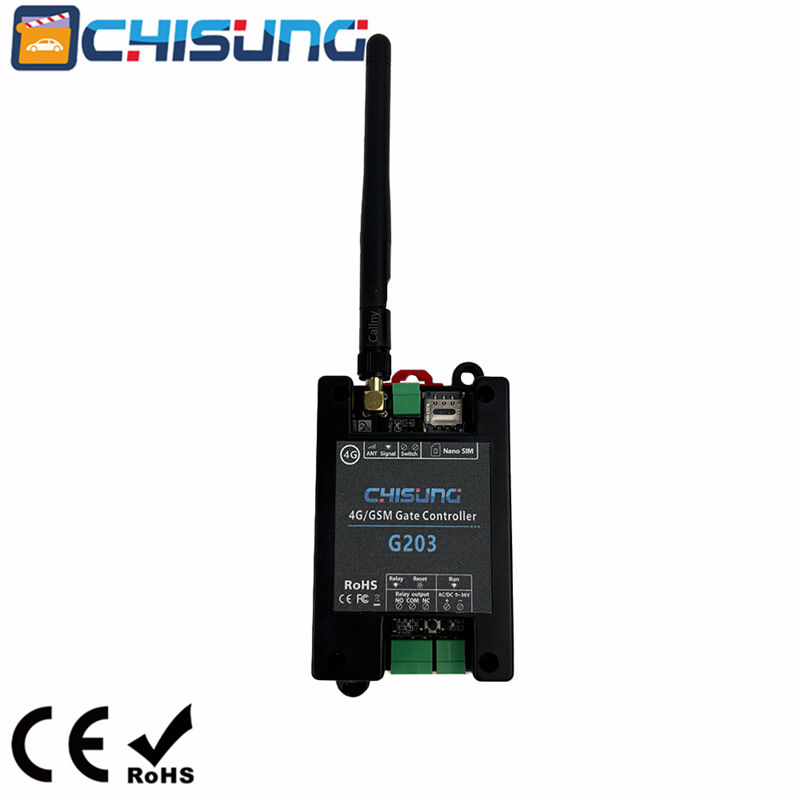

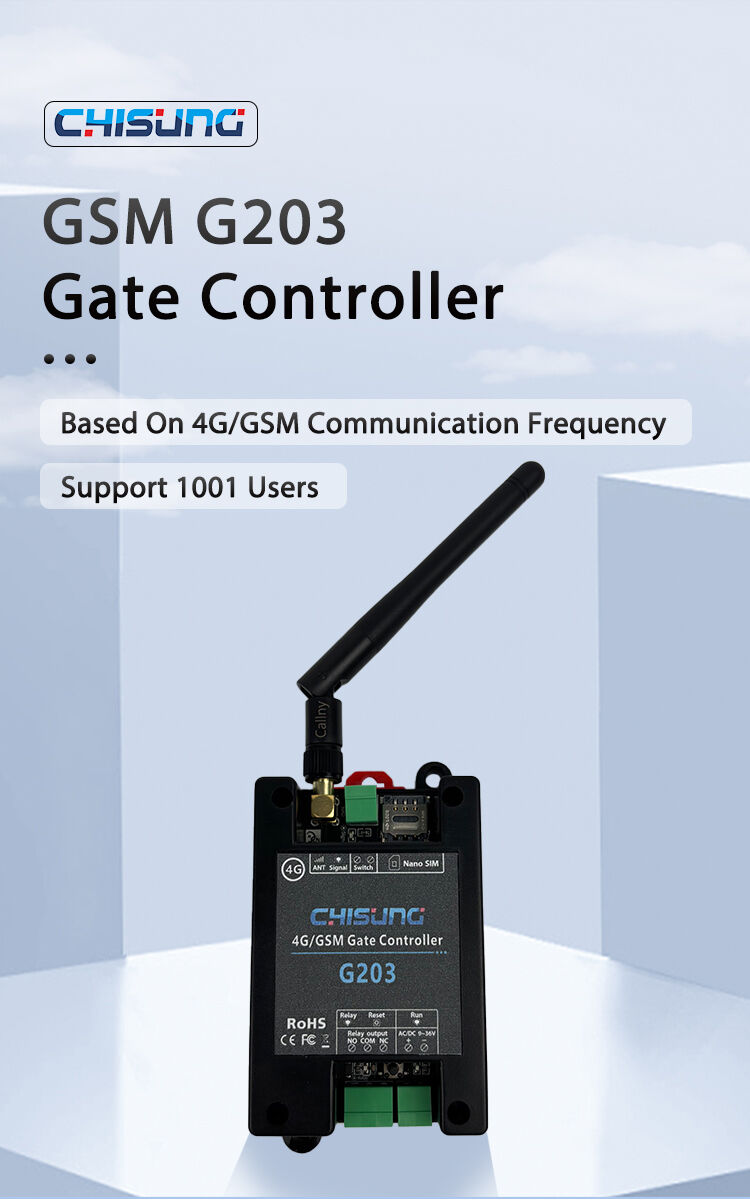

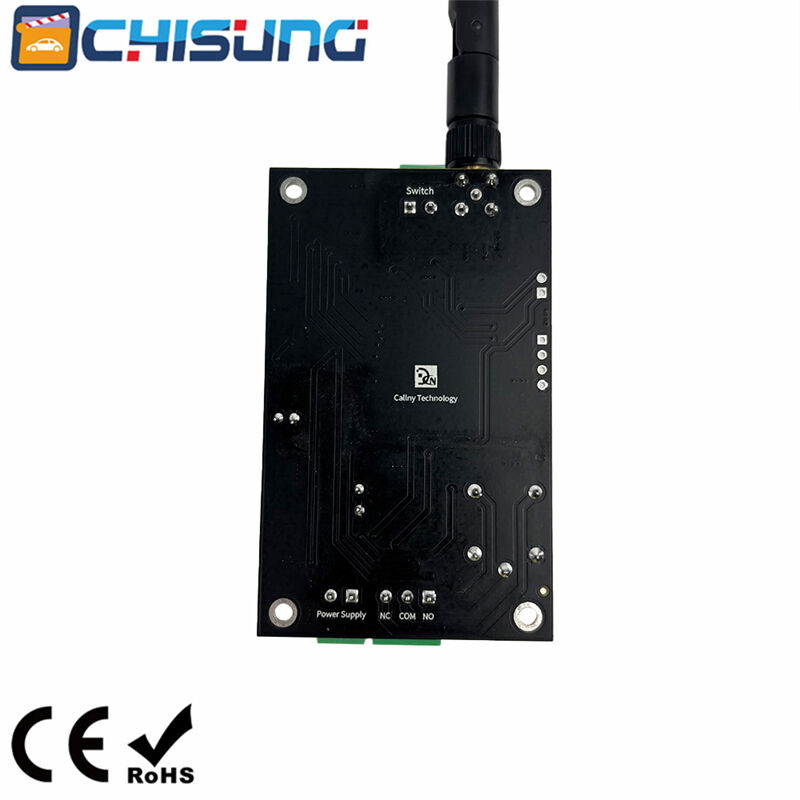

G203 2G/4G GSM Gate Controller Door Opener Signal Sender Remote Relay Access Control Unit Switch
- Overview
- Recommended Products
Product information:
| Place of Origin | China,Shenzhen |
| Brand Name | CHISUNG |
| Model Number | CSDZ211 |
| Certification | CE |
| Place of Origin | China,Shenzhen |
| Brand Name | CHISUNG |
| Model Number | G203 |
| Certification | CE |
| Minimum Order Quantity | 1unit |
| Price |
2G,12.98USD 4G,30USD |
| Packaging Details | Carton/Wooden,According to customer requirements |
| Delivery Time | 7-15days |
| Payment Terms | L/C ; T/T ; MoneyGram |
| Supply Ability | 3000units/Month |
Quick Detail:
GSM Relay
GSM Gate Opener
GSM Gate Controller
GSM Relay Control
GSM Remote Control
GSM Relay Switch
GSM Door Opener
GSM Door Controller
GSM Access Controller
GSM Access Control Unit
GSM Remote Switch
GSM Access Control Relay
GSM 3G 4G Gate Opener
GSM 3G 4G Cellular Gate Opener
GSM 3G 4G Gate Receiver
GSM 3G 4G Signal Sender
GSM 3G 4G Single Switch
Based on GSM/3G/4G communication protocol, supports 999 authorized users. Authorized users can remotely control the equipment, systems and machines connected to the product by SMS commands & free calling. It is widely used in access control systems, garage doors, swing doors ,folding doors,sliding doors, parking system and the equipments that can be connected to the relay control , the G203 gate controller will send a notification (via SMS) to the user of the result of the remote control (such as the opening and closing status of the gate).
Most of the similar products on market use the second-hand communication modules on PCB board (such as the G202 gate opener, WH-120 gate opener, and WH-120 PRO gate opener, etc. they all use the second-hand communication modules), the second-hand communication modules will cause the device can not work normally ,sometimes caused big loss for property and potential security risk .for example communication off suddenly, commands can does not work, power chip burned, device crashes,etc
Our company's G203 gate controller use new components and applications to give customers a more stable and smooth operating experience in terms of hardware and software.
Description:
Opening a door has never been easier – simply make an inbound call or send a text message! This feature, coupled with support for a large number of users, makes it ideal for access control or electronic locks on warehouse doors and similar opening devices, enabling efficient multi-person management and control.
Key features include:
High User Capacity: Supports adding up to 999 user numbers.
Flexible Relay Configuration: Supports 1 relay input and 1 output.
Enhanced Security: Multi-level authorization protection ensures only authorized personnel can access.
Adjustable Relay Delay: Delay time can be set from 0 to 9999 seconds, catering to diverse operational needs.
Alarm Function: Supports an alarm function (can be disabled as needed) for added security.
SMS Feedback: Supports SMS return (can be disabled) for up to 3 users, providing real-time operation feedback.
Open Access Options: Allows enabling toll-free call and SMS access functions for unauthorized phone numbers, offering flexible access control.
User Permission Management: One-click modification of user permissions without the need for resetting, simplifying administration.
Customizable Passwords: Password length ranges from 4 to 12 characters, allowing users to set secure and memorable passwords.
Professional Phone APP: Comes with a dedicated phone app for intuitive and efficient device management.
Choose our G203 Gate Controller for a reliable, feature-rich, and user-friendly remote access control solution that guarantees peace of mind and operational excellence!
Applications:
Application Scenario: G203 GSM Gate Controller -Empowering Secure & Smart Access Control
In today’s fast-paced industrial and commercial environments, managing access to warehouses, parking lots, and facilities with multiple entry points (such as garage doors, swing doors, folding doors, or sliding doors) requires a solution that balances security, scalability, and ease of use. The G203 GSM Gate Controller emerges as the ideal choice, leveraging advanced GSM/3G/4G communication protocols to revolutionize remote access control.
Warehouses & Logistics Centers: Secure access for employees, vehicles, and deliveries while maintaining audit trails.
Commercial Parking Lots: Enable remote entry for tenants, visitors, or valet services via SMS/call.
Industrial Facilities: Control swing/folding doors for machinery access or emergency exits.
Residential Complexes: Manage community gates with multi-user permissions and real-time alerts.

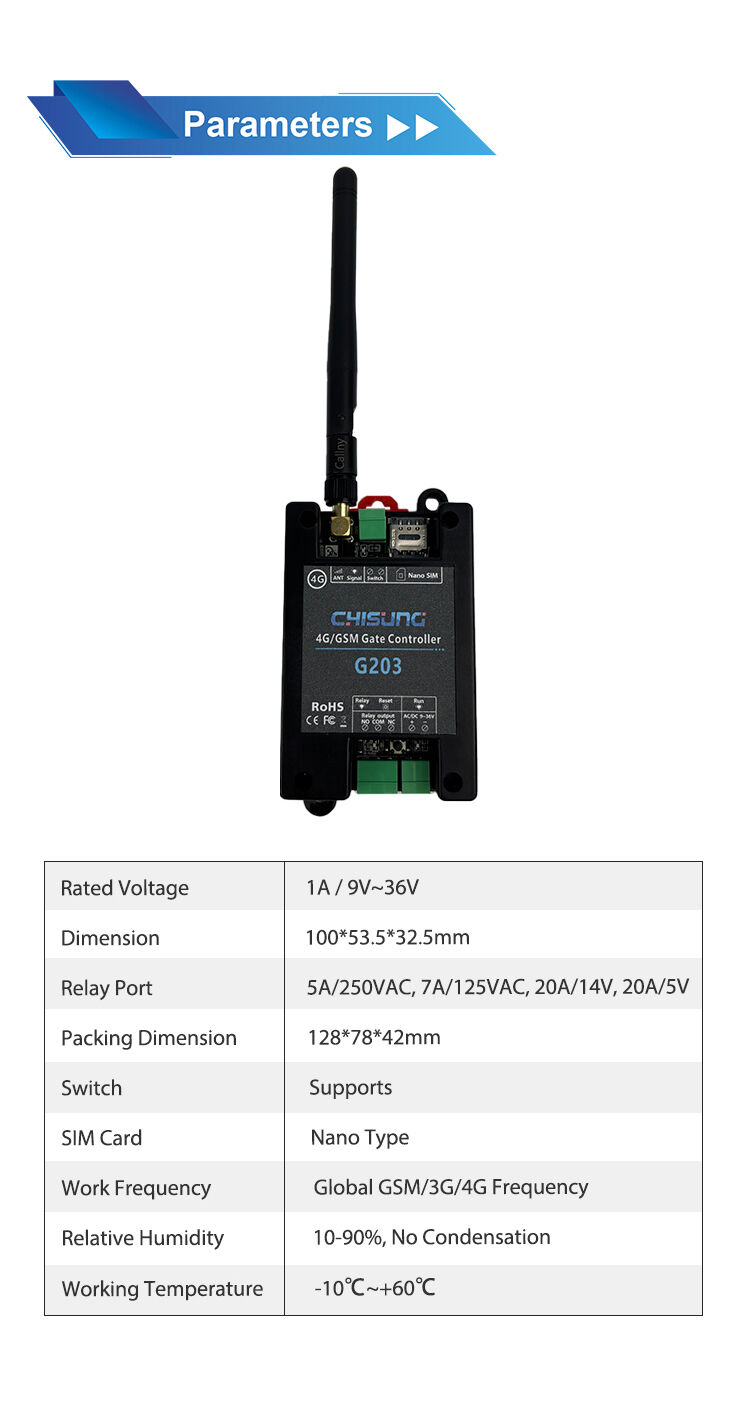

Specifications:
| Model | G203 | |
| Type | Switch controller (relay signal) | |
| Add users number | 1000 users | |
| Control distance | no distance limited | |
| Version | 2G | 4G |
| Rated Voltage | AC/DC 9V~36V/1A | |
| Contact Capacity | 5 Amps at 250VAC Cosφ=1. 20 Amps at 14VDC | |
| SIM Card | Nano type,3V | |
| Antenna | 50Ω SMA Interface,Short antenna | 50Ω SMA Interface,Rotatable antenna |
| GSM frequency | 850Mhz,900Mhz,1800Mhz,1900Mhz | FDD:B1/B2/B3/B4/B5/B7/B8/ B12/B13/B17/B18/B19/B20/B 25/B26/B28/B66 |
| TDD: B38/B40/B41 | ||
| Add users number | 999 users | |
| Relay input(DI) | no input;1 output(NO COM NC),3A/240V AC | |
| Relay Output(DO) | ||
| Alarm function(can be closed) | yes,3 user | |
| Wired Switch | yes | |
| Free calling | yes | |
| SMS remote control | yes | |
| SMS return( can be closed) | yes | |
| Professional APP | yes | |
| Control the closing time of the relay | yes | |
| Time-limited access Settings | 0~9999s | |
| Enable unauthorized phone number free calling access function | yes | |
Competitive Advantage:
Why Choose G203?
Unlike conventional gate controllers that rely on outdated or second-hand communication modules (such as those found in the G202, WH-120, or WH-120 PRO models), the G203 is built with brand-new, high-quality components.
This ensures:
Unmatched Stability: Eliminates risks of communication failures, command delays, or device crashes.
Enhanced Security: Prevents unauthorized access due to module malfunctions, protecting property and personnel.
Seamless Integration: Works flawlessly with relay-controlled systems, including access control panels, parking barriers, and automated doors.
Why G203 Outperforms Competitors
Avoids legacy module pitfalls: Unlike cheaper alternatives using recycled components, the G203’s new hardware prevents communication dropouts, power failures, or security breaches.
Future-proof design: Adapts to evolving access control needs with scalable user management and software updates.
Cost-effective security: Reduces risks of property damage or operational downtime caused by unreliable systems.
Conclusion
The G203 GSM Gate Controller transforms access control from a reactive process into a proactive, smart system. By combining cutting-edge communication technology, robust security features, and intuitive management tools, it delivers peace of mind for businesses prioritizing safety, efficiency, and scalability.
Open the future of access control—with a call or a text.
Tag:G203
