CHISUNG CSSGO-330K Ultra Heavy Duty Automatic Swing Gate Opener Kit | Max 500kg 4m Single Leaf DC24V Industrial Swing Gate Motor for Large Commercial & Luxury Villa Gates
Industrial Ultra-Heavy DC24V Swing Gate Opener Kit, max 4m width & 500kg single leaf. Die-cast aluminum housing, reinforced steel worm gear & pure copper motor, dual-clutch emergency release. Solar compatible, low noise, anti-obstacle auto reverse, multi-control modes for large villa, factory & commercial swing gates.
- Overview
- Recommended Products
Product Information
| Place of Origin: | China |
| Brand Name: | CHISUNG |
| Model Number: | CSSGO-230K |
| Certification: | CE |
Product Commercial Terms
| Minimum Order Quantity: | 1 |
| Price: | Consult us |
| Packaging Details: | carton |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000sets/Month |
Quick Detail:
Swing gate opener
Automatic swing gate opener
Arm-type gate operator
Surface-mounted swing operator
Underground swing operator
Dual swing gate operator
Swinging gate operator
Articulated arm gate operator
Electromechanical swing gate actuator
Remote-controlled swing gate opener
Swing gate motor
Low-energy swing gate operator
Powered swing gate operator
Linkage-type gate operator
Residential swing gate opener
Smart swing gate opener
Commercial-duty swing gate operator
Solar-powered swing gate opener
Push Rod gate opener
Linear Actuator gate opener
Pusher Type gate opener
Gate Motor for Swing Gates
Auto Gate Opener
Electric Gate Operator
Commercial Gate Opener
Ram Arm Swing Gate Opener
Single Swing Gate Opener
Outdoor Gate Opener
Heavy Duty Swing Gate Opener
Heavy Duty Swing Gate Operator
Industrial Swing Gate Motor
Heavy Duty Electric Gate Operator
Electric Swing Gate Motor
heavy swing gate opener, 500kg gate motor, 4m wide swing gate operator, commercial villa gate opener, DC24V industrial swing gate motor
CSSGO-330K Heavy Swing Gate Opener | 500kg 4m DC24V Automatic Gate Motor with Dual-Clutch & Reinforced Steel Gear

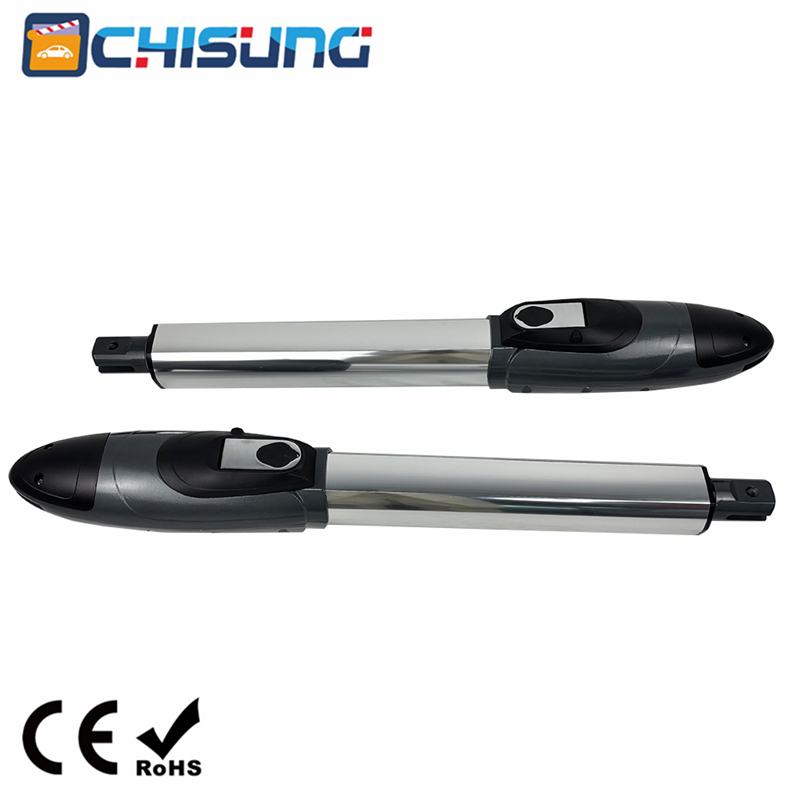

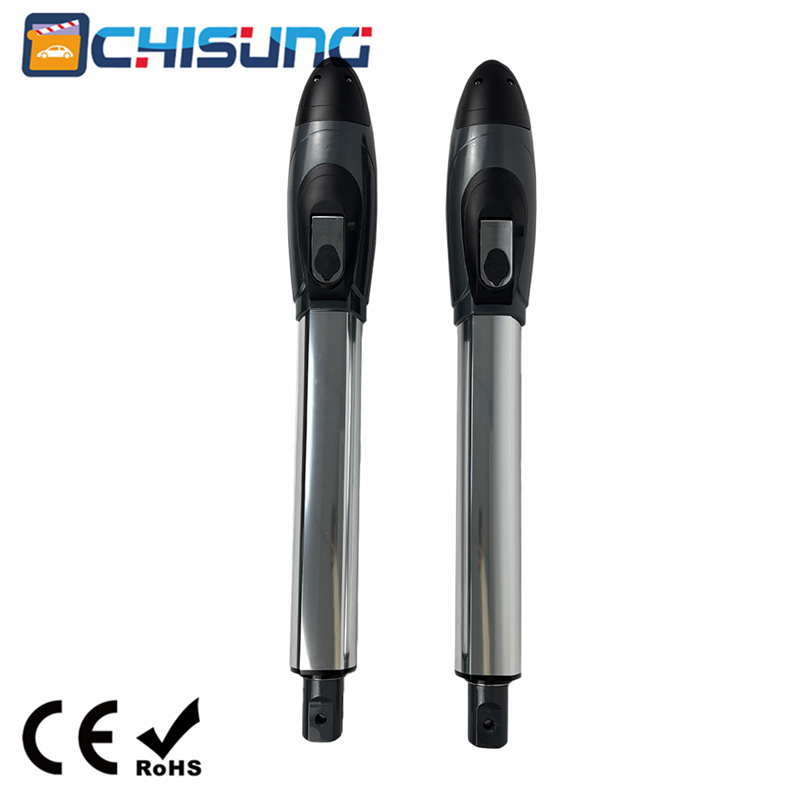

The CHISUNG CSSGO-330K is our top-tier ultra-heavy load swing gate automation, engineered for oversized, super-heavy dual swing gates up to 4 meters wide and 500kg per leaf. Equipped with a powerful 100W DC24V pure copper motor and reinforced steel turbine worm gear, this industrial gate opener delivers stable long-term operation for luxury villas, factories, construction sites, schools and large commercial compounds. It features dual-clutch manual release for power outages, intelligent anti-pinch obstacle reversal, ultra-low 56dB quiet running, full solar power compatibility and expandable multi-access control. The complete all-in-one kit includes dual motor arms, control box, all mounting brackets and hardware for hassle-free DIY installation.
Description:

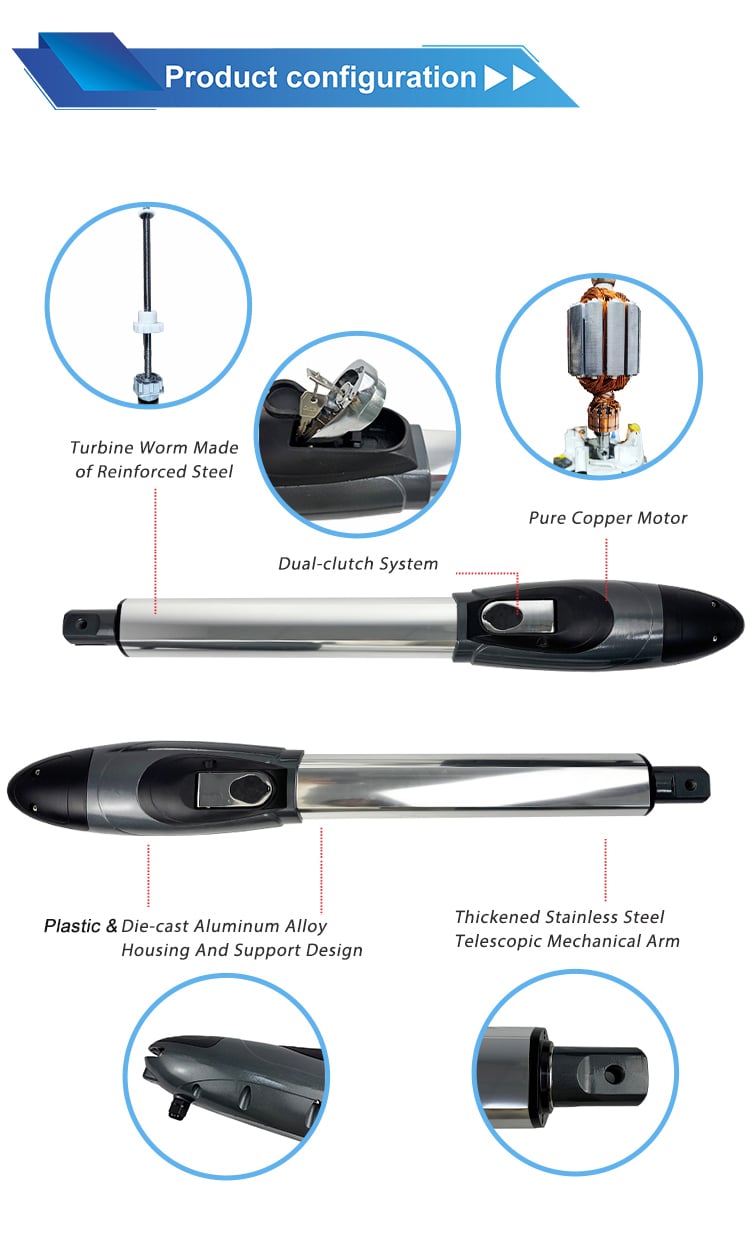

1.Industry-Leading Ultra-Heavy Load Bearing Structure
CSSGO-330K is our flagship heavy-duty swing gate motor built for extra-large metal gates that standard openers cannot drive:
l Supports single gate leaf up to 4m width, 500kg weight, maximum thrust 2500N, ideal for luxury villa oversized wrought iron gates, factory & industrial compound heavy swing gates

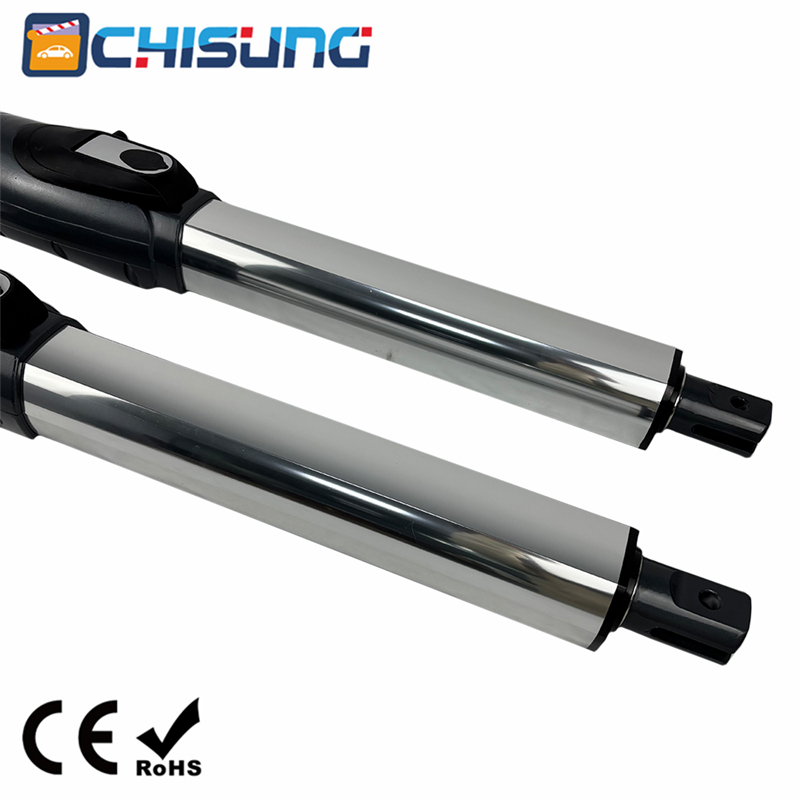

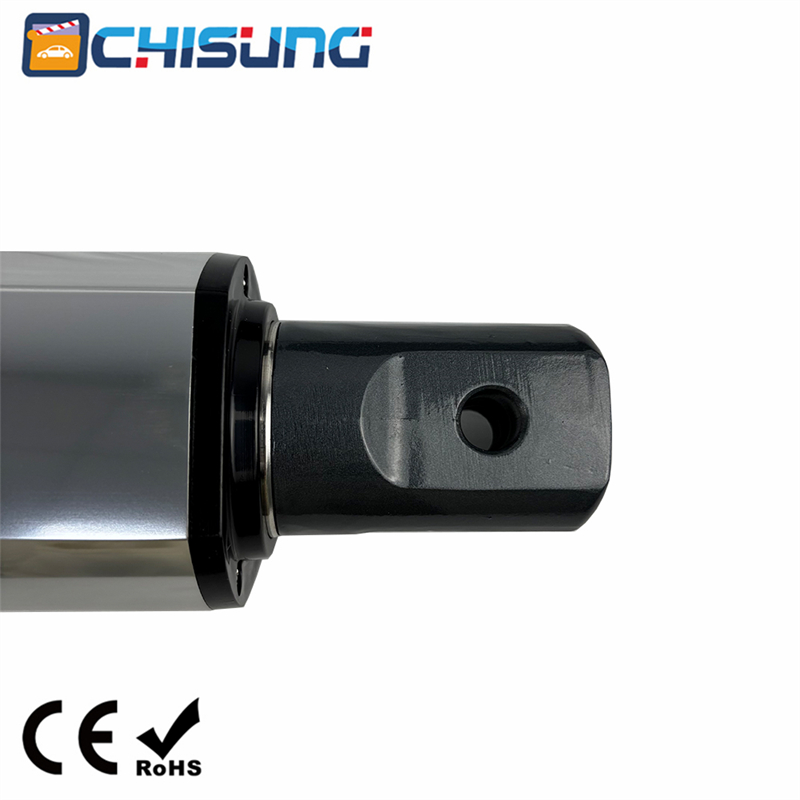

l Die-cast aluminum alloy housing + thickened stainless steel telescopic arm, anti-rust, UV & rain resistant, stable outdoor performance in all climates

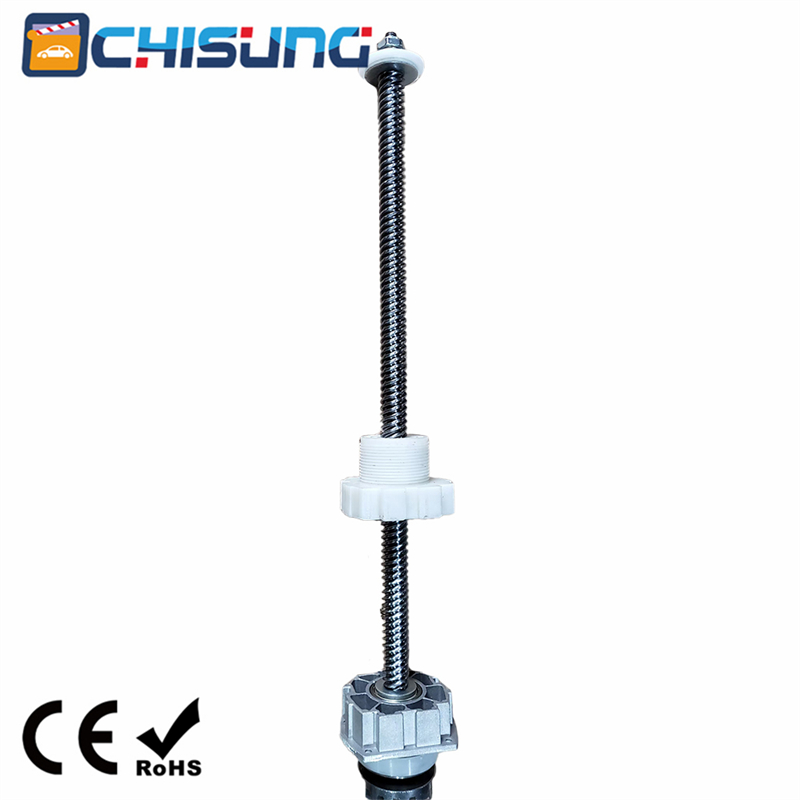

l Reinforced solid steel turbine worm gear, far more wear-resistant than plastic/cheap iron gears, zero deformation under long-term heavy load operation

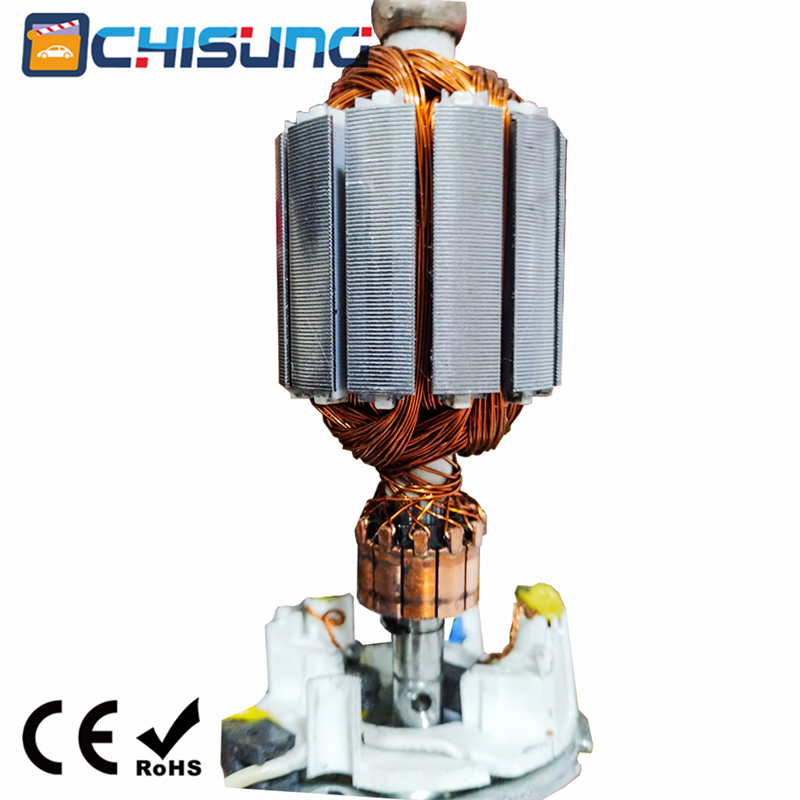

l 100W DC24V pure copper coil motor, 2600RPM stable rotational speed, continuous operation frequency up to 30%, no overheating even for high-traffic commercial gates
l Wide working temperature range: -20℃ ~ +70℃, fits cold northern zones, tropical hot areas and humid coastal regions
l IP45 waterproof protection grade, withstands all weather conditions year-round
2.Multi-Layer Intelligent Safety Protection System
Comprehensive safety design eliminates clamping and equipment damage risks for people and vehicles:

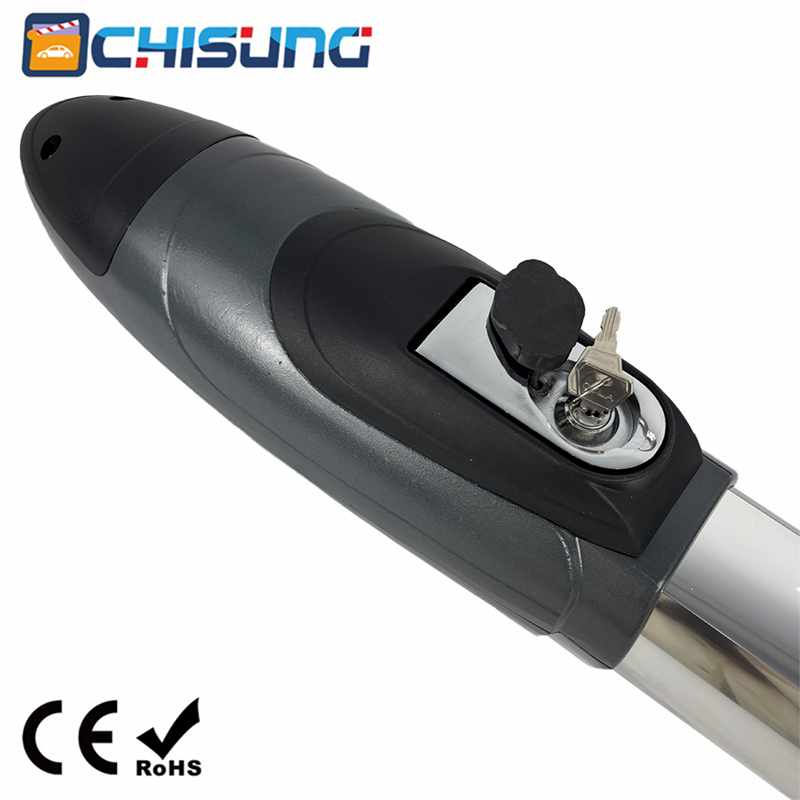

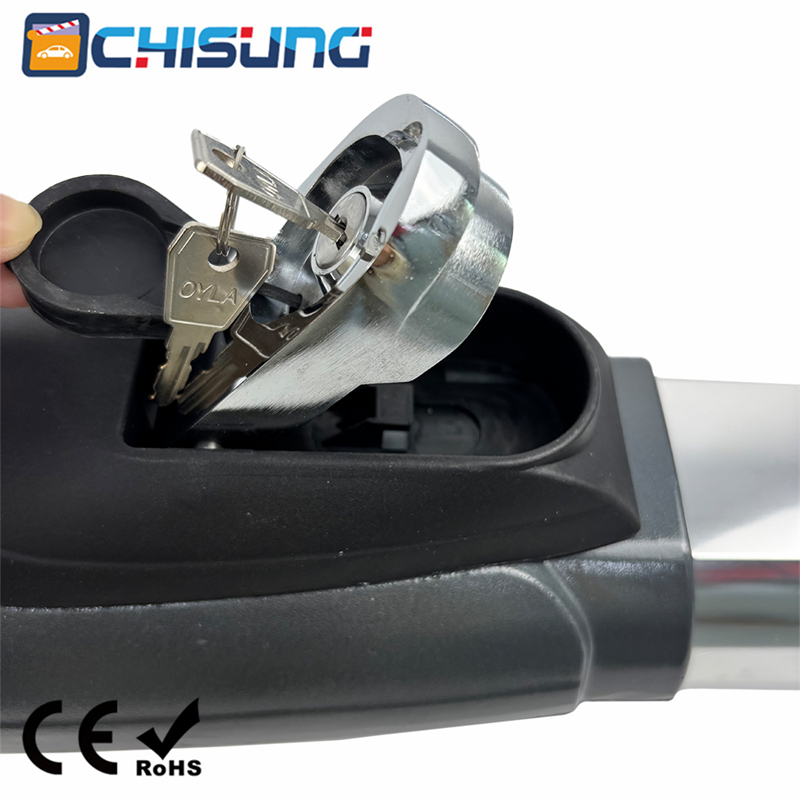

l Dual-Clutch Emergency Manual Release
Unique double-clutch unlocking design. When power cuts off, insert the dedicated clutch key to disengage the motor arm, allowing effortless manual pushing of 500kg heavy gates without external power.
l Obstacle Anti-Pinch Auto Reverse
Built-in collision detection sensor: if the gate hits cars, pedestrians or barriers during opening/closing, the system instantly reverses movement to prevent injury and gate frame damage.
l Soft Start & Soft Stop Buffer Function
Slow acceleration and deceleration reduce violent impact on gate pillars, hinges and the motor itself, lowering mechanical vibration and extending the whole gate system service life.
l Adjustable Auto-Closing Delay
Programmable auto-close timer from 0–99 seconds, customize waiting time for vehicles and walkers to safely pass before the gate locks automatically.
l Ultra-Low Noise Operation (≤56dB)
Precision-machined steel gear and silent DC motor core cut mechanical friction noise drastically; quiet operation will not disturb residents, students or medical patients.
3.Flexible Multi-Opening Control & Off-Grid Solar Compatibility
Break the limitation of single remote control, fully adaptable to diversified user access demands:
l Standard configuration: 2 wireless RF remote controllers for one-touch open/close/stop

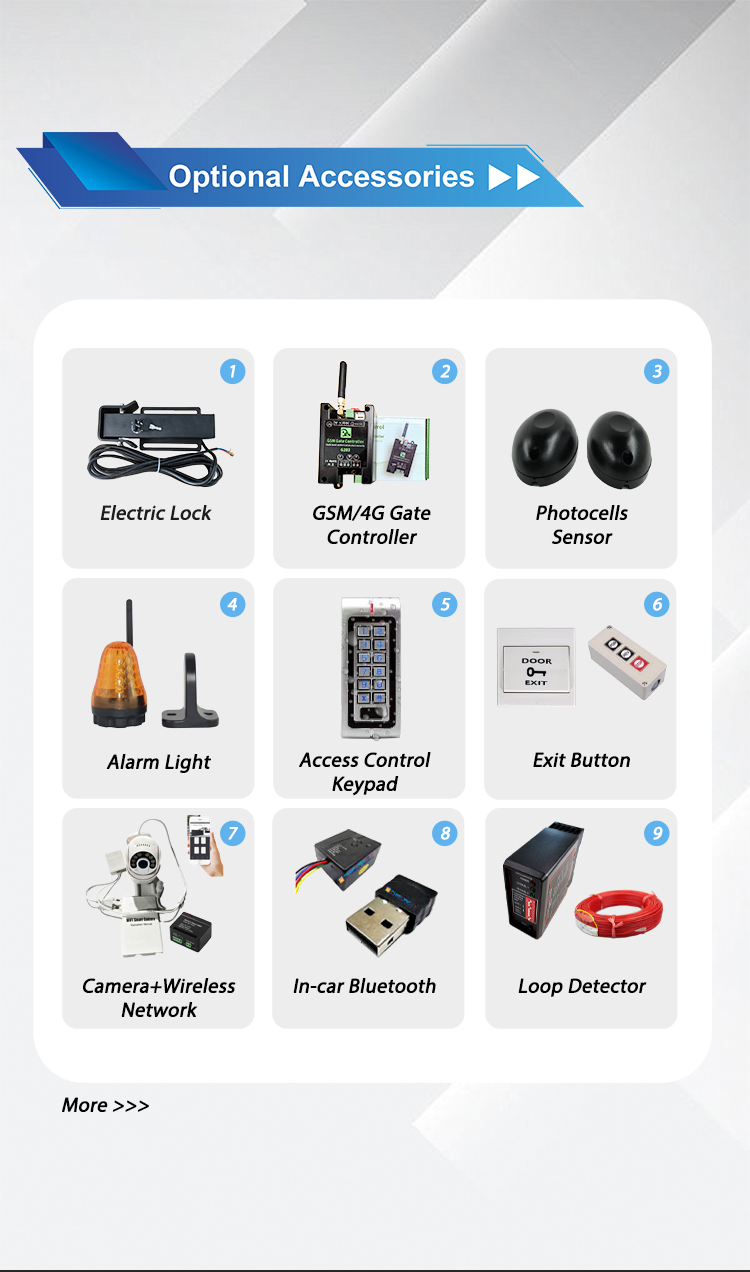

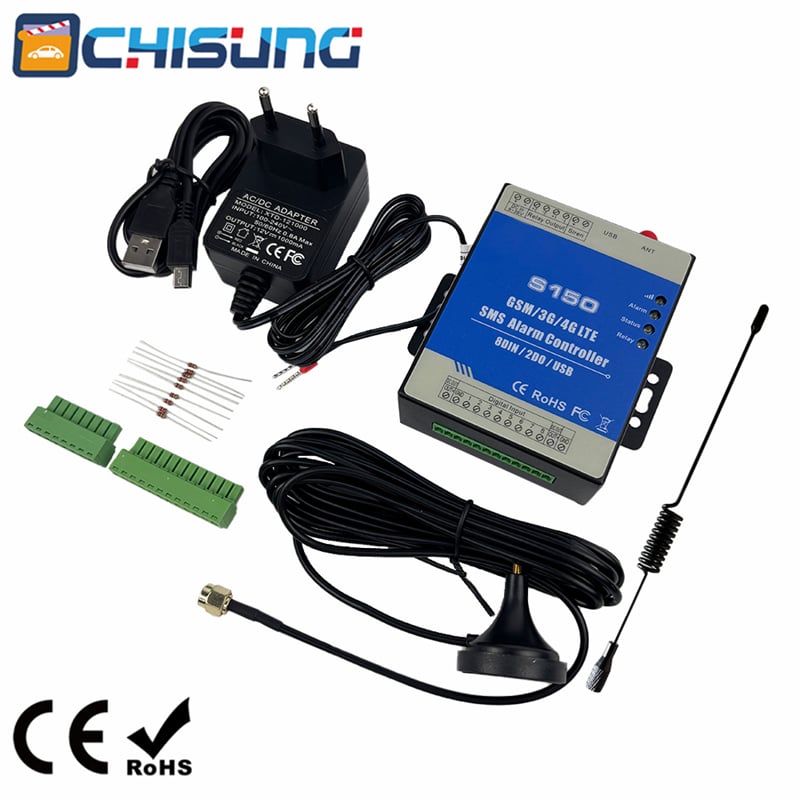

l Expandable optional accessories: GSM/4G remote module, Bluetooth car sensor, password access keypad, infrared photocell safety sensor, vehicle loop detector, alarm light, surveillance camera linkage
l Fully compatible with DC24V solar power supply systems, perfect for remote farms, rural villas and scenic areas without stable municipal grid electricity, cutting long-term power consumption costs

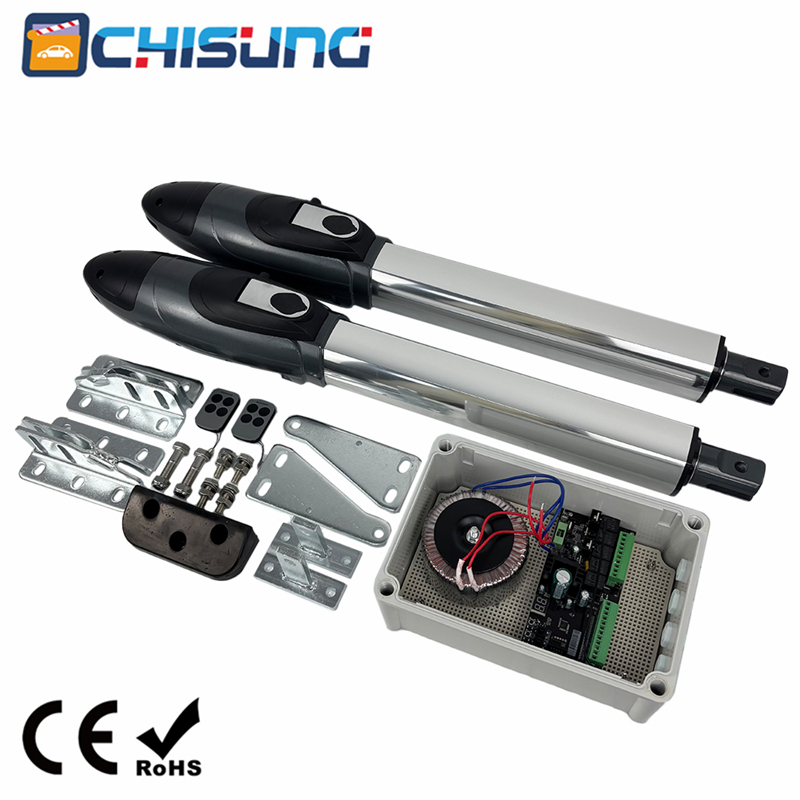

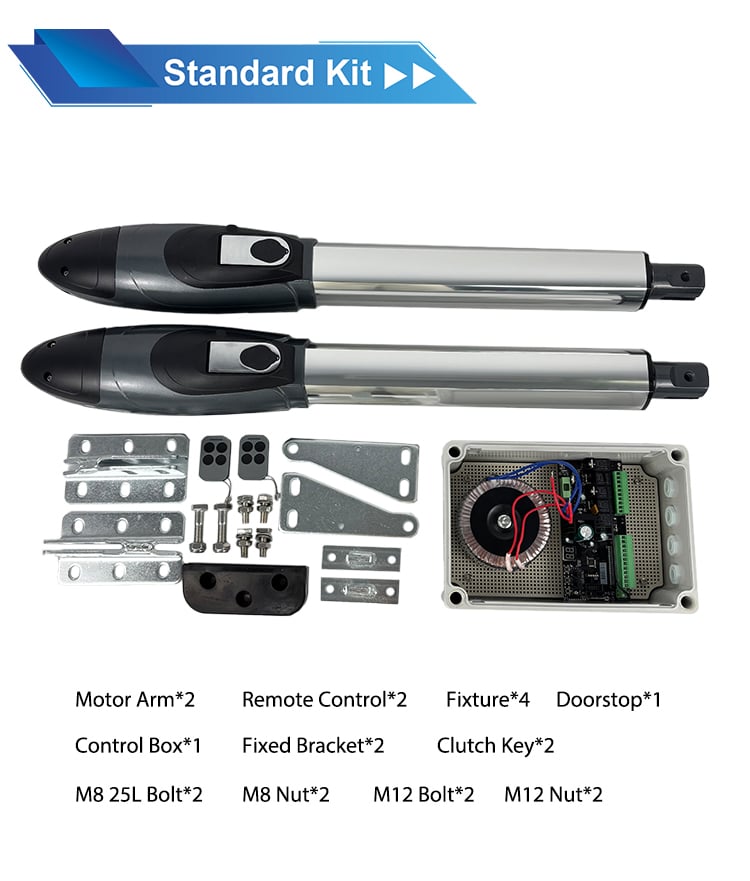

4.Complete All-In-One Standard Kit, Easy DIY Installation
All required installation hardware included in one package, no extra spare parts purchase needed:
l 2 x Ultra Heavy-Duty Motor Arms

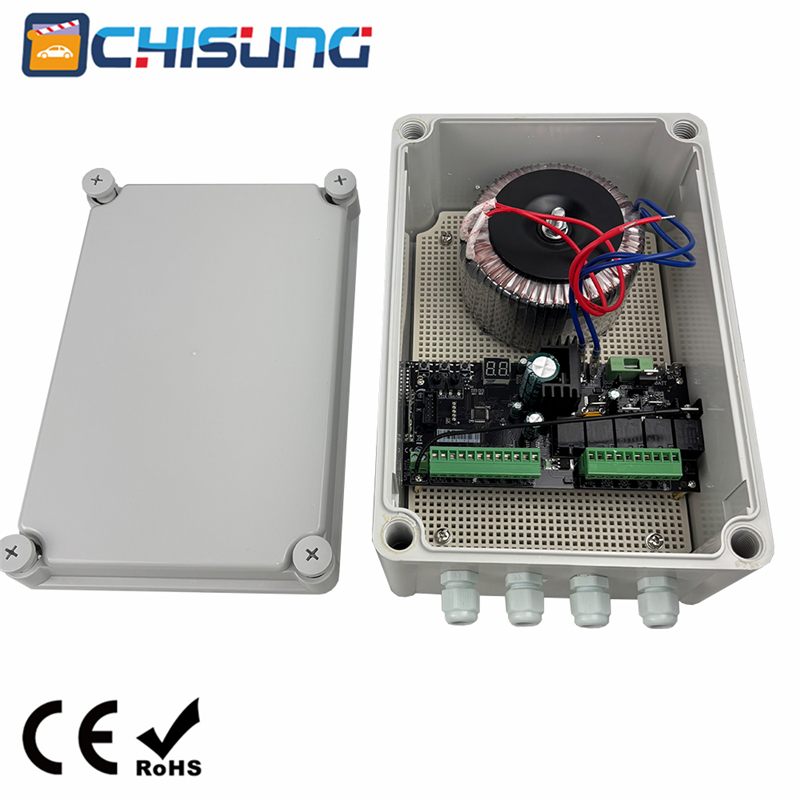

l 1 x Transformer Built-In Central Control Box
l 2 x Wireless Remote Controls
l 2 x Dual-Clutch Manual Release Keys
l Full mounting hardware: Fixed brackets, fixtures, doorstop, complete M8/M12 bolt & nut set
l Illustrated multi-language installation instruction manual for self-installation without professional technicians

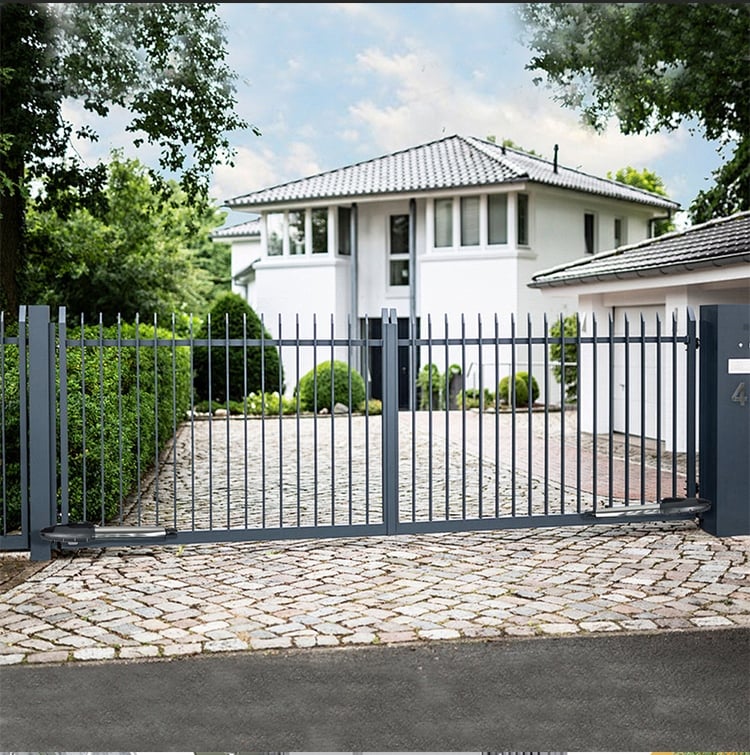

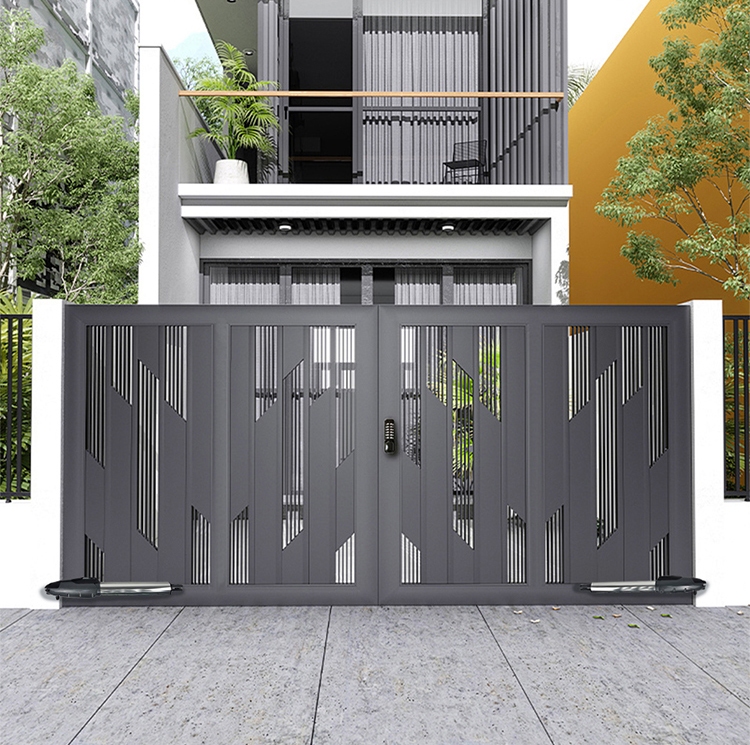

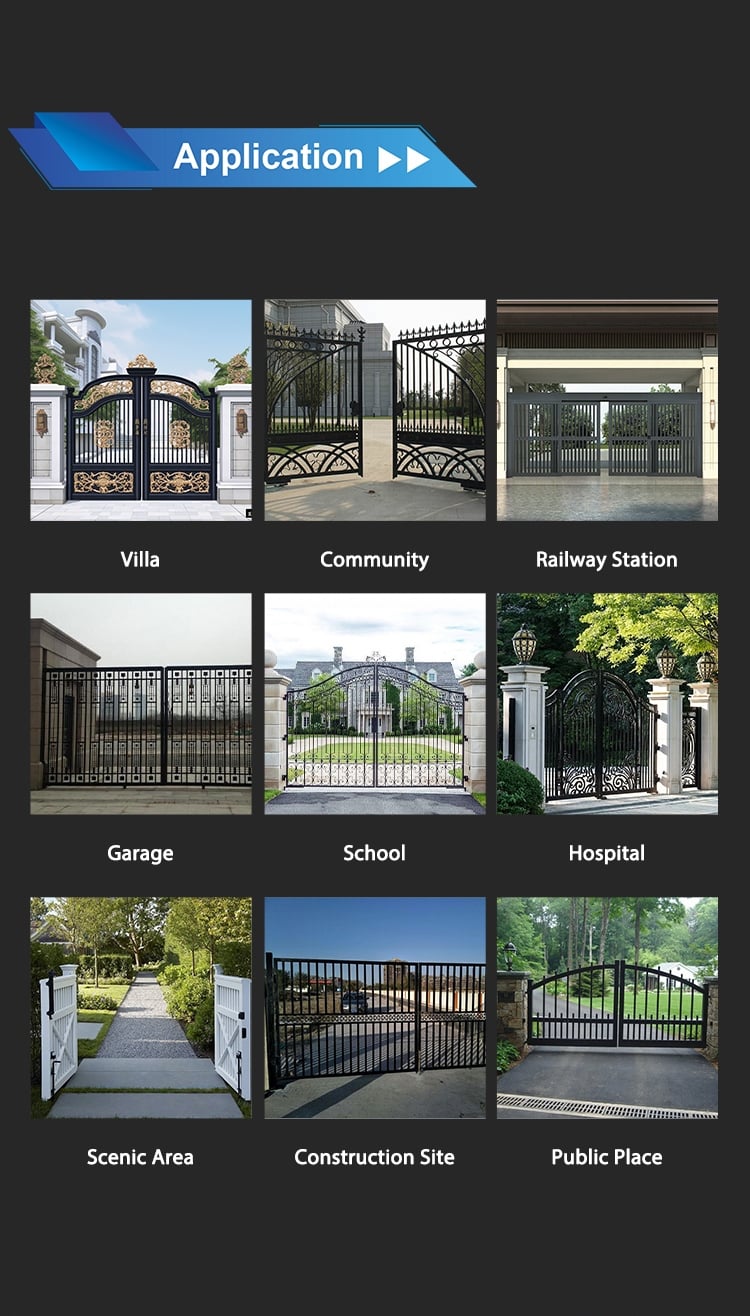

Applications:
High-End Residential
Oversized Luxury Villas, Private Large Courtyards, Rural Farms, Scenic Area Main Gates, Big Family Garages
Education & Medical
Large School Campuses, Kindergartens, Hospitals, Medical Clinics
Commercial & Public Premises
High-End Residential Communities, Railway Stations, Public Parks, Government Plazas
Industrial & Construction
Construction Sites, Factories, Warehouses, Logistics Parks, Industrial Zone Heavy Swing Gates
Compatible Gate Materials
Works seamlessly with thick wrought iron gates, oversized aluminum alloy swing gates, solid stainless steel decorative double leaf gates, heavy metal courtyard entrance gates

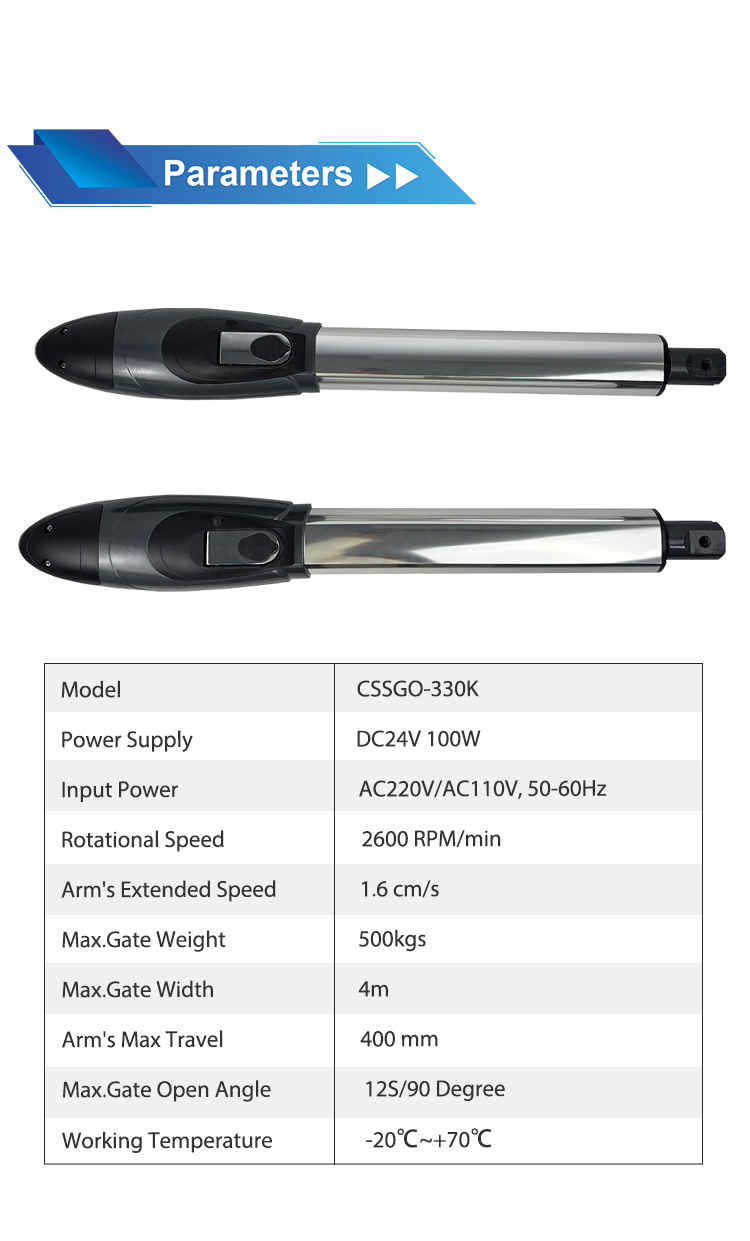

Specifications:
| Item | Detailed Parameter |
| Model | CSSGO-330K |
| Input Power Supply | AC220V±10V 50/60Hz / AC110V±10V 60Hz |
| Motor Working Voltage | DC 24V |
| Rated Motor Power | 100W |
| Rotational Speed | 2600RPM/min |
| Gate Running Speed | 1.6cm/s |
| Max Single Leaf Gate Spec | Width ≤4m, Weight ≤500kg |
| Output Thrust | 2500N |

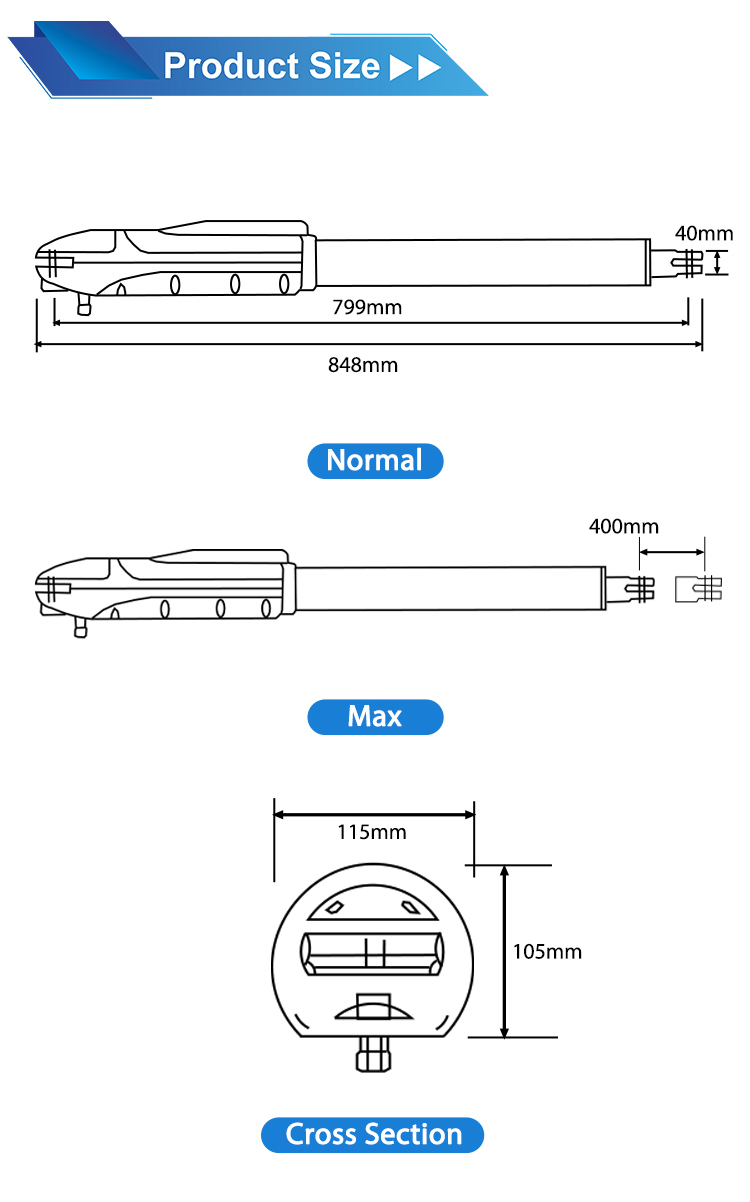

| Max Rod Travel Stroke | 400mm |
| 90° Gate Opening Time | 12 seconds |
| Supported Opening Angle | 90° / 100° / 110° / 120° |
| Operating Temperature | -20℃ ~ +70℃ |
| Waterproof Grade | IP45 |
| Running Noise | ≤56dB |
| Gear Material | Reinforced Solid Steel Turbine Worm Gear |
| Motor Core | Pure Copper DC Motor |
| Housing Material | Die-cast Aluminum Alloy + Stainless Steel Tube |
| Emergency Release | Dual-Clutch Manual Key Unlock |
| Solar Support | Compatible with DC24V Solar Panel & Battery Kit |
| Auto-Closing Delay | Programmable 0–99 seconds |
| Packing Weight | 26kg |
| Packing Dimension | 950*300*255mm |
Competitive Advantage:
1.Market Leading Ultra-Heavy Load Capacity
Most swing gate openers on the market only support 200kg–400kg leaf weight with maximum 3m width. CSSGO-330K reaches 500kg & 4m single leaf, filling the market gap for super-large industrial and luxury villa heavy gates, capturing high-value engineering orders unavailable to competitors’ standard models.
2.Reinforced Solid Steel Gear, Ultra Long Service Life
Cheap low-end gate motors adopt fragile plastic or thin iron gears that wear and break quickly under heavy load. Our reinforced steel worm gear withstands long-term 500kg heavy-load operation, drastically reducing after-sales maintenance failure rates for distributors and end clients.
3.High Safety Dual-Clutch Manual Release
Single-clutch motors are prone to jamming during power failures; our patented dual-clutch structure ensures smooth manual gate opening without stuck malfunctions, meeting strict emergency access standards for factories, hospitals and public facilities.
4.Wide Global Climate Adaptability
-20℃ ~ +70℃ temperature tolerance enables global sales covering frigid northern countries, tropical high-temperature regions and humid coastal areas, wider market coverage than standard motors with narrow temperature limits. The IP45 waterproof shell guarantees stable outdoor performance all year round.
5.Solar Off-Grid Compatible Niche Market Edge
DC24V motor design supports solar power systems, attracting rural villa, farm and off-grid project customers that AC gate motors cannot serve, opening an exclusive high-demand solar automation niche market.
6.Complete Standard Kit Saves Buyers Extra Costs
Many competitors only sell motor arms separately, forcing customers to purchase control boxes, brackets and remotes additionally. Our all-in-one full kit includes all mounting hardware, one-stop procurement reduces buyers’ extra expenditure and purchasing hassle.
7.Factory Direct Supply & Customization Support
CHISUNG is a professional industrial access automation manufacturer with mature heavy-duty gate motor production lines and stable mass supply capacity. We support private logo customization, customized packaging and full technical installation guides for global distributors, with reliable long-term after-sales technical service.
Tag:CSSGO-330K
