CHISUNG CSSGO-03 DC24V Automatic Swing Gate Opener, 200kg Max 2m Single Leaf, 350N Self-Locking Spindle Solar Compatible Light Duty Aluminum Gate Motor for Small Villa Driveway Gates
200kg / 2m Small Swing Gate Support | DC24V Safe Low Voltage | Self-Locking Spindle Anti-Shake | Soft Start & Soft Stop | Solar Power Optional | All Aluminum Weatherproof Shell | Built-in Limit Switch | Easy DIY Installation
- Overview
- Recommended Products
Product Information
| Place of Origin: | China |
| Brand Name: | CHISUNG |
| Model Number: | CSSGO-03 |
| Certification: | CE |
Product Commercial Terms
| Minimum Order Quantity: | 1 |
| Packaging Details: | carton |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000sets/Month |
Quick Detail:
Swing gate opener
Automatic swing gate opener
Arm-type gate operator
Surface-mounted swing operator
Underground swing operator
Dual swing gate operator
swinging gate operator
Articulated arm gate operator
Electromechanical swing gate actuator
Remote-controlled swing gate opener
Swing gate motor
Low-energy swing gate operator
Powered swing gate operator
Linkage-type gate operator
Residential swing gate opener
Smart swing gate opener
Commercial-duty swing gate operator
Solar-powered swing gate opener

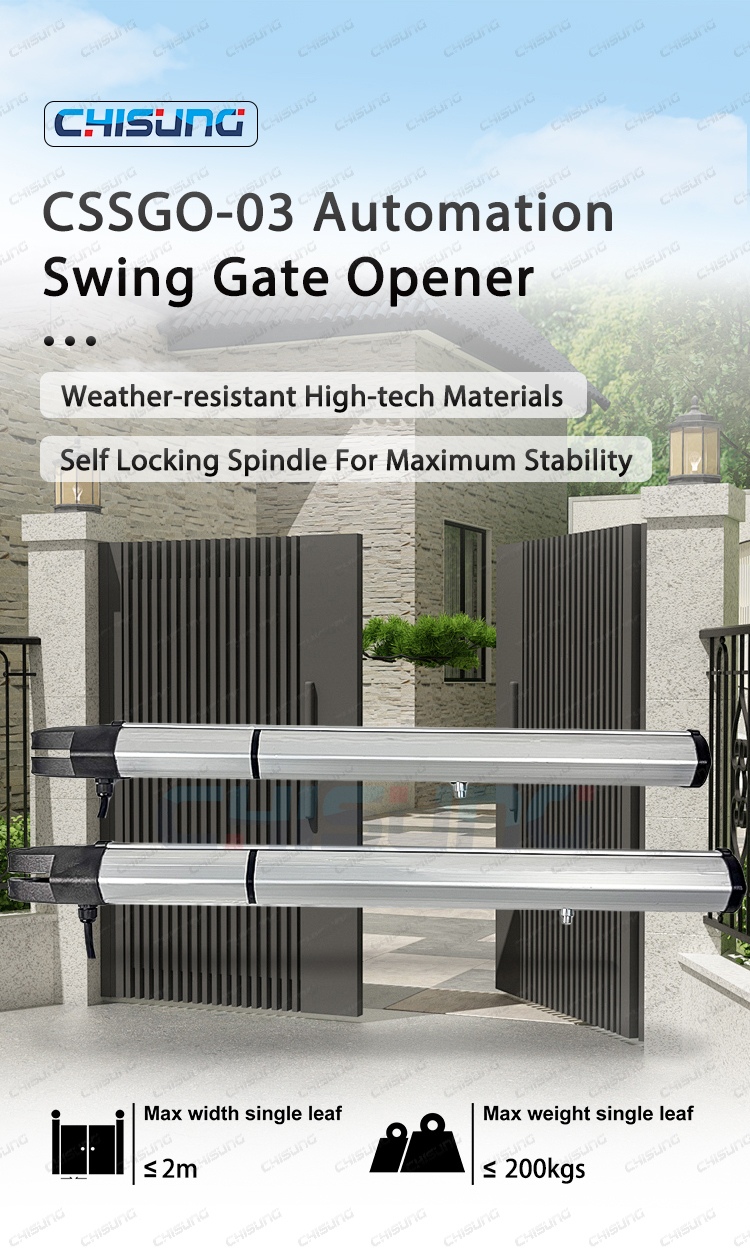

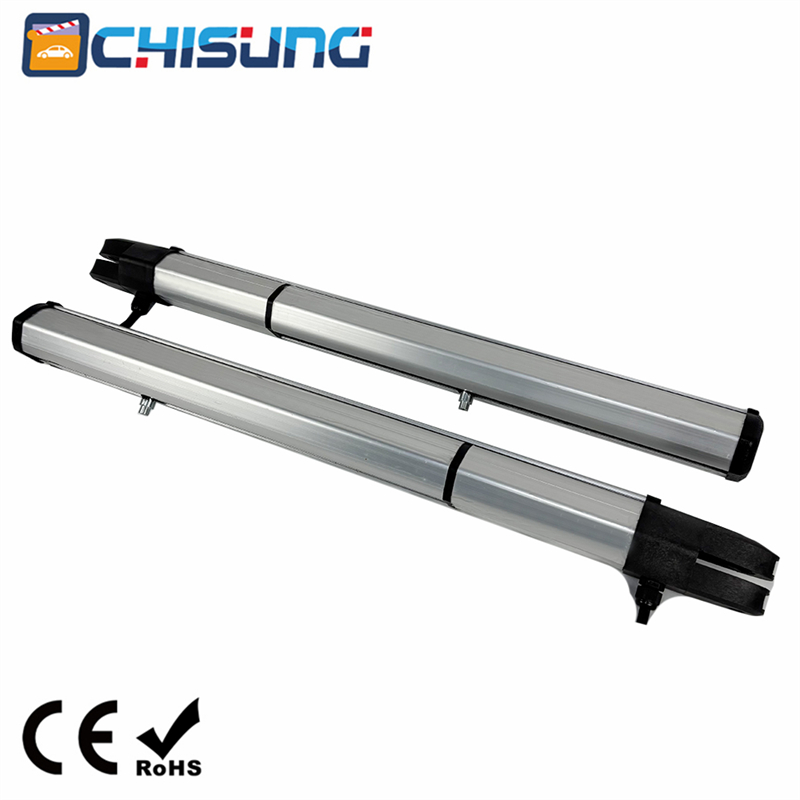

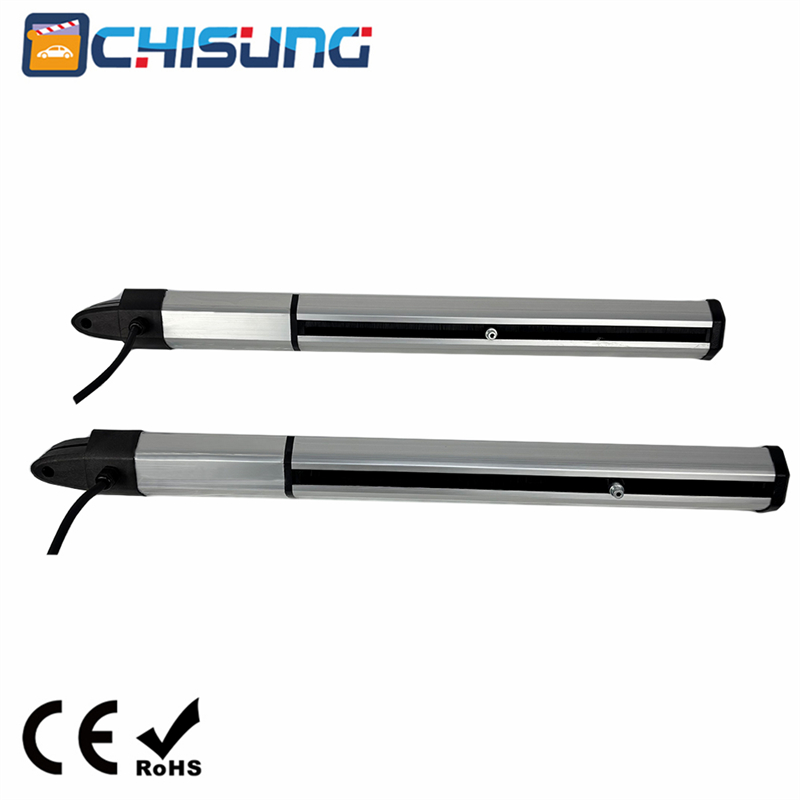

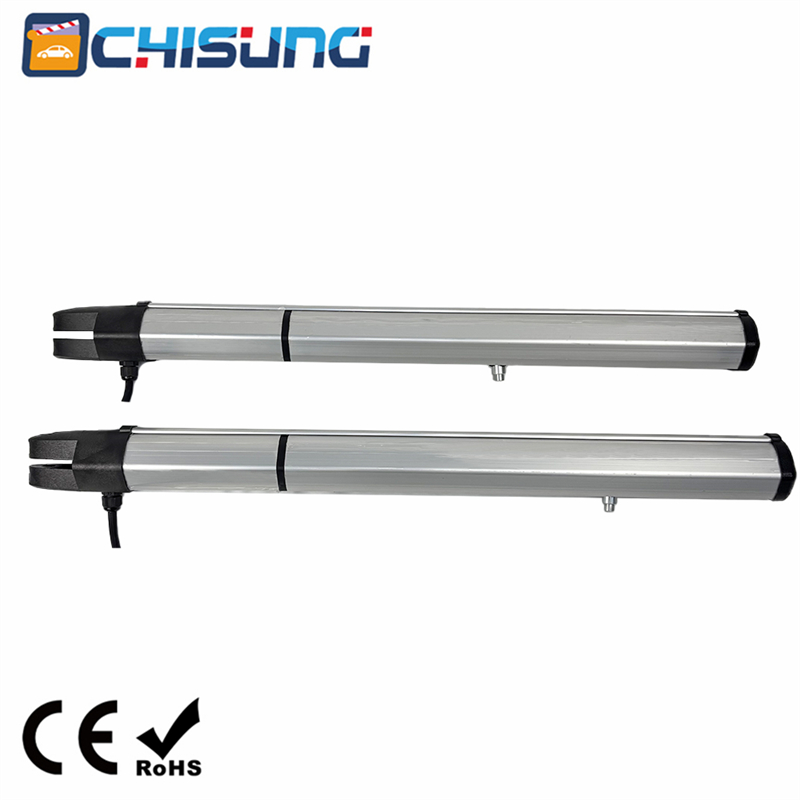

The CSSGO-03 DC24V swing gate opener is a lightweight, cost-effective residential gate automation solution designed for small single swing gates up to 2 meters wide and 200kg. Equipped with a self-locking reinforced steel spindle, DC24V low-power 28W motor and full aluminum weather-resistant housing, it delivers stable, quiet gate movement with soft start & soft stop function. Compatible with solar panel and backup battery systems, it supports multi-mode smart access control, perfectly matching small villas, courtyards and residential light-duty swing gates.
Description:

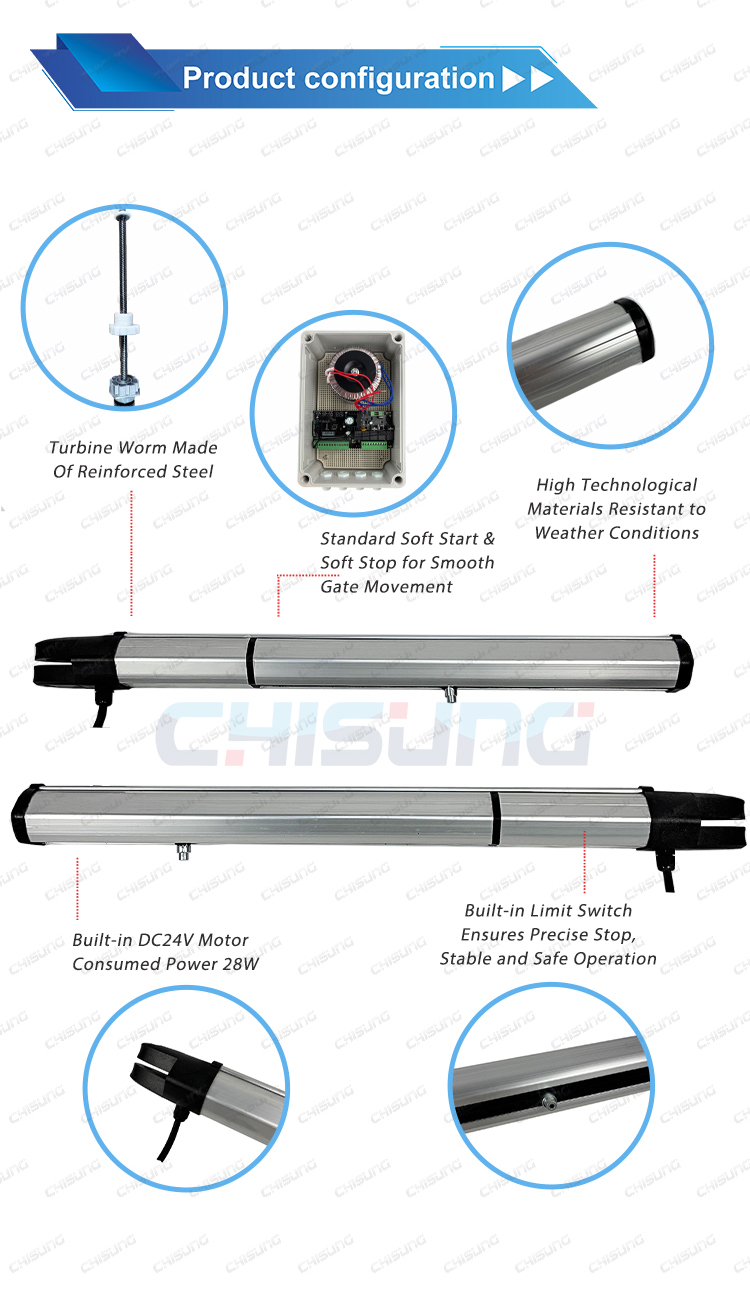

The CSSGO-03 swing gate opener adopts streamlined all-aluminum alloy shell with powder-coated finish, featuring high weather resistance against rain, dust and UV exposure, reaching IP45 protection class for year-round outdoor use. Its core structure uses reinforced steel turbine worm and self-locking spindle design, which effectively locks the gate body tightly to avoid shaking caused by wind, greatly improving overall stability.
Powered by a safe DC24V 28W low-consumption motor with only 2A operating current, the unit runs at 1.6cm/s linear speed, finishing a 90° gate opening within 12 seconds. Unique soft start & soft stop technology eliminates harsh impact on gate frames, protecting both the gate and motor for longer service life. A built-in limit switch realizes accurate automatic stop without extra accessories.

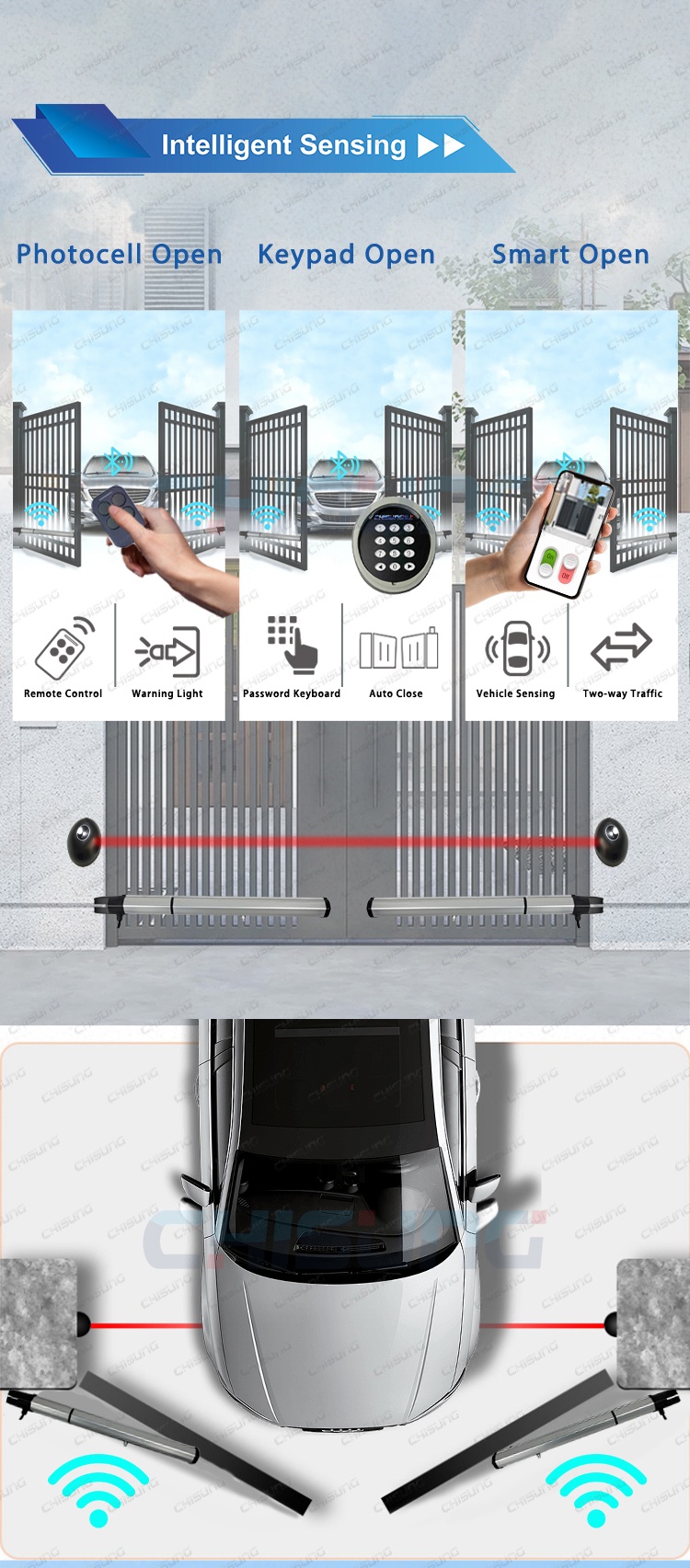

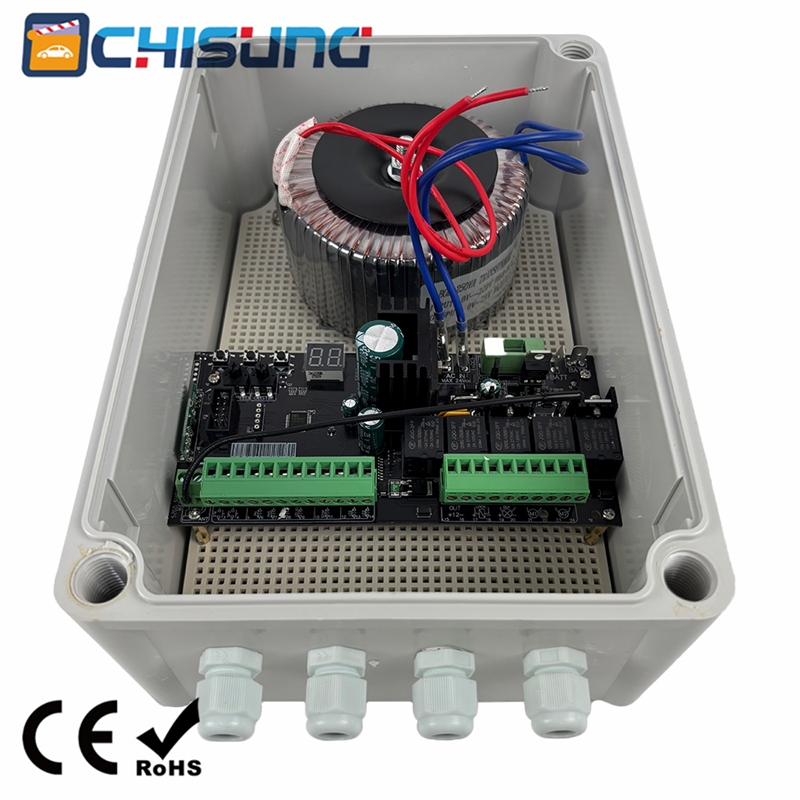

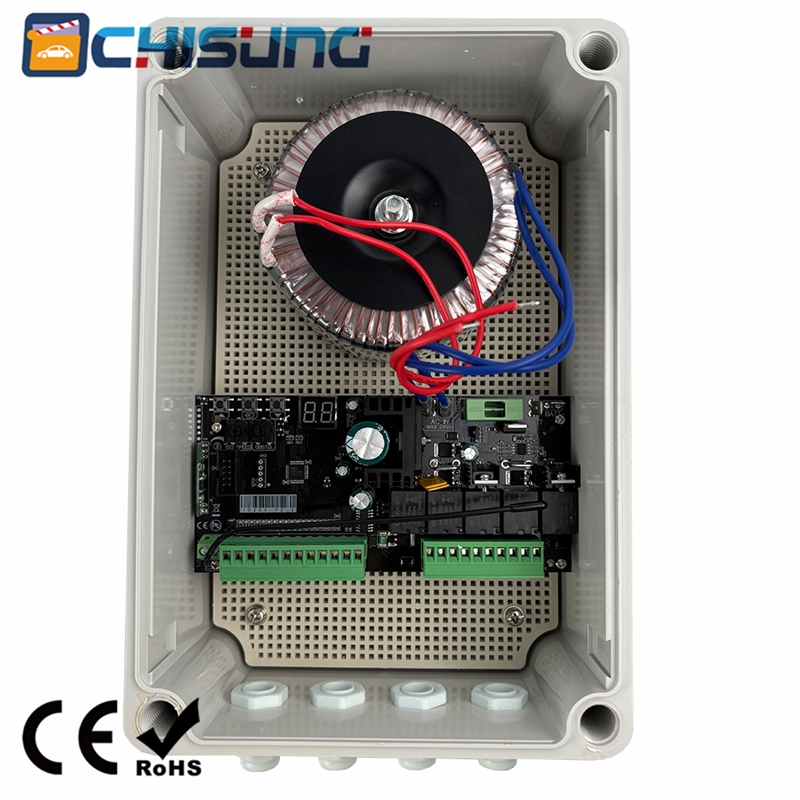

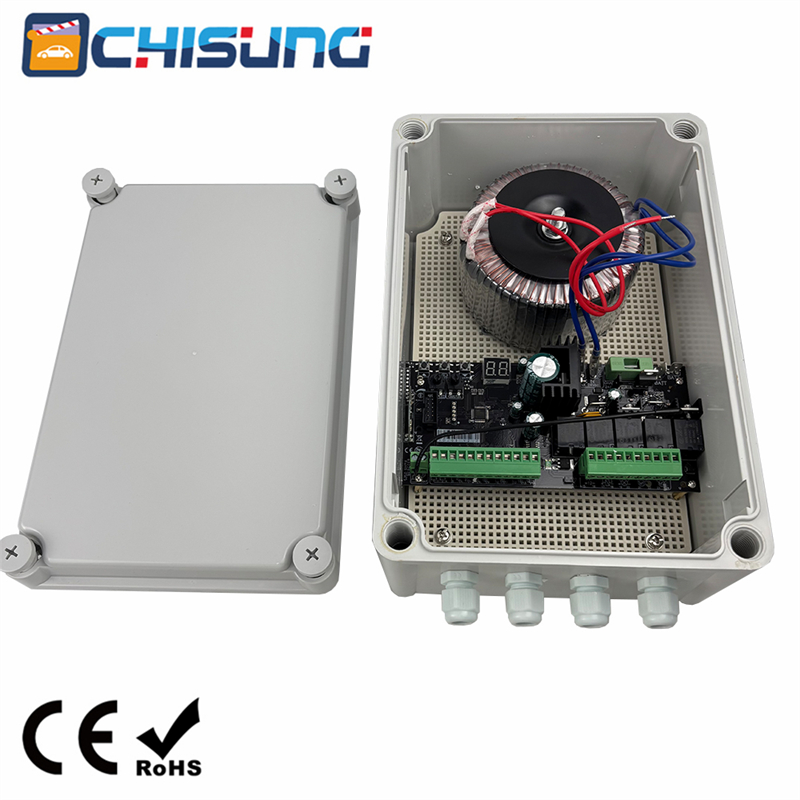

This model reserves wiring terminals for solar panels and 12V backup batteries, making it ideal for off-grid houses, rural courtyards and areas with unstable mains power. The main control board supports multiple unlocking methods: remote control, Bluetooth keypad, vehicle loop detector, infrared photocell, GSM 4G module and mobile WIFI control, meeting diversified smart access demands.

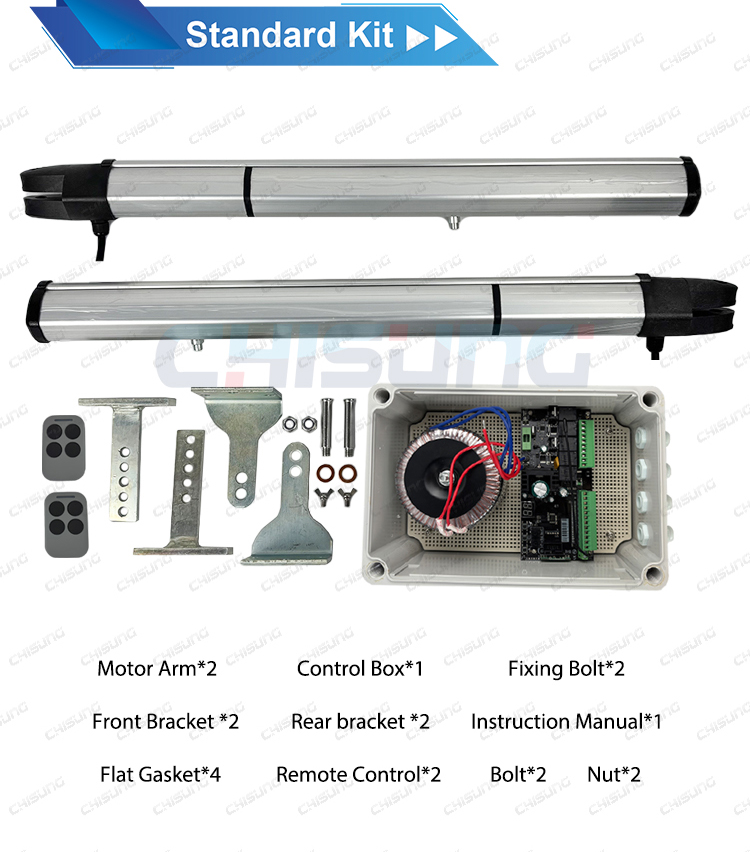

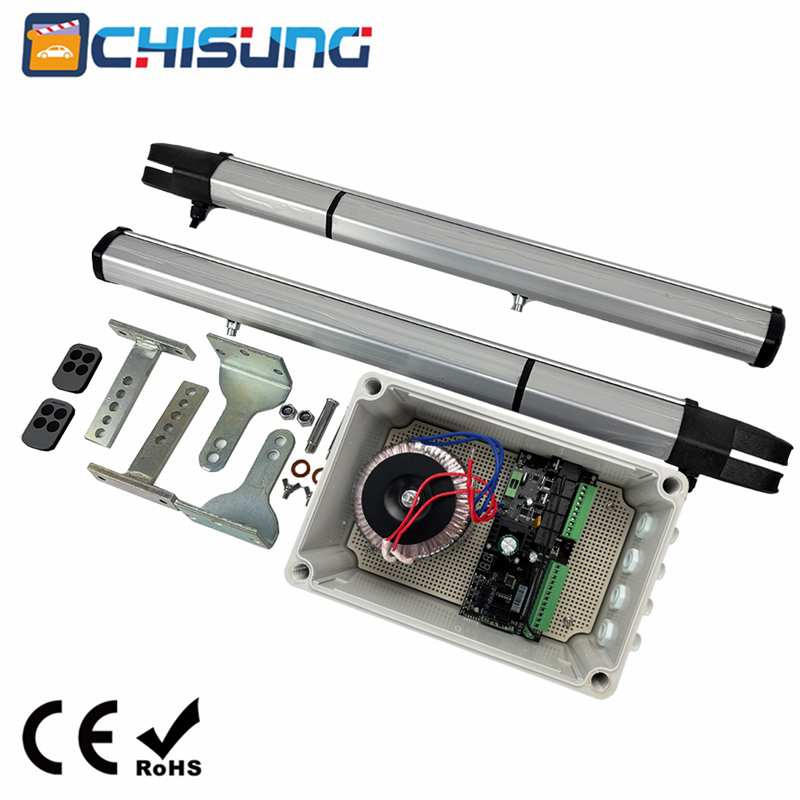

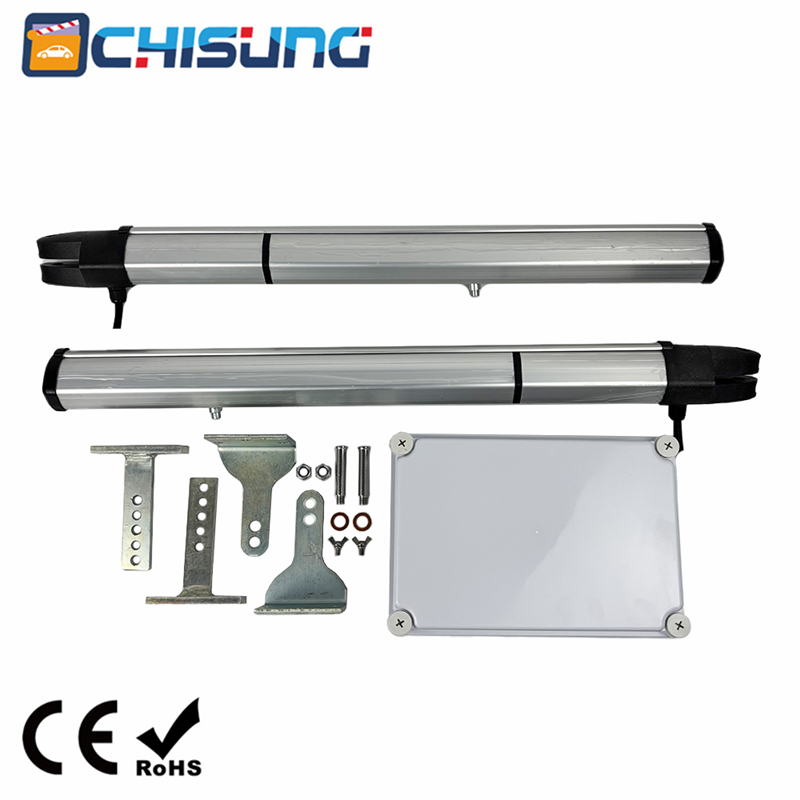

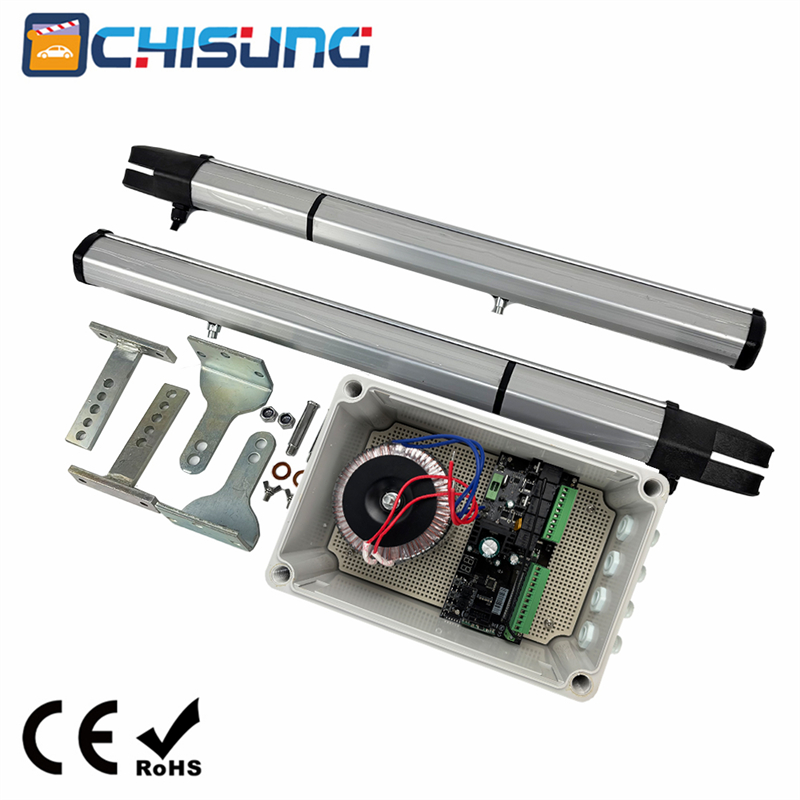

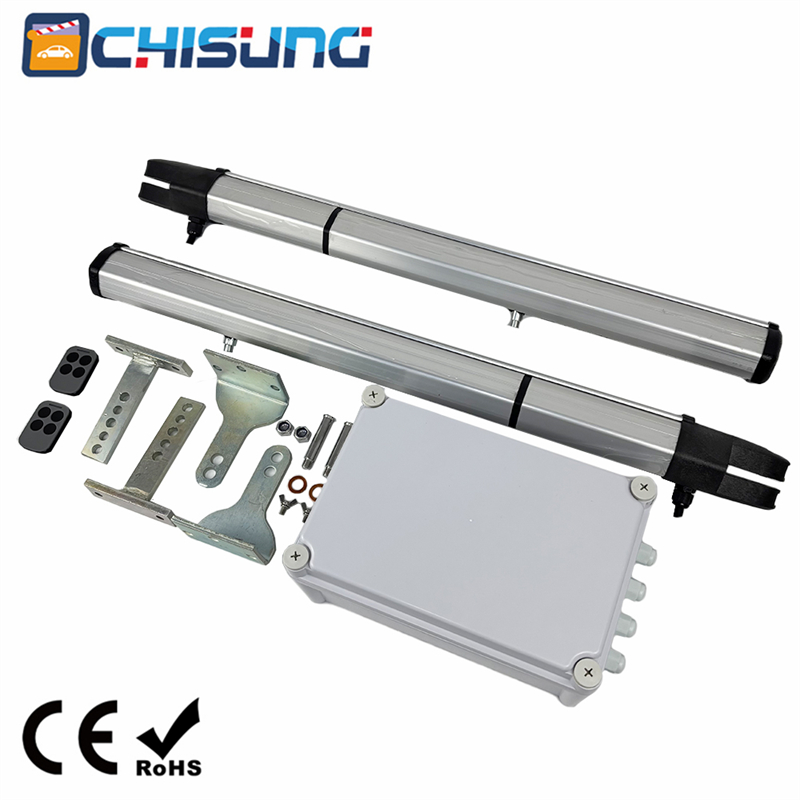

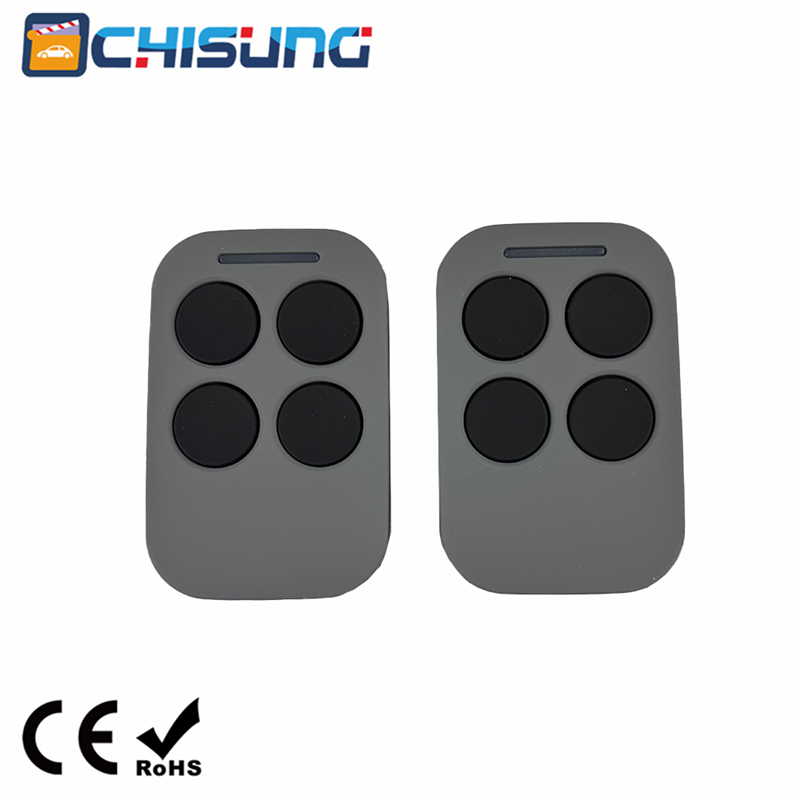

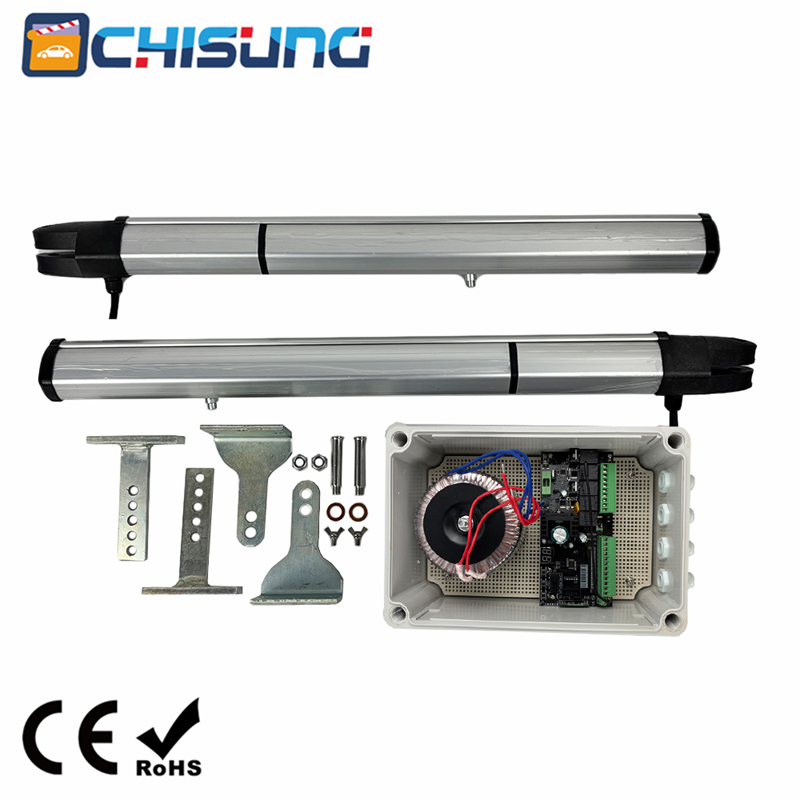

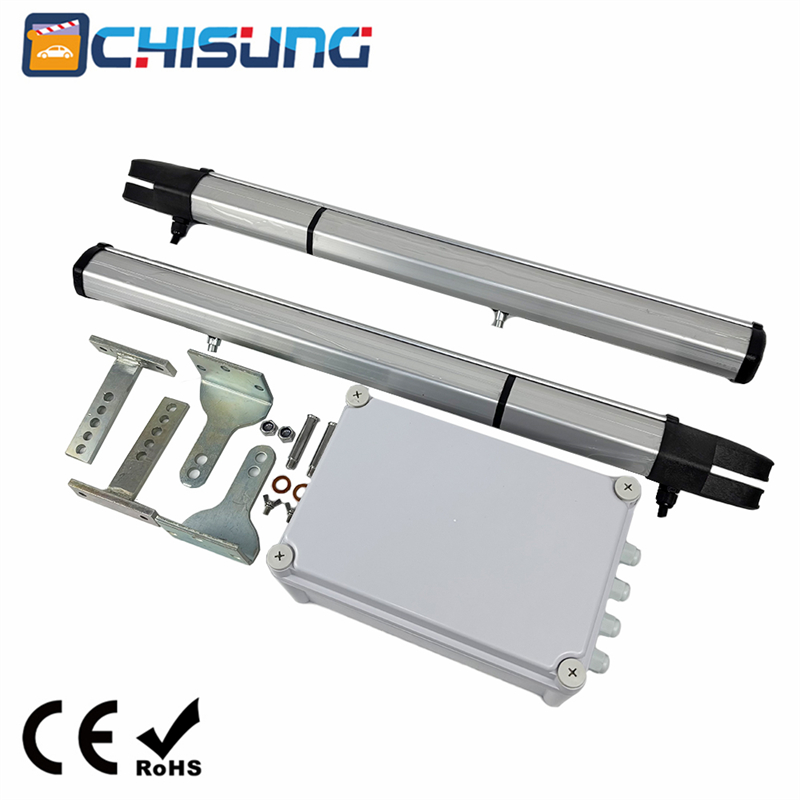

Installation is extremely user-friendly. The complete standard kit includes dual motor arms, full set of mounting brackets, remote transmitters, control box and all hardware fittings. Flexible mounting position and adjustable opening angles (90°/100°/110°/120°) adapt to most small wooden, aluminum and wrought iron swing gates. Programmable auto-close delay ranges from 0 to 99 seconds with adjustable running time overheat protection for safer daily use.
Working temperature ranges from -20℃ to +70℃, and it can operate stably under relative humidity ≤95% without condensation, suitable for all climate zones worldwide.
Applications:
Residential Private Villa: Small courtyard swing gates, lightweight aluminum/wooden driveway gates
Residential Compound: Small secondary entrance gates, backyard garden swing gates
Rural & Off-Grid Houses: Solar-powered independent gate automation without stable grid power
Small Commercial Spaces: Small store back gates, club side gates, small scenic area pedestrian gates
Light-Duty Security Entrances: School auxiliary gates, office small access gates, family garage side swing gates

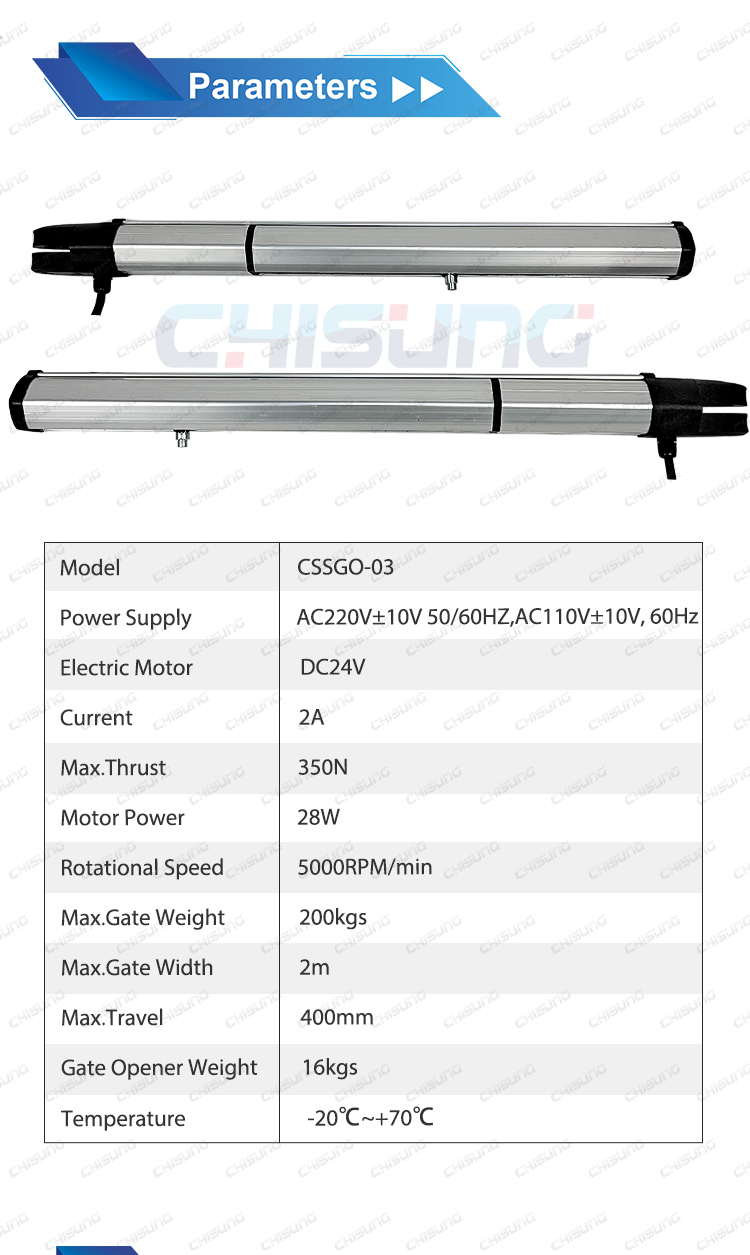

Specifications:
| Item | CSSGO-03-DC24V |
| Model | CSSGO-03-DC24V |
| Input Power Supply | AC220V±10V 50/60Hz / AC110V±10V 60Hz |
| Working Motor Voltage | DC24V |
| Rated Current | 2A |
| Motor Power Consumption | 28W |
| Max Single Leaf Gate Width | 2m |
| Max Single Leaf Gate Weight | 200kg |
| Linear Gate Speed | 1.6cm/s |
| Motor Rotational Speed | 5000RPM/min |
| Output Thrust | 350N |
| Max Rod Travel Stroke | 400mm |
| Opening Time for 90° | 12 seconds |
| Adjustable Opening Angle | 90°,100°,110°,120° |
| Programmable Auto Close Delay | 0~99 seconds adjustable |
| Running Time Protection | Adjustable overload protection |
| Operating Temperature | -20℃ ~ +70℃ |
| Working Humidity | ≤95% RH, non-condensing |
| Waterproof Grade | IP45 |
| Housing Material | Die-cast aluminum alloy shell + stainless steel tube, powder coating |
| Core Transmission | Reinforced steel turbine worm + self-locking spindle |
| Limit Switch | Built-in limit switch |

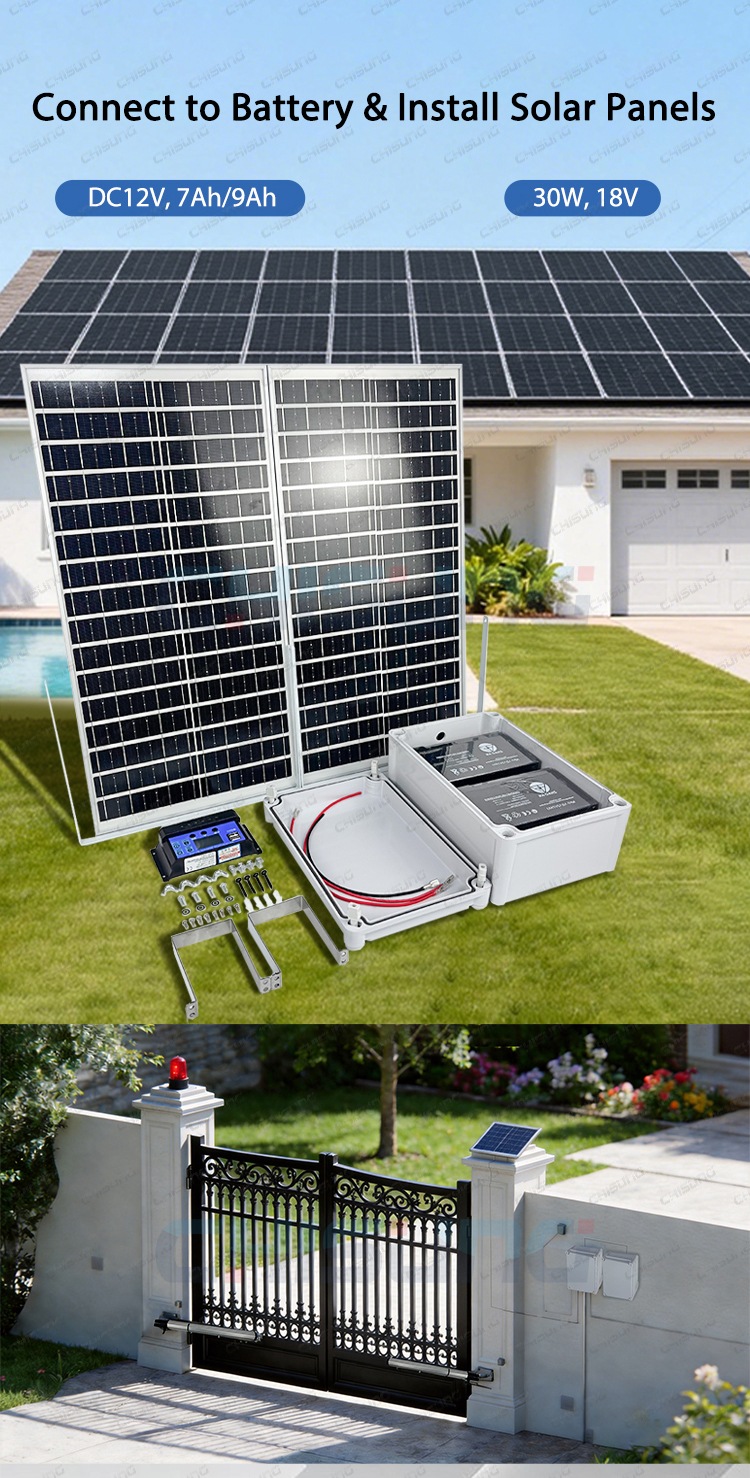

| Solar & Backup Battery Support | Optional 30W 18V solar panel / 2pcs 12V 9Ah series batteries |
| Cycle Use Frequency | 30% |

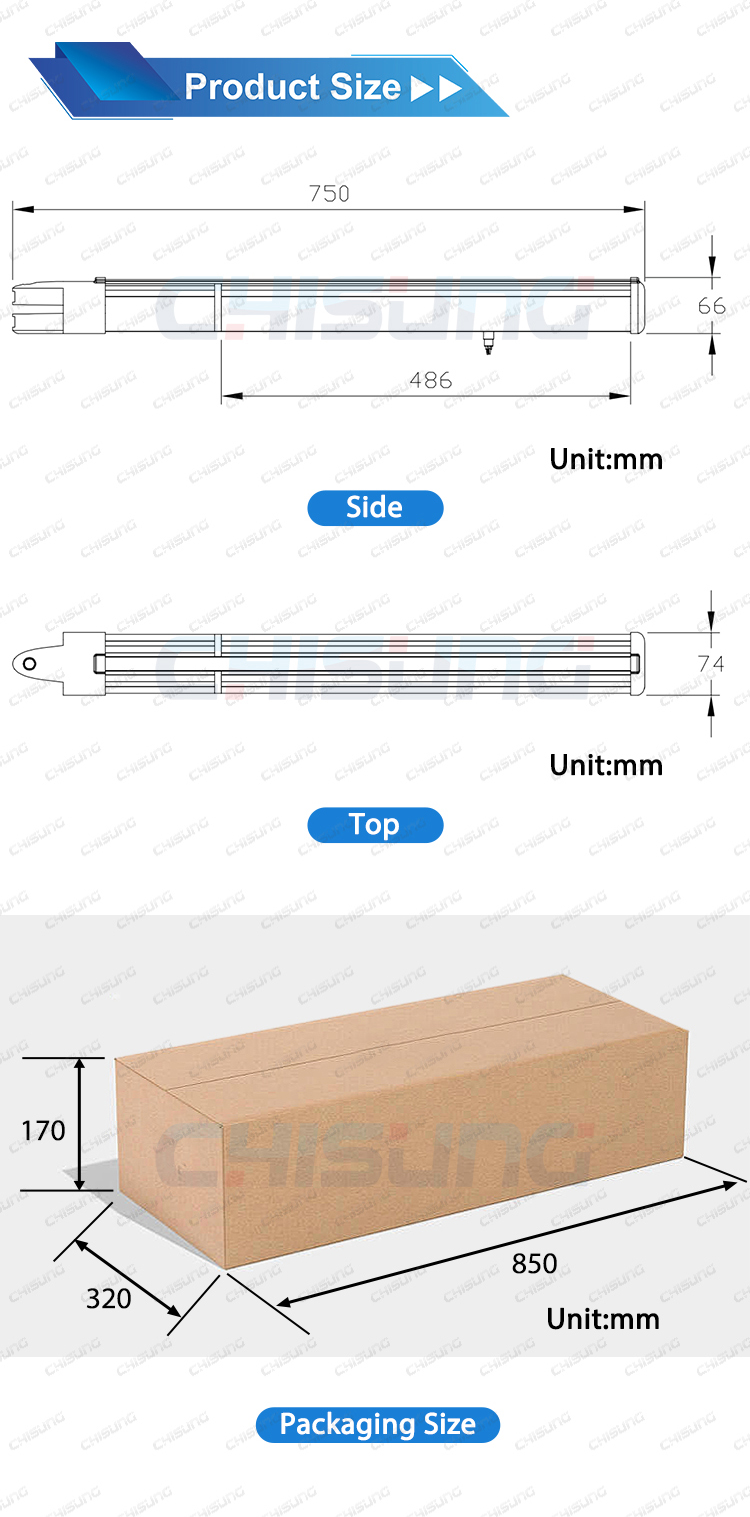

| Overall Motor Dimension (L×W×H) | 650*74.4*66.4mm |
| Packing Spec | 2 motors in one carton: 850*230*170mm; Control box carton:320*250*190mm; Total gross weight 16kg |
Competitive Advantage:
Self-Locking Anti-Shake Spindle Design
Reinforced steel self-locking spindle firmly locks the gate, effectively resisting wind shake, better stability than ordinary push rod gate openers.
Safe Low-Voltage DC24V Operation
Low 28W power consumption, no electric shock risk, safer for families with kids and pets.
Solar Energy Compatible Off-Grid Solution
Reserved solar/battery wiring ports, perfect for countryside, remote villas without stable grid electricity.
Soft Start & Soft Stop Buffer Technology
Smooth acceleration & deceleration, no hard impact, reduce gate frame abrasion and extend service life.
Full Aluminum All-Weather Shell
Powder-coated aluminum housing, anti-rust, anti-UV, IP45 waterproof for long-term outdoor use.
Built-in Limit Switch, Easy Calibration
No extra external limit accessories required, one-step setup for accurate gate stop position.

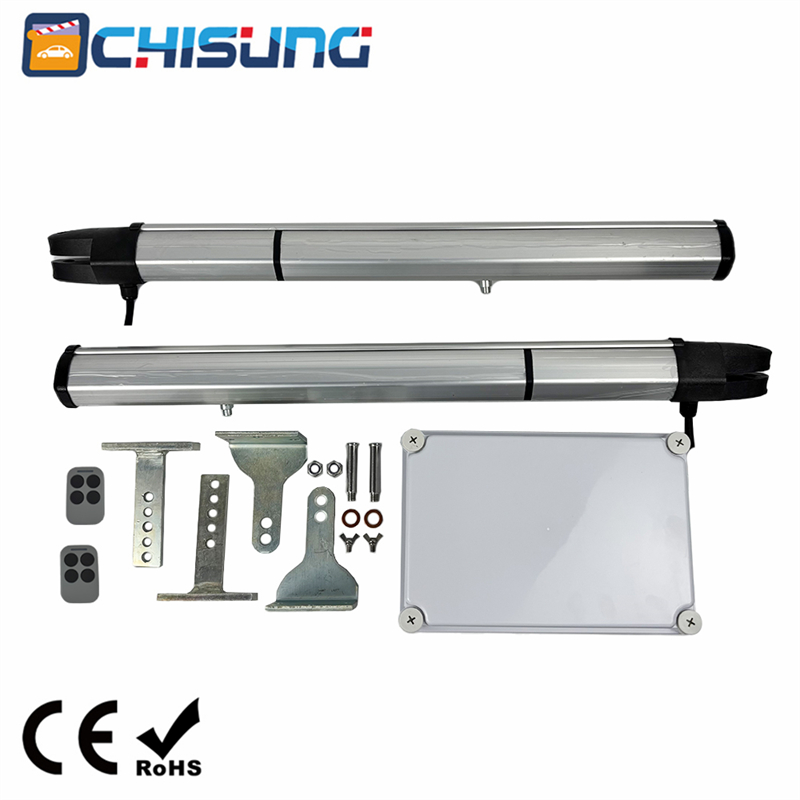

Complete DIY Installation Kit
All mounting brackets, bolts, remote controllers and wiring accessories included, no extra parts to purchase.
Multi-Mode Intelligent Access Control

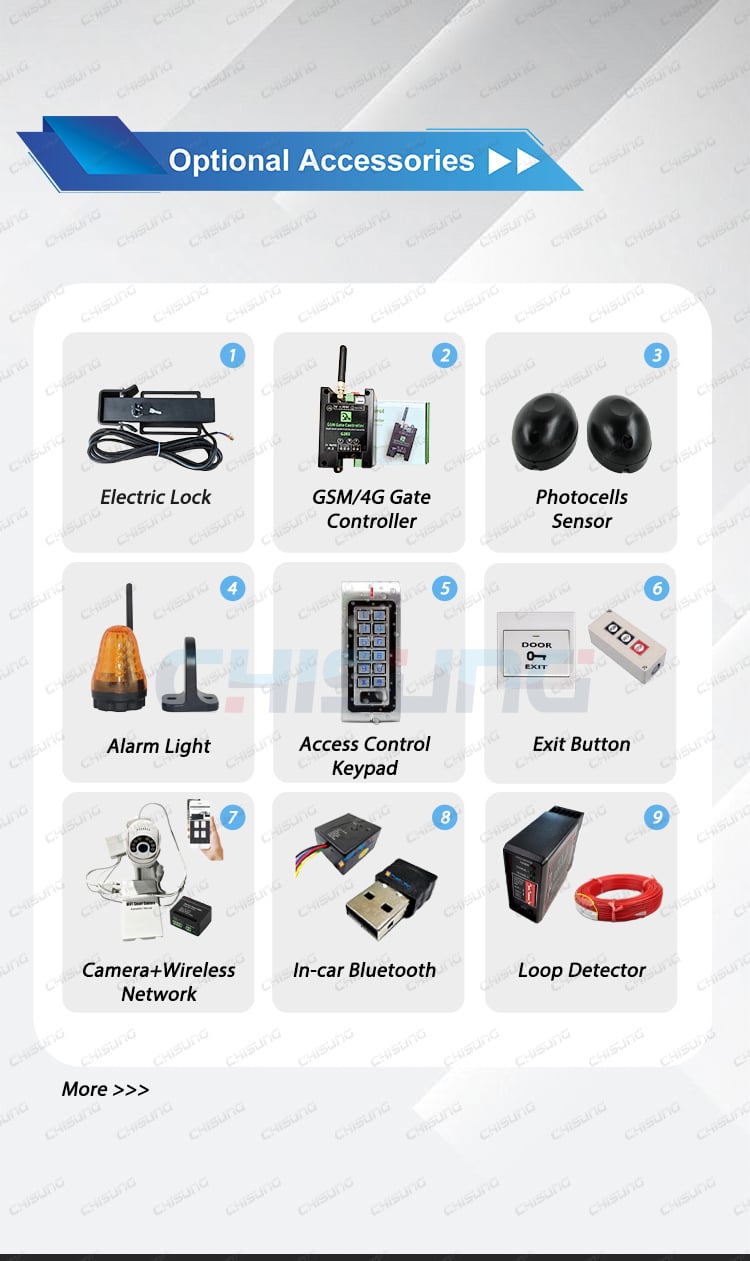

Compatible with photocells, GSM 4G, access keypads, car loop detectors and WIFI mobile control for smart home upgrade.
