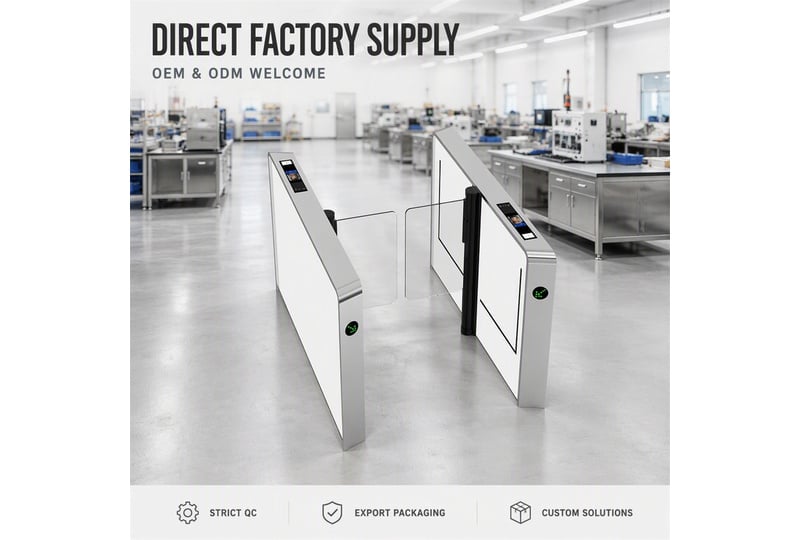

CSTF2503 Speed Glass Gate

Engineering Excellence And Drive Mechanism

At The Heart Of The CSTF2503 Lies A Sophisticated Servo Control System, Distinct From Traditional Mechanical Or Brushless Motors Found In Older Generation Turnstiles. This System Is Powered By An ARM‑DSP Architecture, Which Allows For Incredibly Precise Control Over The Gate's Movement. The Practical Implication Of This Technology Is Profound: The Gate Can Execute 10 Million Cycles Of Operation With Minimal Maintenance. This High‑Throughput Capability Translates To A Mean Cycles Between Failures (MCBF) Rating That Ensures The Gate Remains Operational For Years, Even In The Busiest Of Scenarios.

The Drive Mechanism Is Designed For Fluidity And Silence. Unlike Standard Speed Gates That Snap Open And Closed With Jarring Mechanical Noise, The CSTF2503 Utilizes A Servo Motor To Ensure A Smooth, Whisper‑Quiet Operation. This Makes It Ideal For Environments Where Noise Pollution Is A Concern, Such As Libraries, High‑End Office Lobbies, Or Hospital Zones. The Movement Of The Glass Wings Is Not Just Functional But Elegant, Mimicking The Smooth Motion Of High‑End Automatic Doors.

Robust Construction And Aesthetic Design

The CSTF2503 Is Built To Withstand The Rigors Of Daily Public Use While Maintaining A Premium Aesthetic. The Chassis Is Constructed From 1.2mm SUS304 Stainless Steel, A Material Choice Renowned For Its Corrosion Resistance And Durability. To Further Protect The Unit From The Elements And Everyday Wear, The Stainless Steel Undergoes A Drawing And Polishing Process, Resulting In A Sleek, Brushed Finish That Resists Fingerprints And Scratches.

The Gate Features Tempered Glass Wings That Are 10mm Thick. This Safety Glass Is Not Only Strong But Also Offers A Modern, Transparent Look That Allows For Visibility Through The Lane, Reducing The Feeling Of Confinement For Users. The Standard Unit Is Presented In A Classic Black Finish, But The Aesthetic Is Versatile. The Gate Is Available In Optional Gray And Red Color Schemes, Allowing Architects And Facility Managers To Match The Access Control Points With The Interior Design Of Their Building, Whether It Is A Minimalist Tech Hub Or A Vibrant Commercial Center.

Advanced Safety: The Triple Anti‑Pinch System

Safety Is Paramount In Any Automated Access Control System. The CSTF2503 Addresses This With A Comprehensive Triple Anti‑Pinch Protection System. This Multi‑Layered Approach Ensures That Users, Particularly Vulnerable Individuals Or Those Carrying Luggage, Are Never Trapped Or Injured By The Moving Glass Wings.

The System Utilizes An Array Of 6 Pairs Of Infrared (IR) Sensors. These Sensors Create An Invisible Safety Grid Across The Lane. If Any Object Or Person Breaks This Beam While The Gate Is Closing, The Wings Will Instantly Retract To The Open Position. This Is Complemented By Anti‑Pinch Mechanical Design And Current Detection Technology. If The Glass Wings Encounter Physical Resistance, The Motor Immediately Reverses Direction. This Combination Of Electronic And Mechanical Safeguards Provides Peace Of Mind, Ensuring That The Gate Prioritizes Human Safety Over Strict Closure Protocols.

Performance And Throughput

Designed For High‑Traffic Management, The CSTF2503 Boasts A Rapid Opening/Closing Time Of 1‑1.5 Seconds. This Speed Is Essential For Preventing Congestion During Peak Hours, Such As Morning Arrivals At A Corporate Office Or Shift Changes At A Factory. The Gate Supports A Passage Rate Of 35‑60 People Per Minute, Depending On The Verification Method Used.

The Unit Features A Wide Channel Width Of 600‑1000mm. This Generous Width Accommodates The Passage Of A Person In A Wheelchair, Individuals Carrying Large Suitcases Or Personnel Pushing Carts. This Accessibility Makes The Gate Compliant With Modern Building Codes That Require Barrier‑Free Access For Disabled Individuals.

Intelligent Integration And Control

The CSTF2503 Is Not Just A Physical Barrier; It Is An Intelligent Node In A Building's Security Network. It Supports Multiple Access Control Methods, Including IC/ID Card Readers, QR Code Scanners And Biometric Fingerprint Recognition. The Gate Also Supports Face Recognition Integration, Allowing For A Truly Touchless, Frictionless Entry Experience. The "Smart Security, Smooth Access" Feature Ensures That Authorized Personnel Can Pass Through Without Breaking Their Stride.

For Security Personnel, The Gate Offers Comprehensive Status Monitoring. The LED Indicating Lights On The Top Of The Pillars Provide Clear Visual Feedback To The User, Turning Green For Entry And Red For Denial. Additionally, The System Supports Fire Alarm Integration. In The Event Of An Emergency, The Gate Receives A Signal To Automatically Open The Wings And Allow For Unimpeded Evacuation, A Critical Feature For Life Safety Compliance.

Versatility In Application

The Versatility Of The CSTF2503 Makes It Suitable For A Vast Array Of Environments. Its "High‑End Place" Design Profile Fits Perfectly In Residential Communities And Commercial Office Buildings, Where Aesthetics And Security Are Equally Important. In Smart Factories, The Durability Of The SUS304 Steel And The Anti‑Static Capabilities Protect Sensitive Equipment. Furthermore, The Gate Is Utilized In Sports Parks, Clubs, Schools, Exhibition Centers And Metro Stations, Proving Its Capability To Handle Diverse Crowds Ranging From Students To Commuters.

Conclusion

The Chisung CSTF2503 Servo Speed Glass Gate Is More Than Just An Entry Point; It Is A Sophisticated Fusion Of Security Technology And Architectural Design. With Its 10‑Million‑Cycle Lifespan, Triple Anti‑Pinch Safety Logic And Customizable Aesthetic, It Provides A Reliable, High‑Speed Solution For Facilities Aiming To Modernize Their Access Control. Whether Upgrading A Single Entrance Or Integrating A Network Of Lanes Across A Campus, The CSTF2503 Offers The Precision, Safety And Throughput Required To Manage The Flow Of People In The Modern World.
