CHISUNG CSSGO-10 Smart Expandable Swing Gate Opener for Villa & Factory with AC Motor & Remote Control
- Overview
- Recommended Products
Product information:
| Place of Origin: | China |
| Brand Name: | CHISUNG |
| Model Number: | CSSGO-10 |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
| Price: |
1. AC motor,400mm stroke,225USD 2. AC motor,600mm stroke,235USD |
| Packaging Details: | carton |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000sets/Month |
Quick Detail:
Swing gate opener
Automatic swing gate opener
Arm-type gate operator
Surface-mounted swing operator
Underground swing operator
Dual swing gate operator
swinging gate operator
Articulated arm gate operator
Electromechanical swing gate actuator
Remote-controlled swing gate opener
Swing gate motor
Low-energy swing gate operator
Powered swing gate operator
Linkage-type gate operator
Residential swing gate opener
Smart swing gate opener
Commercial-duty swing gate operator
Solar-powered swing gate opener

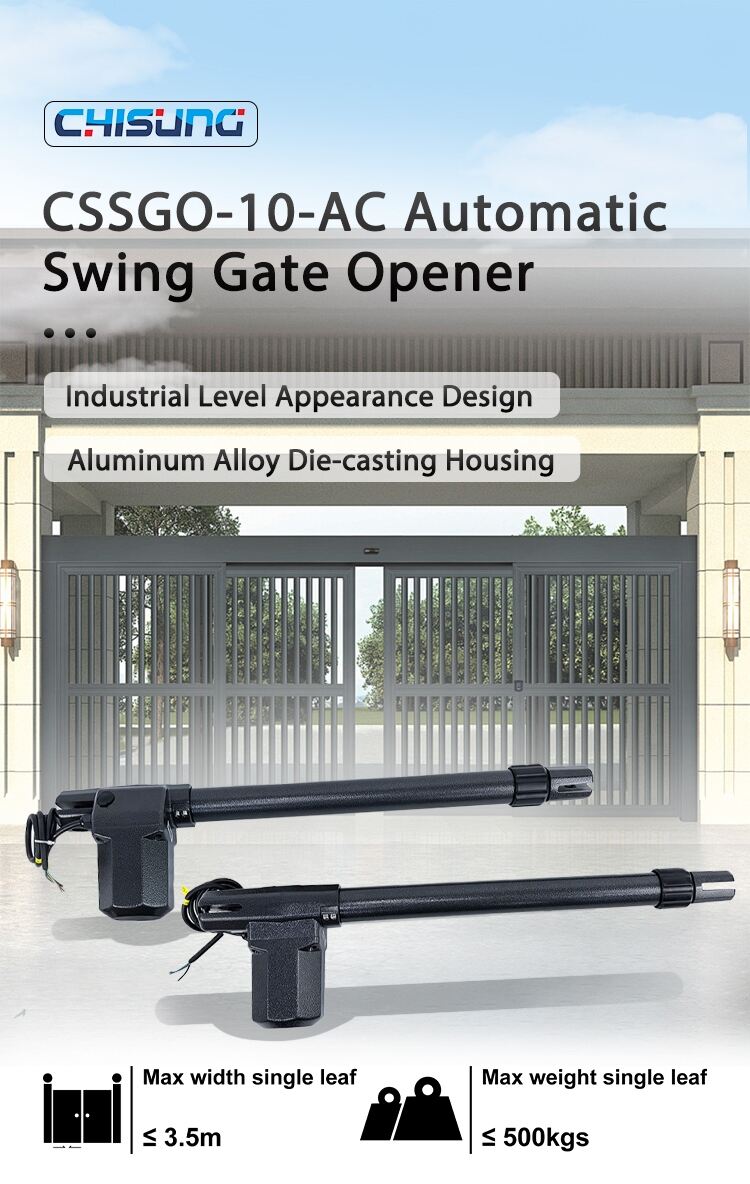

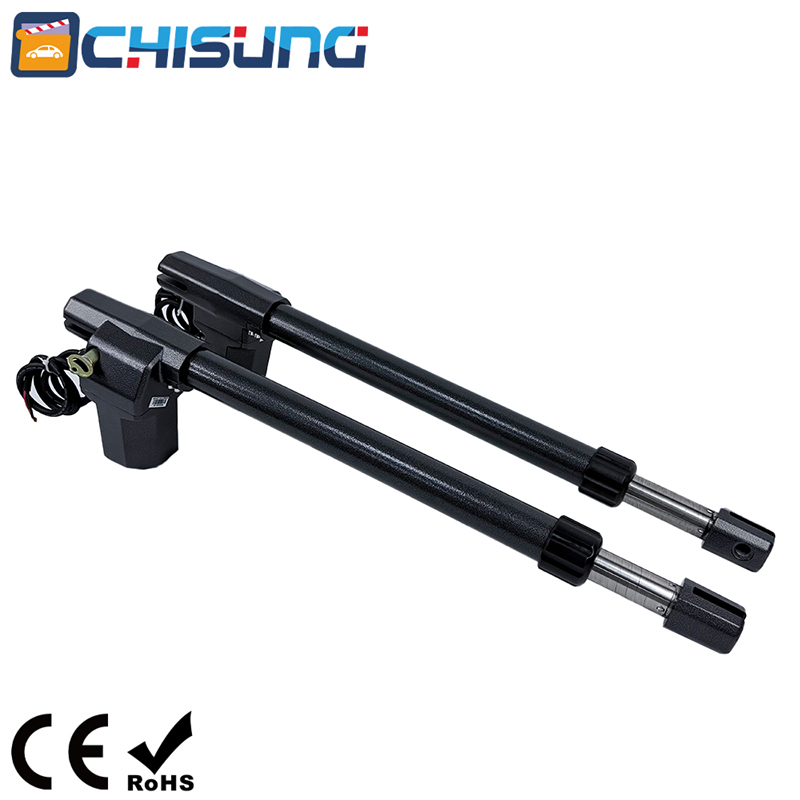

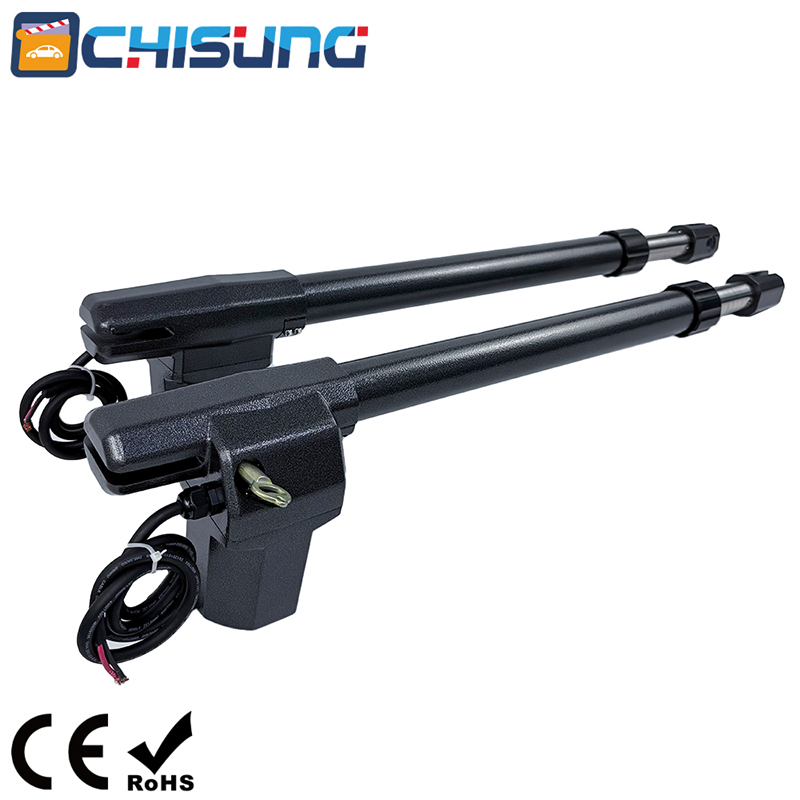

CHISUNG CSSGO-10 is a high-performance, industrial-grade straight-arm swing gate operator engineered for medium to large-sized gates. With a maximum single-leaf gate weight capacity of 500kg and a single-leaf width up to 4m, it delivers robust power, intelligent safety features, and seamless automation for both residential and commercial properties.
Description:
Core Features
1. Durable Industrial Design

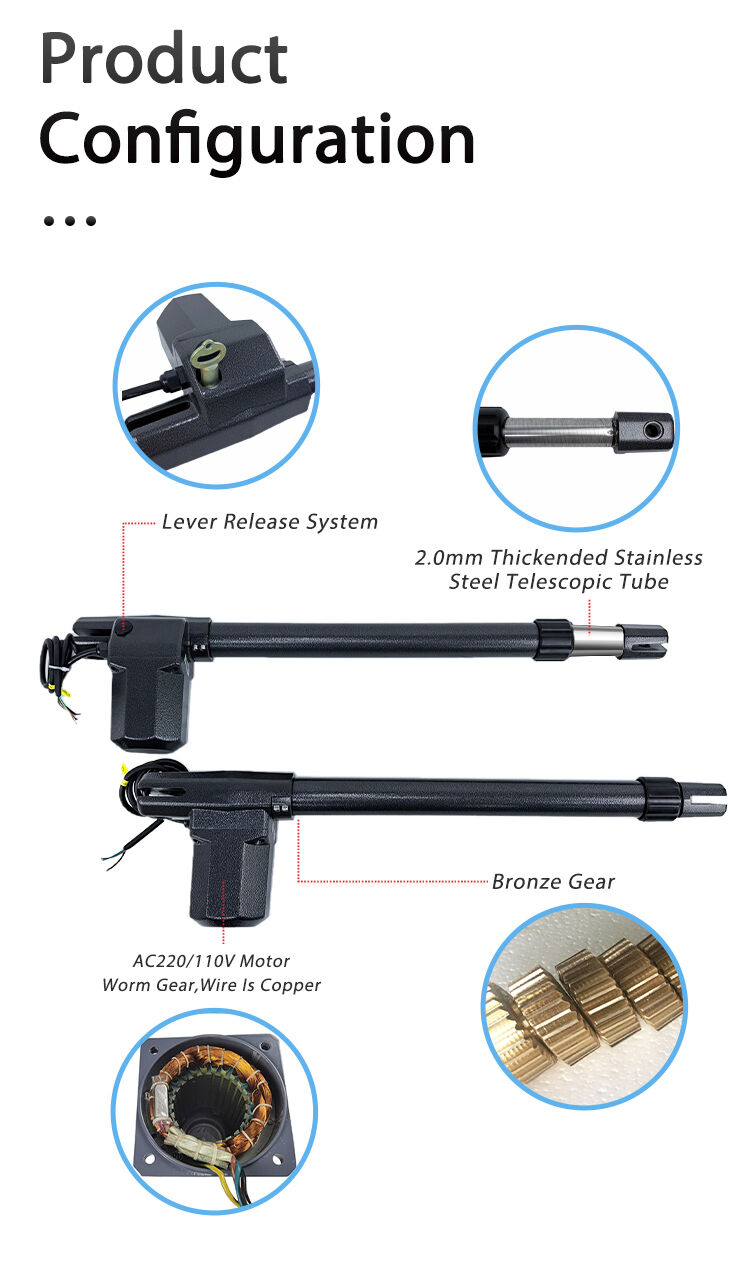

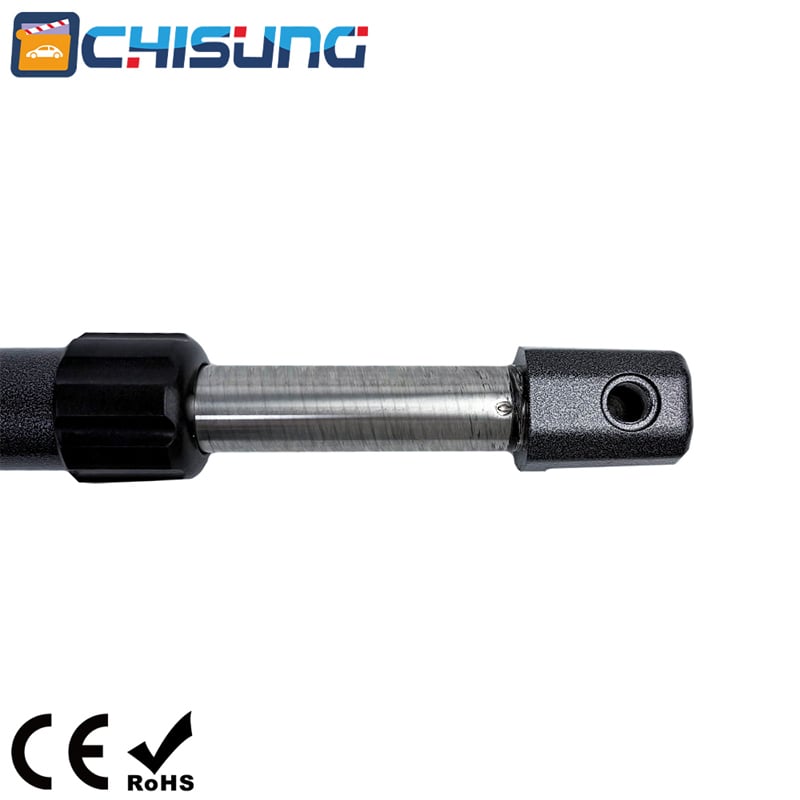

Premium Materials: Features a die-cast aluminum alloy shell and 2.0mm thick stainless steel telescopic tube, resistant to corrosion and deformation, ensuring long-term reliability in harsh weather conditions.
Robust Transmission: Equipped with a worm gear drive system with bronze gears and pure copper coils, providing smooth, quiet operation with minimal wear and tear.
2. Dual Power Options for Versatile Performance
AC 220V/110V Model: High-power performance with 2800N thrust, designed for heavy-duty commercial or industrial gates up to 3.5-4.0m in length. Offers stronger pulling and pushing force for large, overweight gates.
3. Intelligent Safety & Convenience

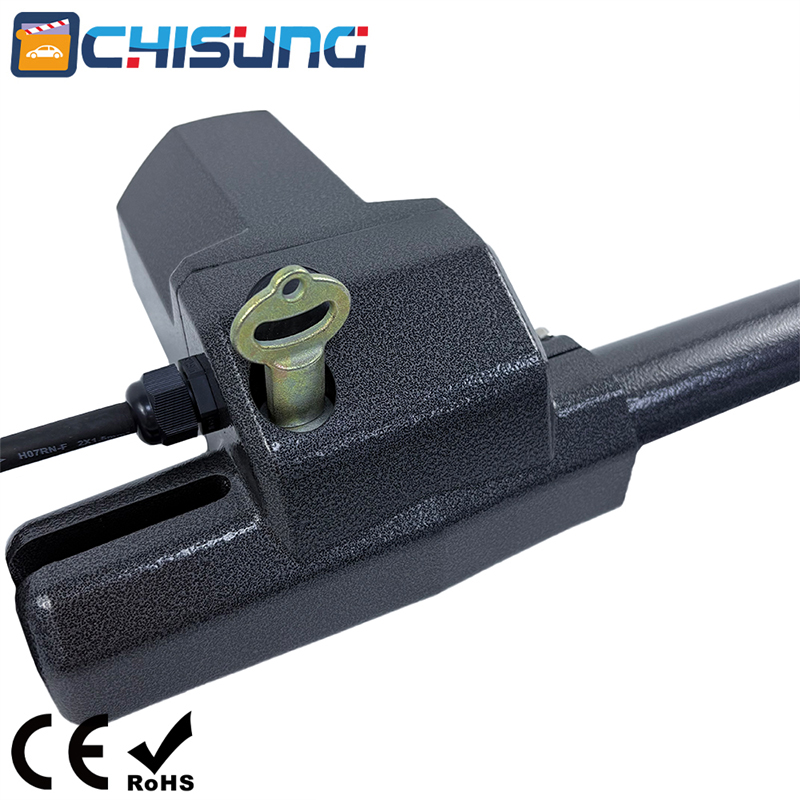

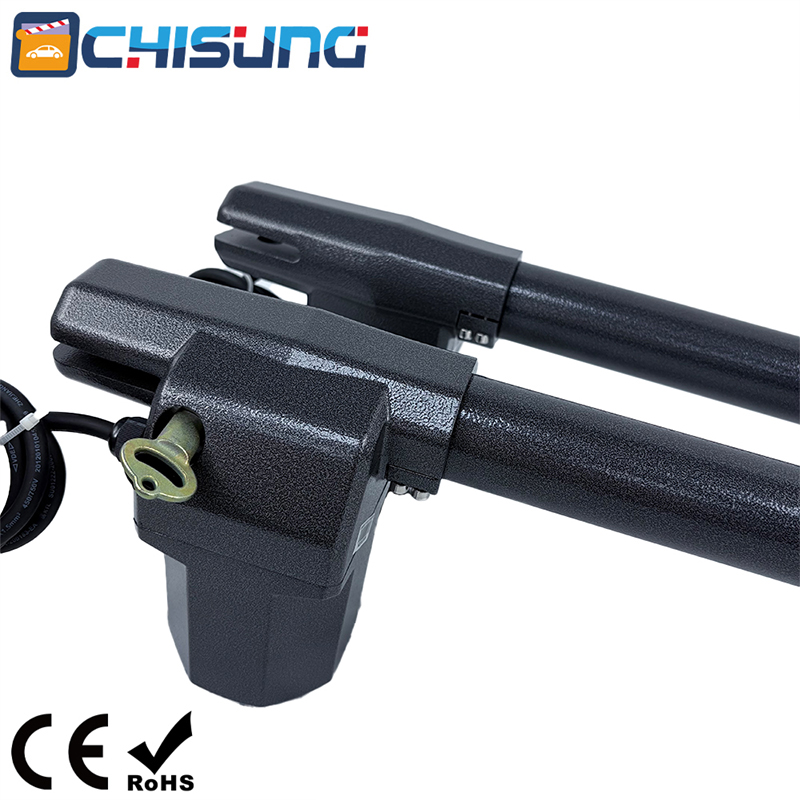

Manual Override: Innovative disengagement mechanism allows easy manual operation during power outages or emergencies.

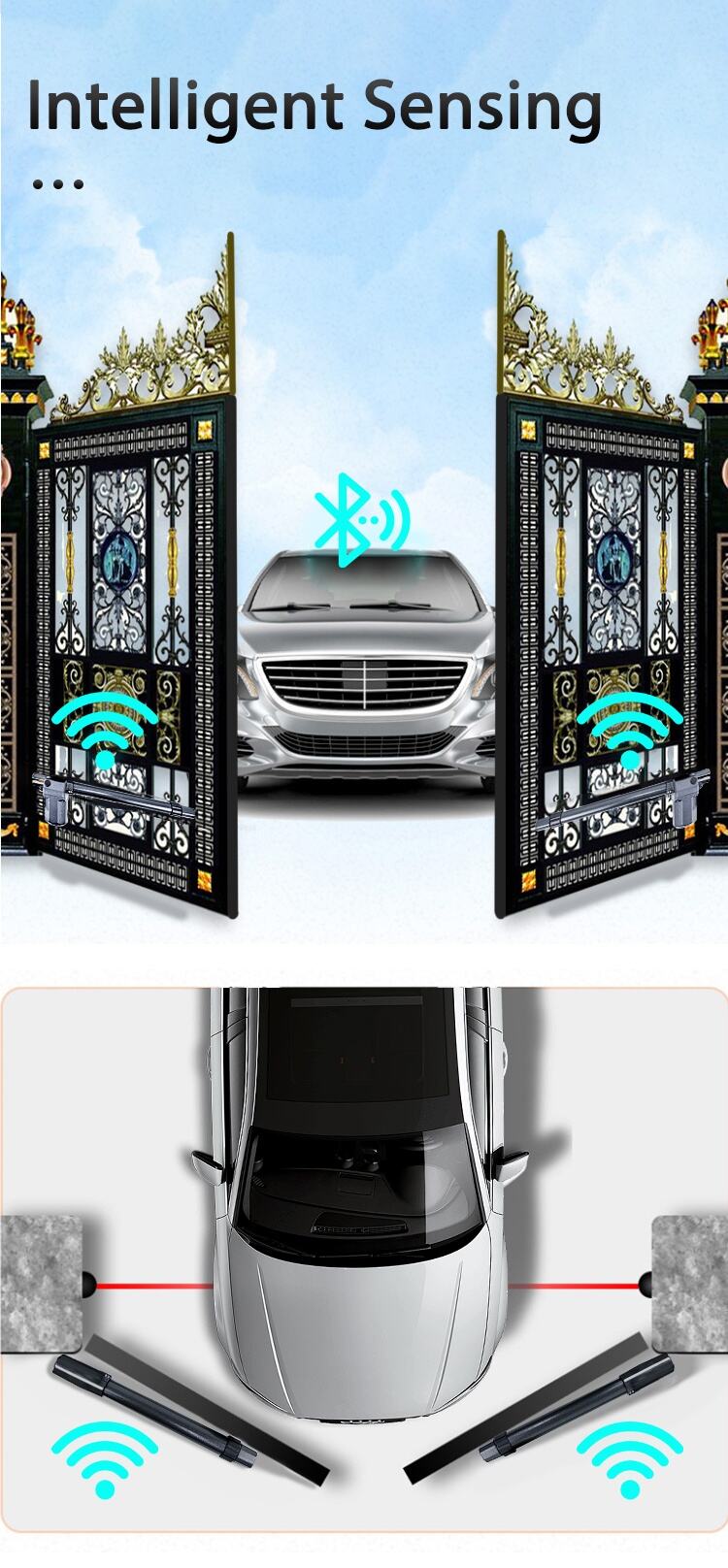

Programmable Safety: Adjustable running time protection and auto-closing delay (0-99 seconds) prevent gate malfunctions. Built-in obstacle detection ensures safe operation.

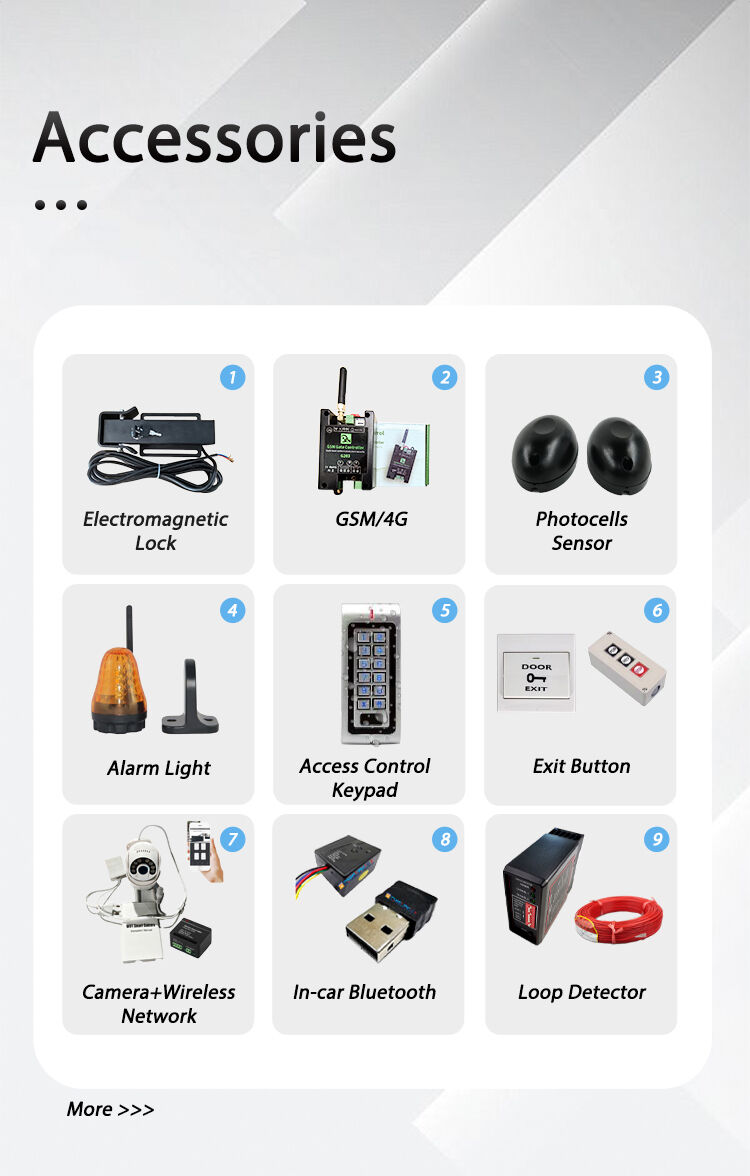

Secure Access: Customized key and learnable remote control enhance security, while optional add-ons like infrared sensors and electronic locks provide additional protection.
4. Smart Automation & Expandability

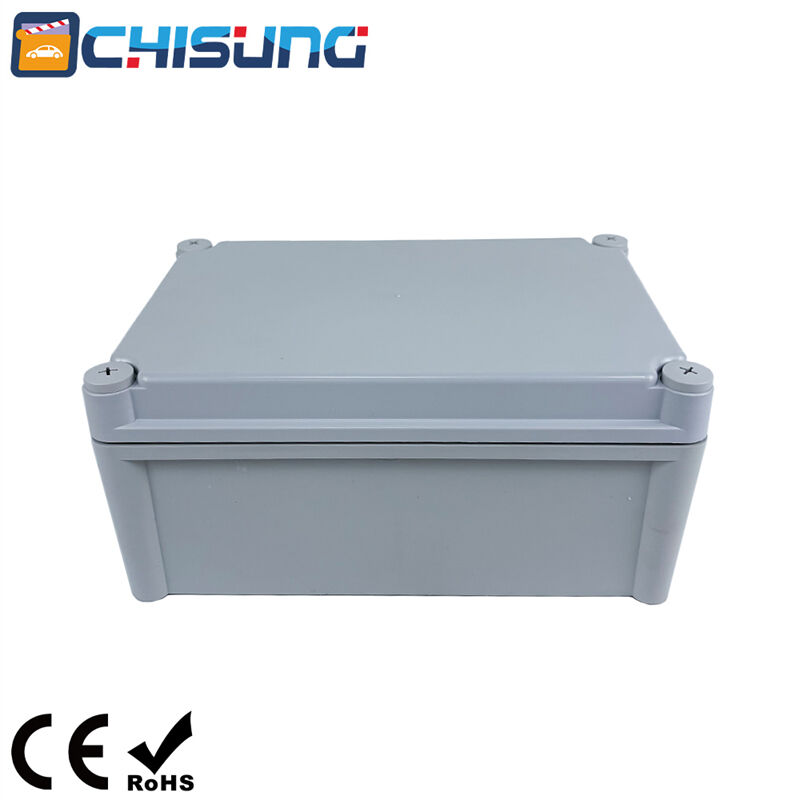

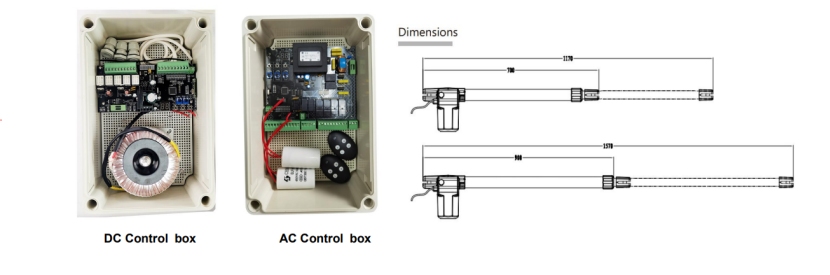

Rich Interface: The control board supports external connections to batteries, solar panels, warning lights, and more, enabling off-grid or energy-efficient operation.
Remote Control: Optional Wi-Fi module and camera integration allow remote gate control and live video monitoring via smartphone, providing peace of mind from anywhere.
Applications:
Commercial & Industrial Sites: Perfect for warehouses, manufacturing plants, and distribution centers with heavy, oversized swing gates, handling frequent vehicle and personnel traffic with ease.
Luxury Residential Properties: Tailored for grand villas, gated communities, and estates with substantial gates, combining rugged performance with user-friendly features for daily use.
Smart Property Management: Seamlessly integrates with smart home ecosystems, enabling remote control, surveillance, and automated access management for enhanced security and convenience.

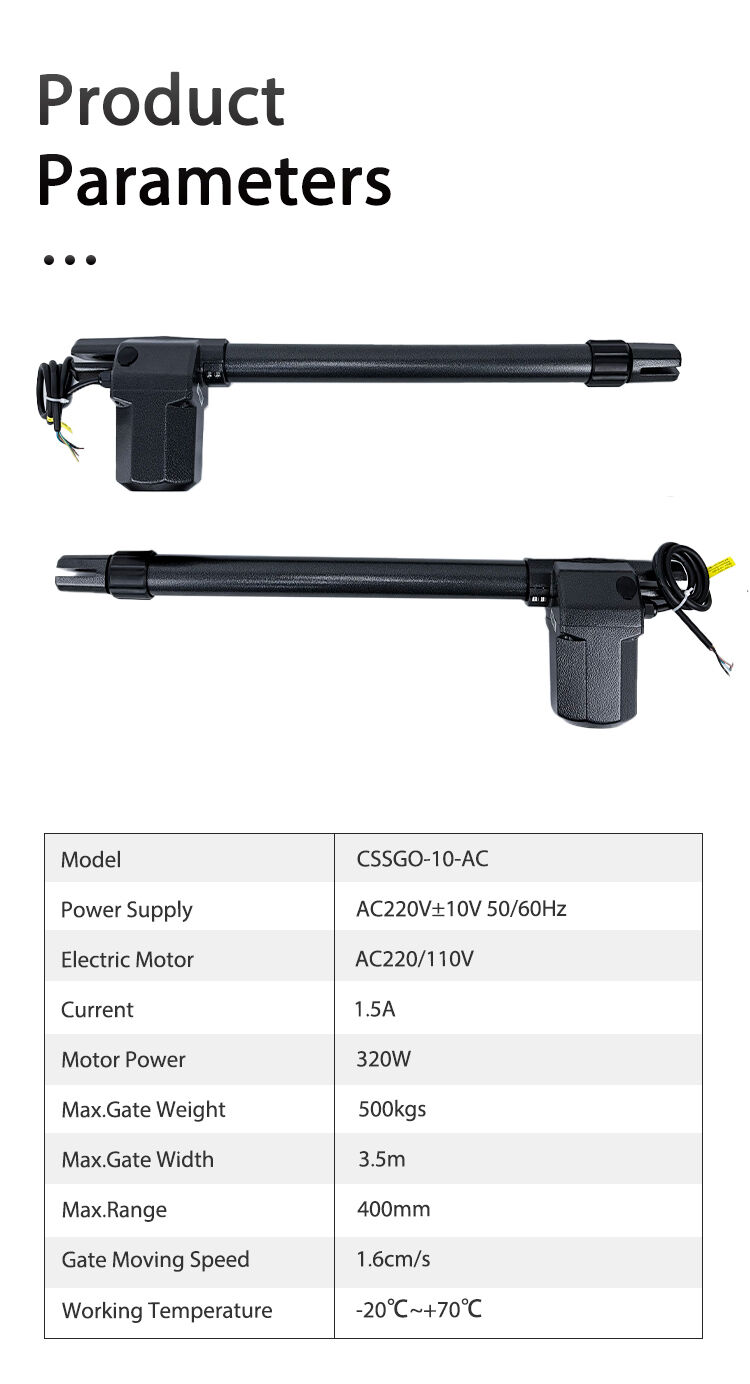

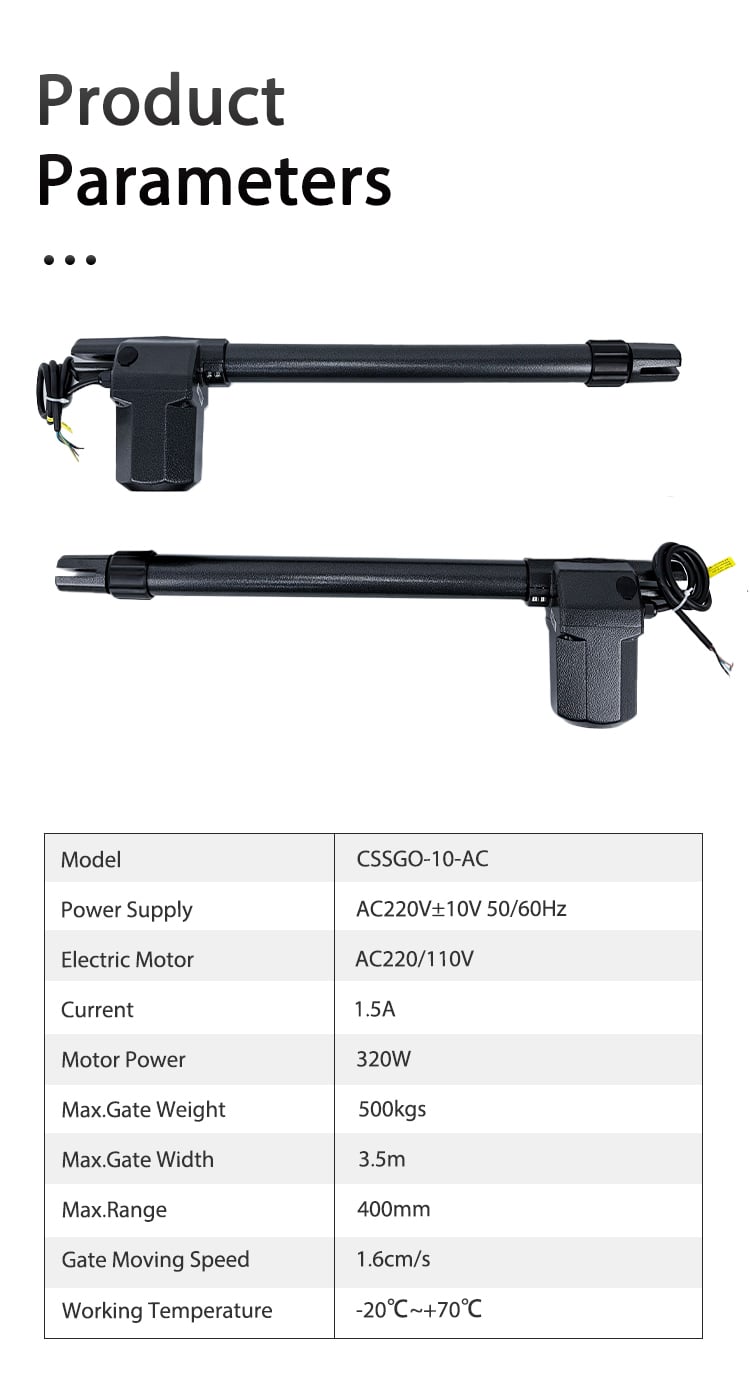

Specifications:
| Model | CSSGO-10-1-AC ordinary | CSSGO-10-2-AC extra long |
| Power Supply |
AC220V±10V 50/60HZ, AC110V±10V, 60Hz |
AC220V±10V 50/60HZ, AC110V±10V, 60Hz |
| Electric motor | AC220/110V | AC220/110V |
| Current | 1.5A | 1.5A |
| Absorbeb power of motor | 320W | 320W |
| Max each leaf length | 3.5m | 4.0m |
| Max each gate weight | 500kg | 500kg |
| Motor speed | 1.6cm/s | 1.6cm/s |
| Rotational speed | 1450RPM | 1450RPM |
| Thrust | 2800N | 2800N |
| Running time protection | Adjustable | Adjustable |
| Rod's max travel | 400mm | 600mm |
| Auto closing delay time | programmable (from 0 to 99 seconds) | programmable (from 0 to 99 seconds) |
| Gate move speed | 12S/90degrees | 12S/90degrees |
| Operating Temperature | -20°C~+70°C | -20°C~+70°C |
| Relative Humidity | 30% | 30% |
| Protection class | IP45 | IP45 |
| Application | home automation | home automation |
| limit switch | No | No |
| condenser | 8F(AC220V),25uf(AC110V) | 8F(AC220V),25uf(AC110V) |
| Gate opening angle | 90°,100°,110°,120° | 90°,100°,110°,120° |
| Motor Dimensions(LxDxH) | 735*175*90mm | 935*175*90mm |
| Packing | 21kg, Together 1 cartons: 830*300*280mm | 22kg, Together 1 cartons: 1030*300*280mm |
Competitive Advantage:
Why Choose CHISUNG CSSGO-10?
Whether you need a reliable, energy-efficient solution for a residential driveway or a high-power, heavy-duty operator for an industrial facility, the CSSGO-10 series delivers unmatched performance, durability, and smart automation. Its modular design and expandable features allow you to customize the system to meet your specific needs, ensuring secure, convenient, and hassle-free gate access for years to come.
Experience the future of gate automation with CHISUNG CSSGO-10—where industrial strength meets intelligent convenience.
