CHISUNG CSSGO-06 Heavy Duty Automatic Swing Gate Opener 500kg 4m Single Leaf, 3000N Thrust AC220V/110VMotorfor Oversized & Overweight Gates
500kg/4m Max Gate | 3000N Ultra-High Thrust | Built-in Electronic Limit & Super Capacitor | -20℃~+70℃ Extreme Temp Resistant | IP45 Weatherproof | Manual Key Release | Low Noise
- Overview
- Recommended Products
Product Information
| Place of Origin: | China |
| Brand Name: | CHISUNG |
| Model Number: | CSSGO-06 |
| Certification: | CE |
Product Commercial Terms
| Minimum Order Quantity: | 1 |
| Price: | Consult us |
| Packaging Details: | carton |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000sets/Month |
Quick Detail:
Swing gate opener
Automatic swing gate opener
Arm-type gate operator
Surface-mounted swing operator
Underground swing operator
Dual swing gate operator
Swinging gate operator
Articulated arm gate operator
Electromechanical swing gate actuator
Remote-controlled swing gate opener
Swing gate motor
Low-energy swing gate operator
Powered swing gate operator
Linkage-type gate operator
Residential swing gate opener
Smart swing gate opener
Commercial-duty swing gate operator
Solar-powered swing gate opener
Push Rod gate opener
Linear Actuator gate opener
Pusher Type gate opener
Gate Motor for Swing Gates
Auto Gate Opener
Electric Gate Operator
Commercial Gate Opener
Ram Arm Swing Gate Opener
Single Swing Gate Opener
Outdoor Gate Opener
Heavy Duty Swing Gate Opener
Heavy Duty Swing Gate Operator
Industrial Swing Gate Motor
Heavy Duty Electric Gate Operator
Electric Swing Gate Motor

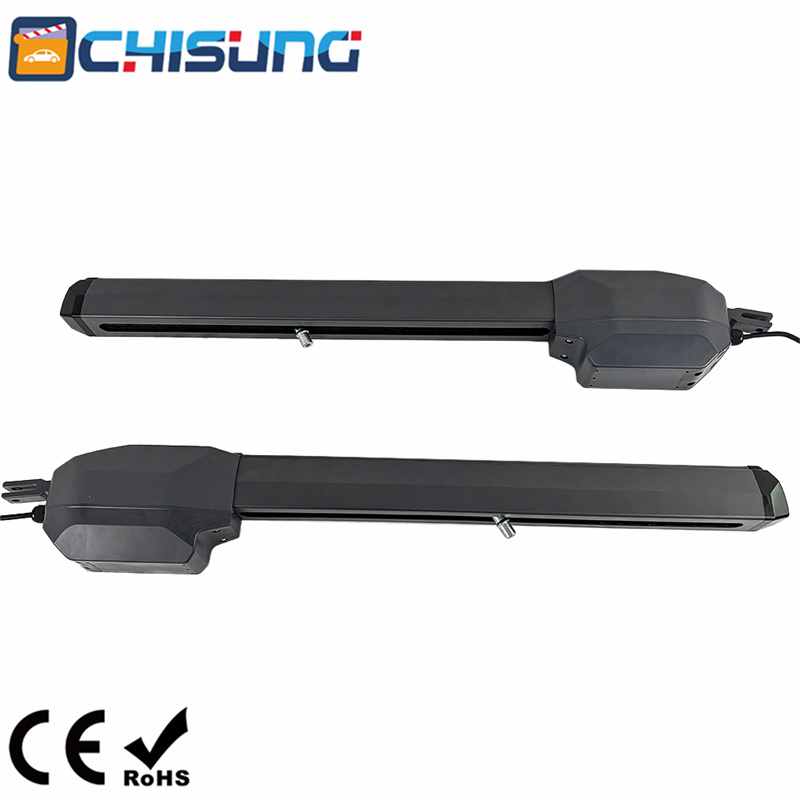

The CSSGO-06 Heavy Duty Auto-Swing Gate Opener is a high-performance external gate automation system designed specifically for oversized and overweight swing gates. It handles single-leaf gates up to 4.0m wide and 500kg with powerful 3000N thrust, making it ideal for heavy-duty residential, commercial, and industrial use. Built with die-cast aluminum housing, it features electronic limit switches, super capacitors, and extreme temperature resistance from -20℃ to +70℃, delivering reliable, low-noise operation in even the harshest environments.
Description:
The CSSGO-06 swing gate opener is engineered to handle the most demanding gate applications. It is purpose-built for large, heavy gates up to 4.0m wide and 500kg, powered by a 320W motor delivering 3000N of thrust, ensuring smooth and powerful operation even in strong winds or extreme conditions.
At its core, it features reinforced steel turbine worm gears and a durable die-cast aluminum alloy housing with powder coating for weather resistance. The built-in electronic limit switches ensure precise opening and closing positions, while integrated super capacitors provide backup power and prevent gate damage from sudden power cuts.
Safety and reliability are paramount. The system includes a manual key release for easy operation during power outages, adjustable running time protection to prevent overheating, and a robust design that resists strong winds, rain, and freezing temperatures. With an IP45 protection class, it operates reliably in temperatures from -20℃ to +70℃, making it suitable for use in cold climates, snowfall areas, and high-humidity environments.
The system supports flexible customization: auto-closing delay is programmable from 0 to 99 seconds, and opening angles can be set to 90°, 100°, 110°, or 120°. It is compatible with a wide range of optional accessories, including GSM controllers, access keypads, vehicle loop detectors, and infrared photocells, allowing you to build a fully integrated smart access control system.

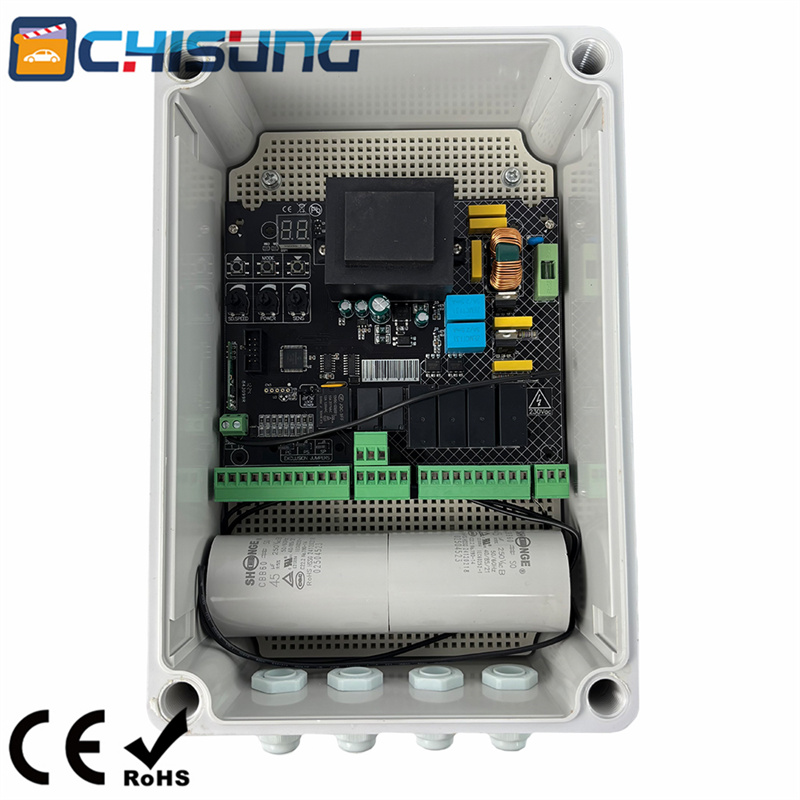

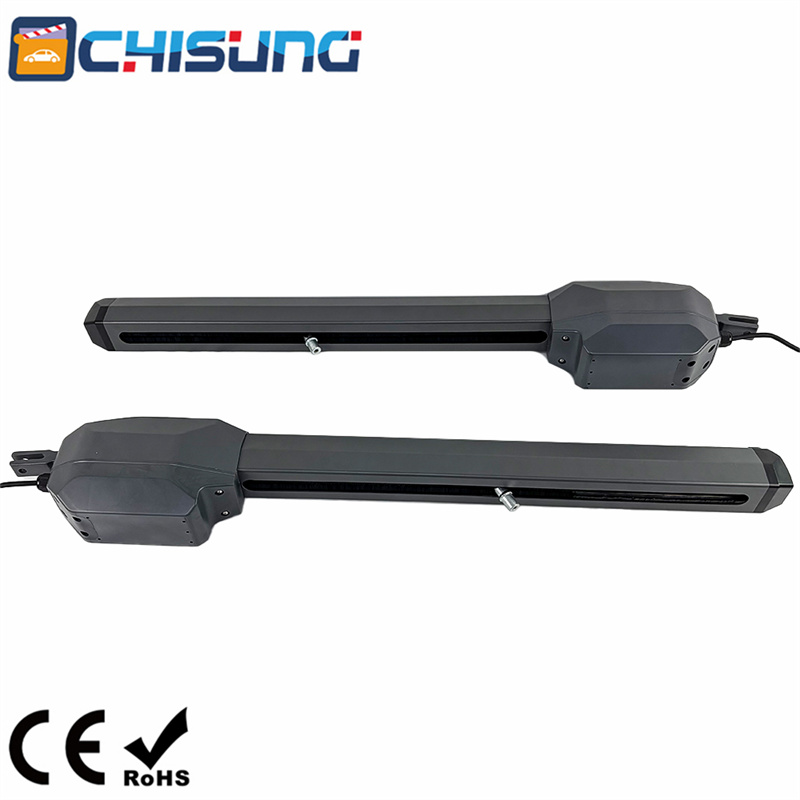

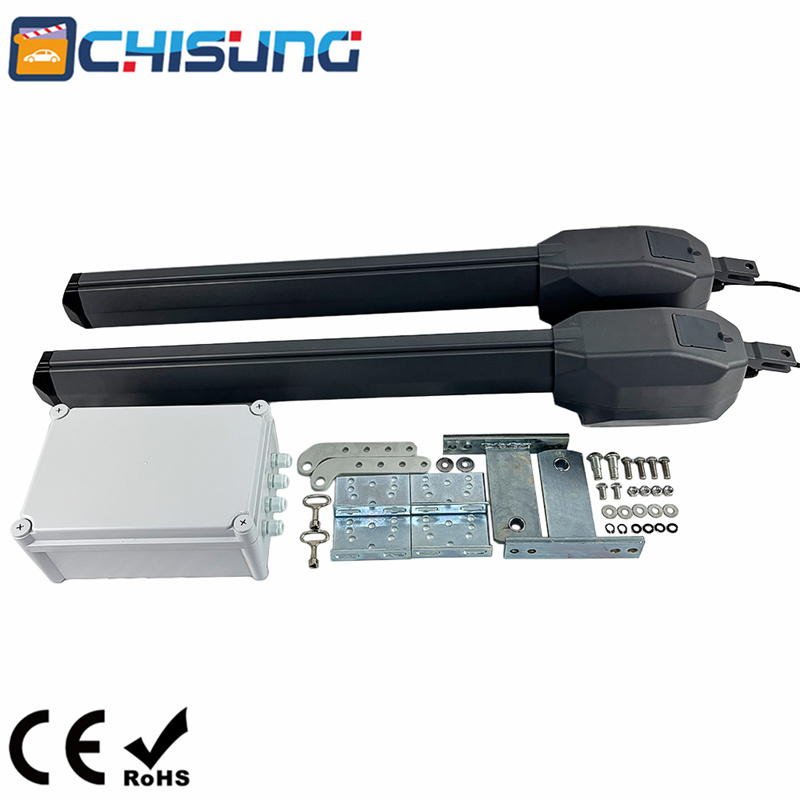

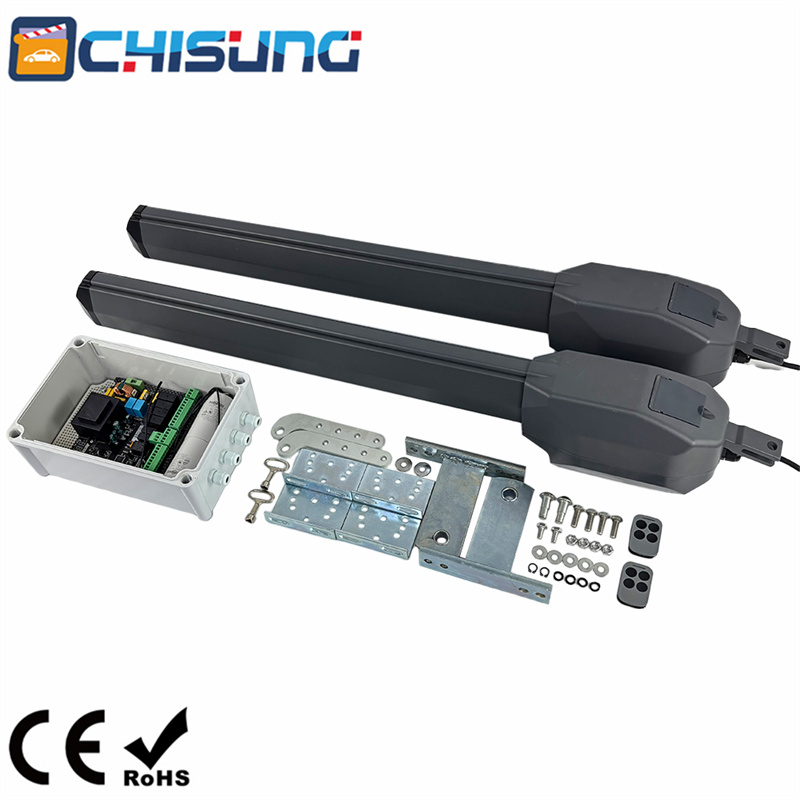

The standard kit includes two motor arms, a control box, mounting brackets, clutch keys, and remote controls, providing everything needed for quick and straightforward installation. The design prioritizes low noise operation, ensuring quiet gate movement without disrupting your home or business.
Applications:
l Residential: Oversized villa driveway gates, heavy-duty iron gates, and large private property entrances
l Communities & Commercial: Gated community main gates, apartment complex security gates, and commercial building access
l Industrial: Factory compound gates, warehouse vehicle entry points, and construction site access control
l Special Environments: Cold climate installations, snowfall regions, high-wind coastal areas, and high-humidity locations
l Public Spaces: School and hospital perimeter gates, scenic area entrances, and railway station access gates
Specifications:
| Item | Specification |
| Model | CSSGO-06 (400mm/600mm Travel Versions) |
| Power Supply | AC220V±10V 50/60Hz / AC110V±10V 60Hz |
| Motor Power | 320W |
| Rated Current | 1.5A |
| Max Thrust | 3000N |
| Max Gate Weight (Single Leaf) | 500kg |
| Max Gate Width (Single Leaf) | 4.0m (600mm version) / 3.0m (400mm version) |
| Motor Speed | 1450 RPM |
| Linear Speed | 1.6cm/s |
| Arm Travel | 400mm / 600mm (optional) |
| Opening Time | 12 seconds for 90° |
| Opening Angle | 90°/100°/110°/120° (adjustable) |
| Operating Temperature | -20℃ ~ +70℃ |
| Relative Humidity | ≤95% RH, non-condensing |
| Protection Class | IP45 |
| Housing Material | Die-cast aluminum alloy shell + stainless steel pipe, powder-coated |
| Safety Features | Electronic limit switches, super capacitor backup, manual key release, adjustable overheat protection |
| Auto-Close Delay | Programmable 0–99 seconds |

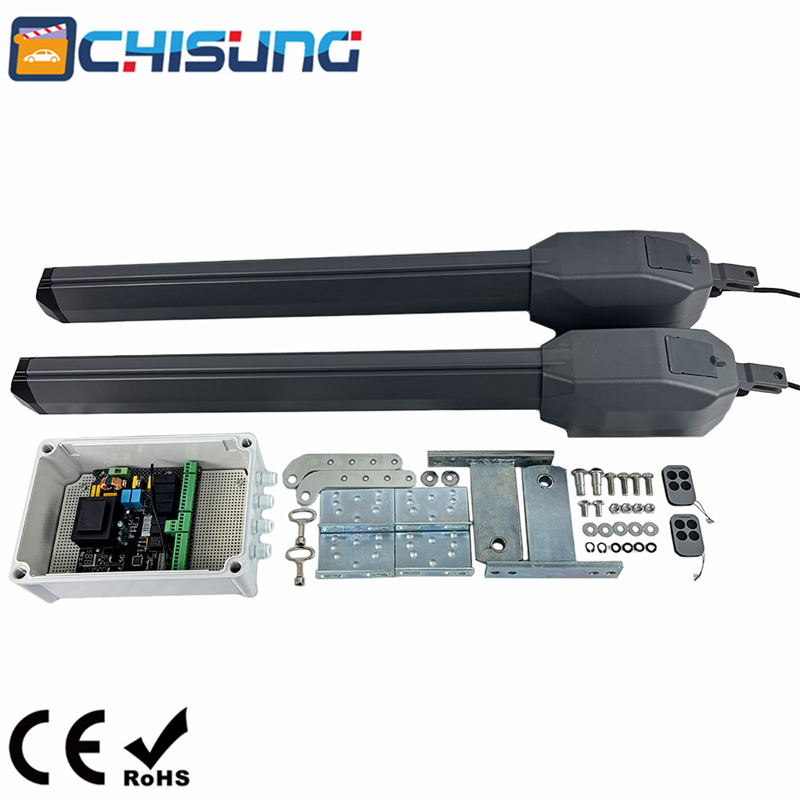

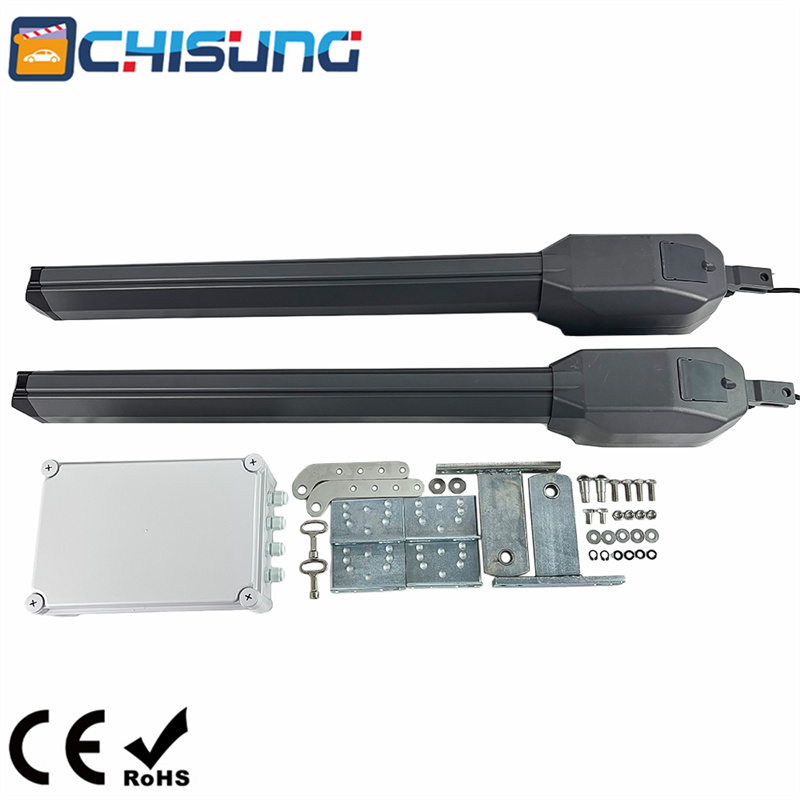

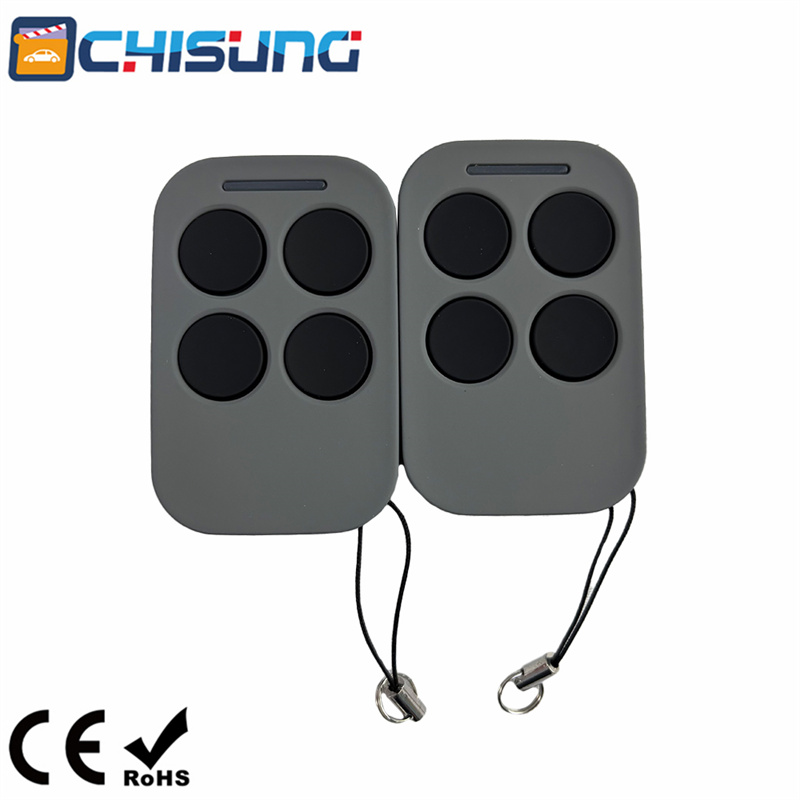

| Package Contents | 2 motor arms, 1 control box, 2 remotes, mounting brackets, clutch keys, hardware, manual |
| Packing | 30kg, one carton: 930*320*280mm |
| 32kg, one carton: 1130*320*280mm |
Competitive Advantage:
Unmatched Heavy-Duty Performance – 3000N thrust handles 500kg/4m gates with ease, designed specifically for oversized and overweight gates.
Extreme Environment Resilience – Operating range from -20℃ to +70℃ with IP45 protection, ideal for cold climates, snow, and high humidity.
Advanced Safety & Precision – Built-in electronic limit switches and super capacitors ensure accurate positioning and prevent gate damage.
Flexible Power & Control – Compatible with AC220V/110V, and supports integration with GSM, keypads, loop detectors, and other smart accessories.
Robust & Durable Construction – Reinforced steel turbine gears and die-cast aluminum housing for long-term, low-maintenance use.

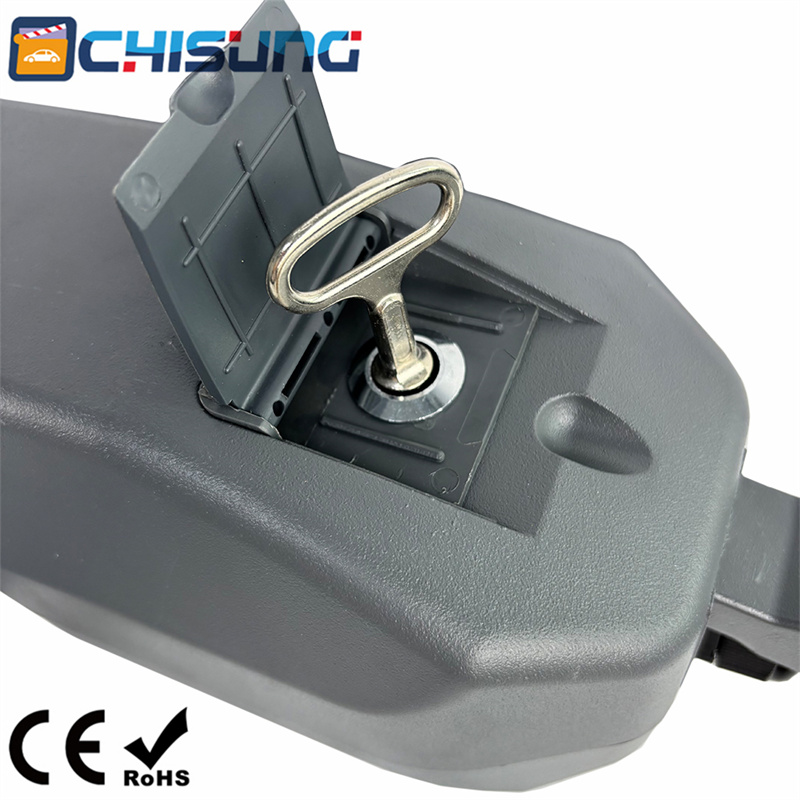

Manual Override for Emergencies – Key-operated release allows manual gate opening during power outages.
Low Noise Operation – Precision-engineered components ensure quiet gate movement without disrupting the surrounding environment.
Wide Compatibility – Supports multiple opening angles and travel lengths to fit various gate designs and installation needs.
