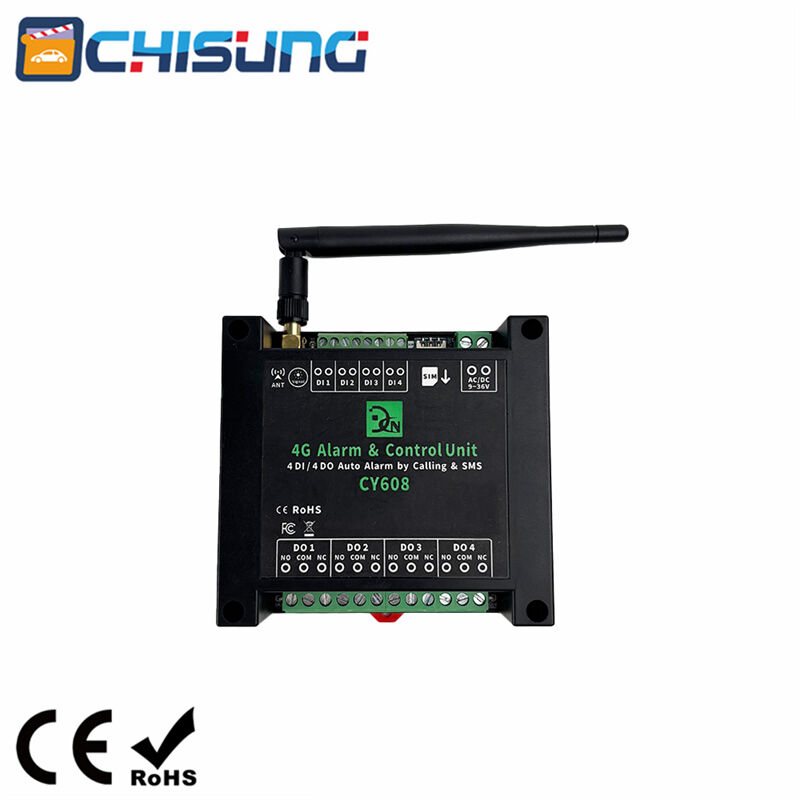

CY608 GSM/4G 4DI 4DO Remote Alarm Controller SMS Call Alert Relay Control for Security & Automation

CY608 GSM/4G 4DI 4DO Remote Alarm Controller SMS Call Alert Relay Control for Security & Automation

Overview
Recommended Products

Product Information

Place of Origin	China
Brand Name	CHISUNG
Model Number	CY608
Certification	CE
Minimum Order Quantity	1 unit
Price	4G,65 USD
Packaging Details	Carton/Wooden,According to customer requirements
Delivery Time	7-15days
Payment Terms	L/C ; T/T ; MoneyGram
Supply Ability	3000 units/Month

Quick Detail

GSM Relay
GSM Gate Opener
GSM Gate Controller
GSM Relay Control
GSM Remote Control
GSM Relay Switch
GSM Door Opener
GSM Door Controller
GSM Access Controller
GSM Access Control Unit
GSM Remote Switch
GSM Access Control Relay
GSM 3G 4G Gate Opener
GSM 3G 4G Cellular Gate Opener
GSM 3G 4G Gate Receiver
GSM 3G 4G Signal Sender
GSM 3G 4G Single Switch

Product Introduction

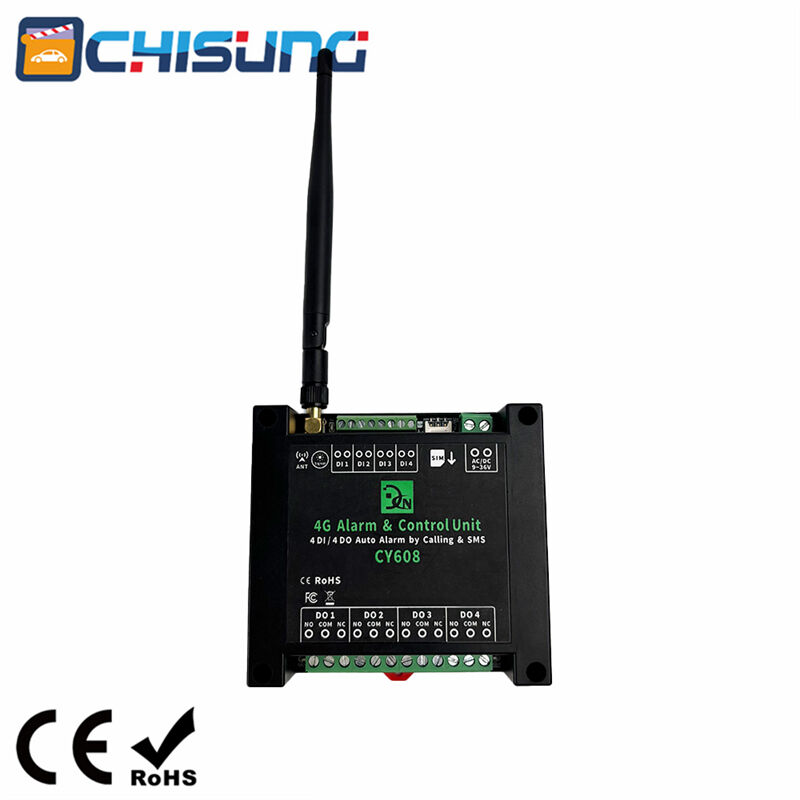

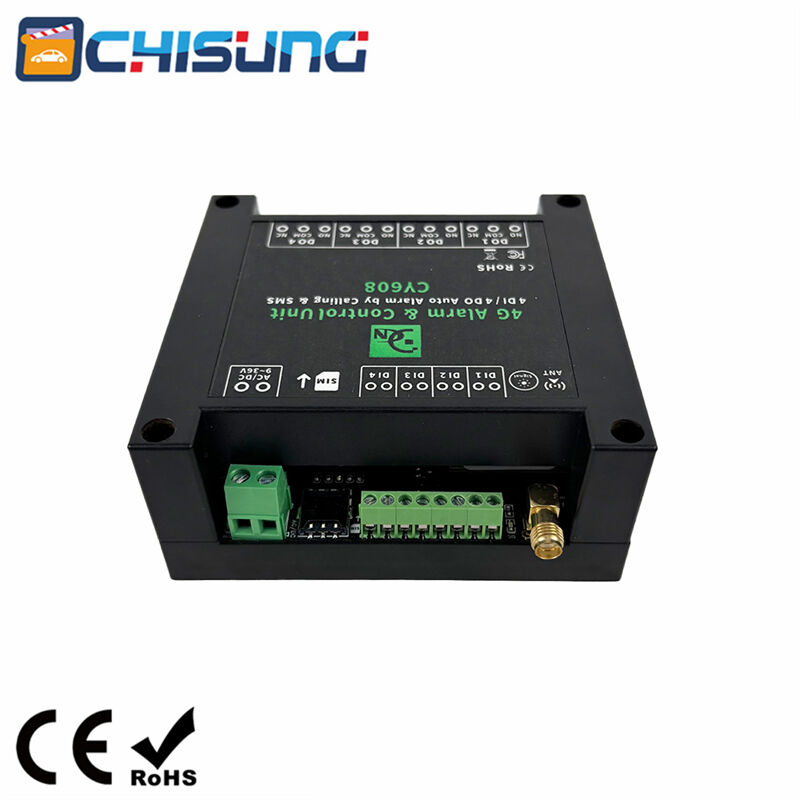

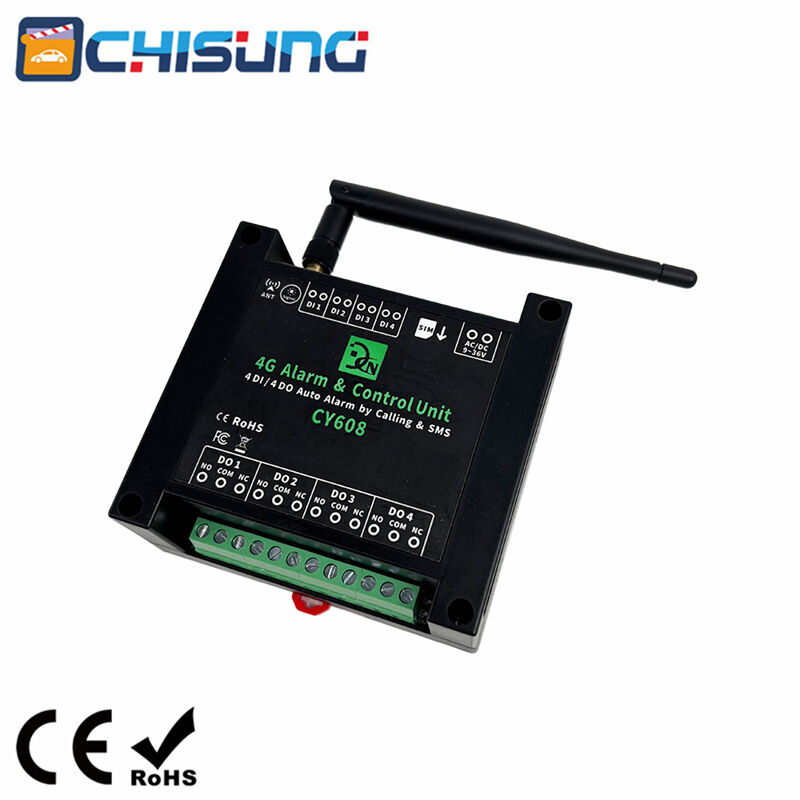

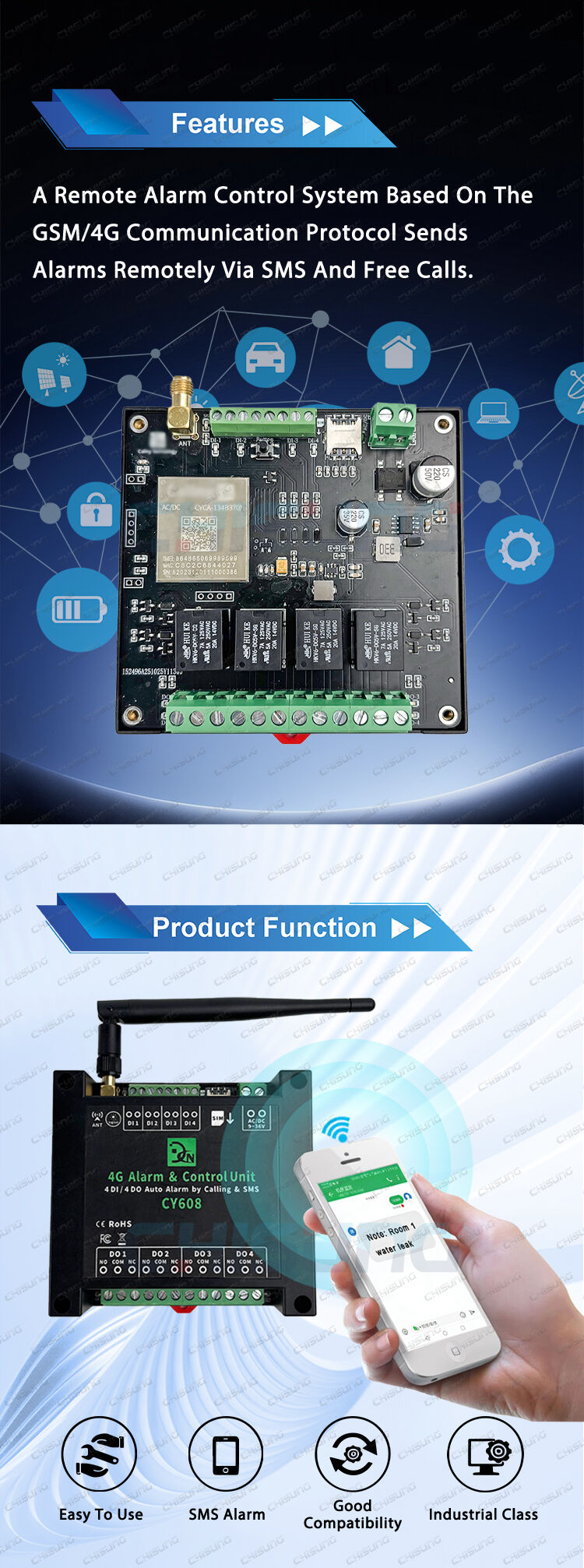

CY608 is a professional GSM/4G remote alarm and control system that supports 4DI sensor inputs and 4DO relay outputs. It sends real-time alerts via SMS and free calls to 5 users, supports 999 authorized numbers, and can remotely control devices via SMS or call. With wide voltage input, high compatibility, and stable linkage, it is widely used in anti‑theft, access control, garage door, industrial automation, and security systems.

Description

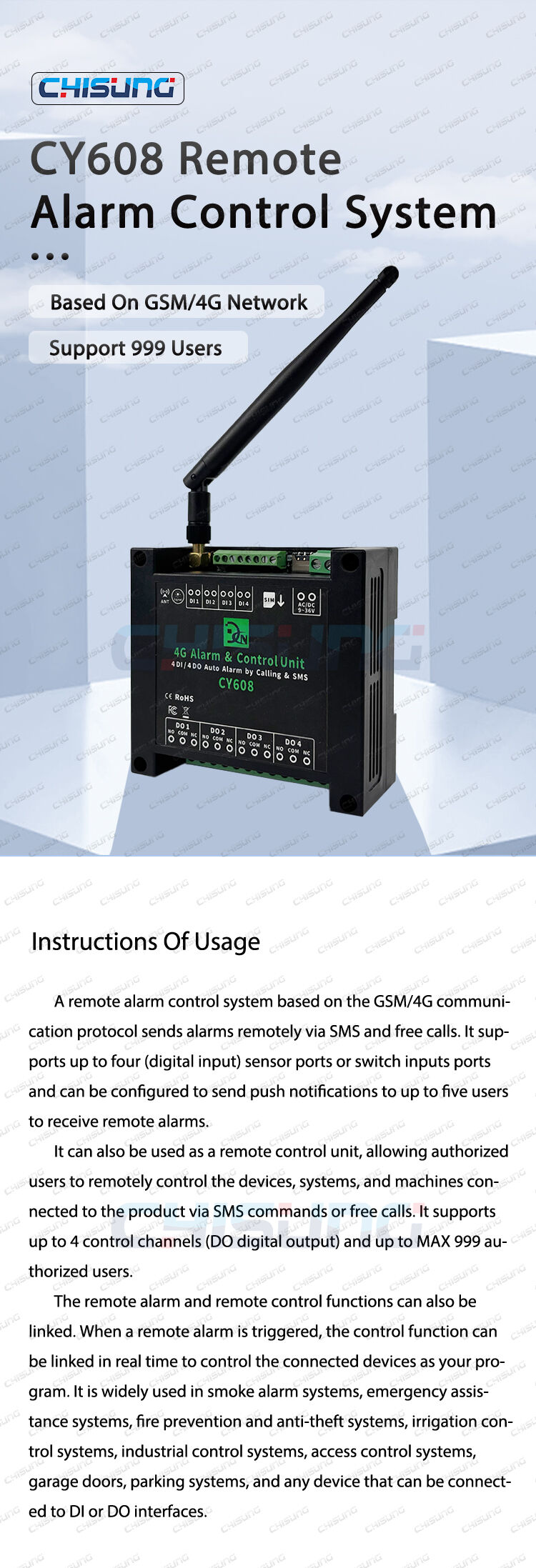

Product Overview

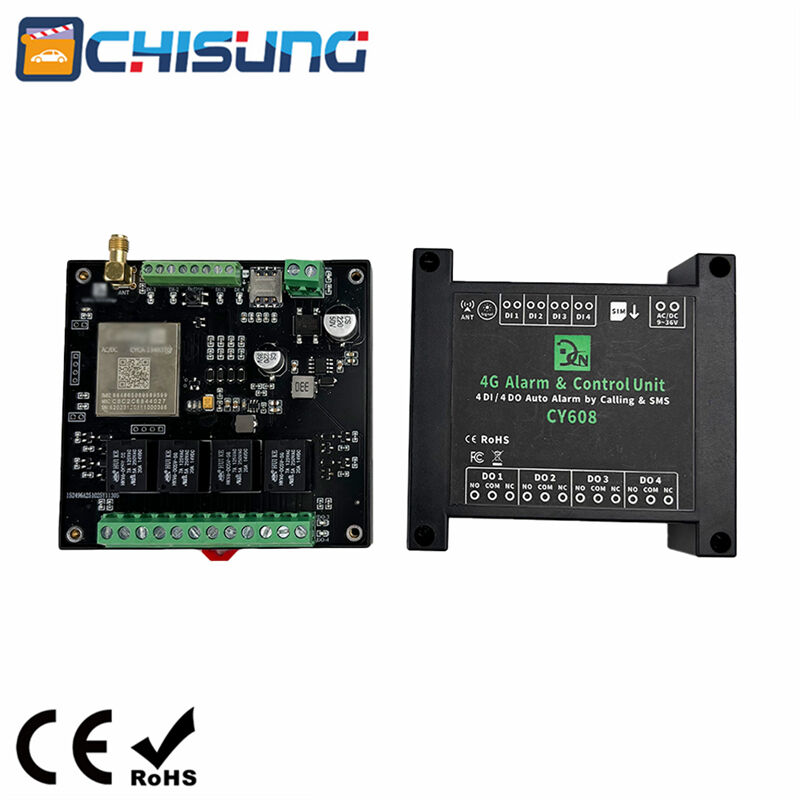

This professional GSM/4G remote alarm and control unit adopts an industrial-grade control module and stable wireless communication technology to realize all-weather unattended monitoring and remote operation. It integrates 4-channel digital signal input for connecting various security sensors, alarm detectors and switching signals, together with 4-channel high-current relay output for driving gates, lights, pumps, electric locks and other electrical equipment. The system supports real-time alarm notification through SMS and free calling to 5 preset user numbers, and can be set with repeated alarm intervals to ensure no important alert is missed. It also allows authorized users to remotely switch on/off relays via SMS or incoming calls, with adjustable delay time from 1 second up to 24 hours for flexible control. With wide voltage input (AC/DC 9–36V), wide working temperature range, strong anti-interference ability and compact structure, CY608 features easy wiring, simple parameter configuration, stable performance and low power consumption. It supports user authority management, remote restart, factory reset, signal query and other intelligent functions, fully meeting the demands of security alarm, equipment automation, access control and remote management in residential, commercial, industrial and agricultural scenarios.

Powerful 4DI + 4DO Design

4 digital input ports for connecting sensors, detectors, and switches
4 relay output ports (5A/250VAC, 7A/125VAC, 20A/14V) for driving electrical equipment
Support DI‑DO linkage: trigger output automatically when alarm input is detected

Dual Alarm Mode: SMS + Free Call

Real-time alarm push to up to 5 phone numbers
Support repeated alarm at adjustable intervals (0‑1440min)
Alarm includes disconnection reminder and obstacle detection feedback

Flexible Remote Control

Remote ON/OFF relay via SMS or free call
Custom delay time: 0-86400 seconds (0 = always closed)
Support 999 authorized users (admin + normal user levels)

Stable & Easy to Use

Wide voltage: AC/DC 9-36V 1A, suitable for global power environment
Working temperature: -10℃~+60℃, stable for indoor & outdoor use
No limit switch needed; auto‑position detection & power‑off manual release
Nano SIM card, easy to install; support VOLTE for 4G full network

Rich Configuration Functions

Super admin password (default 1234) + normal user password (default 0000)
Remote reboot, factory reset, auto‑reboot timer
Device rename, signal query, relay status real-time check
CE, RoHS, FC certified for safe global use

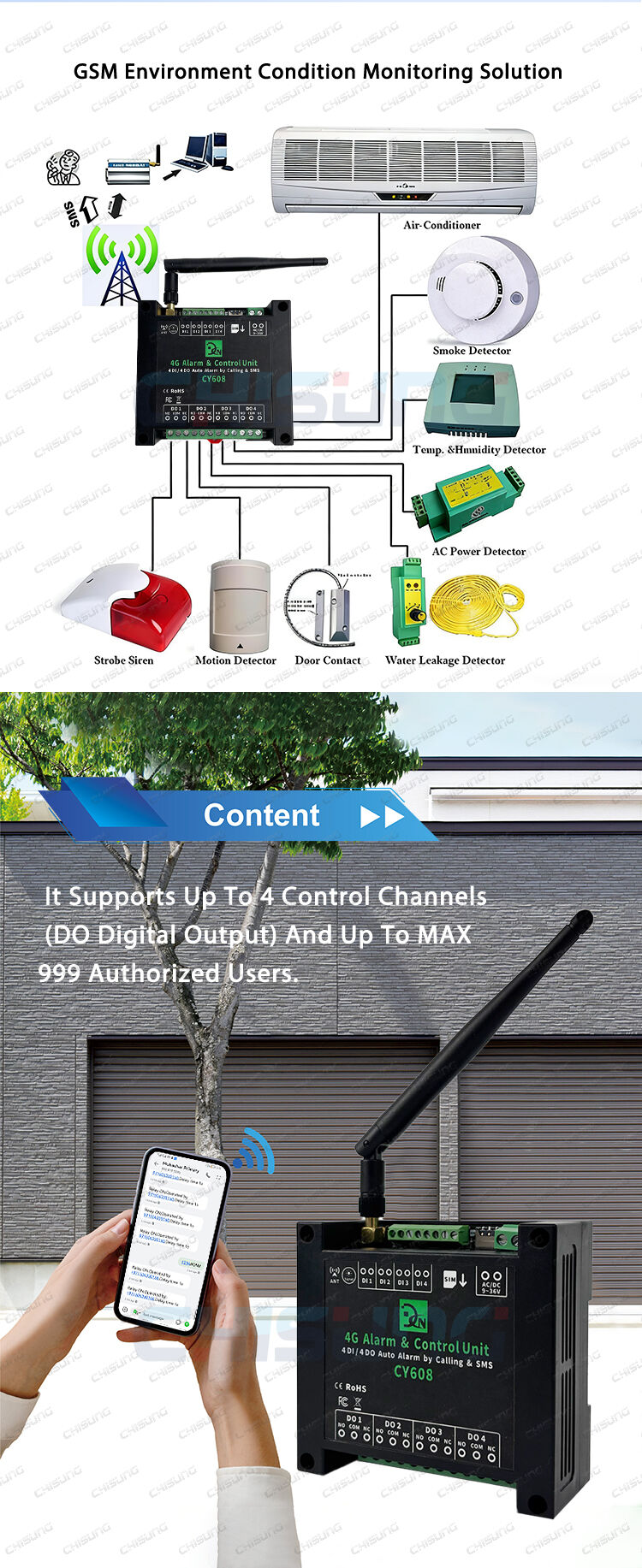

Applications:

Home & factory anti-theft alarm systems
Garage door, boom barrier, parking gate control
Smoke, fire, gas, and emergency alarm linkage
Farm, warehouse, water pump, and irrigation automation
Access control system, door lock & electric gate remote control
Industrial equipment remote monitoring & operation
Power failure & cable disconnection alarm

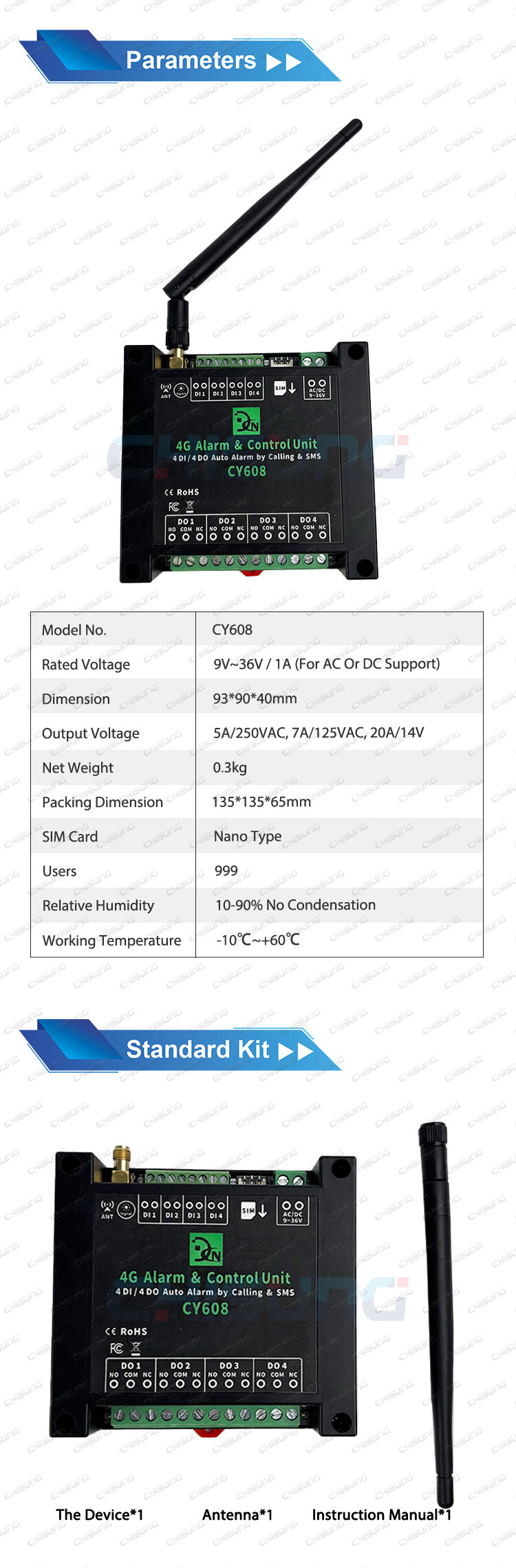

Specifications

Item	Specification
Model Number	CY608
Communication Mode	GSM / 4G (Support VOLTE)
Digital Input (DI)	4 Channels
Digital Output (DO)	4 Channels Relay
Relay Capacity	5A/250VAC, 7A/125VAC, 20A/14V
Alarm Mode	SMS Alarm + Free Call Alarm
Max Push Numbers	5 Users
Max Authorized Users	999 Users (Admin + Normal)
Working Voltage	AC/DC 9–36V 1A
Working Temperature	-10℃ ~ +60℃
Storage Temperature	-20℃ ~ +60℃
Relative Humidity	10%–90% RH, Non-condensing
SIM Card Type	Nano SIM
Remote Control Distance	Unlimited (Via GSM/4G Network)
Remote Control Delay	0–86400 Seconds (0 = Always Closed)
Re-alarm Interval	0 or 10–1440 Minutes (Default 10 Min)
Antenna	External Antenna
Indicator Lights	RUN Light / Signal Light / DI Light / DO Light

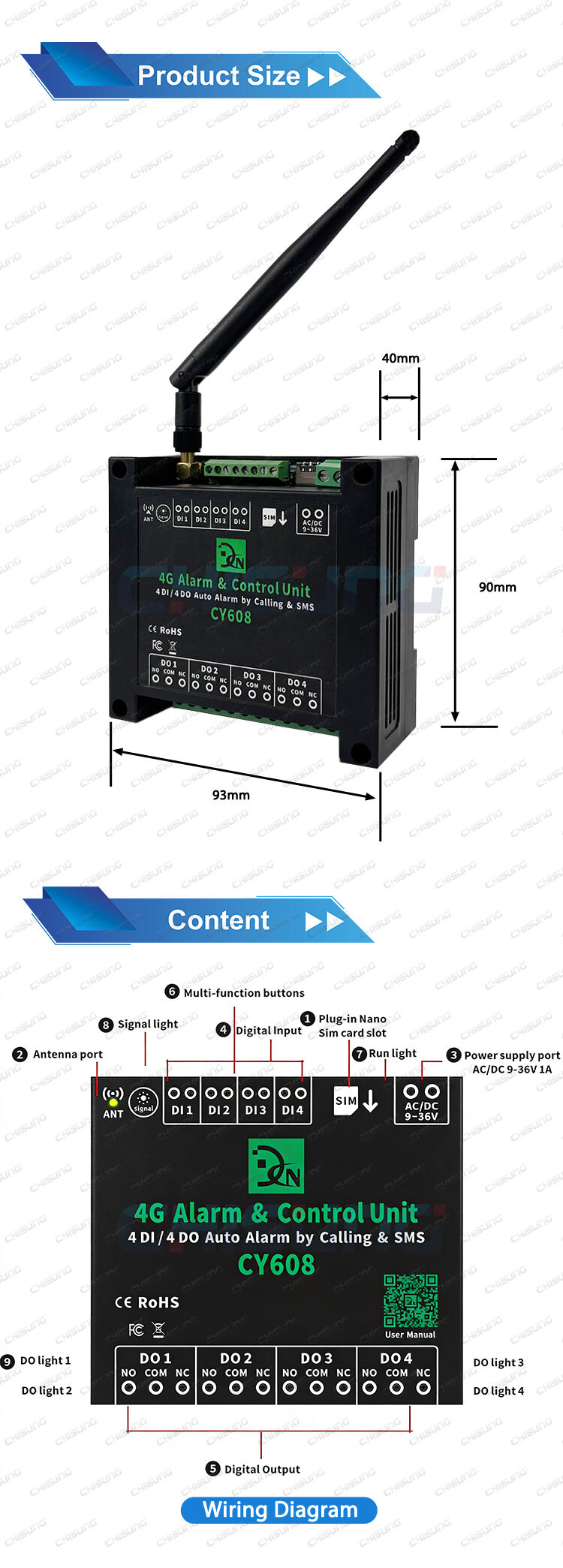

Dimension	93×90×40 mm
Packing Size	135×135×65 mm
Weight	0.3 kg
Protection Level	Industrial Anti-interference
Certifications	CE, RoHS, FC
