CSBZEM03 Servo Gate Mechanism Turnstile Core 304SS + Aluminum for Speed Gate or Swing Barrier Gate

Product General Information:

Commercial Terms of Products:

Quick Detail:

Core Mechanism

Drive Mechanism

Fast-pass Turnstile Mechanism

high-speed Turnstile Drive

Turnstile Core

Turnstile Motor

Turnstile Mechanism‌

‌High-Speed Turnstile Drive‌

Speed Gate Machine Core‌

Speed Gate Motor Unit

Speed Turnstile Core

Speed ‌Automatic Gate Mechanism

Speed Gate Mechanism

Speed Turnstile Mechanism‌

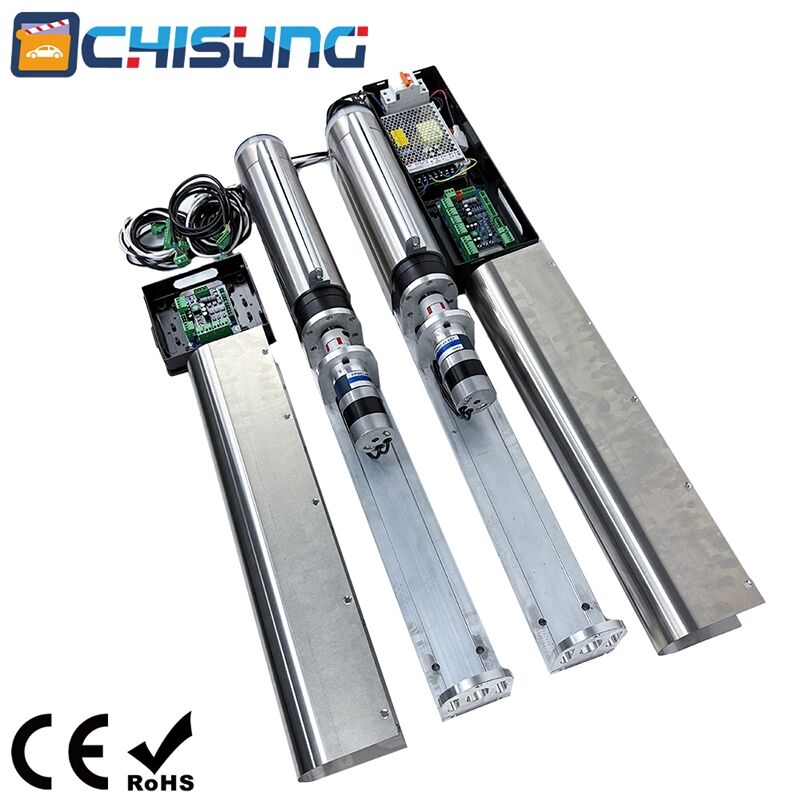

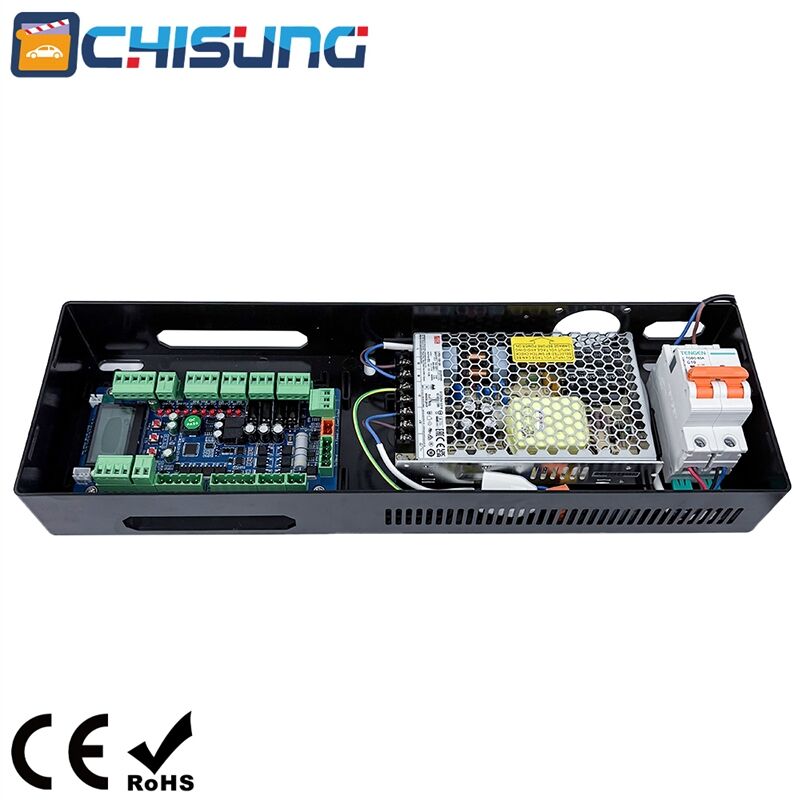

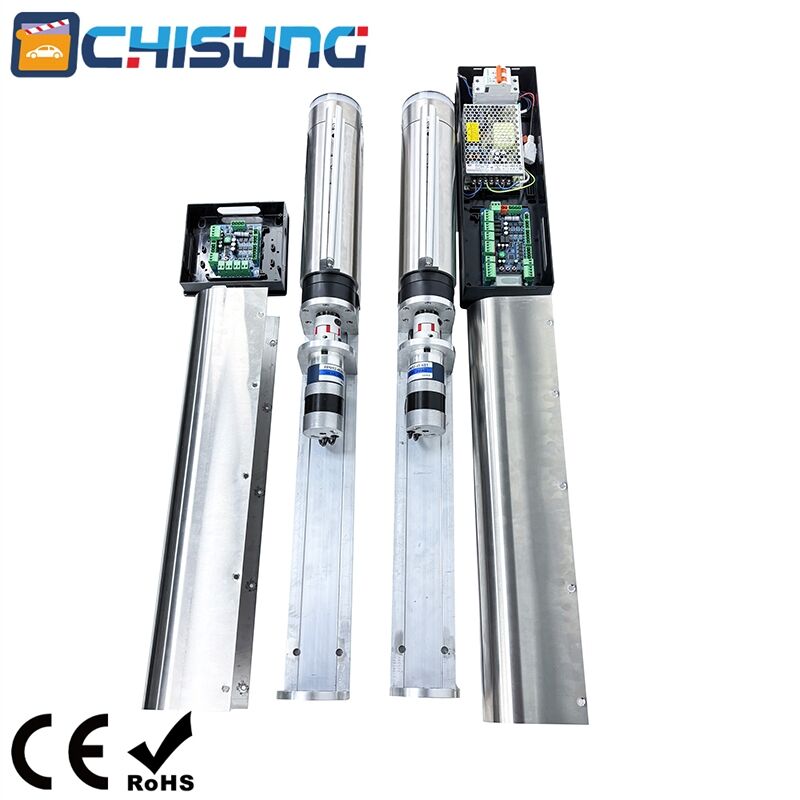

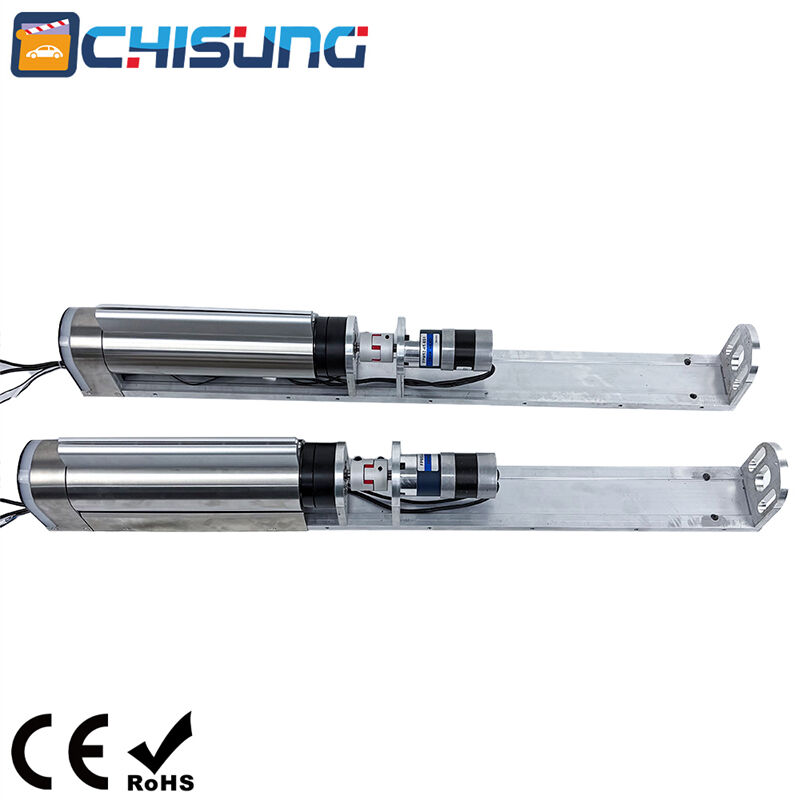

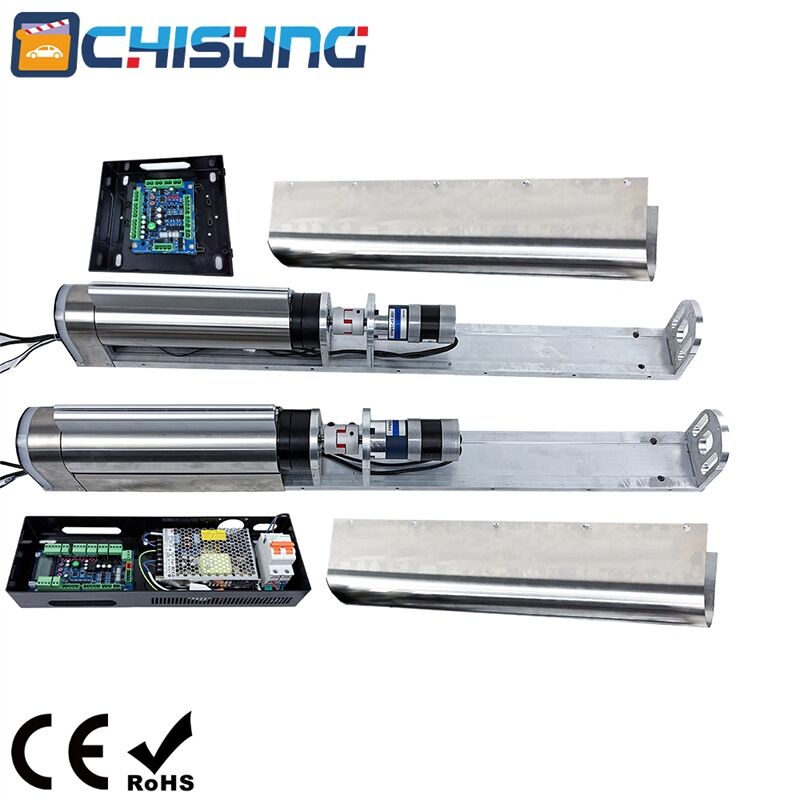

Chisung CSBZEM03 is a high-performance servo speed gate mechanism, engineered for high-traffic access control scenarios. It integrates a high-precision servo motor with a 60 planetary reducer, delivering high torque, efficient operation, and an extended service life. The mechanism features an intelligent controller with a built-in voice module, supporting power-off gate opening without the need for a super capacitor, which saves internal space. It also comes with a bilingual LCD display for intuitive status monitoring and user-friendly operation.

Description:

Core Selling Points

Robust & Smart Performance‌: Operates with low noise and smooth motion, boasting a Mean Time Between Failures (MTBF) of over 8 million cycles. Equipped with infrared anti-collision and rebound functions, it ensures safe passage even during swing arm operation.

Flexible Access Control‌: Supports ID/IC card, face recognition, fingerprint, and password keyboard access methods. Offers customizable settings including memory/non-memory card swiping, anti-following, anti-reverse return, and automatic reset functions. It also provides normally open/closed modes and bidirectional/single-directional card reading options.

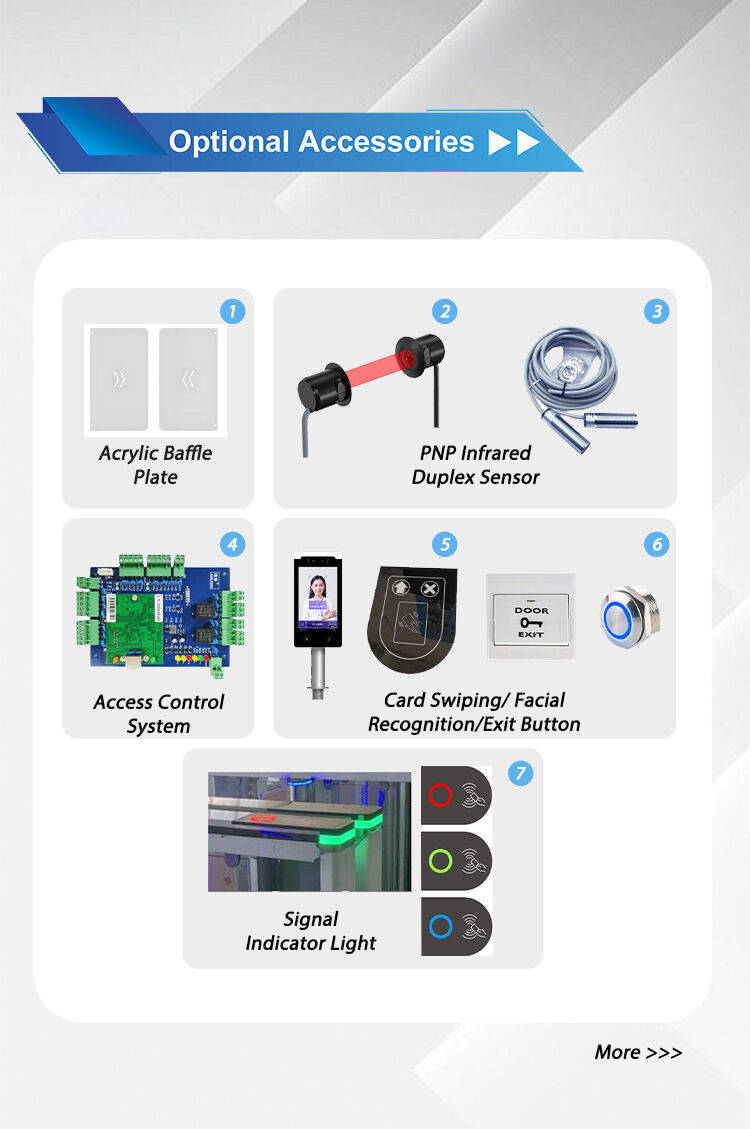

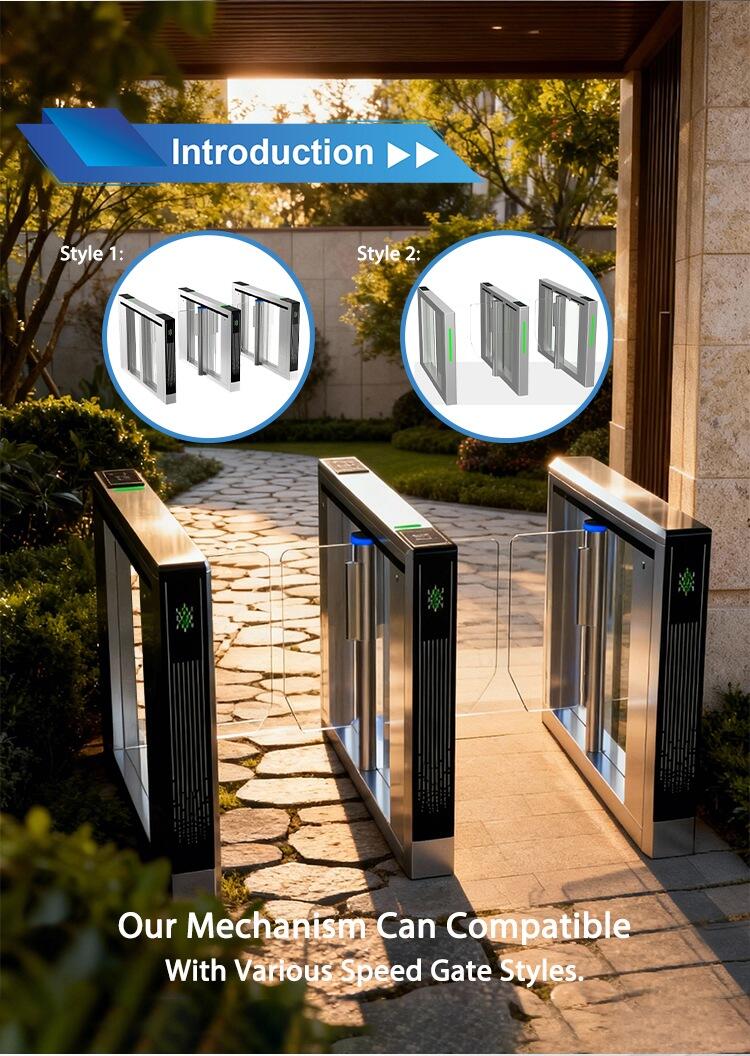

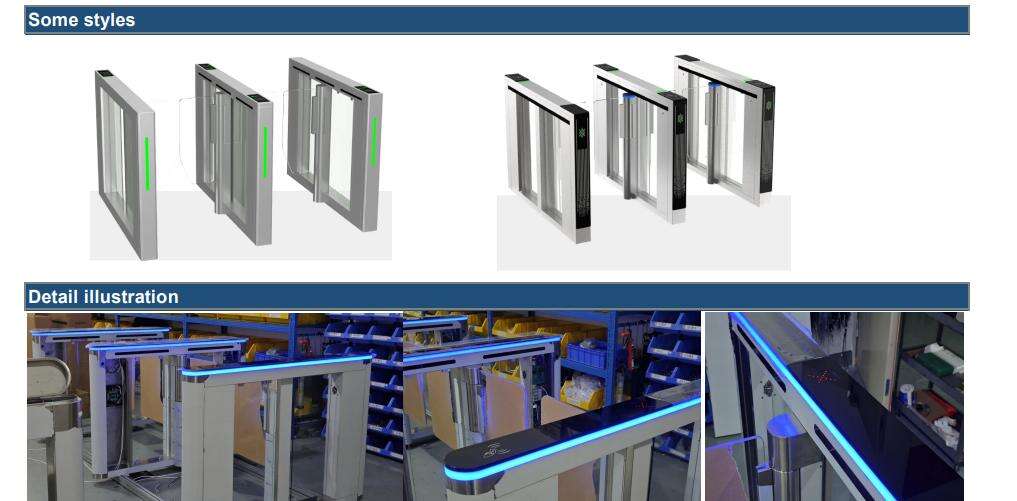

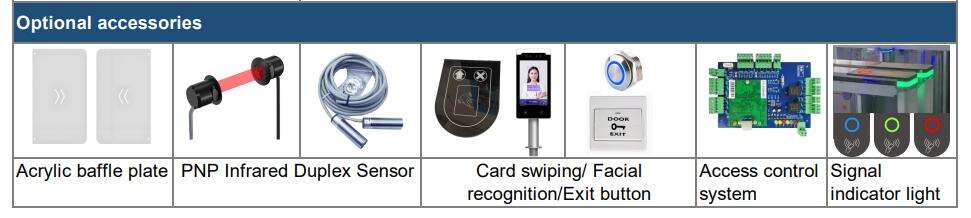

Adaptable & Customizable‌: Compatible with various speed gate styles. Allows customization of acrylic or tempered glass swing arms, PNP photocell sensors, and different stainless steel housing designs. The swing arm rotation angle is adjustable up to 90 degrees on both sides, with a passage speed of 40-60 people per minute.

Reliable Emergency Response‌: Automatically opens the emergency exit door during power failure, meeting fire escape route requirements.

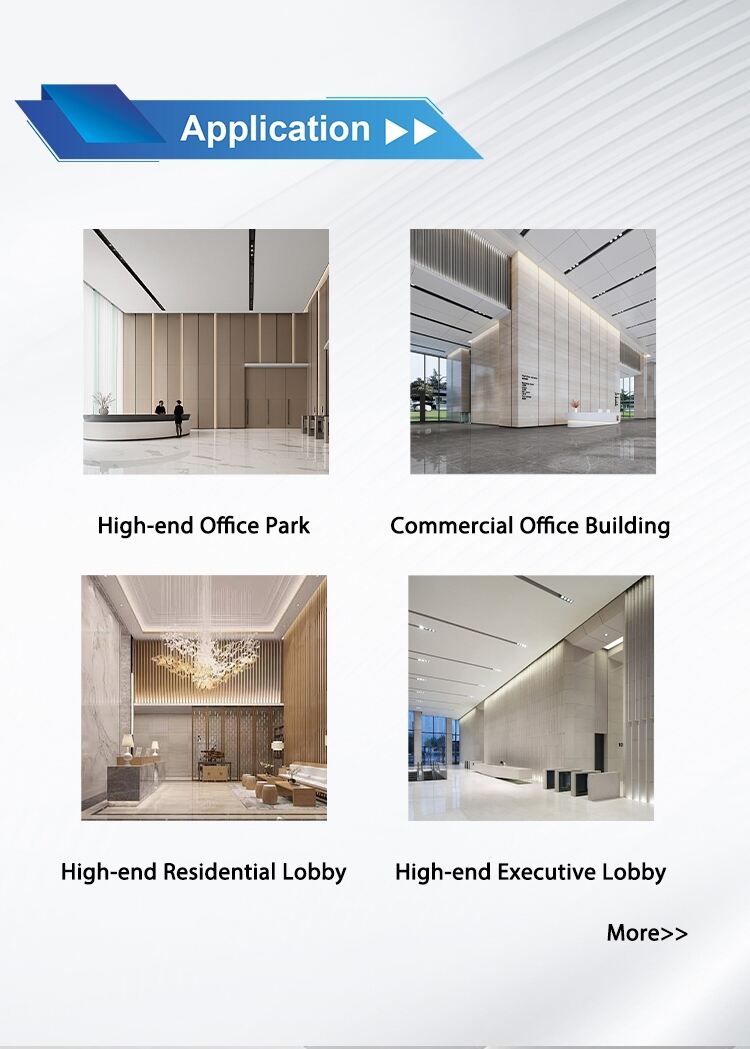

Applications:

It is widely deployed in high-traffic areas such as high-speed rail stations, airports, customs inspection points, metropolitan rail transit systems, commercial complexes, campuses, and government agencies, where efficient and secure access control is critical.

CSBZEM03 Swing Barrier Gate & Speed Passage Gate: Your Ultimate Access Control Solution for High-Traffic Environments

1. Smart Office & Corporate Campuses

Say goodbye to chaotic entry points! CSBZEM03 seamlessly integrates with ID/IC cards, face recognition, and fingerprint machines, enabling employees to breeze through entry with just a tap, a glance, or a touch. With a throughput of 40-60 people per minute, it effortlessly handles morning rush hours, visitor check-ins, and after-hours access control. Its durable 304 stainless steel outer cover and space aluminum alloy transmission structure withstand daily wear and tear, while the red, green, and blue indicator lights provide clear visual cues for authorized access, denied entry, and maintenance alerts.

2. Modern Transportation Hubs

Designed for the demands of airports, train stations, and metro systems, CSBZEM03 ensures smooth, contactless passage for commuters. The 0.2-second unlock time minimizes delays, and its support for RS232 host computer control allows seamless integration with existing transportation management systems. Whether installed indoors or outdoors (with a canopy for outdoor use), it operates reliably in temperatures ranging from -35℃ to +75℃, making it ideal for all-weather, 24/7 operation.

3. Secure Educational Institutions

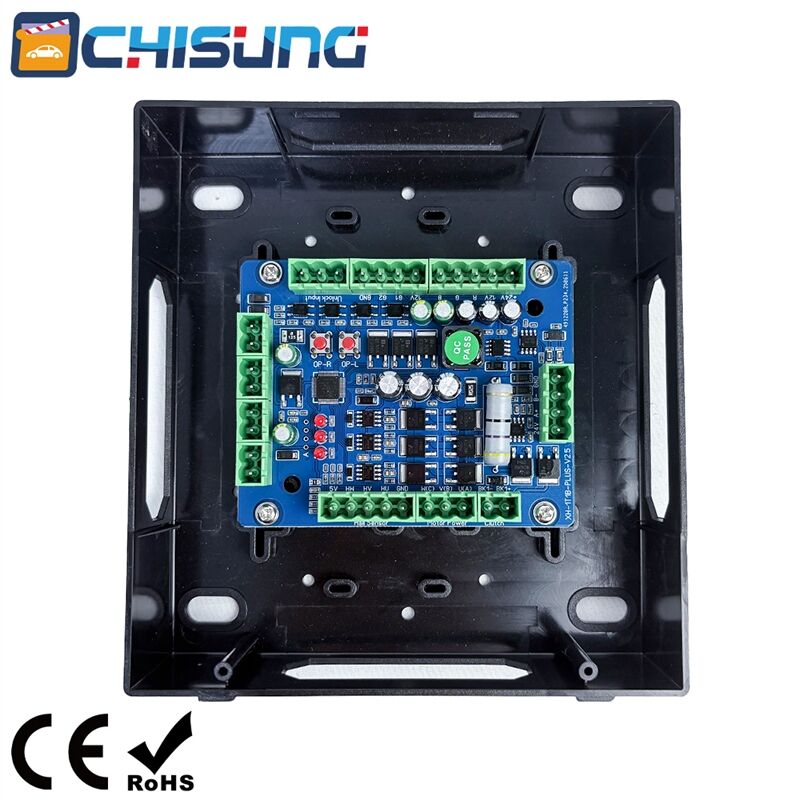

From university campuses to K-12 schools, CSBZEM03 enhances security while streamlining access. With password keyboard support, students and staff can use PIN codes for entry, and administrators can easily manage access permissions through the LCD control board. The gate's 90-degree left and right rotation angles accommodate high-traffic entry points, and its 800,000+ mean time between failures (MTBF) ensures minimal downtime during critical school hours.

4. High-End Residential Communities

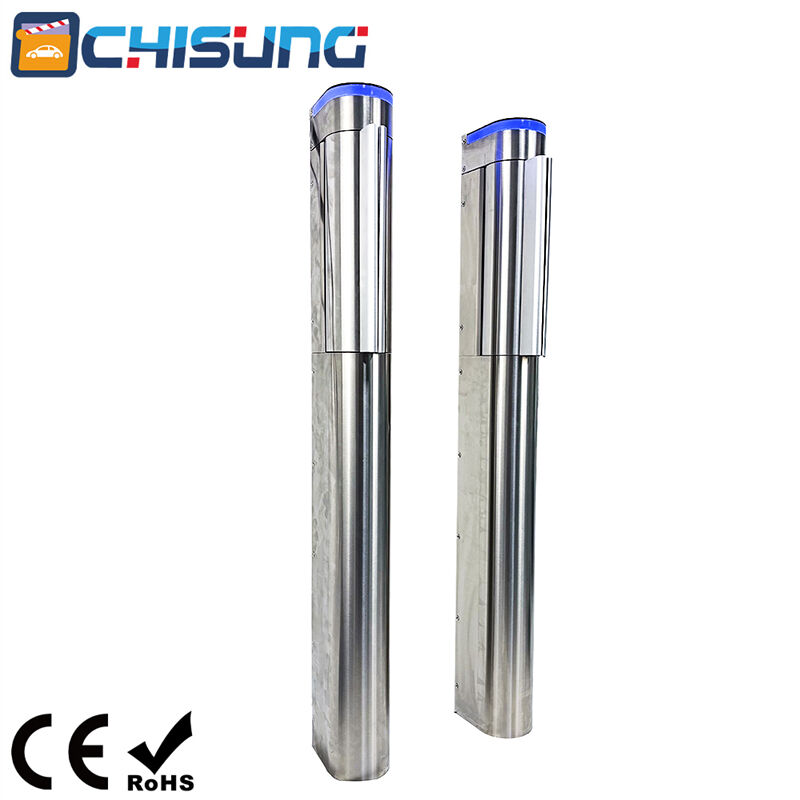

Upgrade your community's access control with CSBZEM03's sleek, modern design. The acrylic top LED lamp cover adds a touch of sophistication, while the full CNC-processed components ensure long-term durability. Residents can use ID cards or mobile credentials for entry, and the system's dry contact signal and RS232 serial communication interfaces allow integration with community security systems for real-time monitoring and alerts.

5. Event Venues & Stadiums

For concerts, sports events, and conferences, CSBZEM03 provides fast, secure entry for large crowds. With a channel width of up to 900mm, it accommodates wide entry points, and its support for multiple access control methods ensures flexibility for different event needs. The 60W/24V DC power supply and PNP type normally open proximity switch ensure reliable operation even during high-demand events, and the external 10W 42 horn can provide audible guidance for attendees.

Experience the future of access control with CSBZEM03—where security, speed, and style meet. Contact us today to learn how CSBZEM03 can transform your access control experience!

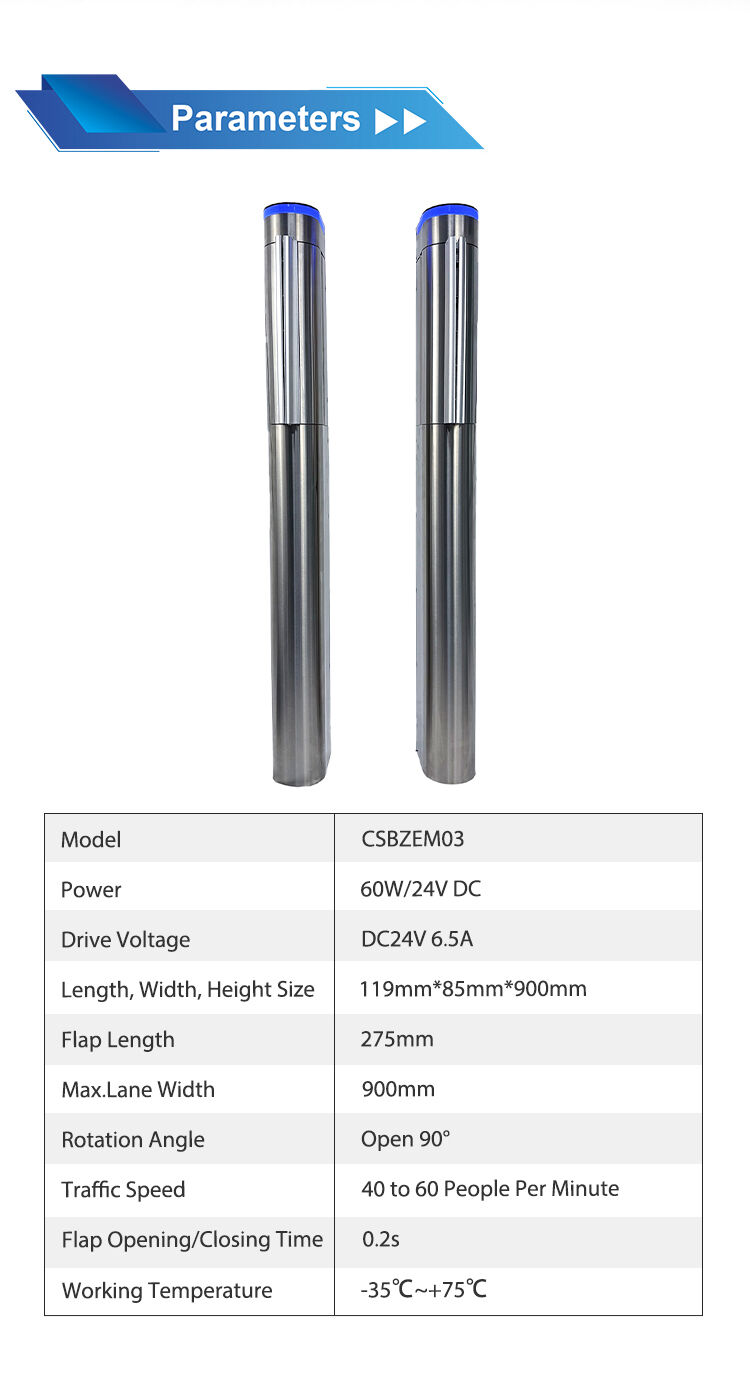

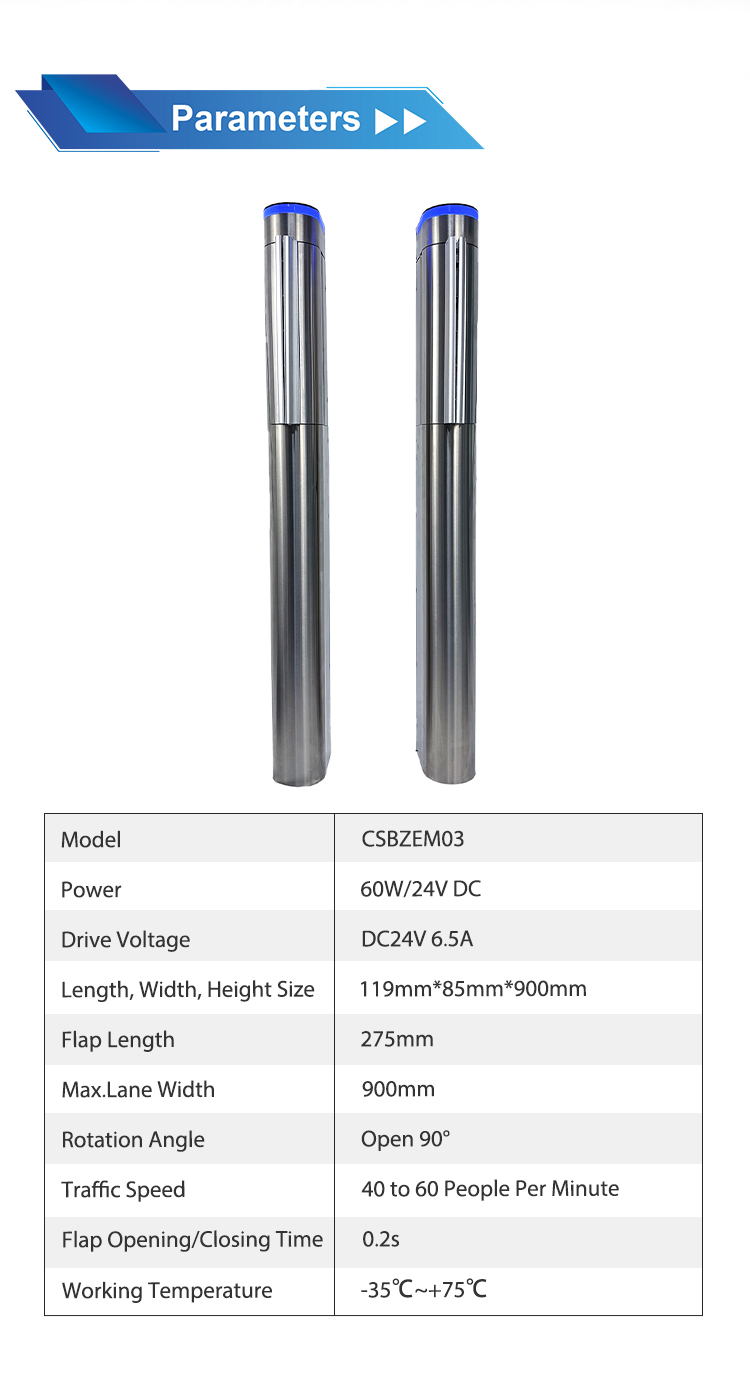

Specifications:

Competitive Advantage:

‌Cost-Effective Design‌: The power-off gate opening feature eliminates the need for a super capacitor, reducing component costs and saving internal space.

‌User-Centric Interface‌: The bilingual LCD display simplifies operation and debugging, while the integrated voice module enhances user interaction.

‌High Compatibility‌: Can be seamlessly integrated with existing access control systems and supports multiple logical entry modes, making it suitable for diverse project requirements.

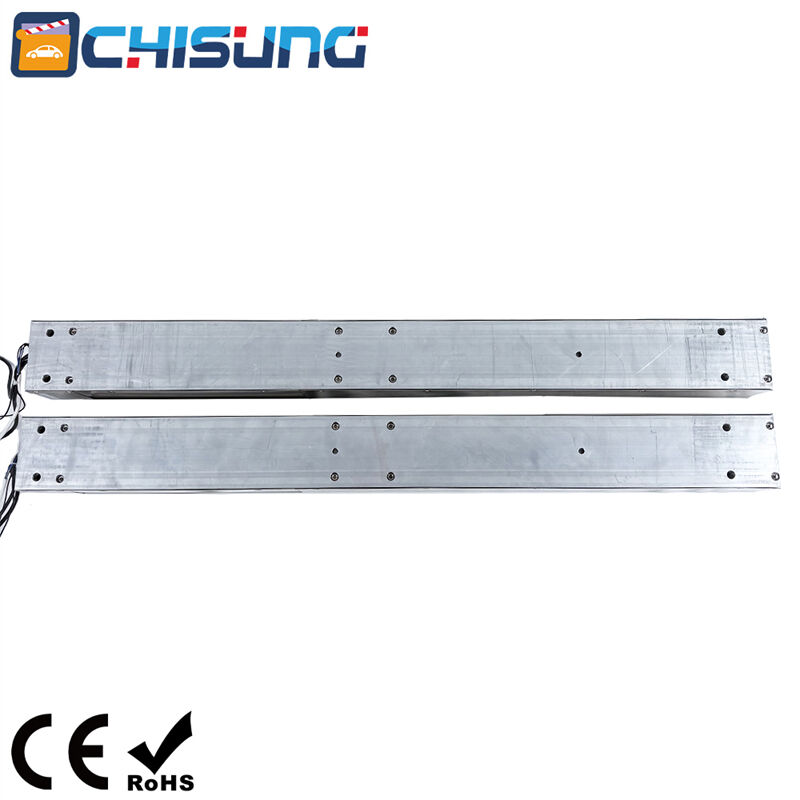

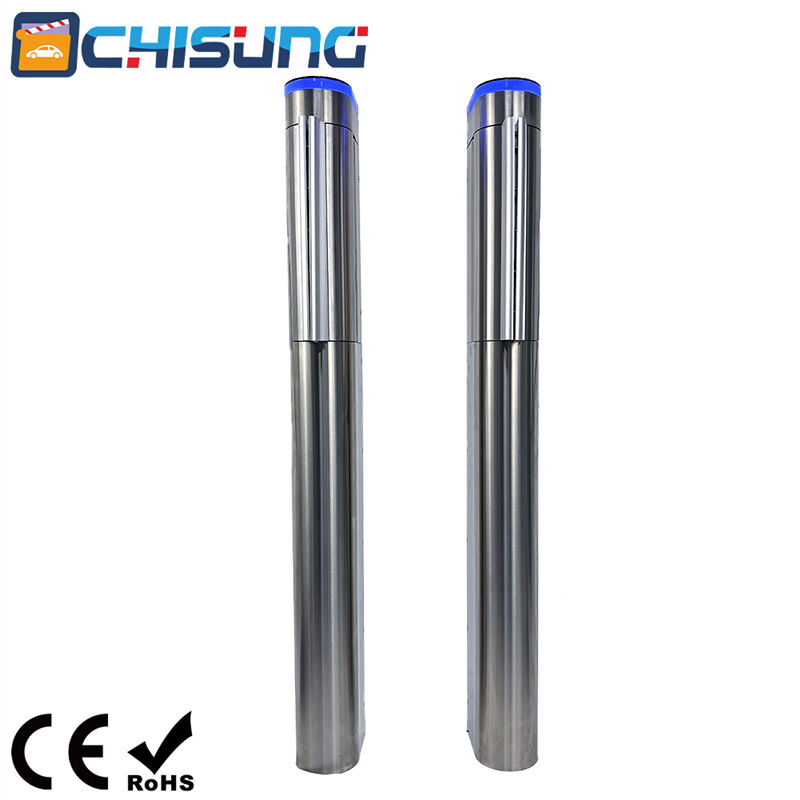

‌Durable Construction‌: Utilizes 1.5mm thick 304 stainless steel for the outer cover and space aluminum alloy for the transmission structure, processed via full CNC machining to ensure long-term reliability in both indoor and outdoor (with canopy) environments.

Chisung Turnstile Gate is committed to global security, providing intelligent and efficient access control solutions for a wide range of industries.
