RTU5025 2G/4G LTE GSM Gate Opener Relay Switch 3000 Authorized Users Free Call Control 2CH Alarm Input 9-36V Wide Voltage for Gate Door Barrier Industrial Access Control
- GSM/4G Gate Opener / Relay Switch｜3000 users, free call, caller ID security｜Industrial metal build, factory price, 1-year warranty, fast delivery
- RTU5025 Remote Access Controller｜2G/4G LTE global network, 2CH alarm input｜Premium components, low MOQ, 24h support, stable supply
- Wireless Door/Gate Controller｜9-36V wide voltage, backup battery, 0-999s timer｜Durable design, OEM available, quick samples, on-time shipment
- Smart GSM Relay Opener｜SMS/APP/PC/cloud control, 1000+ event logs｜Strict QC, wholesale price, flexible terms, large stock
- Industrial Remote Switch｜Time access control, power failure alarm, CE/RoHS/FCC｜High-quality craftsmanship, cost-effective, professional after-sales, fast lead time
- Overview
- Recommended Products
Product Information
Place of Origin: |
China,Shenzhen |
Brand Name: |
CHISUNG |
Model Number: |
RTU5025 |
Certification: |
CE |
Product Commercial Terms
Minimum Order Quantity: |
1unit |
Price: |
2G,46USD 4G,80USD |
Packaging Details: |
Carton/Wooden,According to customer requirements |
Delivery Time: |
7-15days |
Payment Terms: |
L/C ; T/T ; MoneyGram |
Supply Ability: |
3000units/Month |
Quick Detail:
GSM Relay
GSM Gate Opener
GSM Gate Controller
GSM Relay Control
GSM Remote Control
GSM Relay Switch
GSM Door Opener
GSM Door Controller
GSM Access Controller
GSM Access Control Unit
GSM Remote Switch
GSM Access Control Relay
GSM 3G 4G Gate Opener
GSM 3G 4G Cellular Gate Opener
GSM 3G 4G Gate Receiver
GSM 3G 4G Signal Sender
GSM 3G 4G Single Switch
RTU5025 is a high-capacity 2G/4G LTE GSM gate opener & remote relay controller with up to 3000 authorized users, supporting free call activation, caller ID security, SMS/APP/PC programming, 2CH alarm input, backup battery, and cloud connectivity. It offers zero operation cost, unlimited range, industrial-grade reliability, ideal for residential, commercial, industrial and agricultural remote access & equipment control worldwide.
Description:

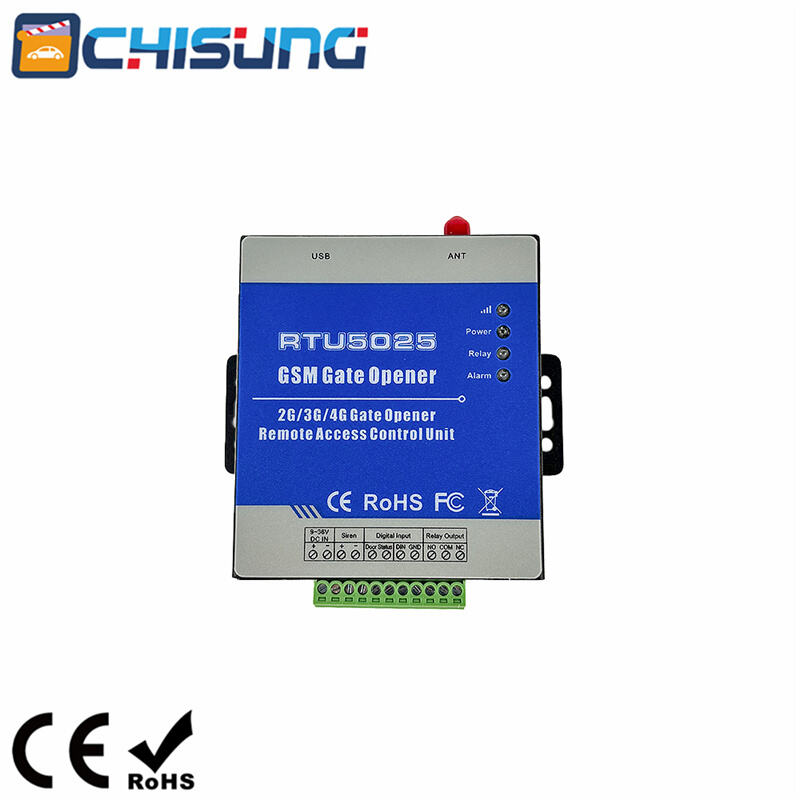

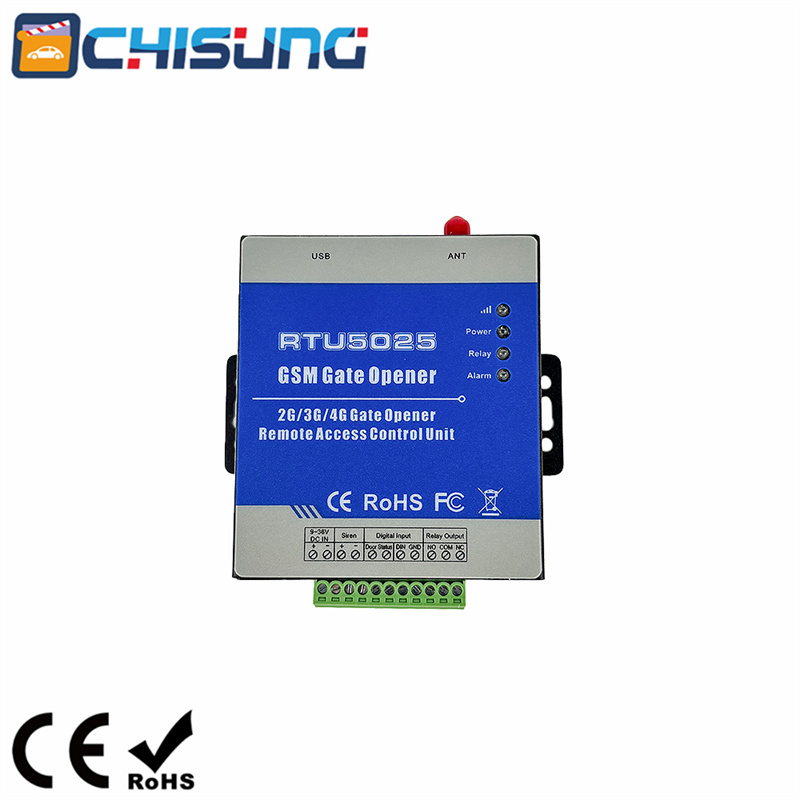

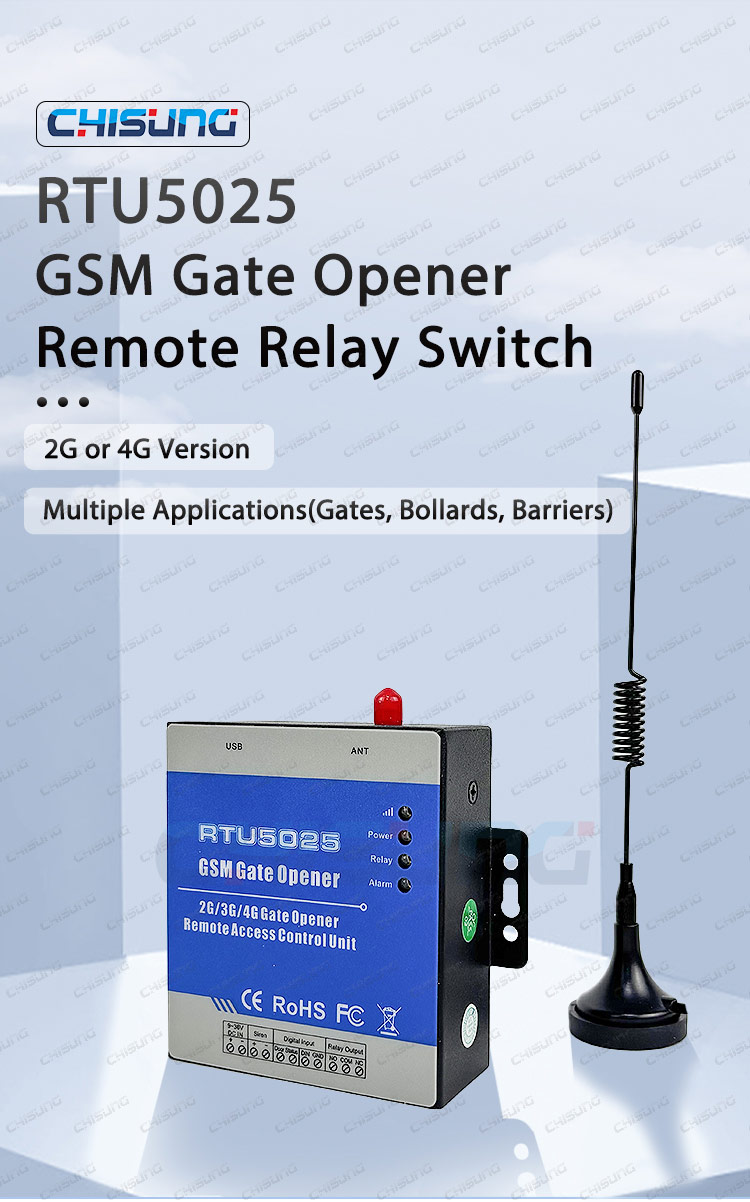

RTU5025 2G/4G LTE GSM Gate Opener – Ultimate Remote Access & Security Controller
The RTU5025 is a professional 2G/4G dual-network GSM gate opener and remote relay switch designed for large-scale access control and industrial remote management. It supports quad-band GSM and global 3G/4G LTE networks, enabling free call activation from authorized numbers with caller ID verification. With an industry-leading 3000 users capacity, 2 digital alarm inputs, backup battery, and multi-way configuration (SMS/APP/PC/cloud), it replaces traditional remotes, keys, and wired systems, delivering secure, scalable, and cost-effective remote control globally.
Core Functional Highlights
l 2G/4G LTE Global Network Compatibility
Quad-band GSM (850/900/1800/1900MHz) + optional 3G WCDMA/4G LTE multi-bands (FDD/TDD). Works worldwide with stable connectivity, future-proof against 2G phase-out.
l 3000 Authorized Users with Time Access Control
Industry-leading 3000 user slots (0001–3000), supports start/end time access limits, batch import/export via PC software. Perfect for communities, factories, and large facilities.
l 100% Free Call Activation & Caller ID Security
Authorized users dial the SIM number; device rejects the call on first ring and triggers relay—no call charges. Caller ID verification blocks unknown callers, anti-cloning & anti-interception.
l Dual Alarm Inputs (2CH) for Enhanced Security
2 dry-contact digital inputs (DIN1/DIN2) for door status sensors, motion sensors, or detectors. Triggers SMS alerts to up to 6 users and calls sequentially until answered. Supports arm/disarm and customizable alarm messages.
l Multi-Mode Configuration & Monitoring
① SMS commands; ② Android APP (search “3G Gate Opener RTU5025” on Google Play); ③ PC software via USB; ④ Cloud platform via MQTT. Real-time status check, historical data log (1000+ events), and remote parameter management.
l Programmable Relay & SMS Confirmation
Relay time adjustable 0–999 seconds (default 0.5s). Customizable SMS notifications for relay ON/OFF, sent to owner or caller. Supports latching mode and auto-reset.
l Wide Voltage & Backup Battery
DC 9–36V wide voltage (12V/24V compatible), max 50mA low power. Built-in 3.7V/900mAh backup battery for power failure continuity and alarm.
l Industrial-Grade Durability & Wide Temp Range
Operating temperature -20°C ~ +60°C, humidity up to 90%. Rugged metal housing, CE/RoHS/FCC certified, strict QC for outdoor/industrial harsh environments.
How It Works

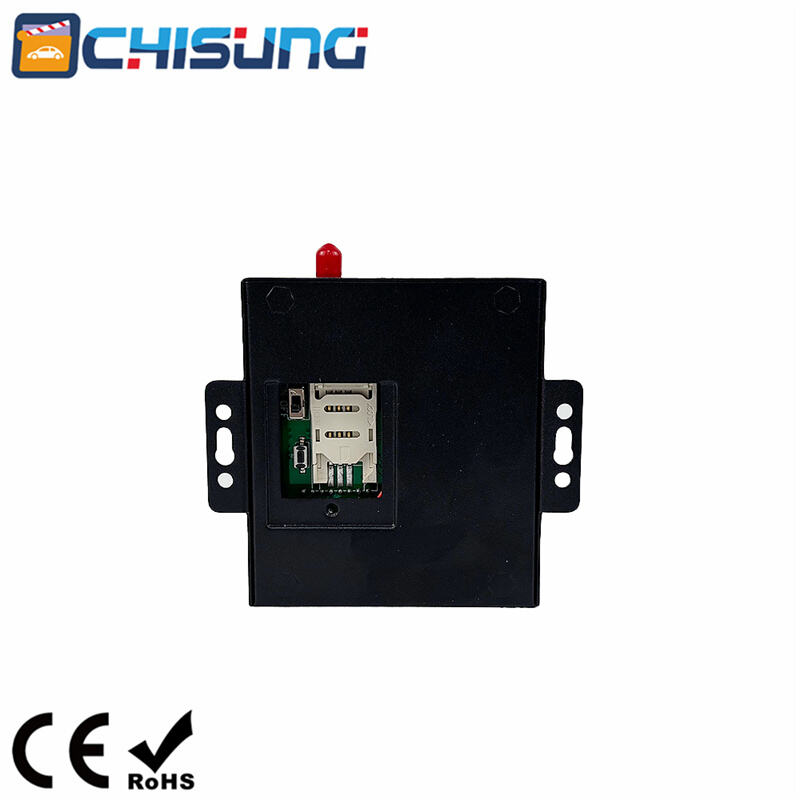

1. Insert 3V SIM card, connect DC 9–36V power.

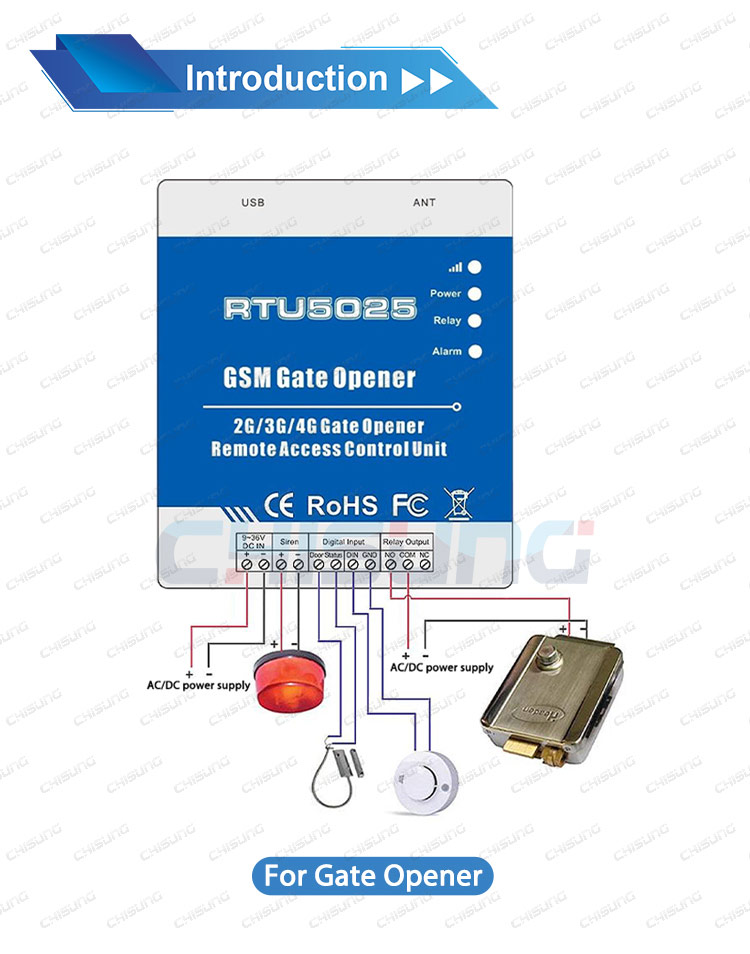

2. Wire relay NO/COM/NC to gate motor/lock/equipment; connect sensors to DIN1/DIN2.
3. Add authorized users via SMS/APP/PC, set relay time and alarm rules.
4. Dial from authorized number → free activation; or send SMS for control/status.

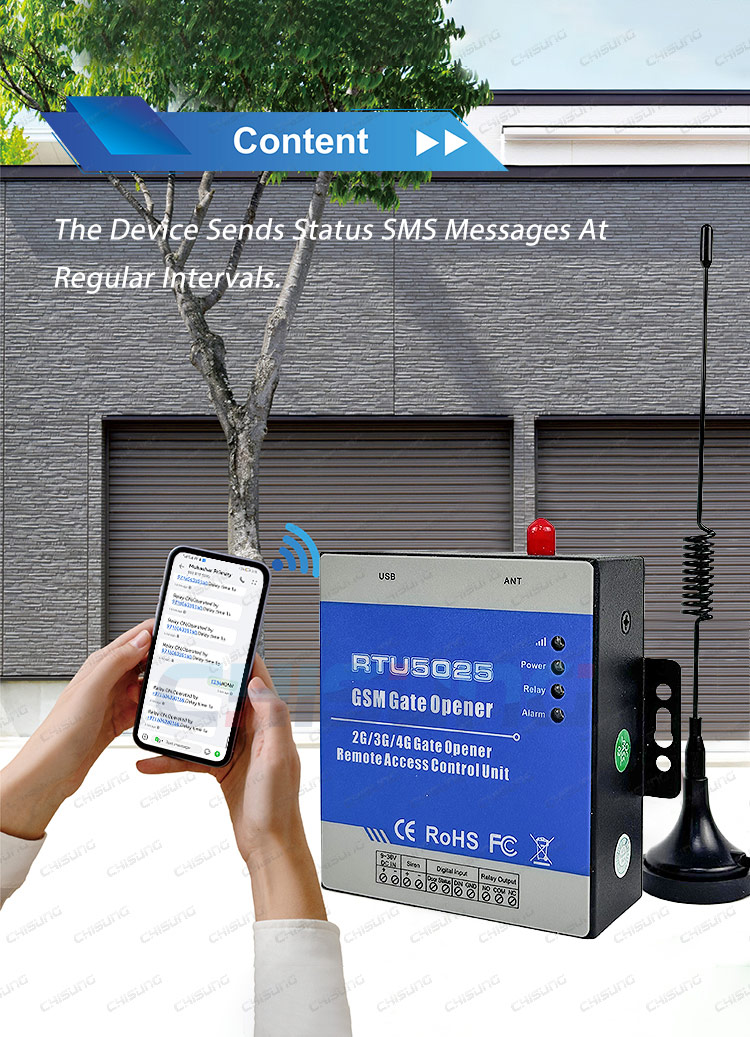

5. Receive SMS alerts for alarms, power failure, or relay actions.
Applications:
Residential & Community

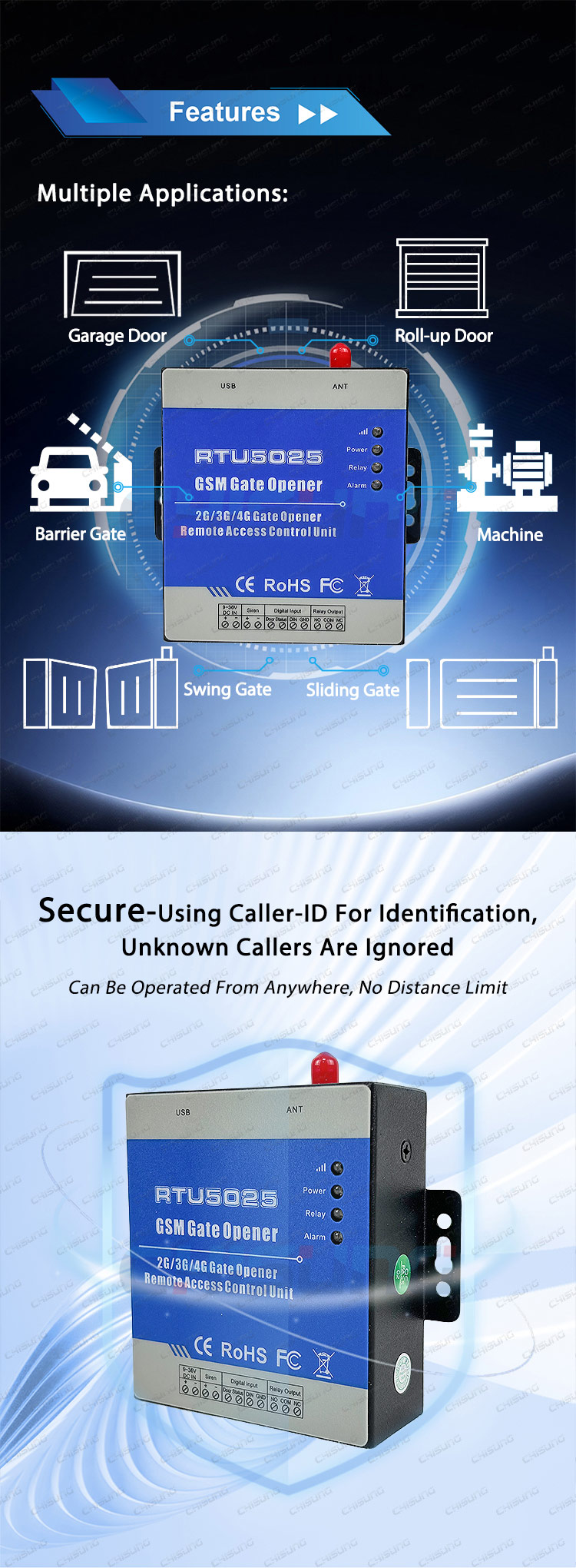

l Remote control swing/sliding gates, garage doors, shutters, electronic locks
l Gated community access control with 3000 users
l Home security alarm with door/motion sensors
Commercial & Business
l Parking barrier control, office/warehouse gate management
l LED billboard, advertising sign, commercial lighting remote switch
l Building access control with time-limited user access
Industrial & Factory
l Remote on/off motors, pumps, fans, streetlights, solar inverters, PLC
l Equipment status monitoring & alarm notification
l Factory gate & perimeter security with dual sensors
Agricultural & Farm
l Irrigation pump control, farm gate access, livestock equipment switch
l Greenhouse lighting/ventilation remote control & alarm
Security & Public Facilities
l Perimeter intrusion detection, door/window alarm with SMS alert
l Power failure alarm, equipment auto-report & status monitoring

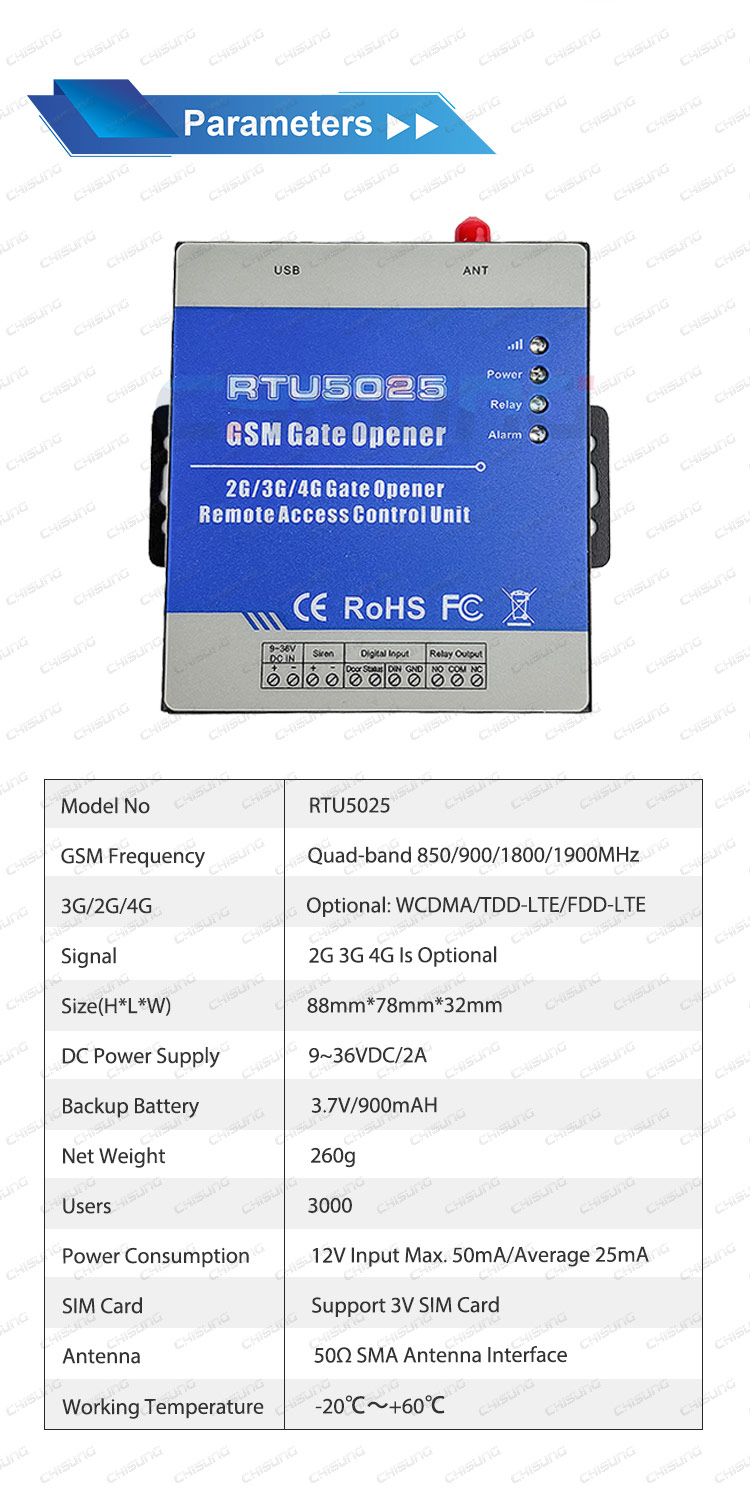

Specifications:
Parameter |
Details |
Model |
RTU5025 (2G/4G LTE Version) |
Network |
GSM Quad-band: 850/900/1800/1900MHz3G/4G: WCDMA/FDD-LTE/TDD-LTE (optional) |
Authorized Users |
3000 (0001–3000, time-limited access) |
Relay Output |
1CH, 3A/240VAC, NO/NC/COM |
Digital Input |
2CH dry contact (DIN1: door; DIN2: sensor) |
Siren Output |
12VDC/1A |
Power Supply |
DC 9V – 36V / 2A |
Power Consumption |
Max 50mA / Avg 25mA (12V) |
Backup Battery |
3.7V/900mAh |
SIM Card |
3V standard SIM |
Antenna |
50Ω SMA external antenna |
Relay Time |
0s – 999s (programmable, default 0.5s) |
Historical Log |
1000+ events (USB/GPRS download) |
Operating Temp |
-20°C ~ +60°C |
Humidity |
Up to 90% RH |

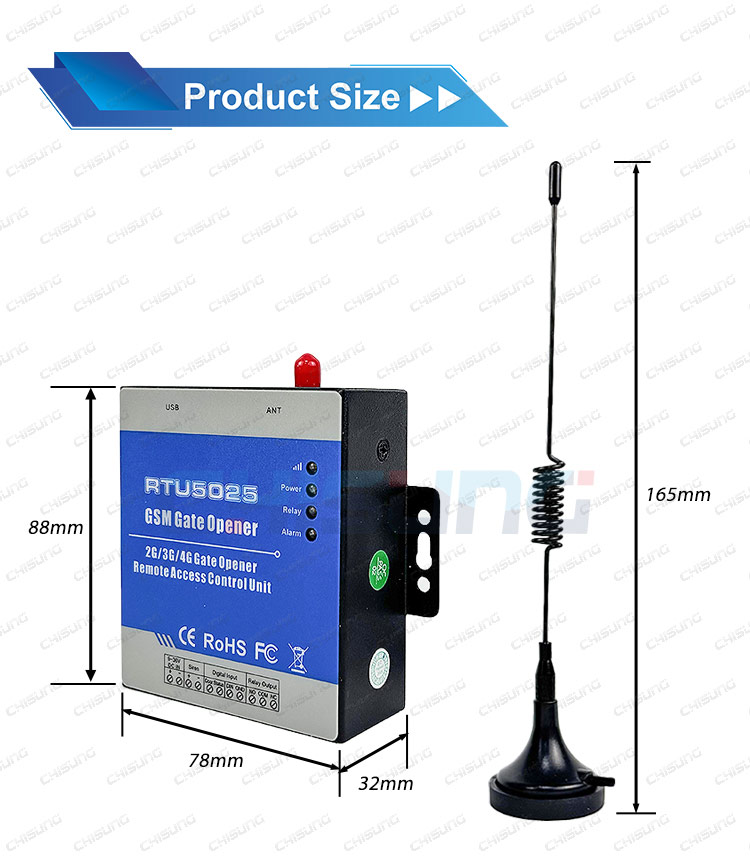

Dimensions |
88 × 78 × 32 mm |
Net Weight |
260g |
Certifications |
CE, RoHS, FCC |

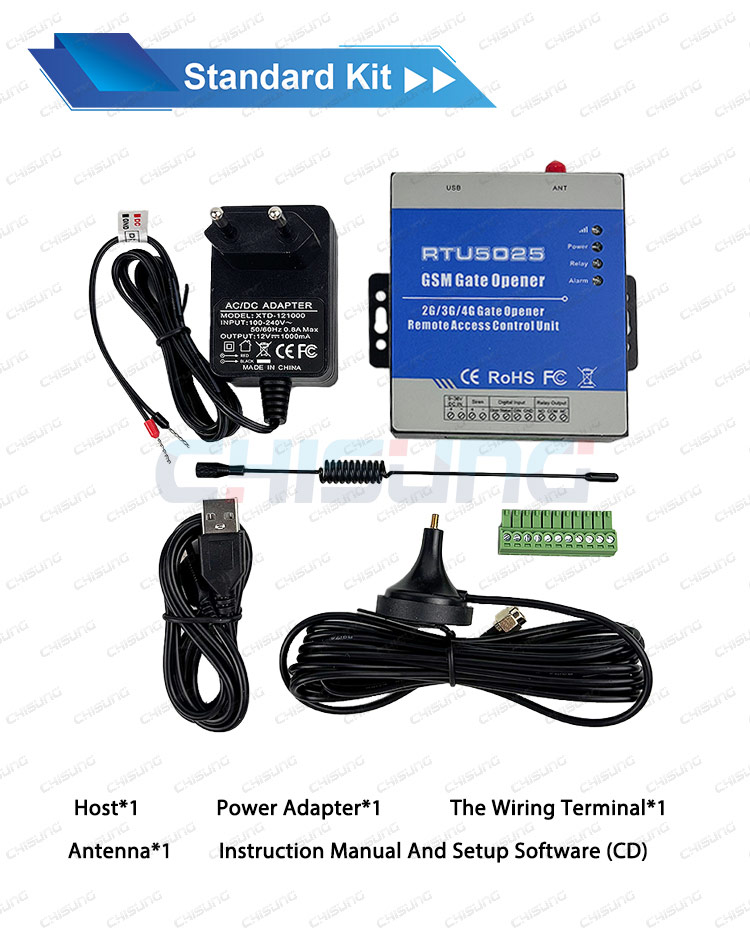

Package Contents |

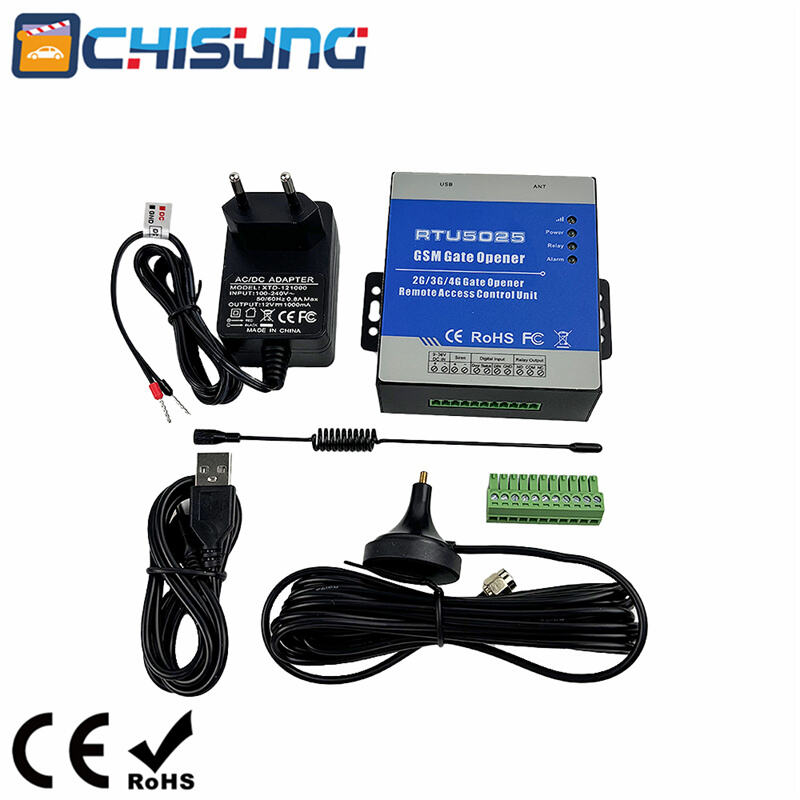

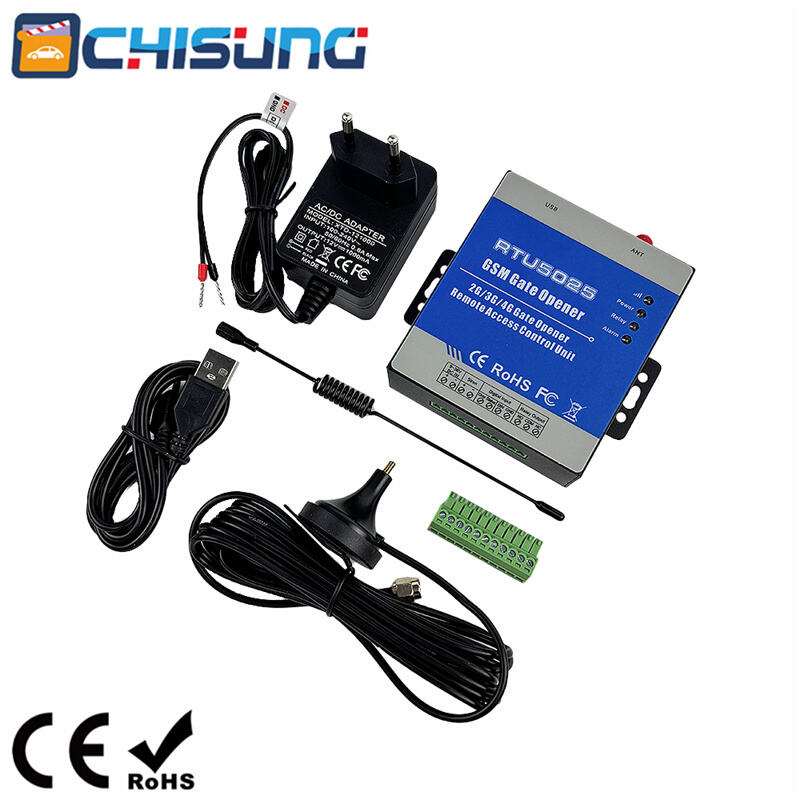

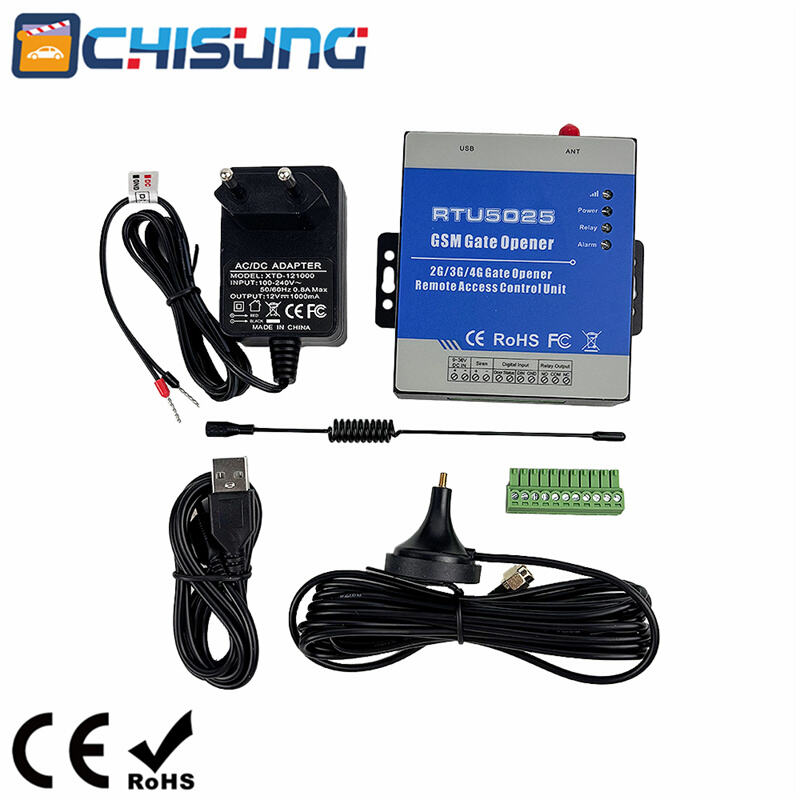

RTU5025 Host ×1, Antenna ×1, Wiring Terminals, User Manual |
Competitive Advantage:
1. 3000 Users – Industry’s Highest Capacity
Most competitors support 200–500 users only. RTU5025 offers 3000 user slots with time access control, ideal for large communities, factories, and multi-site projects.
2. 2G/4G Dual Network – Future-Proof & Global Coverage
2G-only controllers face network phase-out. RTU5025 supports 2G+4G LTE, ensuring long-term usability and stable coverage in remote areas.
3. Dual Alarm Inputs – Enhanced Security & Alert
Unique 2CH dry-contact inputs for door and sensor integration, with SMS/call alerts. Far more secure than basic single-input models.
4. Backup Battery – Power Failure Protection
Built-in 3.7V/900mAh battery maintains operation and alarms during power outages—critical for security applications.
5. Multi-Configuration – Flexible & Easy Management
SMS/APP/PC/cloud four-way control. PC software supports batch user import/export and historical data download, saving time for large-scale deployment.
6. Zero Operation Cost & Unlimited Range
Free call activation, no monthly fees. Works anywhere with GSM/4G coverage—no RF distance limits.
7. Industrial-Grade Quality – Durable & Reliable
-20°C~+60°C temp range, wide voltage 9–36V, CE/RoHS/FCC certified. Rugged design for harsh outdoor/industrial environments.
8. Factory Direct & Professional Support
Factory direct sales, competitive pricing, 1-year warranty, 24h technical support, stable supply chain with fast delivery.
