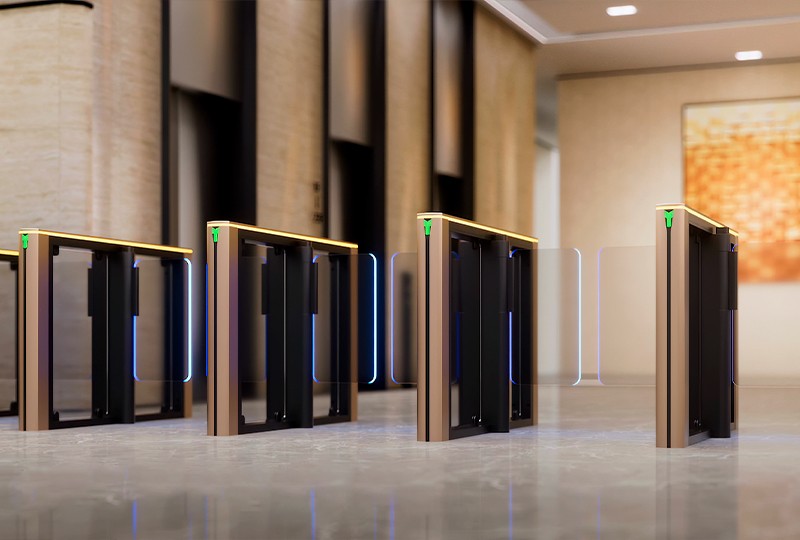

TD511A Speed Glass Gate

Core Motor Technology And Performance

At The Heart Of The TD511A Lies A State-Of-The-Art 24V DC Brushless Motor. Unlike Traditional Brushed Motors, The Brushless Variant Offers Superior Efficiency, Reduced Mechanical Wear And An Exceptionally Long Operational Lifespan. This Technology Ensures That The Gate Operates With Near-Silent Precision, Making It Suitable For Noise-Sensitive Environments Like Executive Lobbies And Libraries. The Motor’s Intelligence Is Further Demonstrated By Its Power-On Self-Test Feature, Which Automatically Diagnoses System Health Upon Startup, Ensuring Reliable Operation And Minimizing Downtime.

The Unit Operates On A Standard AC220V, 50/60HZ Power Supply And Consumes A Maximum Of 180W, Striking An Excellent Balance Between Power And Energy Efficiency. This Efficiency Translates Into Lower Operational Costs And A Reduced Carbon Footprint For Facility Managers.

Unmatched Throughput And Adaptability

The TD511A Is Built For Flow. With A Traffic Flow Rate Of 20 To 60 People Per Minute, It Facilitates Swift And Efficient Entry, Even During Peak Hours. This High Throughput Prevents Bottlenecks And Enhances The Overall User Experience.

Physical Dimensions Are Meticulously Calculated For Versatility. The Unit Measures 1500mm In Length, 120mm In Width, And 1010mm In Height, Offering A Compact Footprint That Integrates Seamlessly Into Various Architectural Designs. Crucially, The Channel Width Is Adjustable From 550mm To 1200mm, Allowing It To Accommodate Standard Pedestrian Traffic As Well As Wheelchair Users Or Individuals Carrying Large Items.

For Environmental Resilience, The TD511A Operates Flawlessly Across A Wide Temperature Spectrum, From -20℃ To +70℃. This Durability Ensures Consistent Performance In Harsh Climates, Whether In The Freezing North Or The Scorching Tropics.

Advanced Safety And Smart Detection

Safety Is Paramount In Any Access Control System And The TD511A Excels With Its Sophisticated Infrared Detection Sensor Protection. Featuring 8 Pairs Of Infrared Detection Logs, The System Creates A Comprehensive Detection Matrix That Monitors The Passage In Real-Time. This Multi-Beam Technology Enables High-Precision Tracking Of Individuals, Preventing Unauthorized Tailgating And Ensuring That The Gate Closes Only When The Passage Is Clear.

The Gate Is Equipped With A Suite Of Intelligent Safety Features:

• Anti-Pinch Protection: The Infrared Sensors Instantly Detect Any Obstruction In The Gate’s Path, Triggering An Immediate Reversal To Prevent Injury.
• Anti-Tailgating: The System Distinguishes Between A Single Valid Credential And An Attempt By Multiple Individuals To Pass Through On A Single Authorization, Immediately Alerting Security Personnel.
• Rebound After Hitting Resistance: If The Gate Encounters Significant Resistance During Closing, It Rebounds Smoothly, Preventing Damage To The Mechanism And Ensuring User Safety.

Comprehensive Configuration And Customization

The TD511A Is Designed To Be The Central Hub Of A Modern Access Control Ecosystem. Its Product Configuration Highlights Its Ability To Integrate With A Wide Array Of Security Technologies:

• Fire Alarm Linkage: The System Is Equipped With A Relay Interface That Connects Directly To A Building's Fire Alarm System. In The Event Of A Fire, The Gate Automatically Opens, Ensuring An Unobstructed Emergency Evacuation Route.
• Support For IC ID, Facial Recognition And QR Code: This Tri-Modal Support Allows The Gate To Authenticate Entry Via RFID Cards, Cutting-Edge Biometrics Or Temporary Mobile Credentials, Offering Flexible Security Levels For Visitors, Employees And VIPs.
• Personalized Voice: The System Can Broadcast Customized Voice Prompts, Guiding Users Through The Entry Process Or Conveying Specific Messages, Improving The User Experience And Reducing The Need For On-Site Staff.

User Interface And Application Scenarios

The User Interface Is Anchored By An LCD English Display Screen, Which Provides Real-Time Status Updates, Guidance, And System Feedback To The User. A Built-In Card Reader Module And A Dedicated QR Code Reader Are Seamlessly Integrated Into The Unit, Creating A Clean, Uncluttered Aesthetic While Maximizing Functionality.

This Versatility Makes The TD511A The Ideal Choice For A Variety Of High-End And High-Traffic Scenarios, Including:

• High-End Office Parks And Commercial Office Buildings: Managing Employee Flow While Maintaining A Professional Appearance.
• High-End Residential And Executive Lobbies: Providing Residents With Secure, Convenient, And Stylish Access While Screening Visitors.
• Government Facilities And Data Centers: Ensuring Stringent Security Protocols Are Maintained For Sensitive Areas.

Structural Design And Optional Upgrades

The TD511A Is Constructed To Withstand The Rigors Of Constant Use. The Main Body Features A Robust 20mm Thick Chassis, Ensuring Structural Integrity And Long-Term Durability. Its Streamlined Design Minimizes Crevices, Making It Easy To Clean And Maintain.

For Clients Seeking Enhanced Aesthetics, The Unit Offers Flexible Optional Upgrades. This Includes A Choice Between A Brushless Motor And A Servo Motor, Allowing Clients To Choose Between High Efficiency And Ultra-High Precision. Additionally, A Flowing Light Strip Can Be Integrated, Providing An Elegant Visual Guide For Users And Adding A Modern, Futuristic Ambiance To The Entrance.

Technical Specifications At A Glance

• Model: TD511A
• Power Supply: AC220V, 50/60HZ
• Motor Type: Brushless DC
• Motor Power: ≤180W
• Traffic Flow Rate: 20-60 People Per Minute
• Dimensions (LWH): 1500mm*120mm*1010mm
• Channel Width: 550-1200mm
• Infrared Detection Logs: 8 Pairs
• Working Temperature: -20℃~+70℃

Conclusion

The TD511A Brushless DC Speed Gate Is More Than An Access Control Device; It Is A Comprehensive Security Solution That Merges Architectural Elegance With Industrial-Grade Resilience. By Integrating Advanced Motor Technology, Multi-Layered Safety Protocols And Flexible Smart Card/Biometric Integration, It Provides An Unparalleled Return On Investment. Whether Upgrading An Existing Facility Or Constructing A New State-Of-The-Art Building, The TD511A Ensures That Your Entry Management Is Future-Proof, Secure And Impressively Efficient. Choose The TD511A To Protect What Matters Most, While Enhancing The Experience For Those Who Enter.
