CHISUNG CSSGO-05DC Heavy Duty Swing Gate Opener, 500kg 3.0m Single Leaf, DC24V 70W with 1800N Thrust, Solar/Battery Compatible for Villa Driveway Gates
500kg/3.0m Max Gate | 1800N High Thrust | DC24V 70W Motor | Solar & Battery Ready | IP45 Weatherproof | Manual Release for Power Outage | Low Noise & High Safety
- Overview
- Recommended Products
Product Information
| Place of Origin: | China |
| Brand Name: | CHISUNG |
| Model Number: | CSSGO-05 |
| Certification: | CE |
Product Commercial Terms
| Minimum Order Quantity: | 1 |
| Price: | Consult us |
| Packaging Details: | carton |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000sets/Month |
Quick Detail
Swing gate opener
Automatic swing gate opener
Arm-type gate operator
Surface-mounted swing operator
Underground swing operator
Dual swing gate operator
swinging gate operator
Articulated arm gate operator
Electromechanical swing gate actuator
Remote-controlled swing gate opener
Swing gate motor
Low-energy swing gate operator
Powered swing gate operator
Linkage-type gate operator
Residential swing gate opener
Smart swing gate opener
Commercial-duty swing gate operator
Solar-powered swing gate opener
Push Rod gate opener
Linear Actuator gate opener
Pusher Type gate opener
The CSSGO-05DC Automatic Swing Gate Opener is a heavy-duty outdoor gate automation system built for large residential and commercial swing gates. Designed to handle single-leaf gates up to 3.0m wide and 500kg, it delivers reliable performance with 1800N thrust, a durable die-cast aluminum alloy housing, and IP45 weather protection. It supports solar and backup battery power, manual release for power outages, and multiple access control methods, making it ideal for villas, communities, and industrial sites.
Description

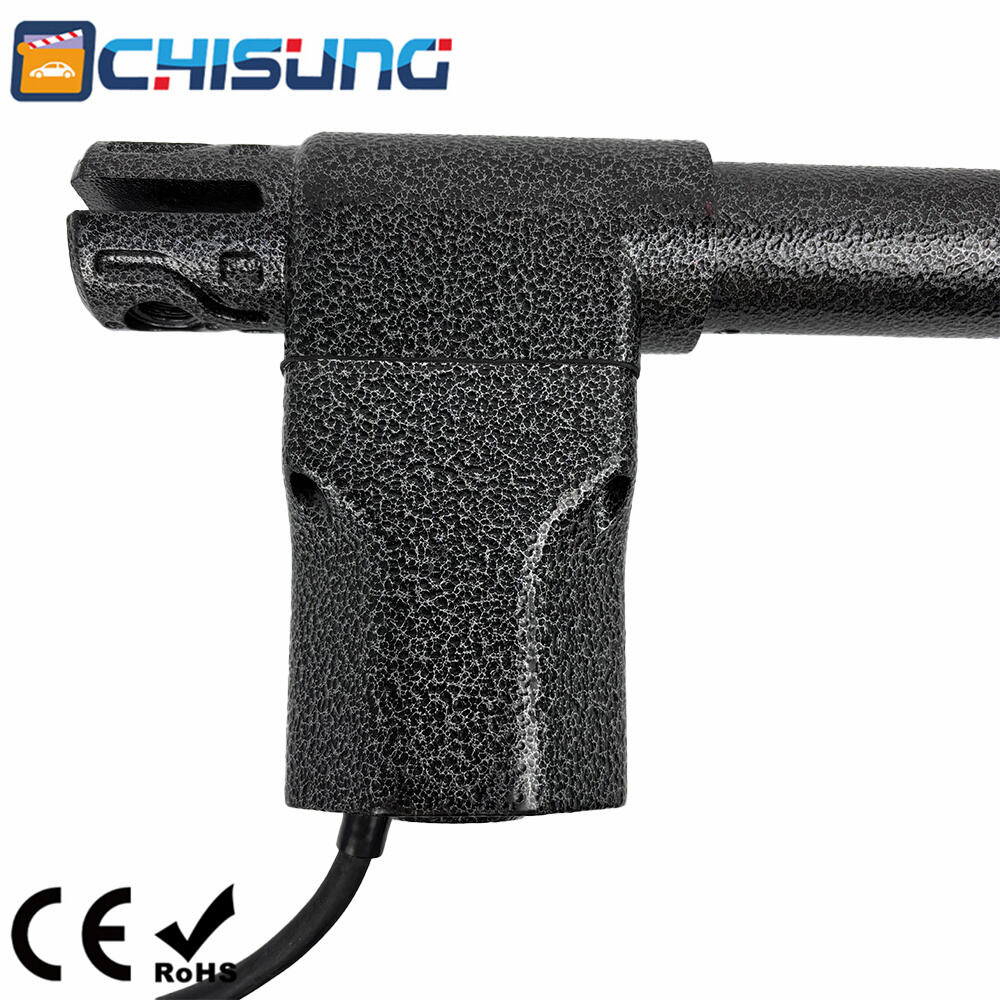

The CSSGO-05DC swing gate opener is engineered for maximum durability and performance. Its robust die-cast aluminum alloy housing, paired with stainless steel accessories, ensures long-lasting operation in harsh outdoor environments. Rated IP45, it withstands rain, snow, and high humidity, with a wide operating temperature range of -20℃ to +70℃.

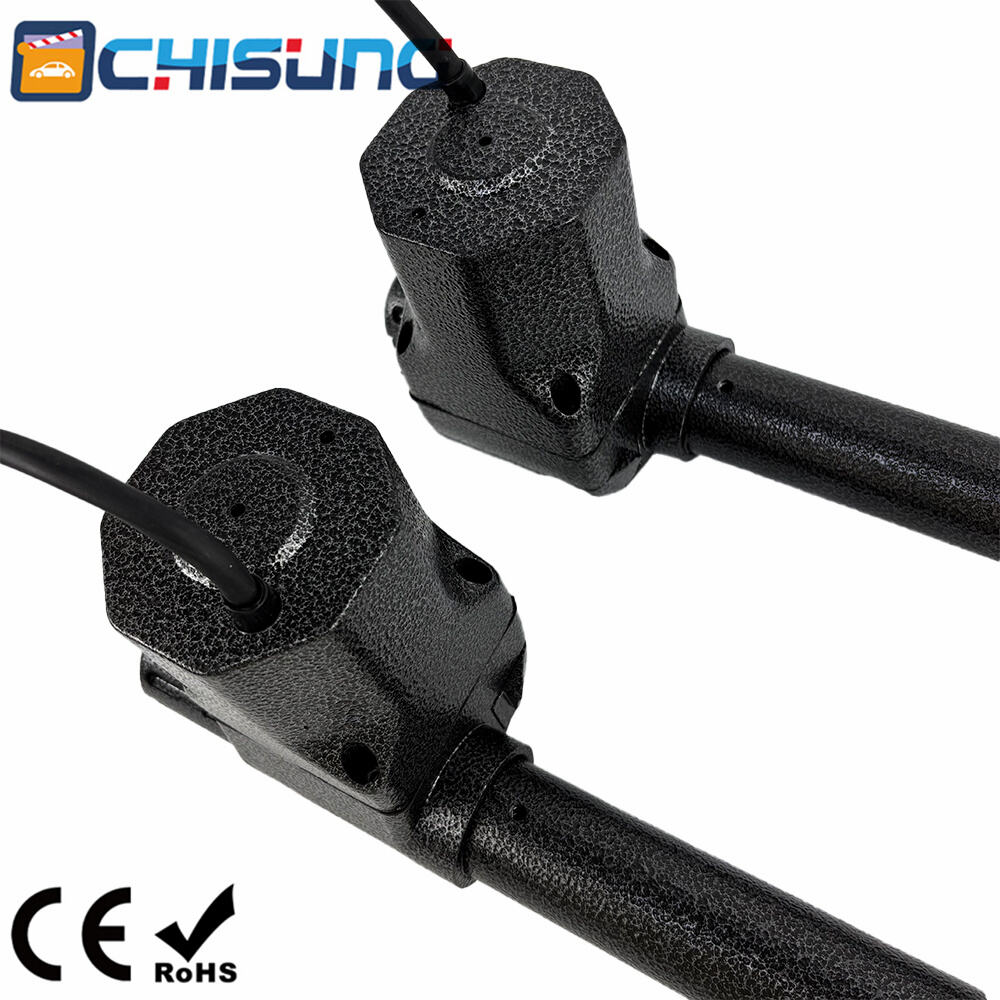

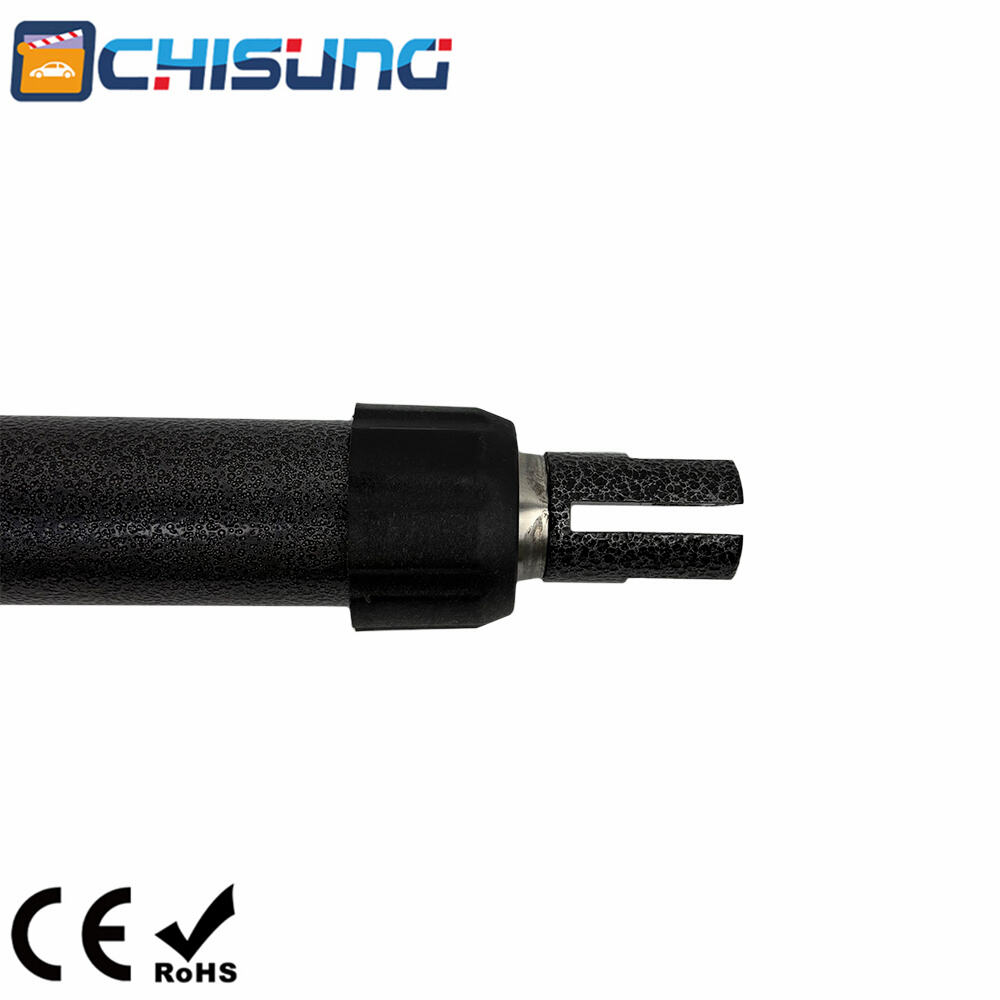

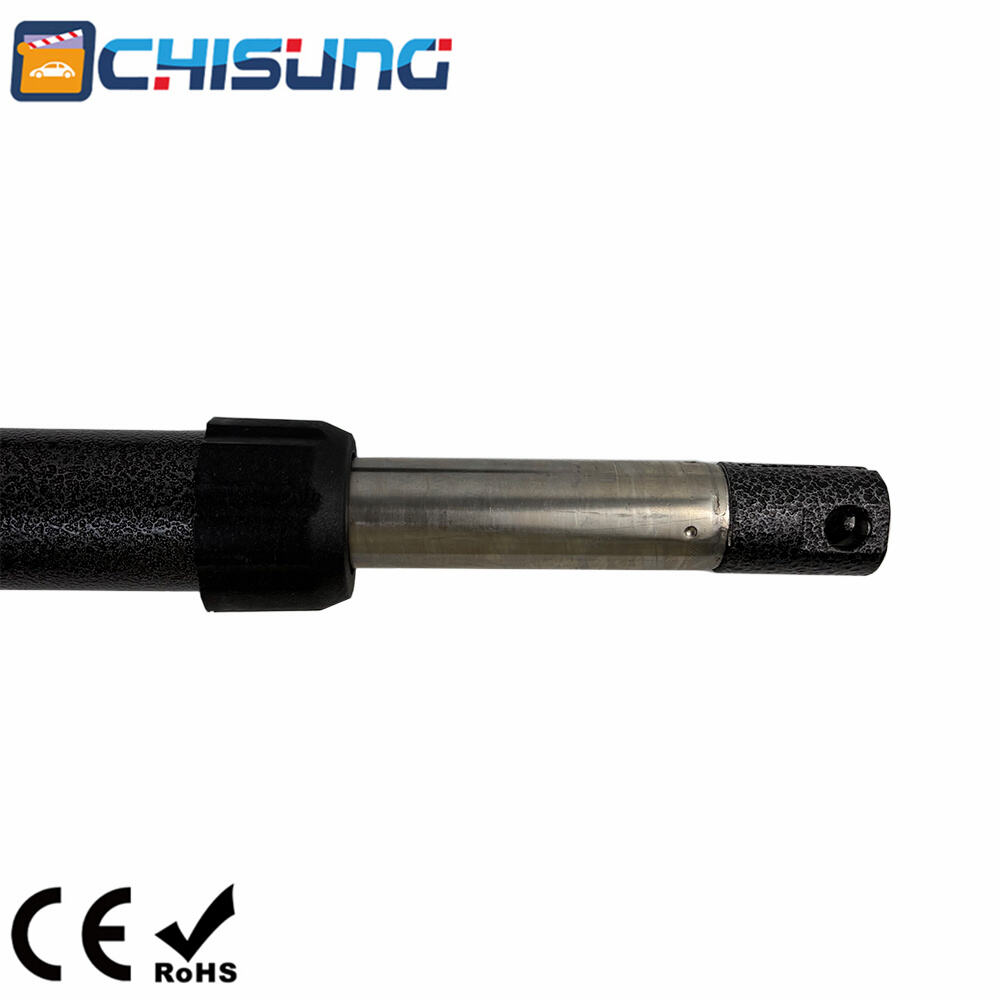

Powered by a DC24V 70W motor delivering 1800N thrust, it drives gates at 1.6cm/s, completing a full 90° opening in just 12 seconds. The motor features a pure copper coil and reinforced stainless steel telescopic arm, ensuring smooth, low-noise operation and long service life.

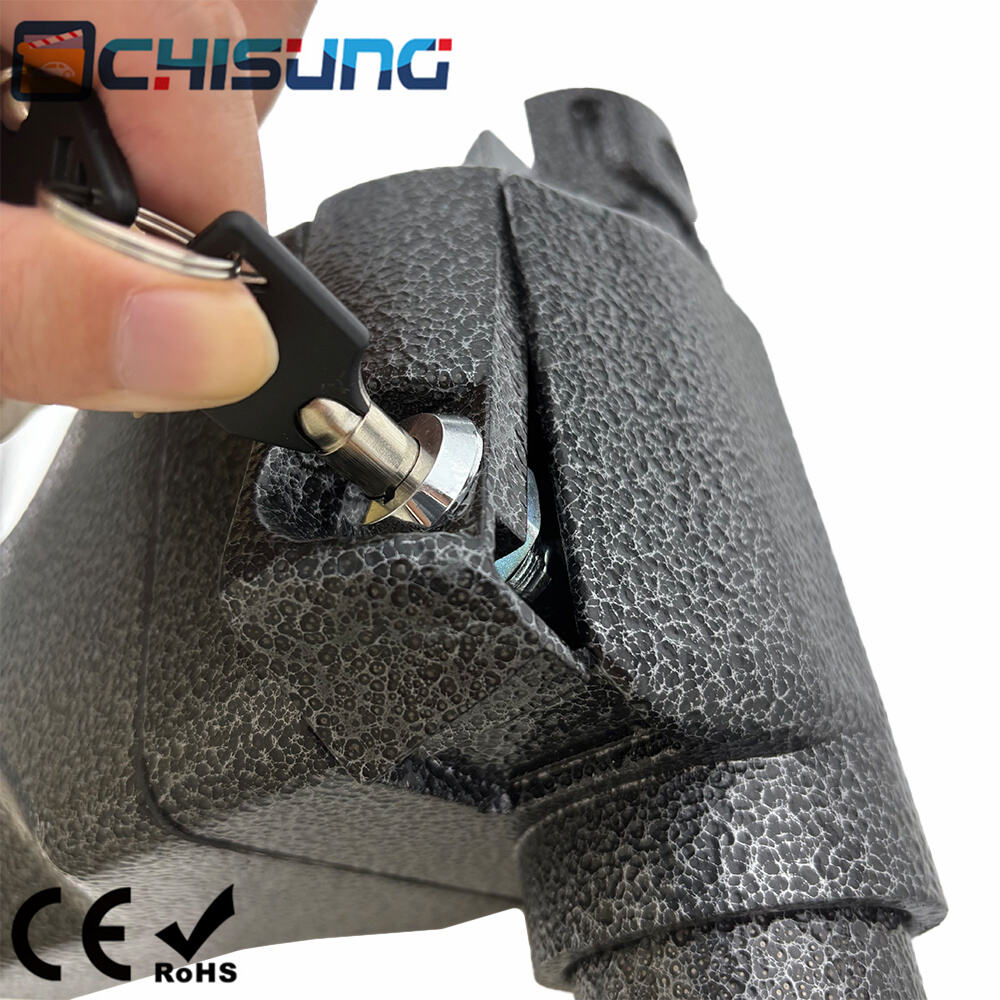

Safety and reliability are key priorities. The system includes a manual clutch release for operation during power outages, and supports adjustable running time protection to prevent overheating. Auto-closing delay is fully programmable from 0 to 99 seconds, and opening angles can be set to 90°, 100°, 110°, or 120° to suit different gate designs.

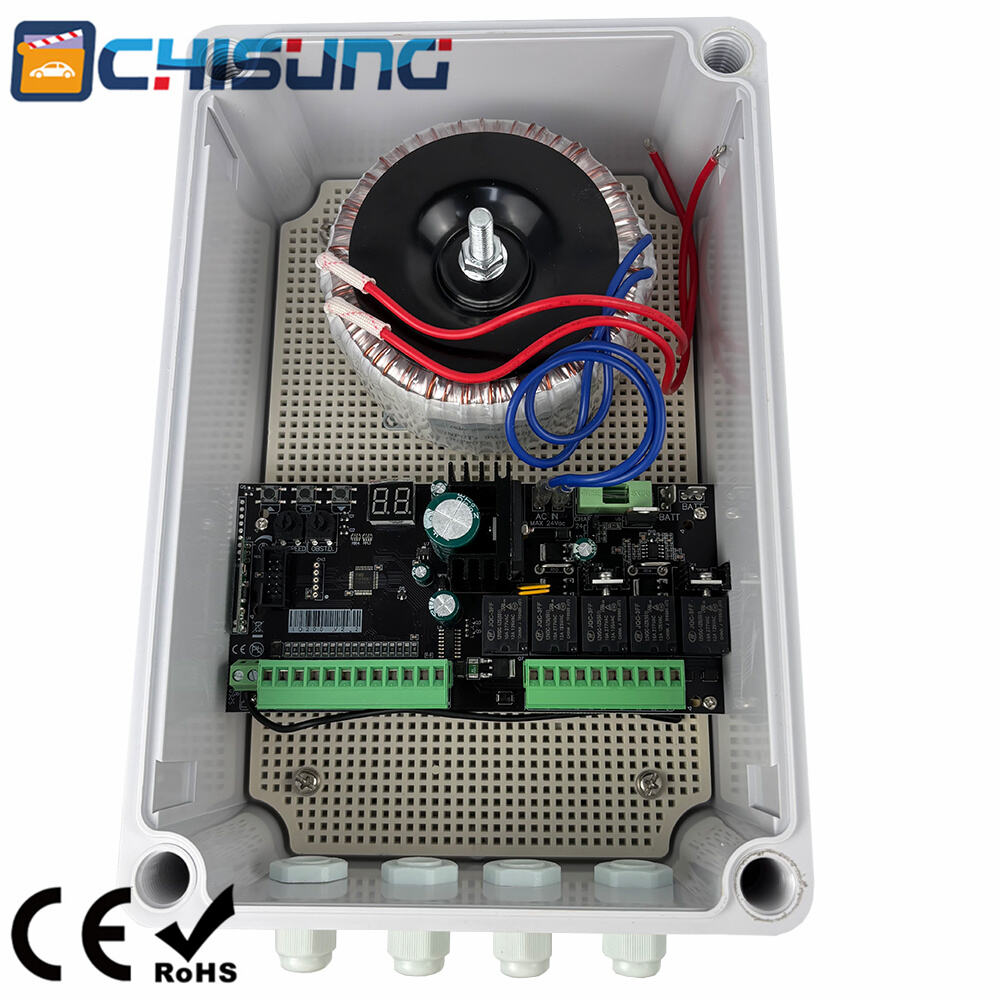

Power options are highly flexible: it works with standard AC220V/110V input, and is compatible with backup batteries and solar panels (optional), making it ideal for off-grid properties and areas with unstable power supply. The control box supports integration with various accessories, including GSM controllers, keypads, and vehicle loop detectors, enabling full customization of your access control system.

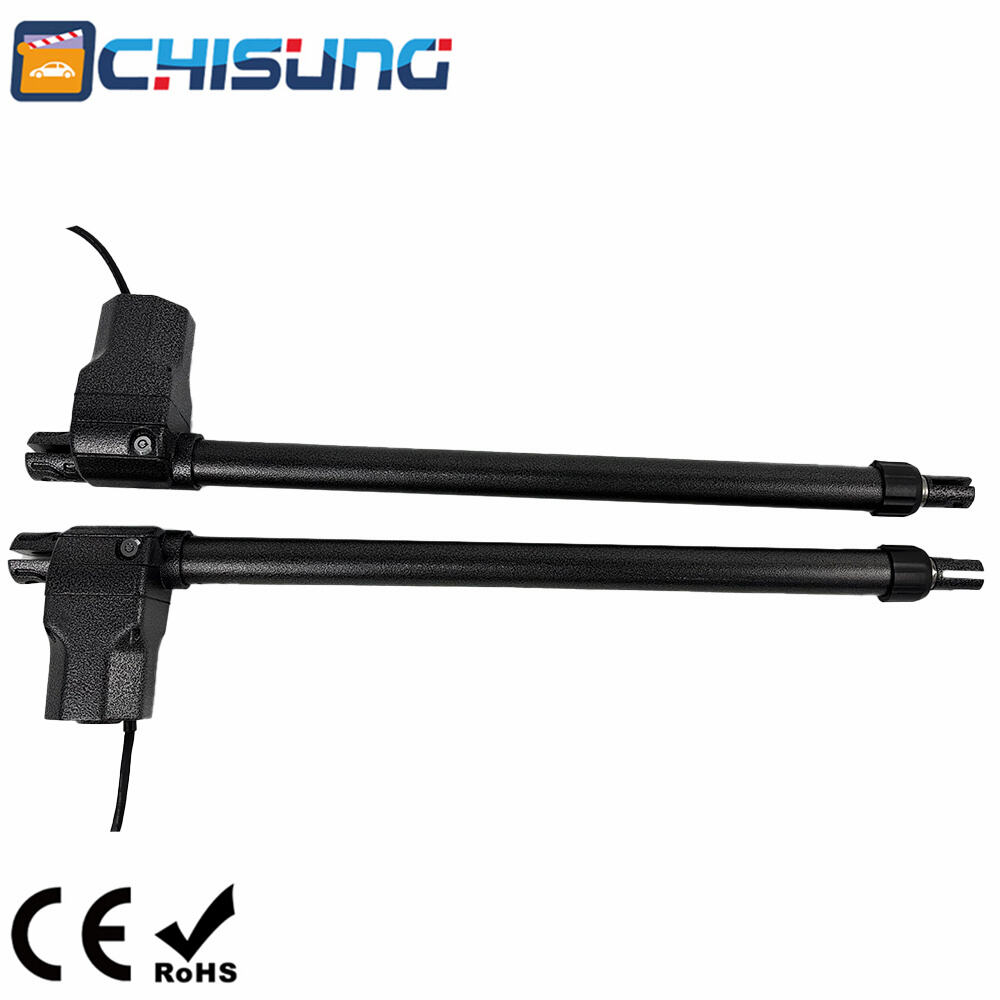

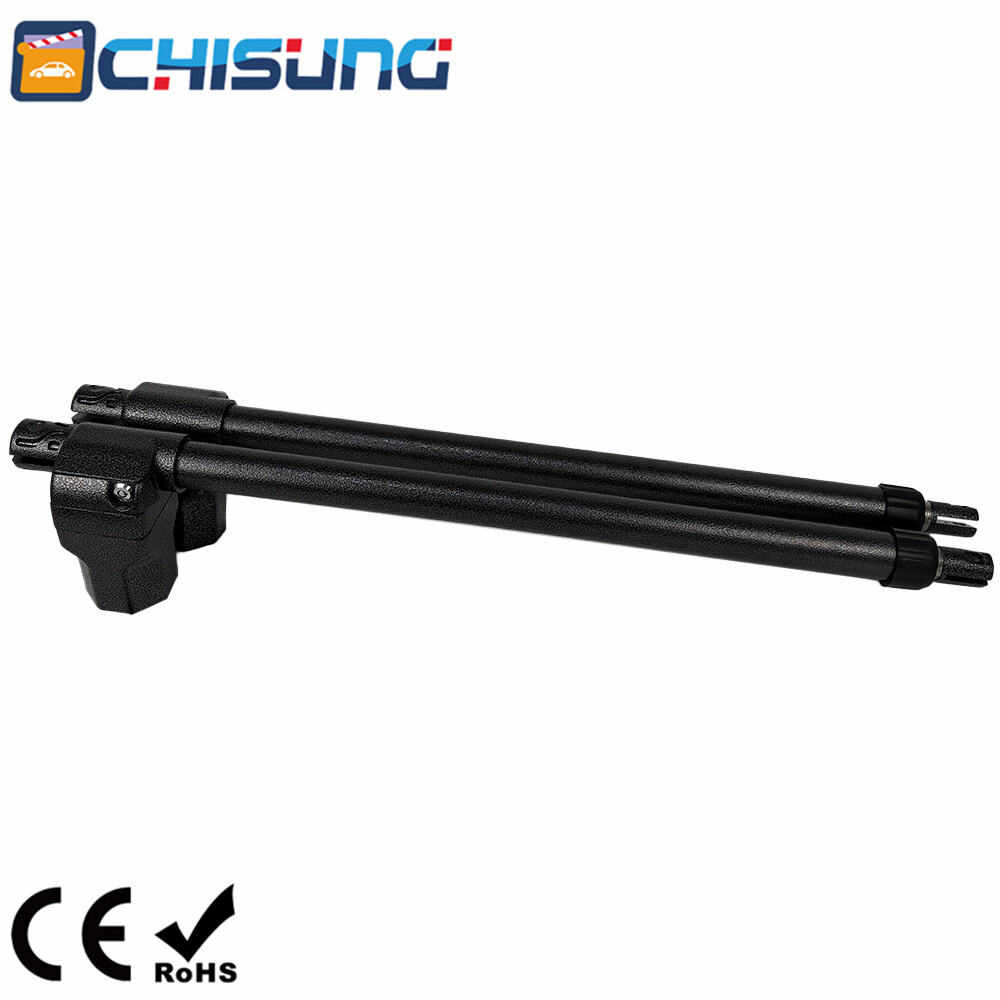

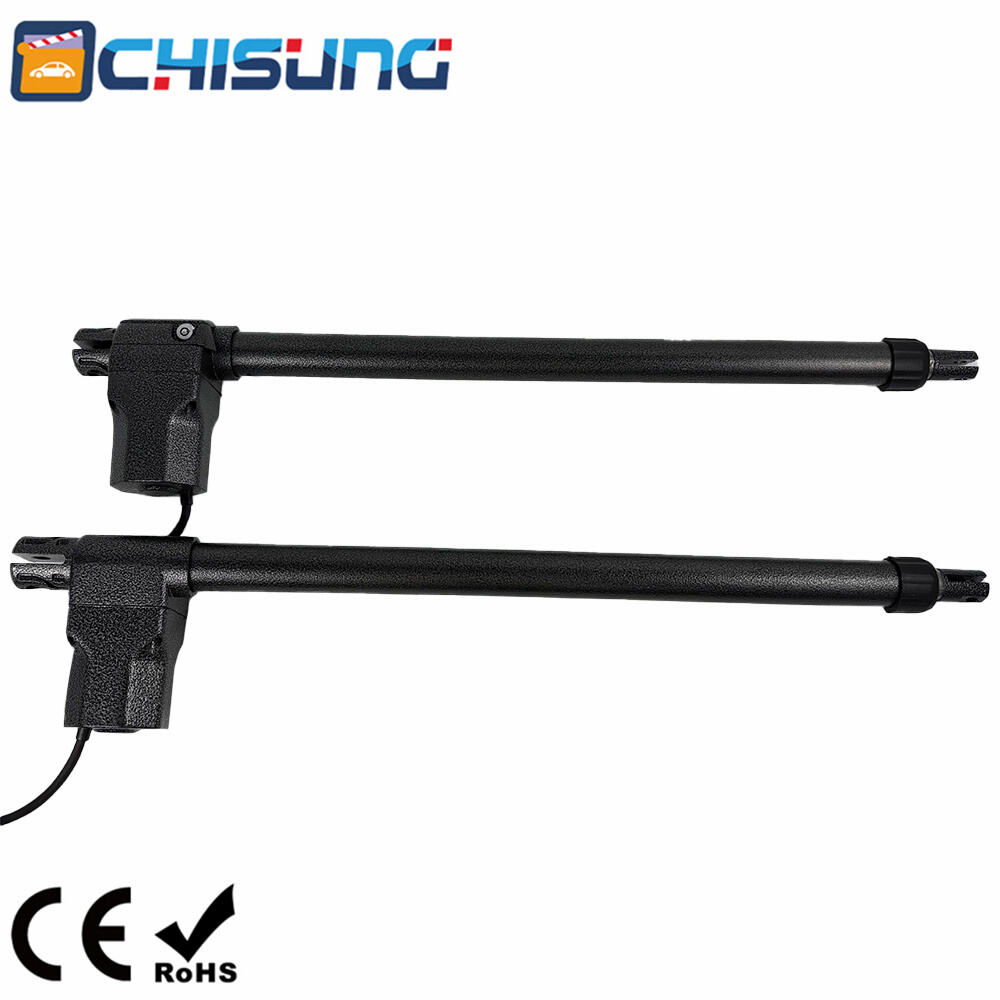

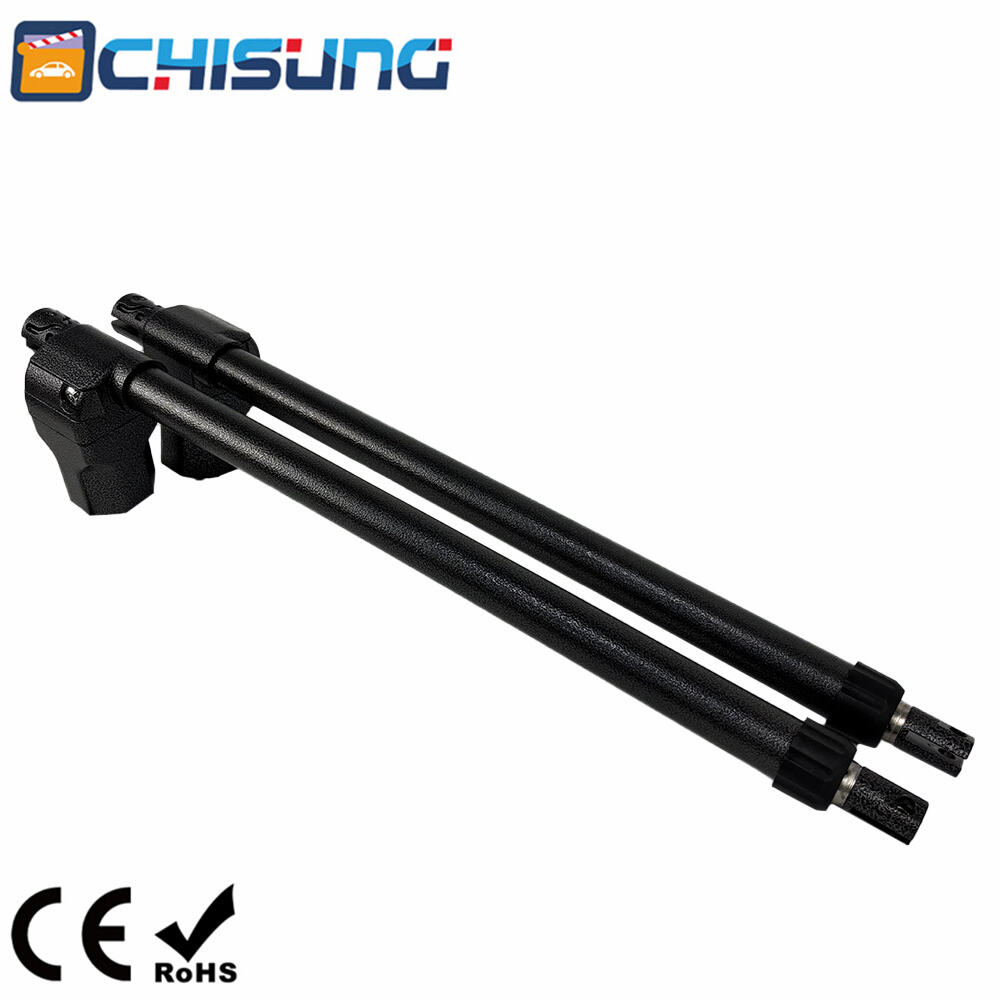

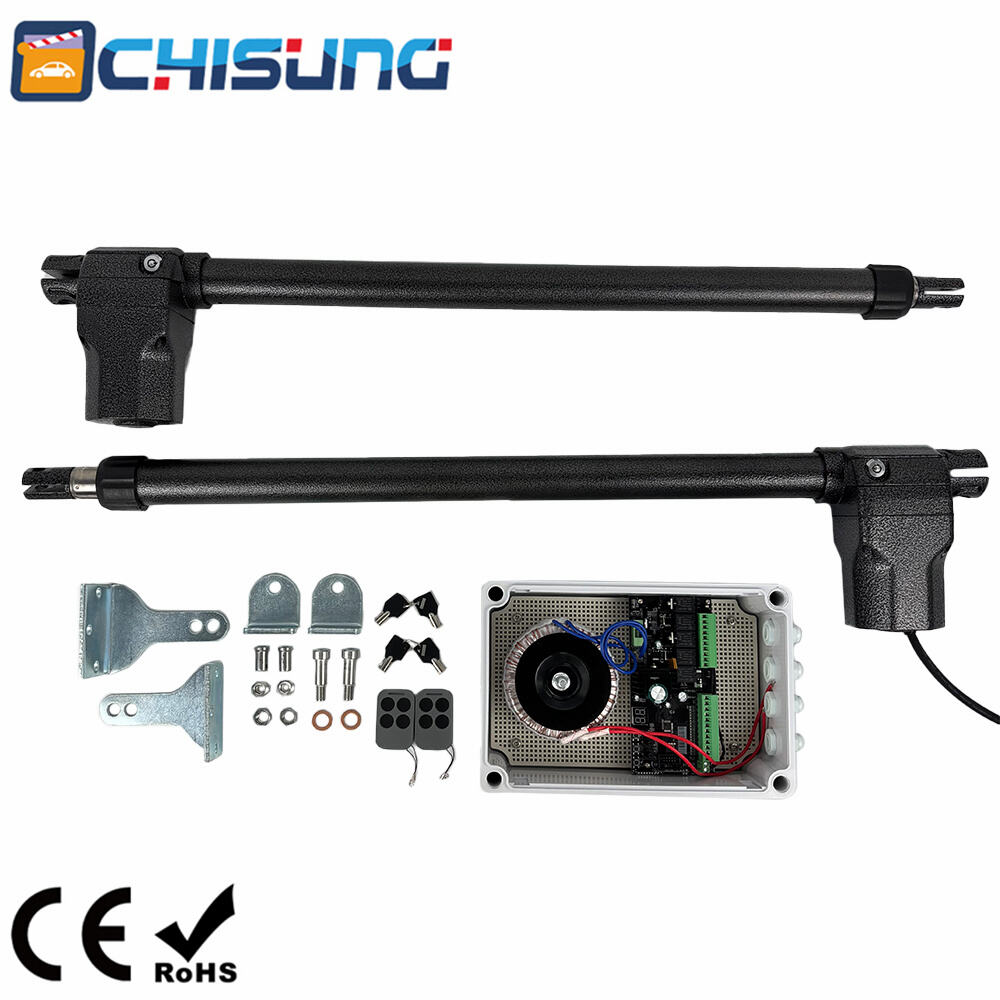

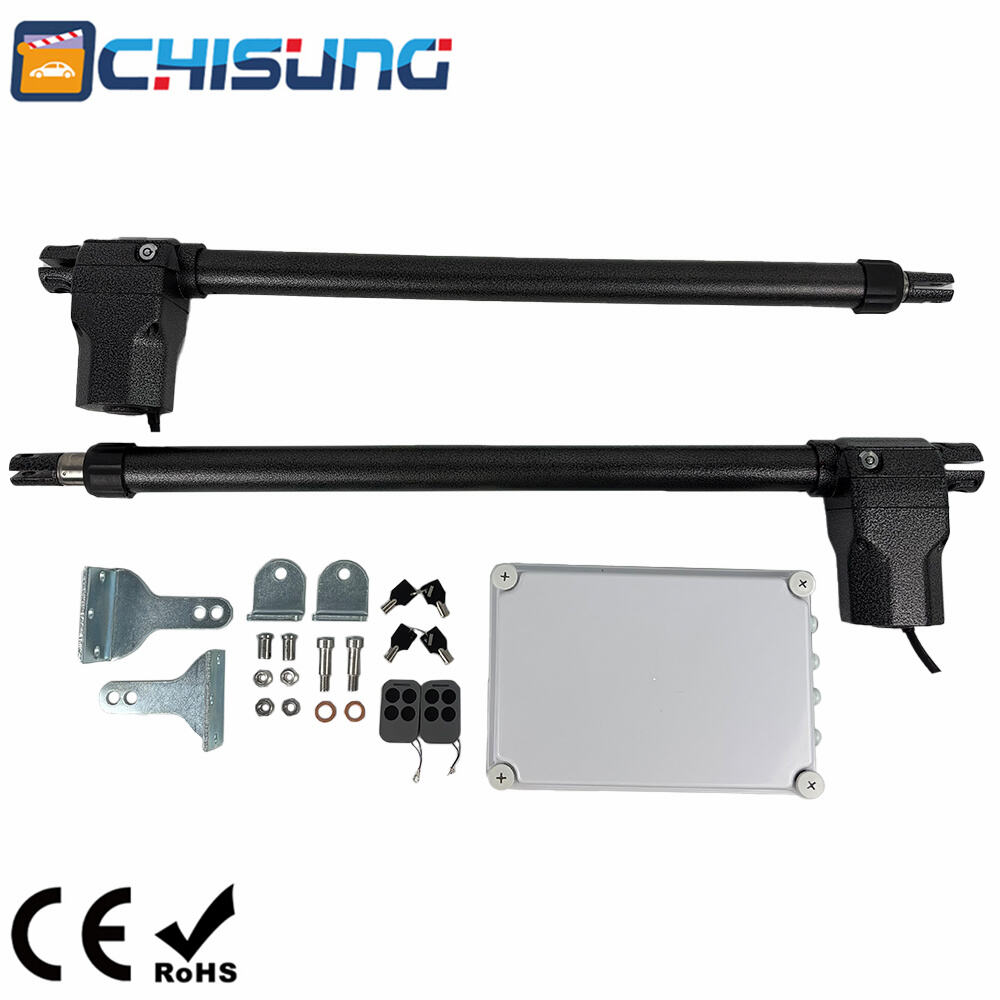

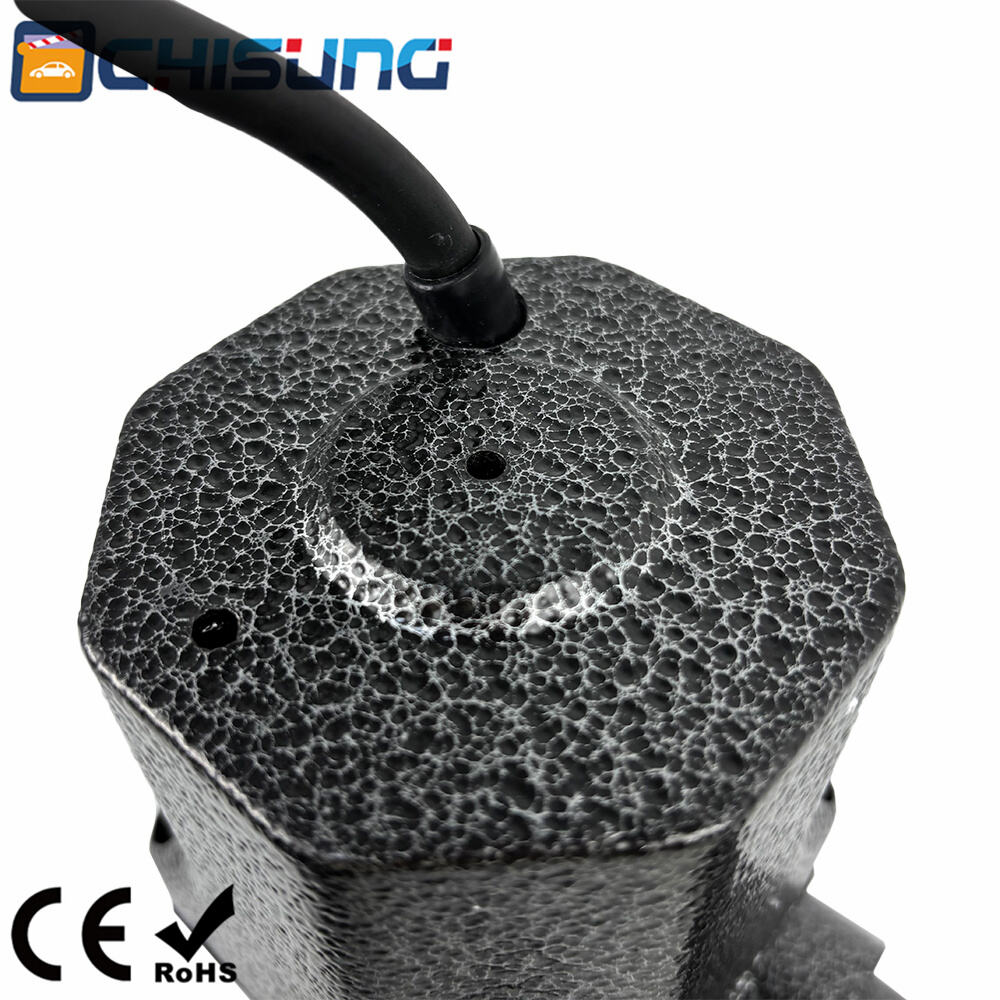

Installation is straightforward with the complete standard kit, which includes two motor arms, a control box, remote controls, mounting brackets, and all hardware. The design includes drainage and ventilation holes to prevent moisture buildup, ensuring consistent performance over time.
Applications
l Residential: Villa driveway gates, private property access, large home security gates
l Communities: Neighborhood main gates, apartment complex security, gated community entrances
l Commercial: School entrances, hospital service gates, office building perimeter gates
l Industrial: Construction site access, factory compound gates, warehouse vehicle entry points
l Special Use: Solar-powered off-grid properties, farms, scenic area entrances, and high-traffic public places
Specifications
| Parameter Name | CSSGO-05-2-24V extra |
| Model No. | CSSGO-05-2-24V extra |
| Power Supply | AC220V±10V 50/60HZ, AC110V±10V, 60Hz |
| Electric Motor | DC 24V |
| Rated Current | 5.2A |
| Rated Power (Motor Absorbed Power) | 70W |
| Max Single Gate Leaf Length | 3.0m |
| Max Single Gate Weight | 500kg |
| Housing Material | Die-cast aluminum alloy shell with stainless steel accessories |
| Motor Operating Speed | 1.6cm/s |
| Motor Rotational Speed | 1800RPM |
| Max Thrust | 1800N |
| Running Time Protection | Adjustable |
| Max Rod Travel | 600mm |
| Auto Closing Delay Time | Programmable (0 to 99 seconds) |
| Standard Gate Operating Speed | 12S/90 degrees |
| Operating Ambient Temperature | -20℃~+70℃ |
| Relative Humidity | ≤95%, No Condensation |
| Protection Class | IP45 |
| Main Application Scenario | Home automation |
| Standard Limit Switch | No |
| Extended Power Supply Support | Compatible with backup battery & solar panel |
| Optional Door Opening Angles | 90°, 100°, 110°, 120° |
| Motor Dimensions (L×D×H) | 900*90*175mm |
| Packaging Specification | 26kg, 1 carton per set; Outer carton size: 103*300*280mm |
Competitive Advantage
Ultra-High Load Capacity–Handles 500kg/3.0m gates with 1800N thrust, ideal for large and heavy residential/commercial gates.
All-Weather Durability–IP45-rated die-cast aluminum housing with drainage and ventilation holes withstands rain, snow, and extreme temperatures.
Flexible Power Options–Works with standard AC power, plus optional battery/solar backup for uninterrupted operation in any environment.
Full Safety Features–Manual release for power outages, adjustable overheat protection, and obstacle-sensing capability.
Versatile Control Compatibility–Supports remote control, GSM, access keypads, vehicle loop detectors, and other accessories for smart automation.
Smooth & Quiet Operation–Pure copper motor and reinforced steel components ensure low noise and long-lasting performance.
Easy Installation & Maintenance–Complete kit with clear instructions, designed for quick DIY installation and minimal upkeep.
Wide Range of Applications–Suitable for villas, communities, farms, schools, hospitals, and industrial sites worldwide.
