CSYZM03 Winged Flap Turnstile Mechanism Access Control for Pedestrian Management

Product Information:

Quick Detail:

Flap Gate Mechanism

Flap Barreir Gate Mechanism

Flap Turnstile Mechanism

Flap Turnstile Gate Mechanism

Flap Gate movement

Flap Barreir Gate movement

Flap Turnstile movement

Flap Turnstile gate movement

Wing Gate Mechanism

Wing Barrier Mechanism

Wing brake Mechanism

Wing Barrier Gate Mechanism

Wing Type Access Control Gate Mechanism

Winged Turnstile Gate Mechanism

Sliding Wing Gate Mechanism

Wing-in-Wing Barrier Gate Mechanism‌

‌Central Wing Barrier Gate Mechanism

Winged Flap Turnstile Mechanism‌‌

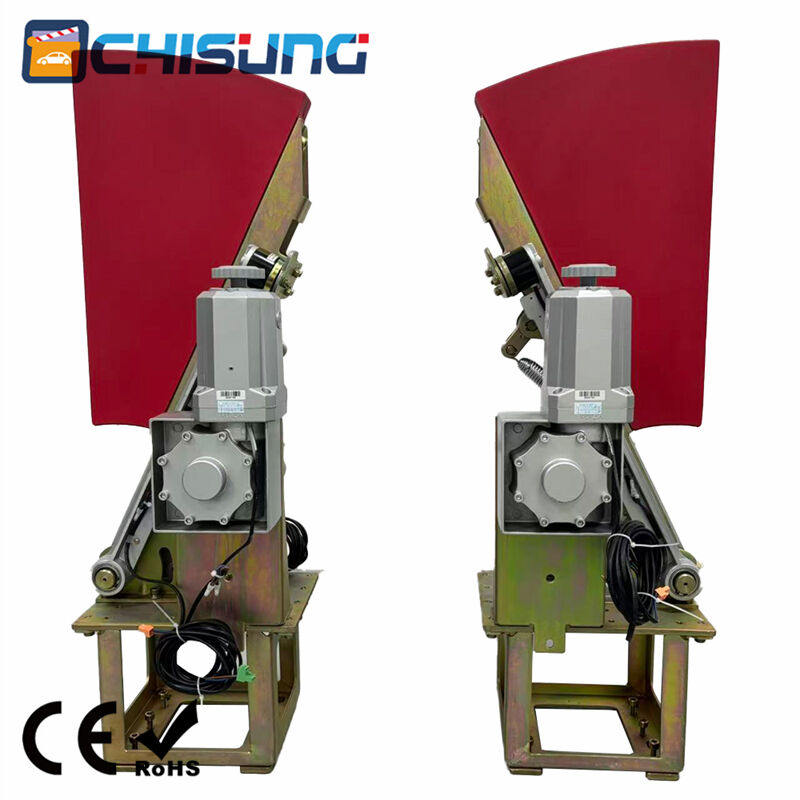

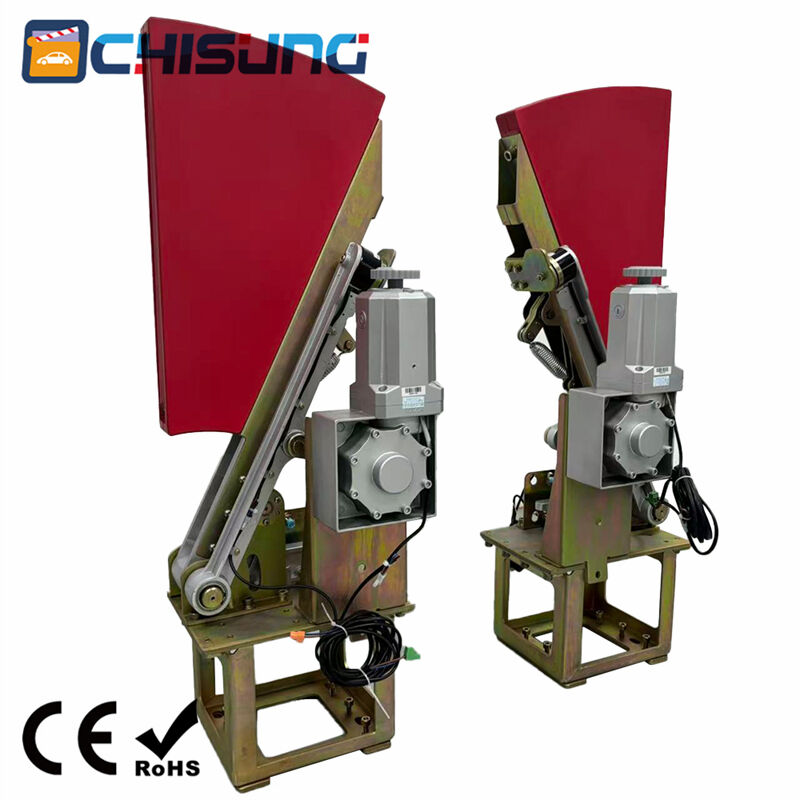

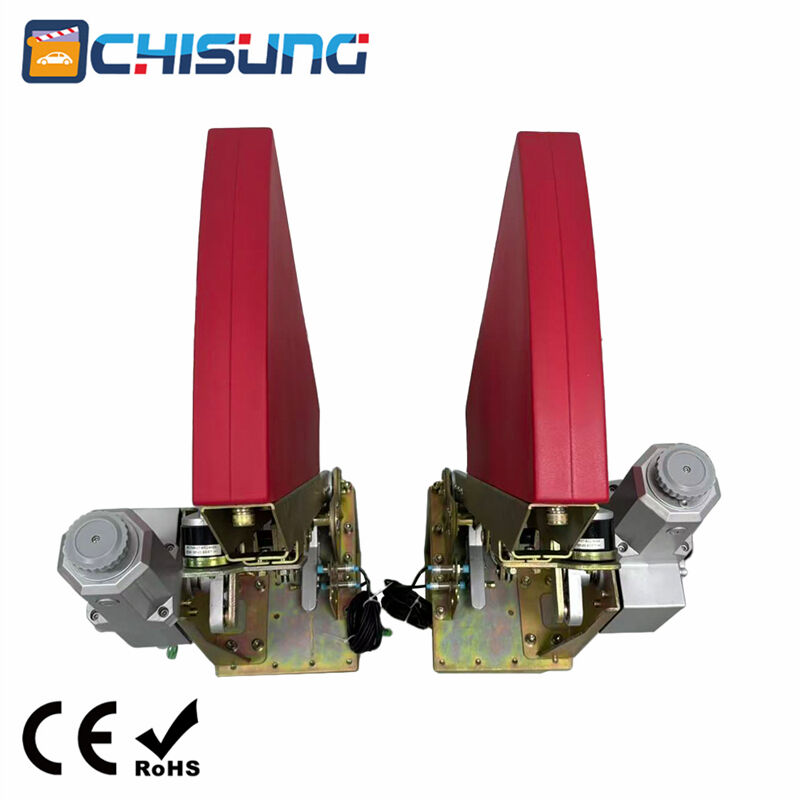

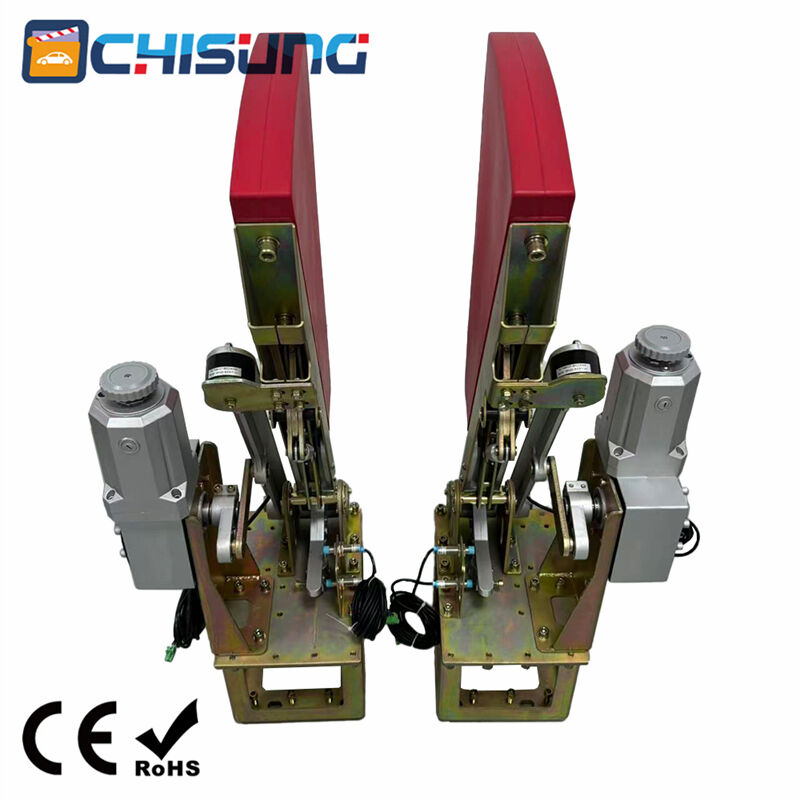

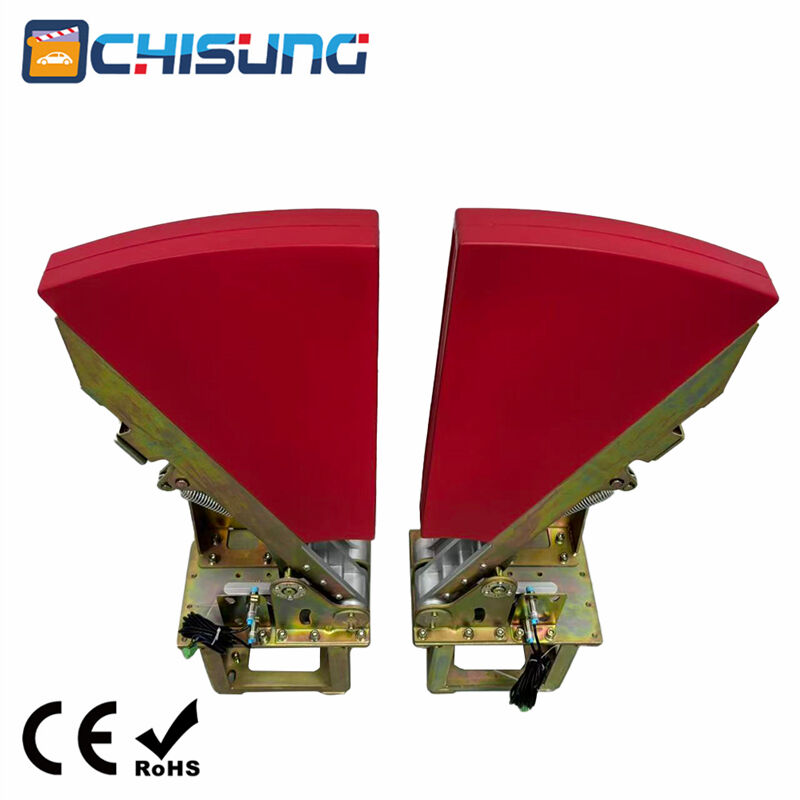

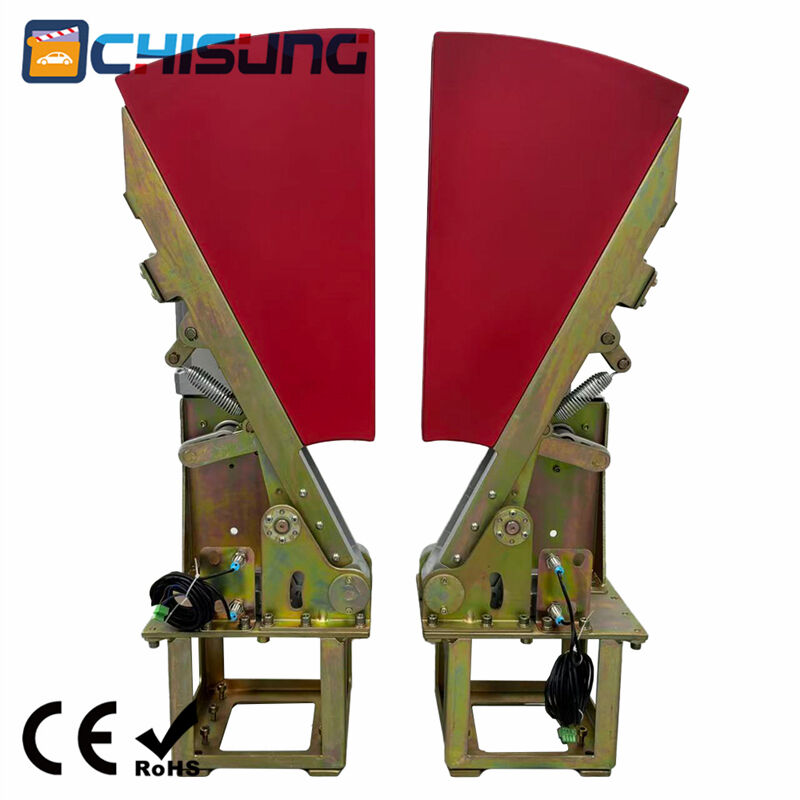

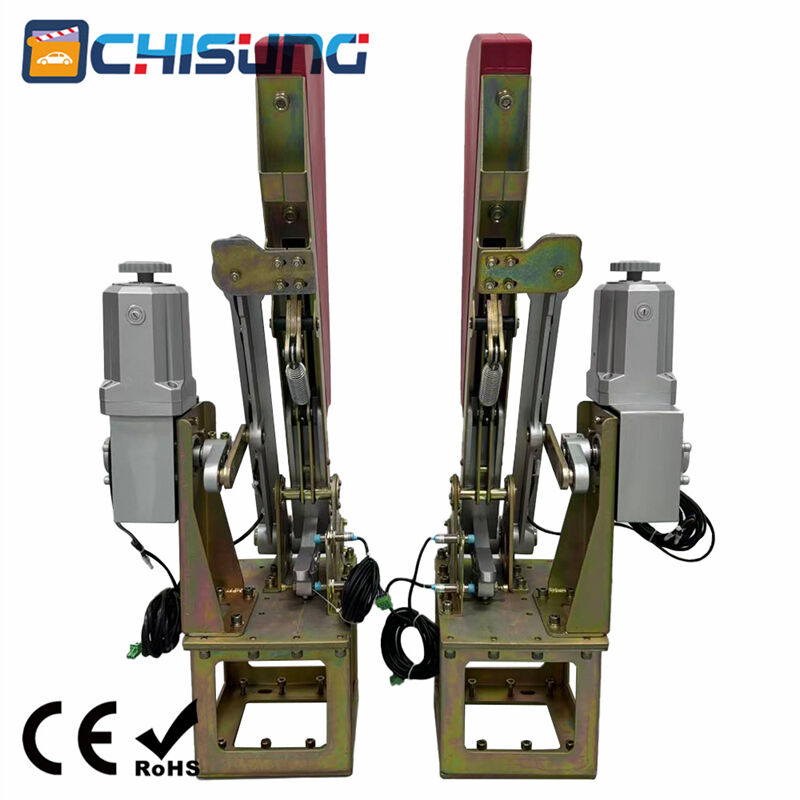

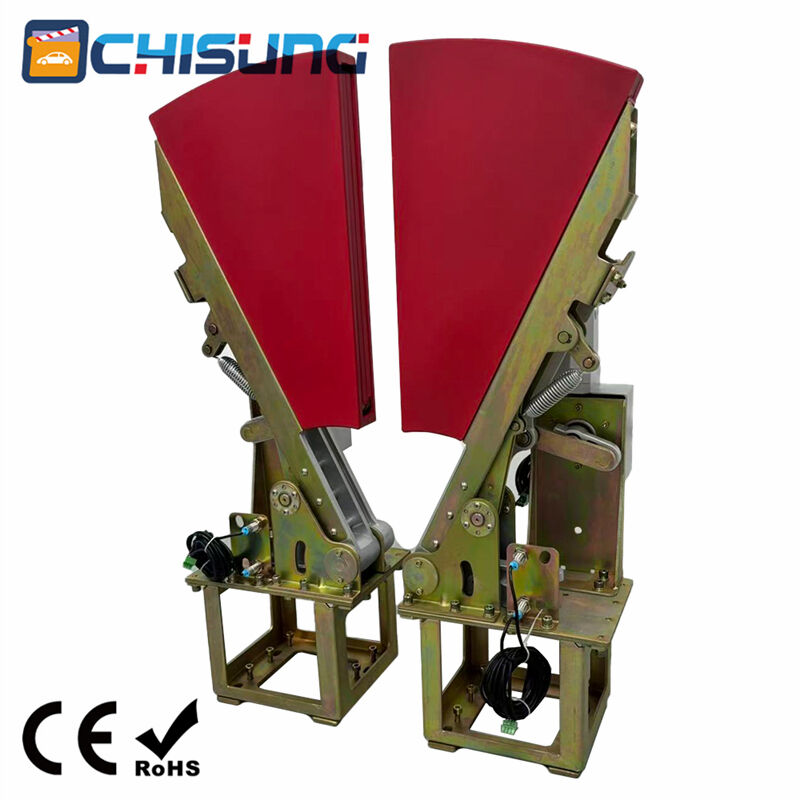

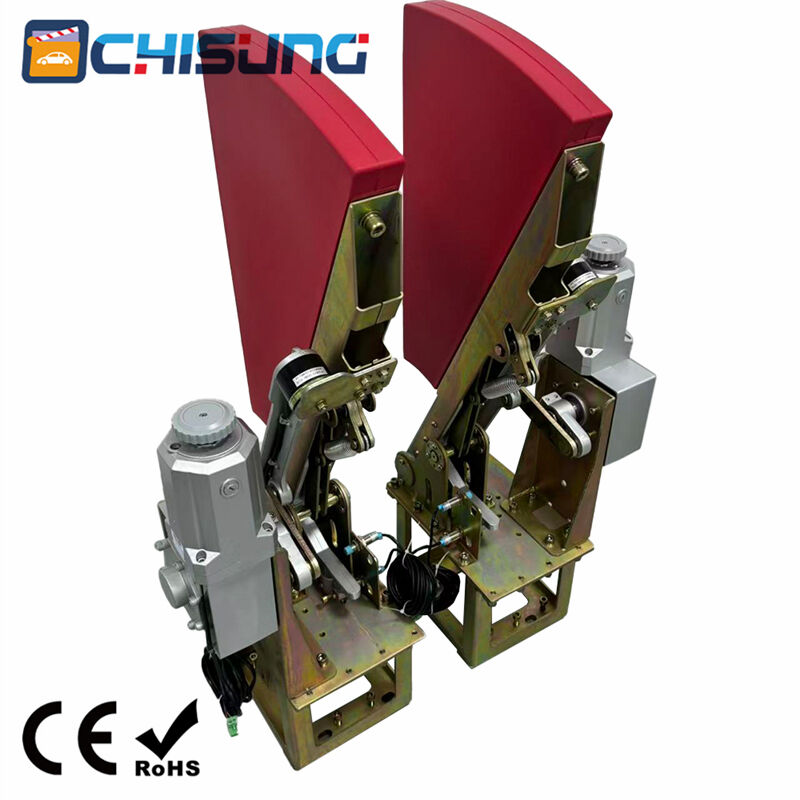

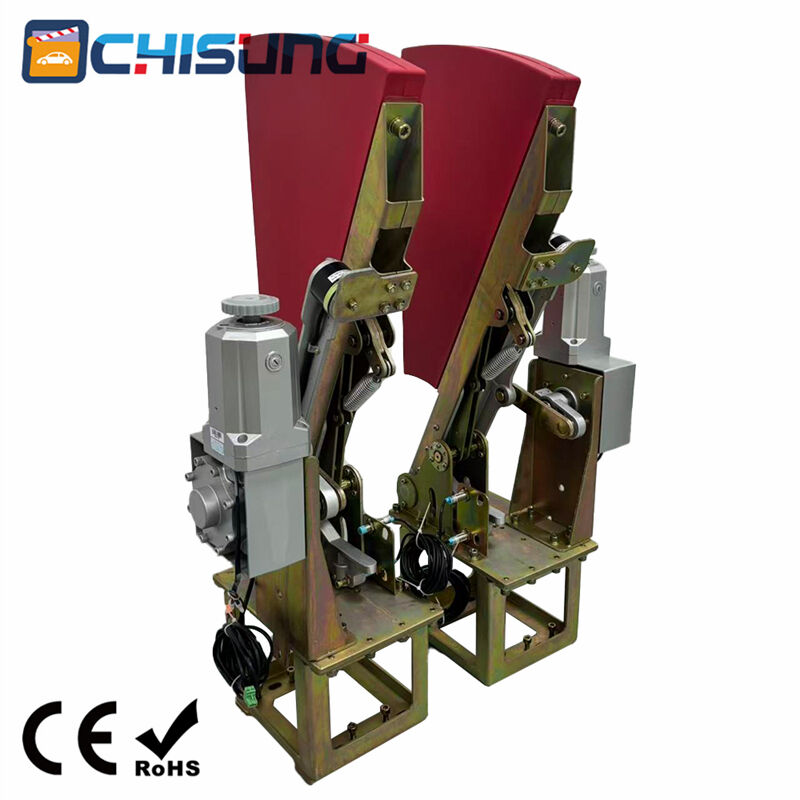

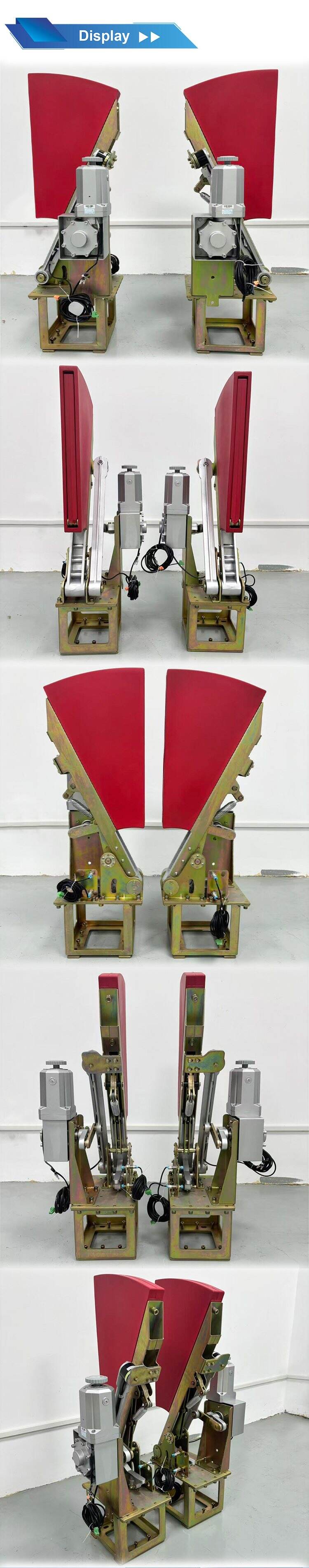

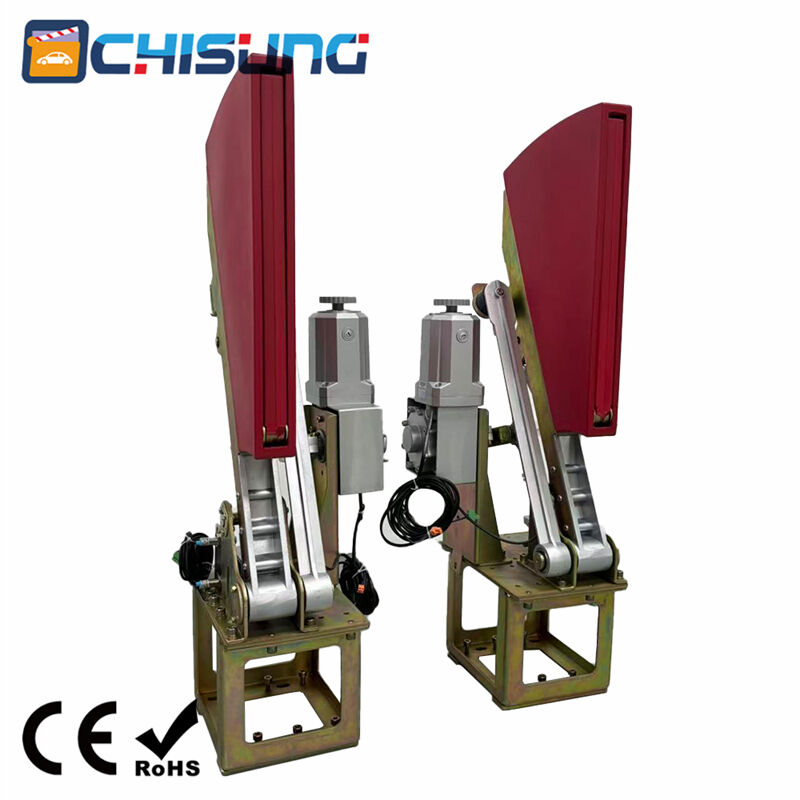

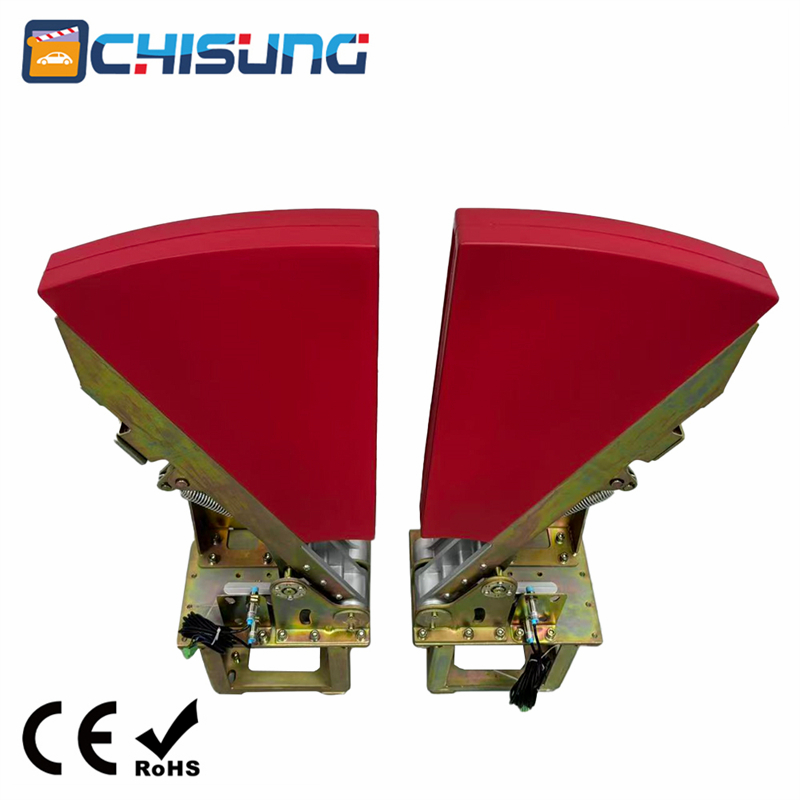

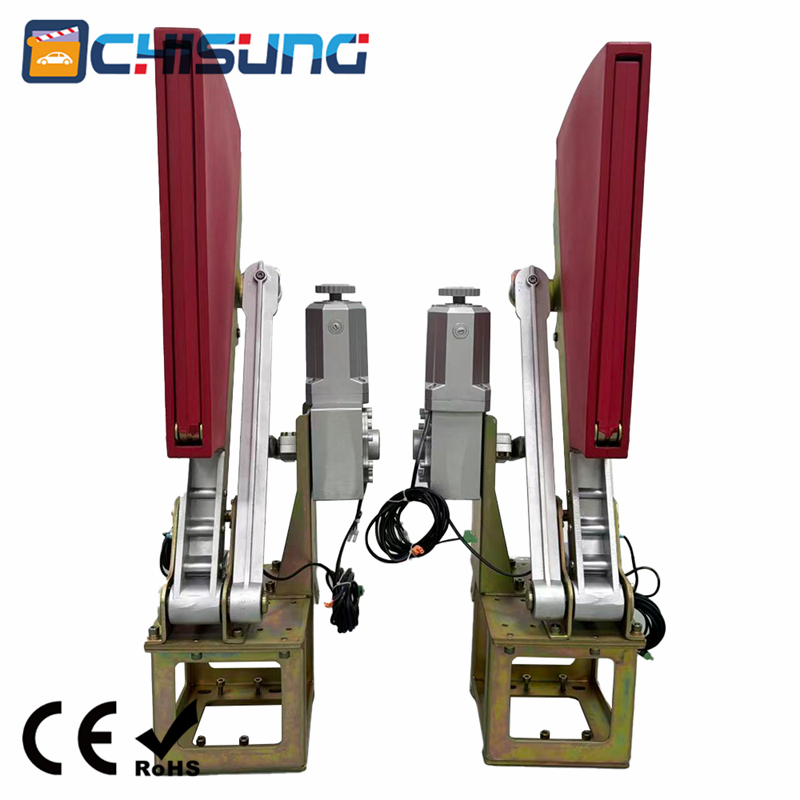

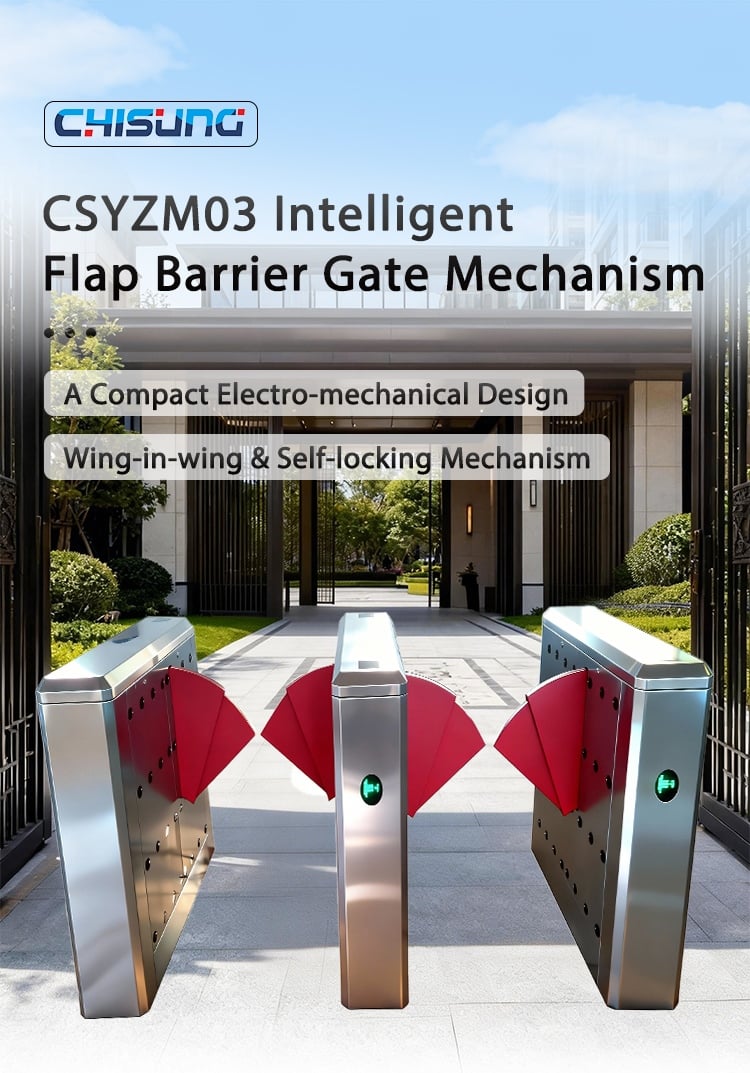

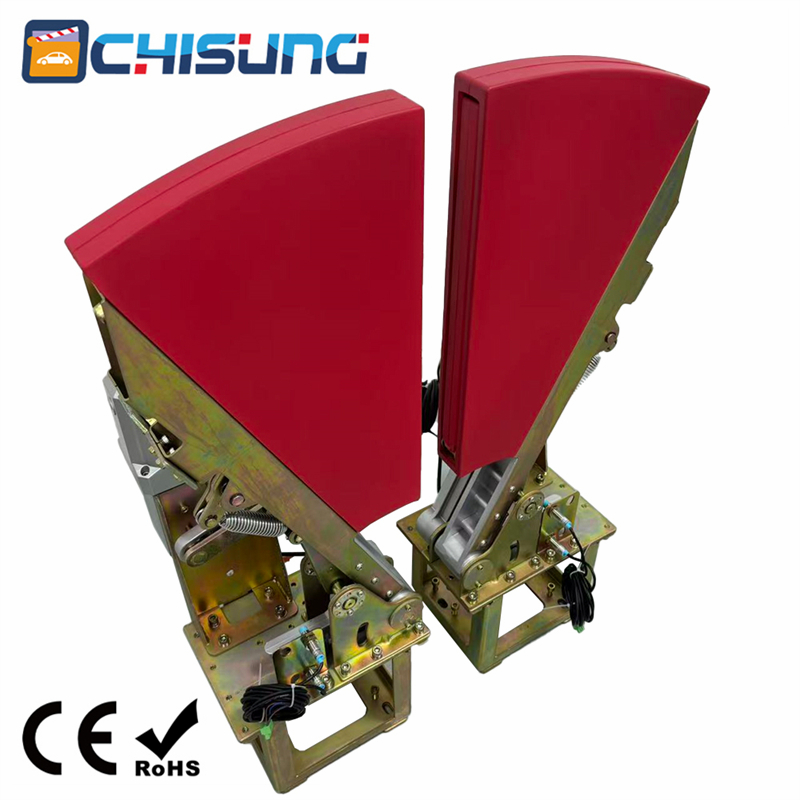

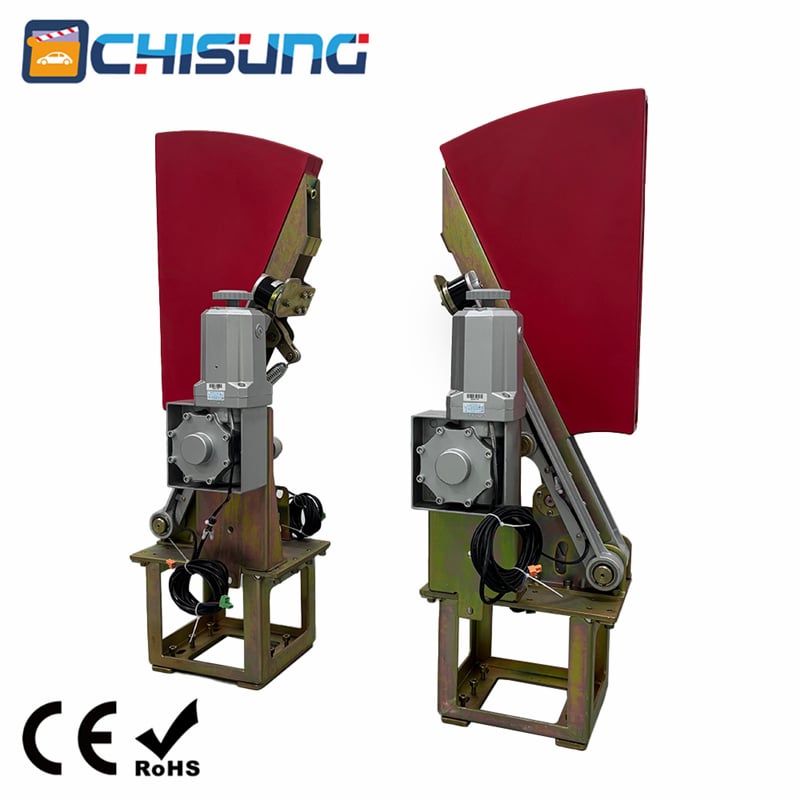

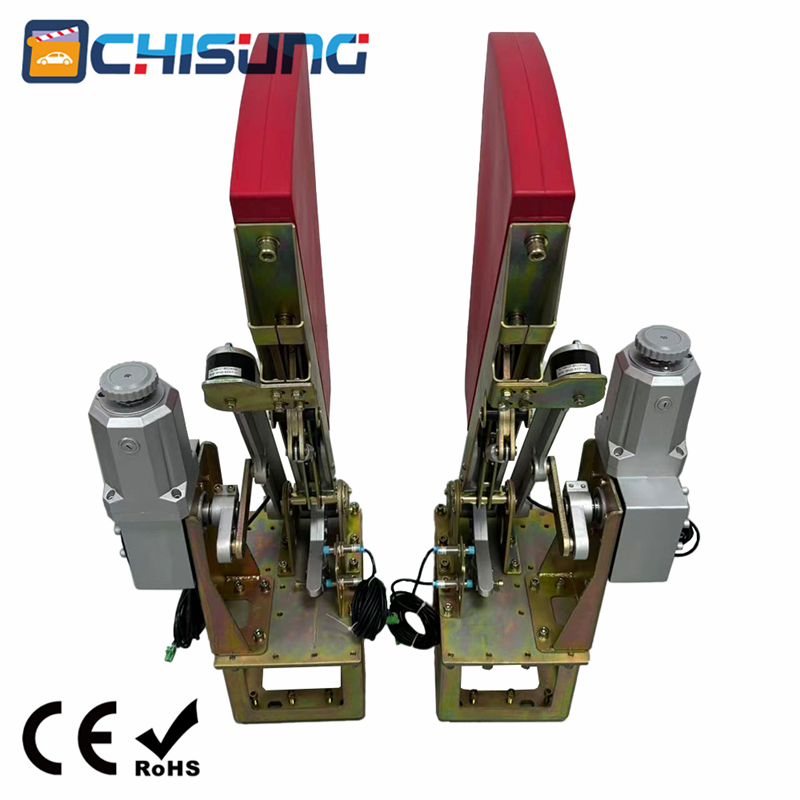

The CSYZM03 Intelligent Flap Barrier Gate Mechanism is a compact electro-mechanical access control solution designed for efficient pedestrian traffic management. It features a wing-in-wing and self-locking mechanism, ensuring secure and reliable operation.

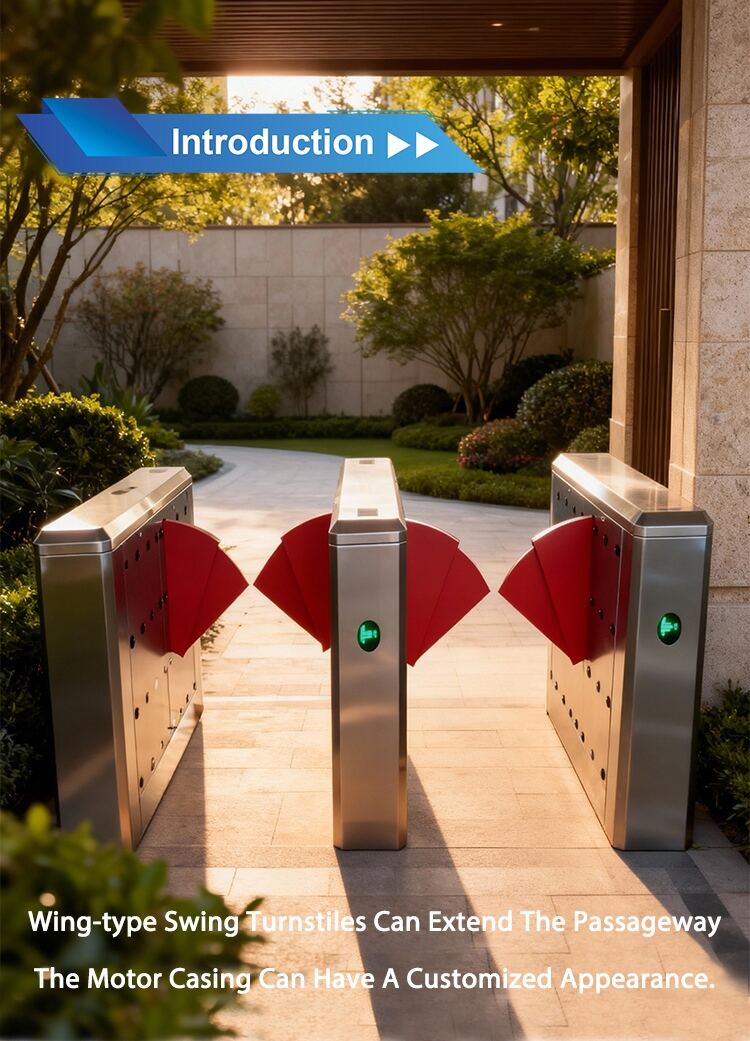

This flap barrier gate is equipped with two-way traffic lights to indicate pass or no-entry states, and it includes an emergency interface for enhanced safety. The device supports extendable functions such as access control attendance and fingerprint identification, making it suitable for various venues including communities, office buildings, and more.

Description:

Core Selling Points

Compact and Robust Design‌:

• The compact electro-mechanical design ensures minimal space usage while providing maximum durability and reliability.
• Constructed with 304# stainless steel, the cabinet is resistant to corrosion and wear, ensuring long-term use even in harsh environments.

Efficient Traffic Management‌:

• With a maximum flow rate of 30 to 40 people per minute, the CSYZM03 efficiently handles high-traffic volumes, reducing waiting times and congestion.

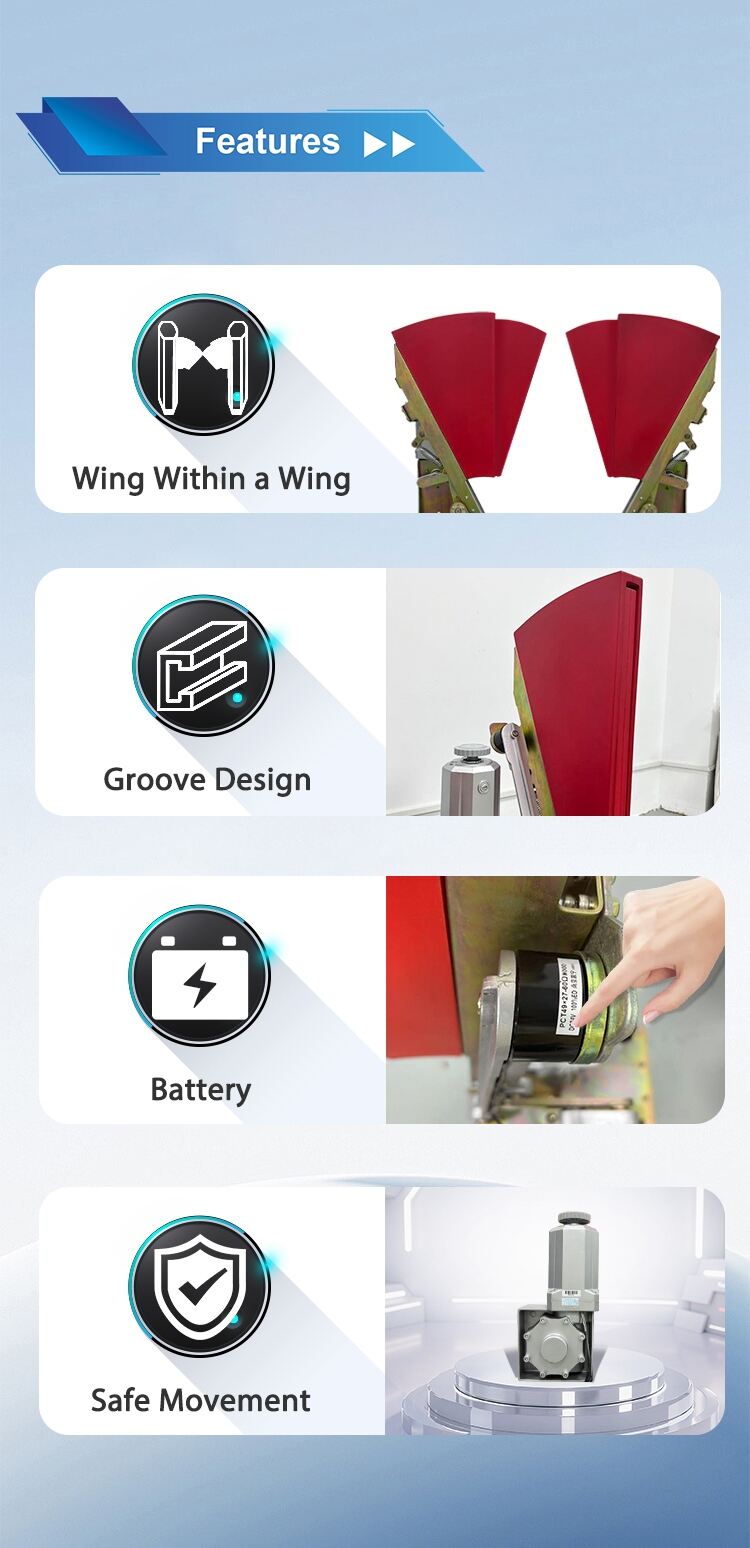

• The wing-in-wing & self-locking mechanism ensures secure and smooth operation, preventing unauthorized access while allowing authorized personnel to pass effortlessly.

Advanced Safety Features‌:

• The two-way traffic lights provide clear visual prompts, enhancing safety and guiding pedestrian flow effectively.
• The emergency interface allows for quick action during emergencies, ensuring the safety of all users.

Versatile Functionality‌:

• Supports extendable functions such as access control attendance and fingerprint identification, enabling customized security solutions for various venues.
• The device can be integrated with different alarm devices and access control systems, providing flexibility and scalability.

User-Friendly Operation‌:

• The flap opening/closing time of 0.5 seconds ensures quick and efficient passage, enhancing user convenience.
• The reset time when power on is only 3 seconds, minimizing downtime and ensuring continuous operation.

Wide Operating Range‌:

• With a working temperature range of -25°C to +50°C and relative humidity tolerance of up to 90%, the CSYZM03 is suitable for diverse environmental conditions, both indoors and outdoors with shelter.

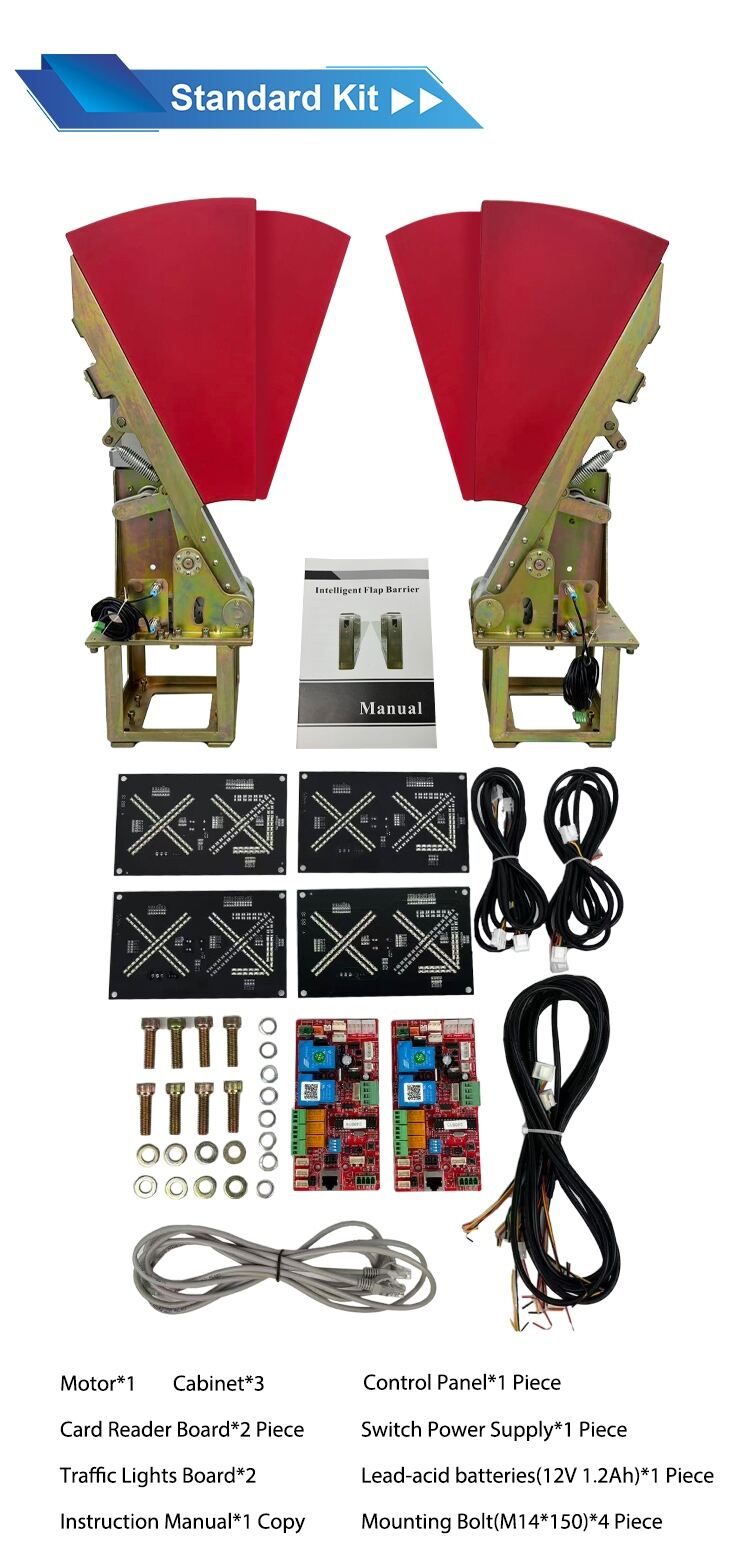

Comprehensive Standard Kit‌:

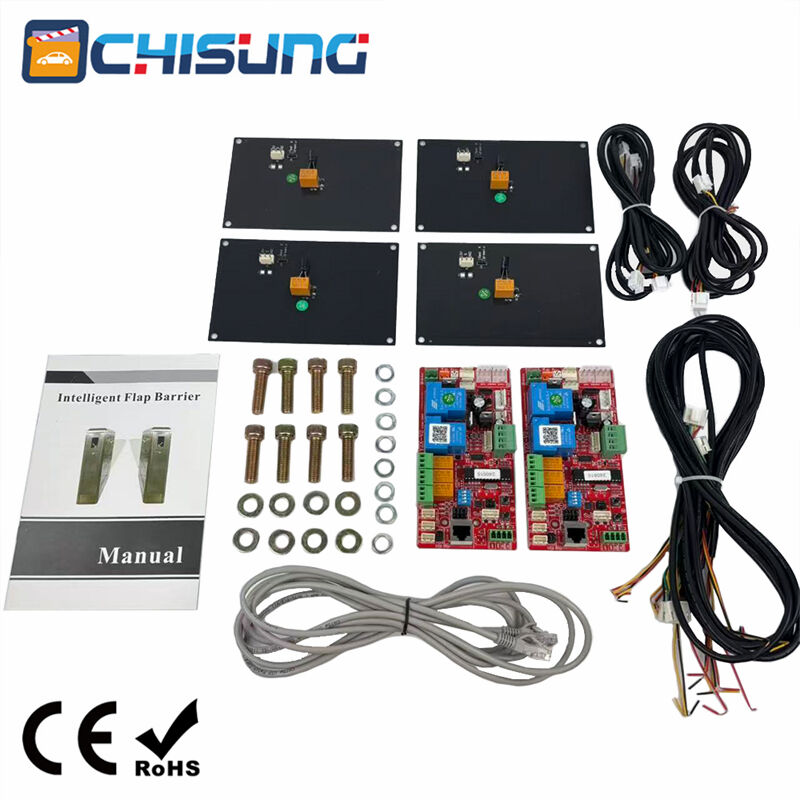

• The standard kit includes all essential components such as the motor, cabinet, control panel, card reader boards, traffic lights boards, lead-acid batteries, instruction manual, and mounting bolts, ensuring easy installation and setup.
• The CSYZM03 Intelligent Flap Barrier Gate Mechanism offers a perfect blend of security, efficiency, and user-friendliness, making it an ideal choice for any venue requiring reliable and advanced access control solutions.

Applications:

1. High-Traffic Commercial Buildings:‌

In bustling commercial complexes where crowd management is crucial, the CHISUNG mechanism ensures smooth and efficient passage. With its high throughput capacity—40 people per minute in normally closed mode and 60 people per minute in normally open mode—it effectively handles peak-hour traffic while maintaining security. The mechanism's compatibility with various access control systems, such as ID/IC card readers, fingerprint scanners, and face recognition devices, allows for seamless integration and enhanced security measures.

2. Public Transportation Hubs:‌

At train stations, airports, or bus terminals, where people are constantly on the move, the CHISUNG sliding barrier gate provides a reliable and quick access solution. Its fast opening speed of less than 0.5 seconds minimizes waiting times, while the multiple operating modes—including bidirectional card reading with flow control and one-direction free passage—offer flexibility to suit different passenger flow patterns. The anti-rush function ensures that only authorized individuals can pass, preventing unauthorized entry during busy periods.

3. Corporate Campuses and Office Buildings:‌

For corporate environments that require secure yet efficient access control, the CHISUNG mechanism offers a perfect balance. Its automatic reset function cancels access permissions if not used within a set time, preventing unauthorized tailgating. Additionally, the anti-pinch and anti-collision features ensure the safety of employees and visitors, making it a trustworthy choice for daily use. The mechanism's ability to withstand extreme temperatures and humidity conditions makes it suitable for deployment in various geographical locations.

4. Stadiums and Event Venues:‌

During large-scale events, managing the influx of attendees efficiently is paramount. The CHISUNG sliding barrier gate mechanism, with its high throughput and multiple control options, can be integrated with ticket verification systems or biometric scanners to ensure quick and secure entry. The power failure handling feature guarantees uninterrupted passage even during unexpected outages, providing peace of mind to event organizers.

5. Residential Communities:‌

In gated communities or apartment complexes, where security and convenience are both important, the CHISUNG mechanism offers a reliable solution. Its compatibility with various access control methods, such as key cards or mobile apps, allows residents to enter effortlessly while keeping unauthorized individuals out. The mechanism's durability and resistance to harsh weather conditions ensure long-lasting performance with minimal maintenance.

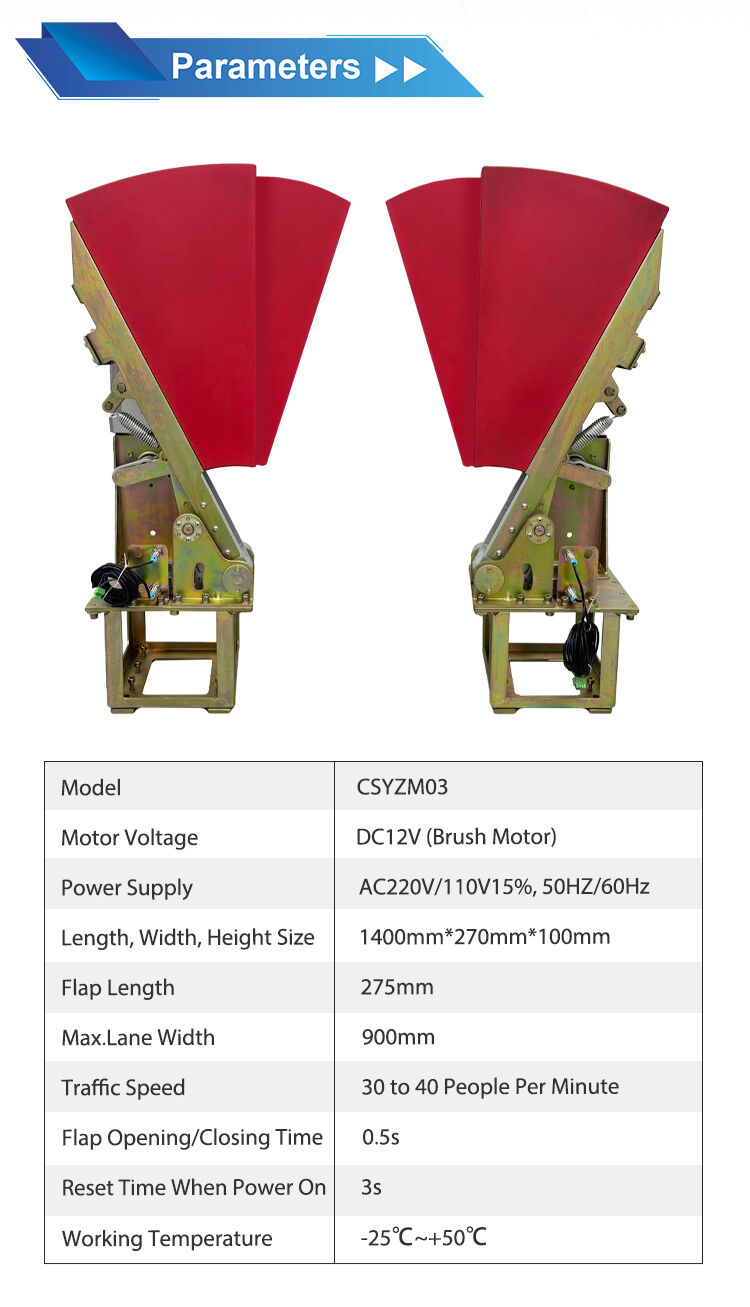

Specifications:

Competitive Advantage:

The CSYZM03 Intelligent Flap Barrier Gate Mechanism boasts several competitive advantages that make it a standout choice in the market:

Compact Electro-mechanical Design‌: Its streamlined design ensures efficient use of space while providing robust performance. This design facilitates easy integration into various settings without compromising on functionality.

Wing-in-wing & Self-locking Mechanism‌: This feature enhances security by preventing unauthorized access and ensuring the gates lock automatically, offering an added layer of protection.

High Traffic Handling Capacity‌: With the ability to handle 30 to 40 people per minute, it is ideal for high-traffic areas, ensuring smooth and efficient flow.

Quick Response Time‌: The flap opening and closing time of just 0.5 seconds ensures rapid access control, minimizing wait times and improving user experience.

Durable Construction‌: Made from 304 stainless steel, the mechanism is built to withstand harsh conditions, offering long-term reliability and resistance to corrosion.

Wide Operating Temperature Range‌: Operating effectively in temperatures ranging from -25°C to +50°C, it is suitable for diverse climates and environments.

Versatile Access Control‌: Supports various access control systems including IC and ID cards, making it adaptable to different security requirements.

Enhanced Safety Features‌: Equipped with anti-pinch and anti-tailgating features, along with traffic signals and fire alarm linkage, ensuring comprehensive safety management.

Semi-automatic Operation‌: Provides flexibility in operation, allowing for both automated and manual control as needed.

Comprehensive Standard Kit‌: Includes all necessary components for easy installation and setup, reducing additional costs and ensuring a hassle-free experience.

These features collectively make the CSYZM03 Intelligent Flap Barrier Gate Mechanism a reliable, efficient, and secure solution for modern access control needs.
