NEW G202 GSM Gate Controller 200 Users Free Call Access SMS Control AC DC7-36V Wide Voltage for Gate, Door, Barrier & Industrial Remote Switch
l 200 Users, Free Call GSM Gate Controller
l G202 GSM Relay, Unlimited Range, Secure
l 9-36V Wide Voltage, Wired Switch Backup
l SMS Setup, Global GSM, Compact & Durable
l Industrial Grade, CE RoHS, 1-Year Warranty
- Overview
- Recommended Products
Product Information
Place of Origin: |
China,Shenzhen |
Brand Name: |
CHISUNG |
Model Number: |
Upgraded G202 2G |
Certification: |
CE |
Product Commercial Terms
Minimum Order Quantity: |
1set |
Price: |
2G,15USD |
Packaging Details: |
Carton/Wooden,According to customer requirements |
Delivery Time: |
7-15days |
Payment Terms: |
L/C ; T/T ; MoneyGram |
Supply Ability: |
3000units/Month |
Quick Detail:
GSM Relay
GSM Gate Opener
GSM Gate Controller
GSM Relay Control
GSM Remote Control
GSM Relay Switch
GSM Door Opener
GSM Door Controller
GSM Access Controller
GSM Access Control Unit
GSM Remote Switch
GSM Access Control Relay
GSM 3G 4G Gate Opener
GSM 3G 4G Cellular Gate Opener
GSM 3G 4G Gate Receiver
GSM 3G 4G Signal Sender
GSM 3G 4G Single Switch

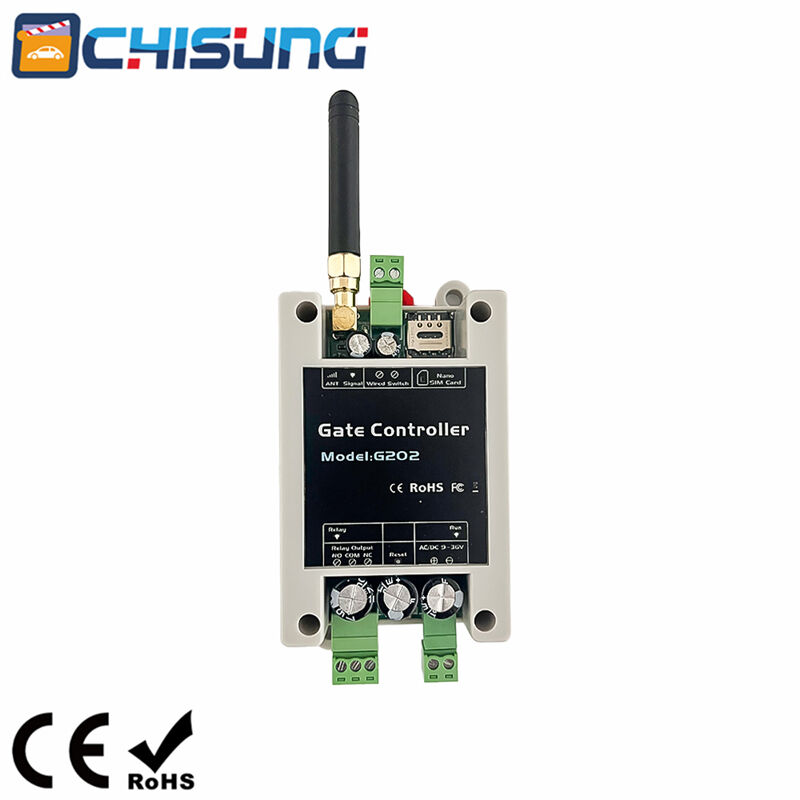

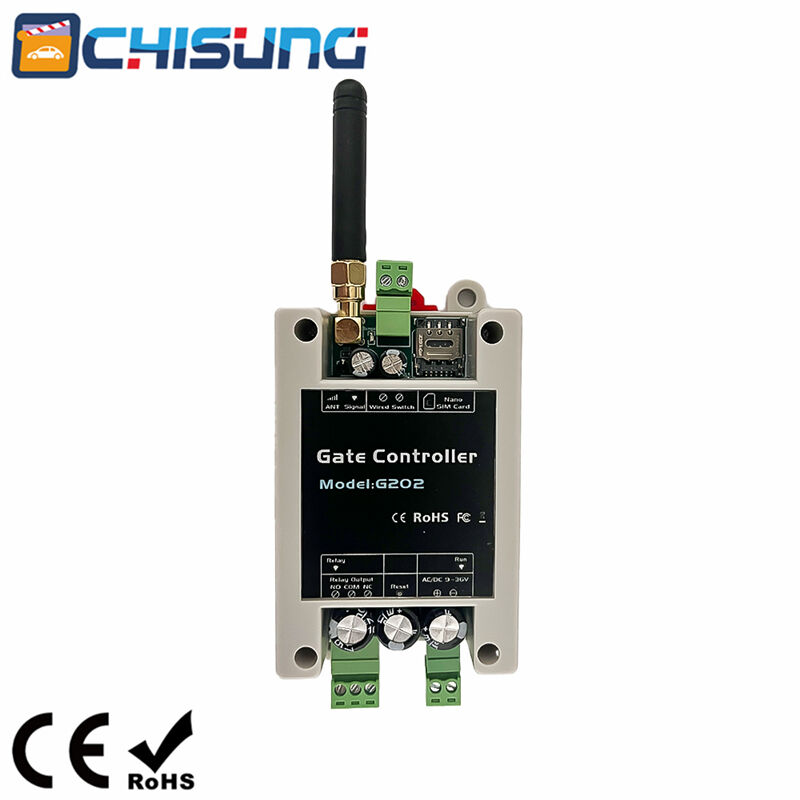

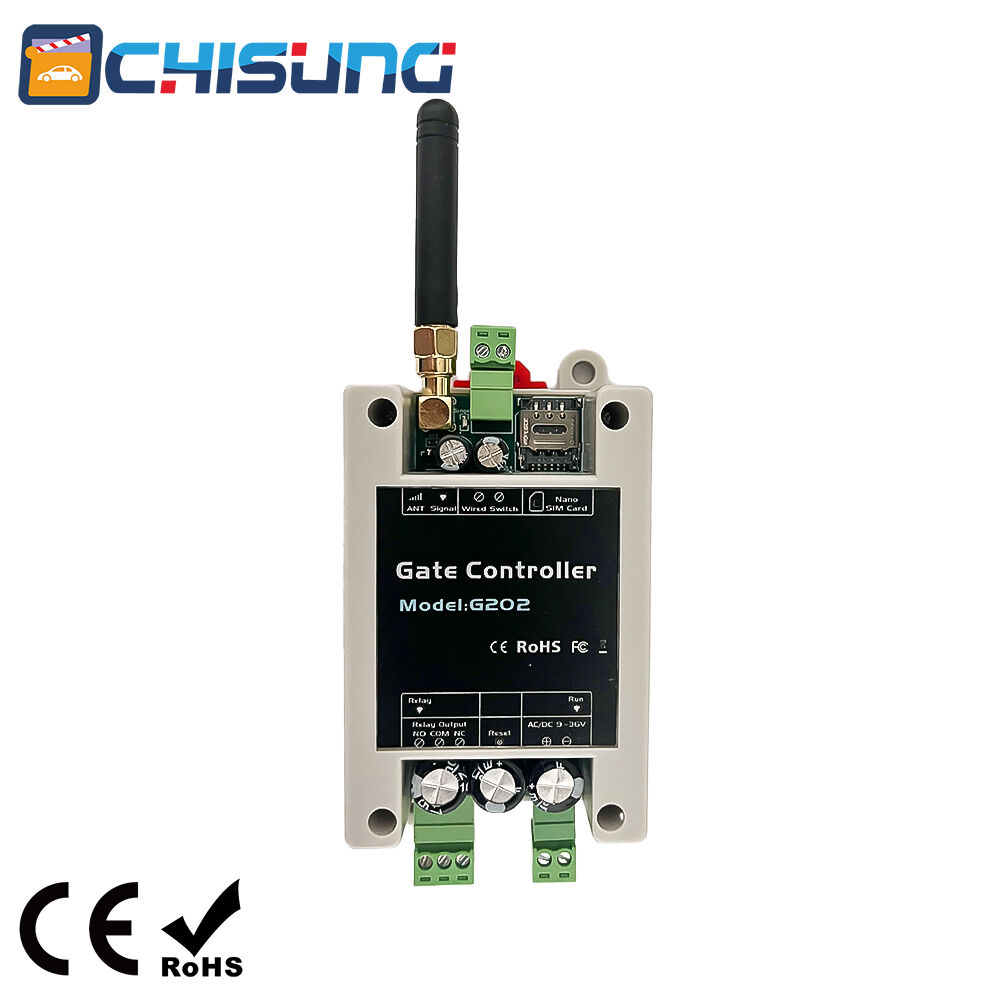

The G202 is a compact, reliable GSM gate controller & wireless relay switch designed for global remote access control. It supports 200 authorized users, free call activation, SMS command setup, and local wired switch input. With quad‑band GSM coverage, wide voltage input, and industrial‑grade build, it delivers zero operation cost, unlimited range, and easy installation for residential, commercial, agricultural, and industrial applications worldwide.
Description:
G202 GSM Gate Controller-Smart, Simple, Cost-Free Remote Access
The G202 GSM Gate Controller is your all‑in‑one solution for wireless gate, door, barrier, and equipment remote control. It replaces traditional remotes, keys, and wired systems with a simple, powerful cellular device that works anywhere there’s GSM coverage.
Key Benefits
l 100% Free Call Activation
Authorized users dial the SIM card number; the device rejects the call on the first ring and triggers the relay. No call charges, no monthly fees, no distance limits.
l 200 Authorized Users Management
Store up to 200 phone numbers. Add, check, or delete users via simple SMS commands. Ideal for communities, offices, farms, and multi‑user facilities.
l Secure Caller ID Verification
Only pre-approved numbers can activate the device. Unknown callers are ignored, preventing unauthorized access and signal cloning.
l Dual Control: Remote + Local
Control via free call, SMS commands, or a wired push button (local manual backup). Perfect for power outages or weak signal areas.
l Programmable Relay Timer
Set relay ON time from 0–999 seconds (default 1s) via SMS. Adjust for gates, doors, pumps, or machinery.
l Wide Voltage & Low Power
Operates on AC DC7-36V (12V/24V compatible), max 50mA, average 25mA. Low energy use, stable performance.

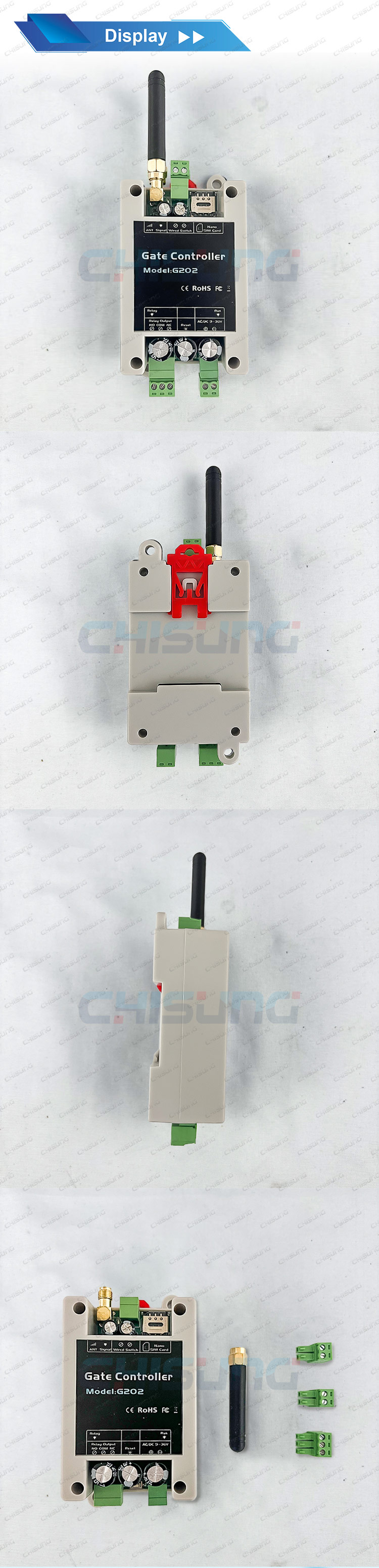

l Compact & Durable Design

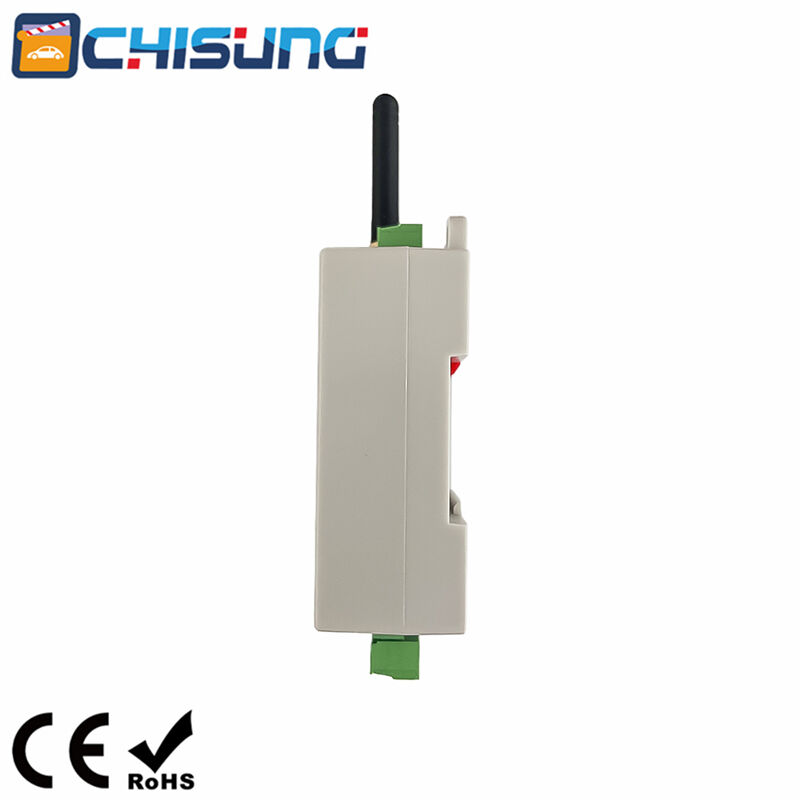

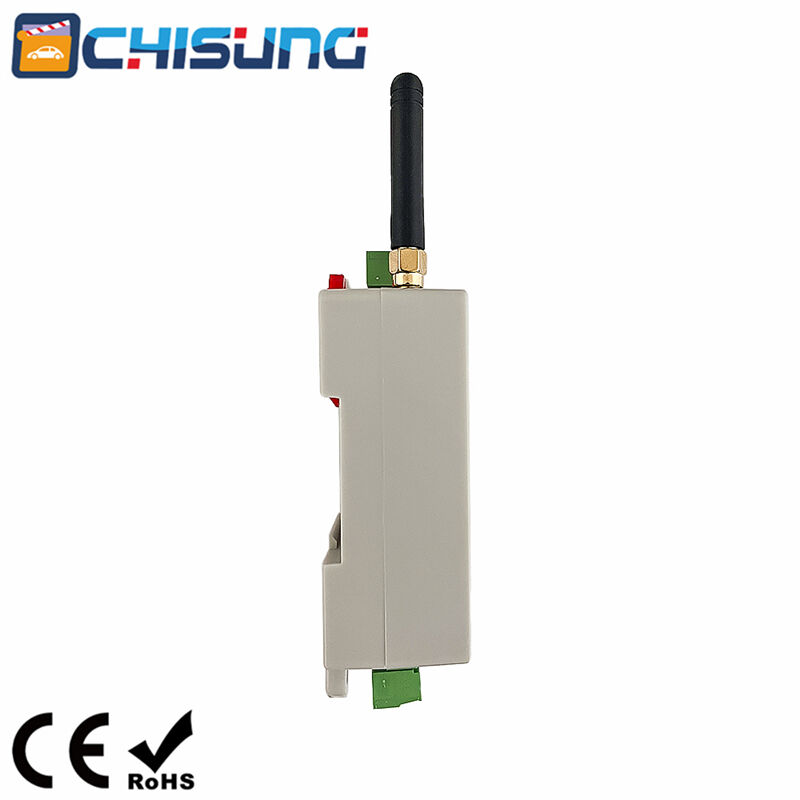

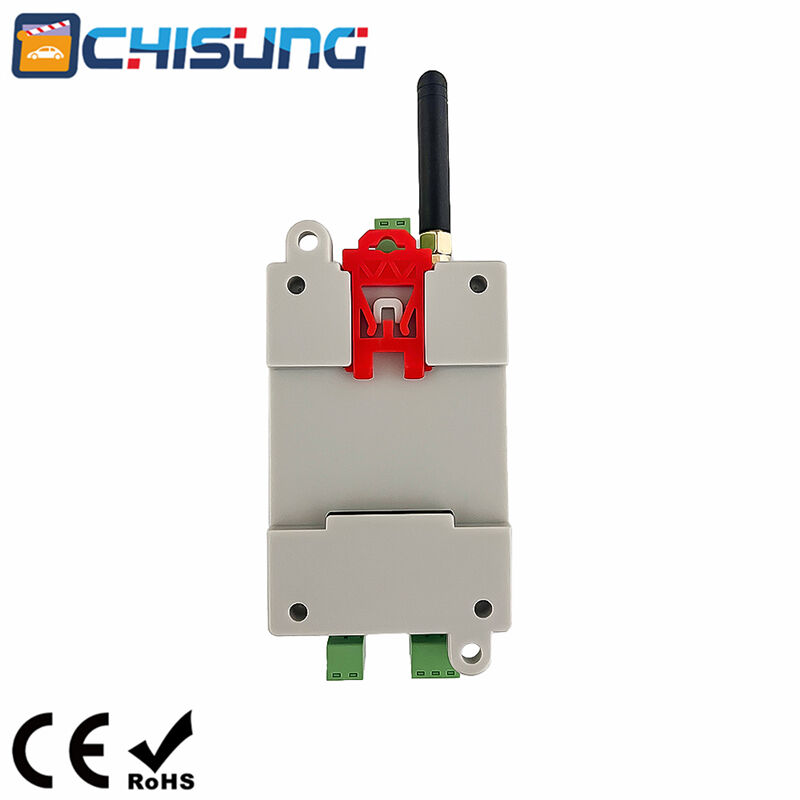

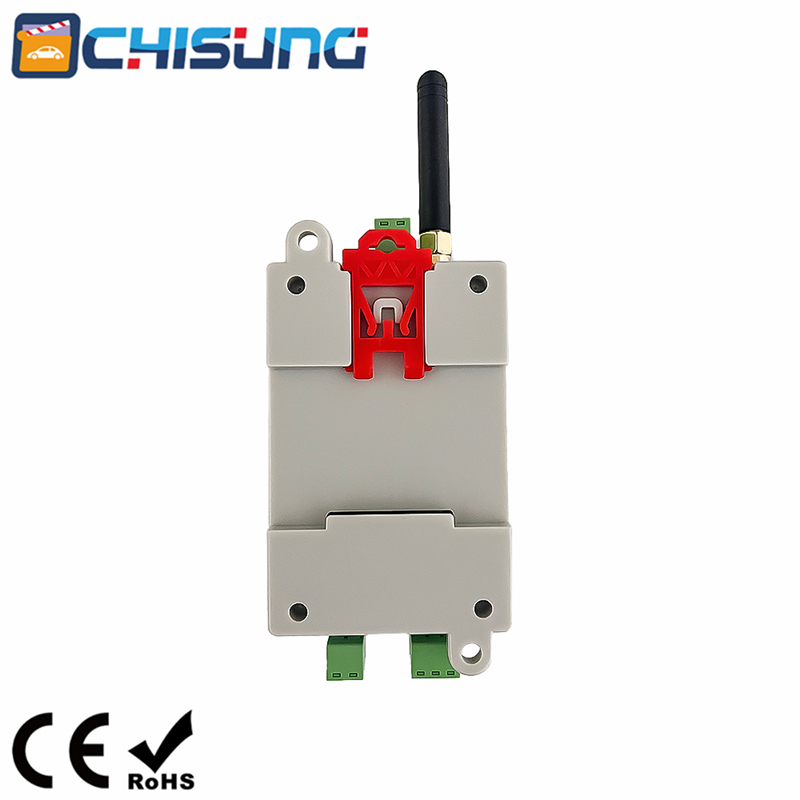

Mini size (96.5×50×31.5mm), lightweight (88g), easy wall‑mount. Works reliably from ‑10°C to +60°C, 10–90% humidity. CE/RoHS/FCC certified.
How It Works
1．Insert a 3V Nano‑SIM (voice plan only, no data needed).

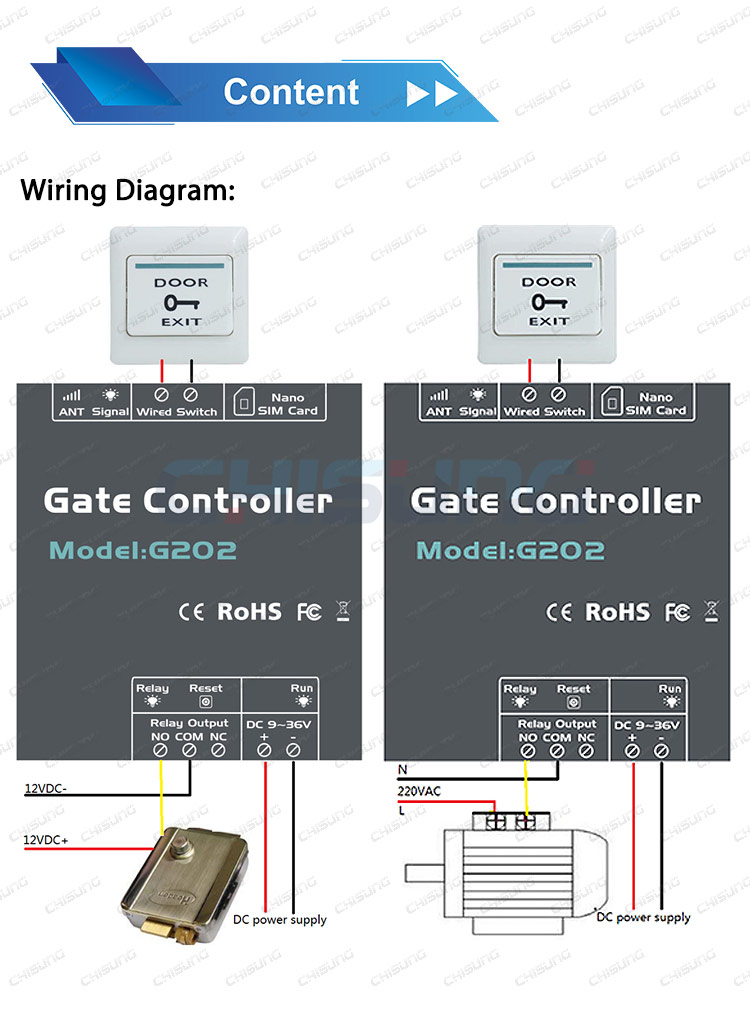

2．Connect DC 9–36V power and wire relay terminals (NO/COM/NC) to your gate motor, lock, or equipment.
3．Add authorized numbers via SMS: 1234#TEL00XXXXX#001#.
4．Dial the SIM number from an authorized phone → free activation.

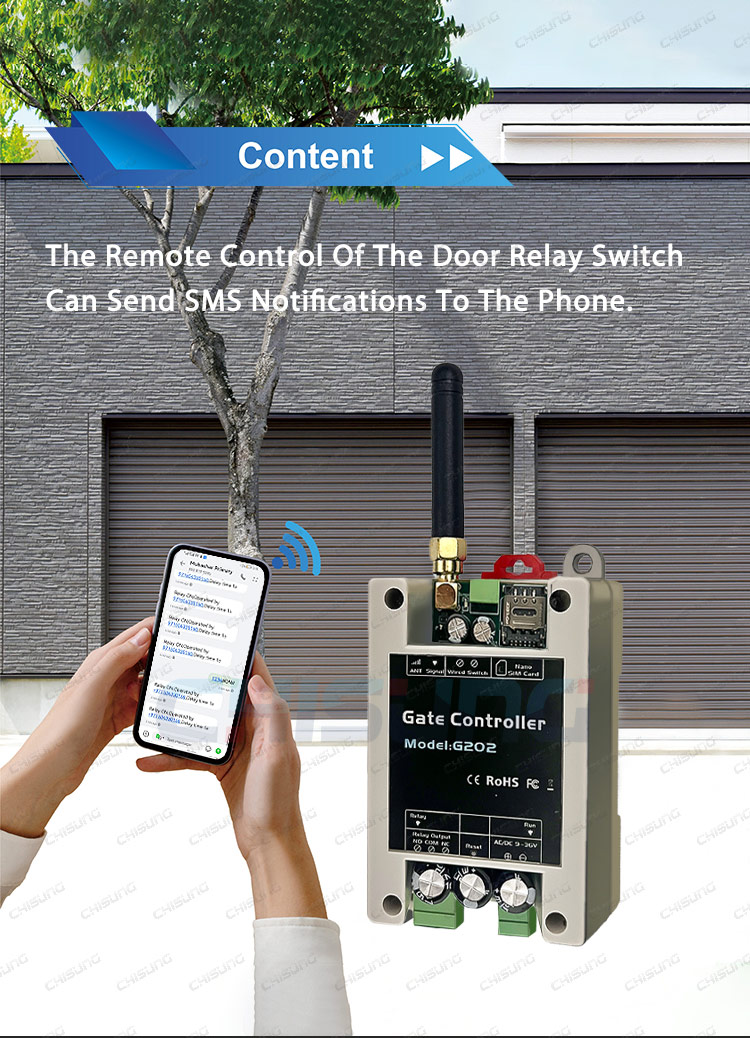

5．Use SMS for remote ON/OFF, status check, or user management.
Applications:
Residential
l Swing/sliding gates, garage doors, rolling shutters
l Electronic door locks and home access control
Commercial
l Parking barriers, office/warehouse gates
l LED billboards, advertising signs, commercial lighting
Industrial
l Remote control of motors, pumps, fans, streetlights, inverters
l Factory equipment on/off switching and access management
Agricultural
l Irrigation pumps, farm gates, livestock feeding equipment
l Greenhouse ventilation and lighting control

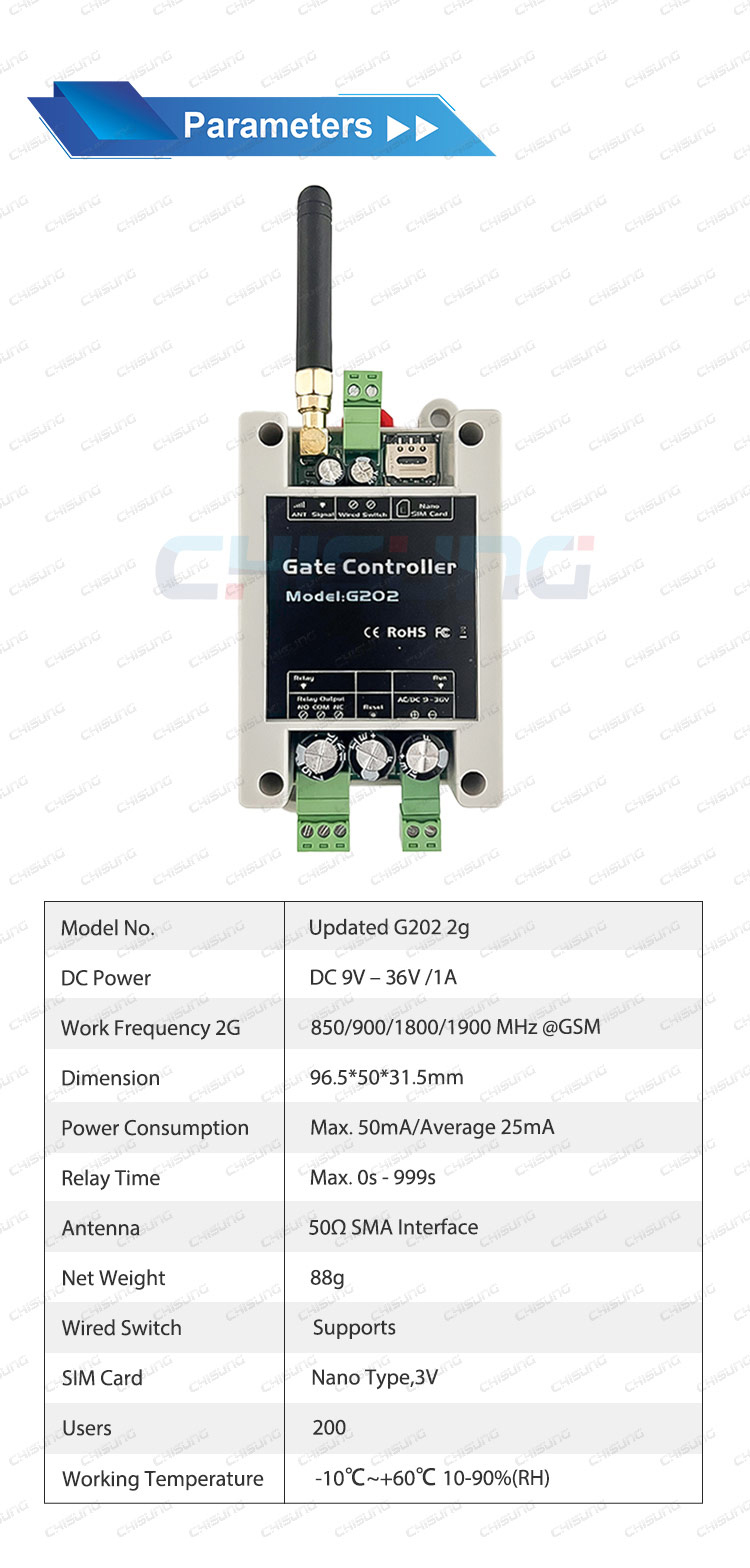

Specifications:
Parameter |
Details |
Model |
G202 (GSM Version) |
Network |
GSM Quad‑band: 850/900/1800/1900MHz |
Authorized Users |
200 (001–200) |
Power Supply |
AC DC7-36V |
Power Consumption |
Max 50mA / Avg 25mA |
SIM Card |
3V Nano‑SIM |
Antenna |
50Ω SMA external antenna |
Relay Output |
3A/250VAC; 20A/14VDC |
Relay Type |
NO / NC / COM |
Relay Time |
0s – 999s (programmable, default 1s) |
Control Methods |
Free call, SMS command, wired switch |
Operating Temperature |
-10°C ~ +60°C |
Relative Humidity |
10% – 90% RH |
Dimensions |

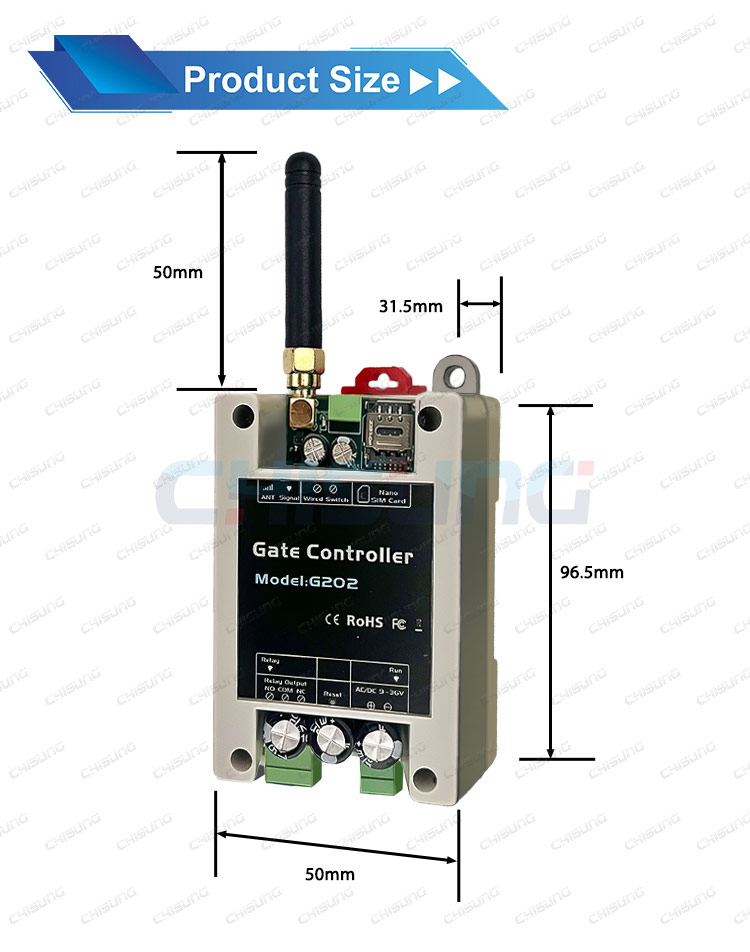

96.5 × 50 × 31.5 mm |
Net Weight |
88g |
Certifications |
CE, RoHS, FCC |

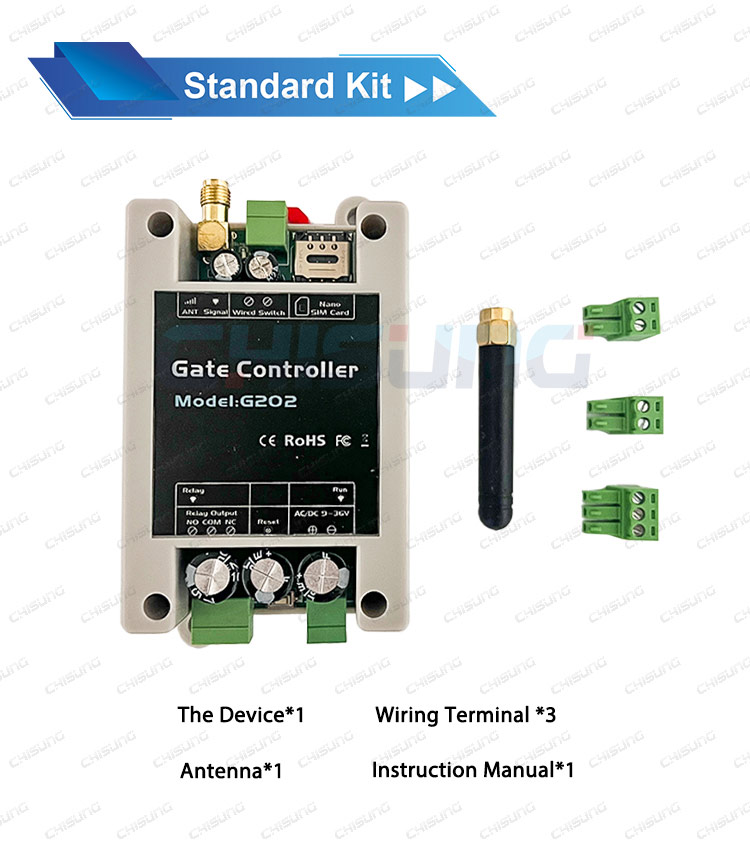

Package Contents |

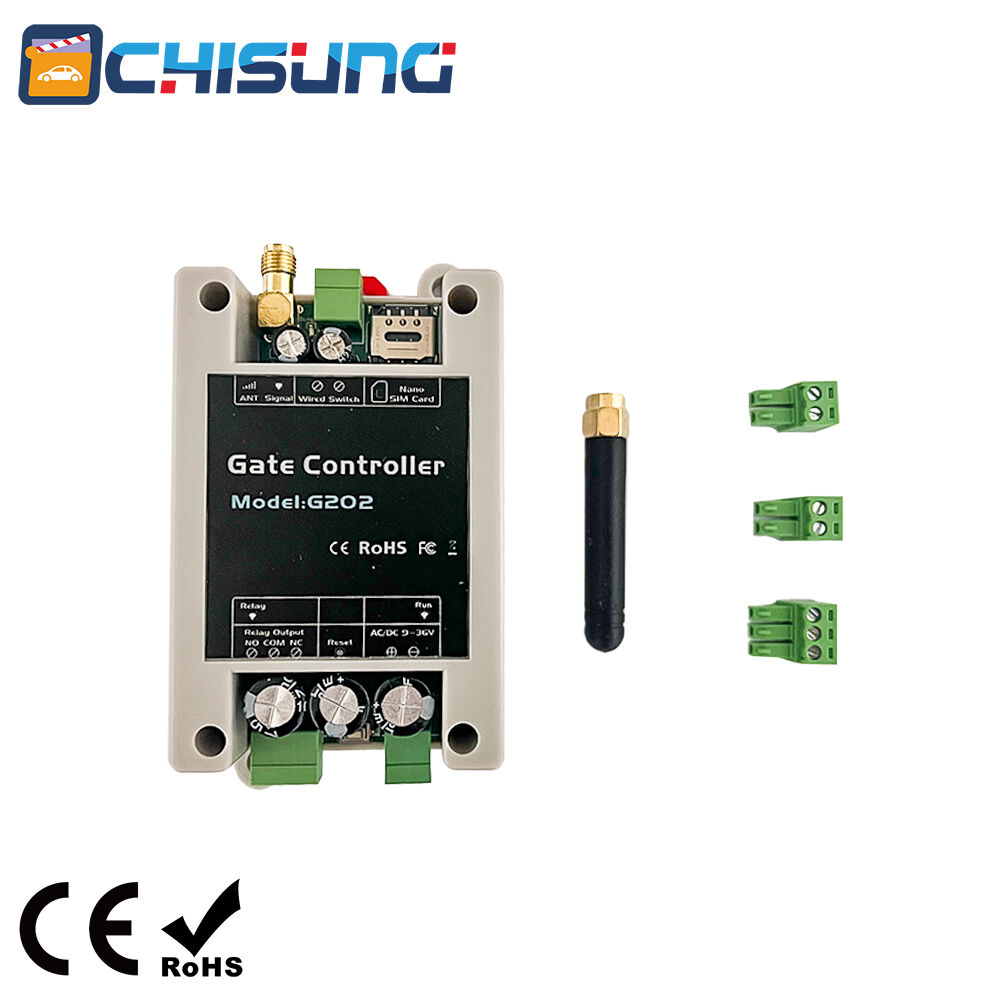

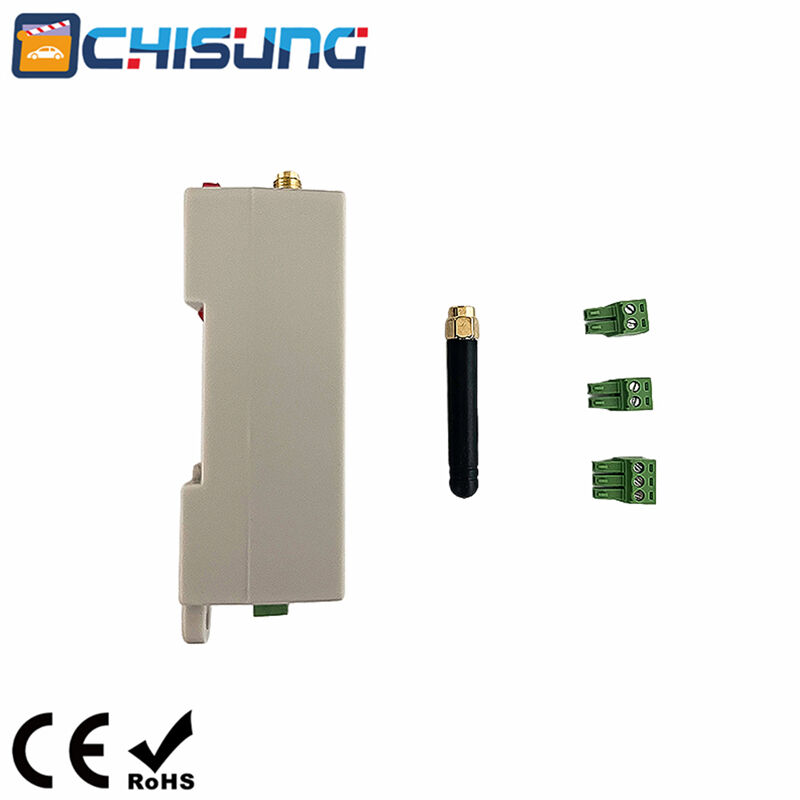

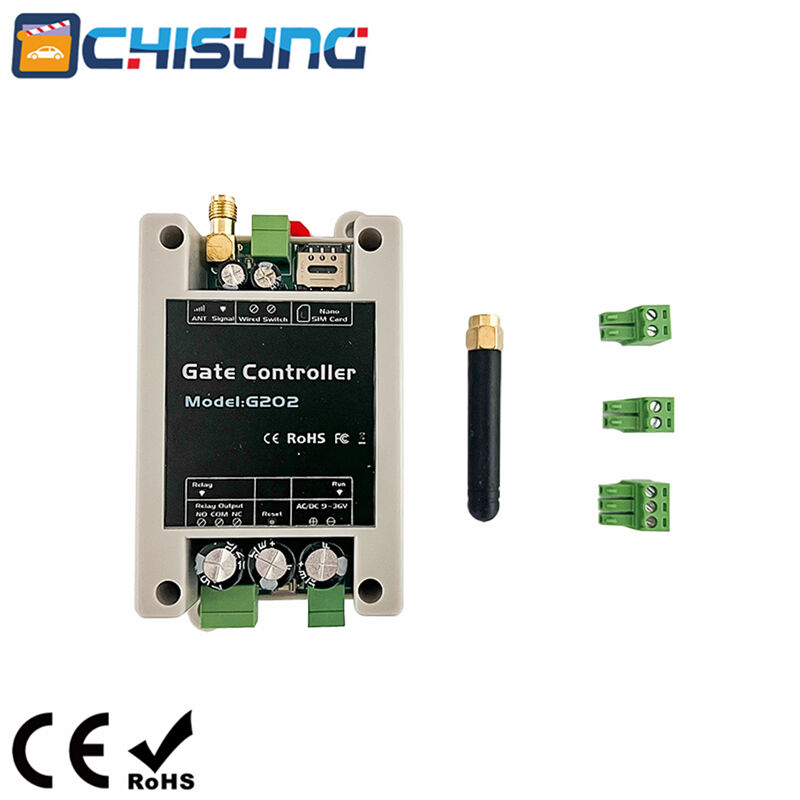

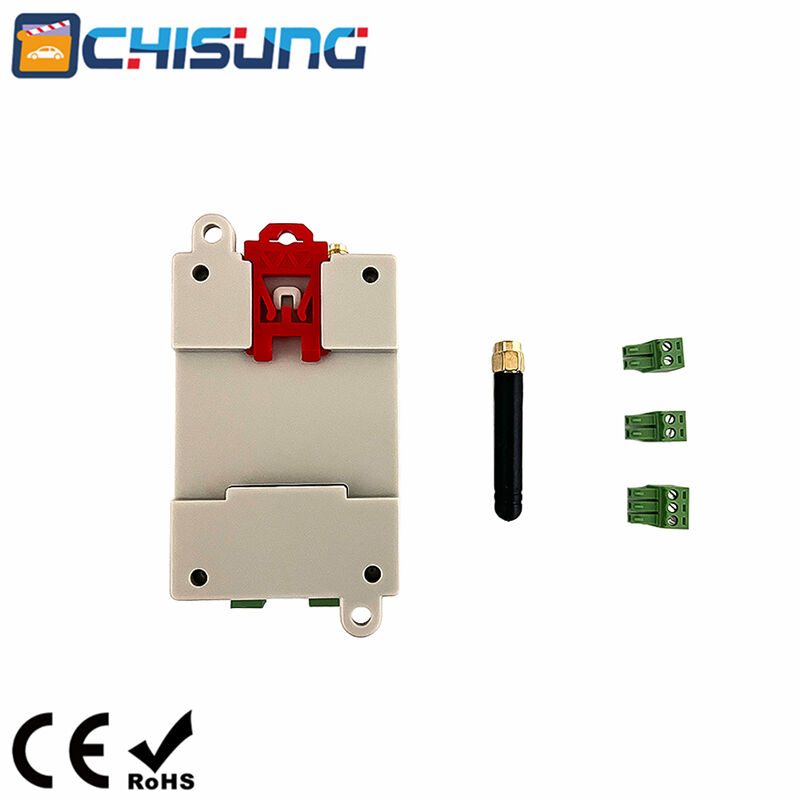

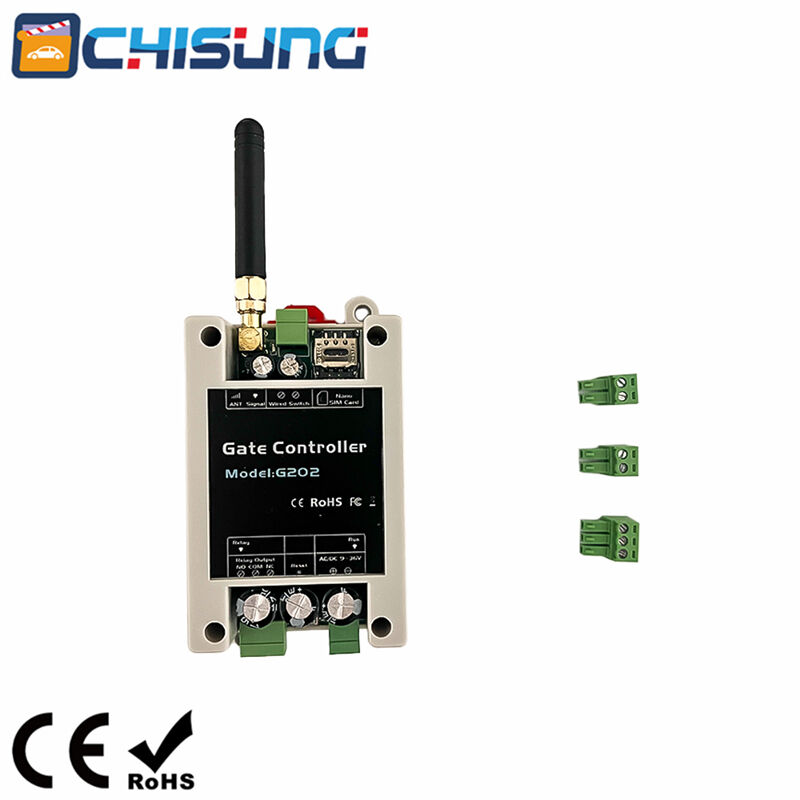

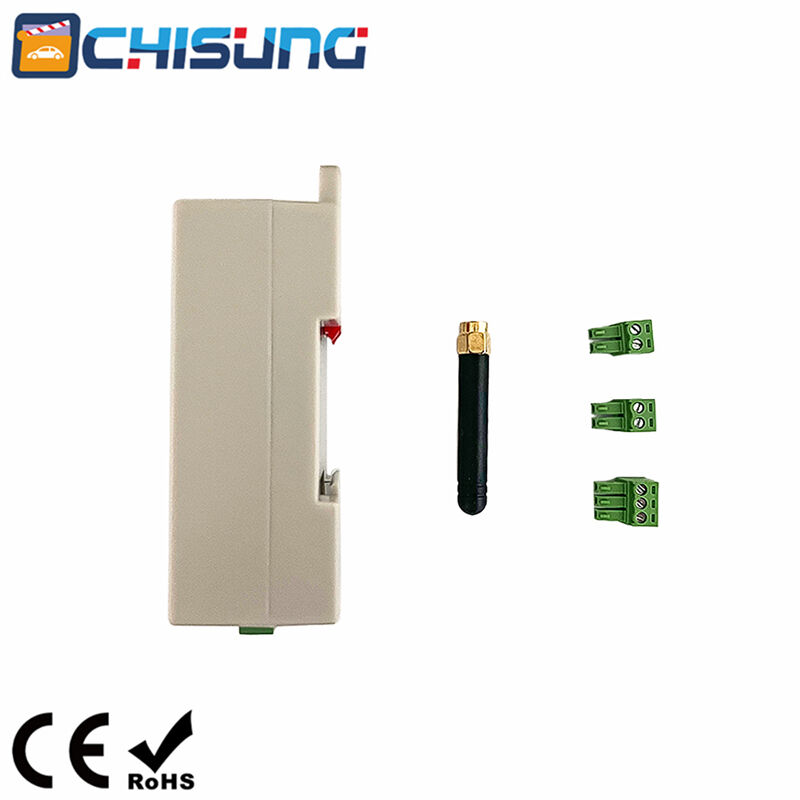

G202 Host ×1, SMA Antenna ×1, Wiring Terminals ×3, Quick Guide ×1 |
Exclusions |
Power adapter, push button |
Competitive Advantage:
Zero Ongoing Cost
No monthly fees, no data plan required. Activate via free calls—saves hundreds yearly vs. subscription‑based systems.
Unlimited Range
Works anywhere with GSM coverage. No RF distance limit (50–100m for traditional remotes). Control from another city or country.
Simple Setup, No App Needed
Configure all settings via SMS commands—no complex software or app installation. Plug-and-play for non‑technical users.
High Security
Caller ID authentication blocks unauthorized access. More secure than cloneable RF remotes.
Factory Direct & Reliable Quality
Industrial-grade components, strict QC, CE/RoHS/FCC certified. Competitive factory price, fast shipping, 1-year warranty, 24/7 support.
