CSPCC300-VBSS-TV09 Portable All-in-One Under-Vehicle Scanning & Inspection System (UVSS)

CSPCC300-VBSS-TV09 Portable All-in-One Under-Vehicle Scanning & Inspection System (UVSS)

2-Second Ultra-Fast HD Scanning for vehicles at 1–50 km/h
All-in-One Design: chassis scanning + license plate recognition
Portable & No Construction Needed: 3.7kg, 50mm low profile, deploy instantly
Wireless Android Tablet Control: real-time monitoring, no industrial PC
IP67 Waterproof & Dustproof: 30T load-bearing, outdoor durable
Wireless Charging & WIFI Dual-Band: 19-hour battery life
AI Image Processing: distortion correction + seamless multi-frame stitching
Suspicious Area Detection & Auto Alarm

Overview
Recommended Products

Product Information

Place of Origin	China,Shenzhen
Brand Name	CHISUNG
Model Number	CSPCC300
Certification	CE
Minimum Order Quantity	1 set
Price	3000USD
Packaging Details	Carton/Wooden,According to customer requirements
Delivery Time	7-15days
Payment Terms	L/C ; T/T ; MoneyGram
Supply Ability	3000 sets/Month

Quick Detail

Portable Under-Vehicle Inspection System（UVIS）
Portable Under Vehicle Surveillance System（UVSS）
Portable Under Vehicle Scanning System（UVSS）
Mobile Under Vehicle Inspection System（MUVIS）
Portable Under Vehicle Screening System
Automated Portable Under Vehicle Inspection System（AUVIS）
Under-Vehicle Inspection System
Under Vehicle Surveillance / Scanning / Screening System
Mobile Under Vehicle Inspection System
Automated Under Vehicle Inspection System
Under-Carriage Scanner
Portable Under-Car Inspection System
Mobile UV Scanner

Product Introduction

The CSPCC300-VBSS-TV09 is a portable all-in-one under-vehicle security inspection system (UVSS) integrating high-speed chassis scanning and license plate recognition. It supports quick deployment without construction, delivers clear undercarriage images in 2 seconds for vehicles moving at 1–50 km/h, and features wireless WIFI control via Android tablet. With IP67 protection, 30-ton load capacity, and AI image optimization, it provides a reliable, mobile solution for vehicle security checking.

Description

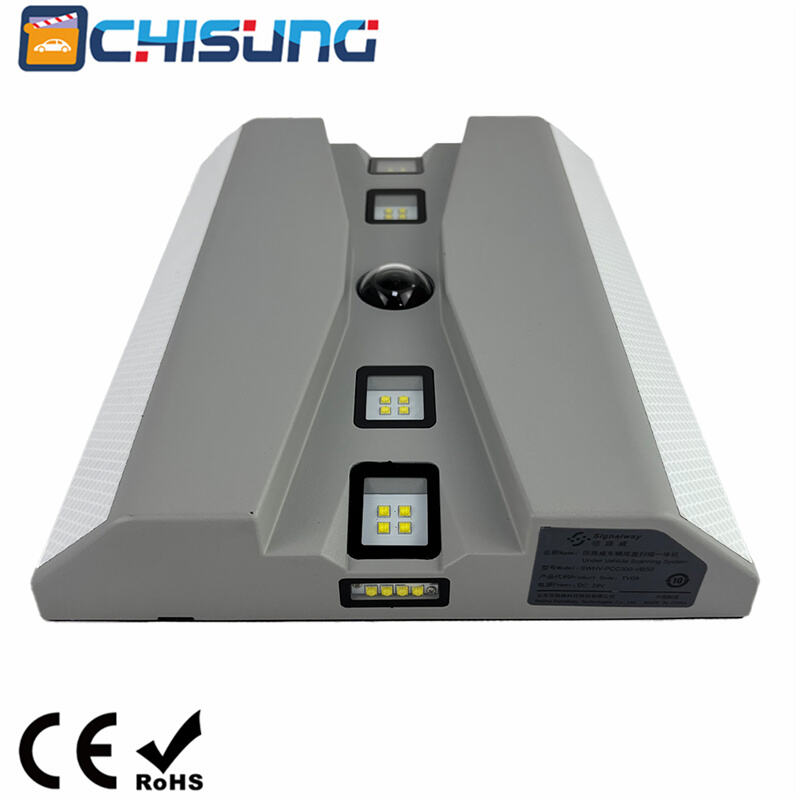

The CSPCC300-VBSS-TV09 Under-Vehicle Scanning System (UVSS) is a professional, portable security inspection device designed for fast, accurate undercarriage checking. It combines a 3MP high-definition scanning camera with automatic license plate recognition to form a one-stop vehicle access management solution.

Equipped with self-developed image processing technology, the system performs precise distortion correction and seamless multi-frame image stitching, producing ultra-clear panoramic under-vehicle images (up to 16384×2048). It automatically scans vehicles at speeds from 1 km/h to 50 km/h and outputs results in as fast as 2 seconds.

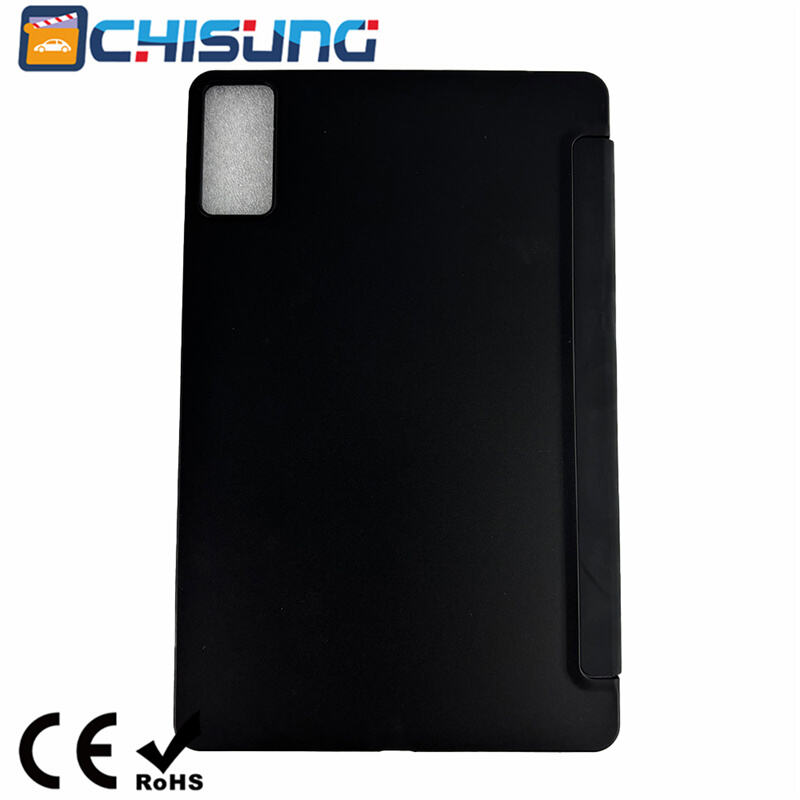

Operation is simplified by a dedicated Android application: users can monitor scanning in real time, view images, search records, and export data via a tablet over WIFI, with no need for an industrial computer. The radar-sensed automatic fill light ensures clear imaging day and night, while the built-in intelligent algorithm supports suspicious area detection and visual alarm.

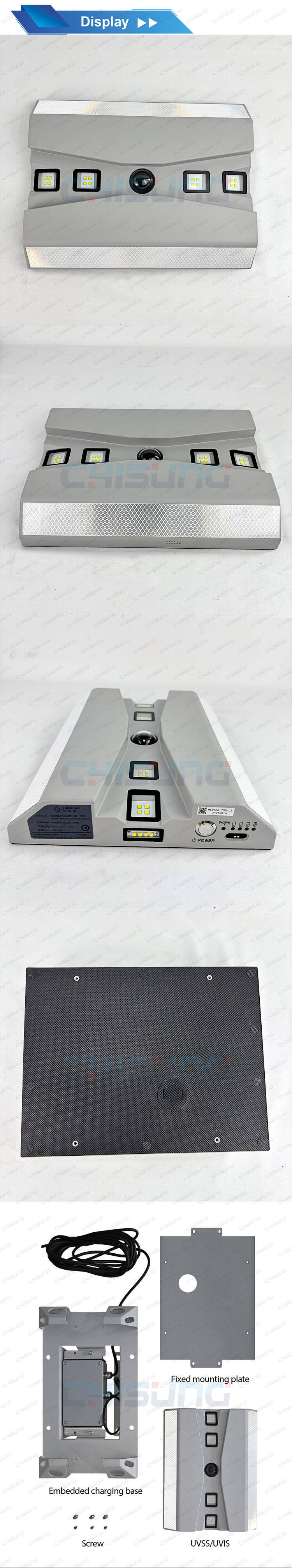

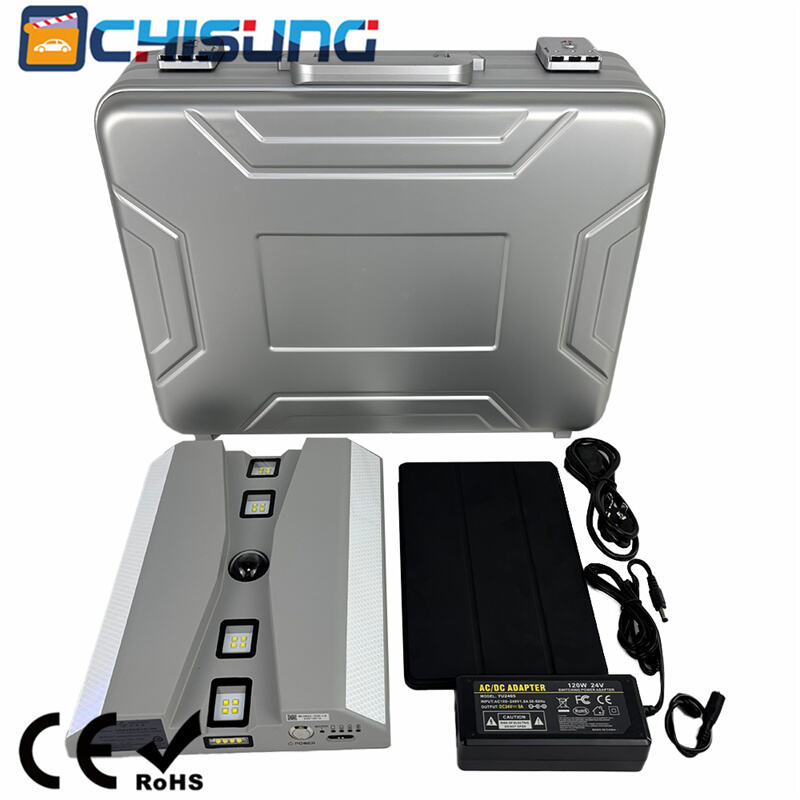

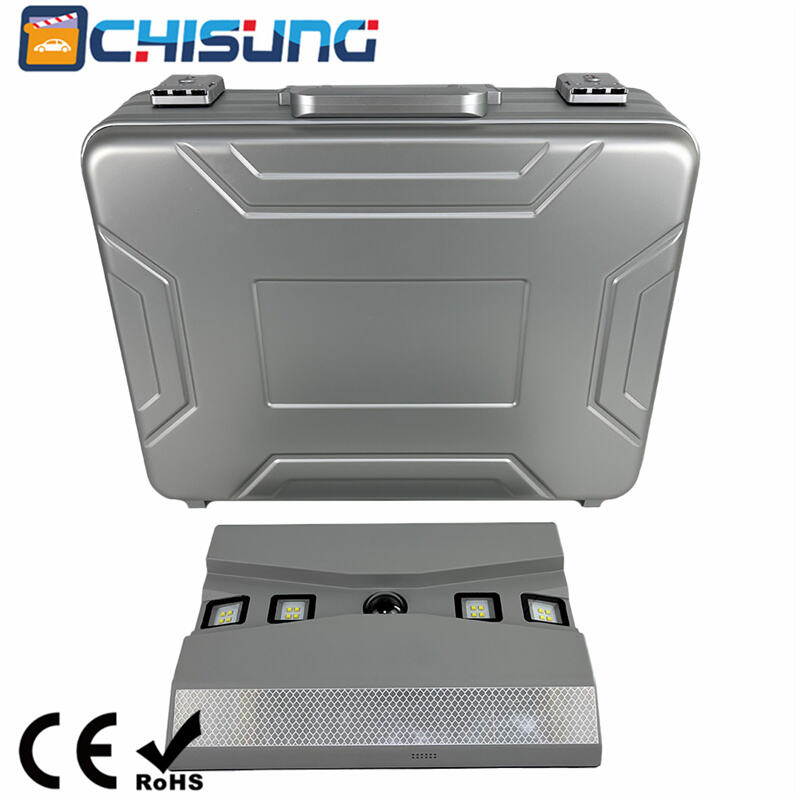

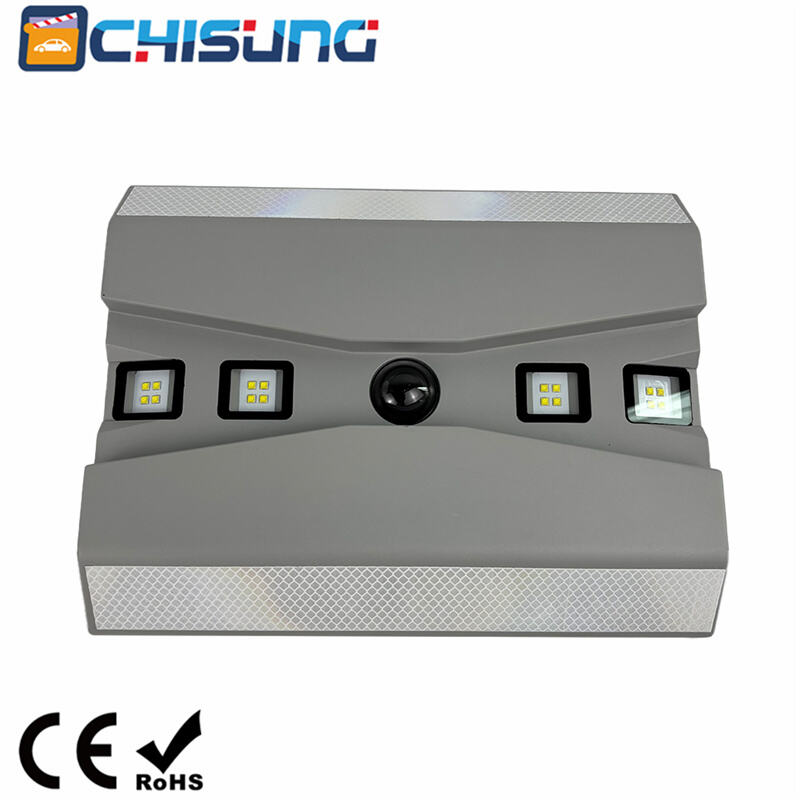

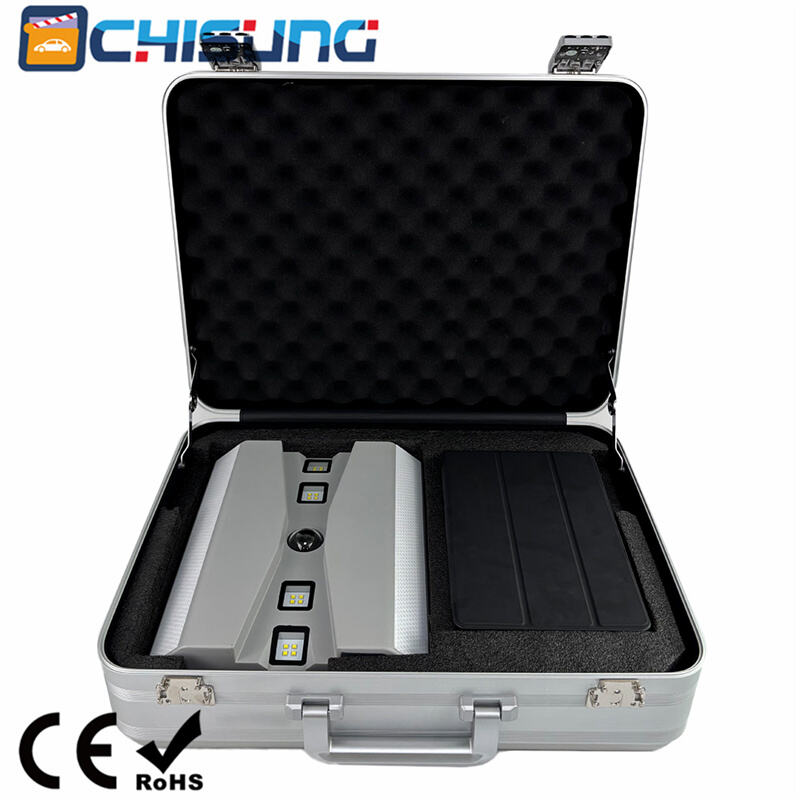

Weighing only 3.7kg and with a height of 50mm (similar to a speed bump), the unit is compact, lightweight, and requires no construction or fixed installation. It supports both portable use and optional fixed installation with an embedded wireless charging base. The integrated design offers IP67 waterproof, dustproof, and anti-electromagnetic interference performance, with 30-ton load-bearing capacity and a 19-hour long-lasting battery.

The system supports H.264/H.265 video compression, 2.4G/5.8G dual-band WIFI, and multiple network protocols (TCP/IP, UDP, HTTP, RTSP, ONVIF). It is widely used in temporary checkpoints, security stations, public events, and access control scenarios.

Applications:

Officers Mobile Checkpoints: highway checkpoints, lockdown areas, traffic control
Large Public Events: concerts, exhibitions, conferences, sports venues
Government & National defense: official compounds, meeting centers, secure zones
Key Facilities: banks, airports, hotels, VIP premises
Vehicle Maintenance & Sales: repair shops, dealerships, chassis inspection
Manufacturing & Inspection: auto factories, pre-delivery inspection, annual vehicle testing

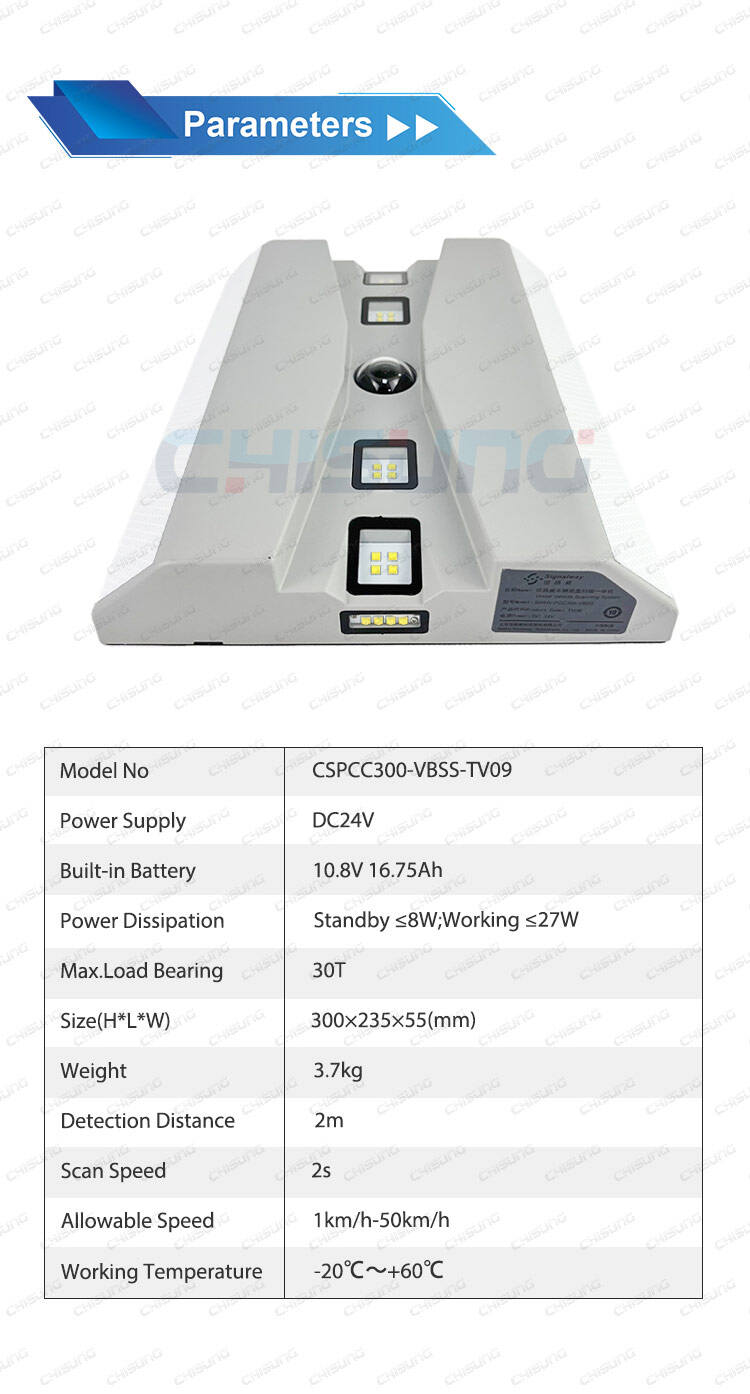

Specifications

Camera	Sensor Type	3MP 1/2.8”CMOS
	Effective Pixels	Based on the actual vehicle mosaic image
	Shutter	Auto/Manual，7us～8ms
	Min. Illumination	0.01Lux（F2.0，AGC ON）
	Gain Control	Auto/Manual
	White Balance	Auto/Manual
	Lens Type	M12
Lens	Lens Type	M12
Lens	Lens Stop	F2.0
Video	Video Compression	H.264 High Profile/H.265 Main Profile
	Video Bit Rate	2Kbps～16Mbps
	Video Frame Rate	1fps ～ 25fps
	Number of Video Stream	Three routes, including two H.264 routes and one H.265 route
	Image Settings	Automatic adjustment of exposure time, gain, white balance, etc
	Video Stream	Main Stream: H.264/H.265, default resolution is 1080P(1920×1080), optional resolution is 720P(1280×720) Substream: H.264, default resolution is 1080P(1920×1080), optional resolution is 720P(1280×720)
Function	Capture Accuracy	≥99%
	Allowable Vehicle Speed	1km/h～50km/h
	Detection Distance	2m
	Output Contents	1 panoramic picture of vehicle bottom(Max image size 16384×2048), additional information text, etc
WIFI Module	Frequency Band	Support 2.4G/5.8G dual-band, support 802.11ac, 802.11a, 802.11n and other WIFI transmission protocols
WIFI Module	Transmission Distance	30m
General	Network Protocol	Supports multiple network protocols, including TCP/IP、UDP、HTTP、HTTPS、NTP、RTSP、ONVIF, etc.
	Power Switch	Support
	Power Indicator Light	Support

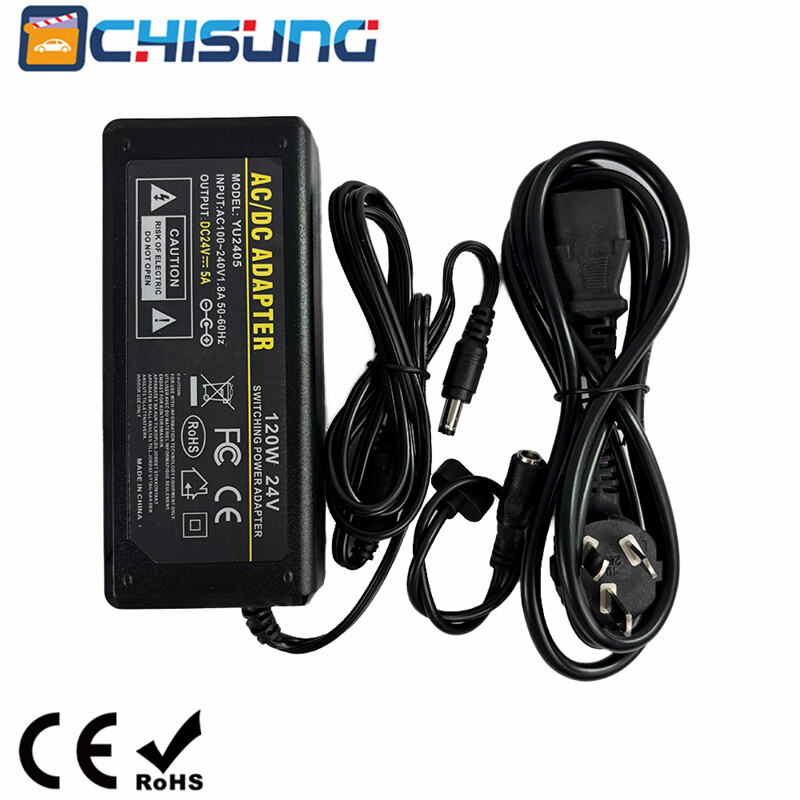

	Charging Interface	1 DC24V magnetic charging connector
	Built-in Battery	10.8V 16.75Ah
	Power Dissipation	Standby ≤8W；Working ≤27W
	Maximum Load Bearing	30T
	Full Battery Life	19Hours
	Mean Time Between Failure(MTBF)	MTBF ≥ 30000 Hours
	Mean Time To Repair(MTTR)	MTTR ≤ 90 Seconds

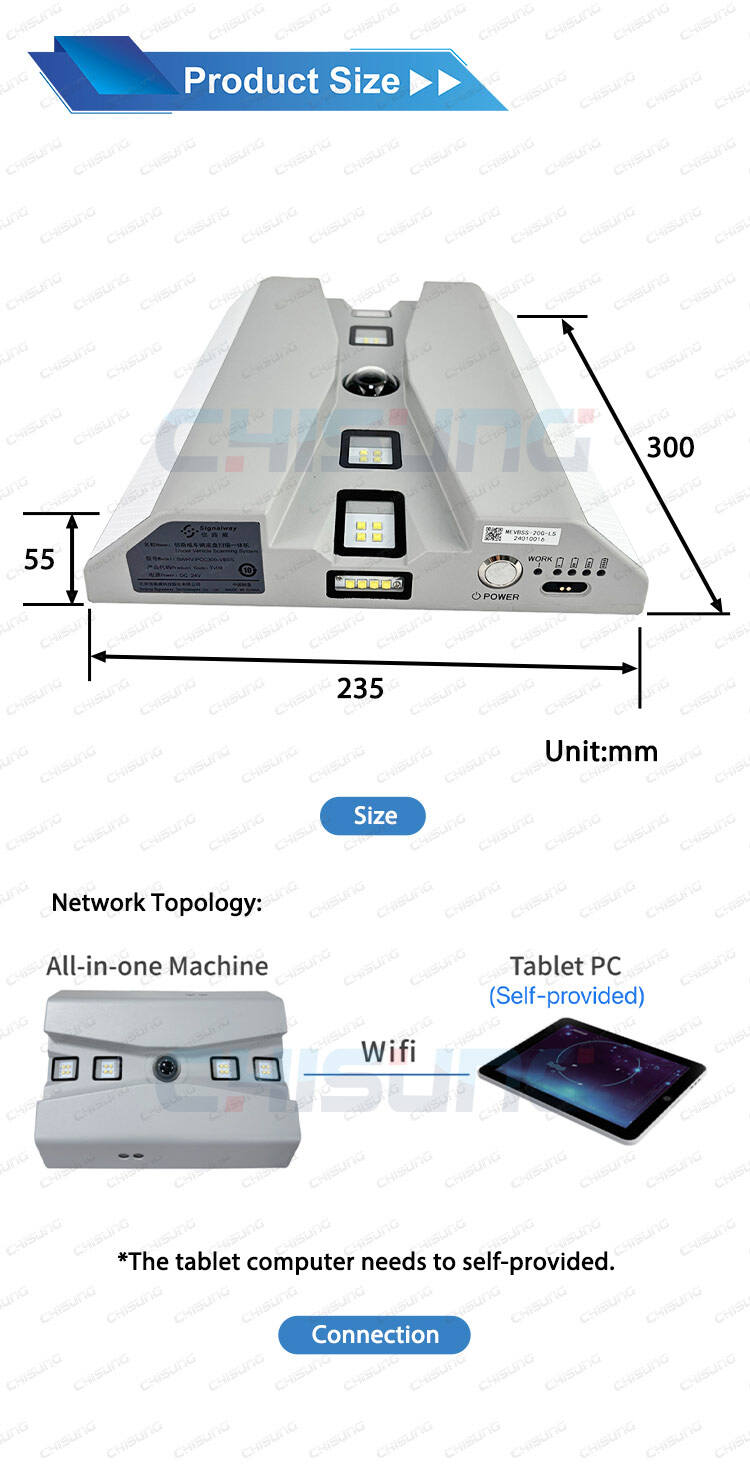

	Dimension(lengthwidthheight)	300×235×55(mm)
	Environment	Charging temperature: 0℃ ~ +45℃, Temperature -20℃～+60℃, Humidity 20% ～ 90%(no condensation).
	Protection Grade	IP67
