TD211 Speed Swing Gate for High-end Indoor Venues Self-developed Motor Cold-rolled Steel Sheet Housing Aluminum alloy Mechanism

Product Information:

Quick Detail:
Different names for products：
Swing gate,
Swing barrier,
Swing barrier gate,
‌Automatic swing gate,
‌Turnstile with swinging arms,
Access control swing gate,
Swing Turnstile,
school visitor swing barrier,
intelligent pedestrian turnstile,
security gate,
Pedestrian Swing Gate,
Pedestrian Turnstile,
Pedestrian Barrier Gate,
Pedestrian Access Gate,
Pedestrian Entry Gate,
Pedestrian Exit Gate,
Pedestrian Control Gate,
Pedestrian Flow Gate,
Pedestrian Passage Gate,
Pedestrian Entry/Exit Gate,
Pedestrian Access Control Gate,
Pedestrian Entry/Exit Control Gate


T211 Pedestrian Swing Gate‌
A high-end pedestrian access control device designed for premium indoor environments such as upscale office parks, commercial office buildings, and luxury residential lobbies. The housing is formed by cold-rolled steel stamping and bending, with a die-cast aluminum core, and the overall coloring exudes a business-like elegance. Equipped with proprietary motor control technology to ensure precise and stable operation of the swing arms. Supports integration with various IC/ID card readers, ID card readers, QR code scanners, and facial recognition terminals, facilitating seamless connection to access control systems.

Description:
T211H Pedestrian Swing Gate Product Features (Simplified)‌
Mechanical Structure‌
Bridge-Style Portal Frame‌: High-strength frame resists tension and impact, ensuring stable operation.

Materials & Craftsmanship‌

• Frame‌: 1.5mm cold-rolled steel with spray-painted and baked enamel finishes, dual-color spray-painted outer columns.

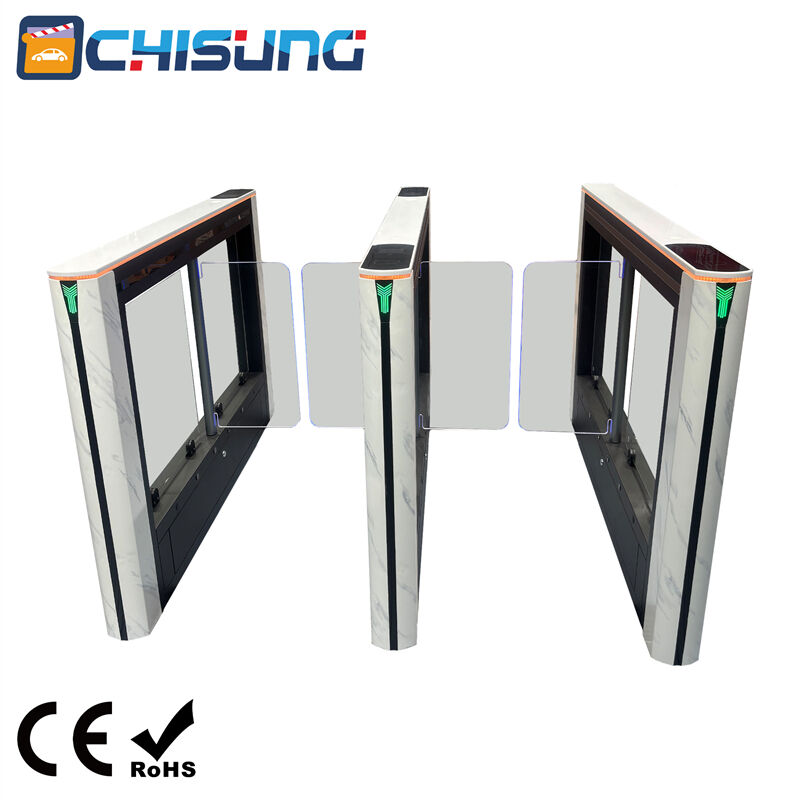

• Top Cover‌: Optional die-cast aluminum CNC or faux marble materials.

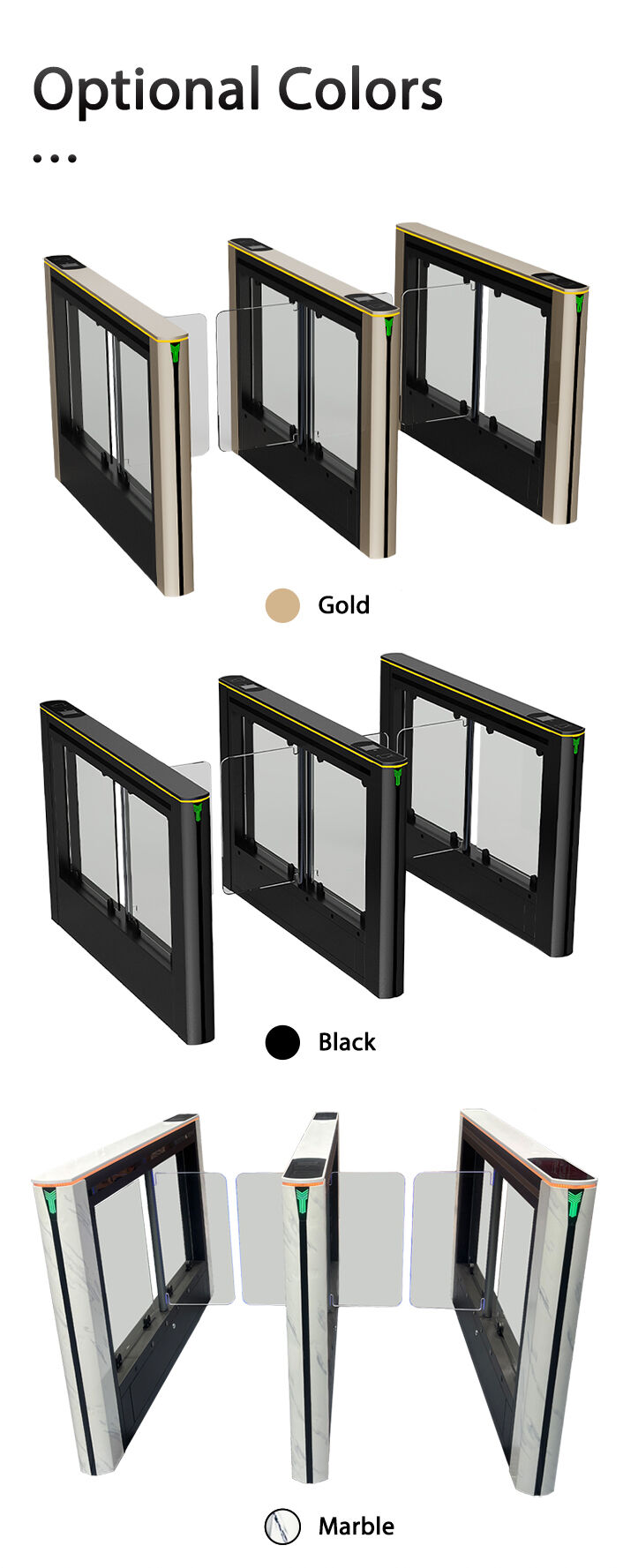

• Color‌: Classic champagne gold, warm tone, customizable.


Motor & Safety‌

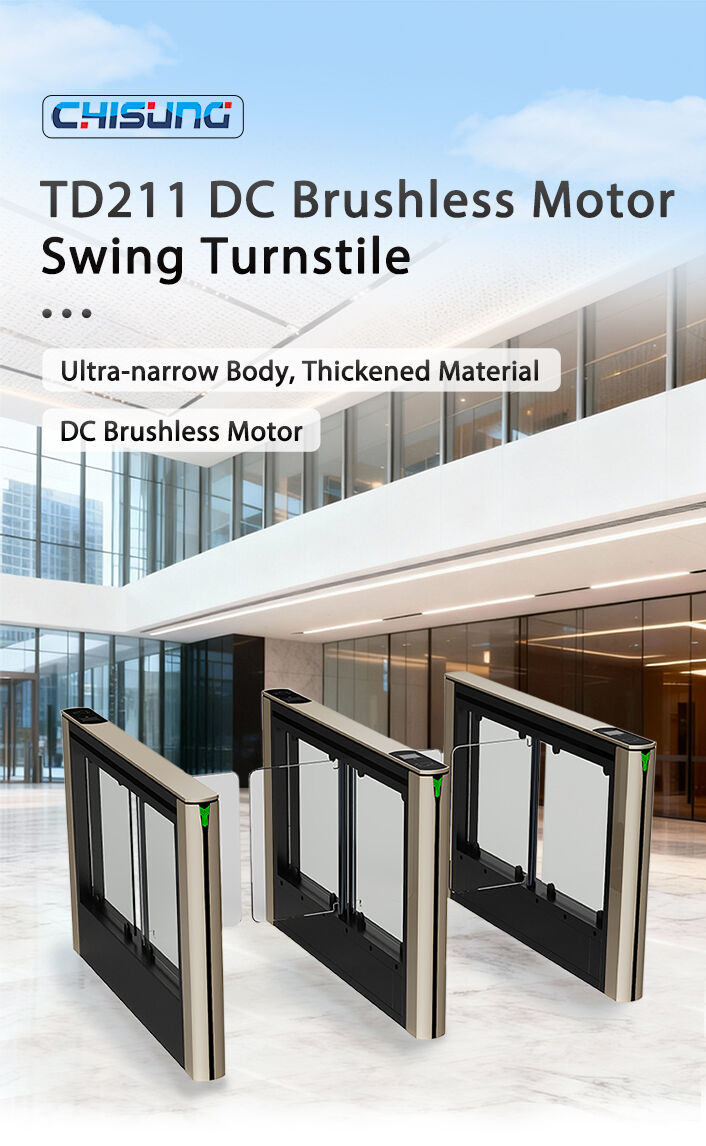

• Motor‌: Brushless DC motor with self-check, low failure rate.

• Infrared Sensors‌: 8 pairs for anti-pinch protection.

• Obstacle-Rebound‌: Motor stops if obstacle detected during closure.

• Anti-Tailgating‌: Unauthorized entry triggers alarm.


Indicators & Alerts‌

• Passage Lights‌: Ring-shaped LED lights (gold or customizable) flow during authentication.

• Channel Indicators‌: Green/red lights on columns show access status.

• Alarm‌: Flashing lights and sound for illegal entry.


Smart Features‌

• Passage Memory‌: Remembers number of people after multiple authentications.

• LCD Display‌: Bilingual menu for easy parameter settings.

• Permission Reset‌: Automatic reset if user doesn’t pass within set time.

• Power Failure‌: Gate opens automatically during power outage.

• Multi-Level Buffer‌: Reduces damage from collisions.

• Customizable Voice‌: Multiple voice options for card swiping.


Flexibility & Integration‌

• Passage Modes‌: Bidirectional controlled passage or controlled entry with automatic exit.

• People Counting‌: Separate statistics for incoming and outgoing directions.

• Prohibited Passage Interface‌: Restricts access during specific times.

• Fire Linkage‌: Gate opens automatically during fire emergencies.

• Remote Control‌: Cloud connectivity for remote parameter settings and control.

• Optional Wireless Receiver‌: Enables remote control for peak-time open mode and single-time entry/exit.


Design & Safety‌

Master-Slave Design‌: 1:1 control with 4-core connection line.

Leakage Protection‌: Built-in protector with 24V max voltage.‌‌‌

Applications:

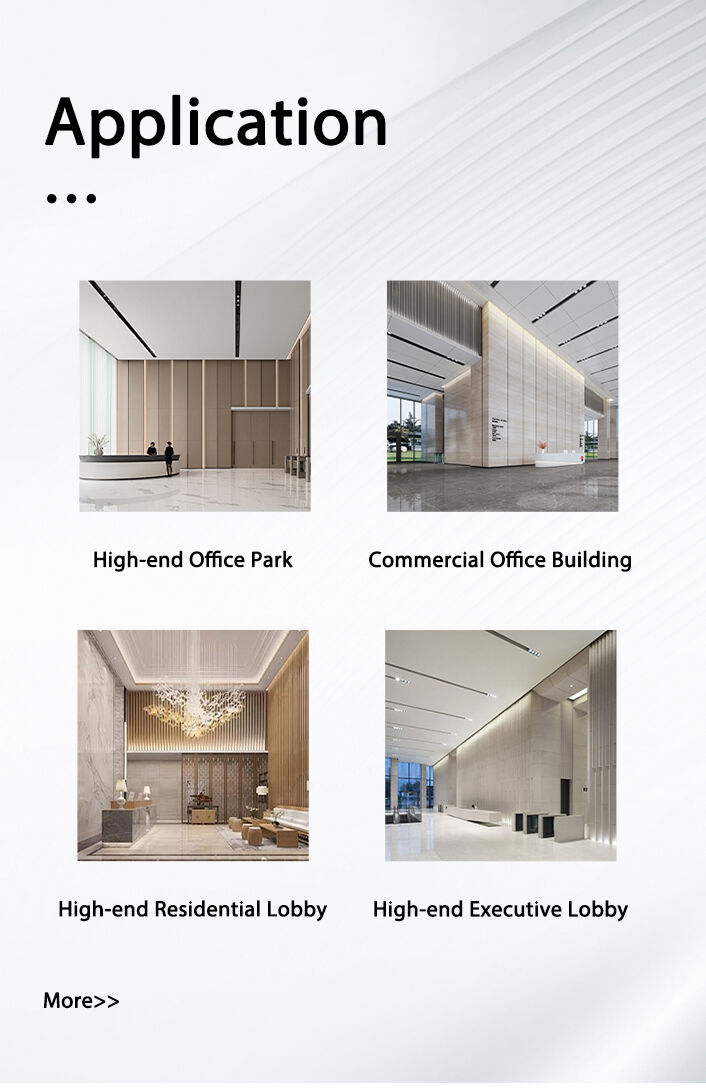

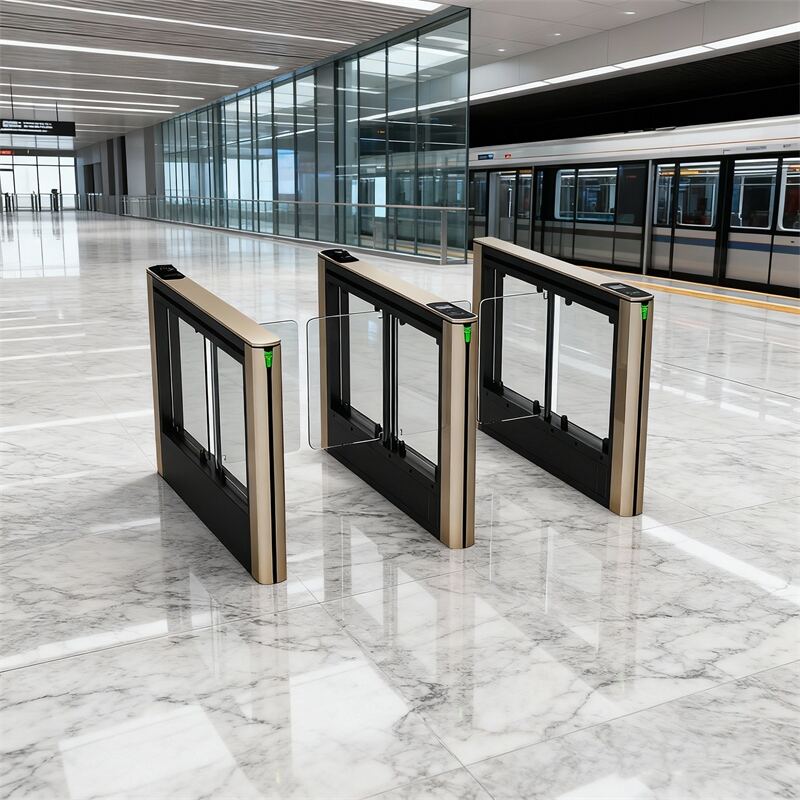

The CHISUNG speed swing gate systems represent a sophisticated and reliable solution for access control in high-traffic environments, where the seamless integration of security and efficiency is paramount. These systems are strategically deployed in critical infrastructure such as corporate headquarters, metropolitan transit stations, international airports, and upscale commercial complexes to optimize pedestrian management while maintaining rigorous security standards. Engineered with cutting-edge technology, the speed swing gates accommodate diverse authentication modalities, including smart card integration, biometric verification, and QR code scanning, facilitating swift and secure passage for authorized individuals. Enhanced safety features, such as anti-tailgating mechanisms and real-time obstacle detection, further bolster security protocols, ensuring a safe environment in settings that demand stringent access governance. The elegant and durable design of the speed gates also complements modern architectural aesthetics, making them an integral component in venues prioritizing both functionality and visual appeal.

Specifications:

Competitive Advantage:
Our CHISUNG speed swing gates boast several competitive advantages that set them apart in the market.

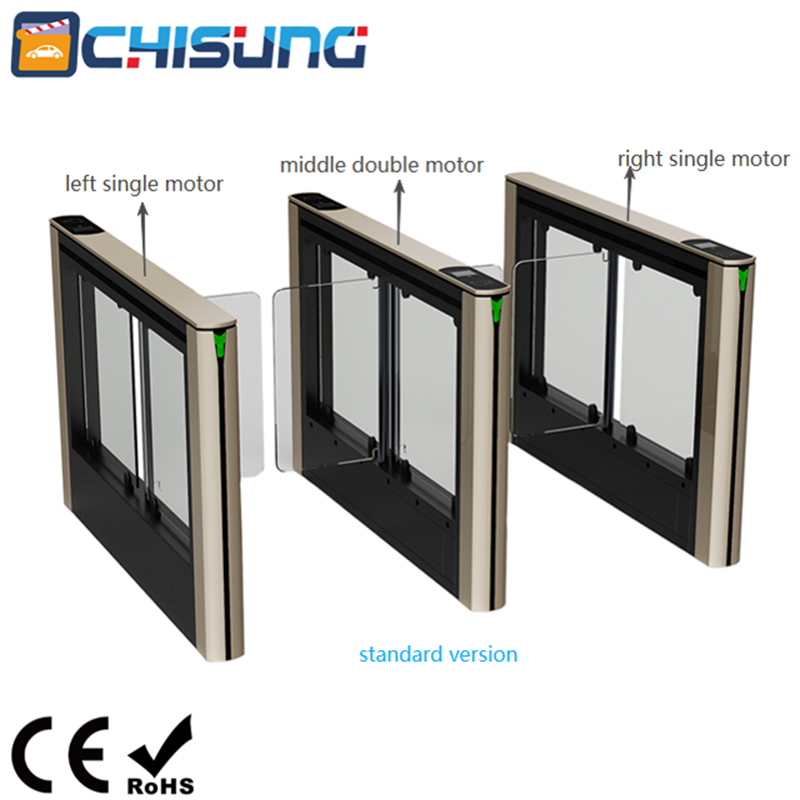

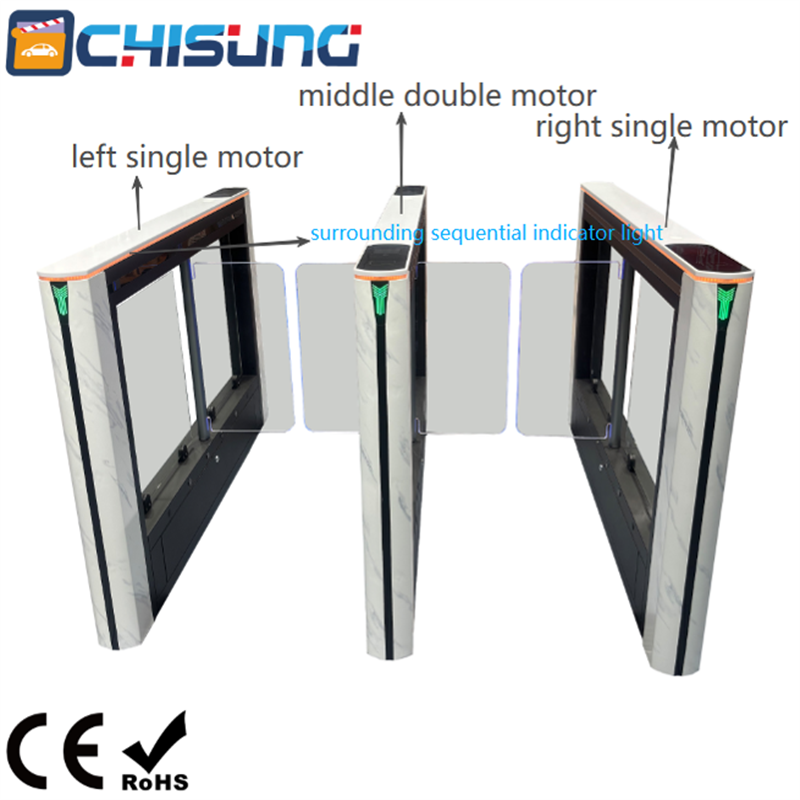

Firstly, the motor configuration is a standout feature. With options for a middle double motor, as well as left and right single motors, our speed swing gates offer flexible and powerful operation. This setup ensures smooth and reliable opening and closing movements, enhancing the overall user experience.

Another key advantage is the surrounding sequential indicator light. This feature provides clear visual cues, making it easy for users to understand the operational status of the gates at a glance. Whether in a busy office lobby or a high-traffic transit station, this intuitive design helps to streamline pedestrian flow and reduce confusion.

Additionally, our speed swing gates are built to high-quality standards, as evidenced by their compliance with CE ROHS regulations. This ensures not only durability and longevity but also environmental friendliness, giving our customers peace of mind regarding product safety and sustainability.

In summary, the CHISUNG speed swing gates combine flexible motor configurations, intuitive indicator lights, and high-quality construction to deliver a superior access control solution that meets the diverse needs of modern facilities.

Tag:TD211
