RTU5024 GSM Gate Opener 2G/3G/4G Remote Relay Switch Wireless Door Opener 200 Users Support Call/SMS Control for Garage Gates, Barriers & Industrial Switches
- ✅ Budget-Friendly GSM Control | 2G Quad-Band, DC9-36V Wide Voltage | Factory Direct, Low MOQ, Cost-Effective Price
- ✅ Free Unlimited Remote | Free Call/SMS Trigger, No Monthly Fees | Zero Usage Cost, No Distance Limits, High Value
- ✅ Secure Multi-User Access | Caller ID Whitelist, 200 Authorized Users | Anti-Cloning, Easy Management, Community/Industrial Ready
- ✅ Simplified SMS Setup | SMS Configuration, No App Required | Plug-and-Play, No Tech Needed, Fast Installation
- ✅ Durable Compact Build | Metal Housing, -10°C~+60°C, CE Certified | Rugged Quality, Outdoor Use, Stable Performance
- Overview
- Recommended Products
- Free Call/SMS Control: Activate the relay with a free call from authorized numbers (no call charges for activation, as the device automatically rejects the call after verification).

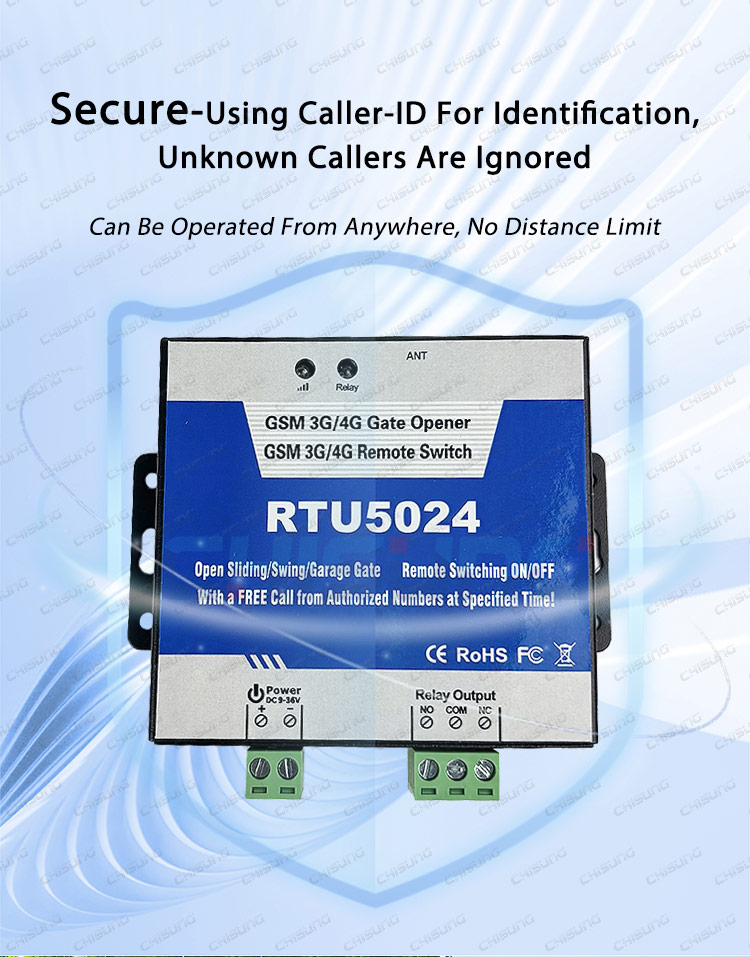

- Caller ID Security: Only pre-approved phone numbers can trigger the device; unknown callers are ignored, ensuring maximum security.
- 200 Users Support: Add up to 200 authorized phone numbers, perfect for residential communities, industrial sites, or multi-user facilities.
- Global Compatibility: Works with worldwide 2G networks, supporting quad-band GSM 850/900/1800/1900MHz for universal use.
- Dual Control Modes: Control via free phone calls or SMS commands (for opening/closing, checking status, or managing users).
- Flexible Relay Output: NO/NC/COM contacts support both normally open and normally closed circuits, compatible with most electronic locks, gate motors, and industrial equipment.
- Wide Power Range: Operates on DC 9-36V, suitable for both 12V and 24V systems.
- SMS Status Updates: The device sends regular SMS notifications about its status, so you always stay informed.
- Easy Setup: Simple wiring and SMS-based configuration—no complex software or apps required.

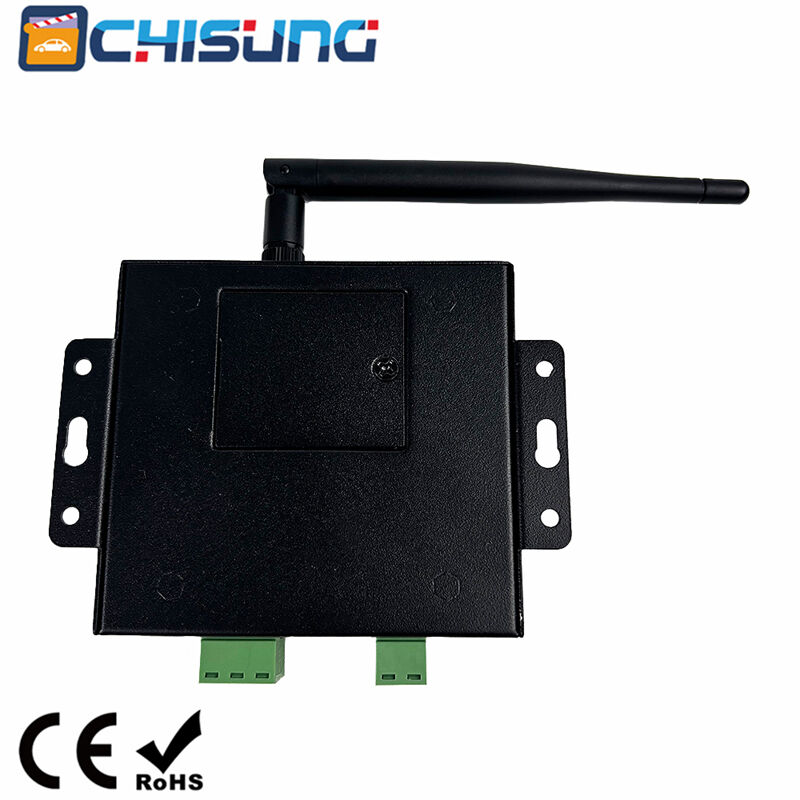

- Compact & Durable: Rugged metal housing with wall-mount design, built for long-term use in outdoor or industrial environments.

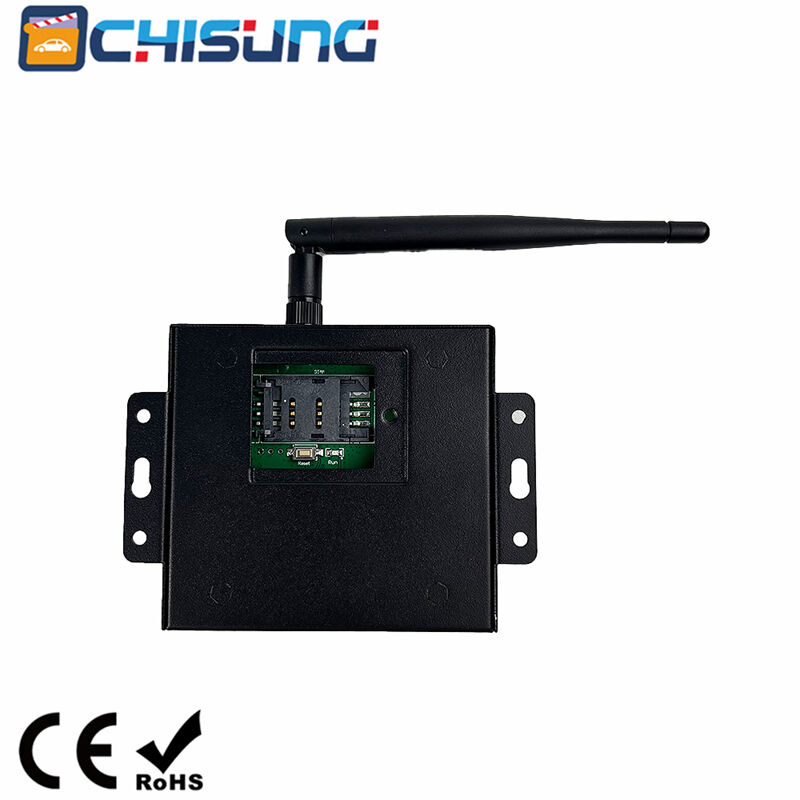

- Insert a standard 2G SIM card into the device (no data plan required, just basic voice/SMS).

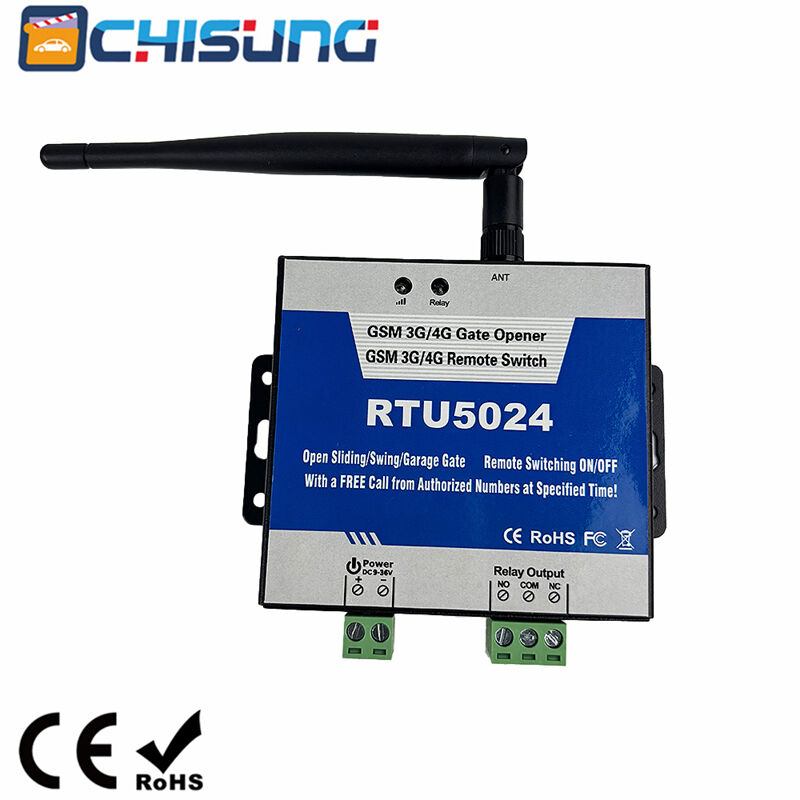

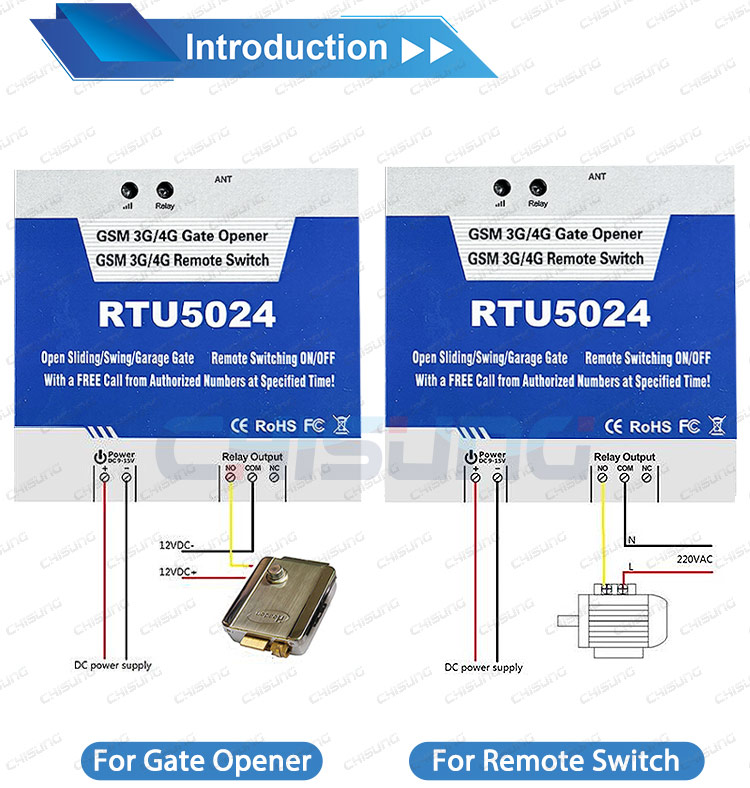

- Wire the device to your gate opener, lock, or other equipment using the provided terminals.
- Add authorized phone numbers via simple SMS commands.
- When you call the SIM card number from an approved phone, the device verifies your caller ID, triggers the relay, and automatically hangs up—completely free!
- For advanced control, send SMS commands to open/close the relay, check signal strength, or manage users remotely.
- Residential & Commercial Gates: Control sliding/swing gates, garage doors, and parking barriers remotely.
- Access Control: Activate electronic locks, turnstiles, and door access systems for communities or offices.
- Industrial Control: Remote switching for water pumps, fans, motors, and contactors in factories or farms.
- Smart Agriculture: Control irrigation systems, lighting, and farm equipment from anywhere.
- Smart Energy: Monitor and control solar or wind power equipment remotely.
- Smart Security: Automate gate access for gated communities, warehouses, and construction sites.
- Emergency Systems: Trigger alarms or equipment in emergency situations via SMS or call.
Product Information
Place of Origin: |
China,Shenzhen |
Brand Name: |
CHIS UNG |
Model Number: |
RTU5024 Economical model |
Certification: |
CE |
Product Commercial Terms
Minimum Order Quantity: |
1unit |
Price: |
2G,15USD 4G,33USD |
Packaging Details: |
Carton/Wooden,According to customer requirements |
Delivery Time: |
7-15days |
Payment Terms: |
L/C ; T/T ; MoneyGram |
Supply Ability: |
3000units/Month |
Quick Detail:
GSM Relay
GSM Gate Opener
GSM Gate Controller
GSM Relay Control
GSM Remote Control
GSM Relay Switch
GSM Door Opener
GSM Door Controller
GSM Access Controller
GSM Access Control Unit
GSM Remote Switch
GSM Access Control Relay
GSM 3G 4G Gate Opener
GSM 3G 4G Cellular Gate Opener
GSM 3G 4G Gate Receiver
GSM 3G 4G Signal Sender
GSM 3G 4G Single Switch

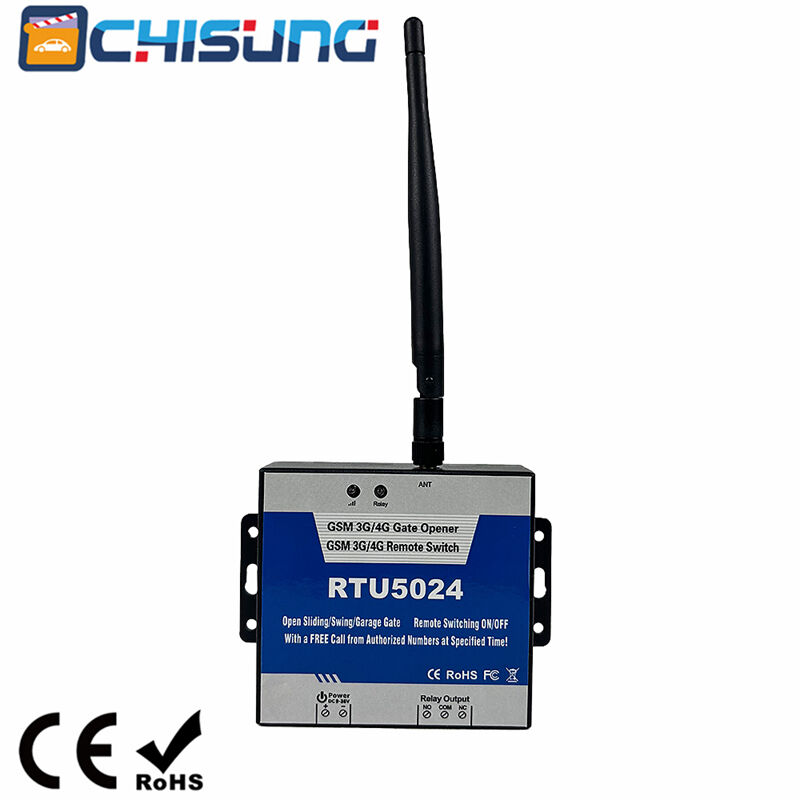

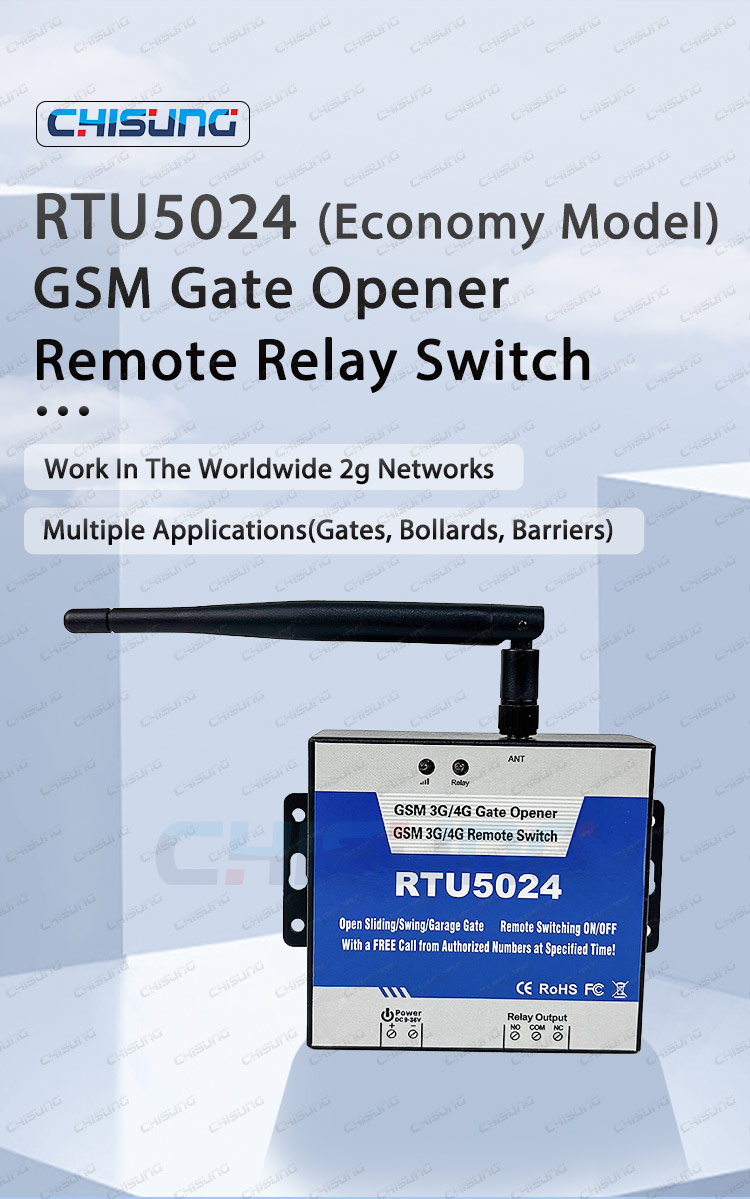

The CHISUNG RTU5024 is a cost-effective GSM-based remote relay switch designed to control gates, barriers, and industrial devices from anywhere via free phone calls or SMS commands. With caller ID authentication, it offers secure, unlimited-distance access control, supporting up to 200 authorized users and working on worldwide 2G networks. No expensive fees or distance limits—just a SIM card and instant remote control!
Description:
What is the RTU5024?
The RTU5024 is an economy-model GSM gate opener and remote relay switch that turns any standard mobile network into a powerful access control system. Whether you need to open a garage gate, activate a water pump, or control an industrial machine, this device eliminates the hassle of traditional remotes and wired systems. Just insert a SIM card, set your authorized phone numbers, and control your devices from anywhere in the world with a single free call!

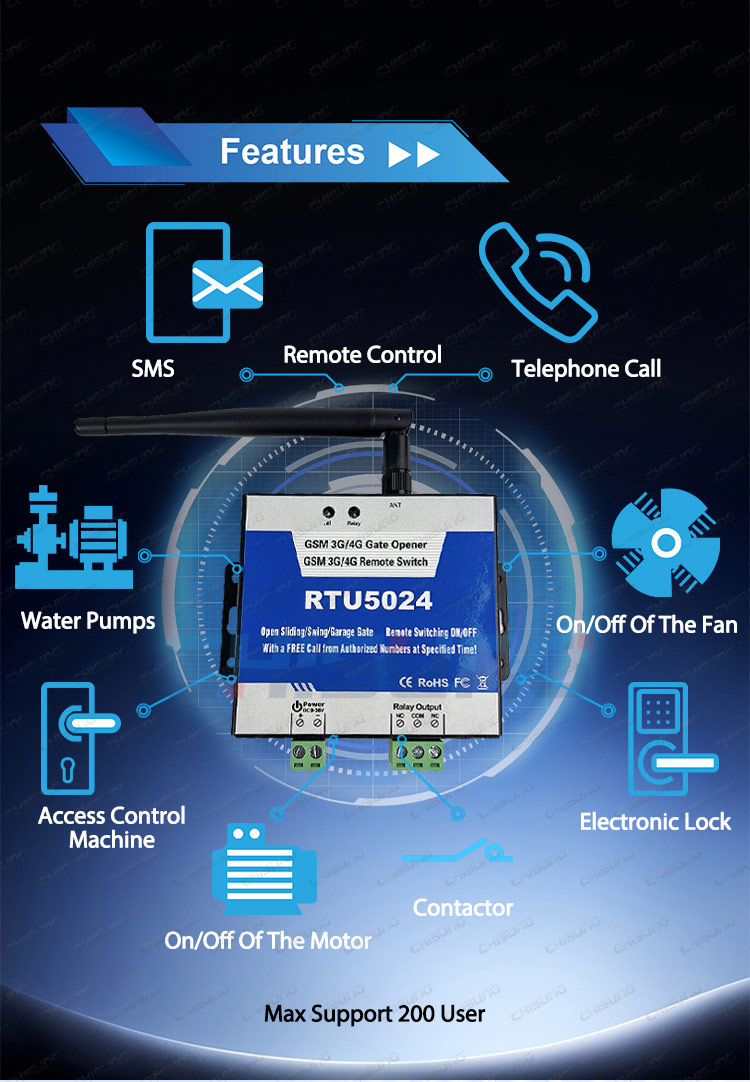

Key Features
How It Works
Applications:
The RTU5024 is a versatile solution for a wide range of smart and industrial applications:

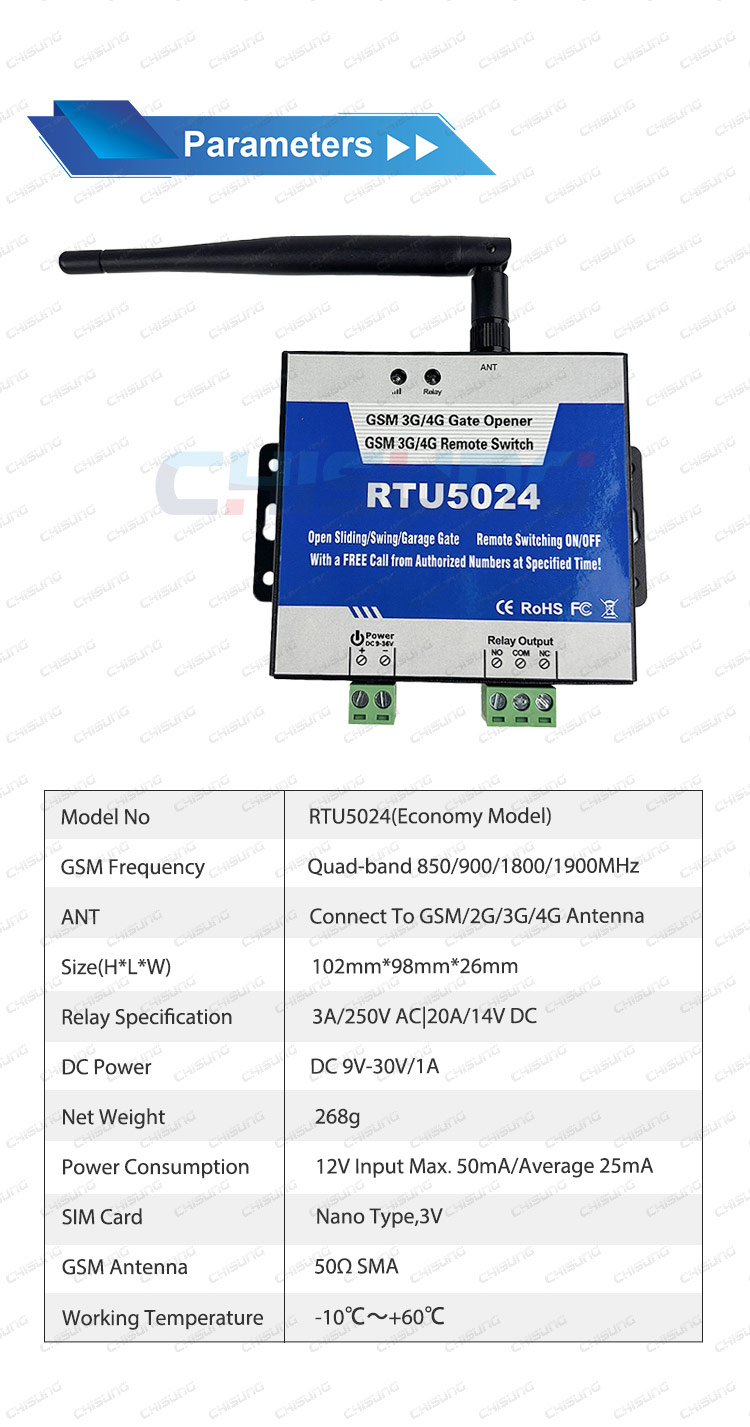

Specifications：
Parameter |
Details |
Model |
RTU5024 (Economy Model) |
Frequency Band |
Quad-band GSM 850/900/1800/1900MHz |
Power Supply |
DC 9V ~ 36V |
Power Consumption |
Max. 50mA / Average 25mA |
SIM Card Type |
Nano-SIM (3V) |

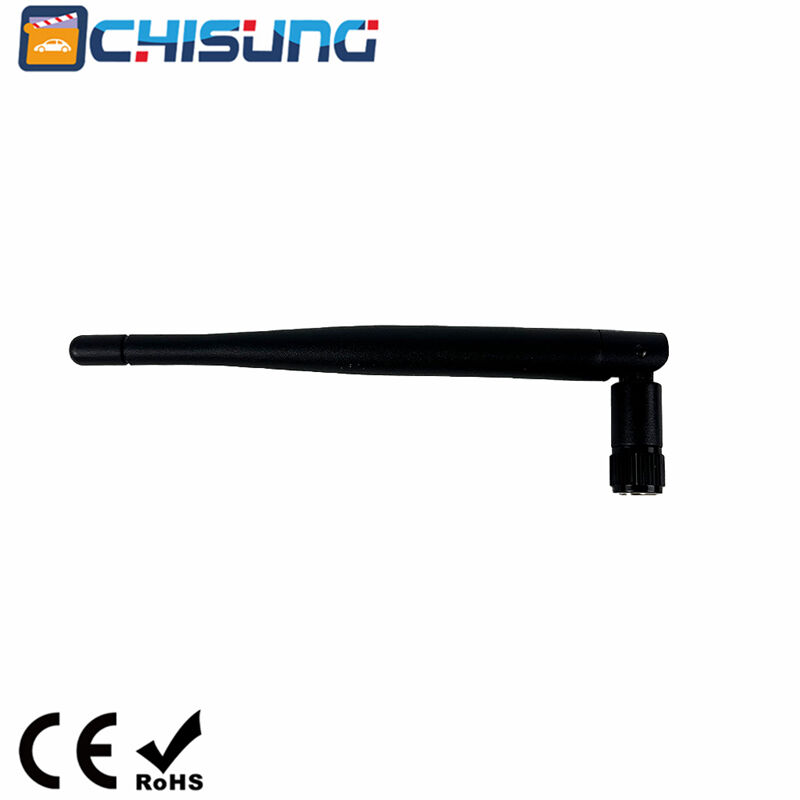

Antenna |
50Ω SMA external antenna |
Relay Output |
3A/250VAC / 20A/14VDC |
Relay Type |
NO (Normally Open) / NC (Normally Closed) / COM |
Relay Trigger Time |
0s ~ 999s (adjustable via SMS) |
Max Authorized Users |
200 |
Operating Temperature |
-10°C ~ +60°C |
Relative Humidity |
10% ~ 90% (RH) |

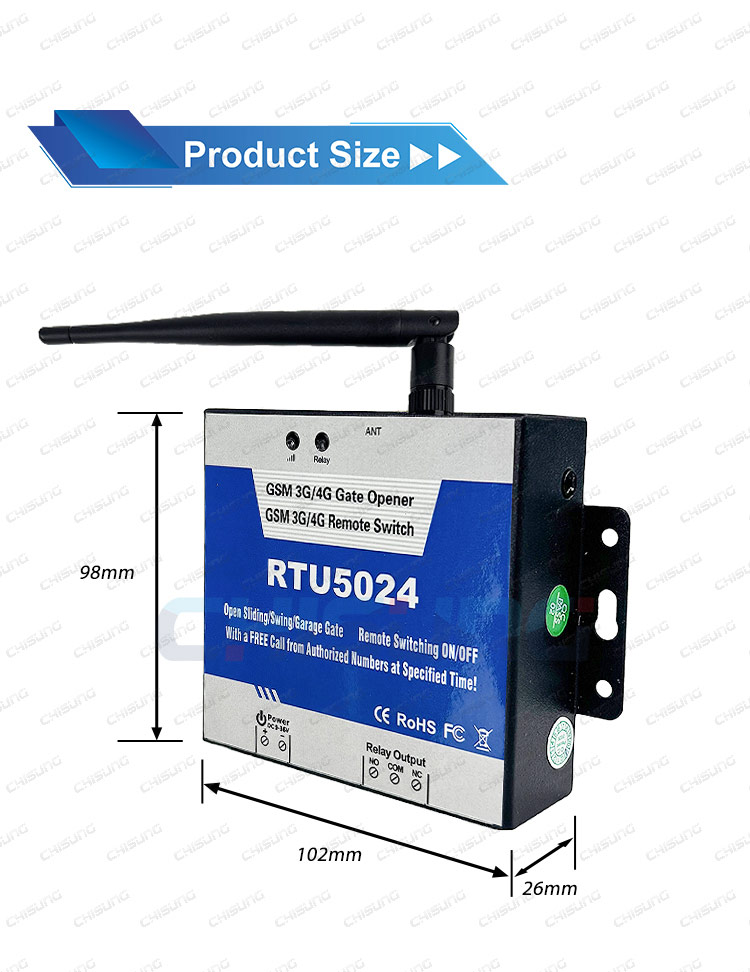

Dimensions |
102 × 98 × 26 mm |
Net Weight |
268g |
Certifications |
CE, RoHS, FCC |

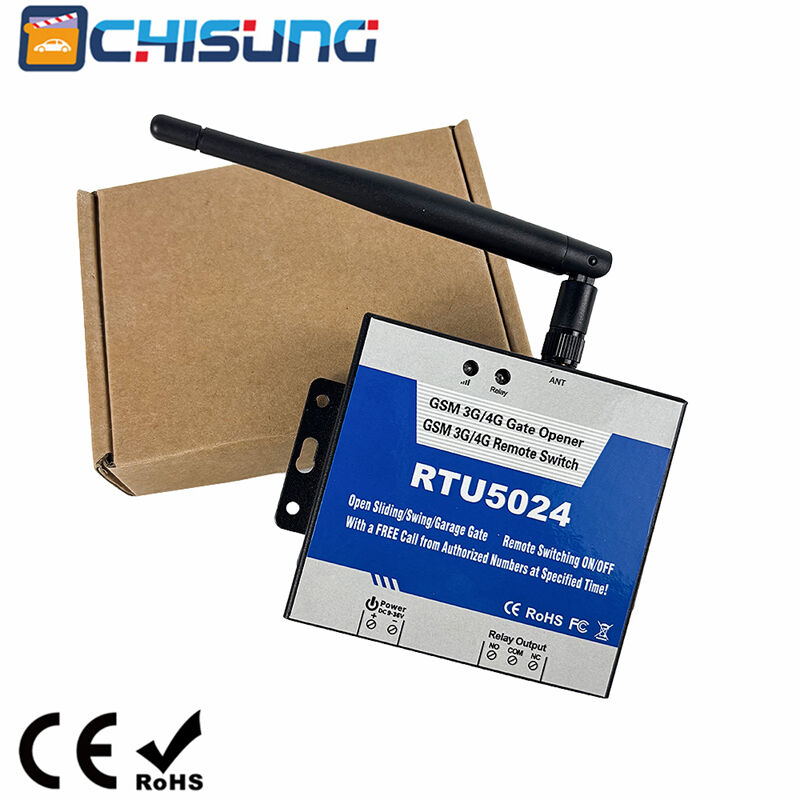

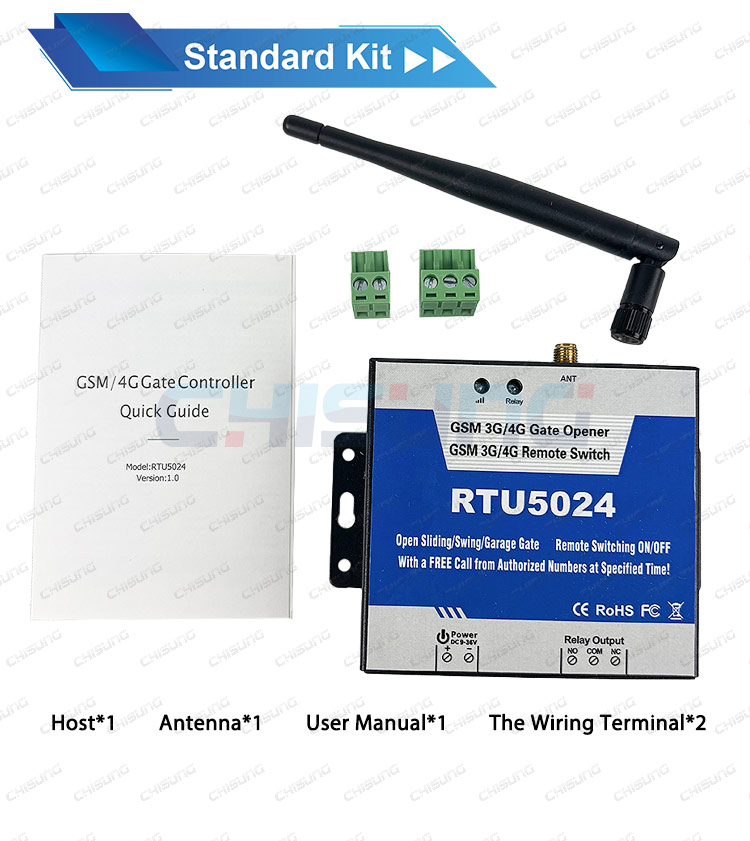

Package Includes |
Host ×1, Antenna ×1, Wiring Terminals ×2, User Manual ×1 |
Model |
RTU5024 (Economy Model) |
Frequency Band |
Quad-band GSM 850/900/1800/1900MHz |
Power Supply |
DC 9V ~ 36V |
Competitive Advantage:
Aspect |
Our Advantage |
Cost-Effective Operation |
Unlike app-based or subscription-controlled devices, our system uses free calls and SMS, with no recurring fees or expensive service plans. |
No Distance Limits |
Works anywhere with GSM coverage, eliminating the range restrictions of traditional RF remotes. |
Top-Tier Security |
Caller ID verification ensures only pre-approved users can access your system, far more secure than open RF remotes. |
Easy Integration |
Compatible with almost all existing gate motors, locks, and industrial equipment—no need to replace your current setup. |
User-Friendly Setup |
No complex apps or software required; all configuration is done via simple SMS commands, making it accessible for users of all technical levels. |
Reliable Performance |
Rugged hardware and global GSM compatibility ensure stable operation in diverse environments. |
200-User Capacity |
Supports more users than many competing models, ideal for multi-user facilities. |
Full Compliance |
CE, RoHS, and FCC certified, meeting international safety and quality standards. |
Ready to Upgrade Your Remote Control?
The CHISUNG RTU5024 combines security, convenience, and cost-effectiveness in one compact device. Whether for home, business, or industrial use, it’s the smart way to control your equipment from anywhere in the world!
