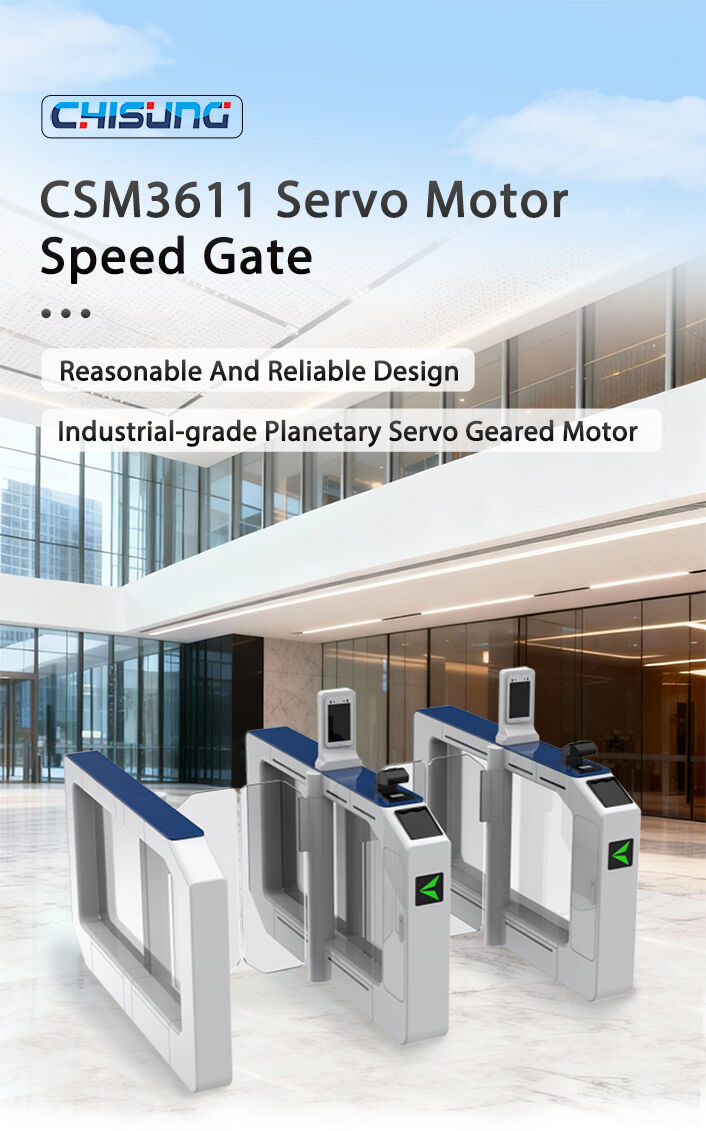

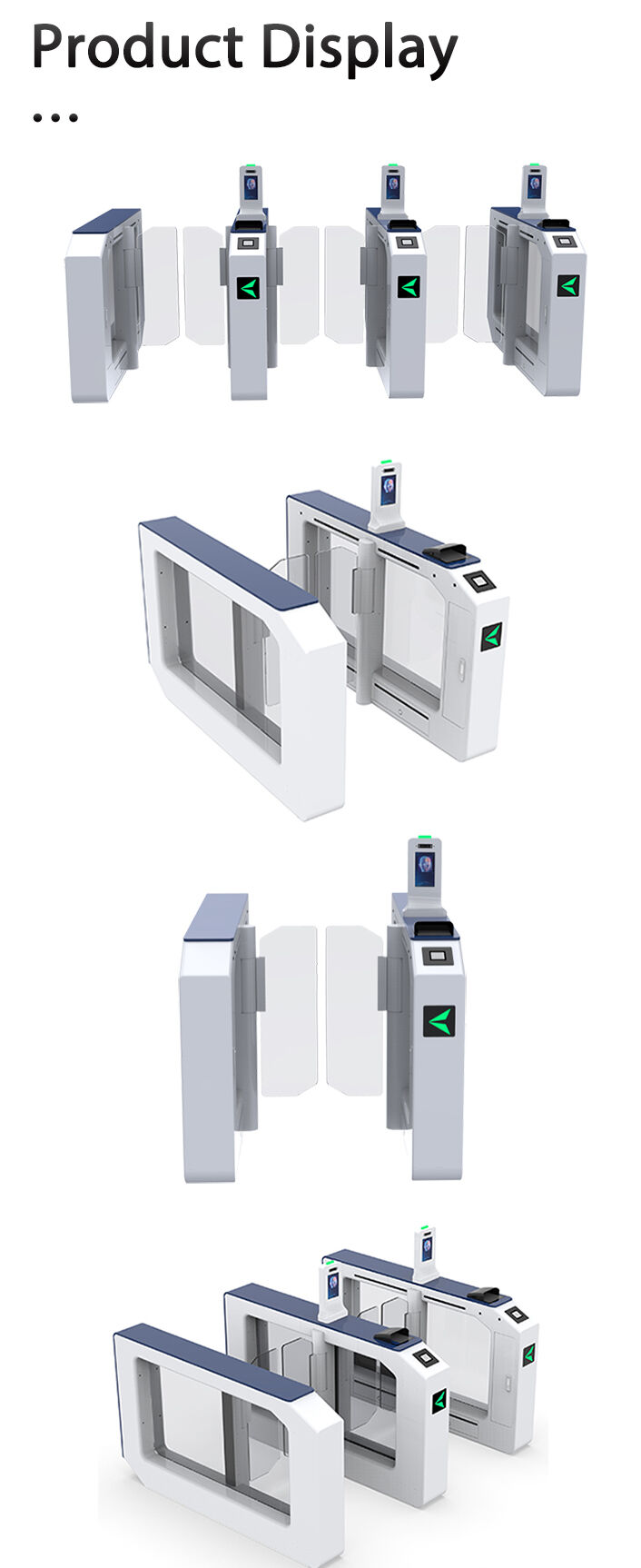

CSM3611 Servo Motor Speed Gate L1700xW210xH1000mm Cold-Rolled Steel 18-Infrared AFC Access Control Turnstile
- Overview
- Recommended Products
-

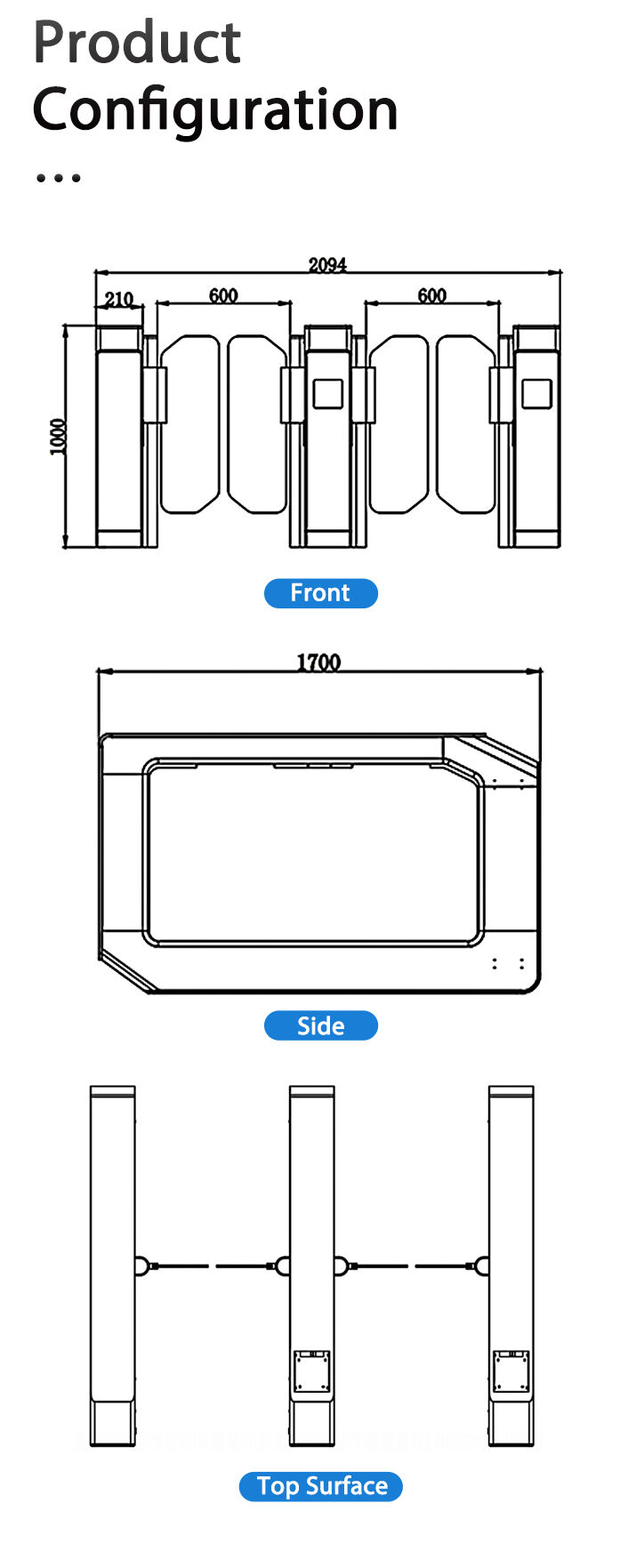

Dimensions: The gate measures 1700mm in length, 210mm in width, and 1000mm in height, making it suitable for both indoor and semi-outdoor installations while ensuring optimal space utilization
-

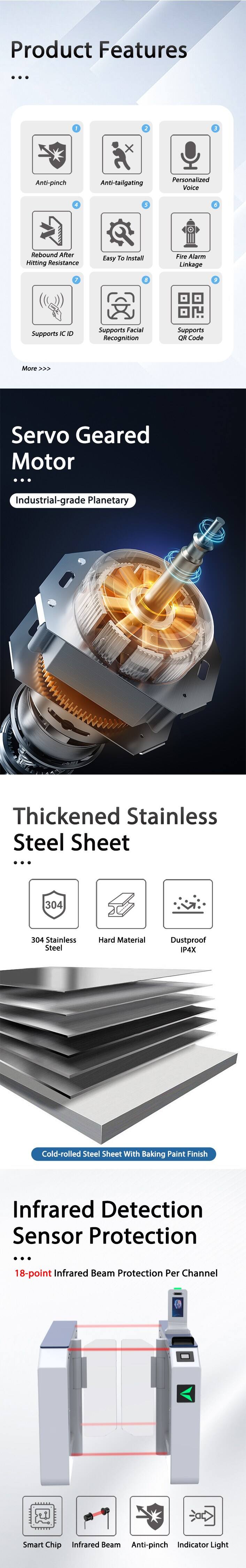

Motor System: Equipped with an industrial-grade planetary servo geared motor, the CSM3611 delivers precise, low-noise operation with minimal vibration. This motor ensures smooth gate movement, reducing wear and tear for extended service life
-
Material & Finish: Constructed from cold-rolled steel sheet with a baking paint finish,the gate boasts exceptional durability and resistance to corrosion,ensuring it withstands heavy daily usage and harsh environmental conditions
-
Safety & Protection: Each channel features 18-point infrared beam protection,creating a comprehensive safety net to prevent pinch injury during gate operation. Surrounding sequential indicator lights provide clear visual guidance, enhancing user awareness of the gate’s status.
-
Controller: The integrated LCD brushless controller supports both Chinese and English menus, offering intuitive configuration via a 4-core connection cable.This controller enables seamless integration with various access control systems and simplifies maintenance.
-
Flexible Card Management:Users can configure "memory" or "non-memory" card modes. The "memory" mode retains access records for auditing, while the "non-memory" mode prioritizes real-time access speed, catering to diverse operational needs.
-
Automatic Reset:After a valid access request,the gate automatically resets to a locked state if no passage is detected within the user-defined timeout period, enhancing security and energy efficiency
- Multi-Mode Compatibility:The gate supports IC/ID cards,barcode scanning, and face recognition systems, making it adaptable to various authentication methods. It offers two operational modes (open/closed) and multiple working modes, including two-way or one-way card reading, to suit specific site requirements.
Product Information:
| Place of Origin | China,Shenzhen |
| Brand Name | CHISUNG |
| Model Number | CSM3611 |
| Certification | CE |
| Minimum Order Quantity | 1unit |
| Price | 1.Single-servo motor,3000USD |
| 2.Double-servo motor,4000USD | |
| Packaging Details | Carton/Wooden,According to customer requirements |
| Delivery Time | 7-15days |
| Payment Terms | L/C ; T/T ; MoneyGram |
| Supply Ability | 3000units/Month |
Quick Detail:
Speed Gate,Speed Turnstile,Speed Glass Gate,Fast Pass Gate,Automatic Access Gate,Pedestrian Gate,Automatic Pedestrian Gate,Automatic Ticket Gate, Automatic Fare Gate
CSM3611 Speed Gate: Advanced Access Control Solution
The CSM3611 Speed Gate represents a cutting-edge integration of security, efficiency,and durability,designed to streamline pedestrian access management in high-traffic environments such as corporate lobbies, transportation hubs, and commercial facilities.With its robust construction,intelligent features,and user-centric design,this speed gate sets a new standard for modern access control systems.
Description:
Core Features
Intelligent Security Functions:The CSM3611 incorporates advanced anti-tailgating and anti-reverse passage technologies, ensuring only authorized individuals can access restricted areas. Its infrared sensors detect unauthorized entry attempts, triggering immediate alerts or gate lockdown.
Performance & Reliability
Smooth Operation:The planetary servo motor ensures quiet,jerk-free movement, with a passing speed of up to 30 persons per minute,ideal for high-throughput environments.
Longevity:The combination of high-quality materials and precision engineering results in a service life of over 5 million cycles,minimizing downtime and maintenance costs.
Weather Resistance:The baking paint finish and sealed internal components protect against dust, moisture, and temperature fluctuations, making the gate suitable for both indoor and sheltered outdoor use.
Compliance & Certification
The CSM3611 adheres to international standards,including CE and RoHS certifications,guaranteeing compliance with safety,
electromagnetic compatibility,and environmental regulations
In summary,the CSM3611 Speed Gate combines robust security, operational flexibility,and user-friendly design to meet the demands of modern access control.Whether for small offices or large public venues,it delivers reliable performance,ensuring efficient pedestrian management while prioritizing safety and convenience. For further customization or technical support,contact our team to tailor the solution to your specific needs.
Applications:
The CSM3611 is versatile enough to serve diverse sectors:
Corporate Buildings:Regulates employee and visitor access, integrating with office security systems.

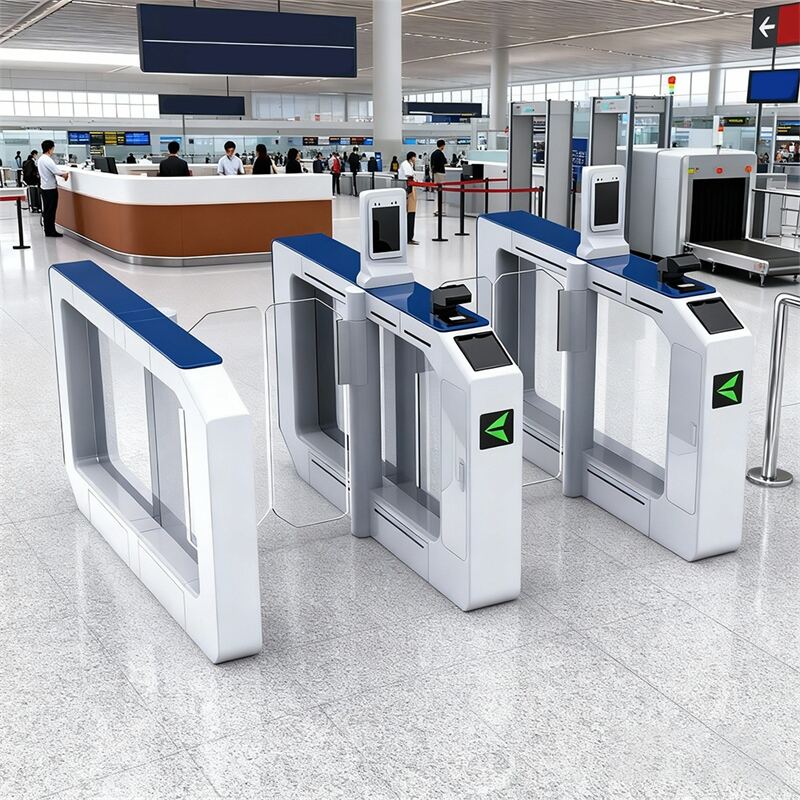

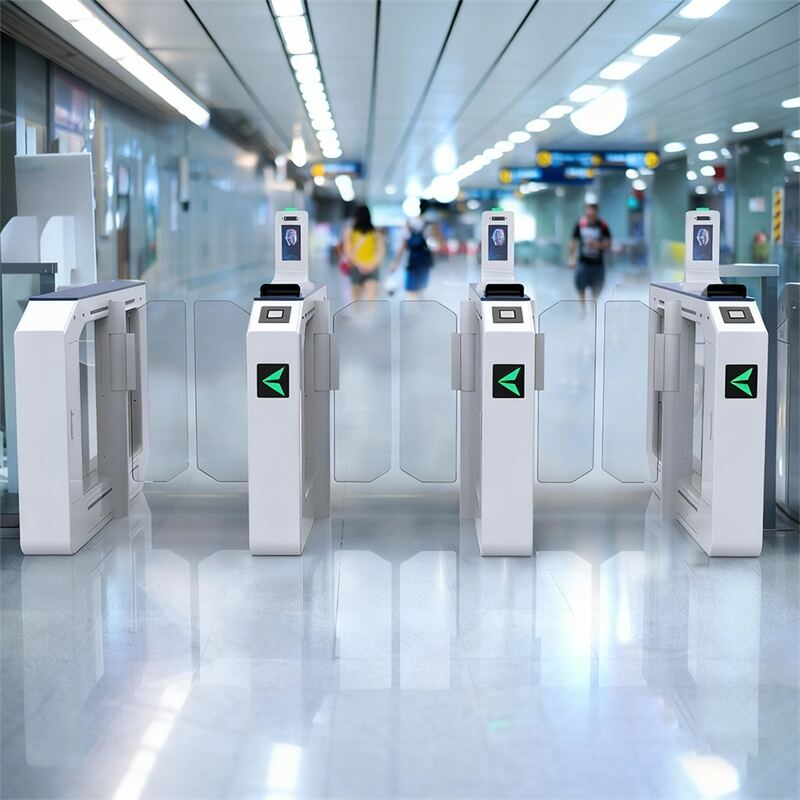

Transportation Hubs:Manages passenger flow in airports, train stations, and metro stations with rapid authentication.
Commercial Complexes:Enhances safety in malls, hotels, and convention centers by controlling entry/exit points.
Government Facilities:Ensures secure access to sensitive areas with audit-ready access logs.

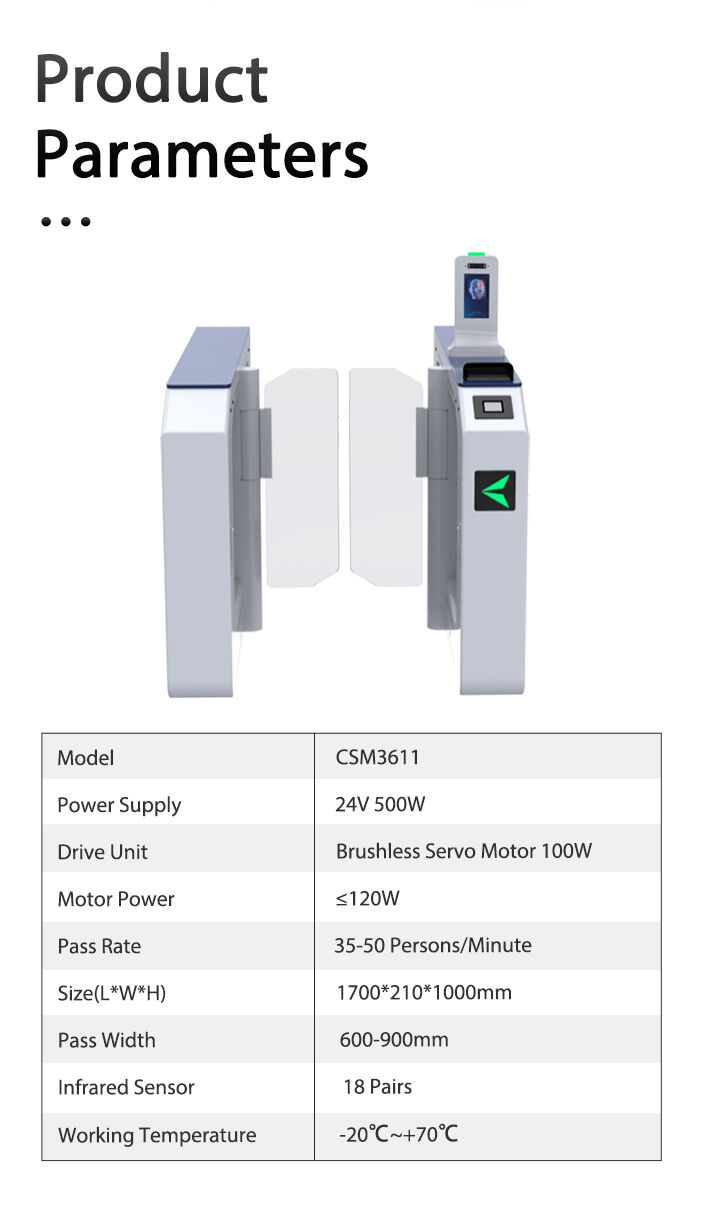

Specifications:
| Size | （L*W*H)1700*210*1000mm |
| Pass width | 600-900mm |
| Power | 120W |
| Material | δ=1.5mm SUS304 |
| Bar Material | 10mm Transparent PC |
| Movement | Servo speed gate movement |
| Infrared sensor | 18 pairs |
| Clutch | ∅=80mm |
| Indicator Light | RGB light |
| Drive Unit | Brushless servo Motor 100W |
| Power Supply | 24V 500W |
| Control Unit | Servo control system |
| Communication Interface | Dry contact/ RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
Competitive Advantage:
CHISUNG Speed Gate Turnstile: Premium Access Control Solution
Superior Design and Durability:Our speed gate turnstiles boast a sleek and modern design, crafted from high-quality cold-rolled steel sheet with a baking paint finish, ensuring both aesthetics and longevity.The reasonable and reliable design guarantees low noise, smooth operation,and an extended service life.
Advanced Safety Features:
Equipped with 18-point infrared beam protection per channel,our turnstiles provide comprehensive safety coverage.The infrared anti-clip function ensures safety even when the gate is open or in operation,preventing accidents and injuries.
Intelligent Control System:
The LCD brushless controller with Chinese and English menus (4-core connection cable) offers easy operation and configuration. It supports various access control methods,including IC cards,ID cards,scanning,and face recognition,providing flexibility and convenience for different user needs.
Enhanced Security Functions:
With anti-tail and anti-reverse pass functions, our turnstiles effectively prevent unauthorized access and ensure orderly passage. The automatic reset function ensures the gate returns to the locked state after a set time if no passage occurs, enhancing security and efficiency.
Versatile Operation Modes:
Our speed gate turnstiles offer two main operation modes: open or closed.They also support various working modes,such as two-way card reading and one-way card reading,allowing for customized access control based on specific requirements.
Industrial-Grade Components:
Utilizing an industrial-grade planetary servo geared motor, our turnstiles deliver reliable and efficient performance even in high-traffic environments.The surrounding sequential indicator lights provide clear visual guidance for users, enhancing the overall user experience.
Global Compliance and Certifications:
Our products comply with international standards, holding CE and RoHS certifications, ensuring safety,reliability, and environmental friendliness.
Choose CHISUNG speed gate turnstiles for a secure, efficient,and intelligent access control solution that meets the demands of modern facilities.
Tag:CSM3611
