- Overview
- Recommended Products
- Delivers robust, reliable performance with energy efficiency and low maintenance.
- Monitors gate status, forced lifting, and collision (optional) with instant alerts sent to duty stations.
- Enables proactive intervention by staff and triggers on-site warnings to deter unauthorized access.

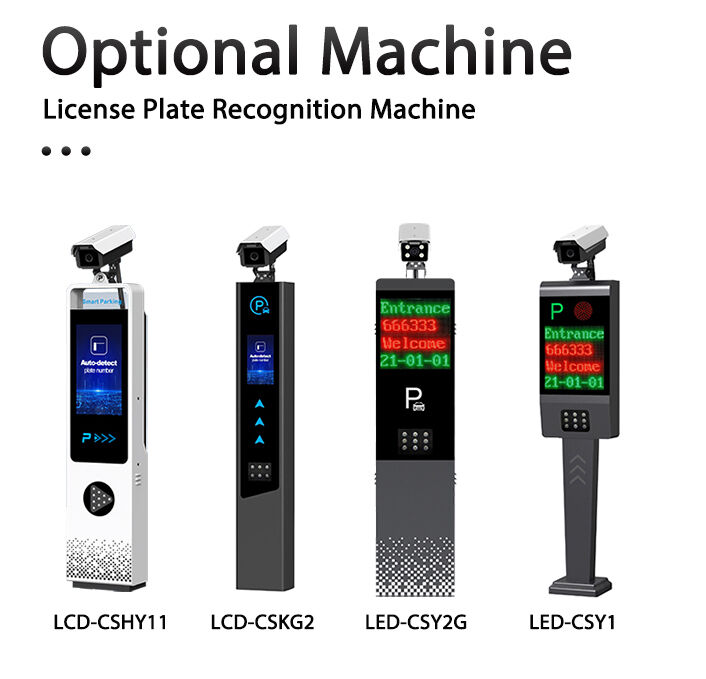

- Collaborates with smart cameras to detect tailgating, reverse driving, and loitering.
- Automatically records video evidence via scene surveillance for dispute resolution.
- Debug and configure parameters via WeChat mini-program or dedicated IoT platform.
- Remote open/close control and real-time status monitoring from any location.
- Over-the-air (OTA) firmware updates for seamless functionality upgrades.
- Encrypted gate control signals to prevent unauthorized access.
- Anti-cloning remote technology safeguards against malicious gate opening via universal remotes.
- Supports up to 50 remote learning codes for flexible access management.
- Logs and stores records of abnormal manual operations (wireless/desktop remotes, panel buttons) with timestamped images for accountability.
- Obstacle detection with automatic rebound, ground loop anti-crushing, and "open-priority" anti-crushing protection.
- Auto-close delay, lock-upon-completion, convoy mode, and vehicle counting functionality.
- Supports straight bars, folding arms, and fence-type gates with reversible motor housing for left/right installation.
- Hand-crank operation during power outages, with optional auto-lift feature for emergency access.
- Scenario: Gated communities, industrial parks, and government facilities demand strict vehicle entry/exit management.
- Solution:
- Equipped with a high-power 24V DC brushless permanent magnet motor, the barrier gate operates smoothly and reliably under heavy usage.
- Real-time anomaly detection (e.g., forced lift, collision alerts) triggers instant notifications to security personnel via IoT dashboards, enabling proactive intervention.
- Encrypted switch signals and anti-copy remote controls prevent unauthorized access, ensuring only authorized vehicles pass through.
- Scenario: Parking lots, toll gates, and logistics centers need to prevent tailgating, reverse driving, or unauthorized parking.
- Solution:

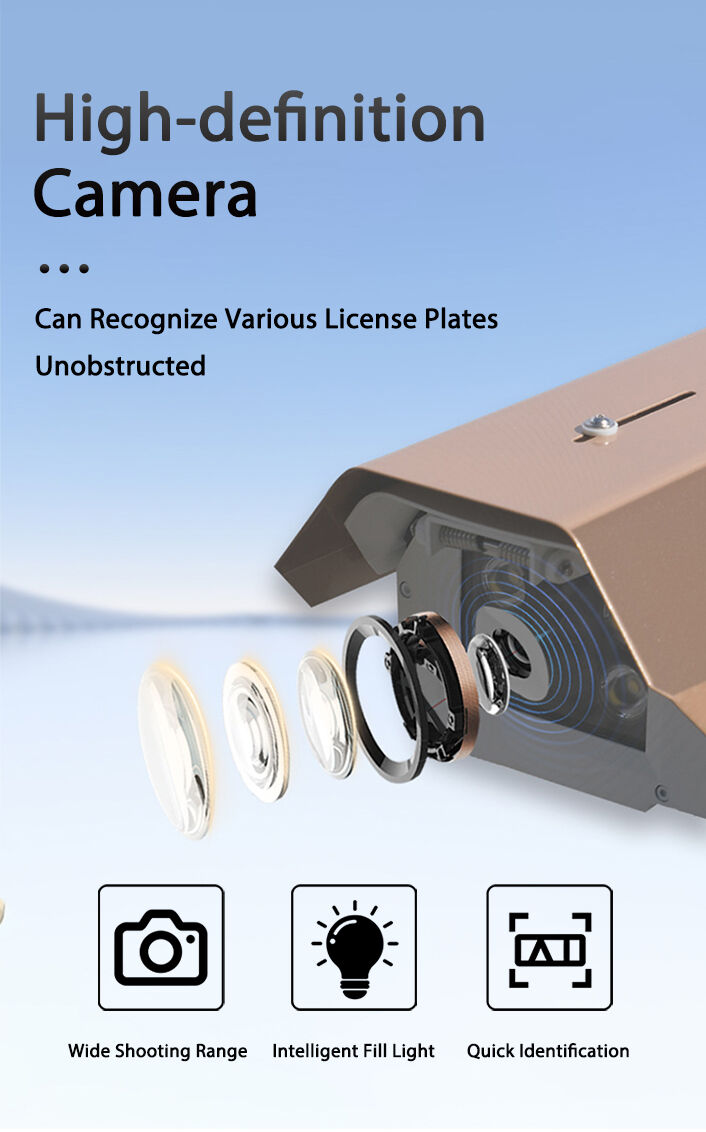

- AI-powered camera integration detects tailgating, reverse movements, and loitering, automatically triggering video recording for evidence.
- Customizable modes (e.g., delay auto-closing, count function) optimize traffic flow during peak hours.
- Anti-crush safety features (e.g., obstacle rebound, ground loop detection) protect vehicles and pedestrians from accidental damage.
- Scenario: Large-scale facilities with multiple entry points require centralized control and minimal on-site maintenance.
- Solution:
- IOT-enabled remote configuration allows administrators to adjust parameters, open/close gates, and monitor real-time status via a mobile app.
- Over-the-air (OTA) firmware updates ensure the system stays up-to-date with the latest security patches and features.
- Manual override capability (hand-crank operation) and optional auto-lift during power outages guarantee uninterrupted operation.
- Scenario: From narrow driveways to wide industrial entrances, the barrier gate must adapt to varying space and aesthetic requirements.
- Solution:
- Supports multiple bar types (straight, articulated, fence bars) and reversible motor direction for left/right installations.
- Scalable remote control capacity (up to 50 codes) accommodates multi-user access in shared facilities.
- Comprehensive event logging tracks all manual operations (remote, keypad, or board-based) with timestamped images for audit trails.
Product Information:
| Place of Origin | China,Shenzhen |
| Brand Name | CHISUNG |
| Model Number | CSDZ96A |
| Certification | CE |
| Minimum Order Quantity | 1unit |
| Price | 245USD |
| Packaging Details | Carton/Wooden,According to customer requirements |
| Delivery Time | 7-15days |
| Payment Terms | L/C ; T/T ; MoneyGram |
| Supply Ability | 3000units/Month |
Quick Detail:
Barrier Gate
Gate Barrier
Boom Gate
Traffic Barrier
Intelligent Barrier Gate
Automatic Gate Barrier
Anti-collision Barrier Gate
Parking Barrier Gate
Straight Bar Barrier Gate
Folding Arm Barrier Gate
Fence Barrier Gate
Traffic Gate
Vehicle Barrier
Car Park Barrier
Boom Barrier
Parking Gate

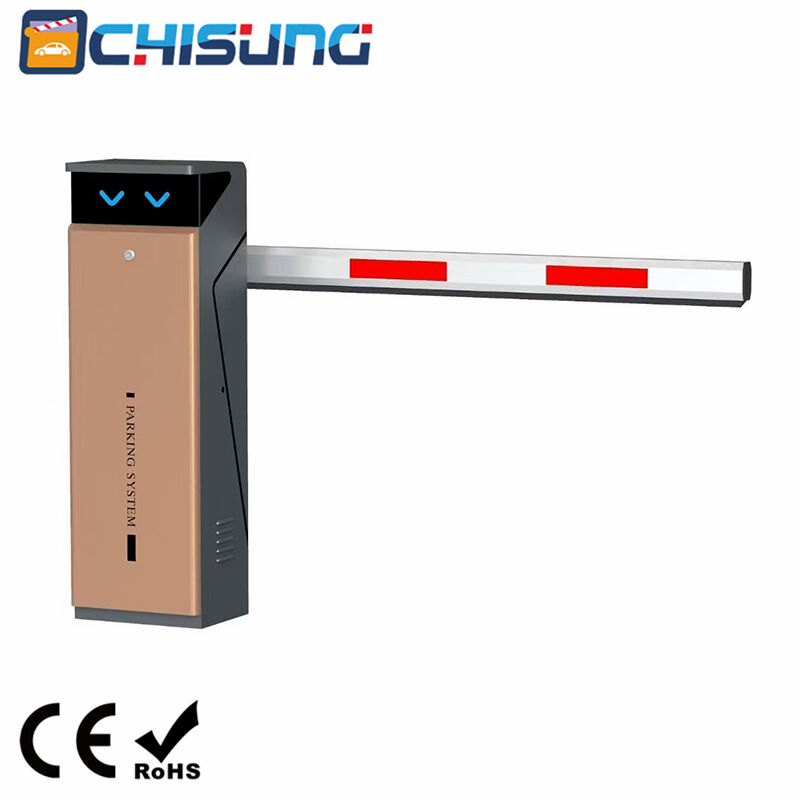

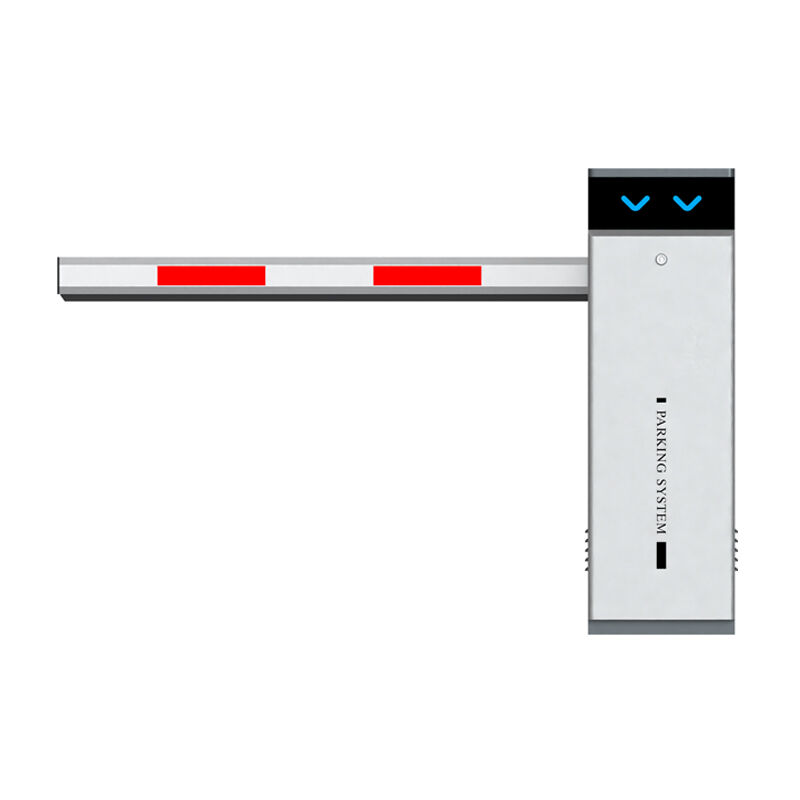

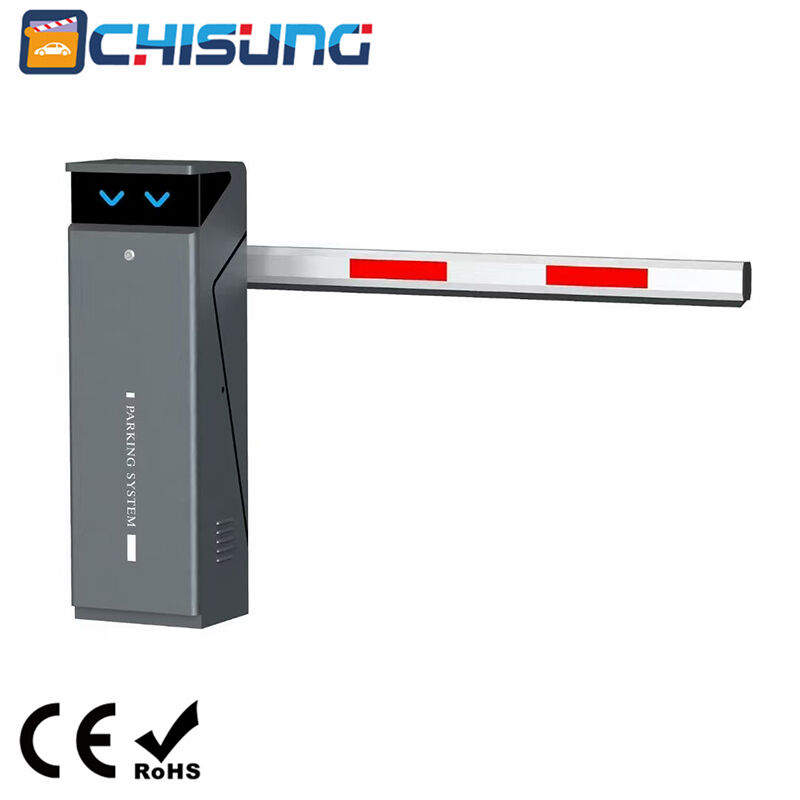

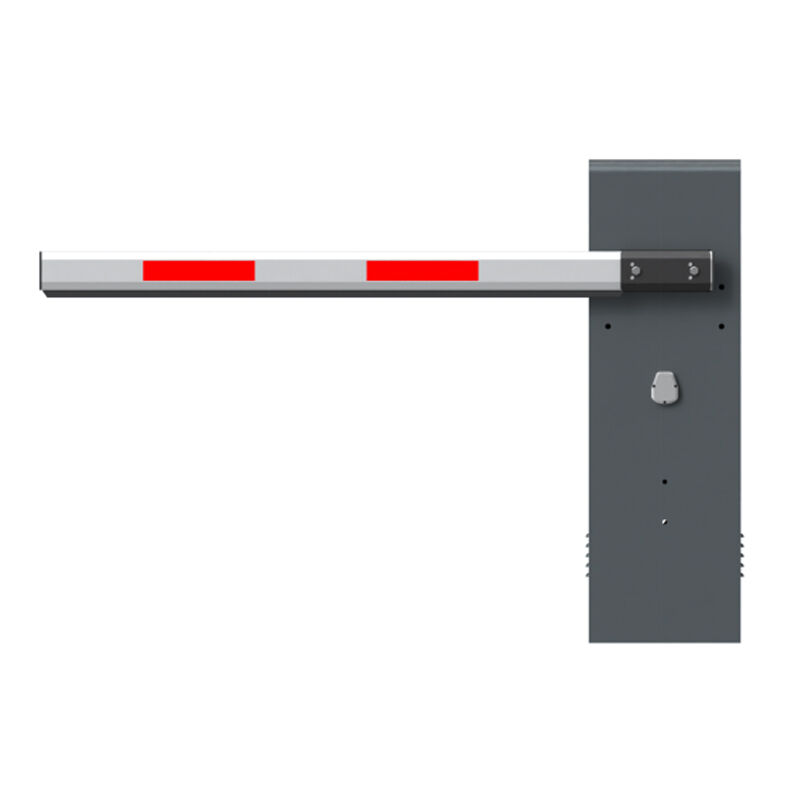

The CSDZ96A is a DC brushless intelligent digital barrier gate meticulously designed for unmanned parking operations, integrating core functions such as event detection, status awareness, and remote operation and maintenance. It can accurately detect abnormal events such as gate bar status anomalies, forced gate lifting, and gate collisions (optional), and proactively trigger alarms and initiate remote operator intervention to effectively prevent losses. Leveraging intelligent parking lot cameras, it enables remote configuration, firmware upgrades, and log viewing. Built with a security lock mechanism, it offers one-click encrypted control to ensure the absolute security of the gate opening control unit. It comprehensively safeguards traffic safety and equipment stability, facilitating efficient operations in smart venues.
This product comes in three types: straight bar barrier gate, folding arm barrier gate, and fence barrier gate. Its fashionable and trendy appearance, coupled with its unique visual appeal, exudes a sense of nobility and elegance, providing a visually pleasing experience. It harmonizes exceptionally well when paired with its surroundings, making it the preferred choice for unmanned parking scenarios in parking lots, hotels, schools, garden villas, residential communities, enterprises, and institutions.
Description:
Key Product Features & Benefits
High-Power 24V Brushless DC Permanent Magnet Motor
Real-Time Anomaly Detection & Alert System
AI-Powered Event Detection & Evidence Capture
IoT-Enabled Remote Management
Enhanced Security Protocols
Comprehensive Audit Trail & Forensics
Advanced Safety Mechanisms
Customizable Operation Modes
Versatile Gate Compatibility
Fail-Safe Manual Override
Applications:
Key Application Scenarios
High-Security Vehicle Access Control
Intelligent Traffic Monitoring & Enforcement
Remote Management & Maintenance Efficiency
Flexible Deployment for Diverse Environments

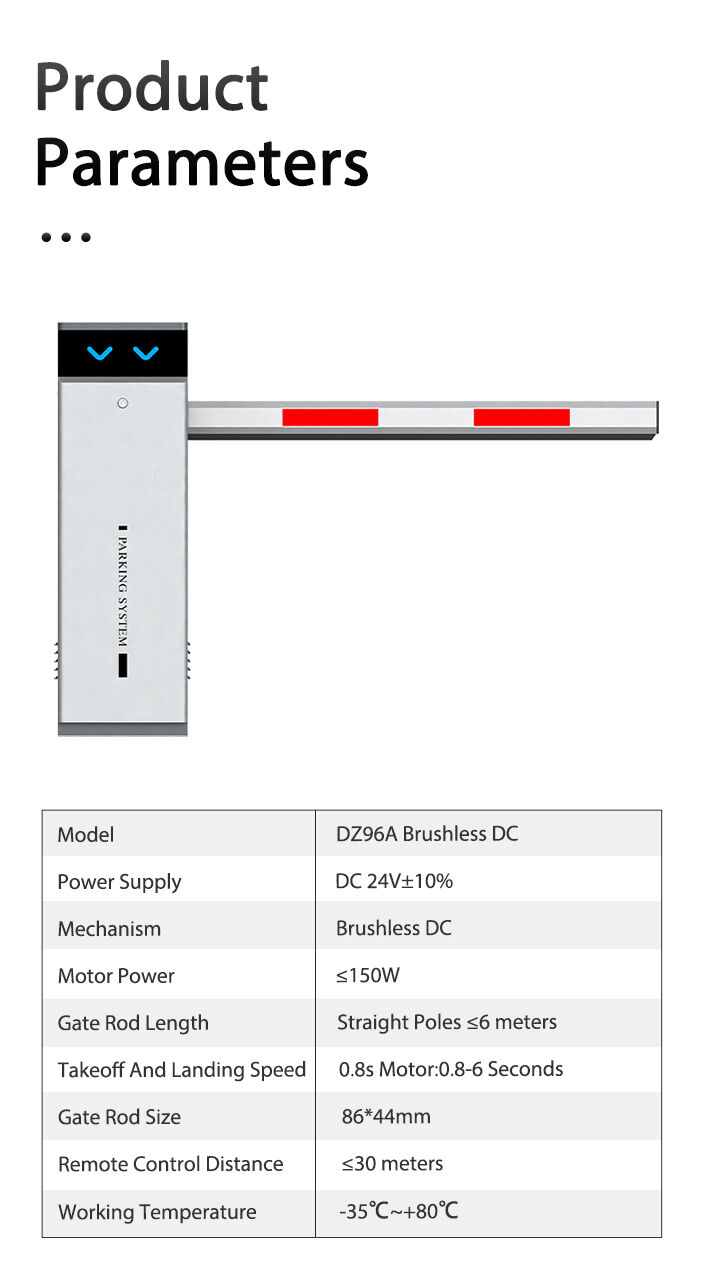

Specifications:
| Working Voltage | DC 24V ± 10% |
| Rated Power | ≤ 150W |
| Operating Temperature | -35℃ ~ 80℃ |
| Motor core | DC brushless |

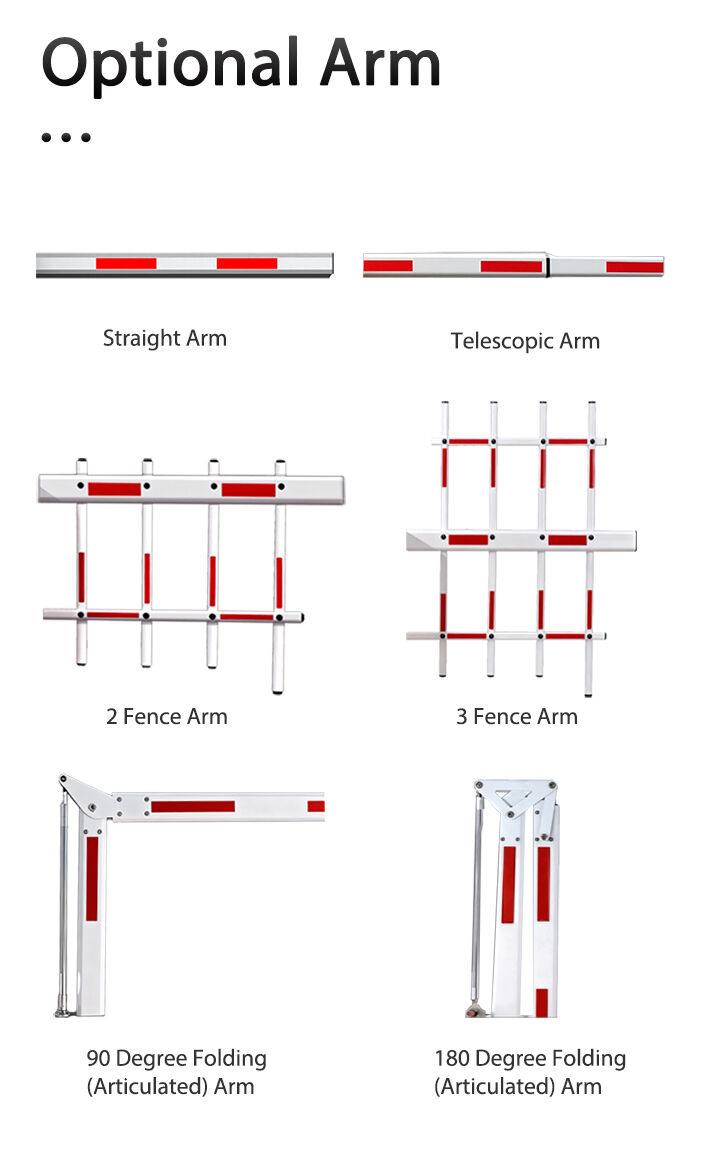

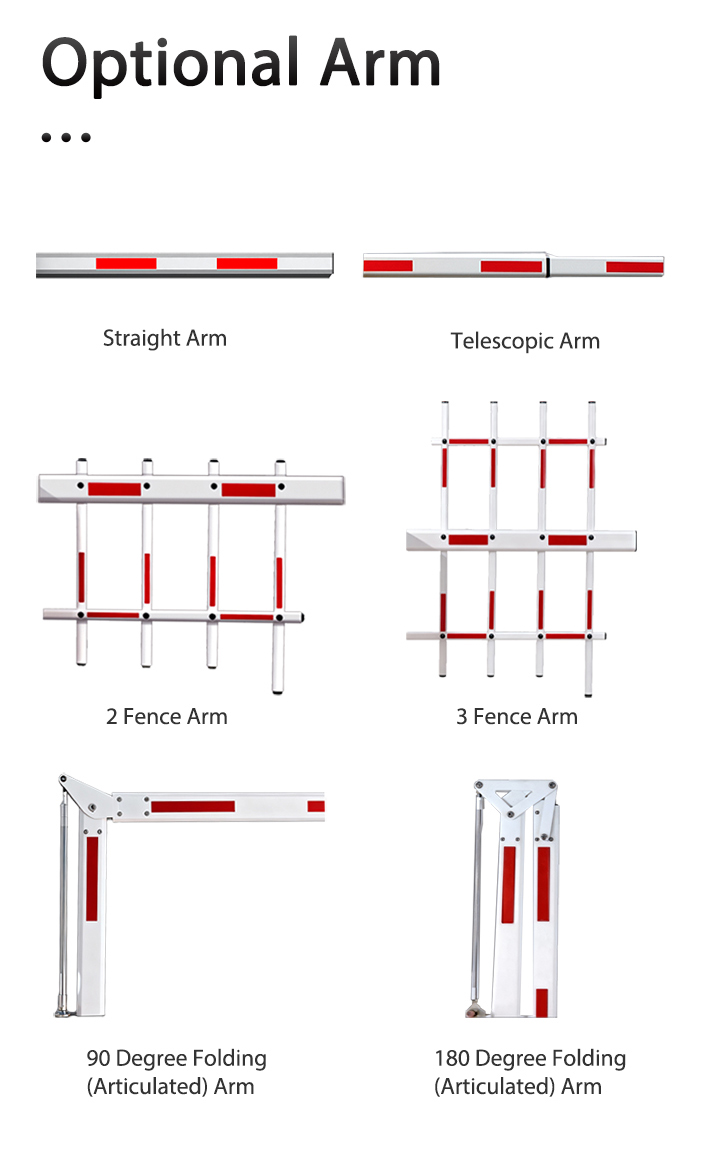

| Optional arm types | straight arm, curved arm, fence arm, foam arm |
| Gate lever size | 86*44mm |
| Remote control | Can learn up to 50 remote controls |
| Remote control range | ≤30 meters |
| Remote control frequency | 433MHz |
| Input interface | Switching signal |
| Insulation level | F |
| IP | IP54 |
| Chassis material | SPCC carbon steel |
| Chassis craftsmanship | Spray painting and baking paint |
| Chassis thickness | 1.5mm |

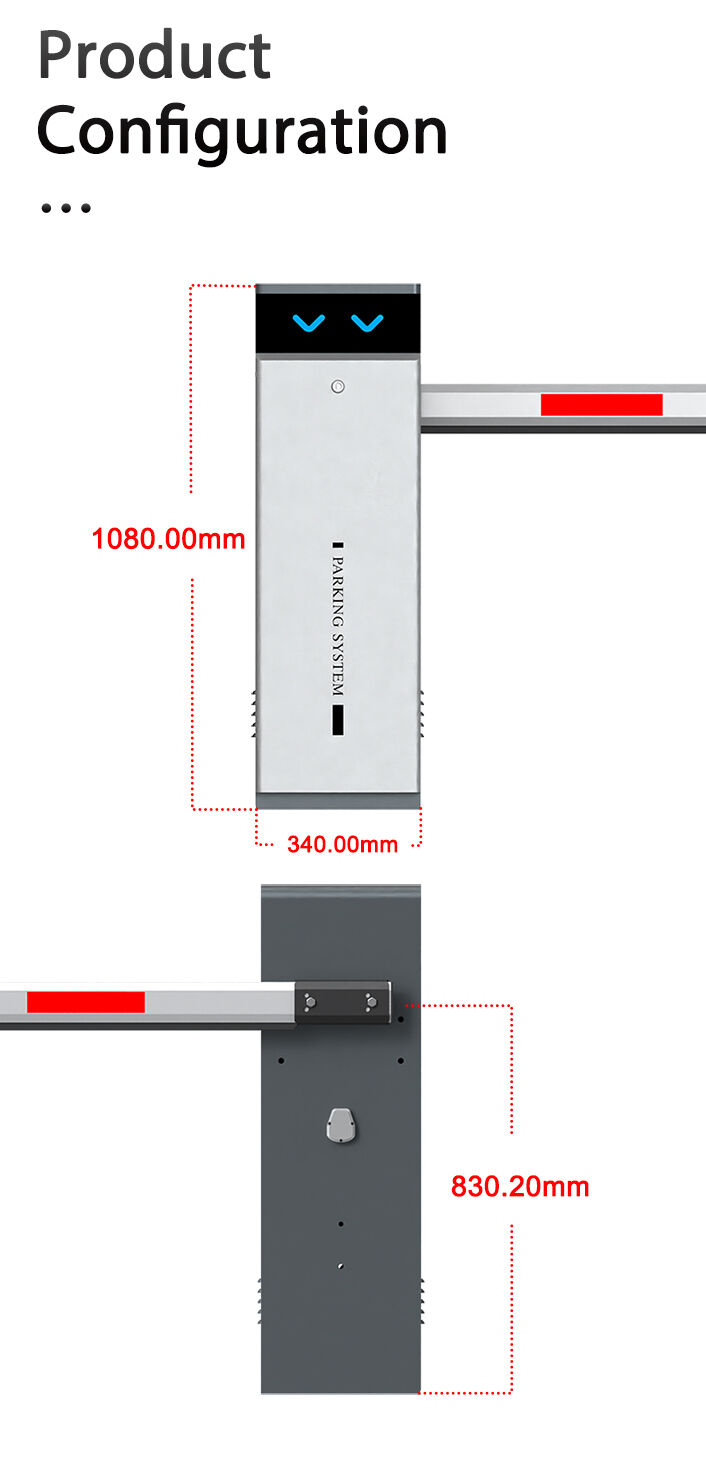

| Outline dimensions | 340*264*1080mm (length * width * height) |
| Lifting speed | Adjustable from 0.8s to 3s |
Competitive Advantage:
Proactive Security: Combines AI surveillance with real-time alerts to minimize risks.
Smart Connectivity: Full IoT integration for remote control and diagnostics.
Tamper-Proof Design: Encrypted signals and anti-cloning remotes ensure unparalleled safety.
Adaptability: Fits diverse gate types and operational scenarios with modular settings.
Reliability: Durable motor and manual backup guarantee uninterrupted performance.
Effortless Management: Remote access and IoT integration reduce operational overhead.
Future-Ready: Scalable design adapts to evolving security and traffic demands.
