Product Information:
| Place of Origin | China,Shenzhen |
| Brand Name | CHISUNG |
| Model Number | CSTSE024-OEM |
| Certification | CE |
| Minimum Order Quantity | 1unit |
| Price | 350USD |
| Packaging Details | Carton/Wooden,According to customer requirements |
| Delivery Time | 7-15days |
| Payment Terms | L/C ; T/T ; MoneyGram |
| Supply Ability | 3000units/Month |
Quick Detail:
Different names for products：
Tripod Turnstile
three-roller gate
Tripod Turnstile Series
Three-Arm Turnstile
Truncate Turnstile
Automatic Roller Turnstile
Three-barrier Turnstile
Three-roller Turnstile
Ticket-checking Tripod Gate
Scenic Spot Entry Barrier
Three-roll Gate Ticketing System
Three-roller Barrier Gate
Tri-roller Gate

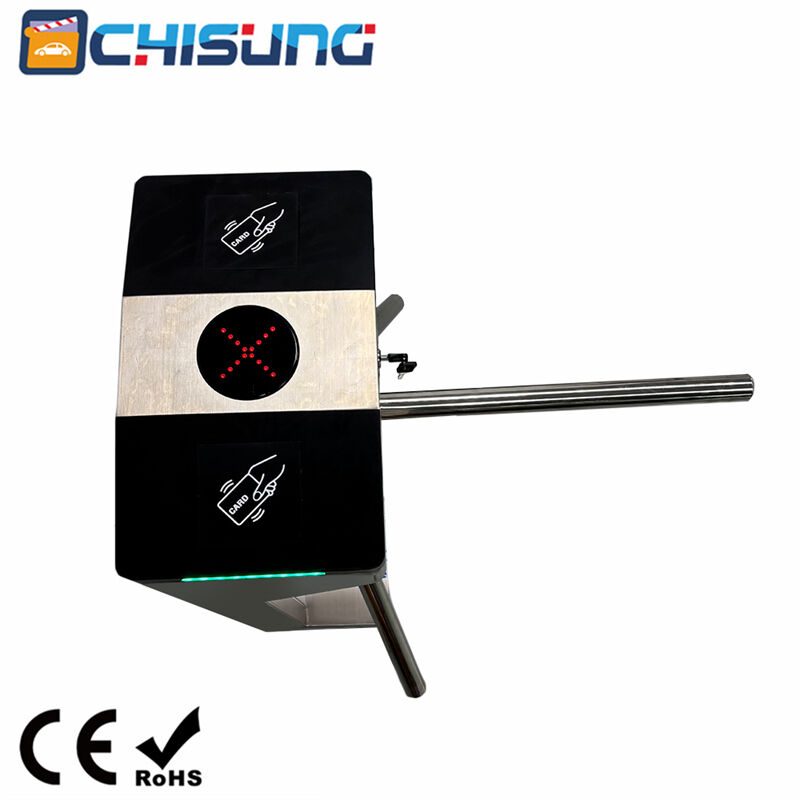

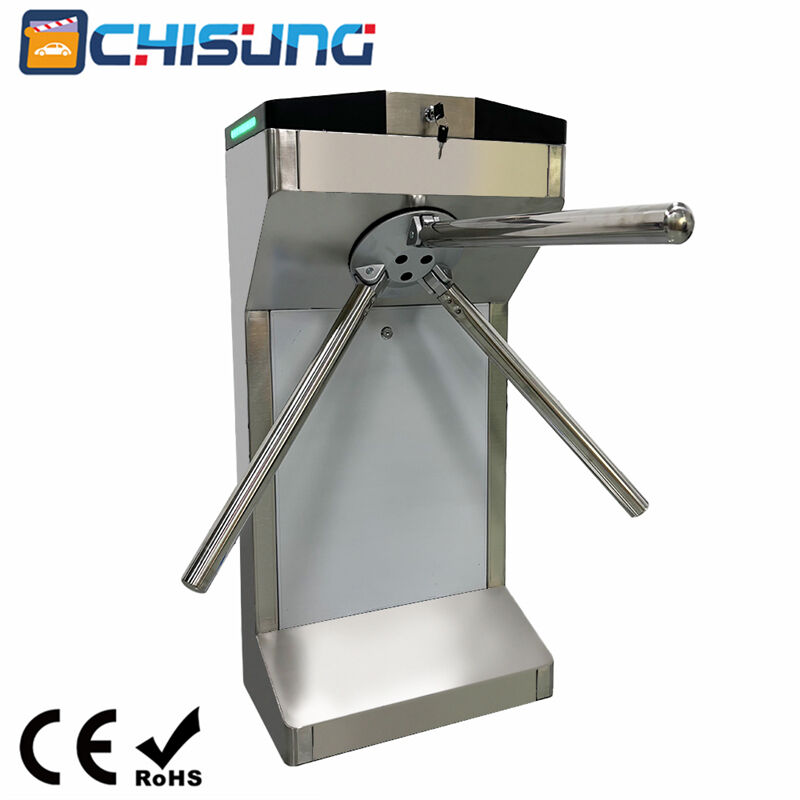

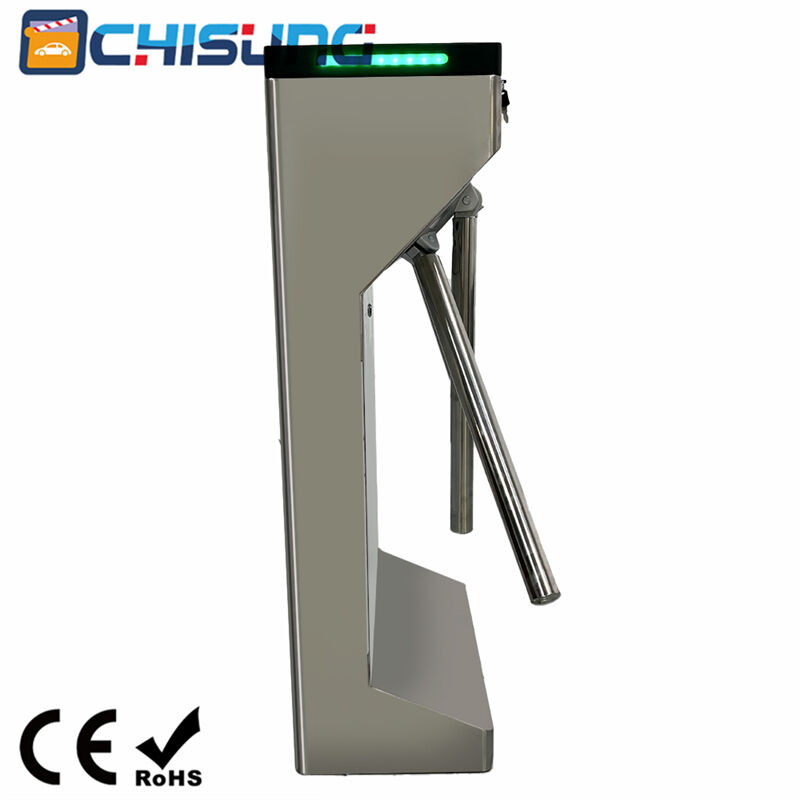

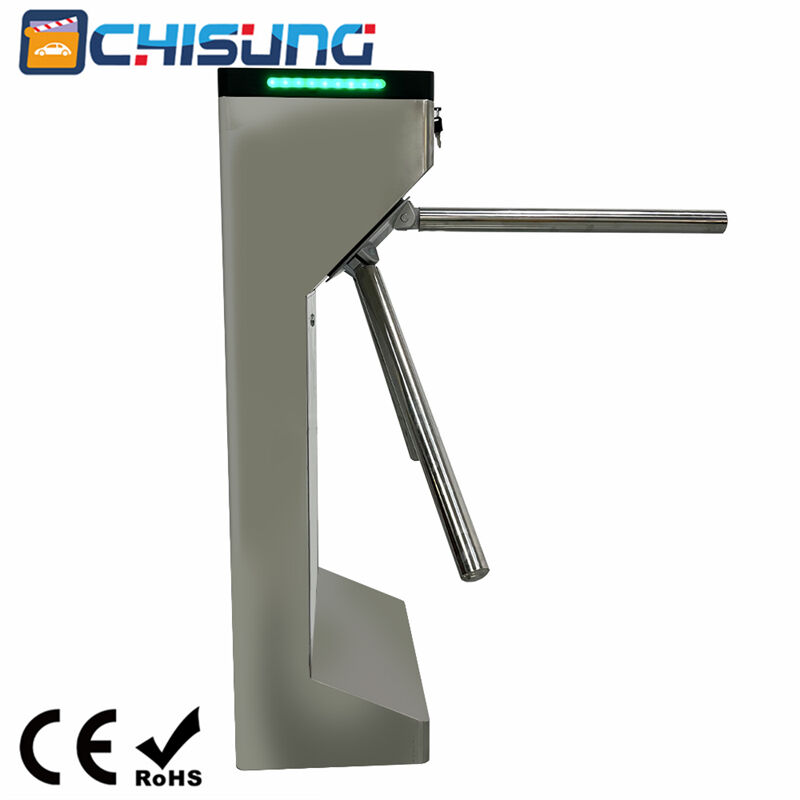

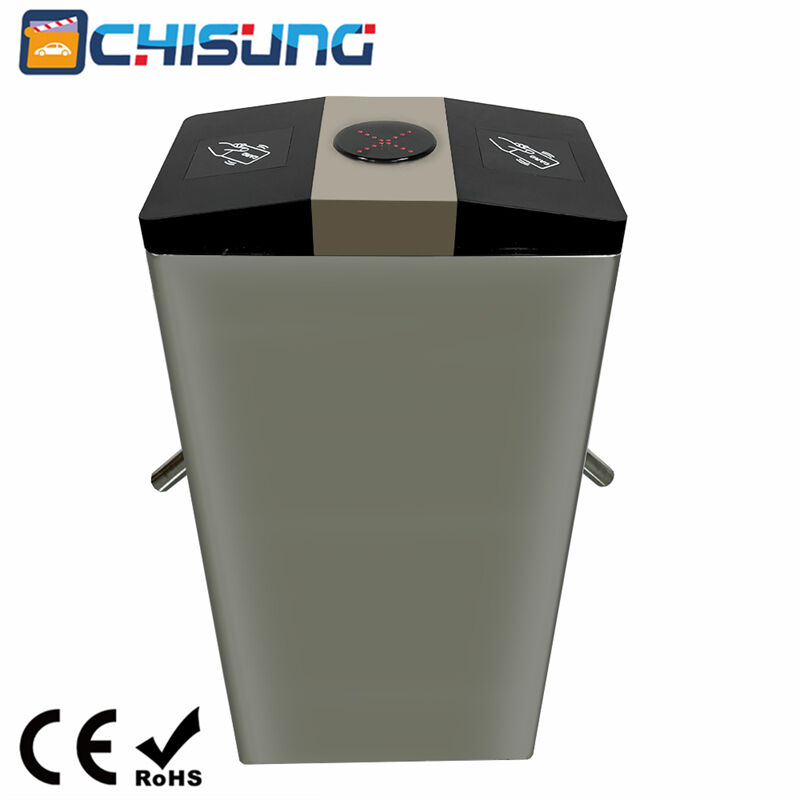

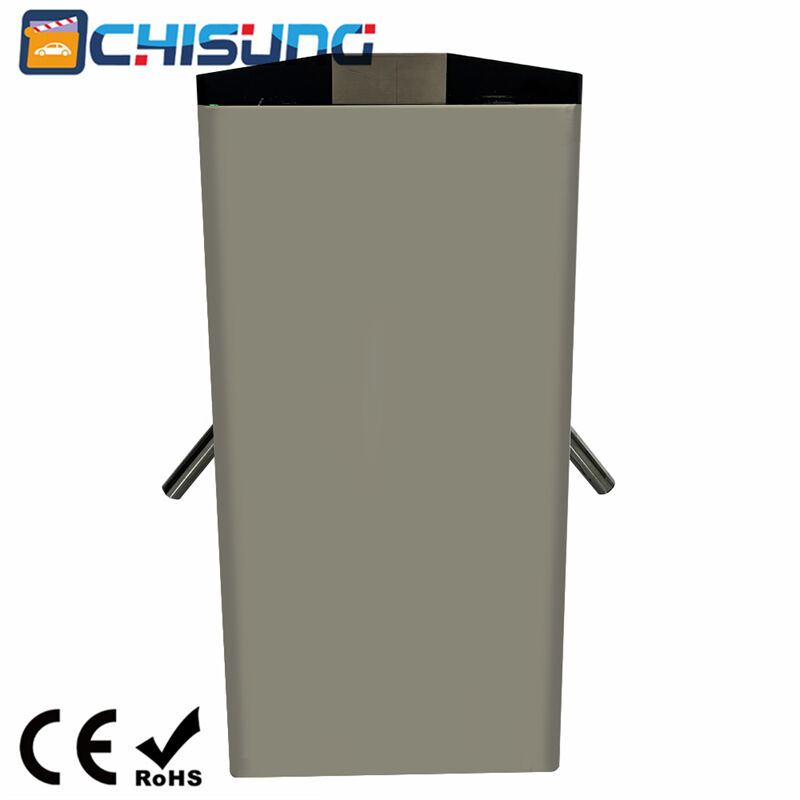

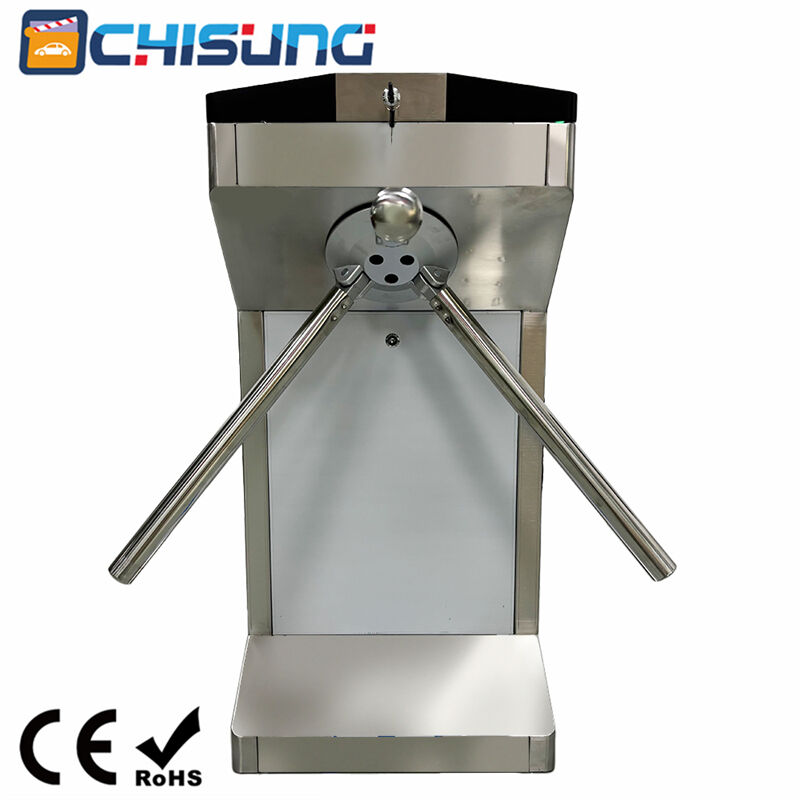

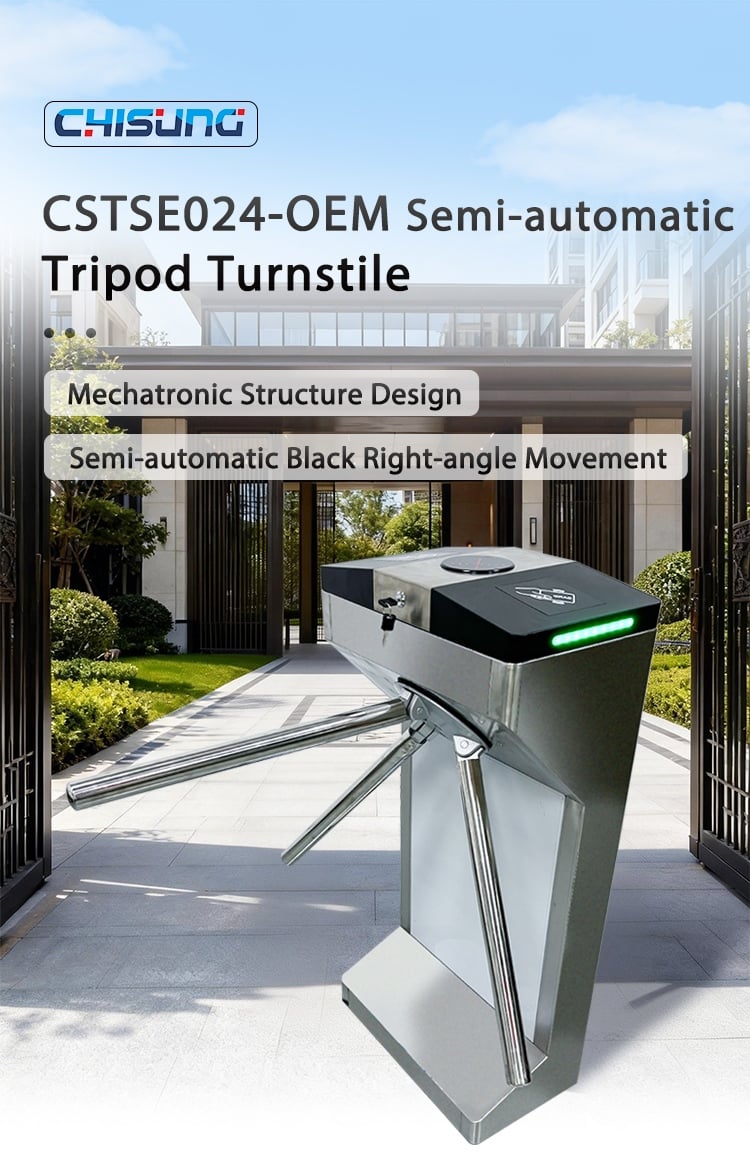

CHISUNGCSTSE024-OEM three-roller gate, made of 304 stainless steel, features a gate rod length of 500mm. The maximum bearing capacity of the gate rod is 80kg, and the working driving force of the gate rod is 2kg. It is suitable for indoor and outdoor environments ranging from -40℃ to +55℃. It adopts a modular design and production process, precise photoelectric positioning, and a specially crafted turntable. It is simple, reliable, durable, and silent. It allows for two-way passage and prevents reverse passage. If no one passes through within 5 seconds, the machine will automatically relock. The passage speed is approximately 30~40 people per minute. The gate rod automatically falls when the power is cut off, and it can be manually raised after the power is restored.

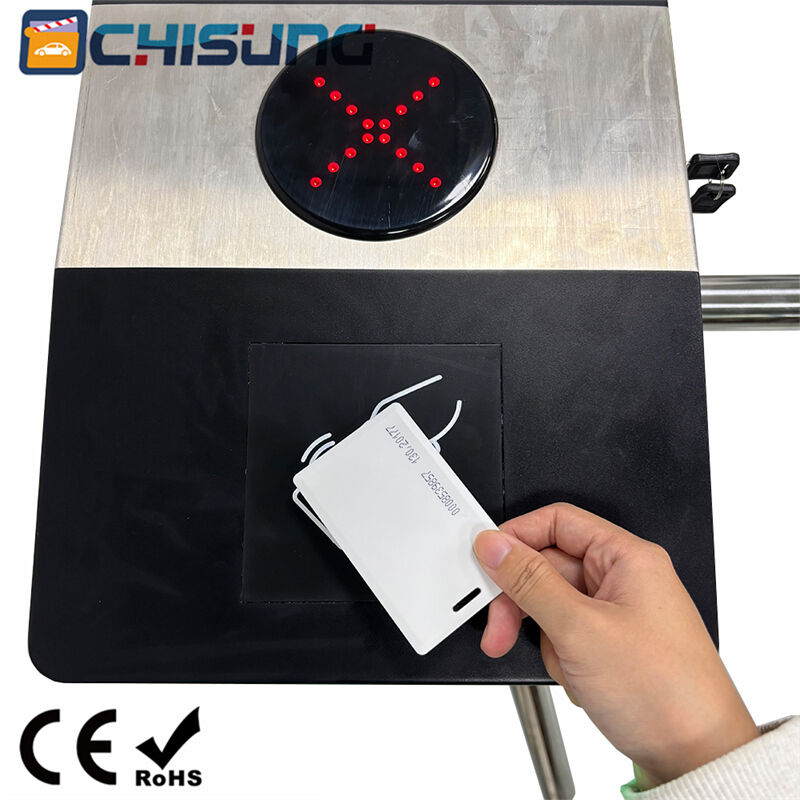

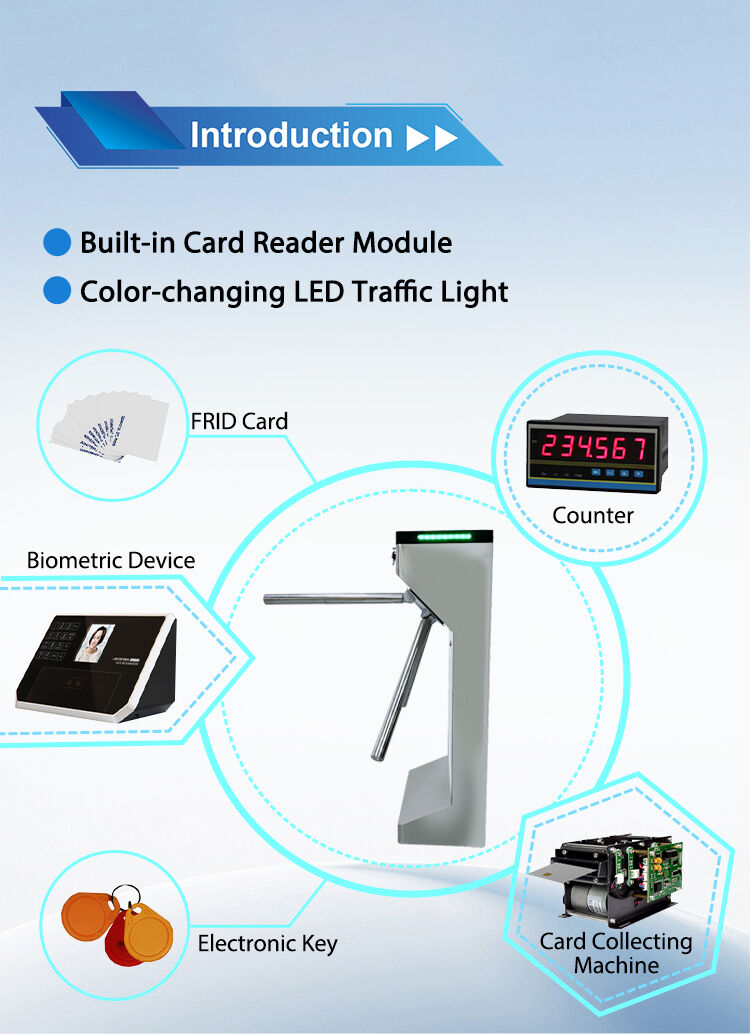

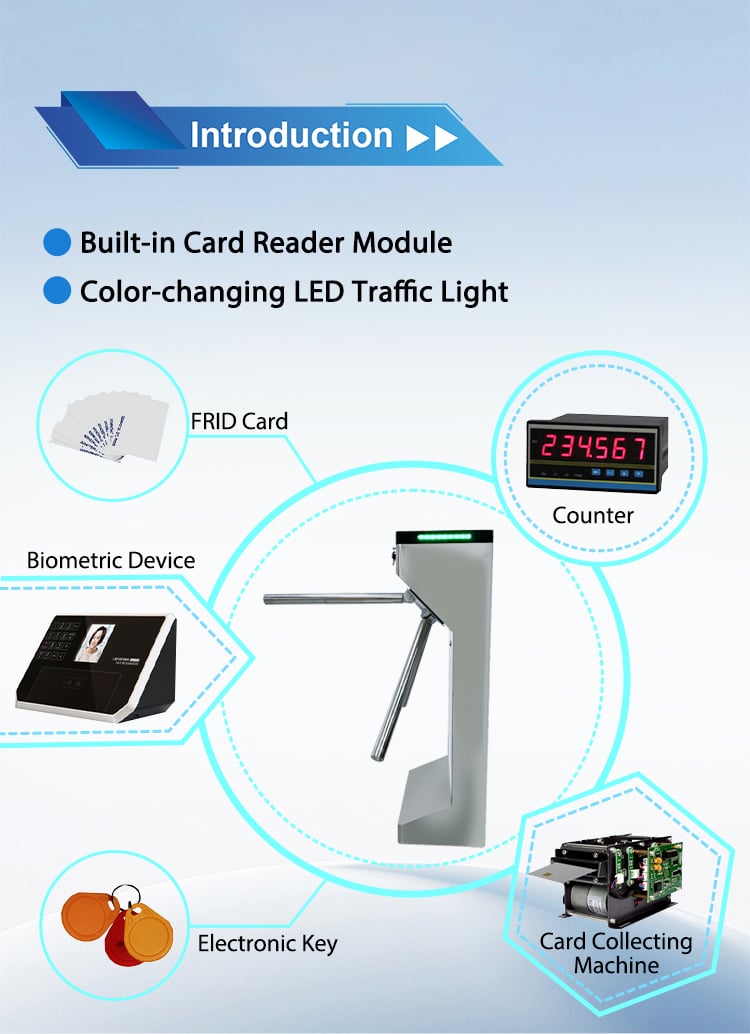

It can be externally connected to a bidirectional flow counter to display the number of people passing in each direction. The input of dry contact signals can be integrated with intelligent management systems such as access control systems, attendance systems, and parking lot systems.
Description:

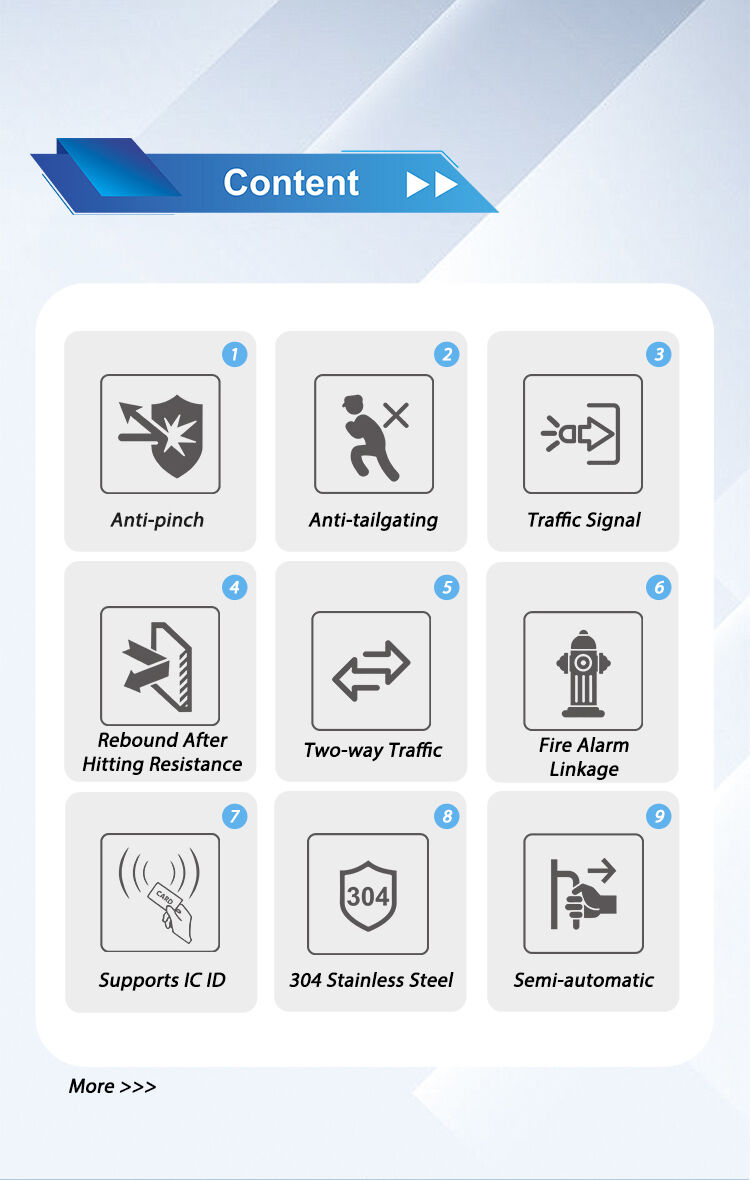

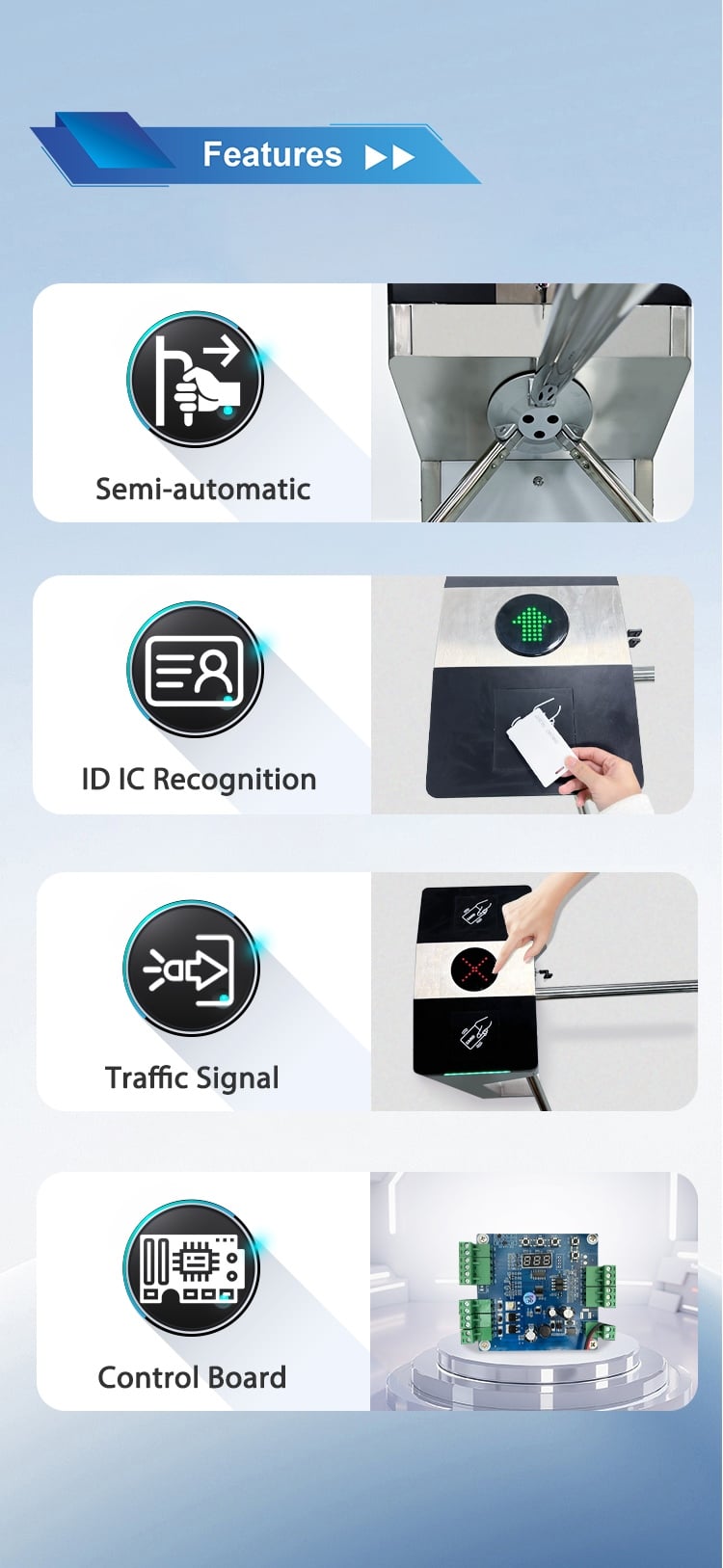

Features:

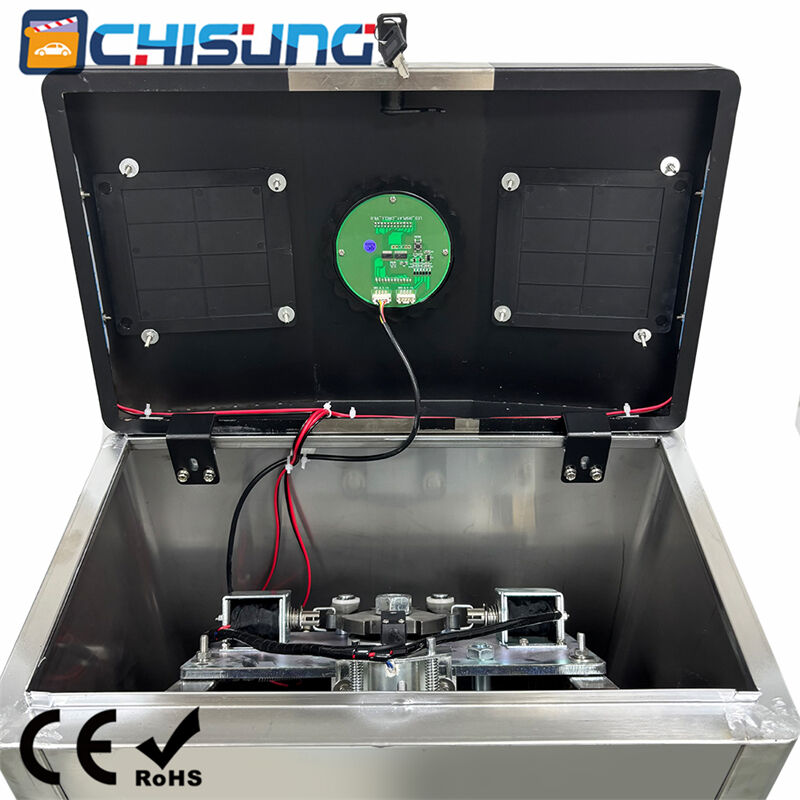

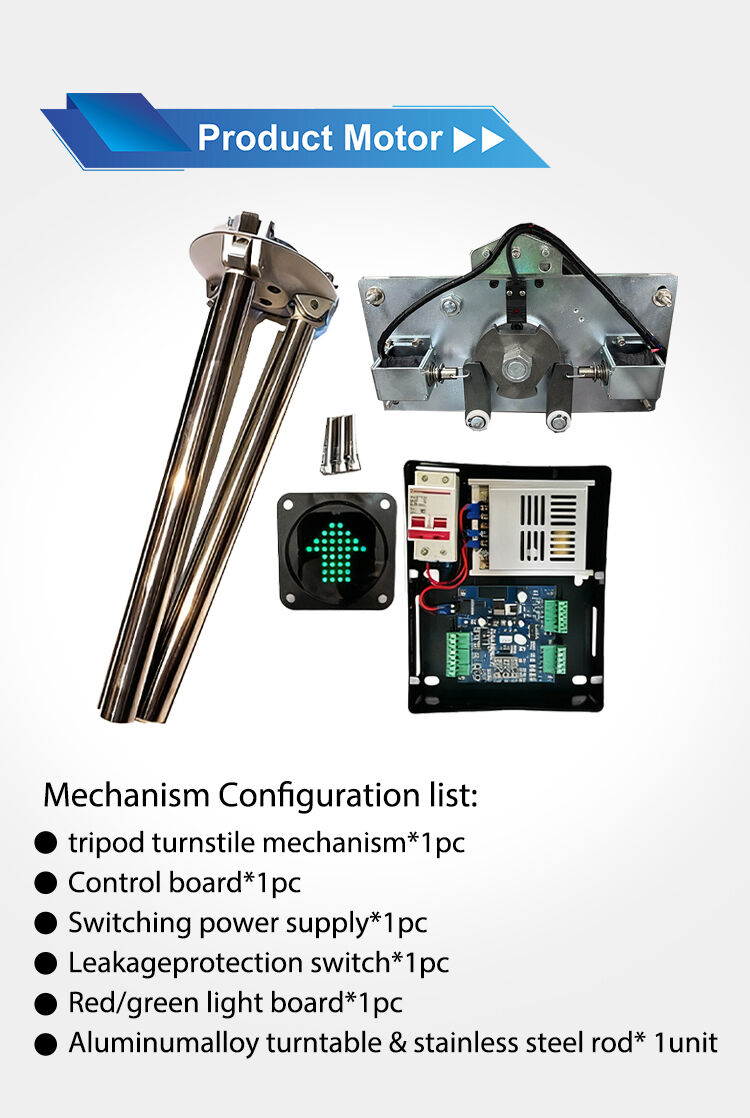

1. Mechatronic structural design, featuring a specially crafted turntable and a stable and reliable mechanical self-locking mechanism
2. It has bidirectional traffic function
3. If the gate is not passed through within 5 seconds after the gate-opening signal is given, it will automatically lock again
4. It features automatic rod lowering upon power loss, and manual rod raising is required to restore power (optional)
5. It can be externally connected to a bidirectional flow counter, which can display the number of people passing in each direction. When a person passes through, the corresponding counting port outputs a pulse width signal with a width of about 200. If no one passes through, there will be no output from the corresponding counting port for 200ms
6. Anti-reverse passage
Applications:

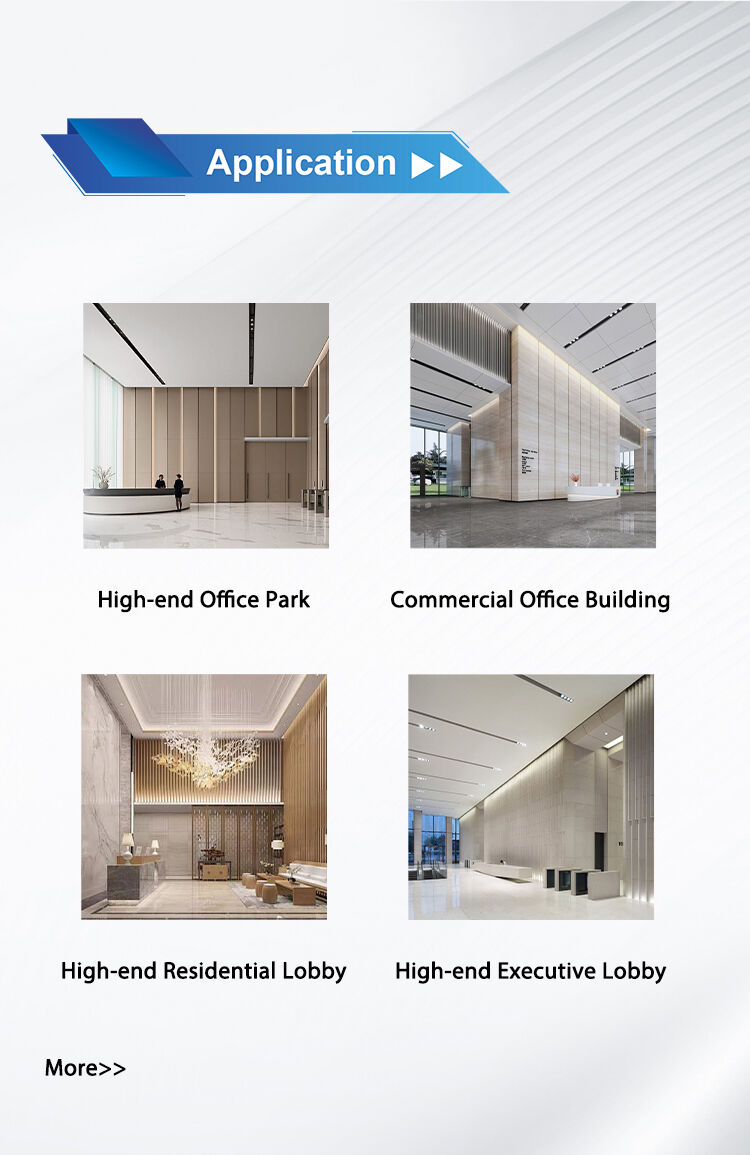

The tripod turnstile gate is primarily used for crowd control and access verification, commonly found in places such as stations, subways, tourist attractions, and factories. It enables authorized access through integration with access control and attendance systems, supporting both single-direction and bi-directional passage modes. Additionally, it is suitable for venues requiring authorized entry, such as factory attendance systems, canteen consumption areas, golf courses, monthly card recreational centers, and units requiring stringent security measures, such as anti-static control zones in electronic factories.
Specifications:
| 1. Power supply voltage/frequency | DC24V |
| 2. Operating voltage of the movement | DC24V |
| 3. Rated power | 20W |
| 4. Operating temperature | -40℃~+55℃ |
| 5. Relative humidity | ≤95% without condensation |

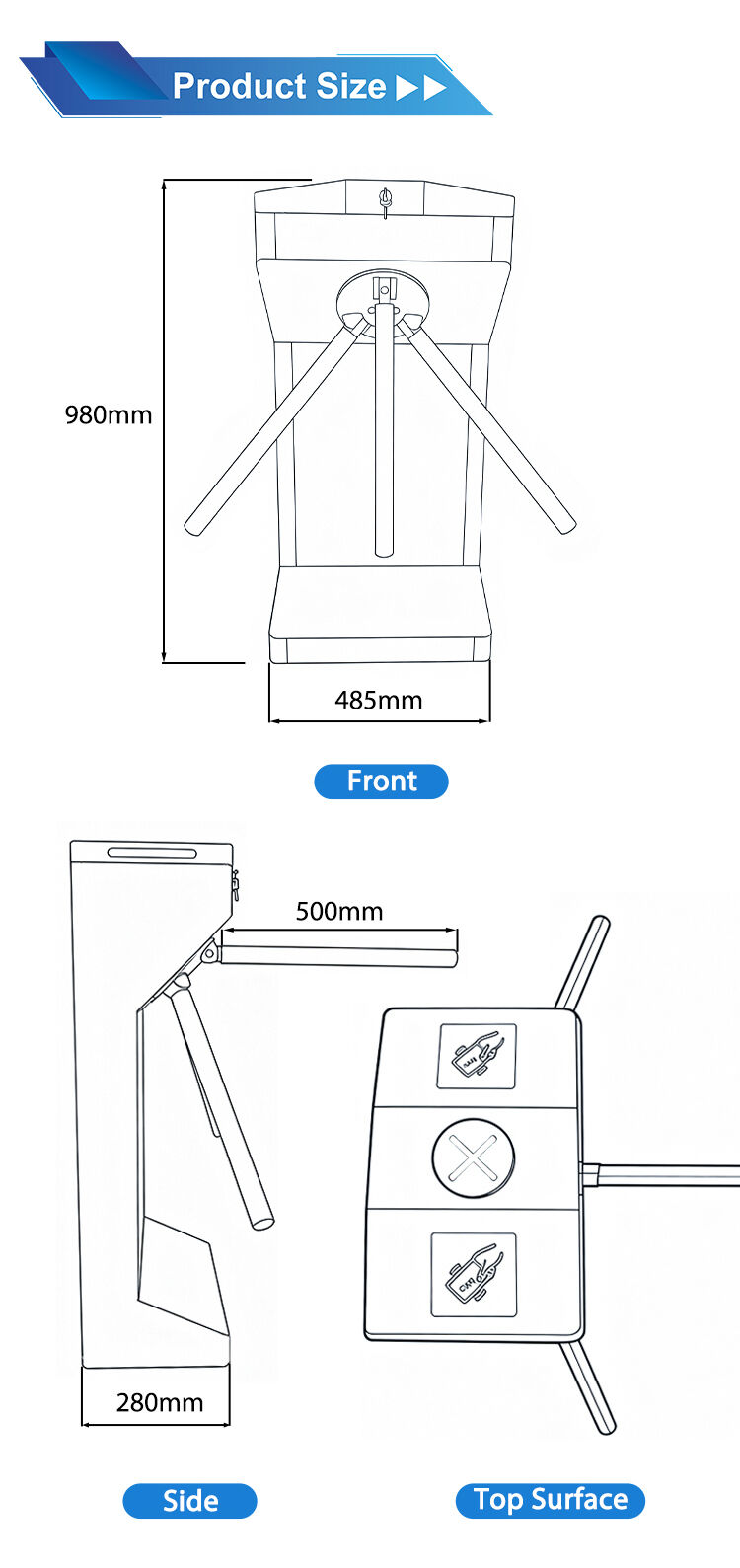

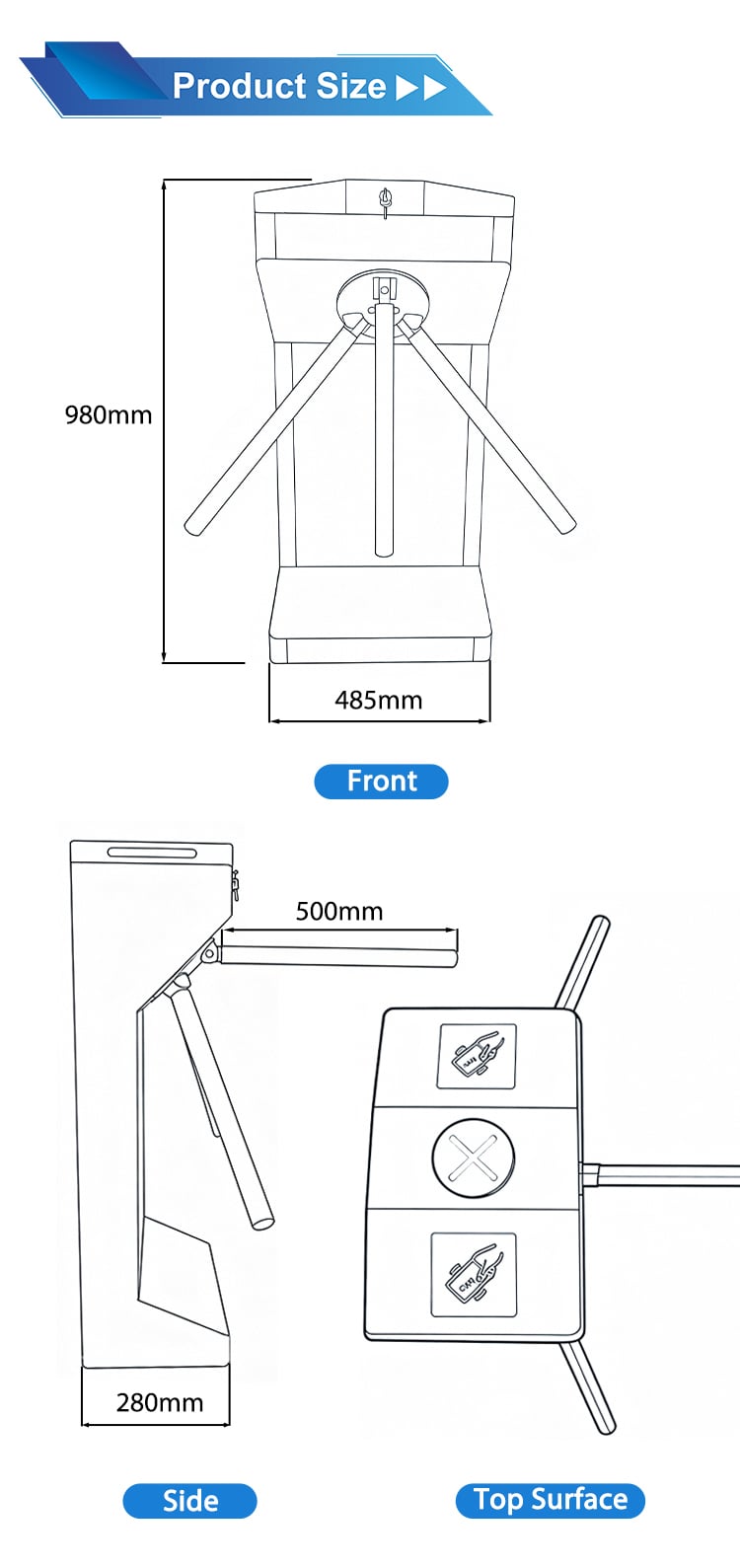

| 6. Gate lever length | 500mm |
| 8. Maximum bearing capacity of the gate lever | 80kg |
| 9. Driving force for gate lever operation | 2kg |
| 10. Working environment | Indoor and outdoor |
| 11. Passenger flow rate | 30~40 people/minute |
| 12. Input interface | normally open dry contact signal, closing time 200 ~500ms |
| 13. Output interface | Counting output, transistor output, active low, with a width of about 200ms, convenient for connecting to system input interfaces within 24 |
Competitive Advantage:
Cost and Structural Advantages
Cost-effective: Key components are sourced domestically, reducing both initial purchase and maintenance costs compared to wing gates or swing gates, without the need for additional anti-tailgating modules.
Anti-tailgating design: The precise spacing between the three rods, combined with a mechanical locking mechanism, physically prevents tailgating, eliminating the need for extra equipment.
Operational and Maintenance Advantages
Easy installation: Standardized interfaces allow for quick setup by general technicians without specialized training, featuring simple wiring and a fully Chinese-language software interface.
Low maintenance: With a low failure rate of core components and a self-checking function for rapid troubleshooting, the simple and clean design ensures intuitive user guidance, requiring no learning process for first-time users.
Functional and Adaptability Advantages
Stable operation: Smooth and quiet performance, with automatic drop-bar on power-off and lift-bar on power-on, along with time and self-protection functions.
Flexible integration: Supports standalone operation or wireless communication with intelligent management systems, allowing for scalable channel quantities tailored to various settings such as shopping malls, construction sites, and office buildings.
These advantages make CHISUNG tripod turnstiles a reliable and efficient solution for access control needs.
