CSHY11 High-def License Plate Recognition Machine Dolphin I Model 18.5-inch High-Brightness LCD Screen
- Overview
- Recommended Products
- In bustling shopping malls and business centers, the CSHY11 ensures swift vehicle access and exit, minimizing wait times and enhancing customer satisfaction. Its ultra-high-definition camera captures clear images even in challenging lighting conditions, while the large LCD screen displays payment information intuitively. Advertisements can be customized to promote mall events or special offers, generating additional revenue.
- For gated communities, the CSHY11 provides a secure and efficient access control system. Residents enjoy seamless entry with automatic license plate recognition, while visitors can be managed through temporary access codes or permits. The intelligent voice broadcast and LCD display enhance communication, ensuring a welcoming environment.
- In corporate settings, the HY11 streamlines parking management, reducing administrative overhead. It supports multiple management modes, including local, cloud, and mobile terminal coordination, allowing for flexible and centralized control. The system's durability and energy efficiency make it a cost-effective choice for long-term use.
- At stadiums, exhibition centers, and public parks, the CSHY11 handles high traffic volumes with ease. Its wide-angle recognition and adaptive lighting adjustments ensure accurate identification in any scenario. Customizable advertisements can inform visitors about upcoming events or promotions, enhancing the overall visitor experience.
- In fast-paced transportation hubs, the CSHY11 plays a crucial role in managing vehicle flow efficiently. Its rapid recognition and intuitive display minimize congestion, while the system's robustness ensures uninterrupted service. Advertisements can be tailored to travelers, promoting services or destinations.
Product Information:
| Place of Origin | China,Shenzhen |
| Brand Name | CHISUNG |
| Model Number | CSHY11 |
| Certification | CE |
| Minimum Order Quantity | 1unit |
| Price | 585USD |
| Packaging Details | Carton/Wooden,According to customer requirements |
| Delivery Time | 7-15days |
| Payment Terms | L/C ; T/T ; MoneyGram |
| Supply Ability | 3000units/Month |
Quick Detail:
License Plate Recognition Camera
LPR Machine
LPR Camera
LPR Camera License Plate Recognition
License Plate Recognition
LPR System
ANPR LPR camera
LPR Parking System
Automatic Number Plate Recognition System
ANPR Camera
License Plate Recognition All-in-One Machine
Integrated LPR Device
Intelligent Capture Unit for License Plates
License Plate Recognition System
Vehicle License Plate Recognition
The Dolphin I model high-definition license plate recognition all-in-one machine, abbreviated as CSHY11, is specifically designed for parking toll management. It integrates multiple functions such as ultra-high-definition license plate recognition, intelligent voice broadcast LCD screen display, vehicle information display, environmental lighting, and image and video advertising playback. It can adopt various system management modes such as local, cloud, and mobile terminals for coordinated management, meeting the diversified operational and management needs of parking lots, reducing the labor costs of operating parking lots, improving the efficiency of vehicle access, enhancing the management level of properties, and achieving all-round cost reduction, efficiency improvement, and income increase in parking lot management.
Description:

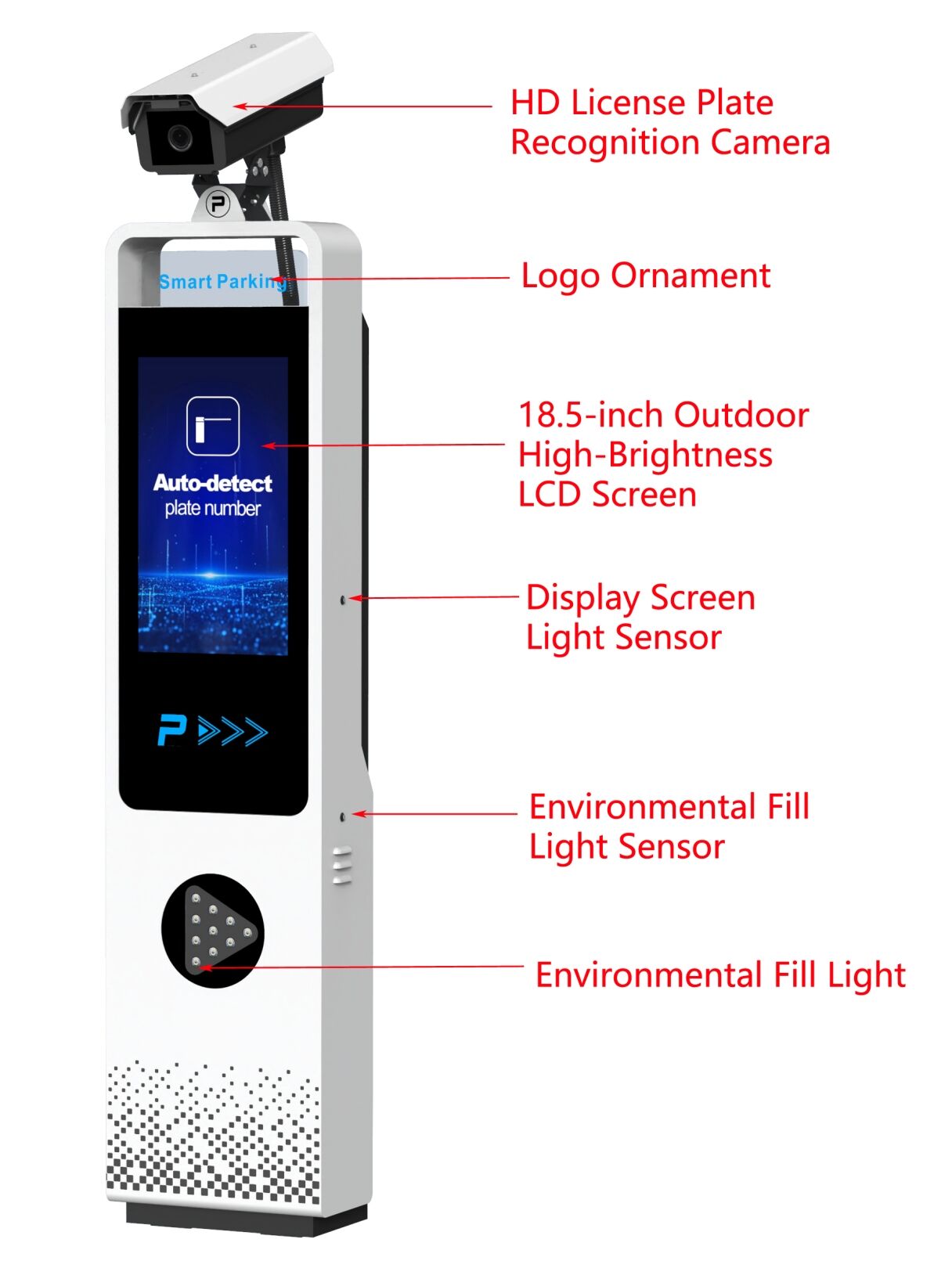

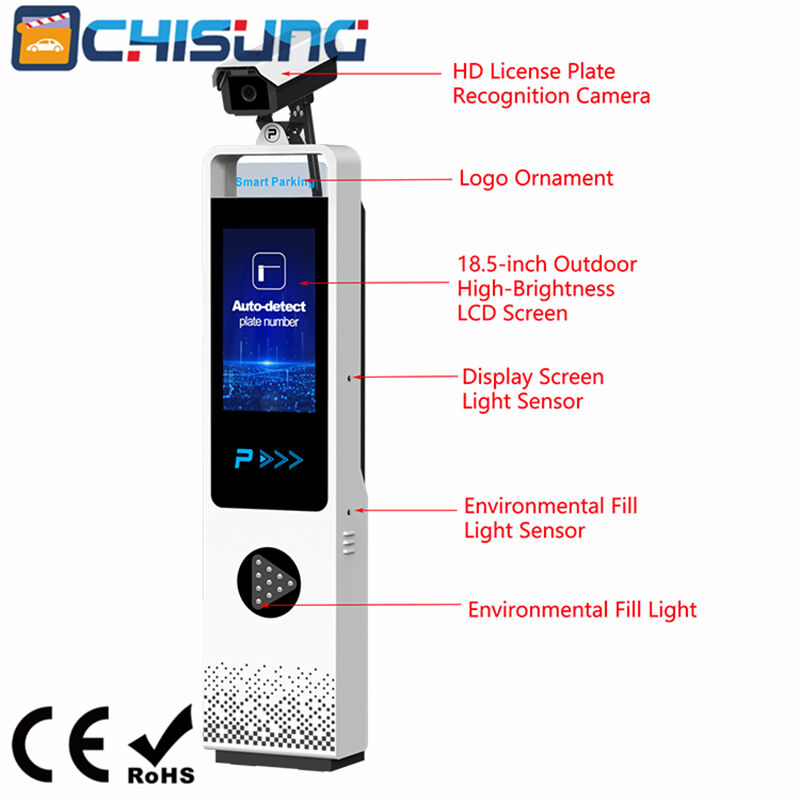

Structural layout

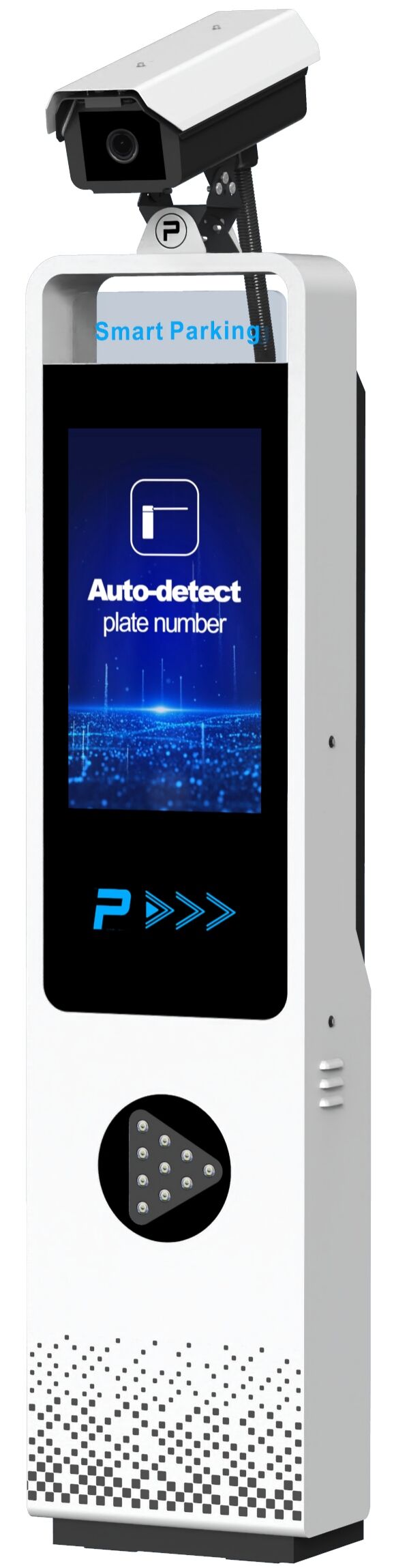

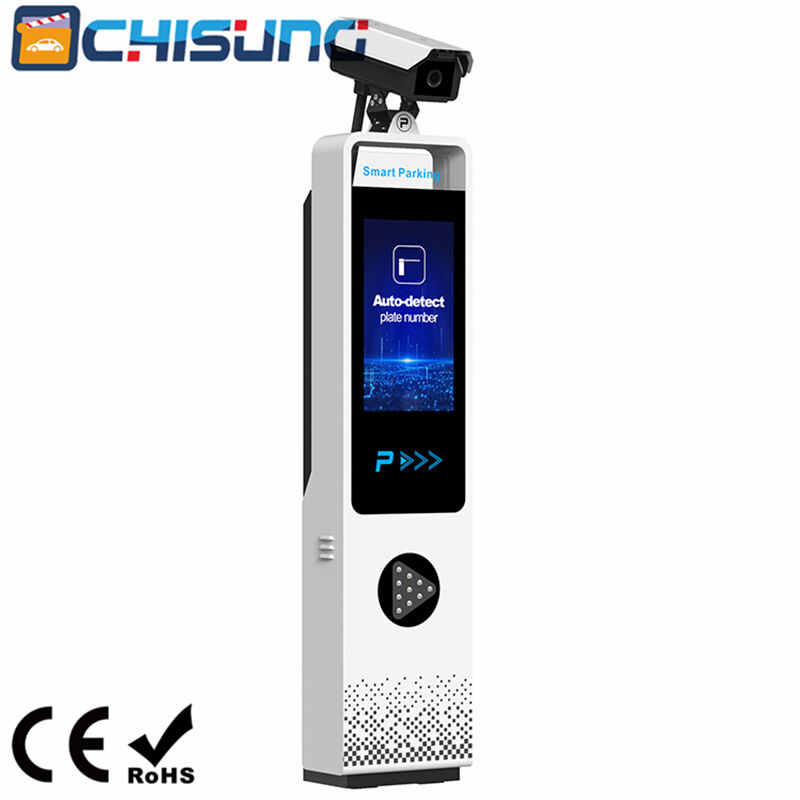

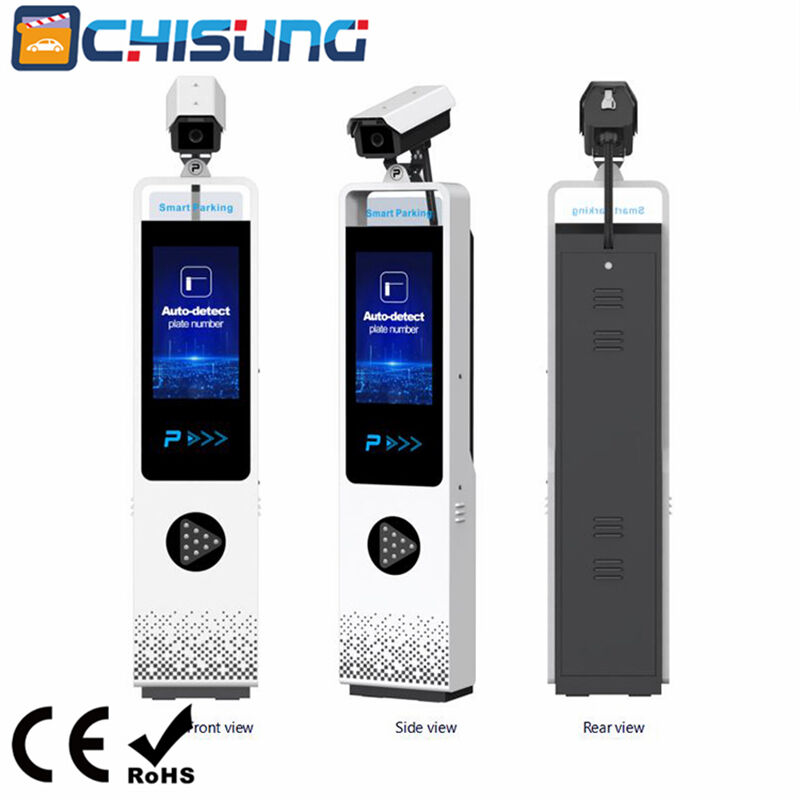

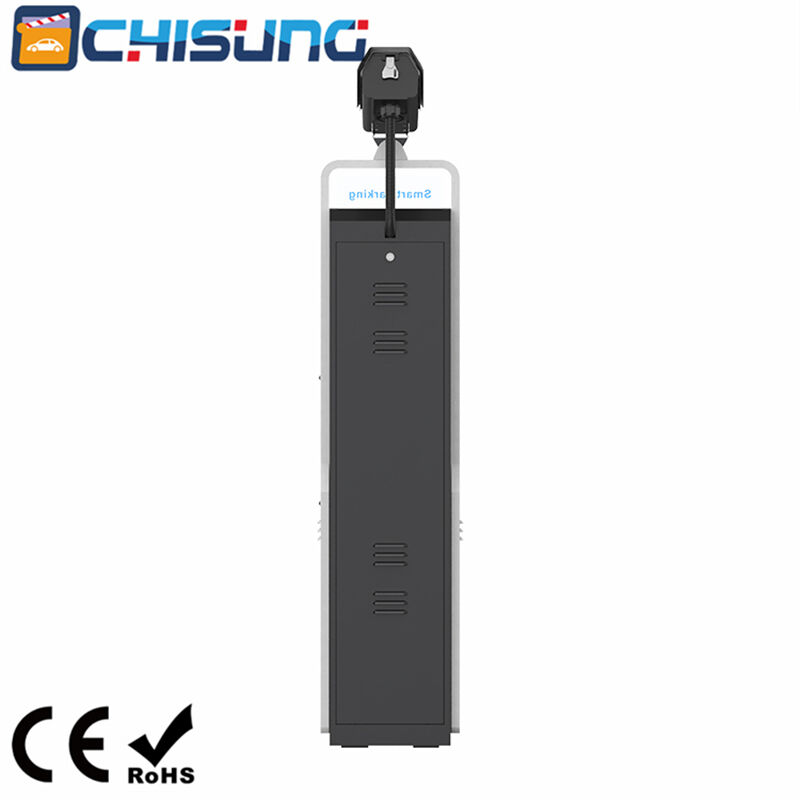

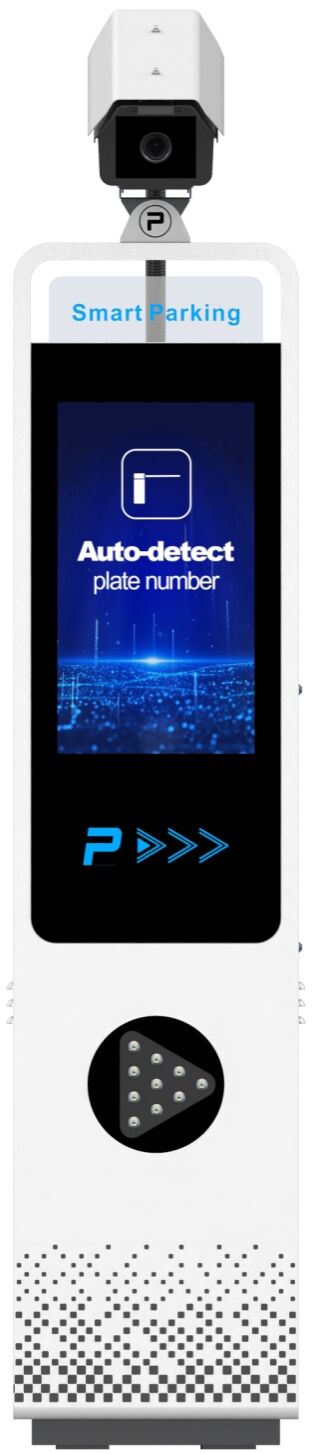

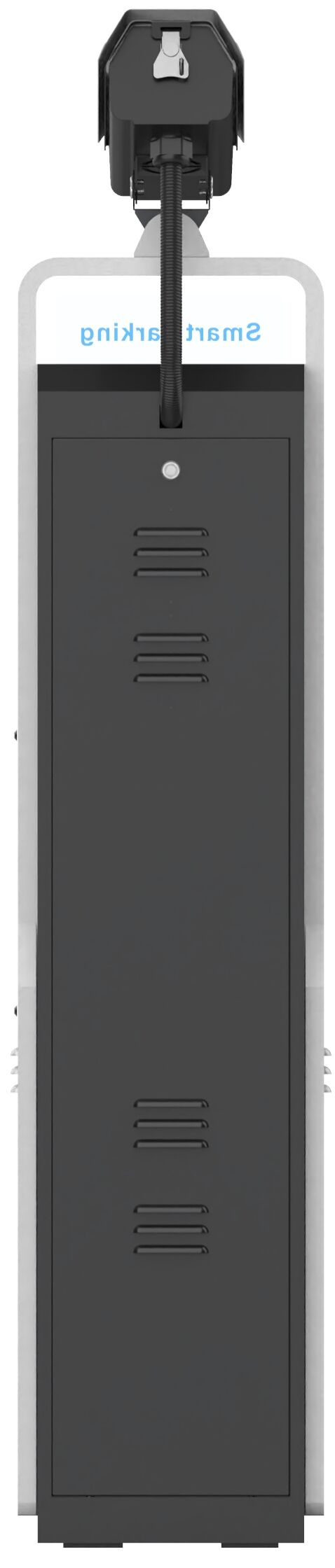

Product photography
 |
 |
 |
Product features
●With a bionic appearance, the design is extremely friendly and full of a sense of technology.
●Ultra-high-definition license plate recognition camera, with clearer image quality, is equipped with a 6mm fixed-focus lens and supports three-dimensional adjustment of camera angle.
●Intelligent image adjustment, automatic tracking and adaptation to light changes, better coping with harsh scenarios such as front lighting, backlighting, and ultra-low illumination.
●Large-angle recognition with a wider and broader range of scene adaptability.
●The 18.5-inch outdoor high-brightness LCD display screen provides a more intuitive display of vehicle information and payment information pages.
●The display screen can automatically adjust its brightness based on the ambient light, making it energy-saving and durable.
●The display screen allows for custom loading of image and video content advertisements.
●Different levels of volume playback can be set during customizable time periods.
●Only one network cable and one power cord are needed. It is ready to use after power-on, and the installation and debugging are simple.

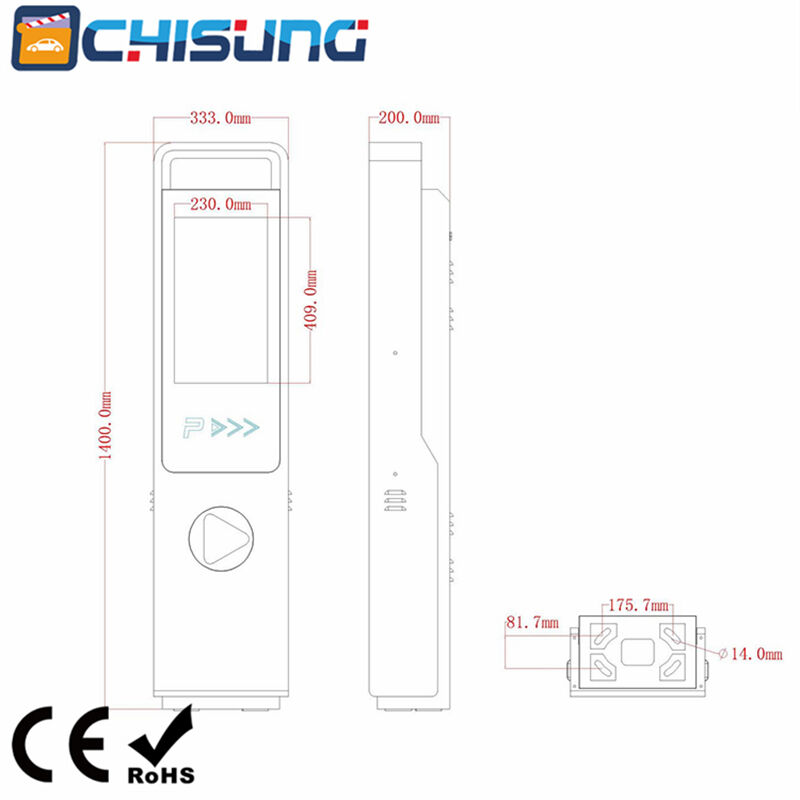

External Dimensions
Applications:
Versatile CSHY11 Dolphin I License Plate Recognition System: Elevating Parking Management Across Scenarios
The CSHY11 Dolphin I high-definition license plate recognition all-in-one machine is a cutting-edge solution tailored for diverse parking toll management needs. With its advanced features and user-friendly design, it seamlessly integrates into various settings, enhancing efficiency, reducing costs, and boosting revenue.
Scenarios & Applications:
Commercial Parking Lots:
Residential Communities:
Office Buildings & Business Parks:
Public Facilities & Event Venues:
Airports & Transportation Hubs:
Specifications:
| Basic Parameters | |
| Operating Voltage | AC220V±10% |
| Operating Temperature | -20℃ to +60℃ |
| Relative Humidity | ≤95% without condensation (at room temperature) |
| Rated Power | ≤60W |
| Communication Method | TCP/IP、RS485 |
| Display Type | 18.5-inch outdoor high-brightness LCD screen |
| Screen Resolution | 1366*768 |
| Enclosure Protection Class | IP54 |
| Material and Craftsmanship | High-strength carbon steel, sheet metal spraying |
| Dimensions | 1400*333*200mm (Height * Width * Depth, excluding external camera) |
| Camera Parameters | |
| CPU | dual-core 900MHz processor+CNN hardware acceleration engine (0.5Tops) |
| Image Sensor | 1/2.8" starlight-level CMOS |
| Max Resolution | 1920(H)×1080(V) |
| Lowest Illumination | 0.01Lux (Color) |
| ISP | intelligent ISP,scene-adaptive |
| Data Output | H265\H264\MJPEG\intelligent detection structured data output |
| Standard Confifiguration | Standard 6mm prime lens; |
| Comprehensive capturing recognition rate | Comprehensive capturing rate≥99.99%; comprehensive recognition rate≥90% |
| License Plate Recognition Regions | Poland, Germany, France, Brazil, Kenya, Ukraine, Indonesia, Vietnam, Denmark, Israel, Romania, Moldova, |
| Azerbaijan, Switzerland, Slovakia, Netherlands, Serbia, Uzbekistan, Turkey, Kyrgyzstan, Urkaine, Greatbritain, Italy, | |
| Croatia≥90% | |
| Monaco, Estonia, Czechrepublic, Portugal, Bulgaria, Luxembourg, Finland, Montenegro, Thailand, Slovenia, | |
| Hungary, Latvia, Russia, Kazakhstan, Lithuania, Norway, Belgium, Cyprus, Sweden, Georgia, Belarus, Spain≥95% | |
| Malaysia, Singapore, Taiwan, Hongkong≥98% | |
| License Plate Recognition Function | White list of license plates, intelligent calibration |
| Network Interface | 1-channel 10/100Mbps adaptive RJ45 |
| Other Interfaces | IO output: 2-channel, IO input: 4-channel, RS485: 1-channel |
| USB | 1 USB Type-A interface (optional 4G module) |
| TF Card Slot | 1l TF card slot, supporting 512G at maximum) |
| Service | Basic services, supporting various types of secondary development |
| Fill Light Parameters | |
| Number of LED Beads | 10 pieces |
| Maximum Power | 10W |
| Fill Light Control | Intelligent light sensitivity control, adjusts brightness based on ambient light intensity |
| Fill Light Distance | Illuminance greater than 50LUX at a distance of 5 meters |
| Adjustment Angle | Supported |
Competitive Advantage:
CSHY11 Dolphin I License Plate Recognition All-in-One Machine: Key Competitive Advantages
Transform parking management with the CSHY11 Dolphin I—an all-in-one solution integrating cutting-edge license plate recognition, intuitive display, and smart functionality to boost efficiency, reduce costs, and unlock new revenue streams.
Core Advantages:
Bionic Tech Design: Sleek, futuristic appearance blends seamlessly into any parking environment, merging aesthetics with functionality.
Ultra-HD Recognition: 6mm fixed-focus lens with 3D angle adjustment ensures crystal-clear imaging, delivering 99.99% capture accuracy even in front lighting, backlighting, or low-light conditions.
18.5” High-Brightness LCD: Automatically adjusts brightness to ambient light for energy efficiency; displays vehicle/payment info clearly and supports custom image/video ads for extra revenue.
Wide-Angle & Intelligent Adaptability: Large-angle recognition covers diverse parking scenarios, with smart image adjustment to handle harsh lighting, ensuring consistent performance 24/7.
Plug-and-Play Setup: Single network/power cable for quick installation—ready to use in minutes, reducing deployment time and labor costs.
Customizable Experience: Tailor voice broadcast volume by time period and load ads to enhance user experience while generating additional income.
Why Choose CSHY11?
Streamline operations, cut labor costs by 60%+, and improve vehicle throughput with 10ms recognition speed. Ideal for parking lots seeking efficiency, cost reduction, and revenue growth.
