S150 4G LTE GSM SMS Alarm Controller 8 Channel Digital Inputs 2 Relay Outputs Remote SMS Control Power Failure Alarm for Industrial Automation
Global 4G/GSM | 8DI Dry Contact Inputs | Dual Relay Outputs | SMS Arm/Disarm/Control | Built-in Backup Battery | Metal Casing | CE RoHS FCC
- Overview
- Recommended Products
Product Information
Place of Origin: |
China,Shenzhen |
Brand Name: |
CHISUNG |
Model Number: |
S150 |
Certification: |
CE |
Product Commercial Terms
Minimum Order Quantity: |
1unit |
Price: |
Consult Us |
Packaging Details: |
Carton/Wooden,According to customer requirements |
Delivery Time: |
7-15days |
Payment Terms: |
L/C ; T/T ; MoneyGram |
Supply Ability: |
3000units/Month |
Quick Detail:
GSM Relay
GSM Gate Opener
GSM Gate Controller
GSM Relay Control
GSM Remote Control
GSM Relay Switch
GSM Door Opener
GSM Door Controller
GSM Access Controller
GSM Access Control Unit
GSM Remote Switch
GSM Access Control Relay
GSM 3G 4G Gate Opener
GSM 3G 4G Cellular Gate Opener
GSM 3G 4G Gate Receiver
GSM 3G 4G Signal Sender
GSM 3G 4G Single Switch
GSM SMS Alarm Controller
GSM SMS Alarm Control Board
GSM Text Alert Controller
GSM Mobile SMS Alarm Unit
Wireless GSM SMS Alarm Controller
GSM SMS Remote Alarm Controller
Cellular SMS Alarm Control Module
GSM SMS Security Alarm Controller
The S150 is a professional 4G LTE / 3G / GSM SMS alarm controller designed for remote monitoring, security alarm, and equipment automation. It supports 8 digital inputs for connecting various detectors and 2 high-power relay outputs for automatic linkage and remote SMS control. With power failure alert, built-in rechargeable battery, password protection, and easy SMS commands, the S150 provides stable 24/7 unattended monitoring for farms, factories, tanks, base stations, and security systems worldwide.
Description:
The S150 SMS Controller is an industrial-grade remote monitoring and control unit that works on global 2G/3G/4G LTE networks for stable long-distance communication. It uses high-quality components and a rugged metal casing to ensure reliable performance in harsh outdoor and industrial environments.
It provides 8 dry contact digital inputs supporting NO, NC, and EOL anti-theft wiring modes to connect water level, temperature, humidity, door contact, motion, smoke, water leakage, and vibration detectors. The EOL mode effectively prevents wire disconnection, damage, or loose connection, greatly reducing false alarms and improving system security.
The S150 is equipped with 2 independent relay outputs:
l 1× Alarm linkage relay: Automatically triggers when an alarm occurs, with adjustable working time (0–120 minutes).
l 1× SMS remote control relay: Users can remotely turn devices ON/OFF via simple SMS commands.
Both relays support 7A@125VAC, 5A@250VAC, 20A@14VDC, capable of driving pumps, valves, lights, sirens, gates, and other electrical equipment safely.
Operation is extremely simple with 5 standard SMS commands:
l AA = Arm
l BB = Disarm
l CC = Relay Close
l DD = Relay Open
l EE = Query Status
All operations are protected by a 4-digit password to ensure only authorized users can control the device.
The S150 supports DC 9–36V wide voltage input and comes with a 3.7V 900mAh built-in backup batterythat provides more than 24 hours of working time when main power is lost. It automatically sends SMS alerts when power fails or recovers. It also supports timed inspection reports (0–240 hours) to avoid SIM card balance issues.
Configuration can be done easily via USB PC software, supporting parameter saving, loading, and batch deployment. Compact size (70×88×30mm) supports both wall mounting and 35mm DIN‑rail installation. Certified CE, RoHS, FCC, the S150 is widely used for global industrial automation, security, and environmental monitoring.

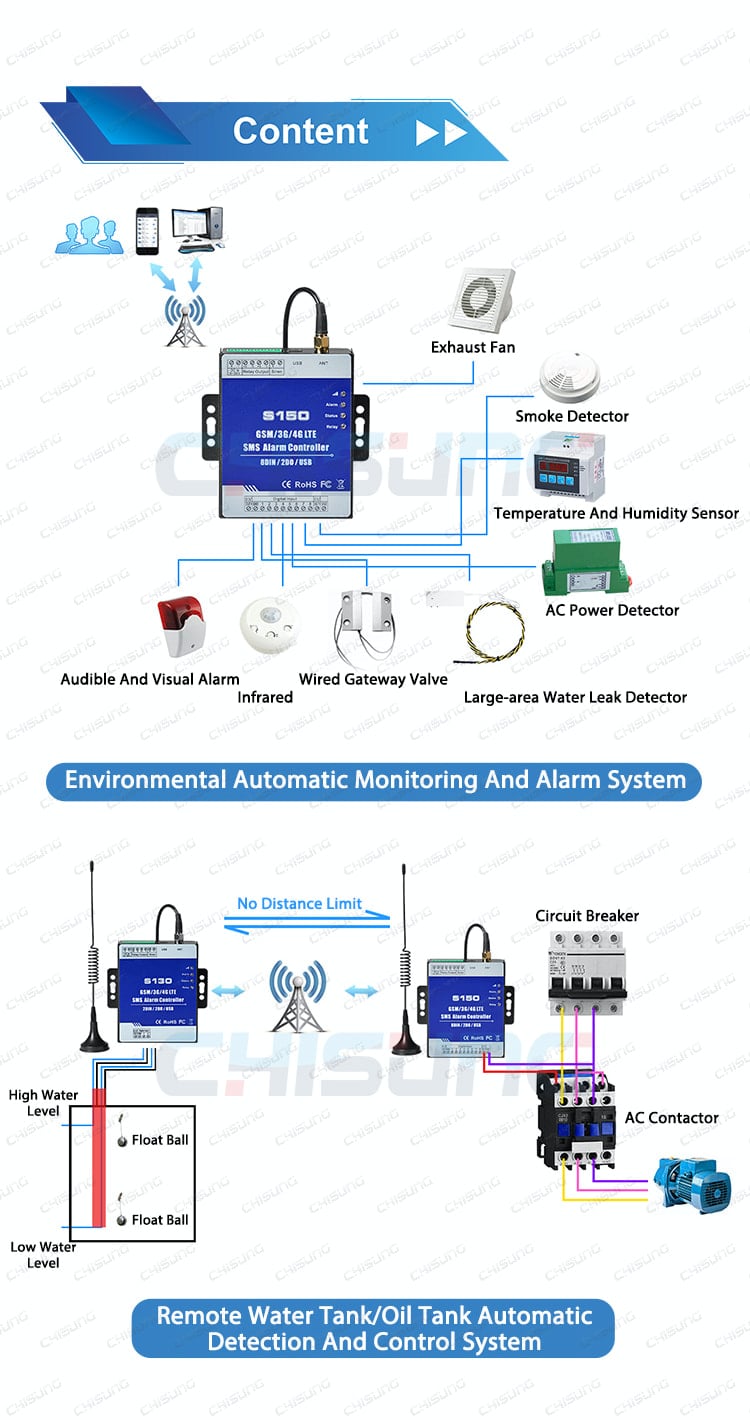

Applications:
l Unattended Rooms & Communication Base StationsReal-time alarm for intrusion, power failure, water leakage, and equipment abnormality.
l Water/Oil Tank & Pumping Station MonitoringAutomatically detect high/low liquid level and remotely control pump switch via SMS.
l Industrial Factory & Warehouse SecurityMonitor temperature, humidity, smoke, door status, and equipment running status.
l Farm Irrigation & Agricultural AutomationRemote control water pumps, valves, and environment monitoring.
l Security & Anti-theft SystemDoor contact, motion detection, glass breakage, and vibration alarm for buildings, shops, and facilities.
l Street Light & Energy ManagementRemote control and status monitoring for lighting and power equipment.
l Pipeline & Transformer Station MonitoringAlarm for abnormal status, leakage, and damage in unattended facilities.

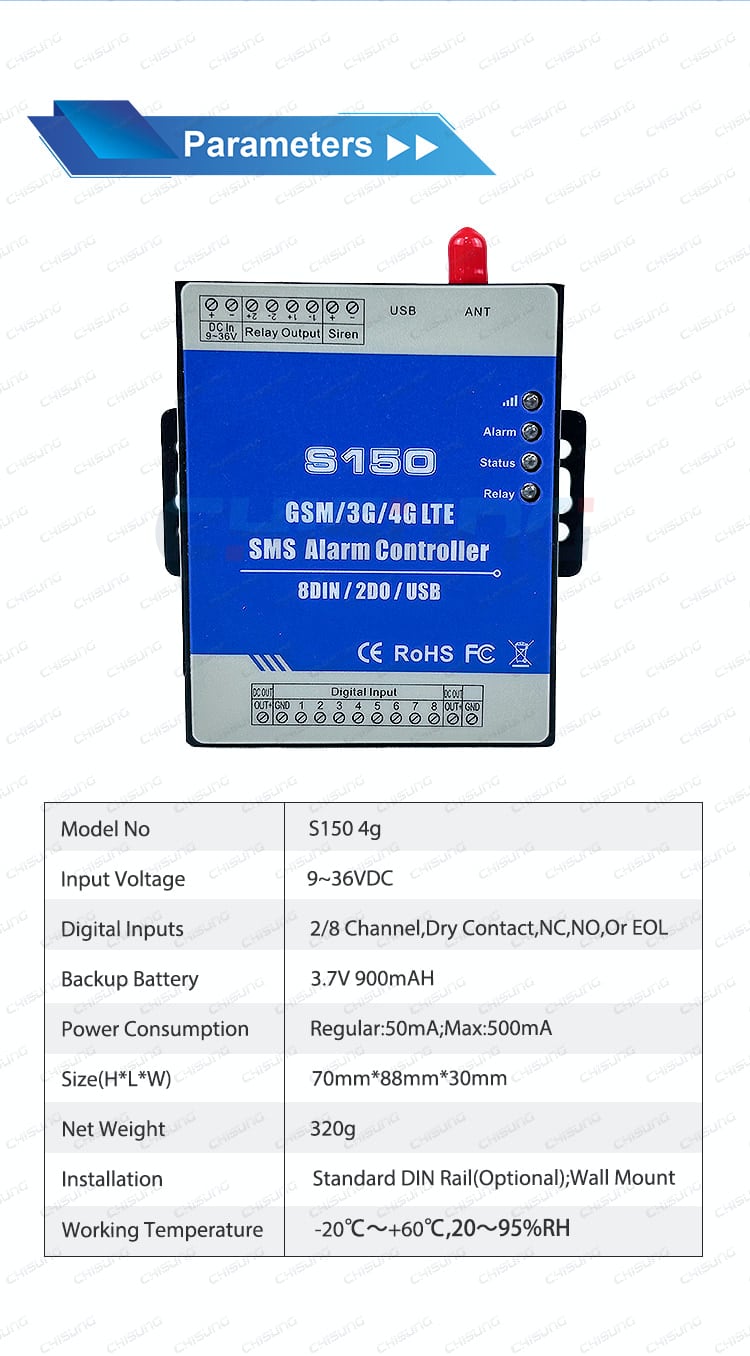

Specifications:
Item |
Details |
Model |
S150 |
Network |
4G LTE / 3G WCDMA / GSM Quad-band 850/900/1800/1900MHz |
Digital Inputs |
8 channels, dry contact (NO/NC/EOL) |
Relay Outputs |
2 relays: 7A@125VAC, 5A@250VAC, 20A@14VDC |
Siren Output |
1 channel, 12VDC |
Power Supply |
DC 9–36V (Standard: 12V/1.5A) |
Power Consumption |
Normal: 50mA; Max: 500mA |
Backup Battery |
3.7V 900mAh (≥24h backup) |
SMS Commands |
AA / BB / CC / DD / EE (Password protected) |
Alarm Mode |
SMS + Voice Call + Siren |
Alarm Numbers |
5 voice call numbers, 3 SMS alert numbers |
Working Temperature |
-20°C ~ +60°C |

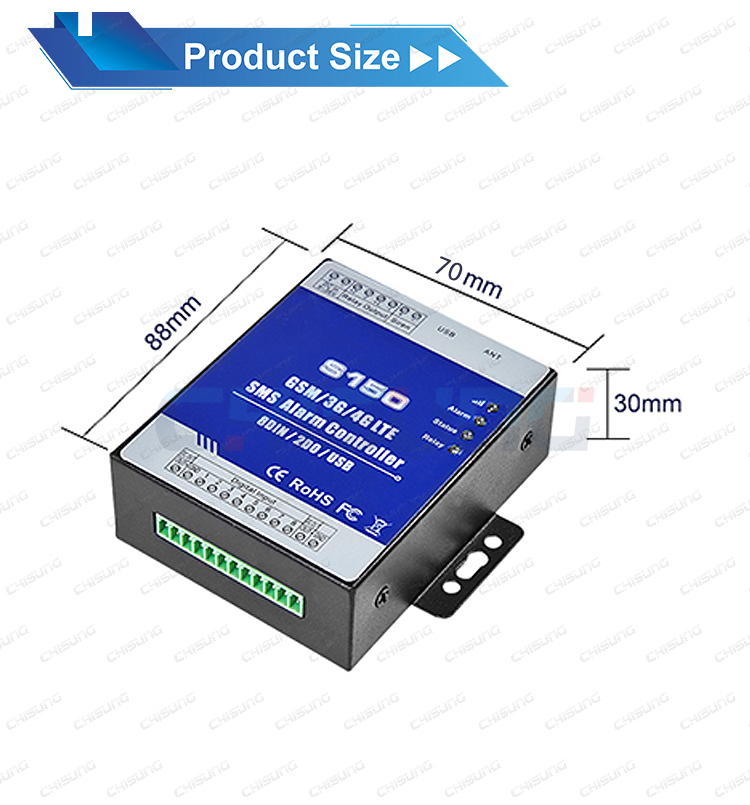

Dimensions |
70×88×30mm |
Installation |
Wall mount / 35mm DIN rail |
Certifications |
CE, RoHS, FCC |
Material |
Metal Casing |

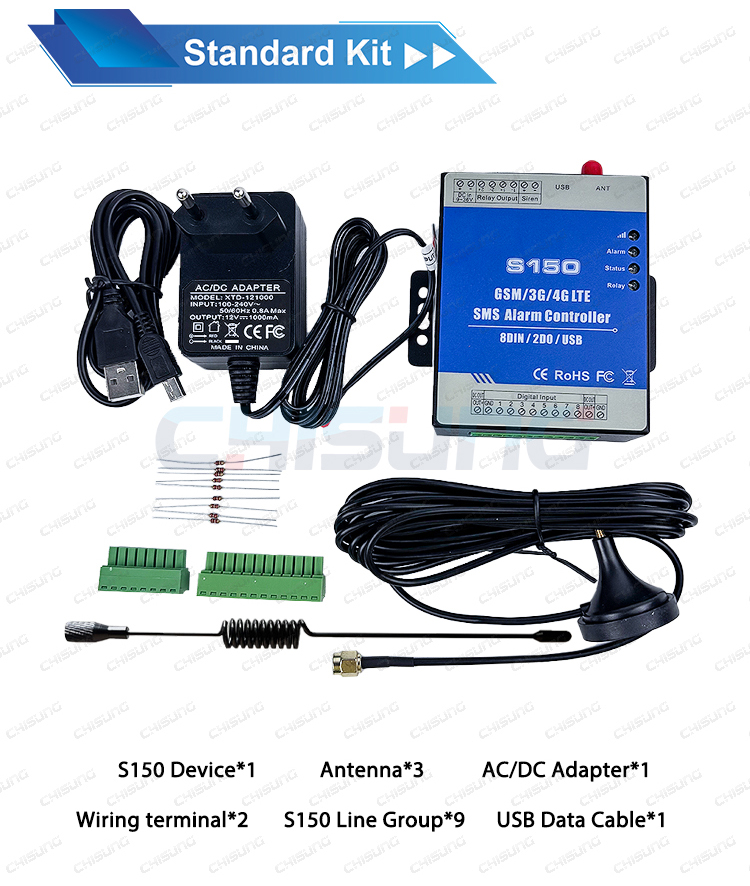

Package |

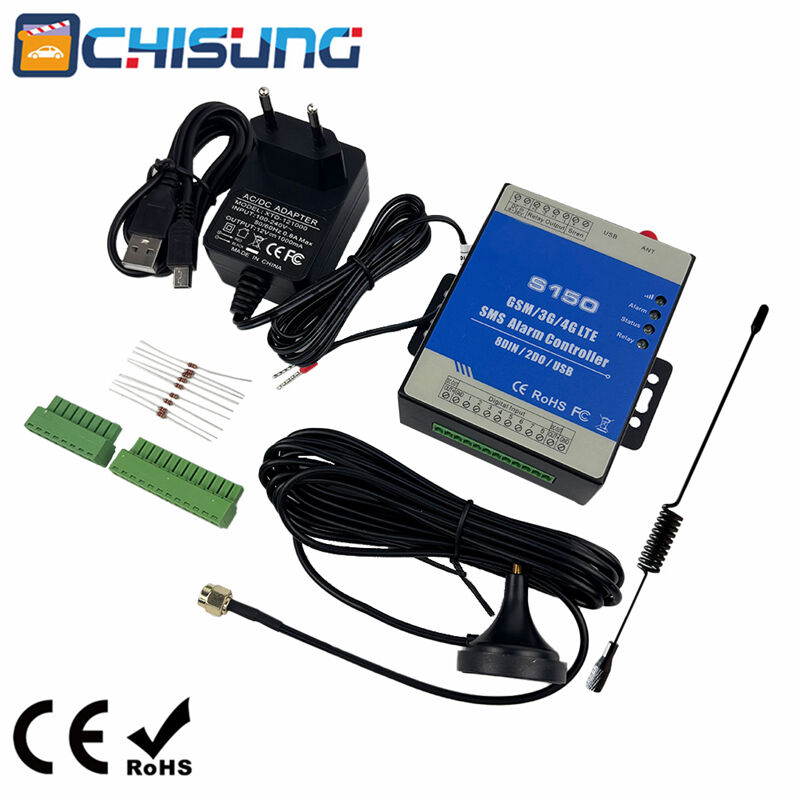

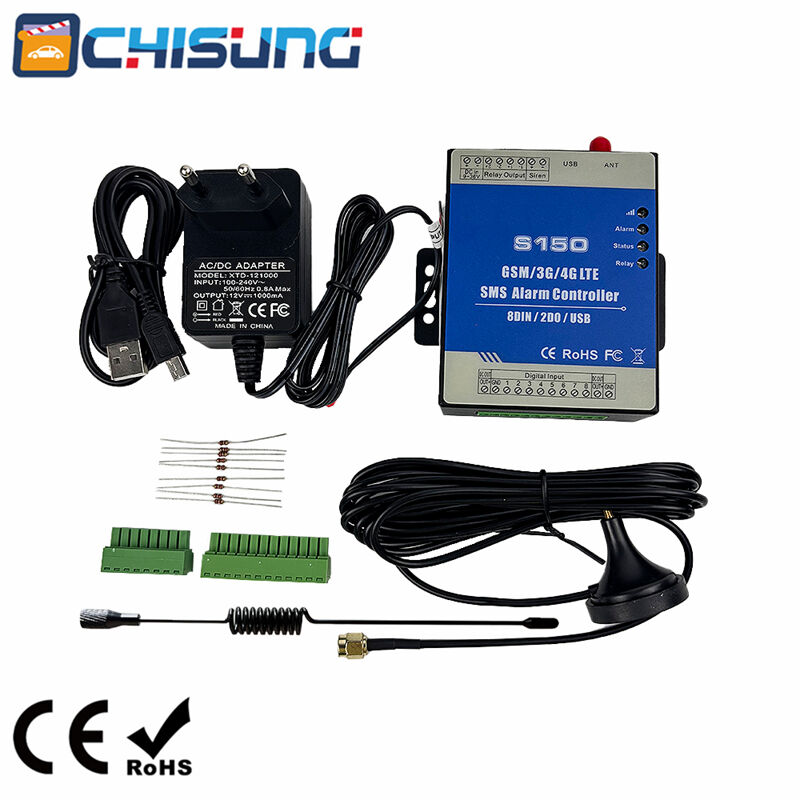

Host, Antenna, Power Adapter, Terminal, User Manual |
Competitive Advantage:
4G/2G GSM Multi‑network – Global coverage, stable signal, no distance limitation.
8DI + 2 Relay All-in-one Design – Meet most monitoring & control needs in one device.
EOL Anti-theft & Anti-false-alarm – Effectively prevent wire damage and disconnection.
Metal Casing Industrial Grade – Stronger, durable, better heat dissipation, longer lifespan.
Simple SMS Control – No APP needed, easy for global users to operate.
Power Failure Alarm + Battery Backup – 24/7 unattended protection.
PC Software Configuration – Fast setup, batch deployable, save labor cost.
CE/RoHS/FCC Certified – Meet global market access and safety standards.
Wide Voltage & Wide Temperature – Adapt to harsh industrial and outdoor environments.
Tag:S150
