CHISUNG CSSGO-11 DC24V Automatic Swing Gate Opener Kit | Heavy Duty 200kg Per Leaf Electric Gate Motor for Villa & Residential Dual Swing Gates
Industrial Grade DC24V Swing Gate Opener Kit | Max 2m/200kg per leaf. Die-cast aluminum shell, stainless steel tube & bronze copper motor, IP45 waterproof, low noise. Solar compatible, anti-pinch auto reverse, power-off manual release, multi opening modes for villa & community dual swing gates
- Overview
- Recommended Products
Product Information
| Place of Origin: | China |
| Brand Name: | CHISUNG |
| Model Number: | CSSGO-11 |
| Certification: | CE |
Product Commercial Terms
| Minimum Order Quantity: | 1 |
| Price: | Consult us |
| Packaging Details: | carton |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000sets/Month |
Quick Detail:
Swing gate opener
Automatic swing gate opener
Arm-type gate operator
Surface-mounted swing operator
Underground swing operator
Dual swing gate operator
Swinging gate operator
Articulated arm gate operator
Electromechanical swing gate actuator
Remote-controlled swing gate opener
Swing gate motor
Low-energy swing gate operator
Powered swing gate operator
Linkage-type gate operator
Residential swing gate opener
Smart swing gate opener
Commercial-duty swing gate operator
Solar-powered swing gate opener
Push Rod gate opener
Linear Actuator gate opener
Pusher Type gate opener
Gate Motor for Swing Gates
Auto Gate Opener
Electric Gate Operator
Commercial Gate Opener
Ram Arm Swing Gate Opener
Single Swing Gate Opener
Outdoor Gate Opener
Heavy Duty Swing Gate Opener
Heavy Duty Swing Gate Operator
Industrial Swing Gate Motor
Heavy Duty Electric Gate Operator
Electric Swing Gate Motor
The CHISUNG CSSGO-11 automatic swing gate opener is a heavy-duty external telescopic gate motor designed for residential, commercial and public dual swing gates. Powered by reliable DC24V pure copper coil motor with built-in bronze gear, this swing gate operator supports gate leaf up to 2 meters wide and 200kg weight each. Featuring full aluminum die-cast housing and 2.0mm thick stainless steel telescopic rod, it delivers durable, low-noise daily operation with IP45 waterproof rating. Equipped with intelligent anti-pinch obstruction sensing, soft start/soft stop, emergency manual clutch keys, and compatibility with solar power supply, it supports multiple access control accessories including remotes, photocells, GSM modules, access keypads and loop detectors. Complete standard kit includes dual motor arms, control box, mounting brackets and full hardware for easy DIY installation, ideal for villa, community, school, hospital and construction site swing gate automation.
Description:

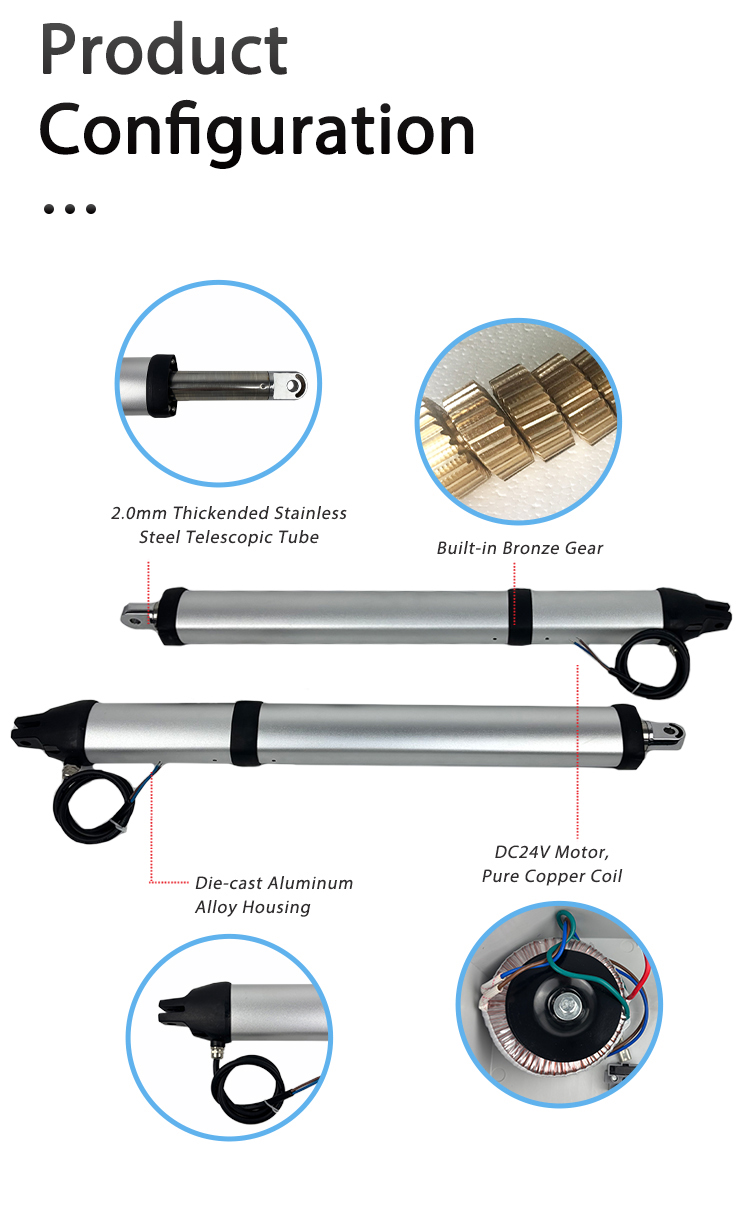

1. Industrial-Grade Solid Construction & Long Service Life
Our CSSGO-11 swing gate opener adopts premium industrial manufacturing standards for long-term outdoor use.
Full die-cast aluminum alloy housing, anti-rust, anti-corrosion, resistant to rain, snow and UV exposure.

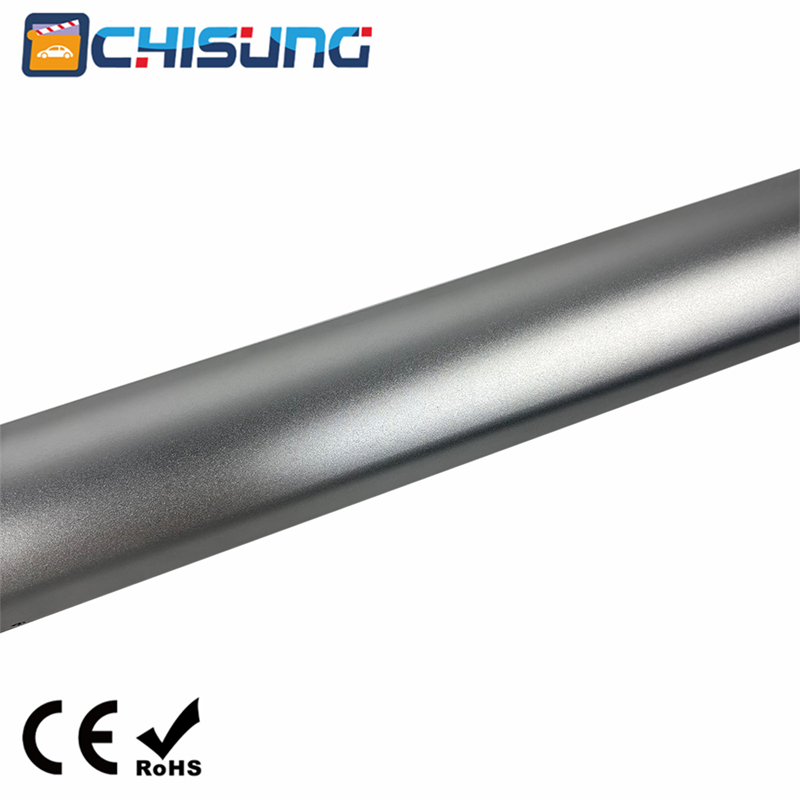

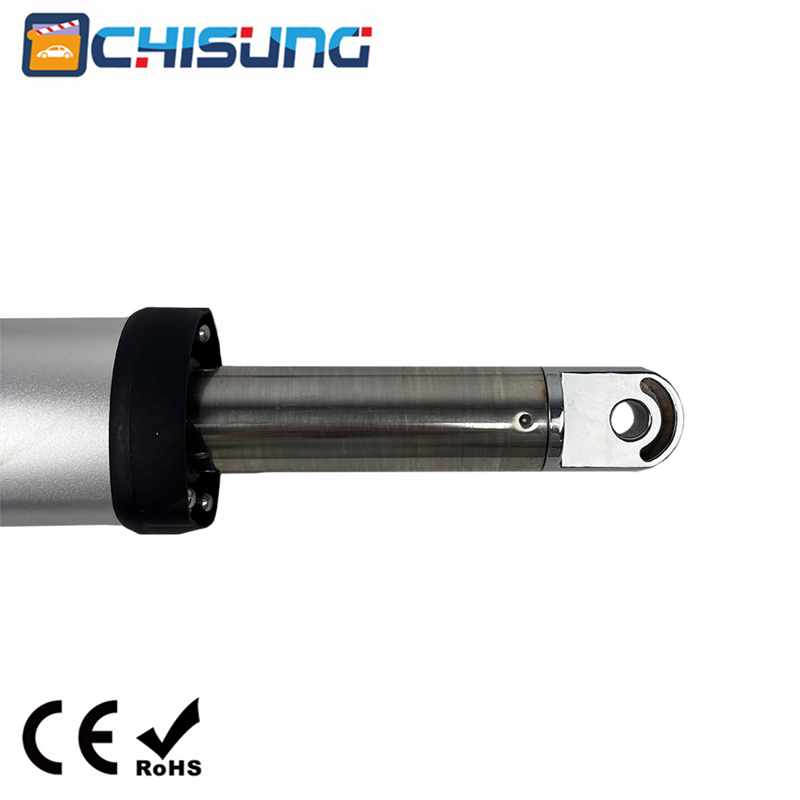

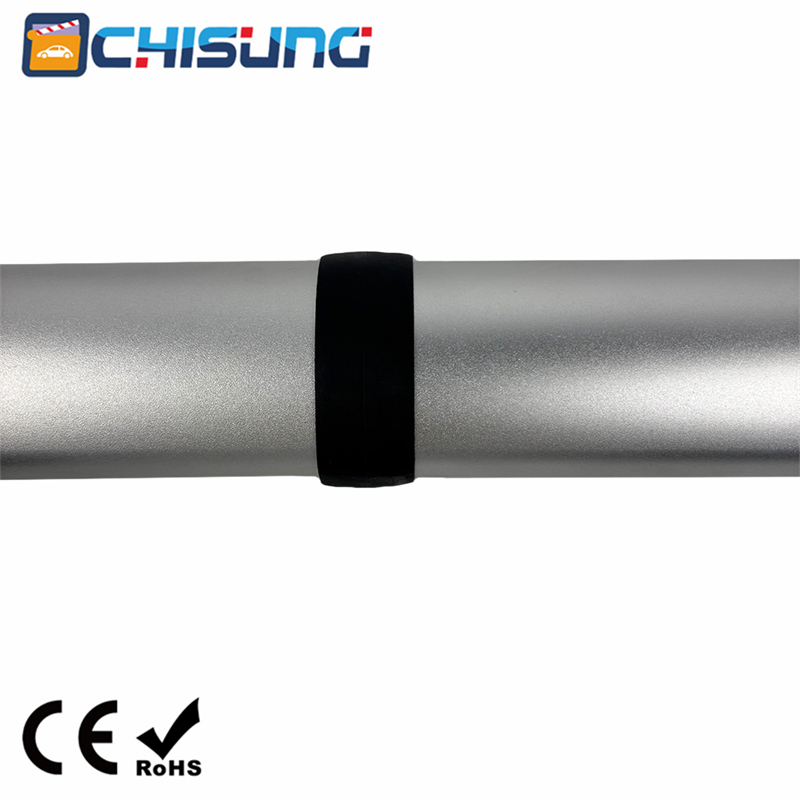

2.0mm thickened stainless steel telescopic tube, scratch-resistant and deformation-proof under heavy load.
Internal wear-resistant bronze gear set, smooth transmission without jamming, greatly extending motor service life.
DC24V pure copper coil motor, stable output 1000N thrust, continuous working frequency up to 50%, no overheating under frequent daily opening & closing.
IP45 overall waterproof protection class, working temperature range from -20℃ to +70℃, fits all climate zones worldwide.
2. Intelligent Safety Protection System
Safety is the core design of our automatic swing gate motor:

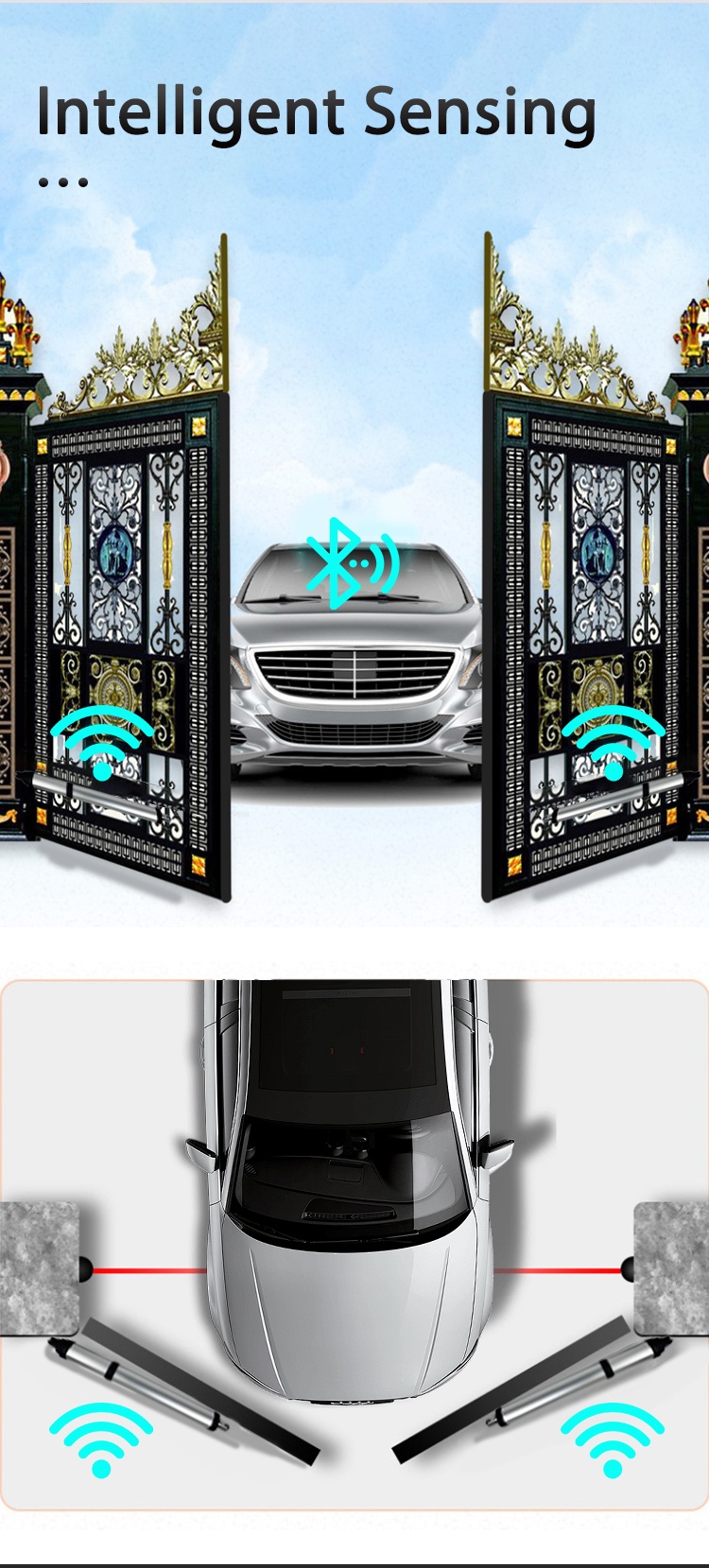

Obstacle Auto Reverse & Anti-Pinch Sensing
When the gate hits vehicles, pedestrians or barriers during opening/closing, the system will automatically reverse or stop instantly to avoid clamping injuries or gate damage. Intelligent infrared photocell matching support for double safety protection.
Emergency Manual Release for Power Outage
Comes with 2pcs clutch keys. Once power cuts off, simply insert the key to unlock the motor arm, manually push the gate freely without waiting for electricity recovery.
Soft Start & Soft Stop Function
Avoids violent gate impact on pillars, reduces vibration and noise, protects gate frame, hinges and motor from impact damage, prolonging overall gate system lifespan.
Adjustable Auto-Closing Delay
Programmable auto-close timer from 0 to 99 seconds, you can customize waiting time for vehicles/pedestrians to pass before gate auto-locks.
3. Flexible Multi-Opening Control & Solar Compatibility
Break the limit of single remote control, multiple unlocking ways available:

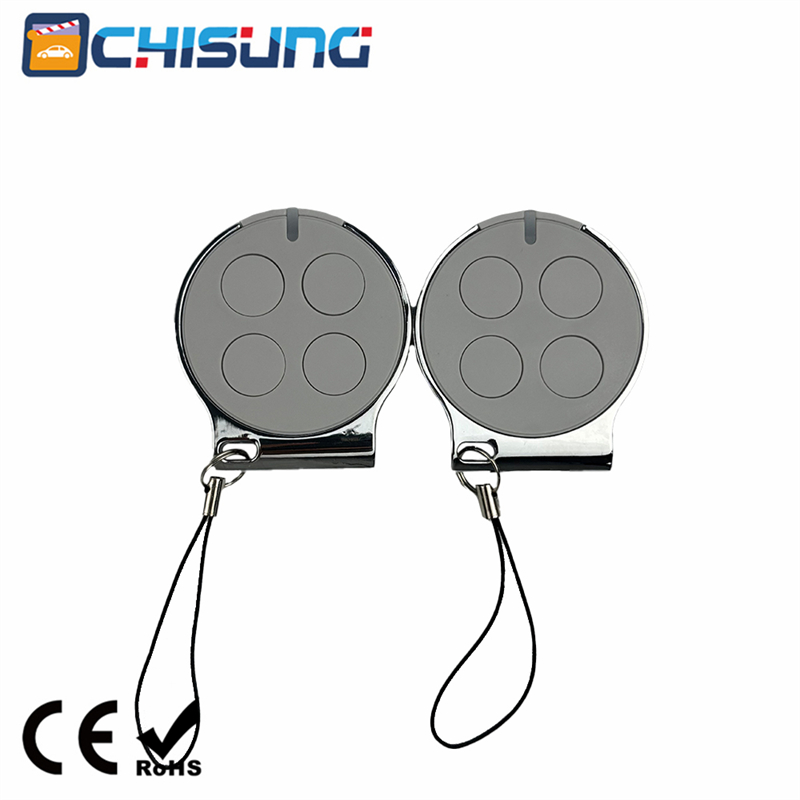

Standard: 2pcs wireless remote controllers for one-click open/close

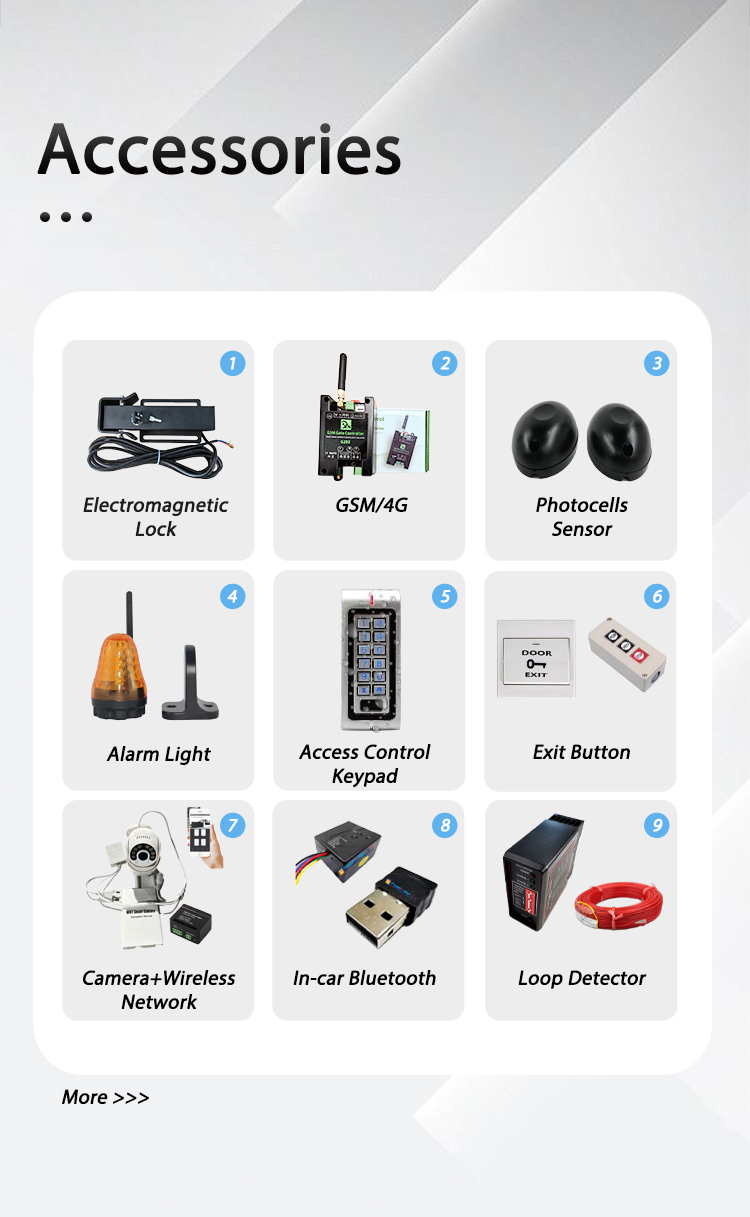

Optional expansion: Bluetooth car sensor, GSM/4G remote module, access control keypad, exit button, vehicle loop detector, wireless camera linkage
Fully compatible with solar power supply system, perfect for villas, farms and remote areas without stable grid power, saving electricity bills.
4. Ultra-Low Noise Smooth Operation
Precision bronze gear and silent DC motor structure eliminate harsh mechanical noise during gate movement. Quiet opening & closing will not disturb your family, neighbors or patients in hospitals, suitable for residential and quiet public areas.

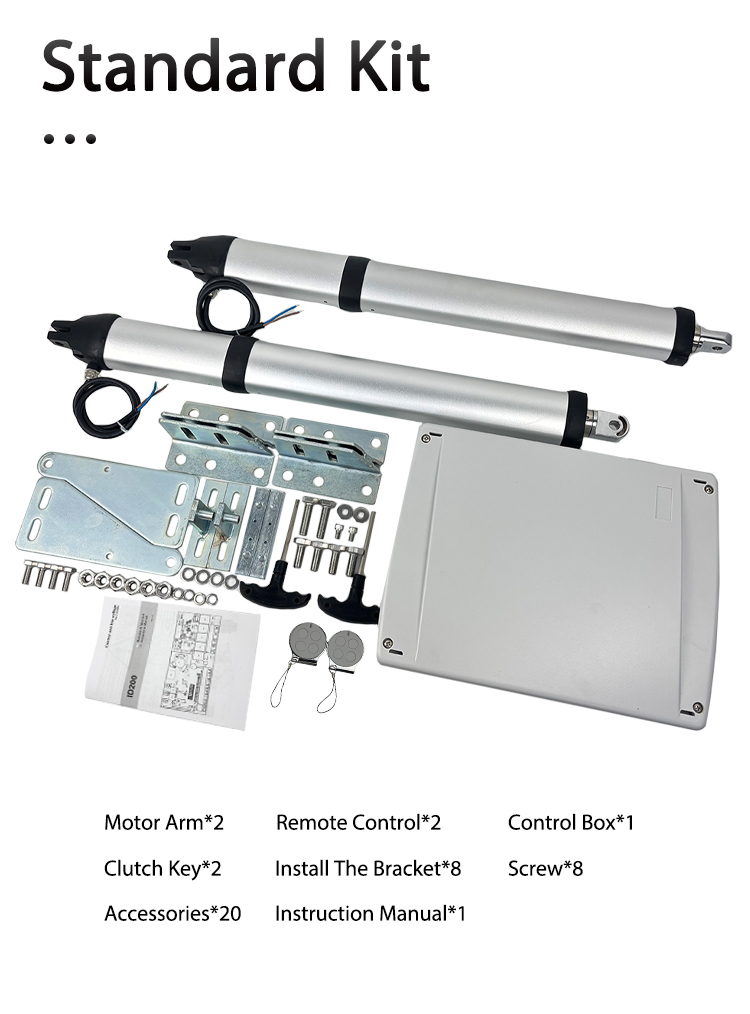

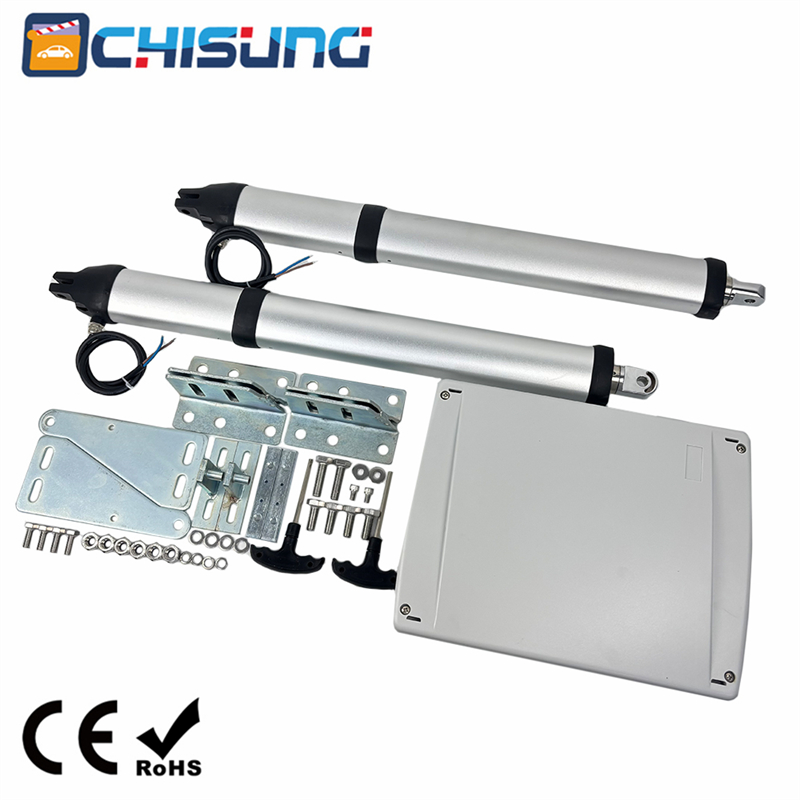

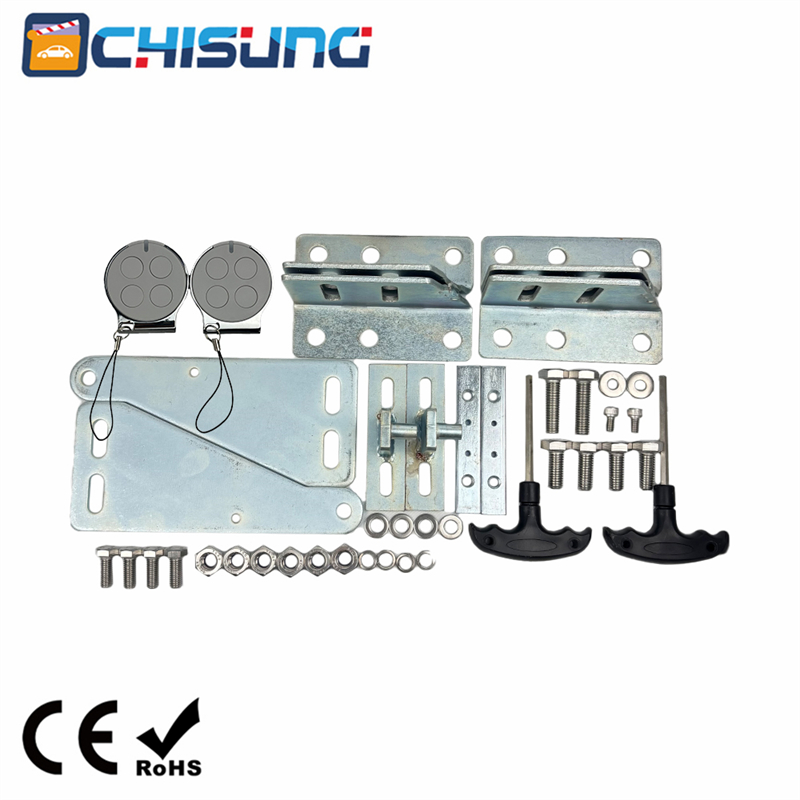

5. Complete Standard Kit, Easy DIY Installation
No extra accessory purchasing needed. Our standard full set includes all mounting hardware and detailed multi-language instruction manual for self-installation:

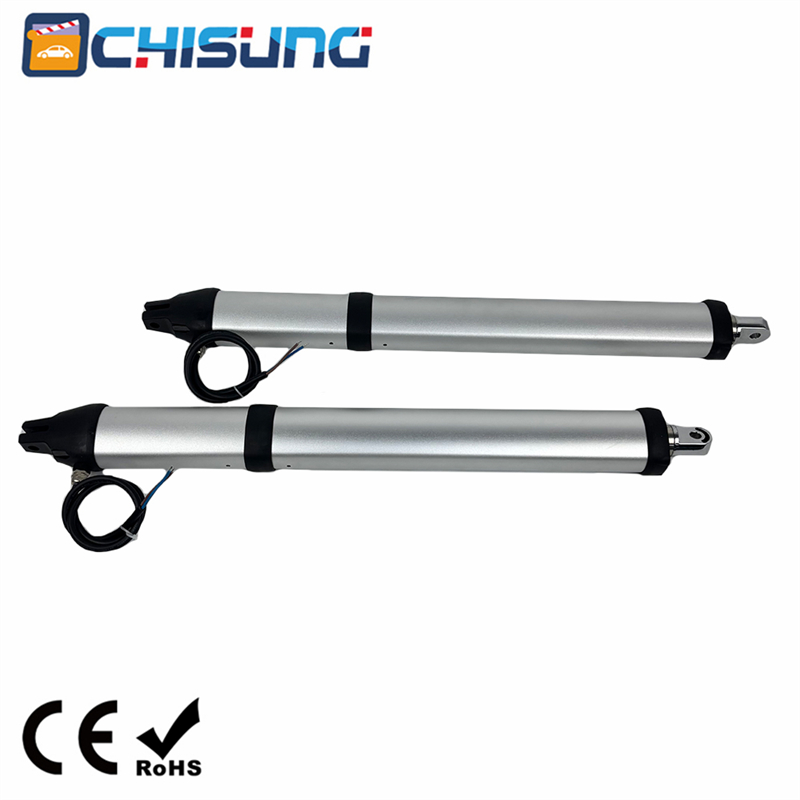

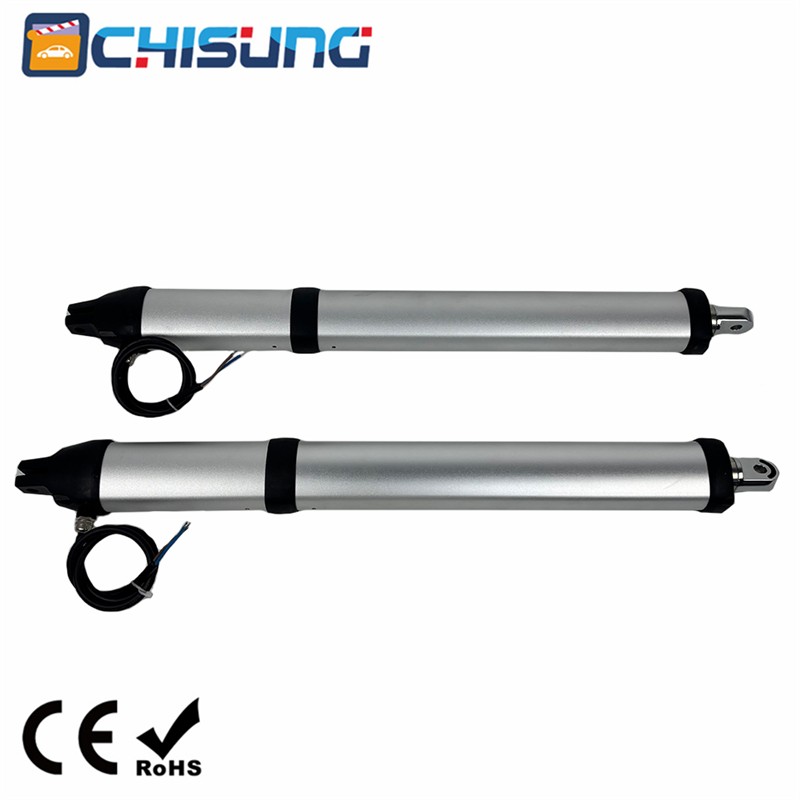

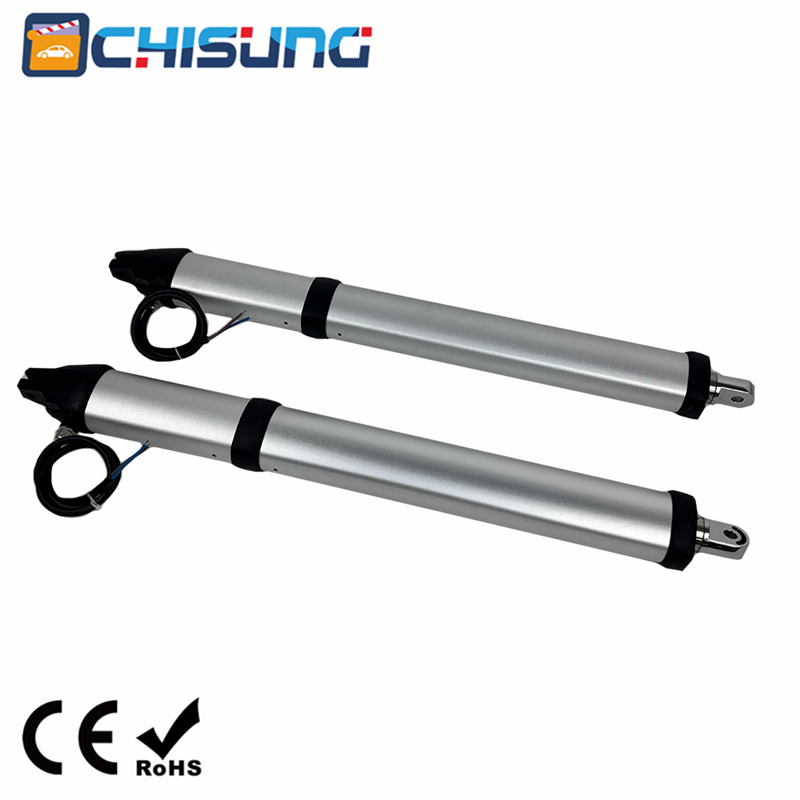

2 x Main Motor Arms

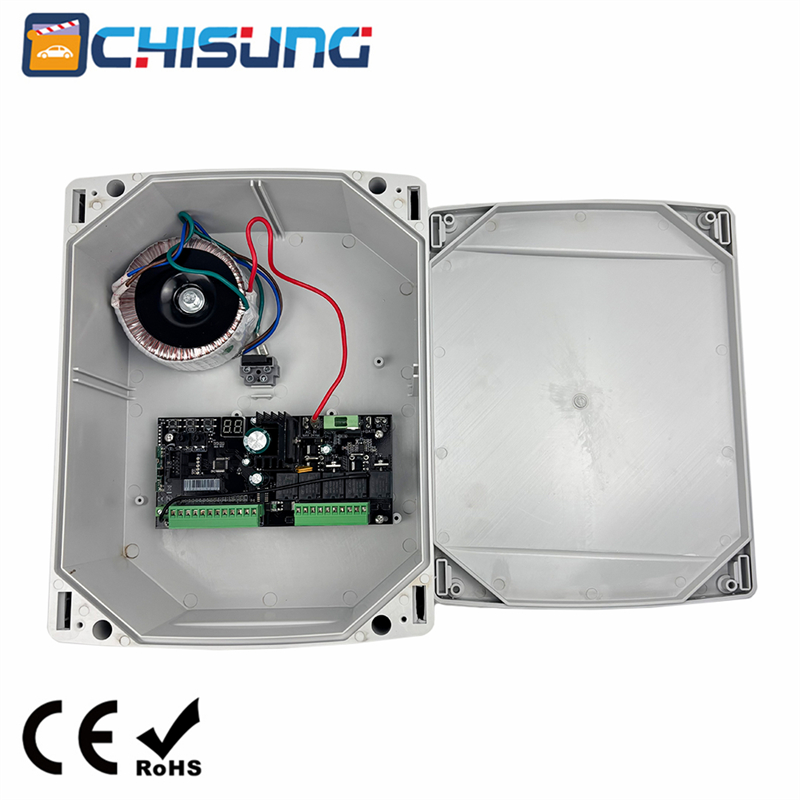

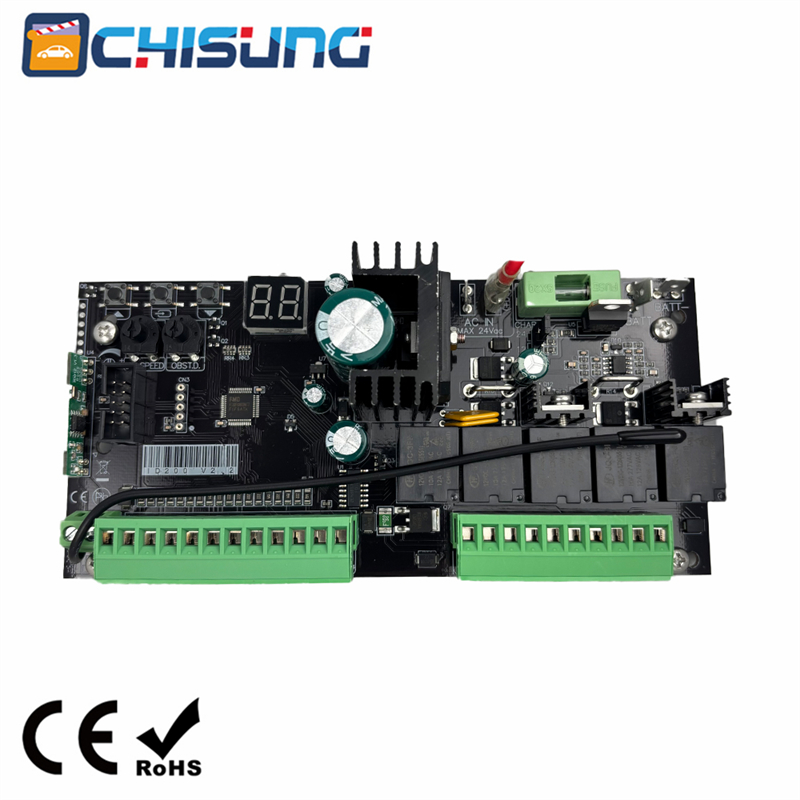

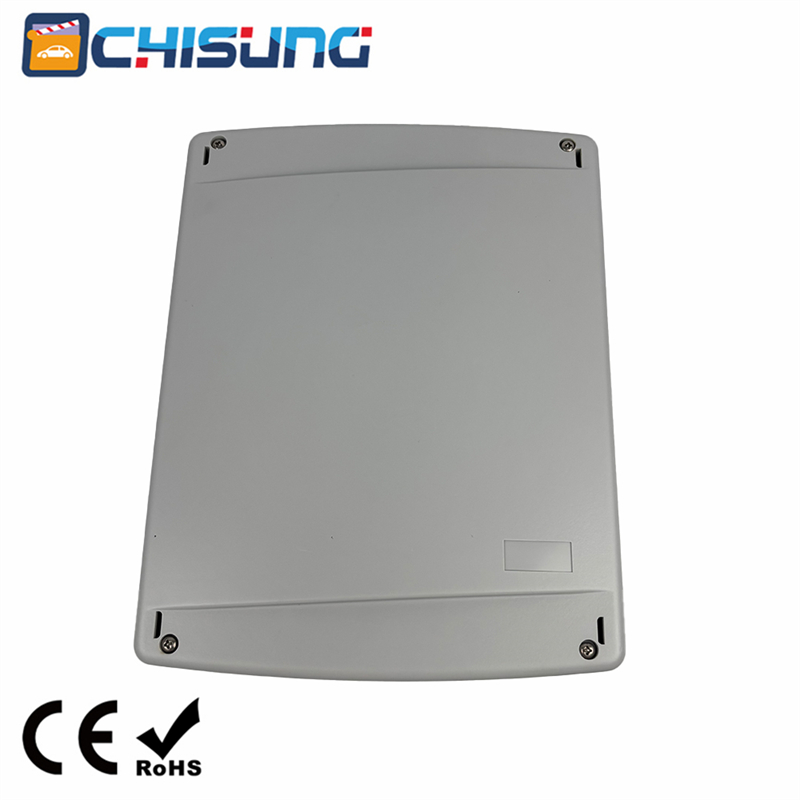

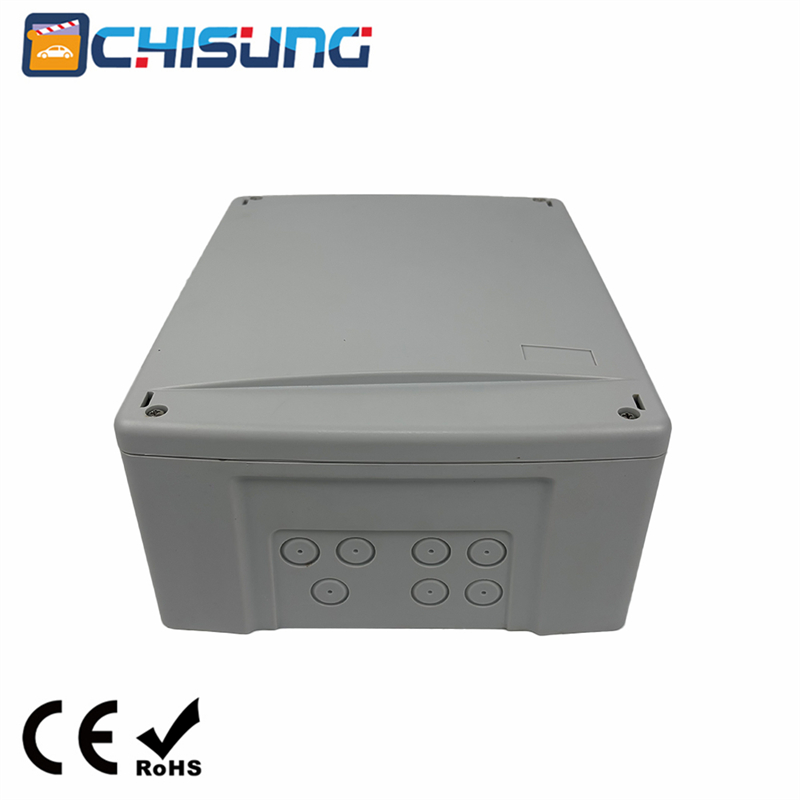

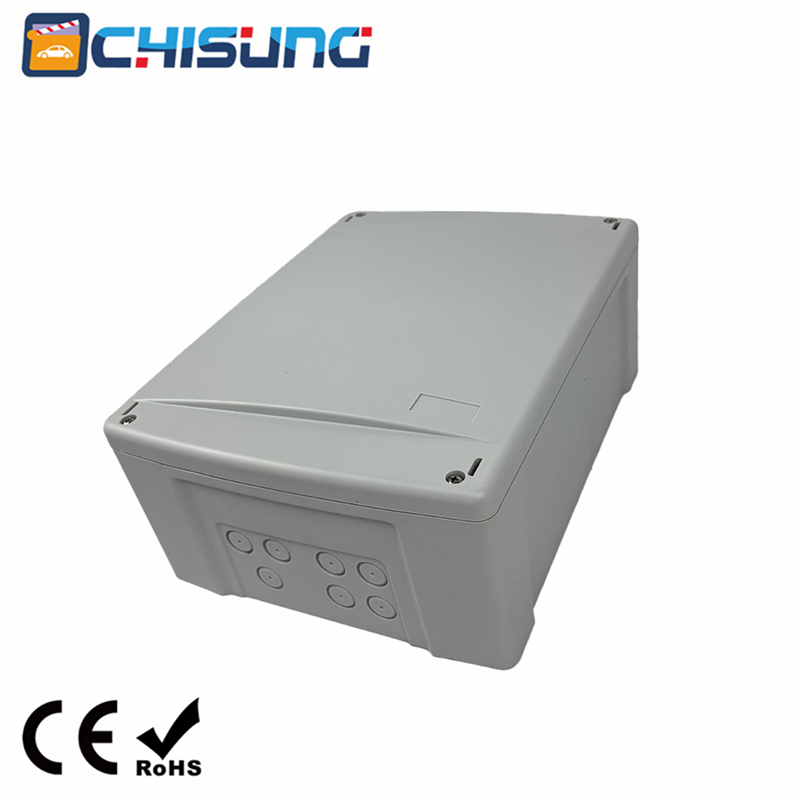

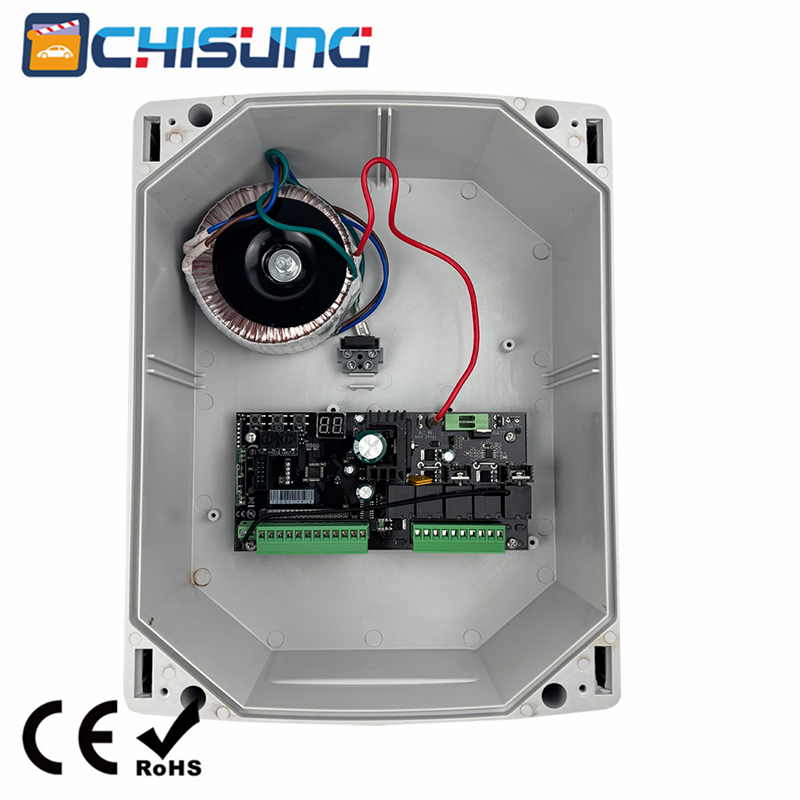

1 x Central Control Box
2 x Wireless Remote Controls
2 x Manual Clutch Release Keys
8 x Installation Mounting Brackets
Full Set Screws & Hardware Accessories (20pcs)

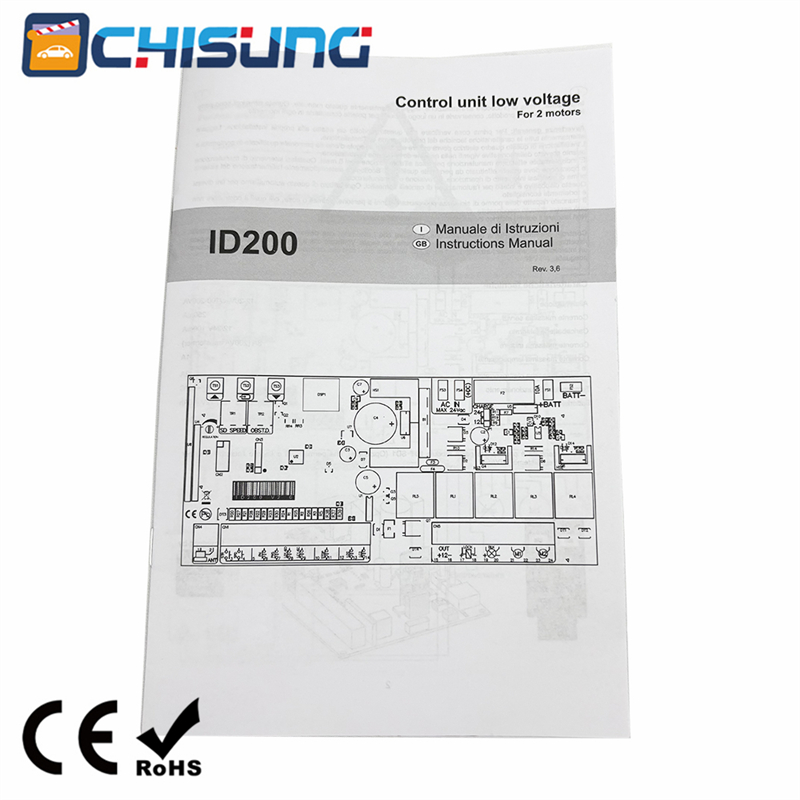

1 x Official Installation Instruction Manual
6. Wide Gate Angle Compatibility
Supports multiple gate opening angles: 90°, 100°, 110°, 120°, matching all mainstream wrought iron, aluminum, stainless steel dual swing gate designs on the market. Single leaf maximum limit: 2m width, 200kg weight, covers most residential and light commercial swing gates.

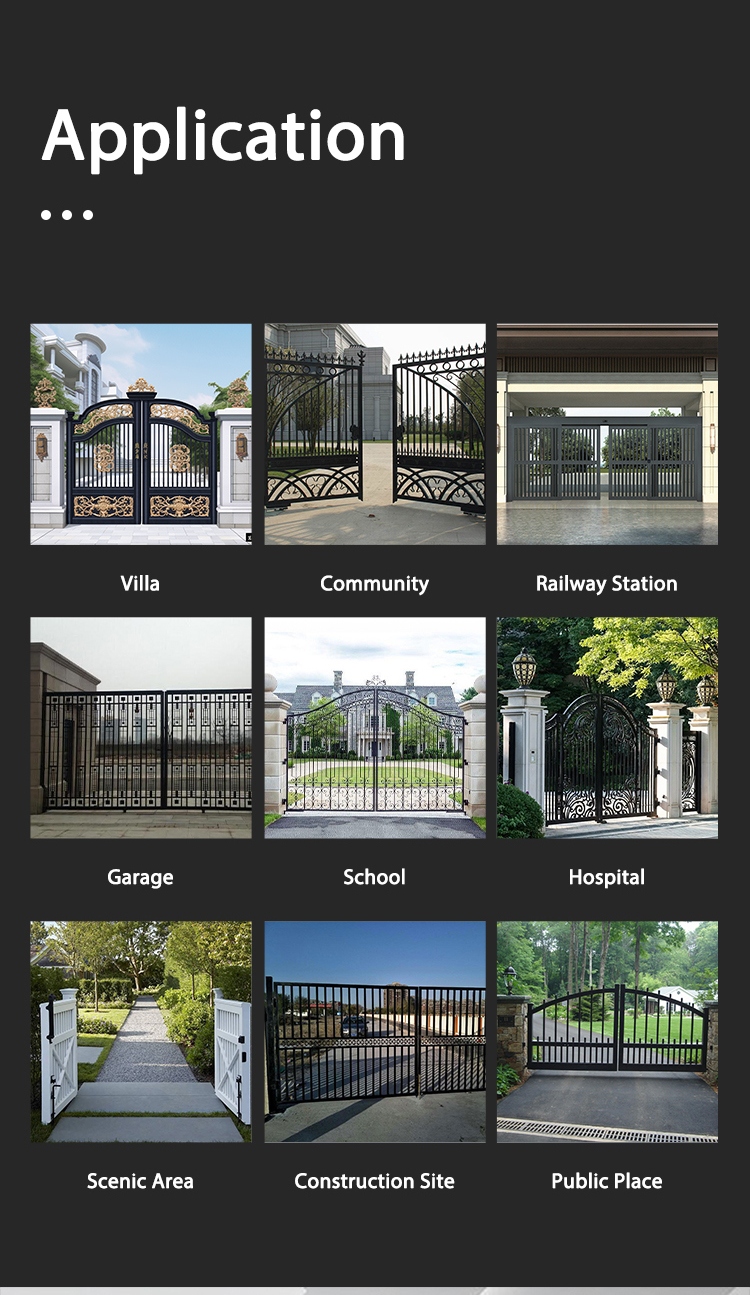

Applications:
Ideal For All Kinds Of Dual Swing Gates
l Residential Private Areas
Luxury Villas, Private Courtyards, Family Garages, Scenic Area Entrances
l Community & Education
Residential Compound Gates, Primary & Secondary Schools, Kindergartens
l Medical & Public Facilities
Hospitals, Clinics, Railway Stations, Government Public Plazas
l Industrial & Construction
Construction Sites, Factory Entrances, Warehouse Swing Gates
Gate Material Compatibility
Works perfectly with wrought iron gates, aluminum alloy swing gates, stainless steel courtyard gates, solid metal decorative double leaf swing gates.

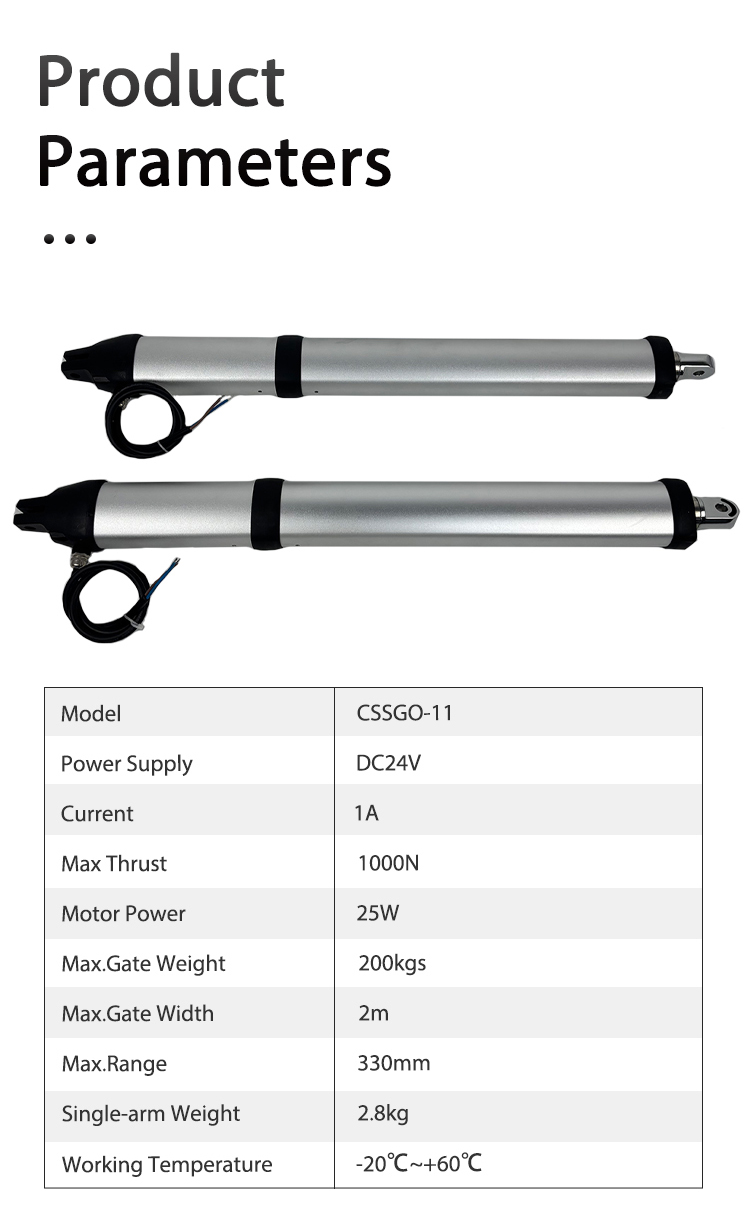

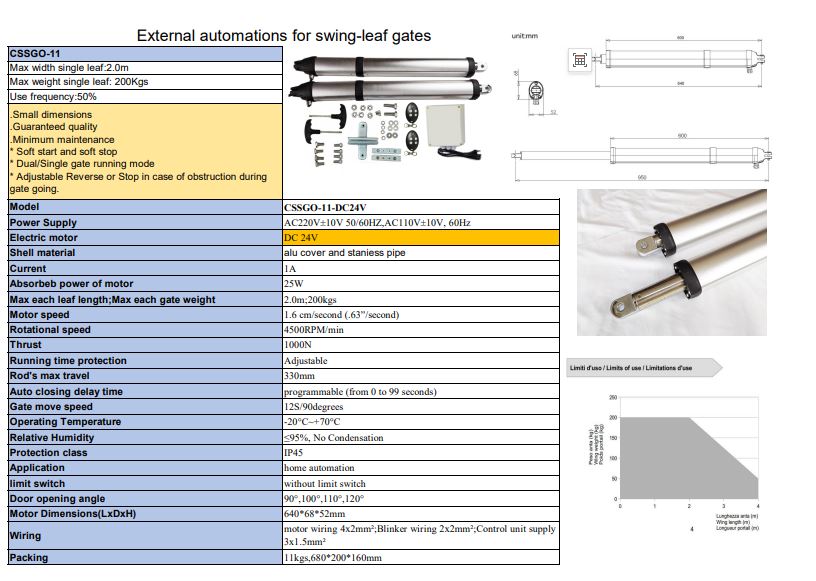

Specifications:
| Item | Parameter Detail |
| Model | CSSGO-11-DC24V |
| Input Power Supply | AC220V±10V 50/60Hz / AC110V±10V 60Hz |
| Motor Working Voltage | DC 24V |
| Shell Material | Die-cast Aluminum Alloy Housing + 2.0mm Stainless Steel Telescopic Tube |
| Rated Working Current | 1A |
| Motor Absorbed Power | 25W |
| Max Single Leaf Gate Size | Width ≤ 2m, Weight ≤ 200kg |
| Gate Moving Speed | 1.6cm/second (0.63”/s) |
| Motor Rotational Speed | 4500RPM/min |
| Output Thrust | 1000N |
| Rod Max Travel Stroke | 330mm |
| Auto Closing Delay Time | Programmable 0~99 seconds |
| Supported Gate Opening Angle | 90° / 100° / 110° / 120° |
| Working Temperature | -20℃ ~ +70℃ |
| Allowed Relative Humidity | ≤95%, Non-Condensing |
| Waterproof Protection Grade | IP45 |
| Working Duty Cycle | 50% Usage Frequency |
| Limit Switch Design | Built-in No External Limit Switch Needed |

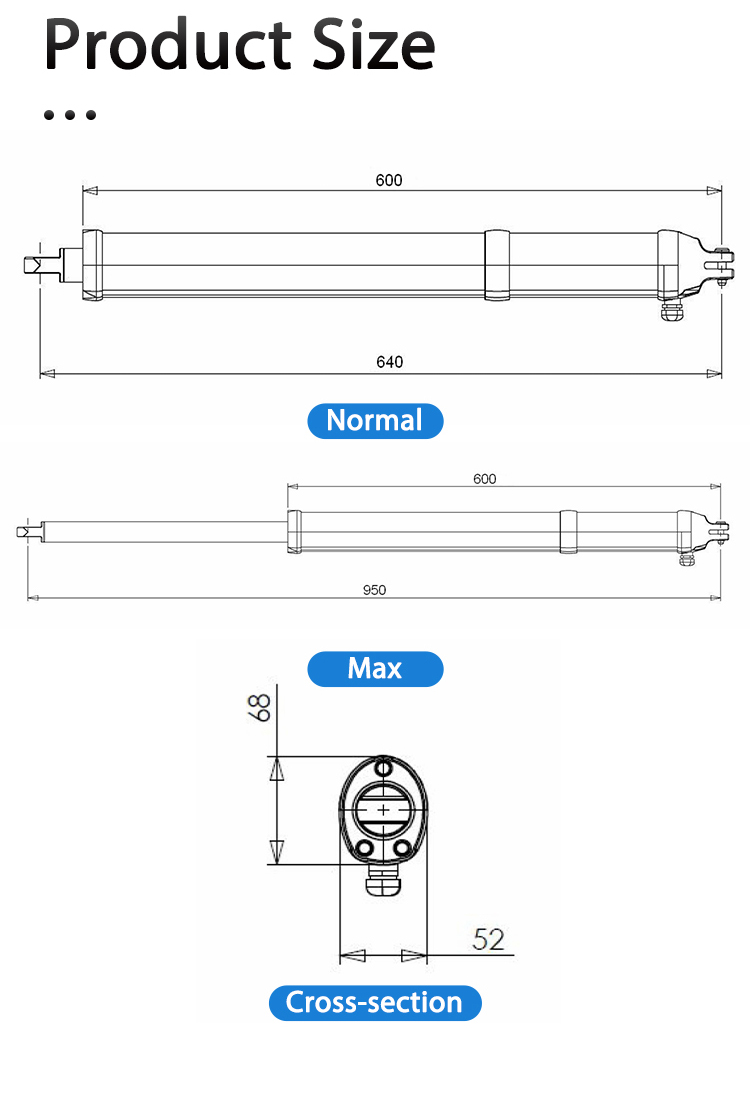

| Motor Arm Overall Dimension | 640*68*52mm (LDH) |

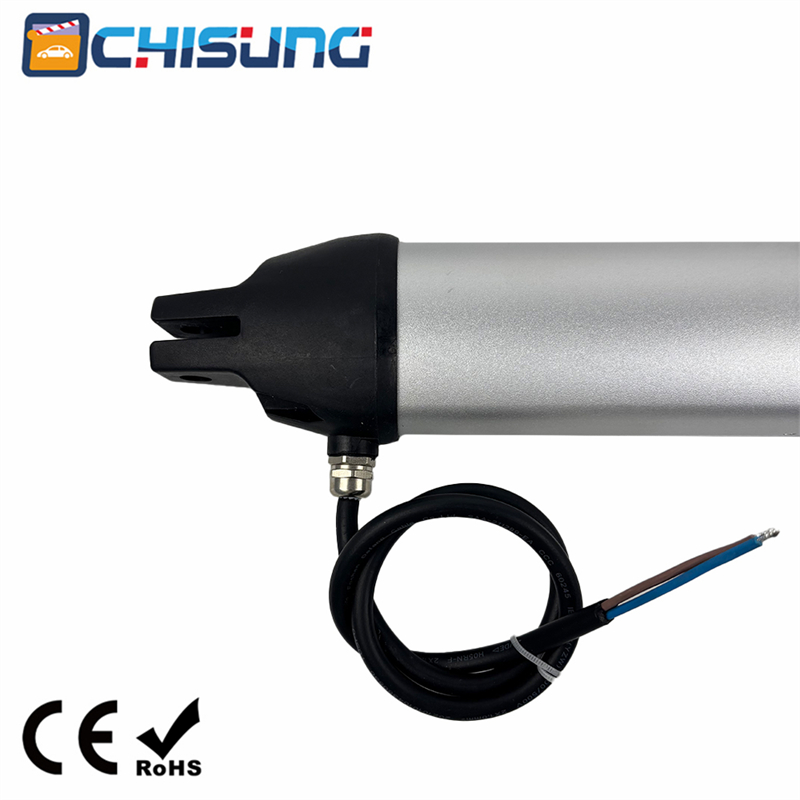

| Wiring Standard | Motor wire: 4×2mm²; Blinker wire:2×2mm²; Control box supply:3×1.5mm² |
| Full Kit Packing Weight | 11kg |
| Packing Box Size | 680*200*160mm |
Competitive Advantage:
1. Better Hardware Material Than Generic Cheap Gate Openers
Most low-cost swing gate motors use thin plastic housing and iron telescopic rods easy to rust. Our CSSGO-11 uses full die-cast aluminum casing + thick stainless steel tube, internal bronze gears instead of plastic gears, greatly reducing failure rate and maintenance cost for long-term outdoor use.
2. Stronger Load Capacity & Stable Thrust
1000N stable thrust supports up to 200kg single leaf, much higher than cheap 500-700N motors which struggle with heavy wrought iron gates. 50% high working frequency supports frequent opening for high-traffic community & school gates.
3. Complete Safety Protection Functions
Many budget gate operators only have basic remote control without anti-collision auto-reverse, soft stop or emergency manual release. Our model integrates all safety functions as standard configuration to eliminate hidden clamping risks for kids and pets.
4. Multi-Scenario Expandable Compatibility
The control box reserves multiple signal interfaces to connect almost all mainstream gate access control accessories on the market, while most generic gate motors lack expandable ports and cannot add Bluetooth, GSM, loop detector or camera linkage. Solar power compatibility is a unique highlight for off-grid customers.
5. Low Maintenance & Cost-Effective Full Kit
We supply a complete all-in-one kit with all mounting brackets, screws and 2 remotes as standard. Competitors often sell motor arms only, requiring customers to buy brackets, controllers and remotes separately with extra cost. Wear-resistant bronze gear structure cuts down after-sales maintenance trouble for distributors and end users.
6. Wide Climate Adaptability
IP45 waterproof and -20℃~+70℃ wide temperature range enables sales to cold northern countries, tropical rainy regions and desert high-temperature areas, wider market coverage than motors with narrow temperature tolerance.
7. Brand Factory Supply Support
CHISUNG is a professional access automation factory with mature swing gate motor production line, stable supply, customizable packaging & logo for distributors, reliable after-sales technical guide and installation manual support.
