CHISUNG CSSGO-07 Heavy Duty Swing Gate Opener, 500kg 5m Max Single Leaf, 3000N Thrust, Wind-Resistant Automatic Gate Motor for Oversized Gates
500kg/5m Ultra-Wide Gate | 3000N High Thrust | Heavy Wind-Resistant Design | Low Noise Operation | -20℃~+70℃ Durability | IP45 Waterproof | Manual Key Release
- Overview
- Recommended Products
Product Information
| Place of Origin: | China |
| Brand Name: | CHISUNG |
| Model Number: | CSSGO-07 |
| Certification: | CE |
Product Commercial Terms
| Minimum Order Quantity: | 1 |
| Price: | Consult us |
| Packaging Details: | carton |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000sets/Month |
Quick Detail:
Swing gate opener
Automatic swing gate opener
Arm-type gate operator
Surface-mounted swing operator
Underground swing operator
Dual swing gate operator
Swinging gate operator
Articulated arm gate operator
Electromechanical swing gate actuator
Remote-controlled swing gate opener
Swing gate motor
Low-energy swing gate operator
Powered swing gate operator
Linkage-type gate operator
Residential swing gate opener
Smart swing gate opener
Commercial-duty swing gate operator
Solar-powered swing gate opener
Push Rod gate opener
Linear Actuator gate opener
Pusher Type gate opener
Gate Motor for Swing Gates
Auto Gate Opener
Electric Gate Operator
Commercial Gate Opener
Ram Arm Swing Gate Opener
Single Swing Gate Opener
Outdoor Gate Opener
Heavy Duty Swing Gate Opener
Heavy Duty Swing Gate Operator
Industrial Swing Gate Motor
Heavy Duty Electric Gate Operator
Electric Swing Gate Motor

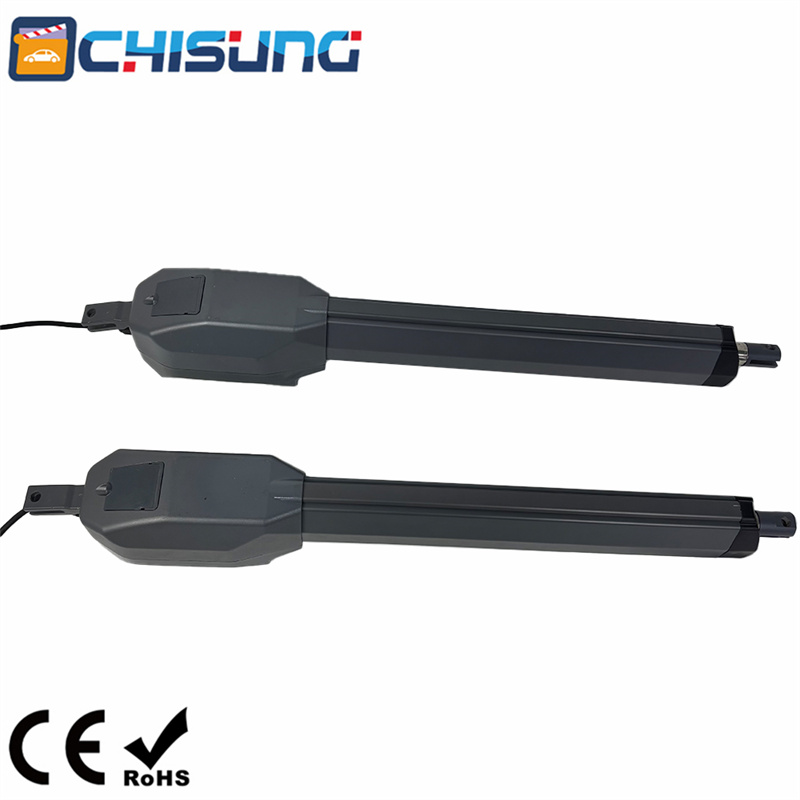

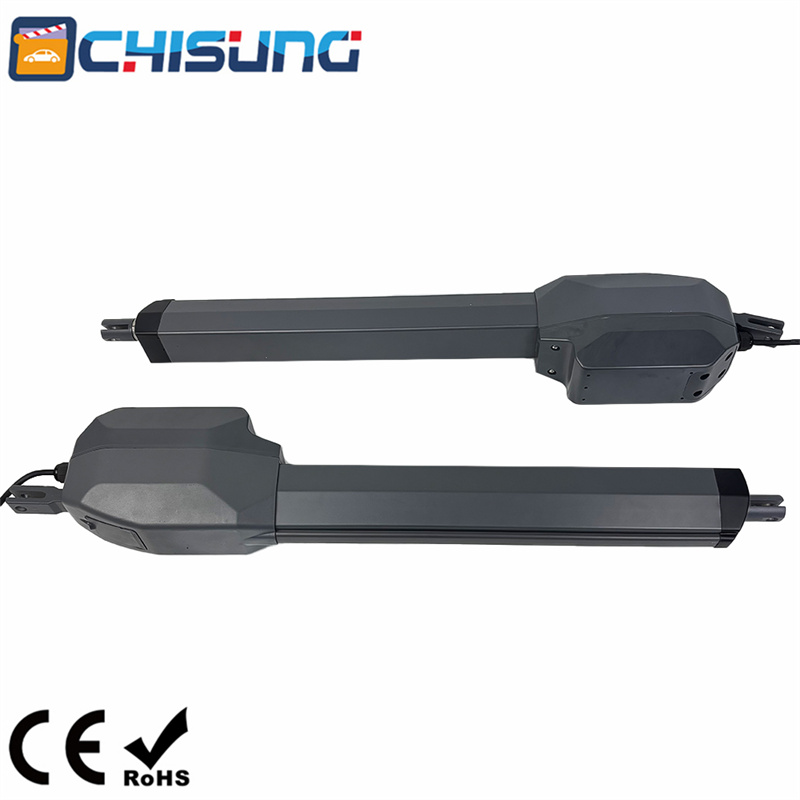

The CSSGO-07 Heavy Duty Swing Gate Opener is a high-performance push-rod type gate automation system, specifically engineered for oversized and overweight swing gates up to 5m wide and 500kg. Built with reinforced steel turbine gears and a die-cast aluminum housing, it delivers powerful 3000N thrust with exceptional wind resistance, making it ideal for large villas, commercial sites, and industrial properties. It features anti-extrusion safety protection, adjustable limit switches, and reliable operation in extreme temperatures, combining durability, safety, and quiet performance.
Description:
The CSSGO-07 swing gate opener is an enhanced upgrade from the classic 06 model, designed to handle larger, heavier gates with superior performance. Available in 400mm and 600mm travel versions, it supports single-leaf gates up to 4m or 5m wide and 500kg, making it perfect for oversized residential and commercial installations.

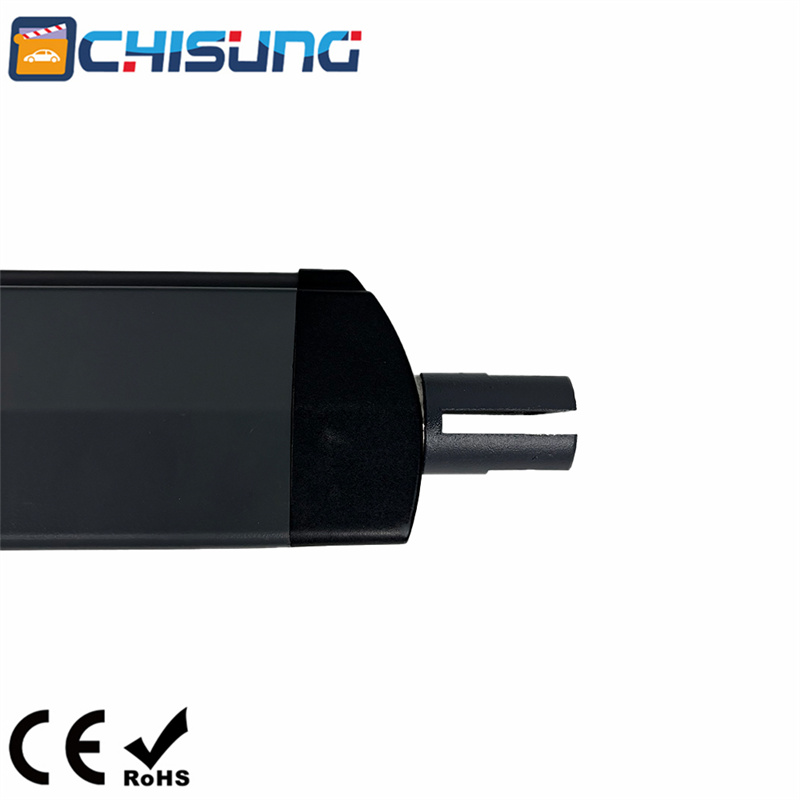

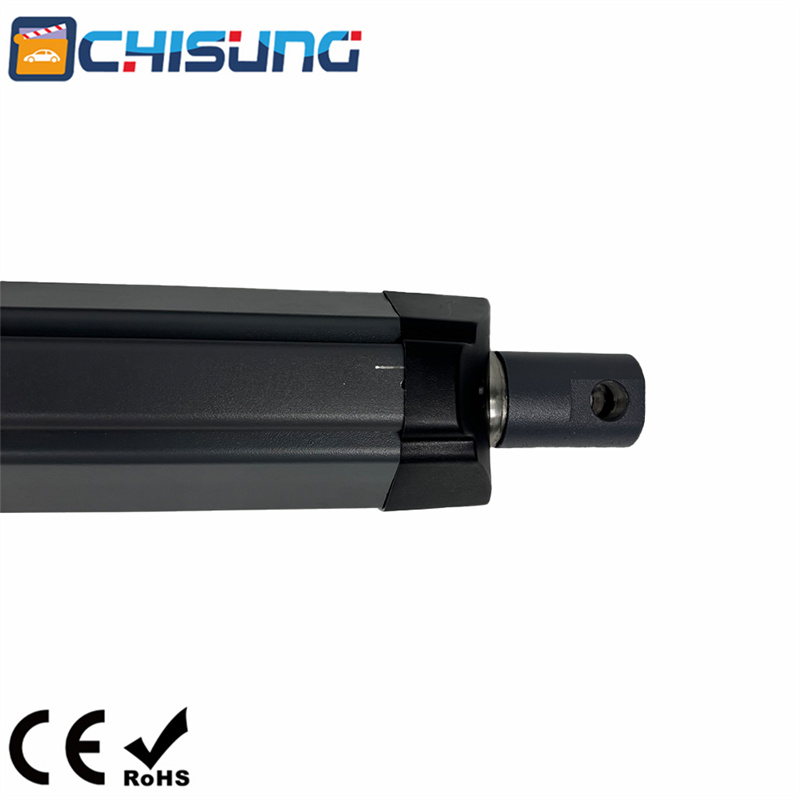

At its core, the system features reinforced steel turbine worm gears and a high-torque motor, delivering 3000N of thrust to ensure smooth, powerful gate movement even in strong winds. The die-cast aluminum alloy housing with stainless steel telescopic arm provides robust protection against the elements, with an IP45 rating for dust and water resistance.
Safety is a top priority. The system includes anti-extrusion electronic security protection, which automatically reverses the gate if an obstacle is detected, preventing injury or damage. It also features a built-in limit switch for precise opening/closing positioning and a power-off manual clutch switch, allowing easy gate operation during power outages.
The CSSGO-07 is built for reliability in diverse environments, operating efficiently from -20℃ to +70℃. The motor runs at just 1.6cm/s, ensuring low noise operation without compromising power, thanks to precision-engineered components and years of optimization for quiet performance.
Installation is flexible, with programmable auto-closing delay (0-99 seconds) and adjustable opening angles (90°/100°/110°/120°) to suit different gate designs. The system is compatible with a range of optional accessories, including GSM controllers, keypads, and vehicle loop detectors, allowing full customization of your access control system.
Applications:
l Residential: Oversized villa driveway gates, heavy-duty iron gates, and large private property entrances
l Commercial & Communities: Gated community main gates, apartment complex security gates, and commercial building access
l Industrial: Factory compound gates, warehouse vehicle entry points, and construction site access control
l High-Wind Areas: Coastal properties, wind-prone regions, and open-area installations requiring extra stability
l Public Spaces: School and hospital perimeter gates, scenic area entrances, and large-scale public facility access
Specifications:
| Item | Specification |
| Model | CSSGO-07 (400mm/600mm Travel Versions) |
| Power Supply | AC220V±10V 50/60Hz / AC110V±10V 60Hz |
| Motor Power | 220W |
| Rated Current | 1.5A |
| Max Thrust | 3000N |
| Max Gate Weight (Single Leaf) | 500kg |
| Max Gate Width (Single Leaf) | 5.0m (600mm version) / 4.0m (400mm version) |
| Motor Speed | 1450 RPM |
| Linear Speed | 1.6cm/s |
| Arm Travel | 400mm / 600mm (optional) |
| Opening Time | 12 seconds for 90° |
| Opening Angle | 90°/100°/110°/120° (adjustable) |
| Operating Temperature | -20℃ ~ +70℃ |
| Relative Humidity | ≤95% RH, non-condensing |
| Protection Class | IP45 |
| Housing Material | Die-cast aluminum alloy shell + stainless steel pipe, powder-coated |
| Safety Features | Anti-extrusion protection, built-in limit switch, power-off manual clutch |
| Auto-Close Delay | Programmable 0–99 seconds |

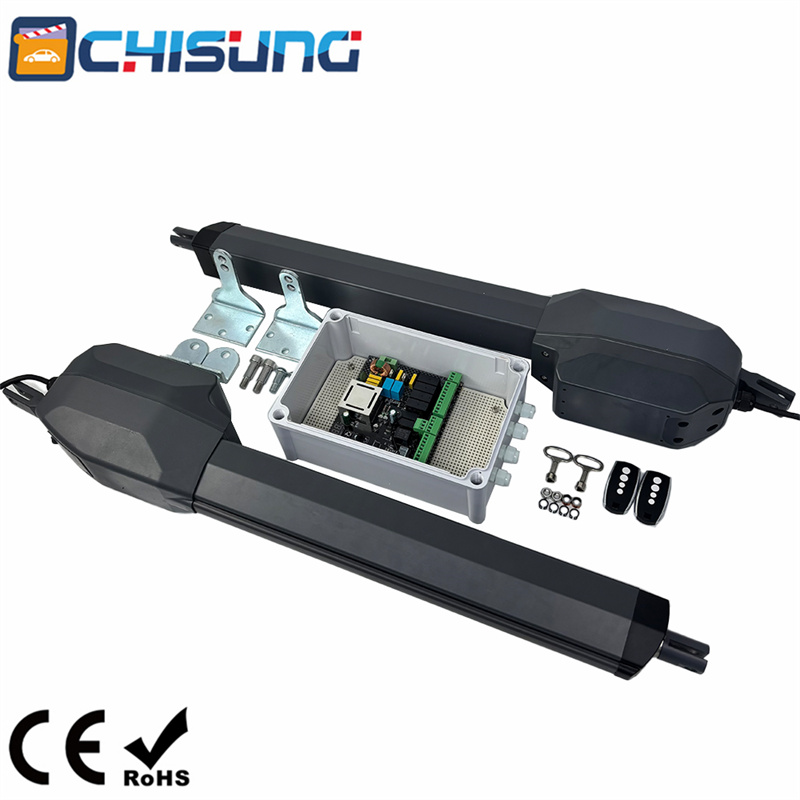

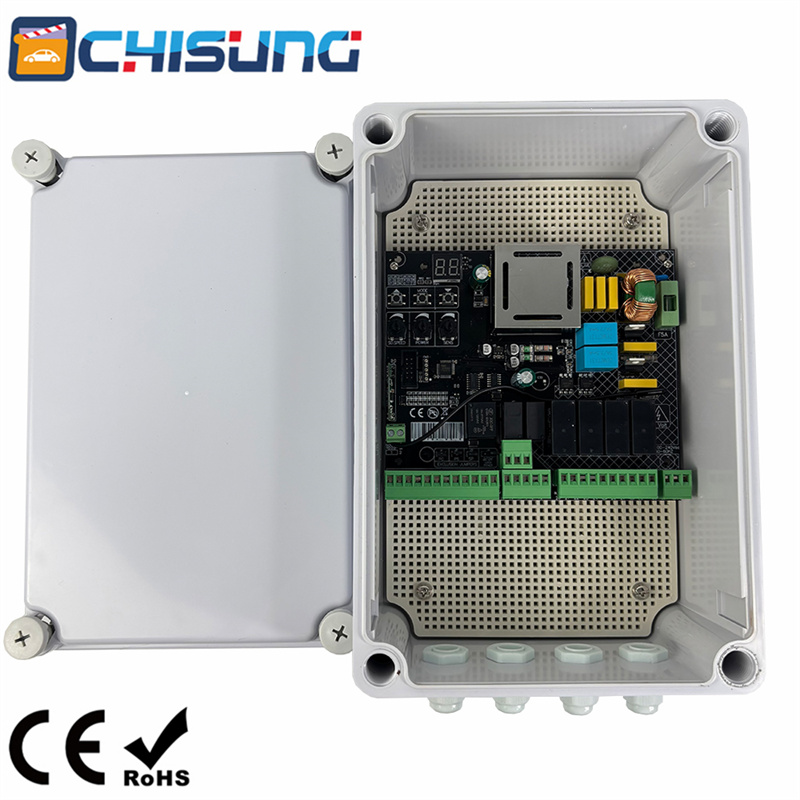

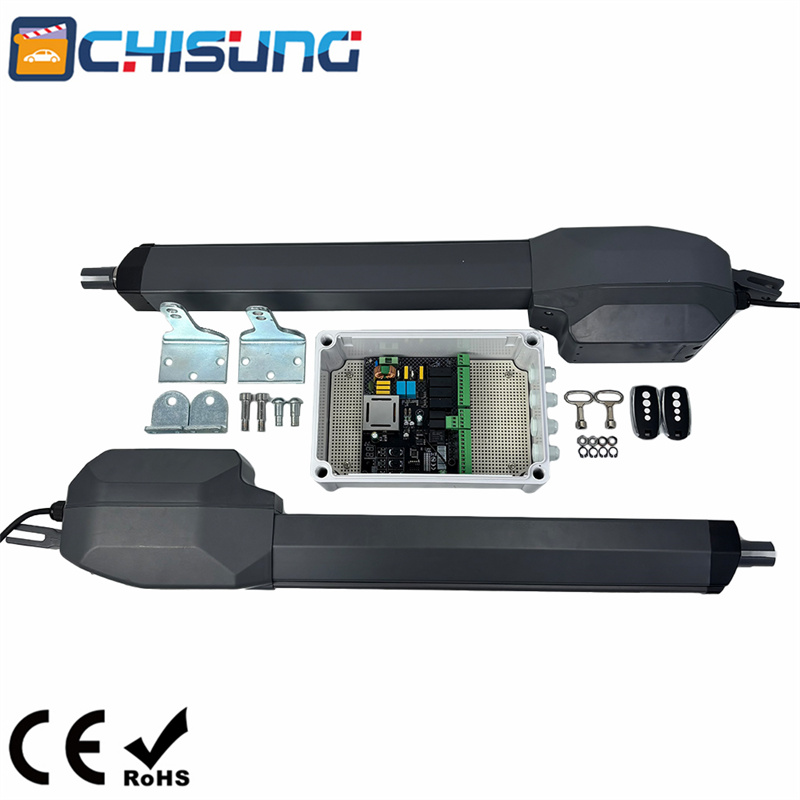

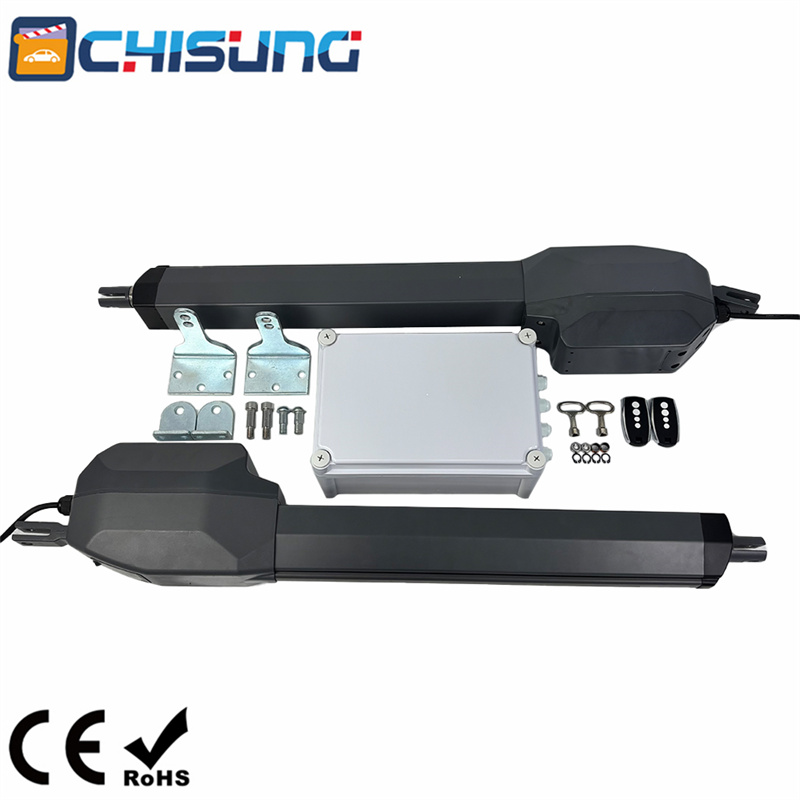

| Package Contents | 2 motor arms, 1 control box, 2 remotes, mounting brackets, clutch keys, hardware, manual |
| Packing | 32kgs,830*300*280mm,400mm Travel |
| 34kgs,1130*300*280mm,600mm Travel |
Competitive Advantage:
Unmatched Wind-Resistant Performance–Designed specifically for high-wind environments, with 3000N thrust ensuring stable operation even in strong gusts.
Ultra-Wide & Heavy-Duty Compatibility–Handles gates up to 5m wide and 500kg, making it ideal for oversized installations other openers can’t support.
Advanced Safety & Precision–Anti-extrusion protection prevents accidents, while built-in limit switches ensure accurate gate positioning.
Durable All-Weather Construction–IP45 rated die-cast aluminum housing withstands rain, snow, and extreme temperatures for long-term reliability.
Low Noise & Smooth Operation–Precision-engineered gears and motor design deliver quiet, vibration-free gate movement.

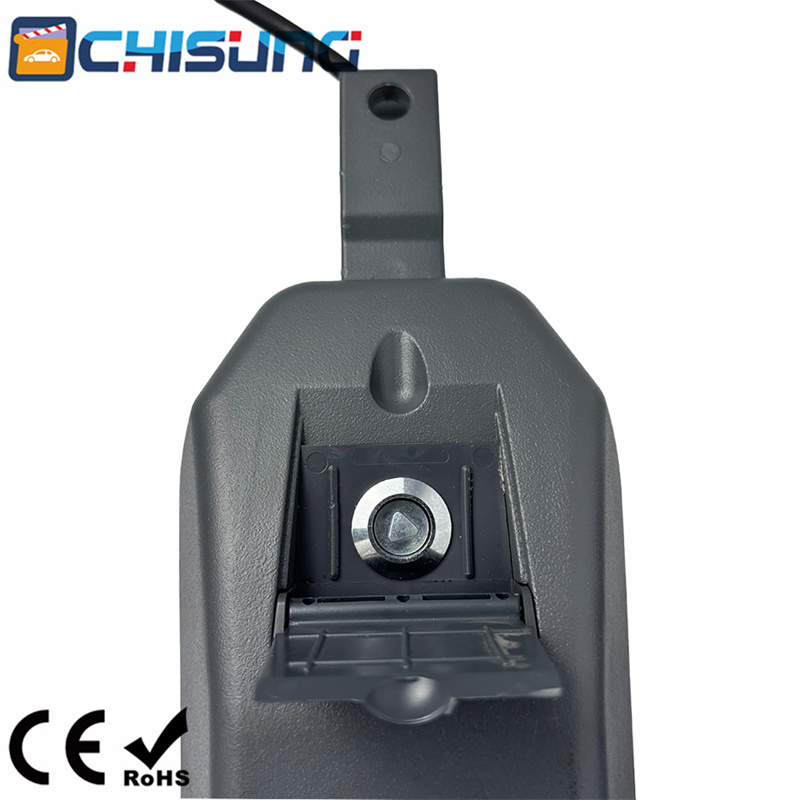

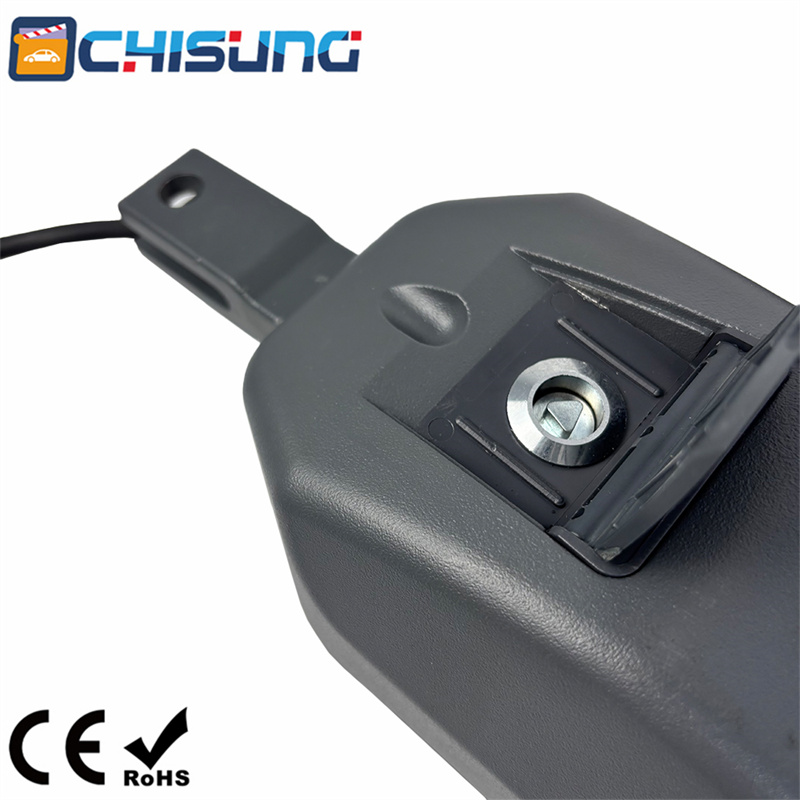

Emergency Manual Override–Key-operated clutch allows manual gate opening during power outages for peace of mind.
Flexible Customization Options–Adjustable travel lengths, opening angles, and delay times to fit any gate design.
Comprehensive Accessory Compatibility–Works with GSM, keypads, loop detectors, and other smart accessories for a fully integrated system.
Tag:CSSGO-07
