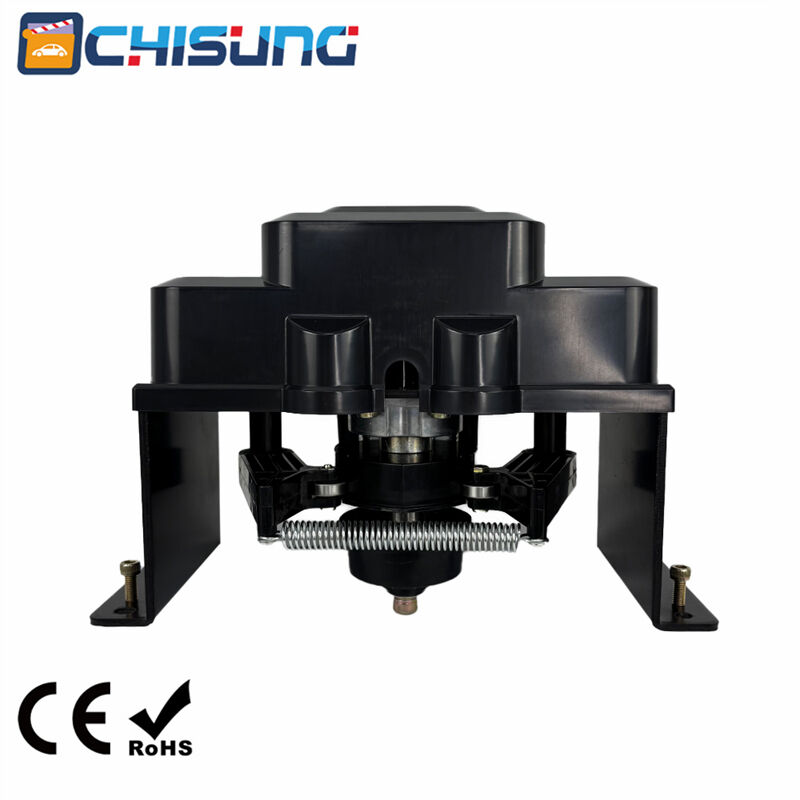

CSETSM05 Semi-Auto Tripod Turnstile Mechanism Precision Moulding Technology Pedestrian Access Control
- Overview
- Recommended Products
- The user does not install the product according to the manual, which causes the productdamage.
- Using the product in the conditions of unstable current, overload current or not in linewith the national electricity standard
- Misuse and improper installation, which causes the produce damage.
- Product damage is caused by natural disaster.
- Not in the warranty period.
- Other services promised by distributors.
- The manufacturer reserves the explanation rights to the manual and the warranty articles.
- Manufactured using advanced moulding techniques ensures high-precision components, minimizing defects and enhancing long-term reliability.
- Simple yet elegant design reduces maintenance complexity while offering superior resistance to wear and environmental stress.
- Seamless System Integration
- Fully compatible with access control, time attendance, and parking management systems, enabling streamlined operations in diverse settings (e.g., offices, campuses, or public facilities).
- Supports dry contact input and multiple output interfaces (counter, relay signals), ensuring effortless connectivity with third-party devices.
- Fire alarm functionality aligns with stringent fire protection standards, providing critical emergency response capabilities in high-risk environments.
- Low arm drive force (<2KGS) and high max bearable weight (80KGS) balance security with user convenience, preventing injury while deterring unauthorized access.
- Operates flawlessly in temperatures ranging from -40°C to +55°C and withstands up to 95% relative humidity (non-condensing), ideal for outdoor or harsh indoor conditions.
- Compact motor dimensions (304*285*150mm) and optimized arm length (490mm) facilitate space-efficient installation without compromising performance.
- Processes 30–45 persons per minute, significantly reducing congestion in high-traffic areas compared to conventional models.
- Low power consumption (50W) and DC12V motor voltage ensure energy efficiency and cost savings over time.
- 1-year warranty covers manufacturing defects, backed by lifetime service (with applicable charges) for sustained peace of mind.
- 24/7 online support ensures rapid issue resolution, minimizing downtime.
- Clear warranty exclusions (e.g., improper installation, natural disasters) promote accountability and encourage correct usage.
- Competitive pricing due to streamlined design and durable materials, lowering total ownership costs.
- Modular integration capabilities allow easy expansion as security needs evolve, future-proofing investments.
Product Information:
| Place of Origin | China,Shenzhen |
| Brand Name | CHISUNG |
| Model Number | CSETSM05 |
| Certification | CE |
| Minimum Order Quantity | 1set |
| Price | 125USD |
| Packaging Details | Carton/Wooden,According to customer requirements |
| Delivery Time | 7-15days |
| Payment Terms | L/C ; T/T ; MoneyGram |
| Supply Ability | 3000units/Month |
Quick Detail:
Tripod Turnstile Mechanism
Three-Rod Turnstile Mechanism
Three-Pole Turnstile Mechanism
Roller Turnstile Mechanism
Barrier Turnstile Mechanism
Tripod Turnstile Series Mechanism
Three-barrier Turnstile Mechanism
Turnstile with Three Arms/Rods Mechanism
Tripod Gate Mechanism
Three-arm Turnstile Mechanism
Tripod Turnstile Gate Mechanism

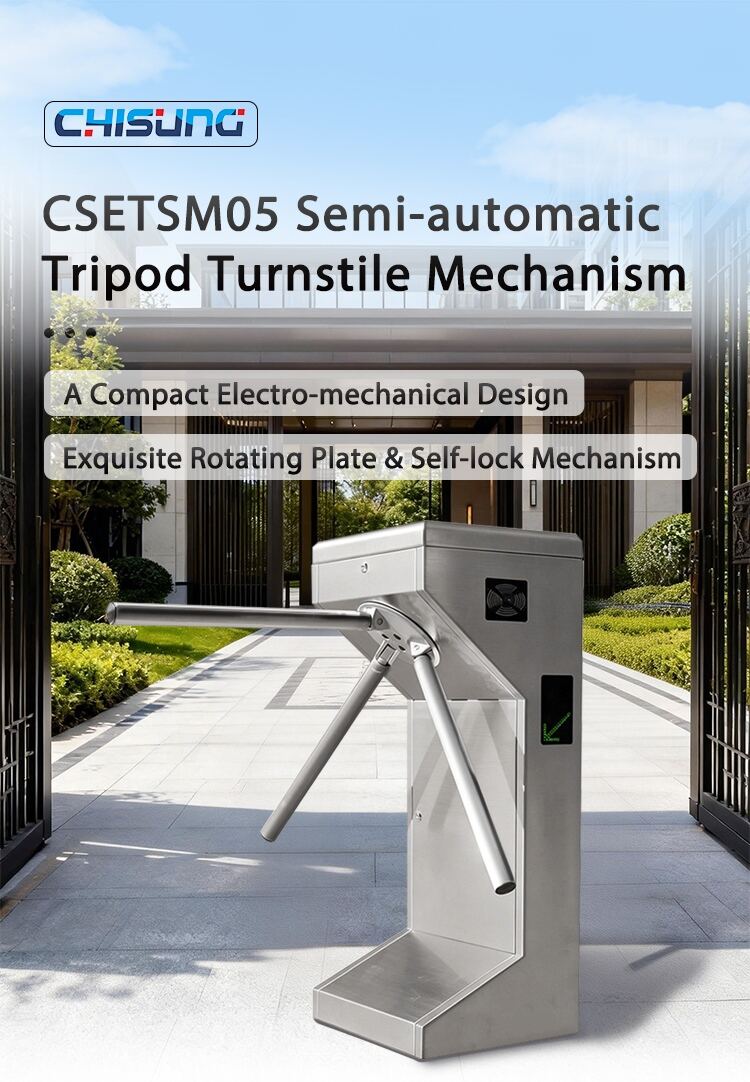

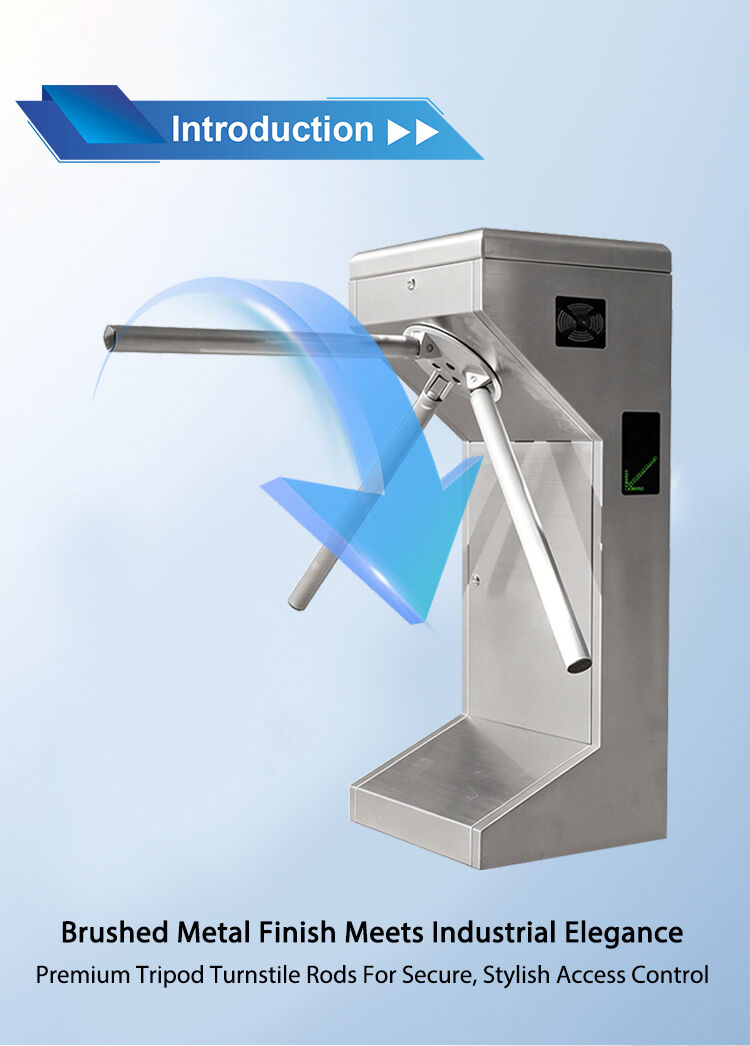

This series of turnstile is manufactured by precise mould craft. It is with a simple designand has a durable and reliable quality. This turnstile can work with access control system,time attendance system and parking management system. It has fire alarm function in highconformity with fire protection.
Description:

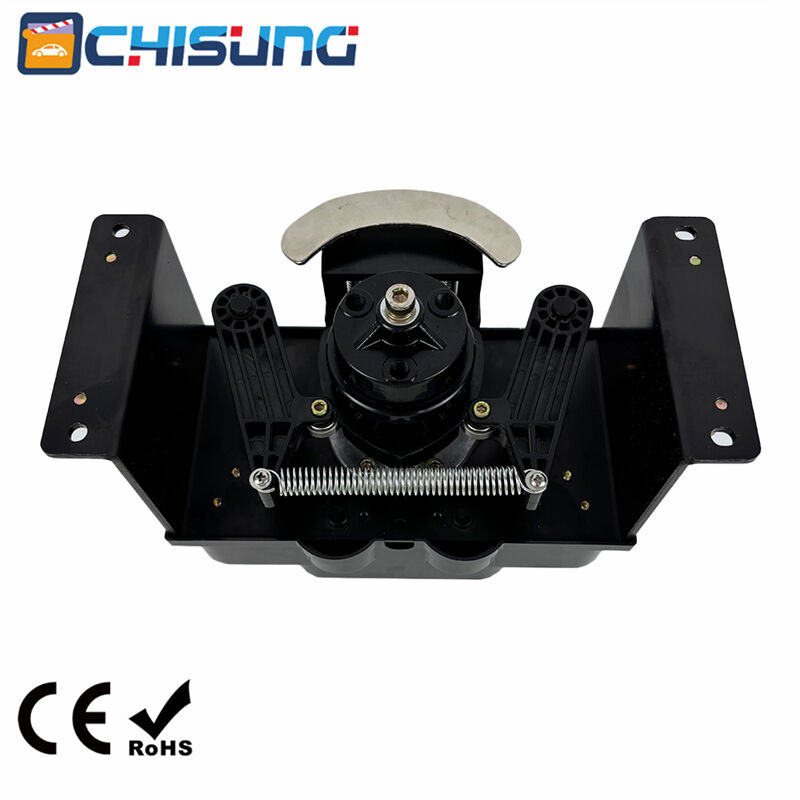

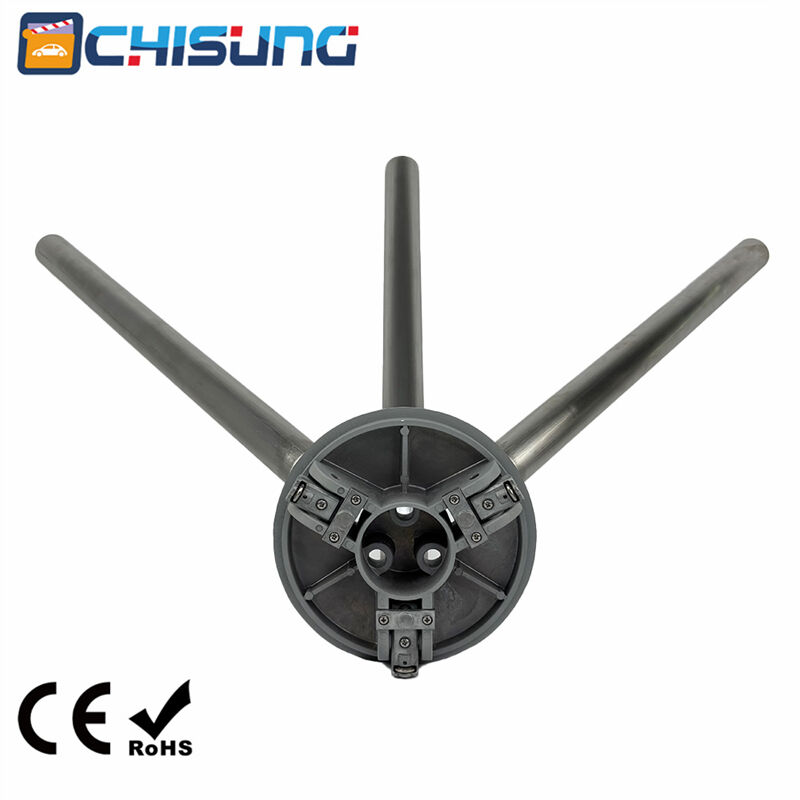

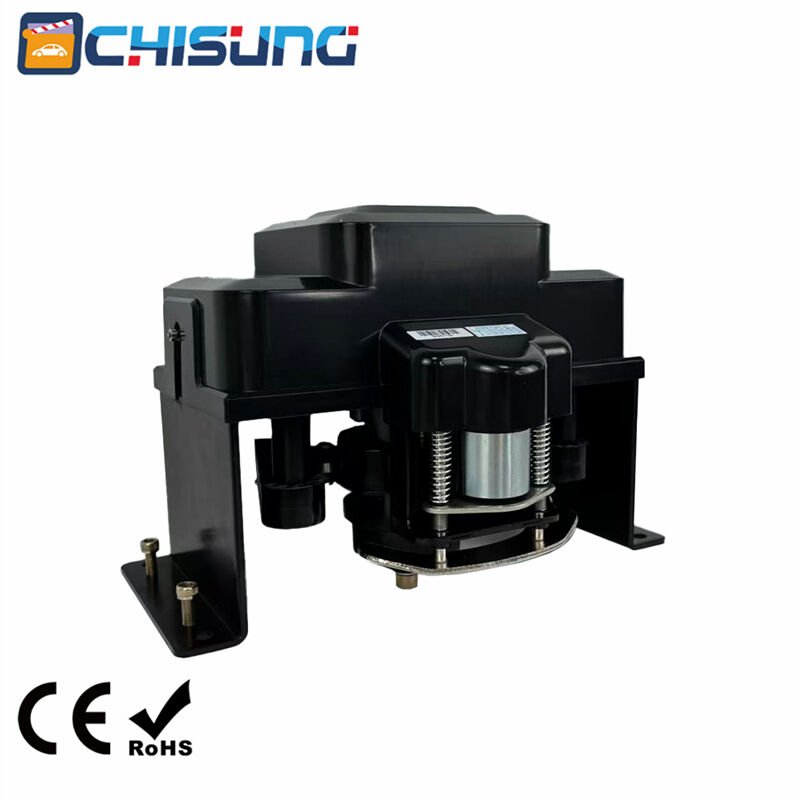

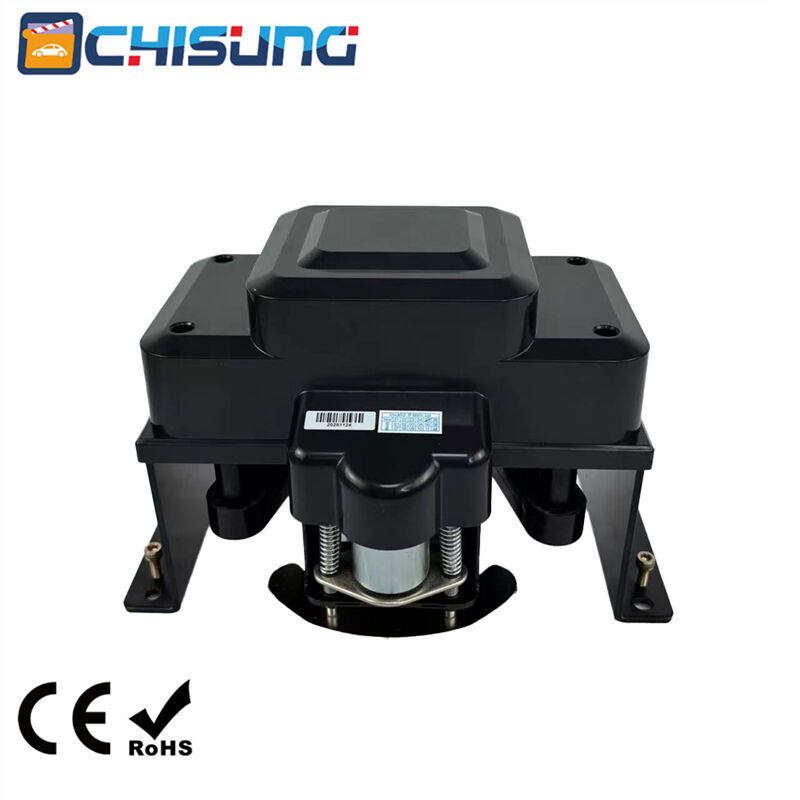

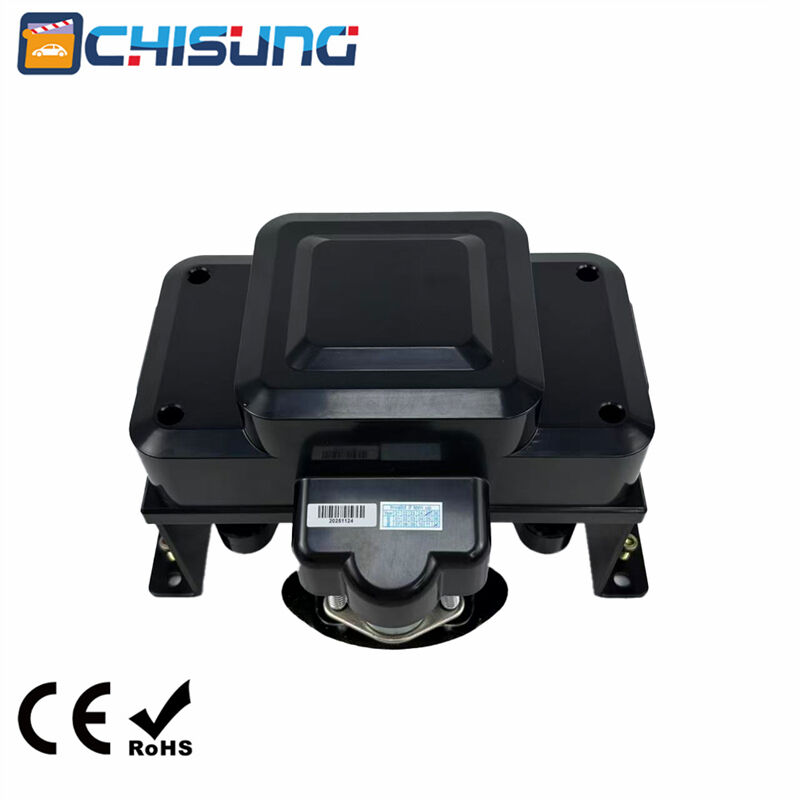

1.A compact electro-mechanical design with an exquisite rotating plate and a self-lockmechanism
2.Passable for bi-direction
3.Self-locking within 5 seconds if there is no one passing after signal activation
4.Arm auto dropping when power off and manually put the arm up when power on
5.Person counter output is available to indicating passenger quantity; the pulse is 200MS
6.Unauthorized opposite directional passing is prohibited
7.Fire alarm emergency signal output: if with arm auto drop function, the arm will dropautomatically after signal activation; if not,the arm rotating plate can operate freely andthere is alarm after signal activation
8.Input interfaces available for left access(L),right access(R),emergency(EM), GND;EMis in priority;NO electrical replay output with pulse between 200MS-500MS; EM signalshould maintain connected when any emergency happens.
9.Output interfaces: left and right counter output are both with COM/NO/N'C relay output,which is able to distinguish flow of both direction, This signal can be connected tosystems, indicating passengers'passing or not passing state.
10.Emergency Alarm interfaces available for alarm equipments under 12W or DC12V
Warranty and Service
1.l year warranty
2. Lifetime service with charge accordingly.
3.24 hours online service
Free warranty is not offered if the following circumstances happen.

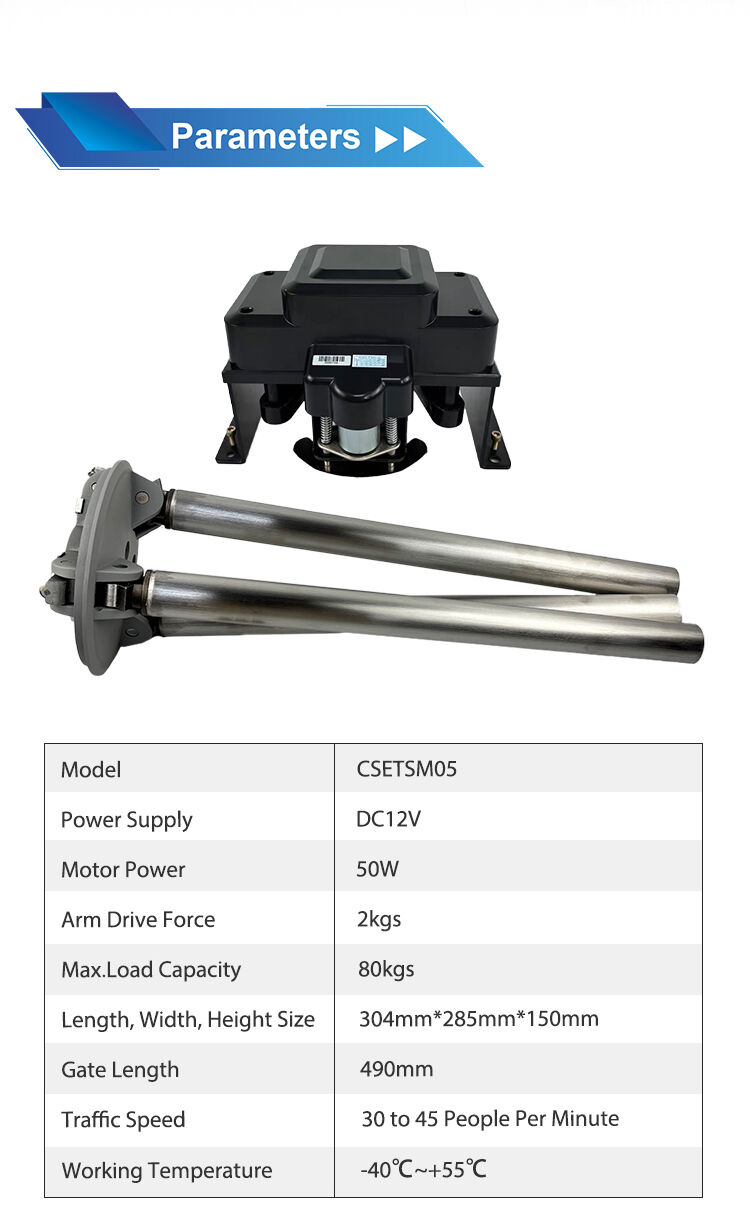

Specifications:
| Power Supply | DC12V |
| Motor Voltage | 50W |
| Working Temperature | -40°C ~ +55°C |
| Relative Humidity | ≤95% with no condensation |

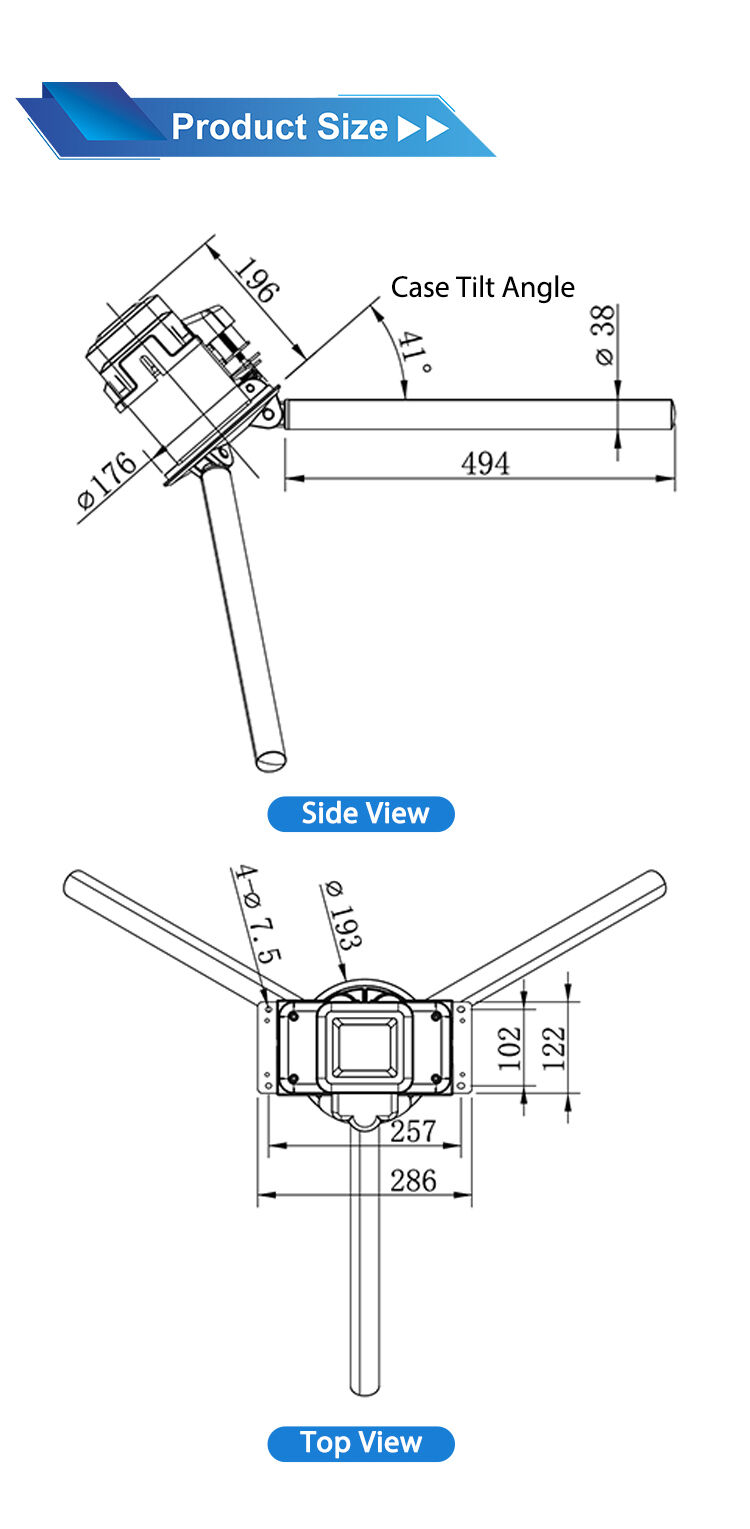

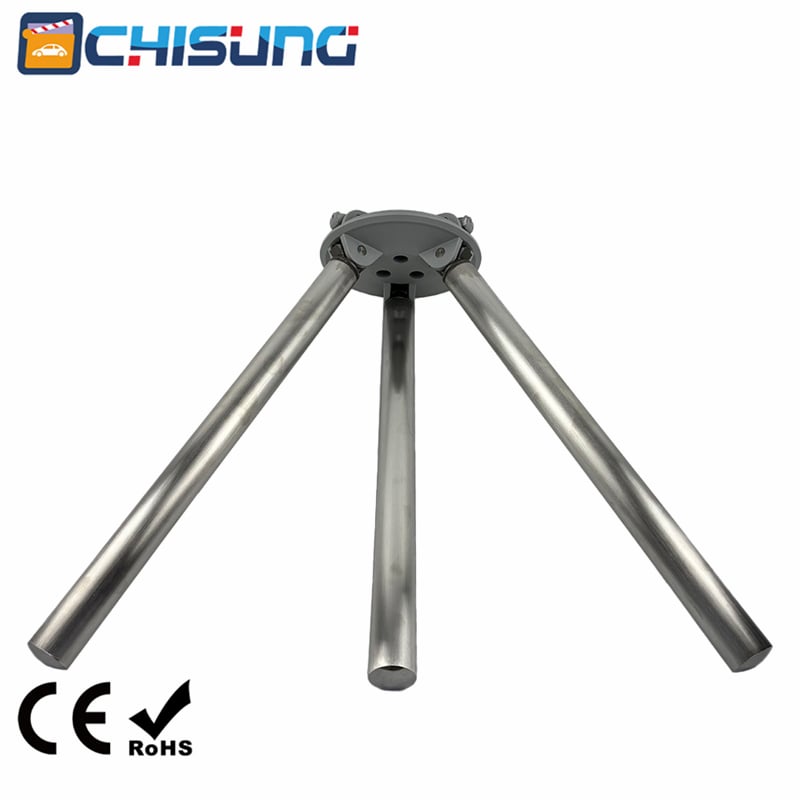

| Turnstile Arm Length | 490mm |
| Motor Dimension | 304*285*150MM (L*W*H） |
| Max Bearable Weight | 80KGS |
| Arm Drive Force | <2KGS |
| Installation Site | Outdoors and indoors |
| Passenger Flow | 30~45 persons per minute |
| Input interface | counter output,relay signal output of Com,NO,NC,with lowlevel signal of 200ms; Compatible with various input interfaces. |

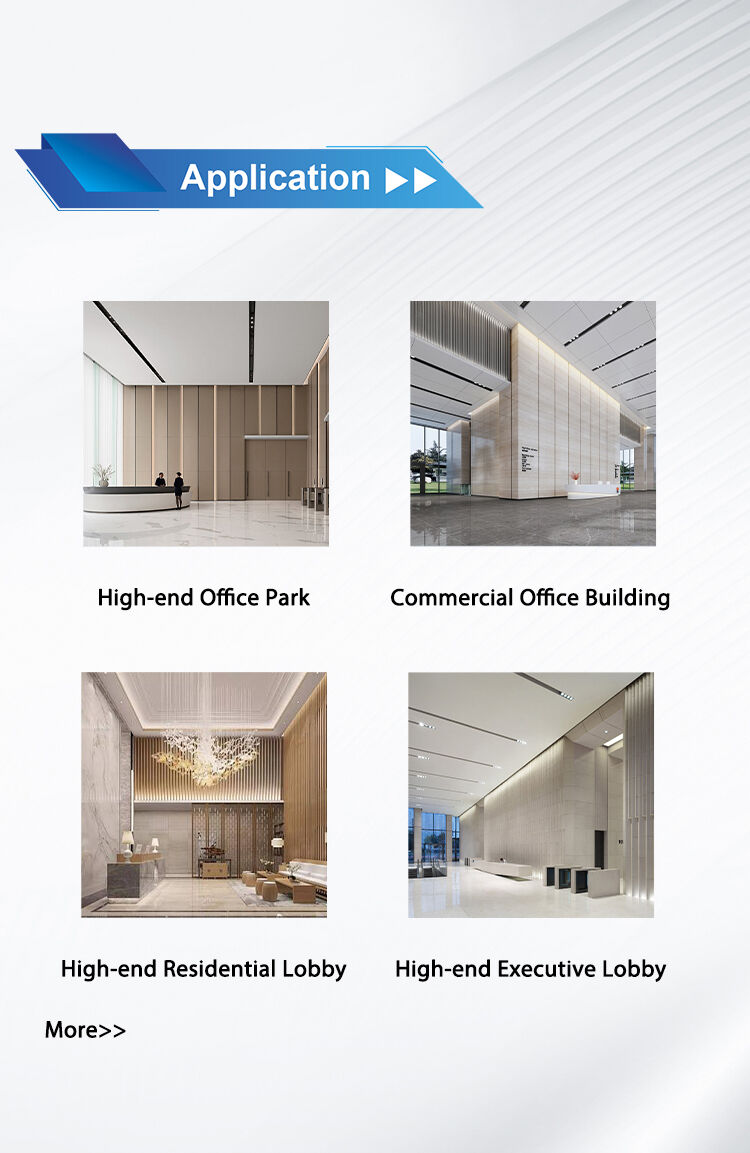

Application:
Three-Rod Turnstile Mechanism: Smart Access, Simplified
1. Public Transport
Problem: Crowded stations need fast, secure entry.
Solution: QR/NFC/facial recognition for "one person, one pass" verification.
Result: 30% faster queues, weatherproof design.
2. Stadiums & Museums
Problem: Thousands of visitors, no bottlenecks.
Solution: Digital tickets + time-slotted access.
Result: 40% quicker entry, fraud prevention.
3. Schools & Offices
Problem: Unauthorized access risks safety.
Solution: ID cards/biometrics for staff/students.
Result: Automated attendance, fewer security incidents.
4. Residential Areas
Problem: Balancing security and convenience.
Solution: Key cards + mobile QR codes for guests.
Result: 40% fewer break-ins, remote guest management.
5. Special Environments
Problem: Harsh conditions or diverse users.
Solution: Manual override + data privacy compliance.
Result: Reliable operation, cost-effective upgrades.
Why Choose Us?
Flexible: RFID, biometrics, mobile apps.
Durable: Built for high traffic and weather.
Smart: AI analytics for crowd control.
Upgrade your security effortlessly. Contact us now!
Note: This version cuts fluff, focuses on pain points, and uses bullet points for clarity. Adjust tone or add branding as needed.
Competitive Advantage:
Precision Craftsmanship & Robust Durability
Enhanced Safety Features
Extreme Environment Adaptability
High-Efficiency Passenger Flow
Comprehensive Warranty & Support
Cost-Effective & Scalable Solution
Why It Stands Out ?
This turnstile series excels by combining industrial-grade durability with user-centric features, offering a versatile, safe, and economically efficient solution for modern access control challenges. Its adaptability to extreme conditions and seamless system integration make it a preferred choice for demanding applications.
