TD511 Speed Gate L1500mm Acrylic & Alu DC Motor 20–60 p/min Indoor Premium Access for Upscale Spaces

Product Information:

Quick Detail:
‌Speed Gate‌,‌Speed Turnstile,Speed Glass Gate,Fast Pass Gate,‌Automatic Access Gate,Pedestrian Gate,Automatic Pedestrian Gate,‌Automatic Ticket Gate, Automatic Fare Gate
The CHISUNG TD511 speed gate is suitable for high-end indoor venues,such as CBD business centers,government lobbies,and upscale residential areas. The turnstile gate frame include a bridge turnstile structure for smooth operation.The mechanism uses a DC brushless motor or servo motor with self-testing upon power-on with low failure rate and long service life.
‌‌

Description:
CHISUNG TD511 speed gate’s housing is made of cold-rolled steel sheet with baking paint process and acrylic gate.The top cover can be made of CNC aluminum alloy or imitation marble materials.

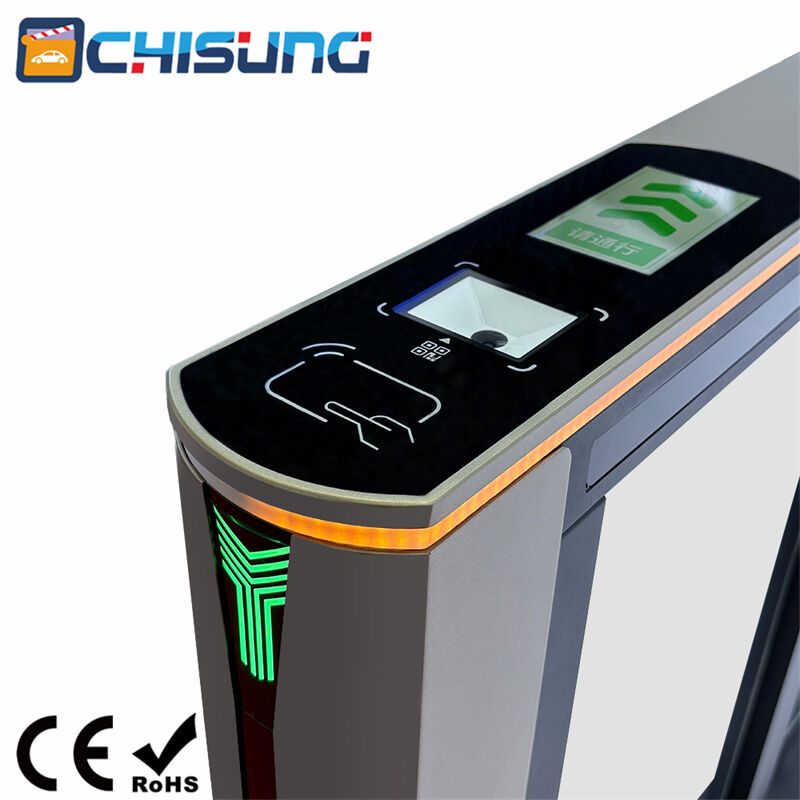

The LCD screen displays both Chinese and English can be set to multiple language modes.The display screen's functions can be set channel light indicators,audible and visual alarms, obstacle detection and open, anti-tailgating,passage memory,automatic permission reset,power failure passage,brake locking and anti-collision,people counting,and leakage protection.
The equipment uses 8 pairs of infrared detection sensors to ensure passage safety;you can option hidden 2-megapixel starlight-level binocular wide-angle camera + infrared dual-lighting for precise anti-counterfeiting,it can be connected to the cloud via facial recognition device,remotely adjust equipment parameters,and remotely control the gate switch.
The overall coloring exudes a business-like quality. Our proprietary motor control technology ensures precise and stable operation of the barrier gate. It supports various IC/ID card readers, ID card scanners, QR code scanners, and facial recognition terminals, making integration with access control systems easy.

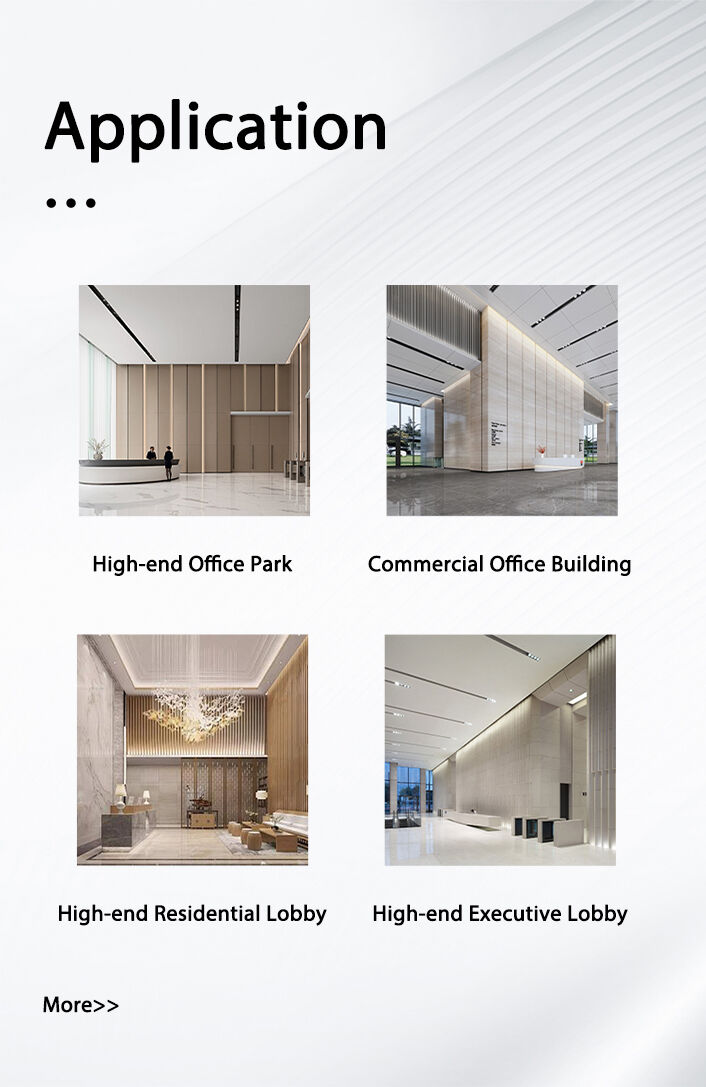

Applications:

CHISUNG Speed Gate Turnstiles: Versatile Access Control Solutions‌

In today's world, security and efficiency are crucial, and CHISUNG speed gate turnstiles stand out as top - tier access control solutions.

In busy corporate offices, especially during rush hours in financial or tech districts, they ensure only authorized employees and pre - approved visitors enter via facial recognition, QR codes, or RFID cards. This speeds up the entry process and adds a professional touch to the workspace.

At crowded transportation hubs like airports during holidays or subway stations at peak times, CHISUNG turnstiles handle high passenger volumes smoothly. Multiple authentication methods, such as boarding passes or transit cards, allow for quick and flexible access, reducing congestion.

In educational institutions, from schools to universities, they safeguard campuses, dormitories, and restricted areas. During busy periods like the start of a school term, they ensure only valid students and staff enter. Additional features like temperature screening enhance safety during health crises, and the user - friendly interface is easy for everyone to use.

For entertainment venues such as stadiums or amusement parks before major events, these turnstiles process numerous tickets rapidly, whether paper or electronic, minimizing queues and preventing ticket fraud. Their customizable design also fits the venue's theme.

In high - end shopping malls, they provide quick access for VIP customers through facial recognition or dedicated cards, and control employee access to restricted areas with RFID cards.

In short, CHISUNG speed gate turnstiles are adaptable and reliable, meeting diverse access control needs across industries. Choose them to upgrade your access control system.

Specifications:

Competitive Advantage:
The speed gate TD511 is a high-end pedestrian access management device designed for upscale indoor locations such as office parks, commercial buildings, and luxury residential lobbies.

• Robust Mechanical Structure‌: Features a bridge-type gantry frame that withstands high-intensity stretching and impact, ensuring stable operation.

• Customizable Aesthetics‌: The body frame combines 1.5mm cold-rolled plate coating with double-color spray painting on outer columns, offering a sophisticated color hierarchy. The upper cover can be customized with materials like CNC aluminum or marble-like finishes, available in classic champagne gold or tailored to match specific site styles, meeting diverse customer preferences.

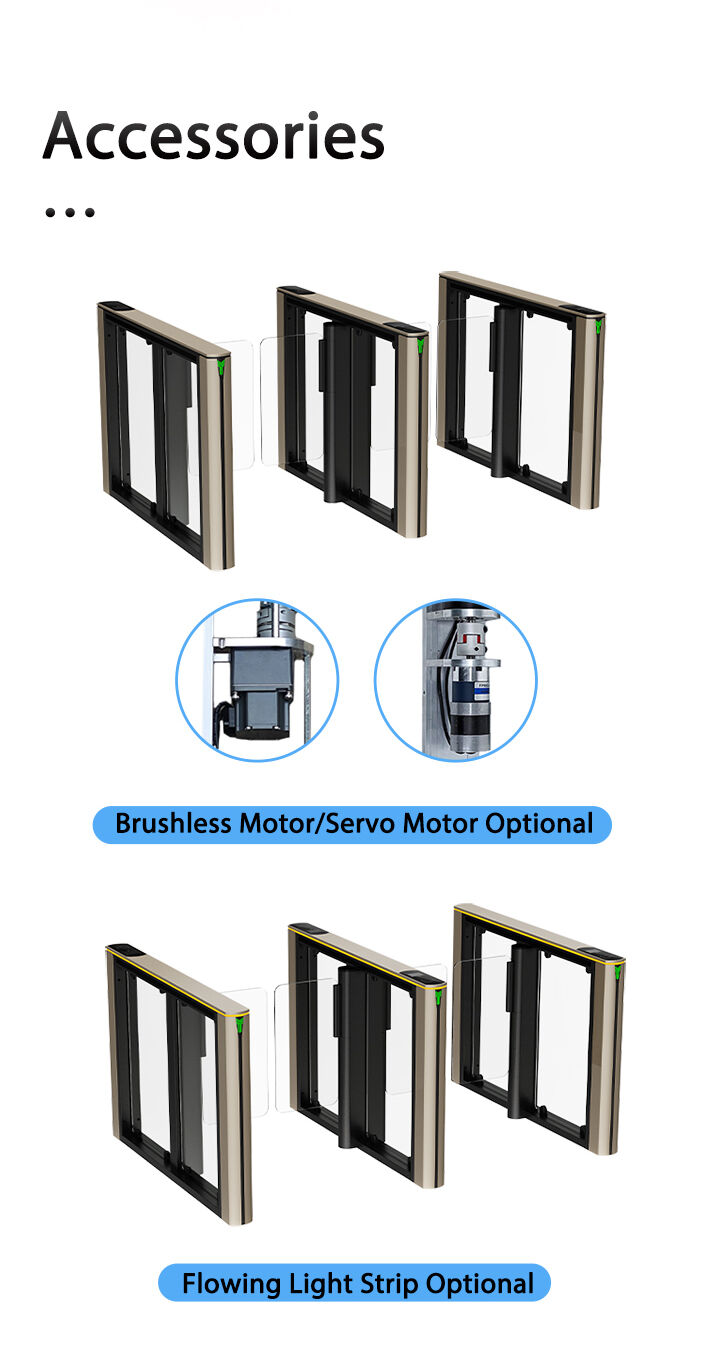

• Advanced Motor Technology‌: Equipped with a brushless DC motor core that performs self-checks upon power-up, ensuring low failure rates and long service life.

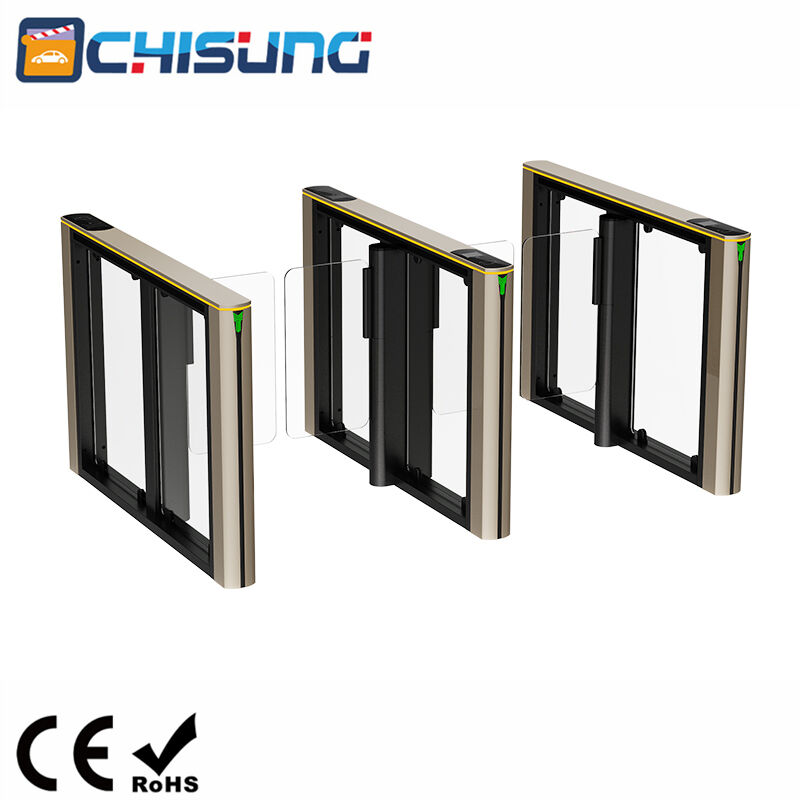

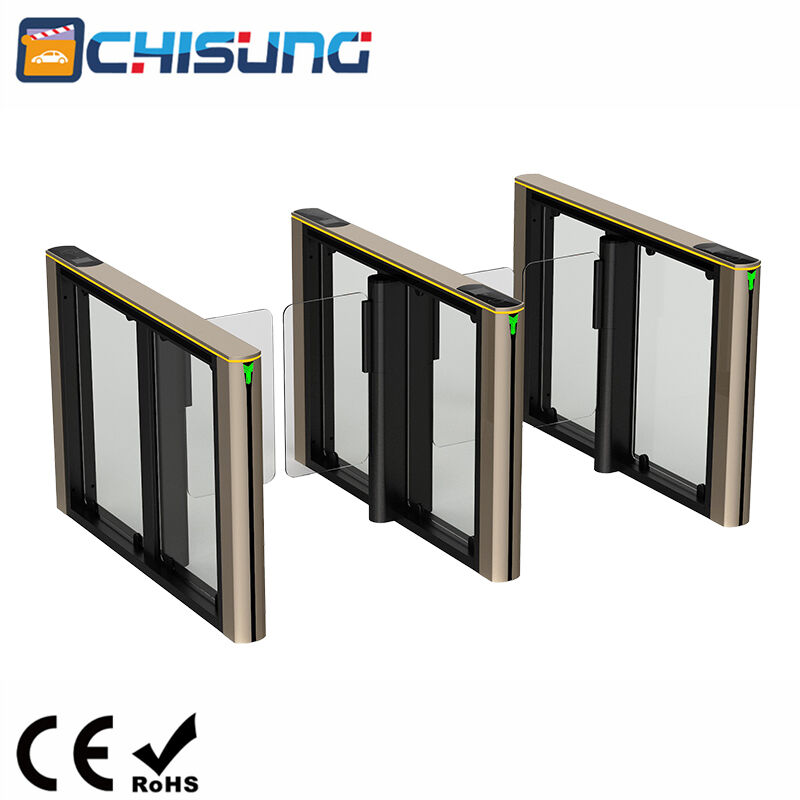

• Intuitive Lighting Indicators‌: Surround-type flow lights on the upper cover indicate normal operation with constant golden or customized colors, flowing in the direction of gate opening upon successful authentication. Additional green/red lights on the"column" indicate passage availability.

Enhanced Safety Features‌:

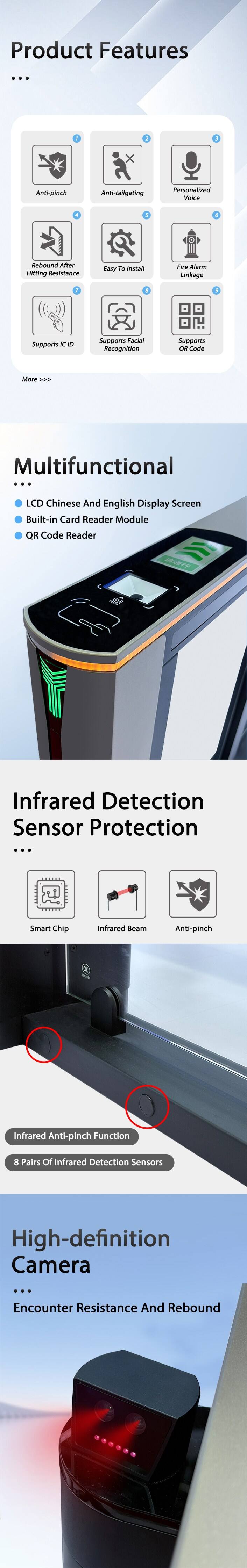

Eight pairs of infrared detection sensors provide anti-pinch protection.

The gate automatically stops and retracts upon encountering obstacles during closure.

Anti-tailgating technology triggers alarms for unauthorized access.

Smart Access Control‌:

• Memory function allows continuous passage after multiple authentications.

• LCD screen with Chinese/English menus simplifies parameter settings.

• Automatic permission reset cancels access rights after a set time without passage.


Emergency Management‌:

• Power failure automatically opens gates for free passage.

• Fire safety integration triggers gate opening during emergencies.

• Brake lock prevents damage from forced entry, automatically resetting after impact

Customizable Voice Prompts‌:
Multiple voice settings available for different scenarios, enhancing user experience.


Flexible Passage Modes‌:
Supports bidirectional controlled access or controlled entry with sensor exit, adjustable gate speed based on traffic volume.


Remote Management Capabilities‌:

• Connects to cloud platforms via facial recognition devices for remote parameter configuration and gate control.

• Optional hidden 2-megapixel starlight dual-lens wide-angle camera enables seamless face-gate integration.

• Wireless receiver option allows remote control for peak-hour constant open mode and single-gate operations.



Comprehensive Safety Protections‌:
Built-in leakage protector ensures safety during installation, with all electrical modules operating below 24V.

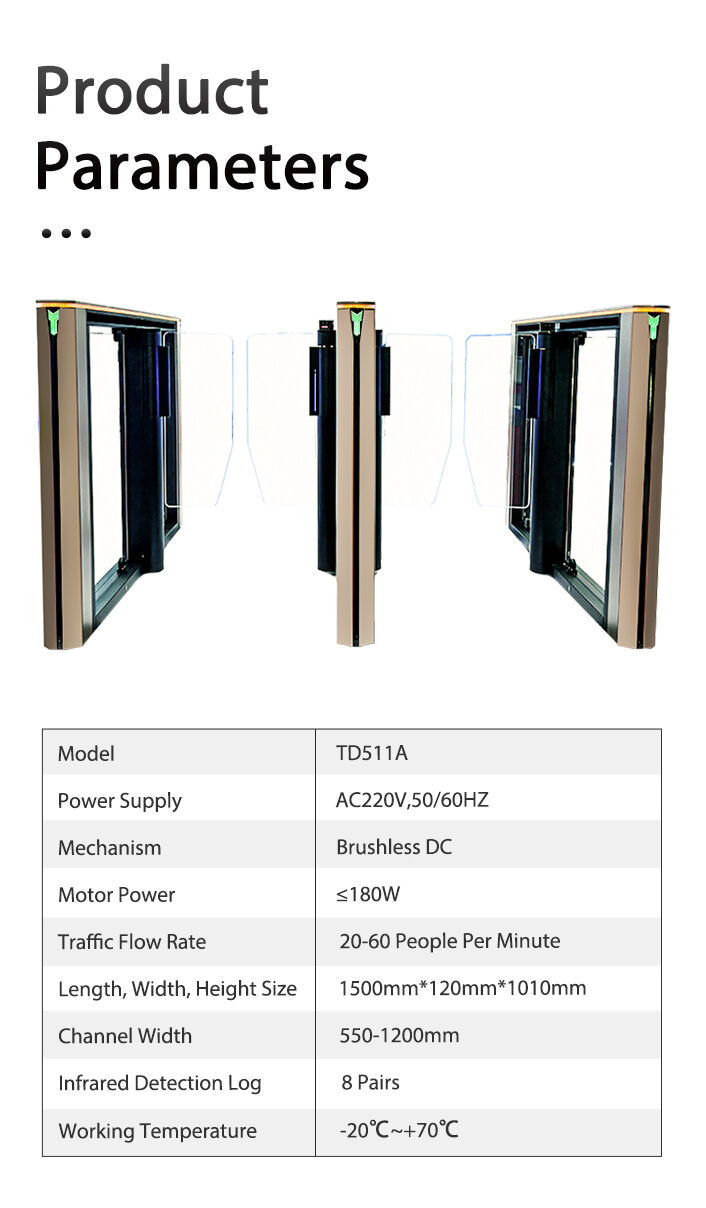

Technical Specifications‌:

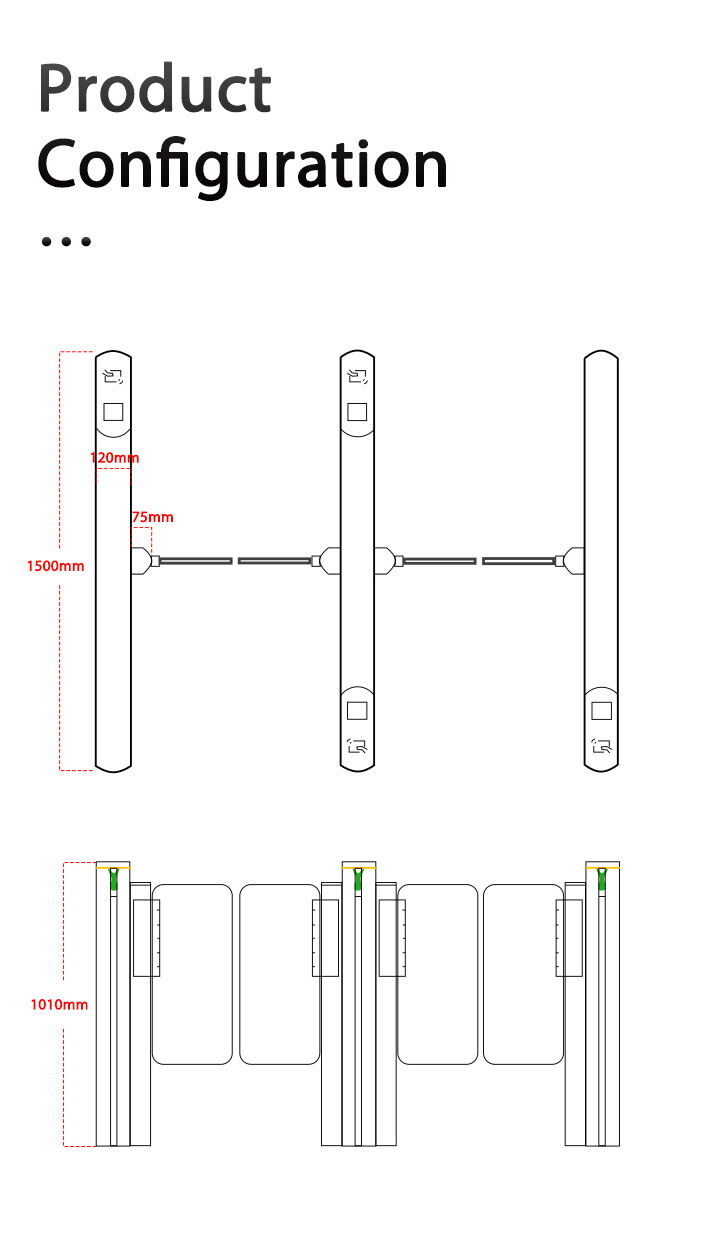

• Dimensions:1500mm (L) x 120mm (W) x 1010mm (H),with motor core protrusion of 75mm.

• Channel width adjustable from 550-1200mm (net width over 1000mm requires hollowed door panels).

• Materials:Cold-rolled plate painting + molded aluminum body;acrylic gates.

• Passage rate:20-60 people/minute,depending on conditions and mode.

• Operating conditions:-20°C to 70°C,humidity≤95% non-condensing, suitable for indoor and sheltered outdoor use.
• These features position the TD511 as a versatile,safe,and efficient solution for premium access control needs.
