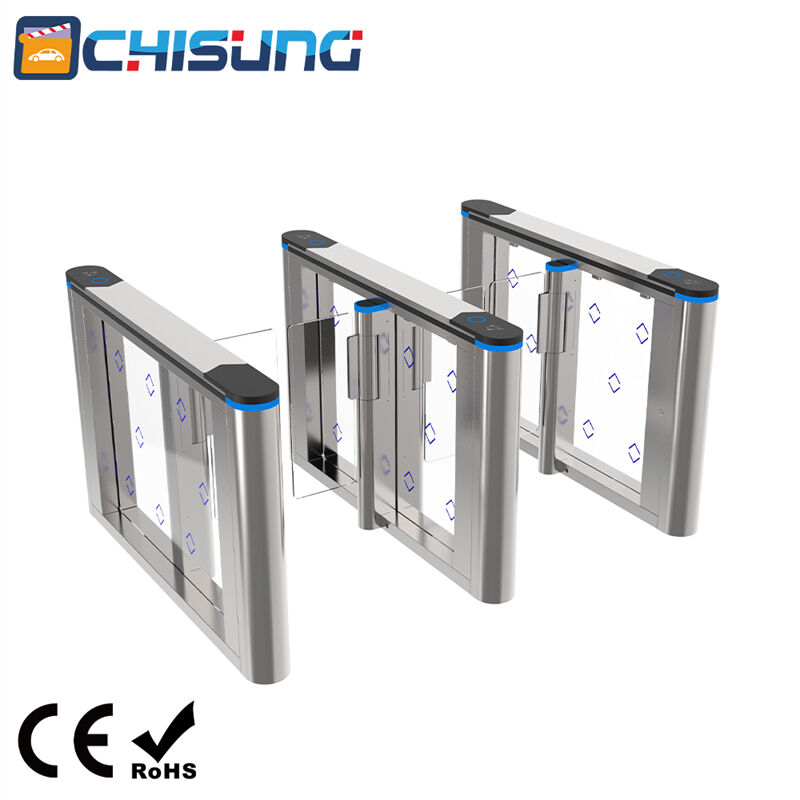

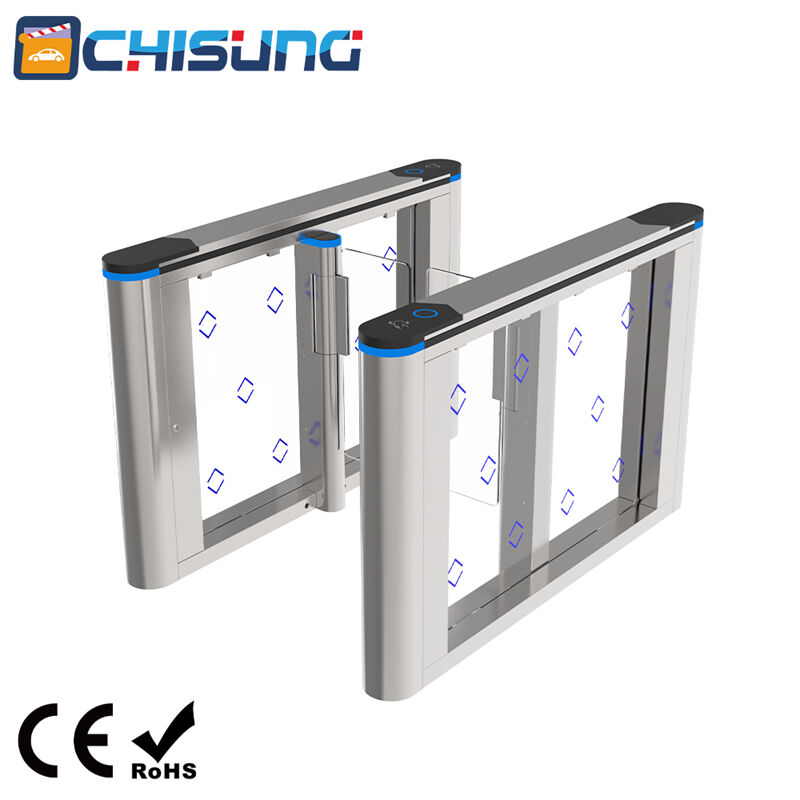

CSSG206 Servo Motor Speed Gate Access Turnstile L1500xW150xH980mm 304 Stainless & Acrylic W/H Custom Top Security
- Overview
- Recommended Products
- Dimensions: The gate measures 1500mm in length, 150mm in width, and 980mm in height, making it suitable for both indoor and semi-outdoor installations while ensuring optimal space utilization.
- Motor System: Equipped with an industrial-grade planetary servo geared motor, the CSSG206 delivers precise, low-noise operation with minimal vibration. This motor ensures smooth gate movement, reducing wear and tear for extended service life.
- Material& Finish: Constructed from cold-rolled steel sheet with a baking paint finish,the gate boasts exceptional durability and resistance to corrosion,ensuring it withstands heavy daily usage and harsh environmental conditions.
- Safety & Protection: Each channel features 12-point infrared beam protection, creating a comprehensive safety net to prevent pinch injury during gate operation. Surrounding sequential indicator lights provide clear visual guidance, enhancing user awareness of the gate’s status.
- Controller: The integrated LCD brushless controller supports both Chinese and English menus, offering intuitive configuration via a 4-core connection cable. This controller enables seamless integration with various access control systems and simplifies maintenance.
- Anti-tailgating and anti-reverse pass features prevent unauthorized access.
- Infrared anti-clamp function ensures safety during operation, with 12 pairs of infrared sensors providing comprehensive detection.
- Flexible Card Reading Modes: Supports both "with memory" and "without memory" card functions, allowing for customized access control settings.
- Corporate Campuses & Office Buildings
- Airports & Transportation Hubs
- Stadiums & Event Venues
- Shopping Malls & Retail Centers
- Hotels & Resorts
- Public Institutions & Government Buildings
- Built Tough, Lasts Long
- Smooth & Silent Operation
- Smart Security, Always
- Flexible & Future-Ready
- Fast Flow, No Bottlenecks
- Ready for Any Climate
- Eco-Friendly & Efficient
Product Information:
| Place of Origin | China,Shenzhen |
| Brand Name | CHISUNG |
| Model Number | CSSG206 |
| Certification | CE |
| Minimum Order Quantity | 1unit |
| Price | 1.Single-servo motor,850USD |
| 2.Double-servo motor,1100USD | |
| Packaging Details | Carton/Wooden,According to customer requirements |
| Delivery Time | 7-15days |
| Payment Terms | L/C ; T/T ; MoneyGram |
| Supply Ability | 3000units/Month |
Quick Detail:
Speed Gate,Speed Turnstile,Speed Glass Gate,Fast Pass Gate,Automatic Access Gate,Pedestrian Gate,Automatic Pedestrian Gate,Automatic Ticket Gate, Automatic Fare Gate
CSSG206 Speed Gate: Advanced Access Control Solution
The CSSG206 Speed Gate represents a cutting-edge integration of security, efficiency,and durability,designed to streamline pedestrian access management in high-traffic environments such as corporate lobbies, transportation hubs, and commercial facilities.With its robust construction,intelligent features,and user-centric design,this speed gate sets a new standard for modern access control systems.
Description:
Key Features:
Robust Design: Crafted with δ=1.5mm SUS304 stainless steel and 10mm clean acrylic barriers, ensuring long-lasting performance and resistance to environmental factors.
Advanced Movement Mechanism: Equipped with an industrial-grade planetary servo geared motor, providing smooth and reliable operation with minimal noise.
High Throughput: Facilitates a pass rate of 35-50 people per minute, optimizing the flow in high-traffic areas.
Enhanced Security Functions:
Automatic Reset: If passage is not completed within the set time, the gate automatically resets to a locked state, enhancing security.
Multiple Compatibility Options: Seamlessly integrates with various access control systems, including IC cards, ID cards, scanning, and face recognition technologies.
Versatile Operating Modes: Offers both open and closed operation modes, with additional working modes such as two-way and one-way card reading to suit different security requirements.
User-Friendly Indicators: RGB indicator lights provide clear visual feedback on the gate's status and access permissions.
Applications:
CSSG206 Servo Motor Speed Gate: Perfecting Access Control in Every Environment!

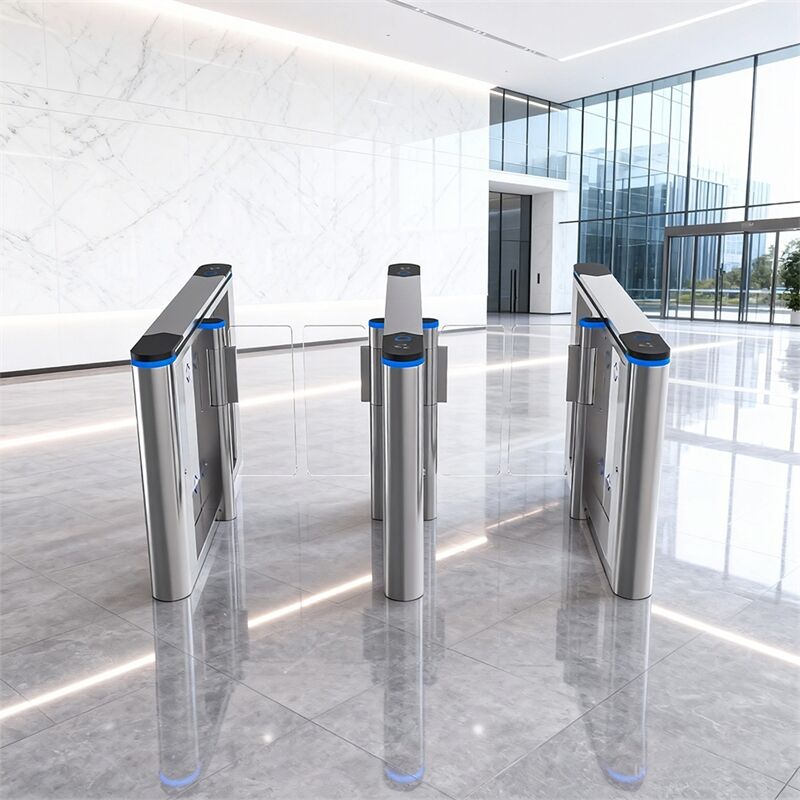

Give your employees and visitors a seamless, high-tech entry experience. With facial recognition or card access, the CSSG206 ensures swift, secure passage while preventing unauthorized entry. Its sleek stainless-steel design adds a touch of sophistication to any lobby, while its robust build withstands daily heavy use with ease.

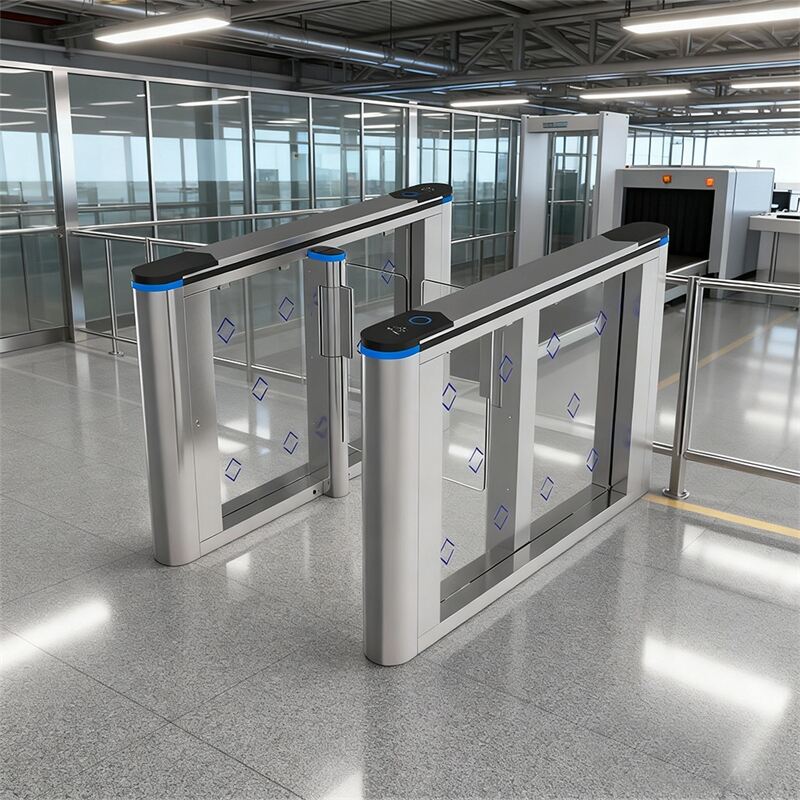

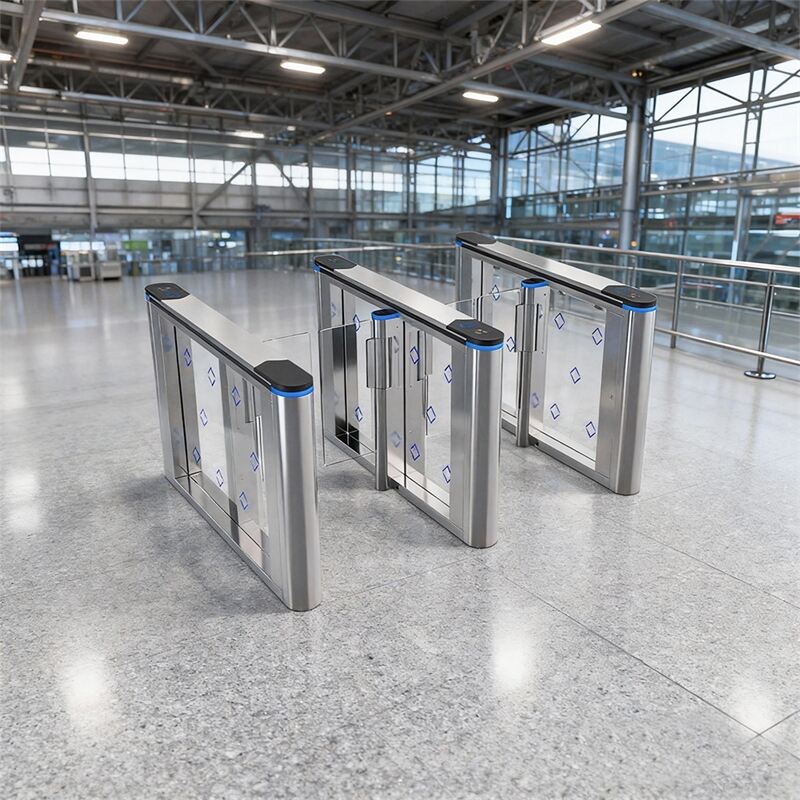

In the fast-paced world of travel, every second counts. The CSSG206 accelerates passenger processing, handling 35–50 people per minute without compromising security. Anti-tailgating and infrared anti-clamp features keep travelers safe, while its resilience in extreme temperatures and humidity ensures flawless performance, indoors or outdoors.
Manage large crowds effortlessly during high-energy events. The CSSG206 supports one-way or two-way access, allowing flexible crowd control while maintaining top-tier security. Its low-noise operation and smooth movement enhance the attendee experience, making entry and exit a breeze—even at full capacity!
Boost foot traffic efficiency while ensuring safety.The CSSG206 integrates seamlessly with access control systems,allowing quick entry for shoppers while deterring unauthorized access.Its elegant design complements modern retail aesthetics, and its energy-efficient operation keeps costs down.
Elevate guest experience from the moment they arrive.The CSSG206 combines speed and style, offering smooth, quiet access for guests while enhancing security.Compatible with room cards or biometric systems,it ensures a seamless,premium check-in experience.
Security is non-negotiable. The CSSG206 provides robust access control with anti-reverse pass and automatic reset features, ensuring only authorized personnel enter sensitive areas. Its durable construction and IP4X rating guarantee reliable performance, even in challenging environments.
Step into a smarter, safer future—choose CSSG206 for access control that exceeds expectations!

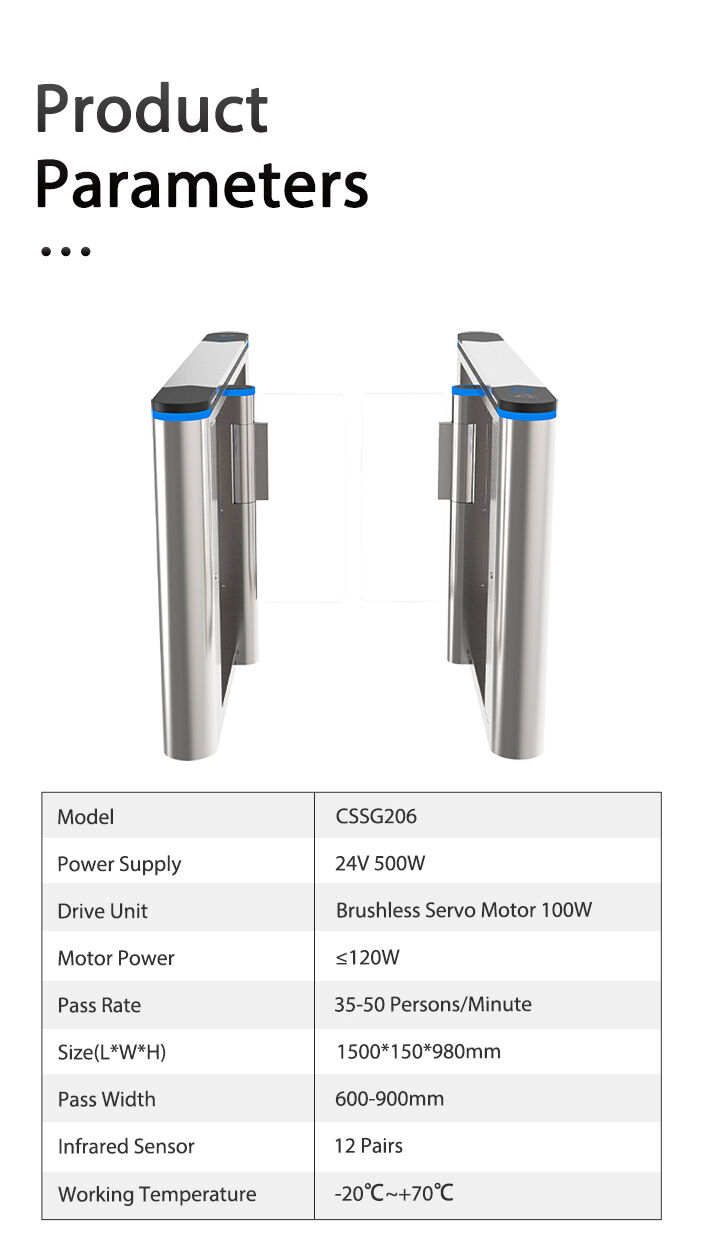

Specifications:

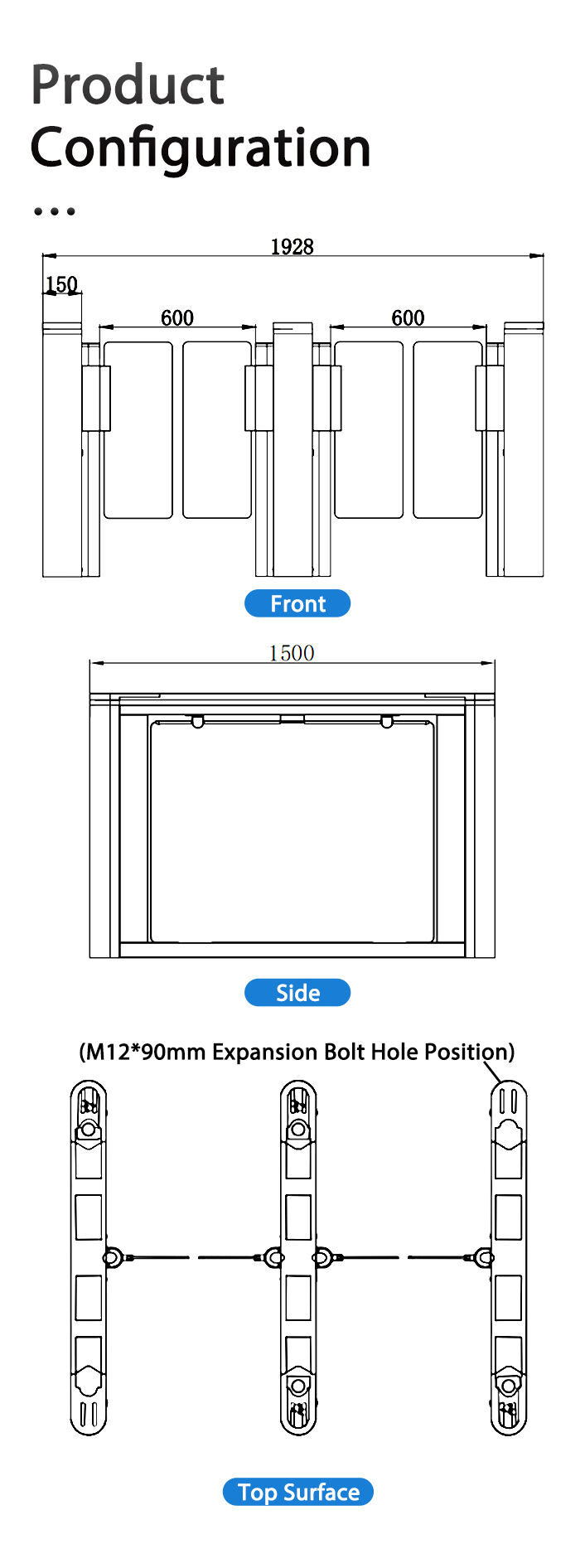

| Size（L*W*H) | 1500*150*980mm |
| Pass width | 600-900mm |
| Power | 120W |
| Material | δ=1.5mm SUS304 |
| Bar Material | 10mm Clean Acrylic |
| Movement | Servo speed gate movement |
| Infrared sensor | 12 pairs |
| Clutch | ∅=80mm |
| Indicator Light | RGB light |
| Drive Unit | Brushless servo Motor 100W |
| Power Supply | 24V 500W |
| Control Unit | Servo control system |
| Communication Interface | Dry contact/ RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
Competitive Advantage:
CSSG206 Servo Motor Speed Gate: Security, Speed, and Superiority!
Why settle for ordinary when you can have extraordinary? The CSSG206 Servo Motor Speed Gate is engineered to outperform, offering unmatched advantages that elevate your access control experience:
Premium stainless steel and acrylic construction ensure durability in high-traffic areas, reducing maintenance and lasting for years.
Industrial-grade servo motor technology guarantees flawless, quiet movement, enhancing user comfort while maintaining precision.
Anti-tailgating, anti-reverse pass, and infrared anti-clamp features provide 360° protection. Automatic reset keeps your premises secure, every time.
Works seamlessly with cards, scanners, and facial recognition systems. Supports one-way or two-way access, adapting to your unique needs.
Handles 35–50 people per minute, making it perfect for crowded spaces like airports, offices, and stadiums.
Operates in extreme temperatures (-20°C to +70°C) and high humidity (up to 90%). Ideal for indoor or outdoor use.
Low power consumption (120W) and intuitive RGB lighting make it a sustainable, user-friendly choice.
Why CSSG206 Stands Out:
It’s more than a speed gate—it’s a smart investment in security, efficiency, and reliability. Whether you’re securing a corporate building or a public venue, the CSSG206 delivers top-tier performance with minimal hassle.
Upgrade your access control today—choose excellence, choose CSSG206!
