CHISUNG CSDZ810 AC Automatic Parking Barrier Gate | 3s Fast Speed Max 6m Boom Arm Continuous Duty Vehicle Access Control Boom Barrier for Parking Lot
Heavy-duty AC parking barrier gate with 3s/6s adjustable speed, max 6m multi-type boom arms, 100% continuous working frequency, anti-pinch auto rebound, IP44 cold steel cabinet, wide -35℃~80℃temp range, supports loop detector/radar/LPR camera for unmanned parking lots.
- Overview
- Recommended Products
Product Information
| Place of Origin: | China,Shenzhen |
| Brand Name: | CHISUNG |
| Model Number: | CSDZ810 |
| Certification: | CE |
Product Commercial Terms
| Minimum Order Quantity: | 1unit |
| Packaging Details: | Carton/Wooden,According to customer requirements |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000units/Month |
Quick Detail:
Barrier Gate
boom barrier gate automatic
automatic barrier gate
barrier gate parking
parking barrier gate
automatic parking barrier gate
Gate Barrier
Boom Gate
Traffic Barrier
Intelligent Barrier Gate
Automatic Gate Barrier
Anti-collision Barrier Gate
Straight Bar Barrier Gate
Folding Arm Barrier Gate
Fence Barrier Gate
Traffic Gate
Vehicle Barrier
Car Park Barrier
Boom Barrier
Parking Gate
rising arm barrier
automatic barrier
vehicle access barrier
barrier gate machine
road barrier
Product Introduction

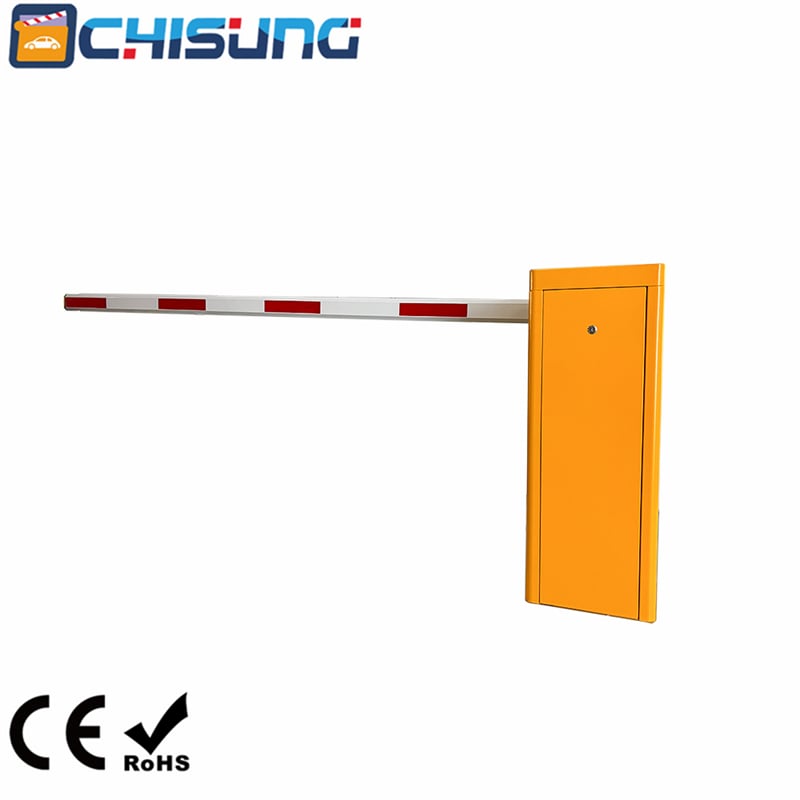

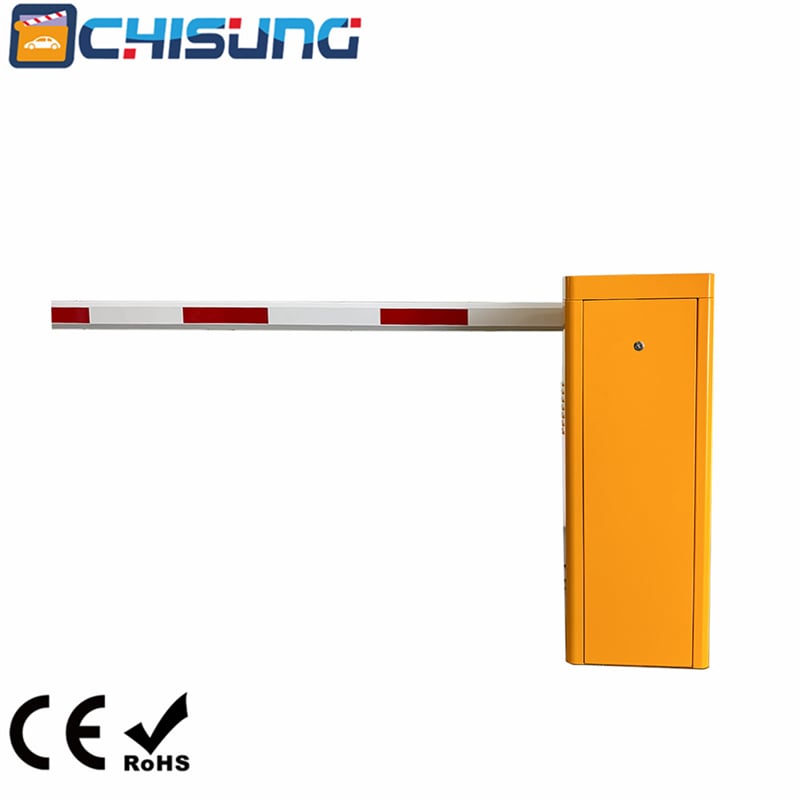

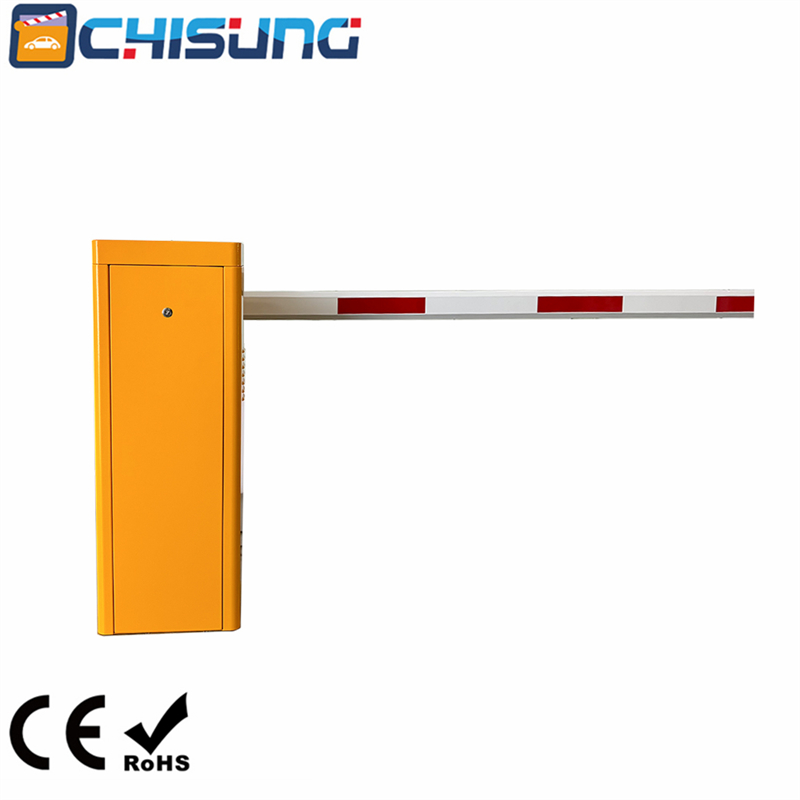

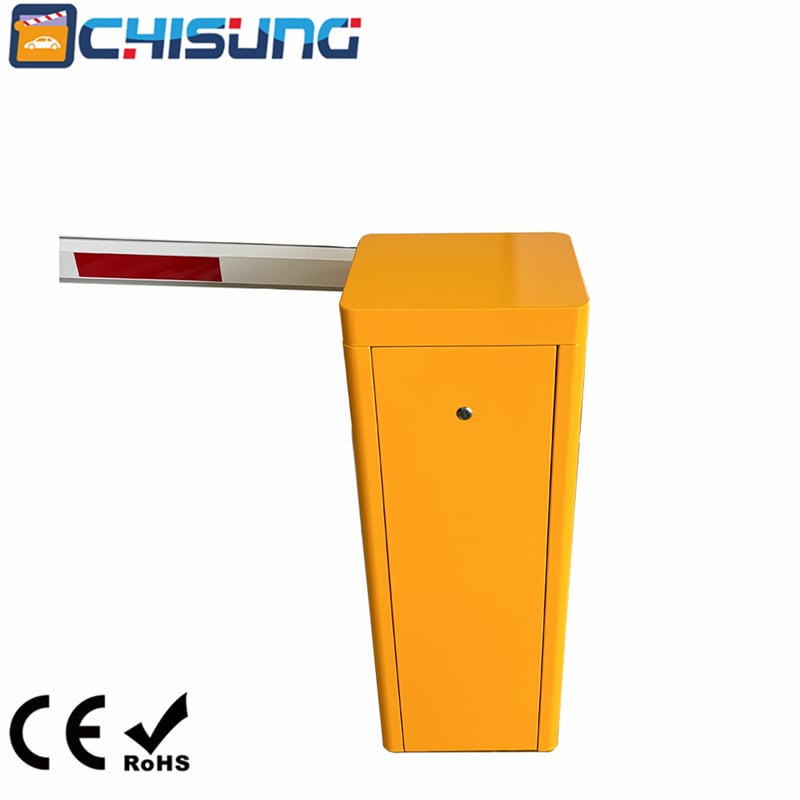

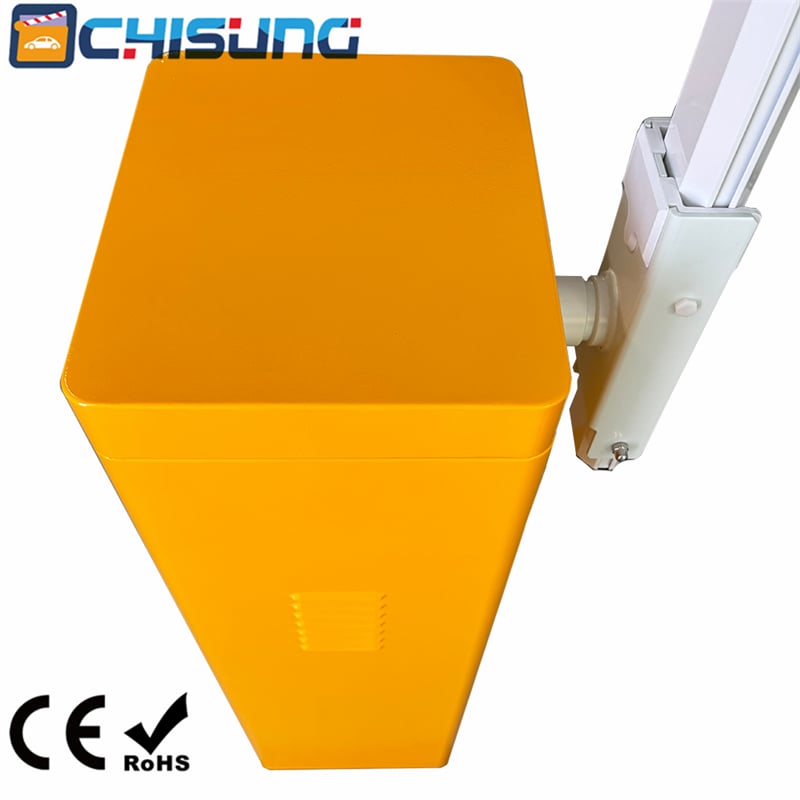

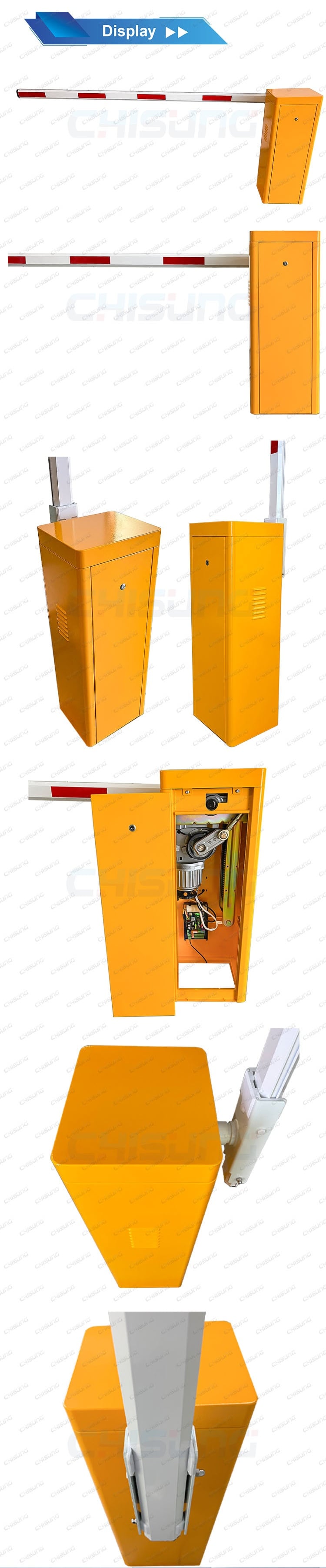

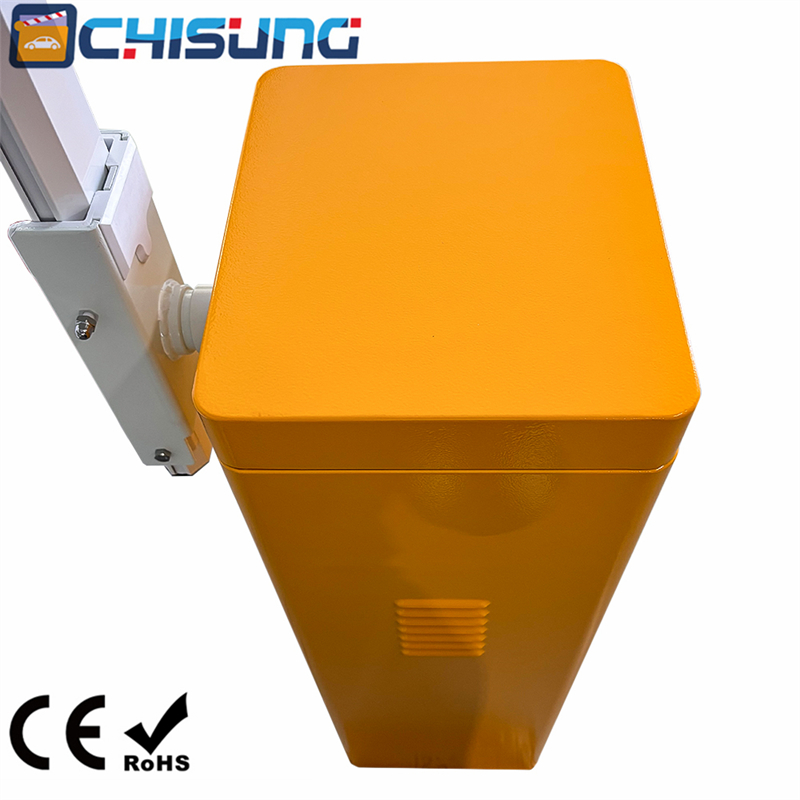

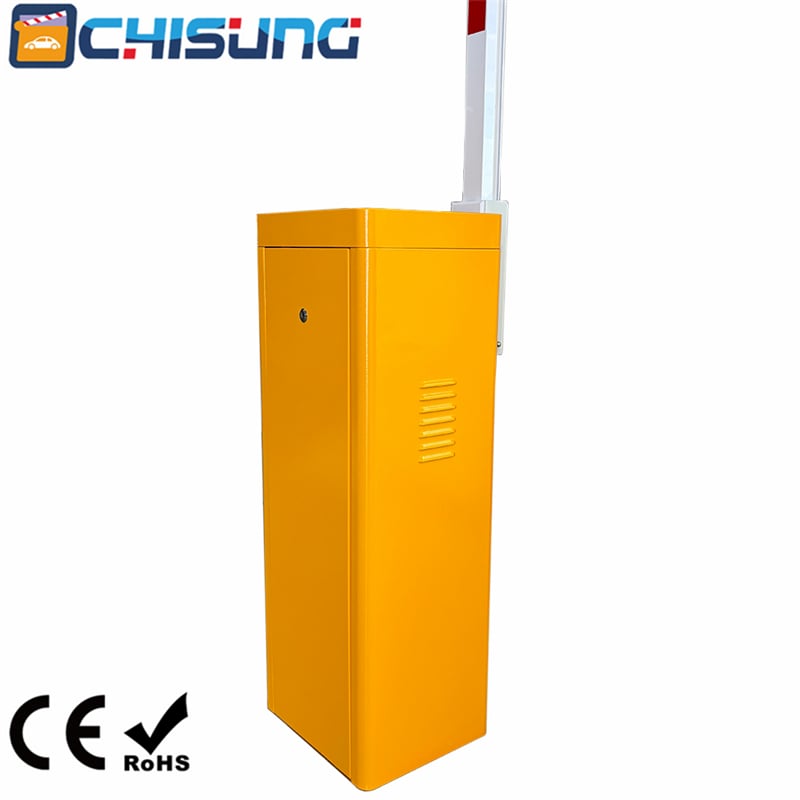

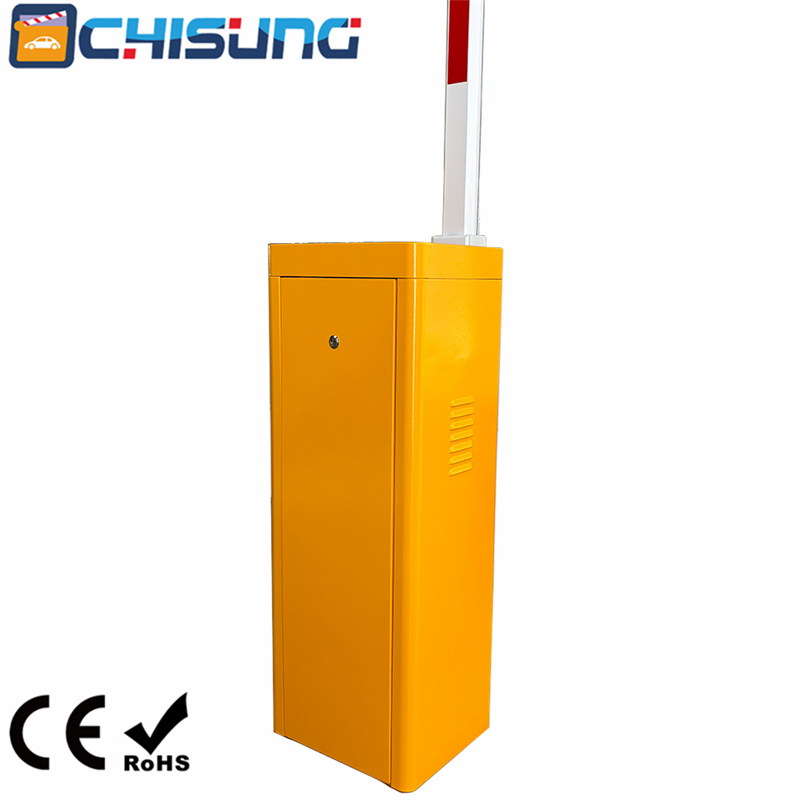

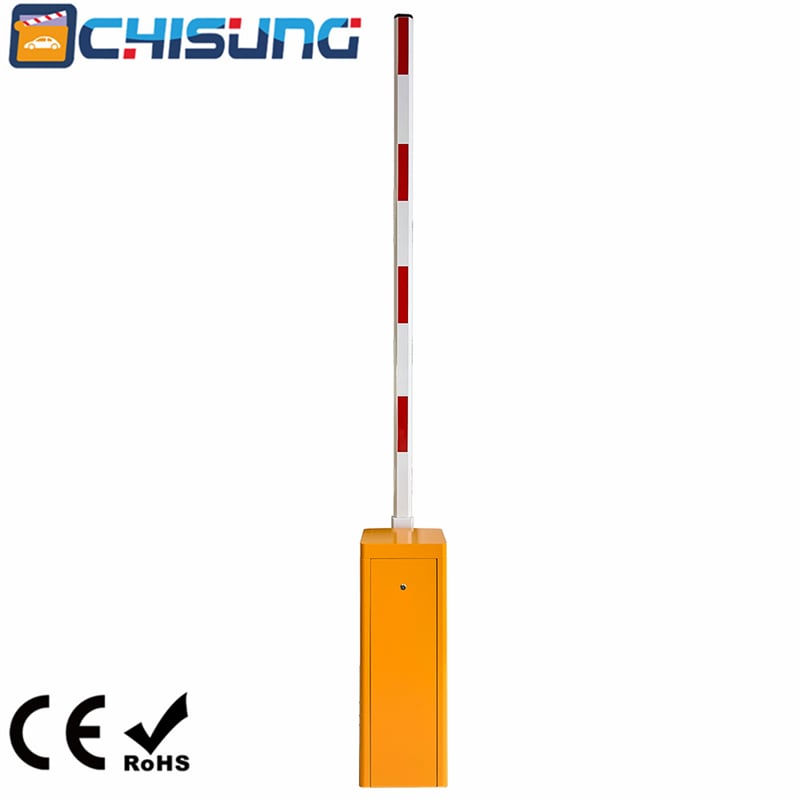

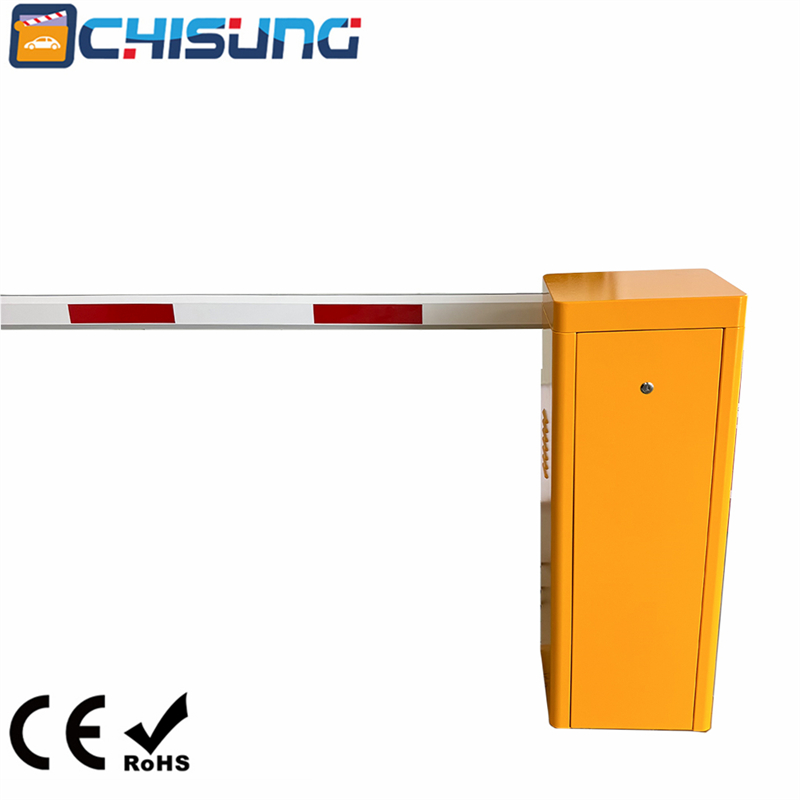

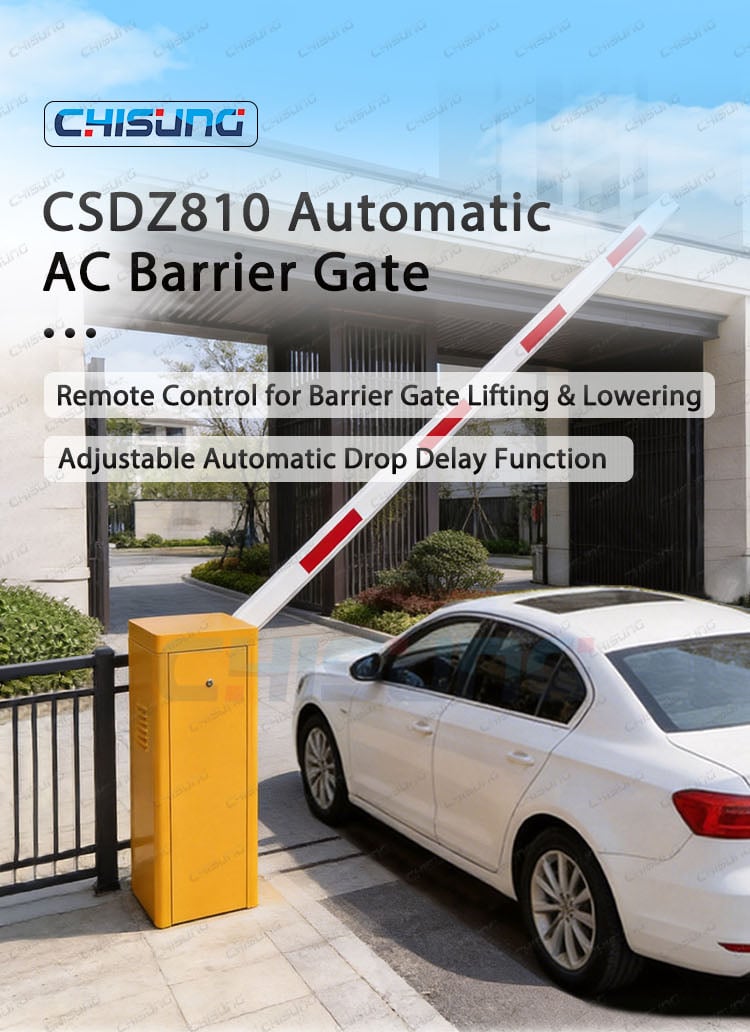

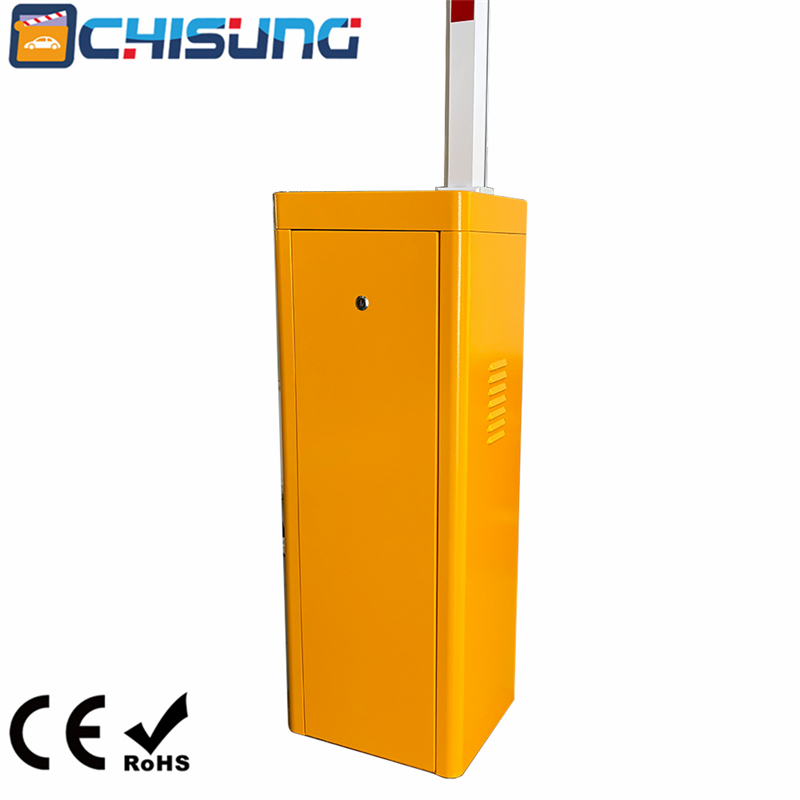

CHISUNG CSDZ810 is a heavy-duty AC automatic parking barrier gate designed for high-traffic vehicle access control. Powered by a stable 200W AC motor with mechanical crank-linkage structure, it supports 100% continuous duty cycle with a service life over 3 million cycles. It offers adjustable 3s/6s opening speed and compatible boom arms up to 6 meters (straight/telescopic/folding/fence arm). Equipped with anti-pinch rebound, manual handwheel for power failure, multiple signal interfaces for loop detector, radar and license plate recognition systems. Cold steel dust-proof cabinet with IP44 protection, works stably from -35℃ to 80℃, ideal for commercial parking lots, industrial parks, toll stations and residential communities.
Description:
1.Industrial Heavy-Duty Continuous Operation Structure
l Built for high-frequency all-day vehicle passage with ultra-long service life:

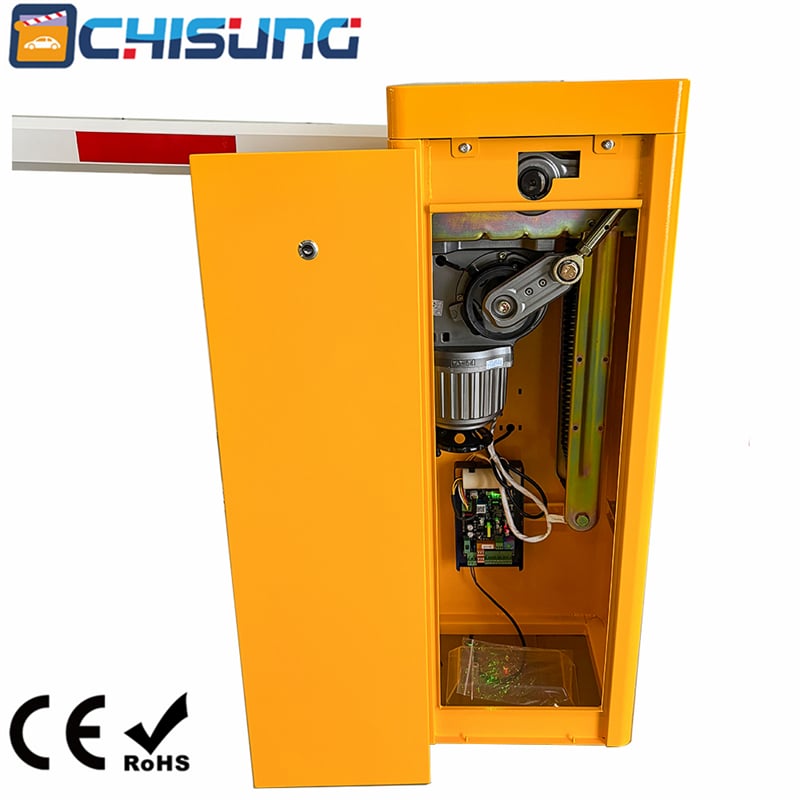

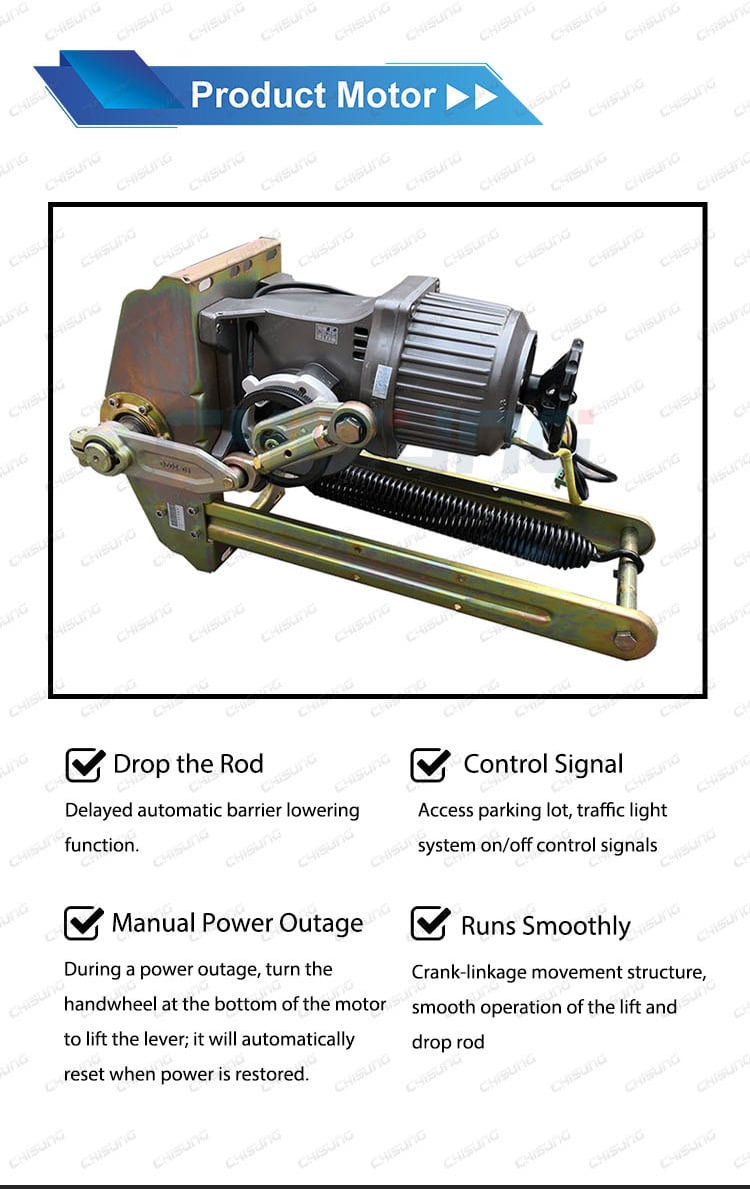

l 200W high-power AC motor + precision crank-linkage transmission mechanism, smooth lifting & lowering without jitter; MTBF over 3 million cycles, durable for heavy daily use.
l 100% continuous working frequency, no overheating even for busy shopping malls, highway toll stations and factory entrances.

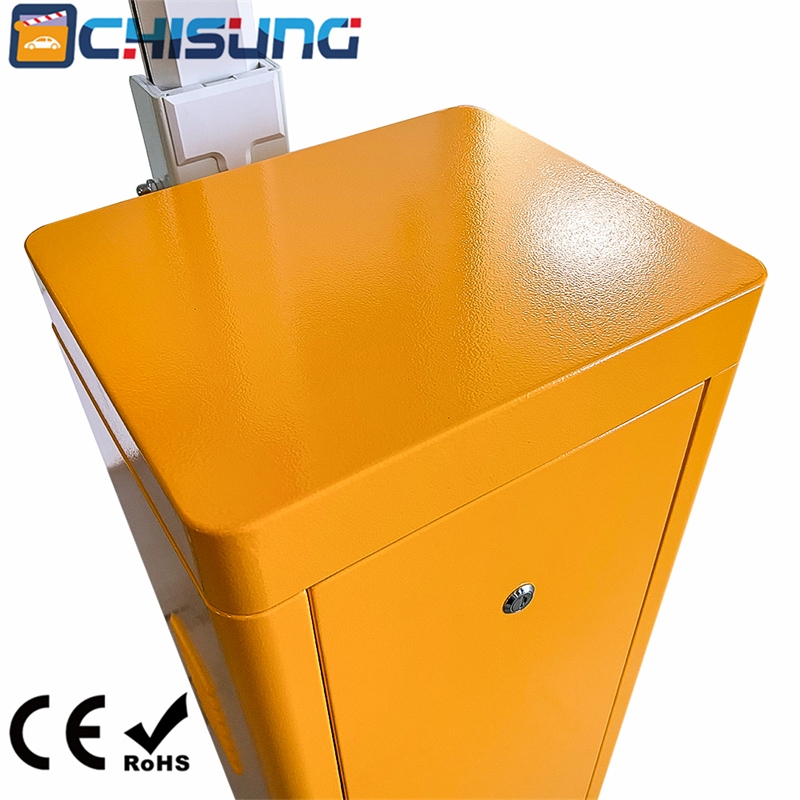

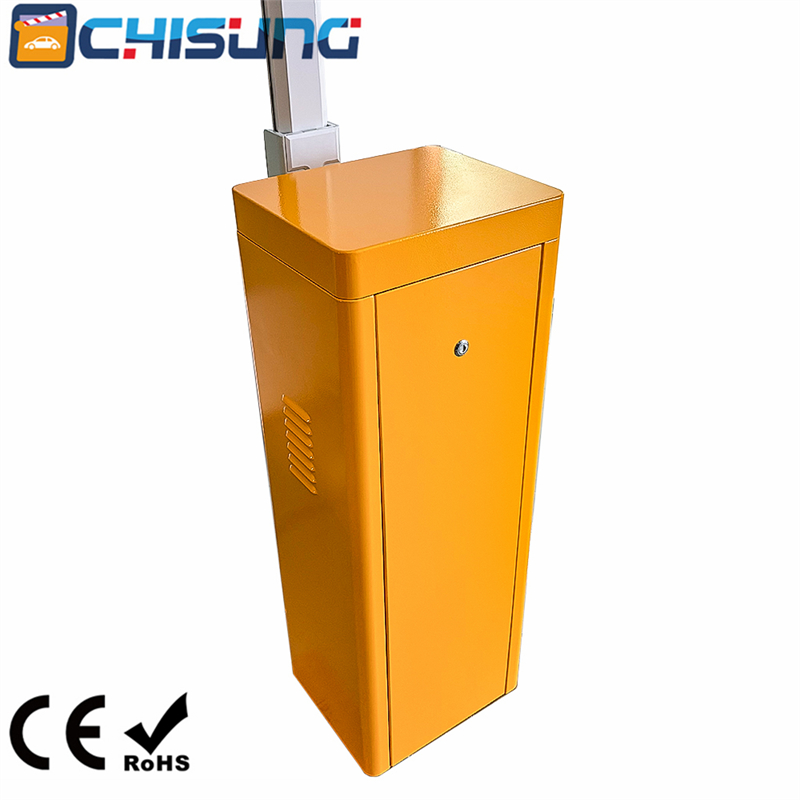

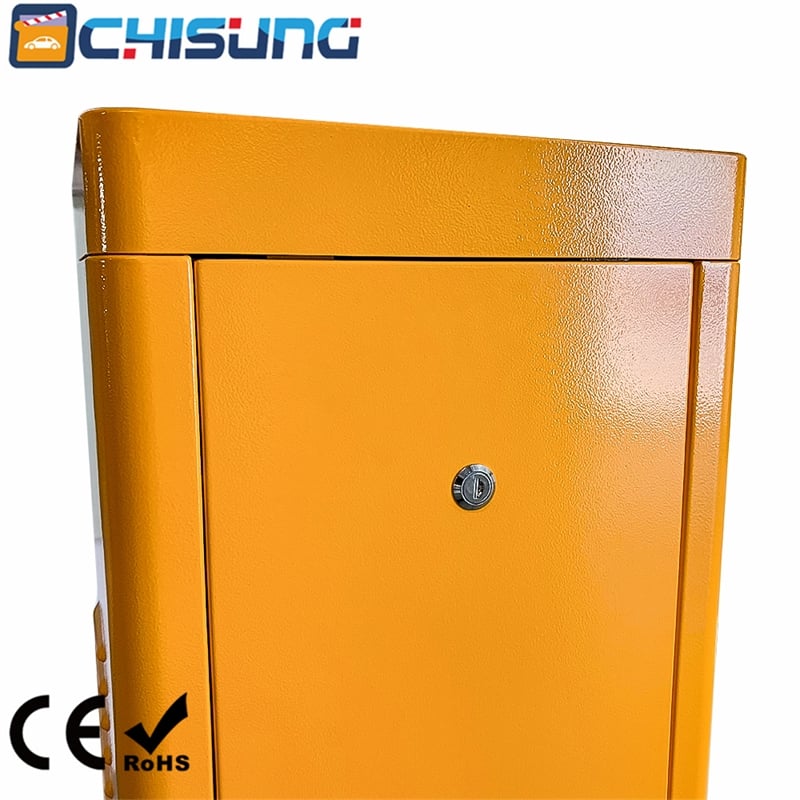

l Cold steel cabinet with 15μm polyester dust-proof spray coating, scratch, rust and UV resistant; IP44 waterproof & dustproof grade.
l Wide operating temperature range: -35℃ ~ +80℃, stable operation in frigid northern winters and high-temperature tropical summers, humidity tolerance 30%~80% non-condensation.
l Integrated incremental deceleration inside the motor, slow buffer at rise/fall end to avoid violent boom impact and reduce mechanical wear.
2.Multi-Safety Intelligent Protection System
Full-layer safety design to prevent vehicle collision and personnel clamping risks:
l Anti-Pinch Resistance Rebound Function
l When the boom hits vehicles or pedestrians during descending, the barrier instantly lifts upward to avoid crash damage and injury.
l Manual Handwheel Emergency Release
l In case of power outage, rotate the handwheel on the motor to manually lift the boom; it auto resets to electric mode once power resumes.
l Adjustable Auto-Delay Closing Timer
l Customizable automatic drop delay after vehicle passes, fully matching loop detector/radar sensing signals for unmanned operation.
l Optional LED Traffic Light on Boom
l Red/green warning light reminds drivers of passage status, effectively reducing collision accidents at parking entrances.
3.Flexible Multi-Spec Boom & Custom Appearance
l Diversified boom options to match different site space limits, customizable cabinet colors & logos:

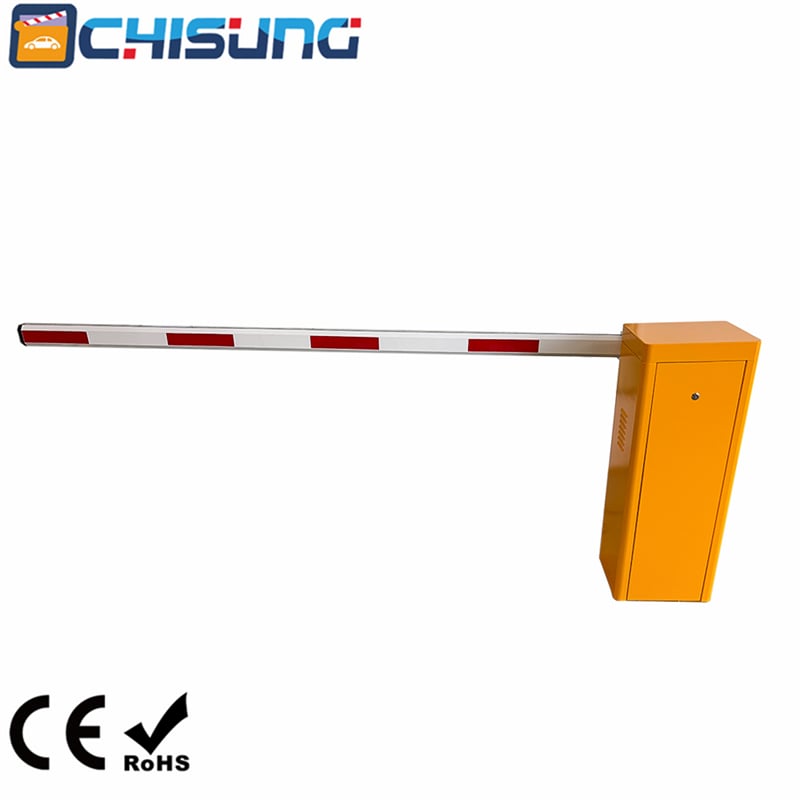

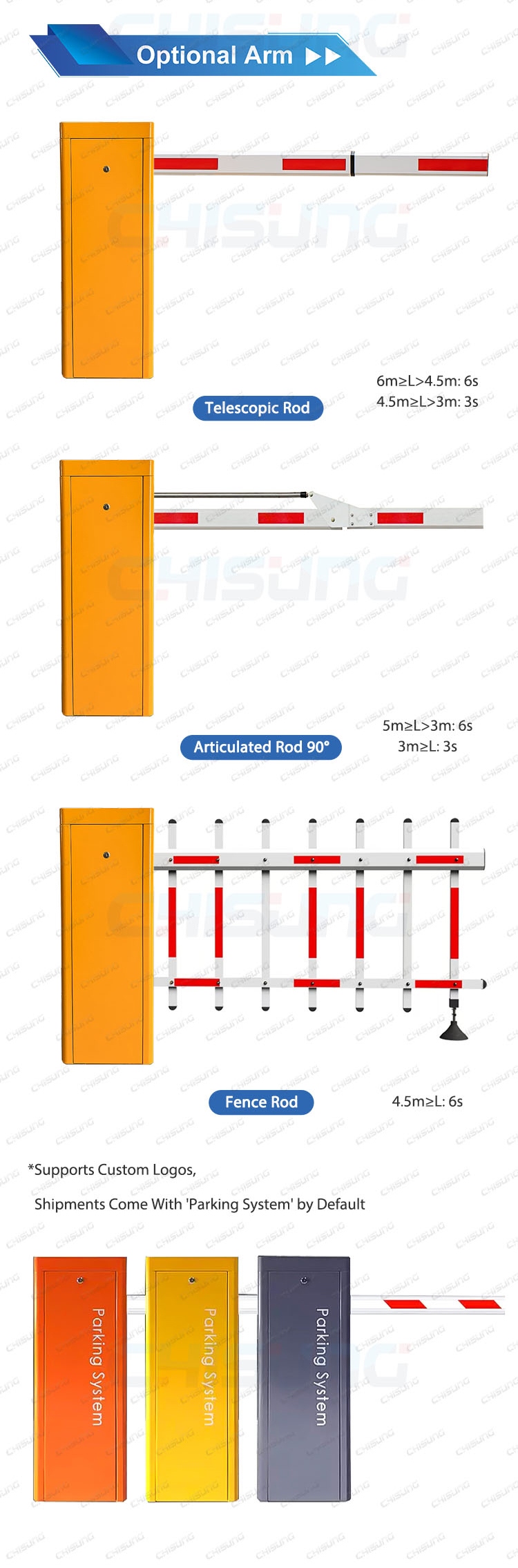

l Four optional boom types: Straight rod(max6m), Telescopic rod(max6m), 90°Folding rod(max4.5m), Fence rod(max4.5m)
l Adjustable opening speed: 3s for boom ≤4.5m, 6s for boom 4.5m~6m

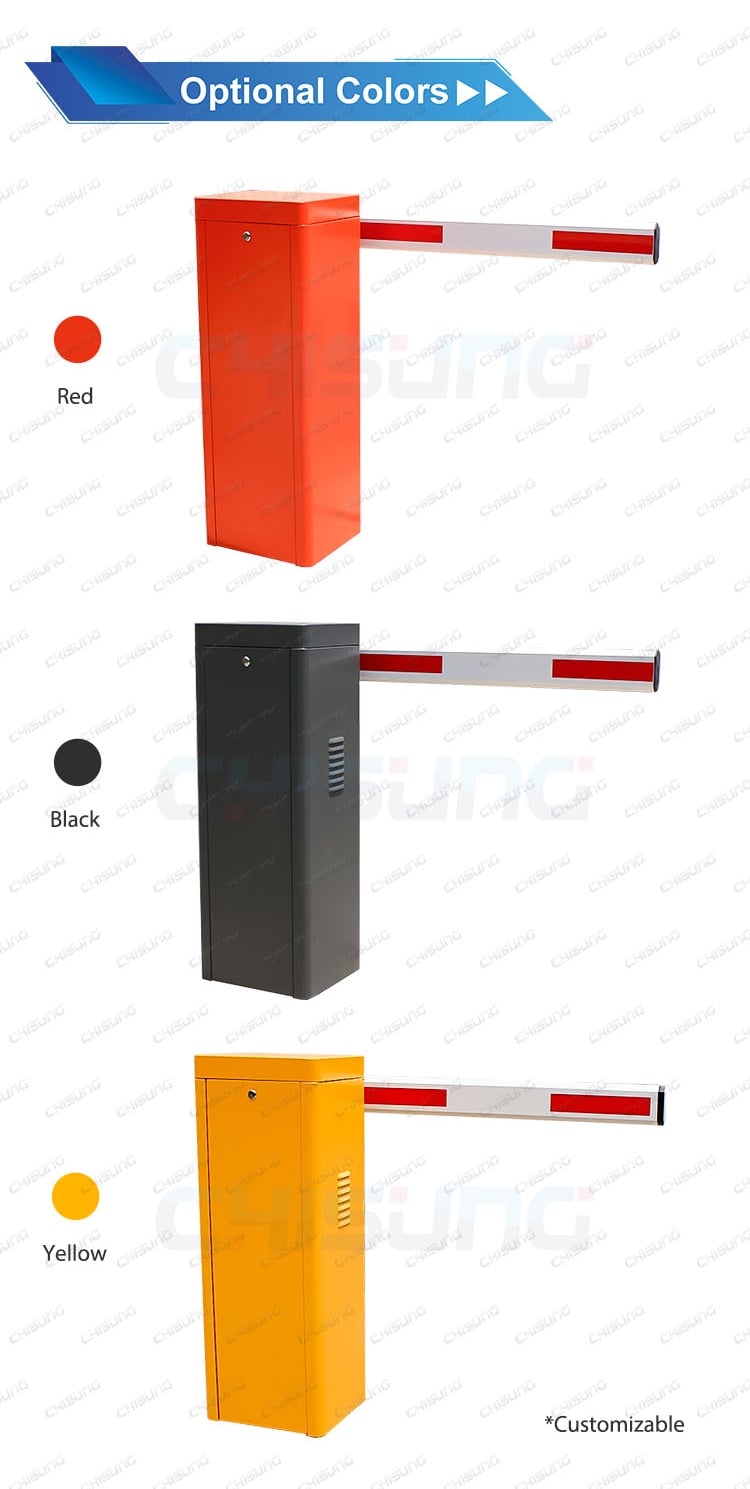

l Cabinet color optional: Yellow, Orange, Black; custom brand logo printing supported
l Remote control distance up to 30 meters without signal blockage, 2 remotes included in standard kit
4.Abundant Expandable Signal Interfaces
l Reserved multi-function ports to connect all mainstream parking access devices, realize full intelligent unmanned management:

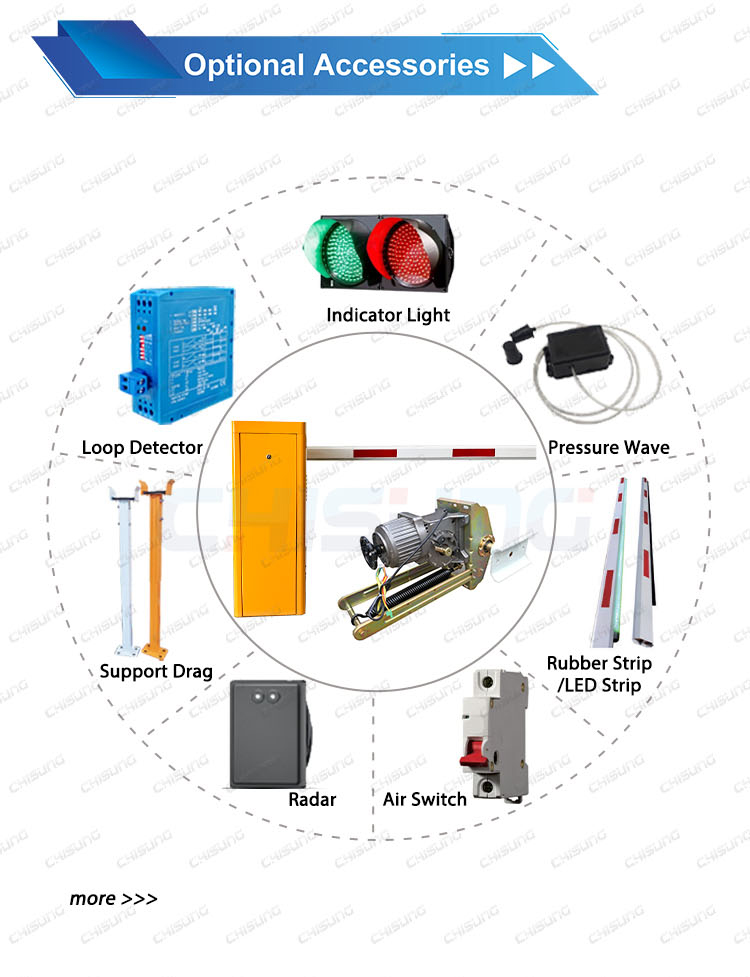

l Compatible accessories: Loop detector, radar sensor, infrared photocell, license plate recognition camera, traffic indicator light, exit push button
l Multiple signal output: RS485 communication, relay output, DC12V power supply for peripheral equipment, traffic light control port
l Matches full series CHISUNG LPR cameras (LCD-CSHY11, LCD-CSKG2, LED-CSY2G, LED-CSY1) to build complete automatic parking system
5.Complete Standard All-In-One Kit, Easy Installation
l Full set components included, no extra accessories purchase required:
l Barrier cabinet, AC gear motor & transmission assembly, DZJ2.5P control board
l Selected boom arm, 2 wireless remote controls, receiver, all installation brackets & screws
l Illustrated multi-language installation manual, integrated packaging for convenient transportation

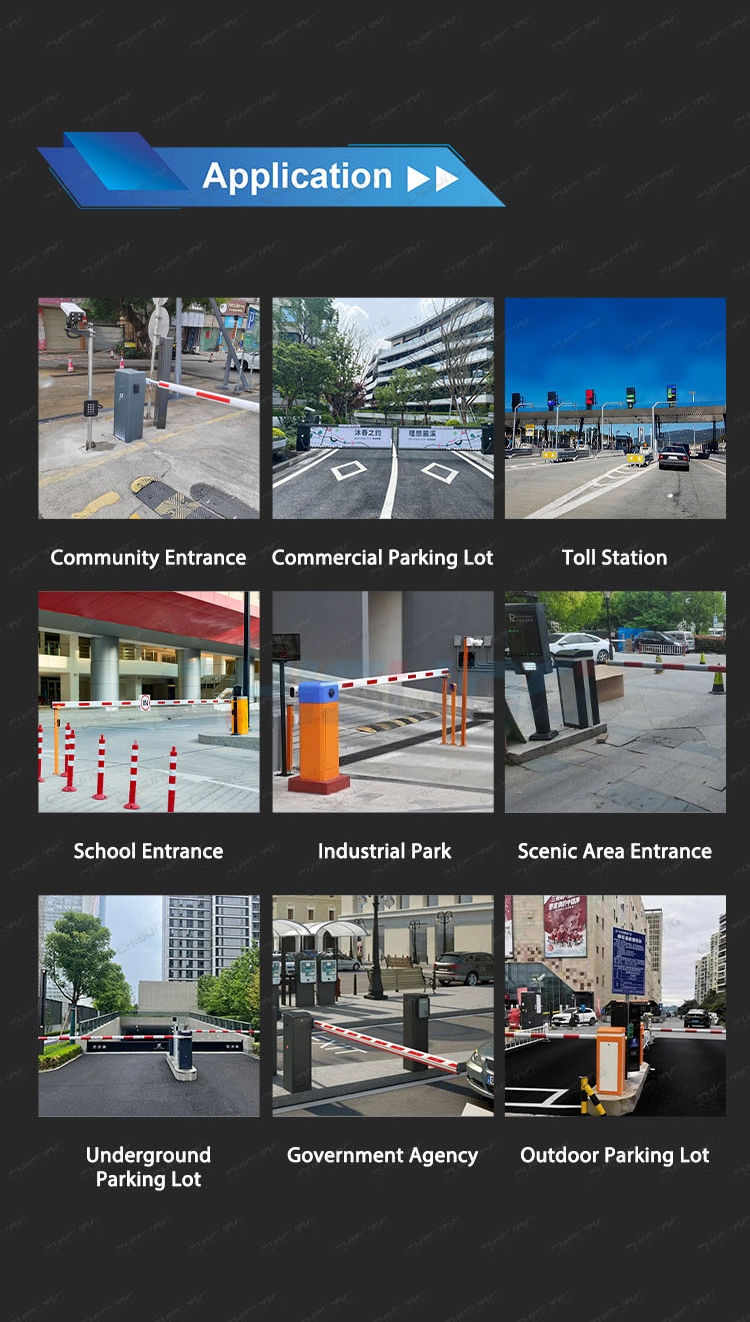

Applications:
Commercial Parking Lots
Shopping Malls, Office Buildings, Hotels, Supermarkets, Airport & Railway Station Parking Zones
Industrial & Logistics
Factory Entrances, Logistics Parks, Warehouse Access, Construction Site Vehicle Gates, Toll Stations
Residential & Public Areas
Luxury Villa Communities, Residential Compound Gates, School Campus Entrances, Hospital Parking, Government Public Plazas
Road & Traffic Management
Highway Toll Booths, Highway Service Areas, Scenic Spot Vehicle Access Gates

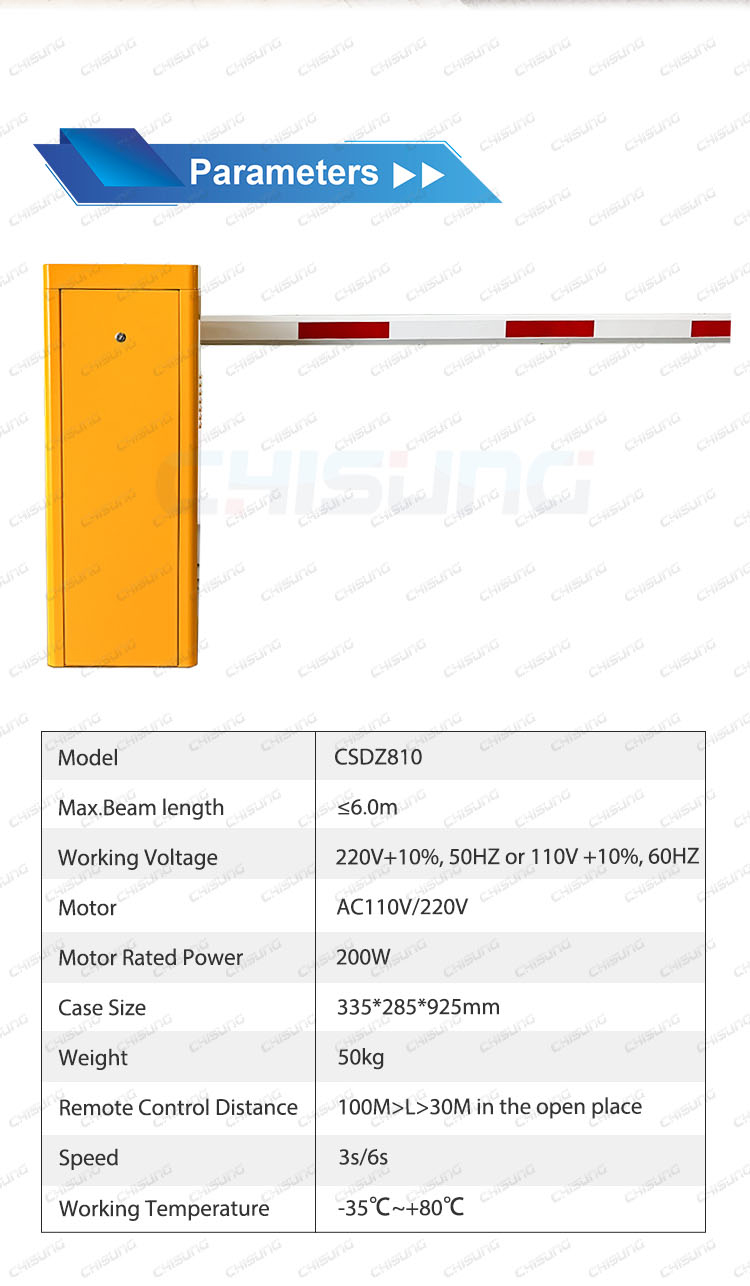

Specifications:
| Item | CSDZ810 Parameter |
| Model | CSDZ810 |
| Power Supply | AC220V±10V 50Hz / AC110V±10V 60Hz |
| Motor Type | AC 110V/220V |
| Rated Motor Power | 200W |
| Working Frequency | 100% Continuous Duty |
| Opening Speed | 3s (≤4.5m boom) / 6s (4.5~6m boom) |
| Max Boom Length | Straight/Telescopic:6m; Folding/Fence:4.5m |
| Cabinet Material | Cold Steel with 15μm Polyester Dust Painting |
| Protection Class | IP44 |
| Working Temperature | -35℃ ~ +80℃ |
| Relative Humidity | 30%~80%, No Condensation |
| Safety Function | Anti-pinch auto rebound, soft start&stop, manual handwheel for power failure |
| Remote Control Distance | ≤30m (no signal obstacle) |
| Reserved Interfaces | RS485, Loop Detector, Radar, Photocell, Traffic Light, Push Button, Relay Output |
| Cabinet Weight | ≈50kgs |

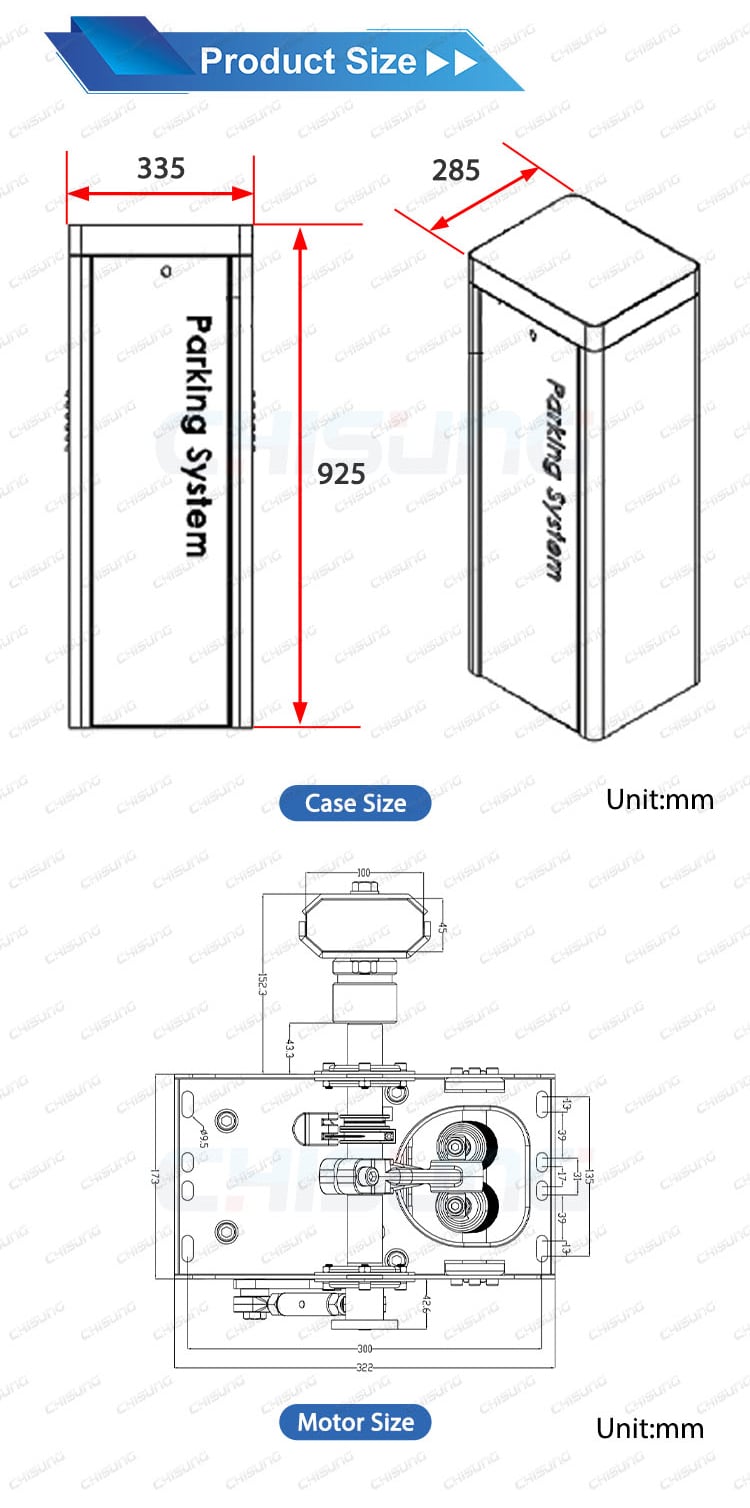

| Cabinet Dimension(L×D×H) | 335*285*925mm |
| Service Life | ≥3 Million Cycles MTBF |
| Standard Kit Contains | Cabinet, Motor Assembly, Control Board, Receiver, 2 Remotes, Boom, Full Installation Hardware |
Competitive Advantage:
1 100% Continuous Heavy-Duty Operation, Longer Service Life
Most cheap barrier gates only support 30%-50% intermittent use, easy to overheat for busy parking lots. CSDZ810 adopts high-power AC motor and reinforced mechanical structure with 100% full-time working capacity, MTBF over 3 million cycles, drastically reducing maintenance cost for high-traffic projects.
2.Ultra-Wide Temperature Adaptability for Global Sales
Operating range -35℃ ~ +80℃ covers cold northern Europe, hot Middle East, humid southeast Asia and coastal rainy areas, while most competitors only support -20℃~60℃, limiting market coverage. IP44 all-weather cabinet adapts to outdoor long-term exposure.
3.Diversified Boom & Customized Appearance Advantage
4 types of boom arms fit different site height/width limits; customizable cabinet colors and logo printing help distributors do OEM brand business, meet personalized project requirements from real estate and engineering clients.
4.Complete Expandable Interfaces, One-Stop Parking System Solution
Reserved abundant signal ports compatible with all parking peripheral equipment, can form full automatic unmanned parking system with our LPR cameras. Competitors’ low-cost models often lack multi-functional interfaces and cannot match intelligent recognition devices.
5.Dual Safety Design Avoids Liability Risks
Standard built-in anti-pinch rebound + emergency manual handwheel double safety system. Cheap barriers only have single protection, easy to cause vehicle collision accidents and property compensation disputes for property management clients.
6.Complete Standard Kit Saves Procurement Cost
Full set with remotes, brackets and control accessories integrated in one package. Many suppliers sell cabinet and boom separately, requiring buyers to purchase accessories additionally and increase procurement steps and extra fees.
7.Factory OEM & Stable Mass Supply
CHISUNG professional access control factory with mature barrier gate production line, stable bulk delivery capacity. Support private label, customized packaging and technical installation drawings for global engineering distributors, with dedicated after-sales technical guidance.
