CHISUNG CSTSE424 Semi-automatic Tripod Turnstile 304 Stainless Steel DC24V Pedestrian Access Control Gate Support ID IC Card Anti-Tailgating Fire Alarm Linkage
1.2mm Thick 304 Stainless Steel Tripod Turnstile, Bidirectional Passage, 30-40 People Per Minute Throughput, Built-in Anti-Pinch & Emergency Power-off Release, Ideal for Office, Metro, School, Factory & Stadium Access Management
- Overview
- Recommended Products
Product General Information
| Place of Origin: | China,Shenzhen |
| Brand Name: | CHISUNG |
| Model Number: | CSTSE424 |
| Certification: | CE |
Product Commercial Terms
| Minimum Order Quantity: | 1unit |
| Packaging Details: | Carton/Wooden,According to customer requirements |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000units/Month |
Quick Detail:
Different names for products：
Tripod Turnstile
three-roller gate
Tripod Turnstile Series
Three-Arm Turnstile
Truncate Turnstile
Automatic Roller Turnstile
Three-barrier Turnstile
Three-roller Turnstile
Ticket-checking Tripod Gate
Scenic Spot Entry Barrier
Three-roll Gate Ticketing System
Three-roller Barrier Gate
Tri-roller Gate

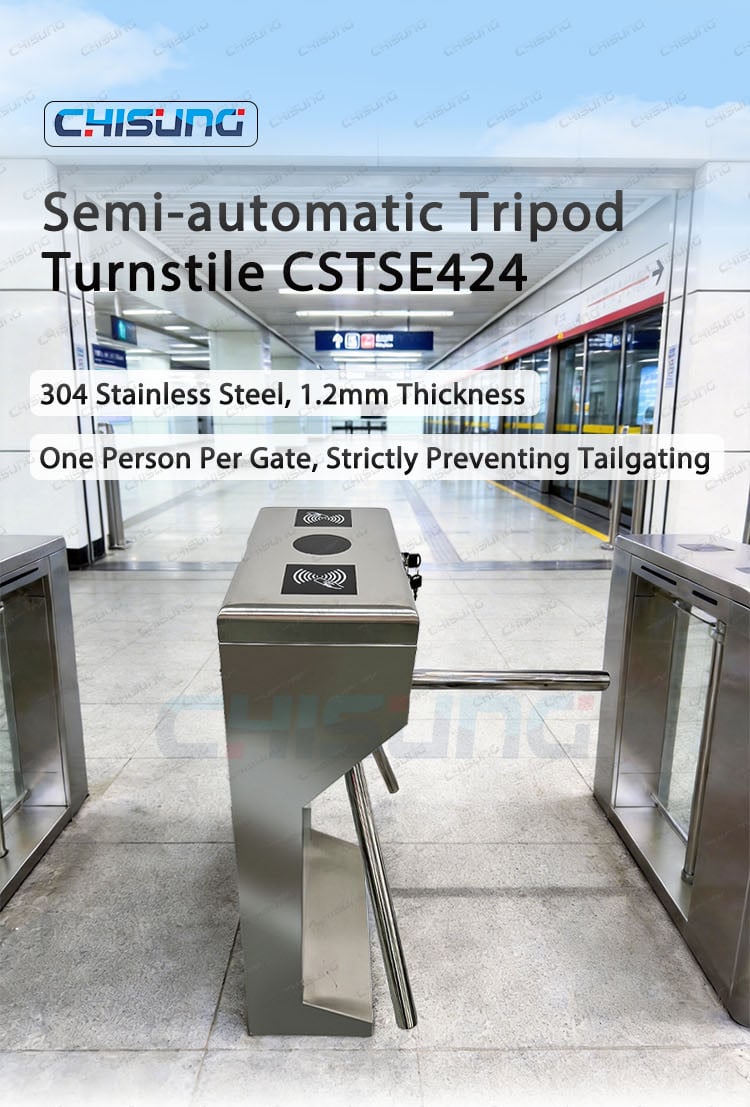

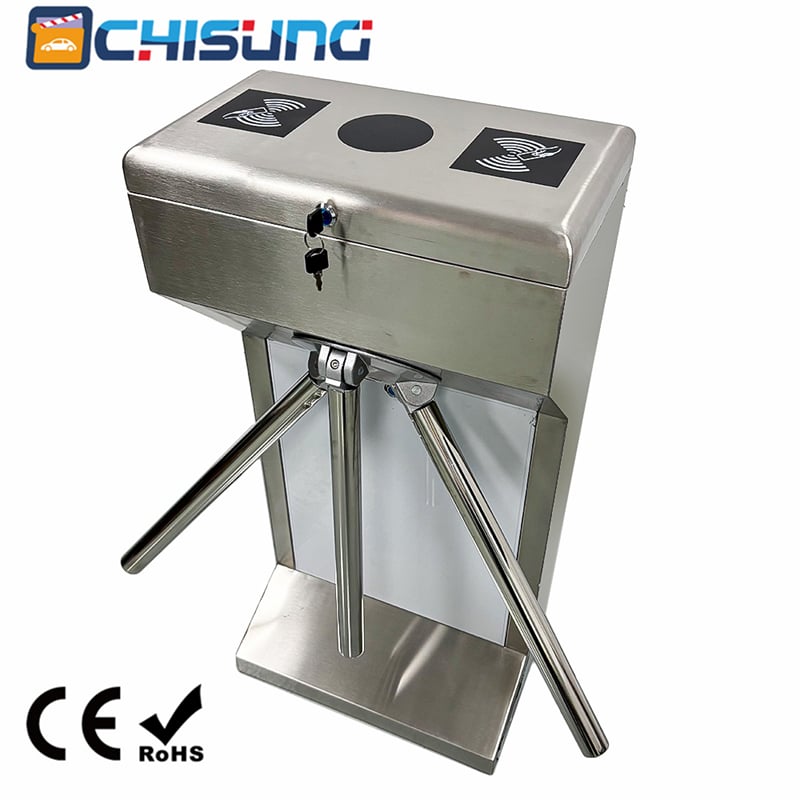

CHISUNG CSTSE424 semi-automatic tripod turnstile is a cost-effective pedestrian access control barrier made of sturdy 1.2mm thick 304 stainless steel. Powered by stable DC24V electromagnet mechanism, it supports ID/IC card recognition, two-way traffic control, anti-tailgating and anti-pinch protection. Equipped with traffic signal indicator, reserved fire alarm linkage port, it can process 30 to 40 people per minute. It works stably under -10℃~+60℃ and ≤95% non-condensing humidity, widely deployed in residential compounds, office buildings, metro stations, schools, factories and scenic spots for standardized one-person-one-lane security management.
Description:
Premium 304 Stainless Steel Body & Durable Tripod Rod

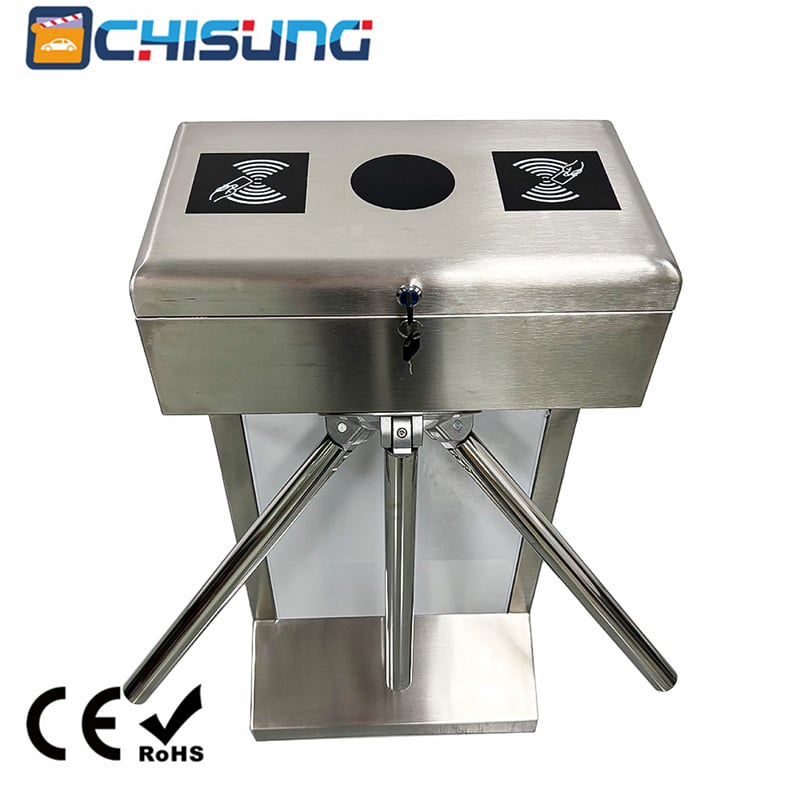

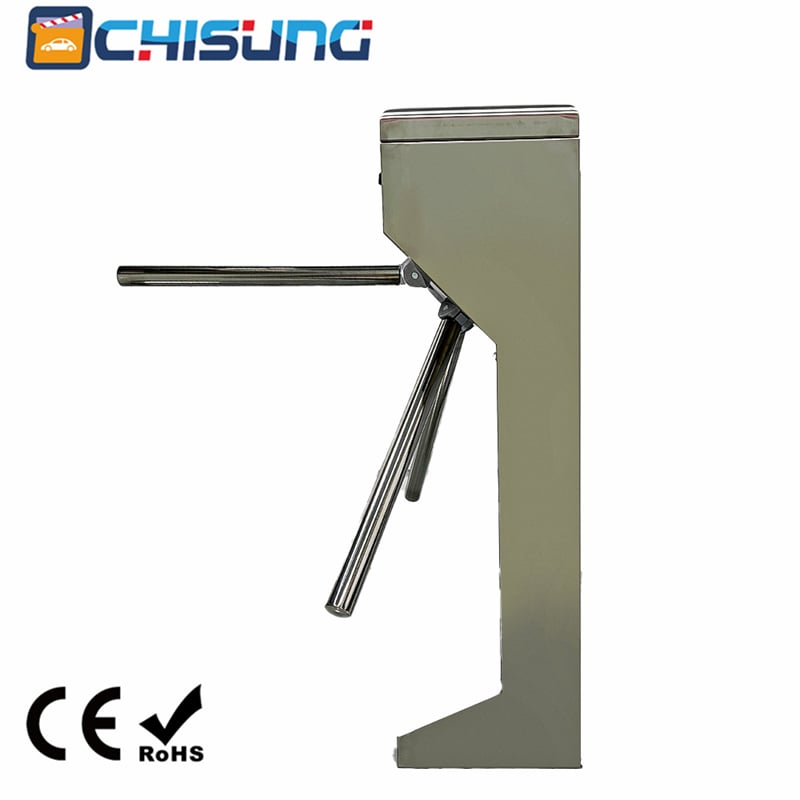

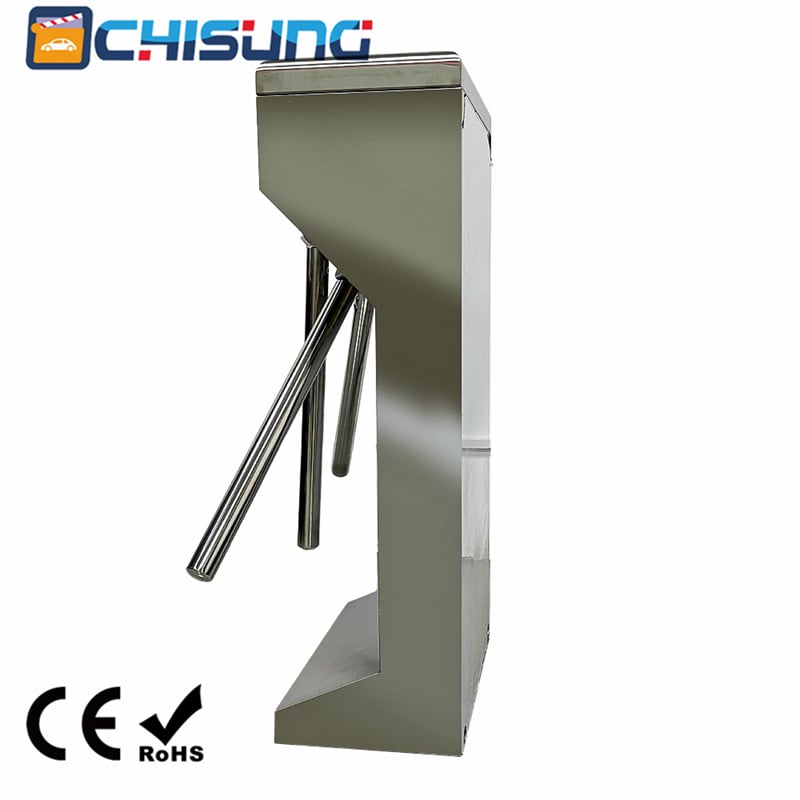

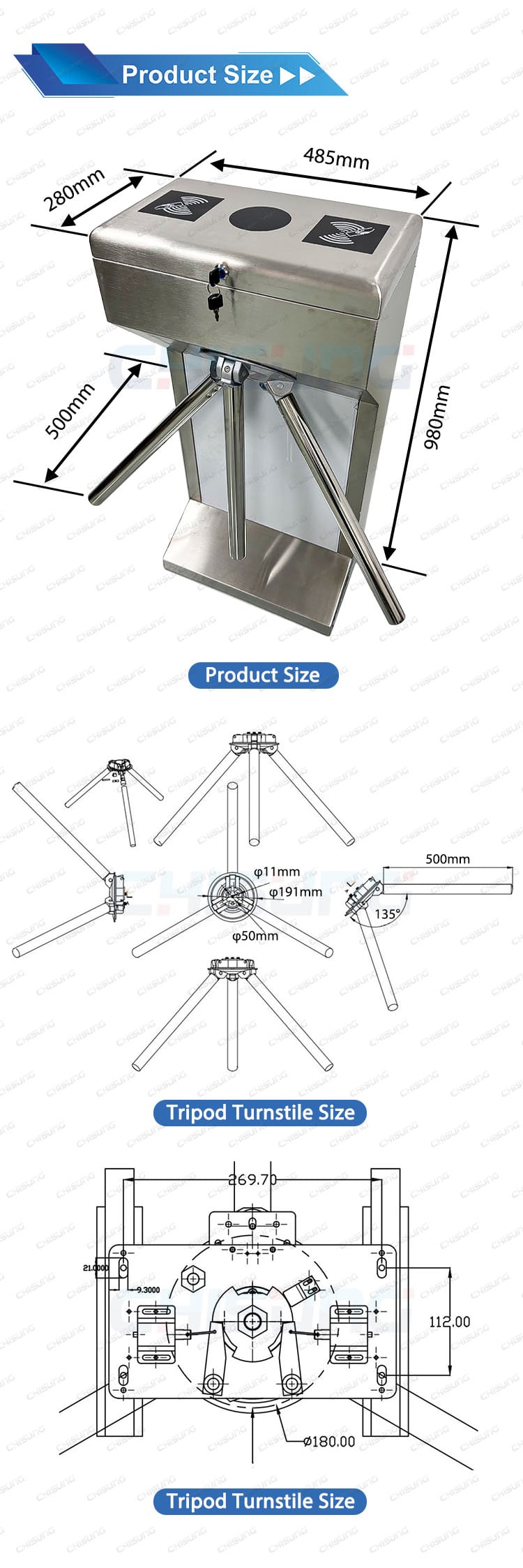

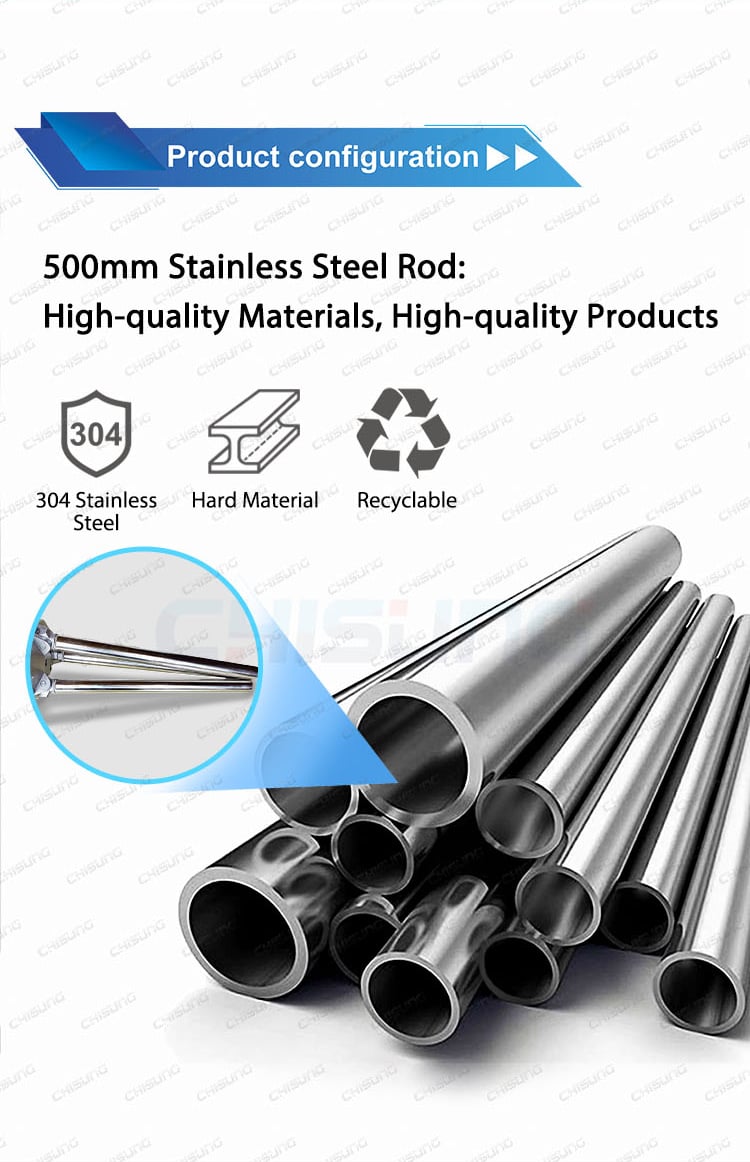

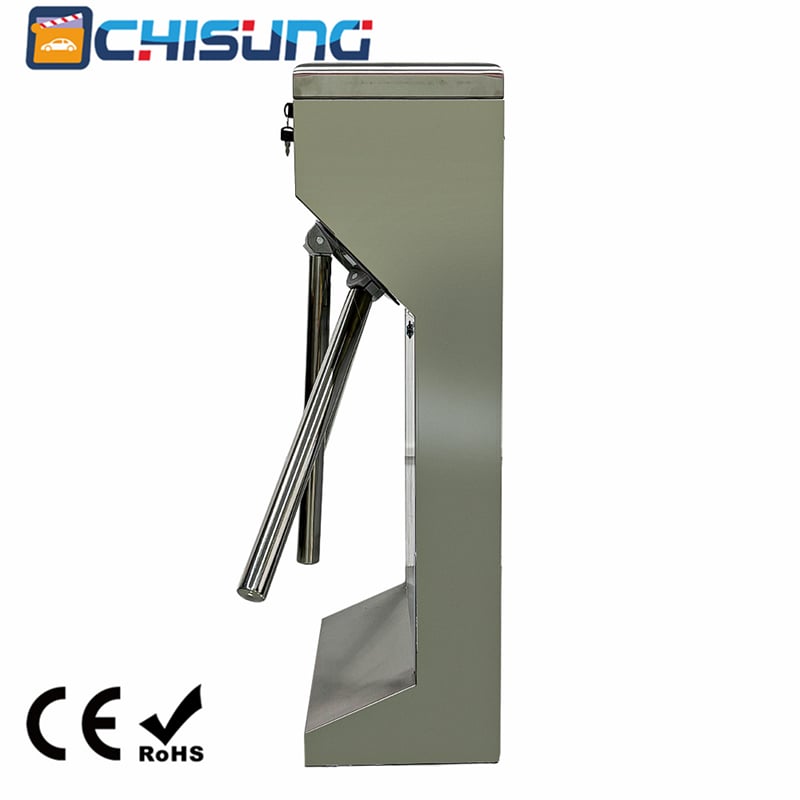

The whole cabinet adopts 1.2mm thick 304 stainless steel with brushed surface, anti-rust, anti-corrosion and easy to clean, suitable for indoor and semi-outdoor environments. The three 500mm long tripod rods are also made of solid 304 stainless steel, high hardness, wear-resistant and recyclable. The overall dimension is L485W280H980mm, max channel width 510mm, comfortable for pedestrian passing without congestion.
Reliable Semi-automatic DC24V Electromagnet Mechanism
Adopts 20W/2W DC24V electromagnet drive system with 50HZ working frequency. Semi-automatic design: after access verification, the tripod arm unlocks, users push the arm manually to pass, and the arm automatically locks back after passage. Built-in photoelectric limit sensor, when the tripod hits obstacles, anti-pinch rebound function activates to avoid clamping pedestrians, safer for crowded public places.

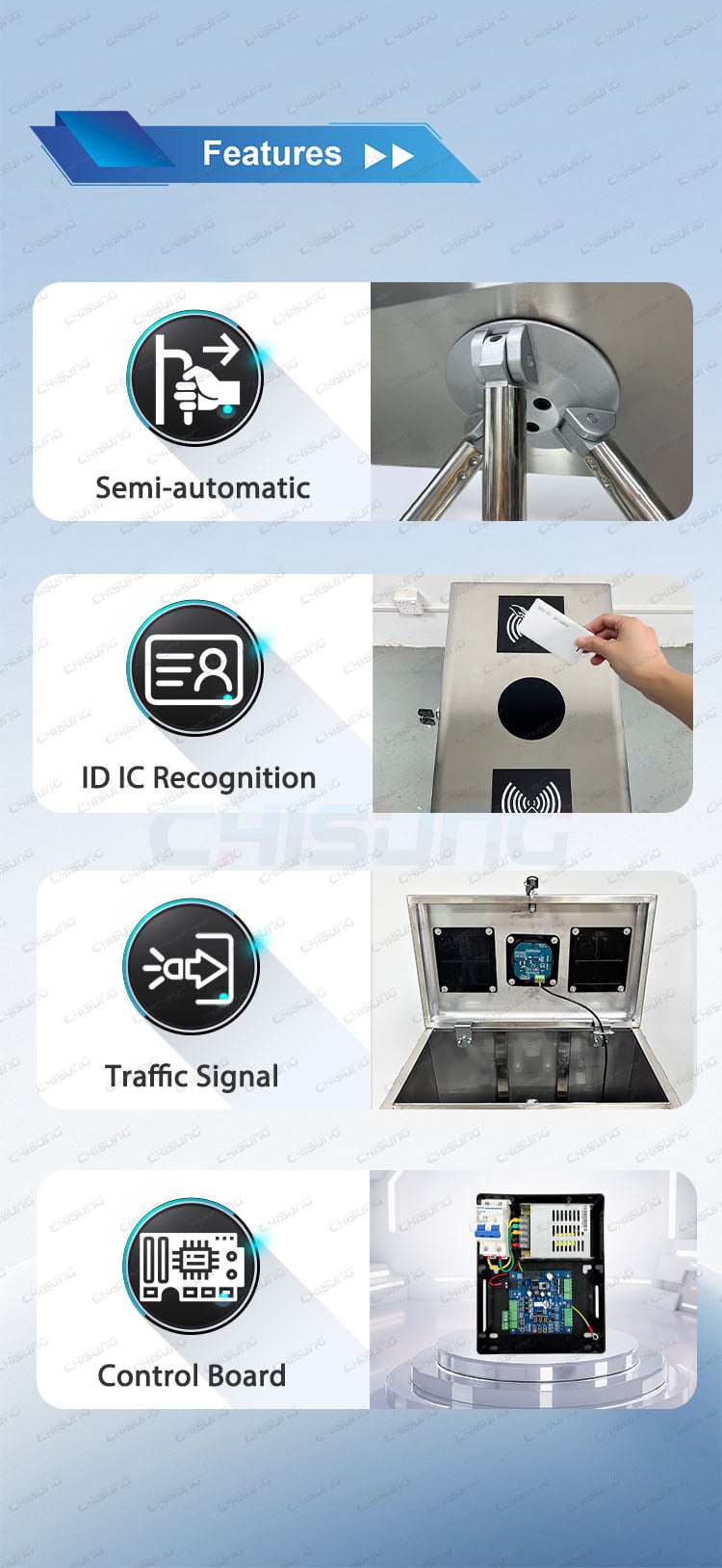

Complete Intelligent Access Control Functions
1. Dual-way traffic control: Support left-only, right-only or bidirectional passage mode, freely switchable via control board buttons.
2. Anti-tailgating logic: Strict one-person-one-pass rule, prevents tailgating without valid card swiping.

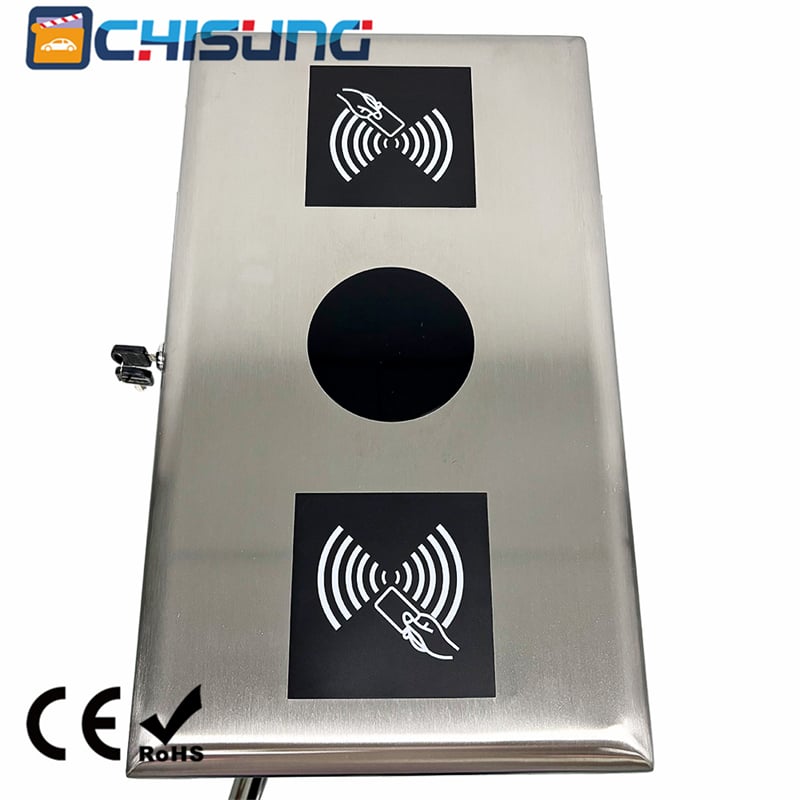

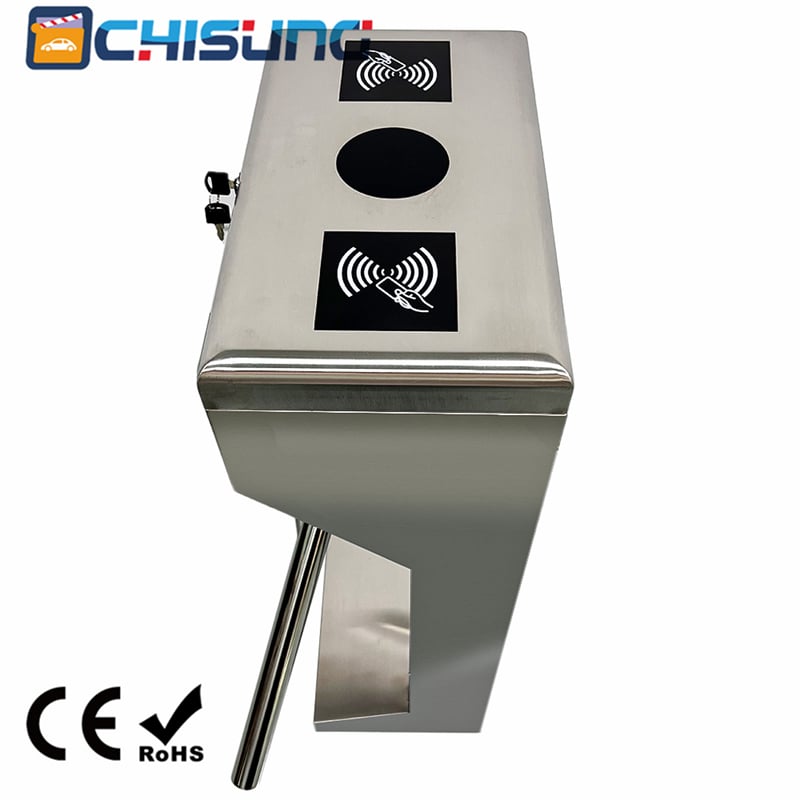

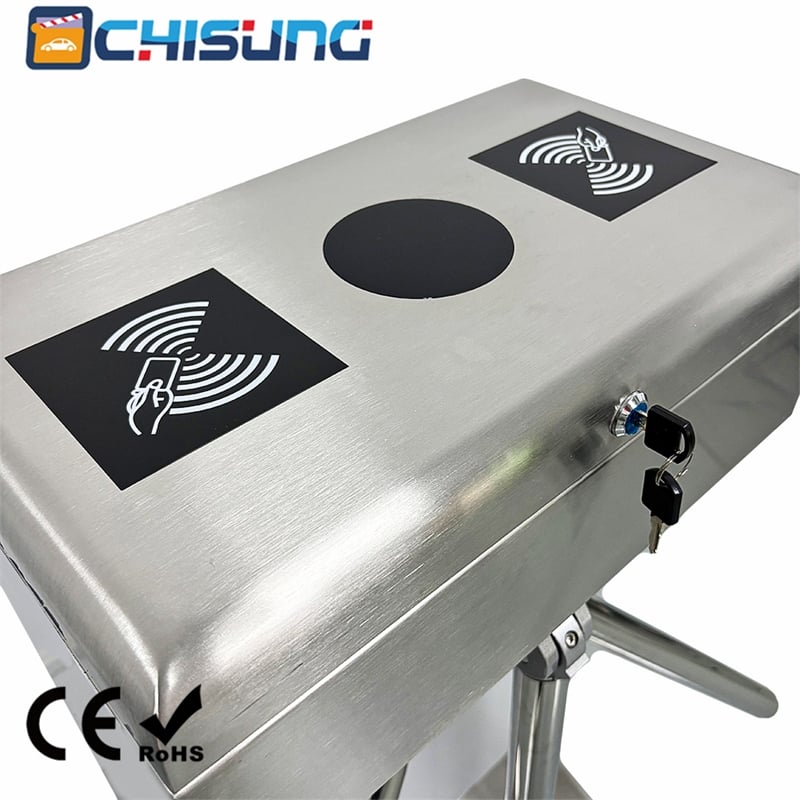

3. ID/IC card dual card reader reservation: Two built-in card reader windows on the top cover, compatible with all standard ID/IC access card readers.
4. Red-green traffic signal light: Real-time display pass permission, green arrow for allow, red stop for no access.
5. Fire alarm linkage interface: Once fire signal input, the tripod arms automatically drop down to realize full free passage for emergency evacuation.
6. Optional RS485 communication port for centralized networking and data statistics.
Stable Wide Environment Adaptability

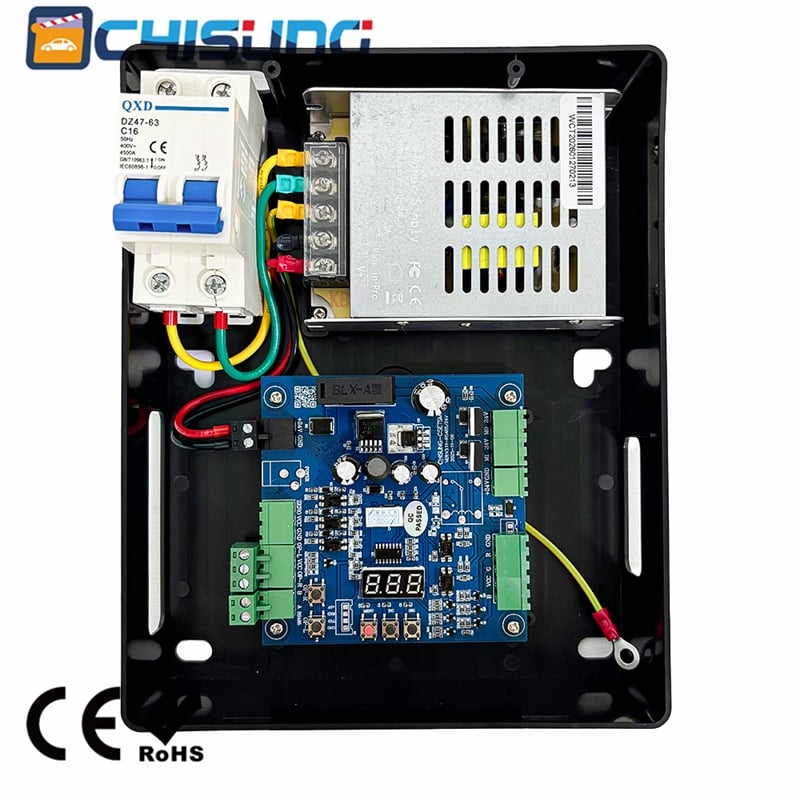

Working temperature range covers -10℃ ~ +60℃, relative humidity ≤95% without condensation, can operate normally in cold northern areas, high-temperature factories and humid coastal scenic spots. The built-in control board is equipped with leakage protection switch and 5A glass fuse tube, effectively preventing short circuit and overload damage to extend service life.
Complete Standard Configuration & Easy Installation

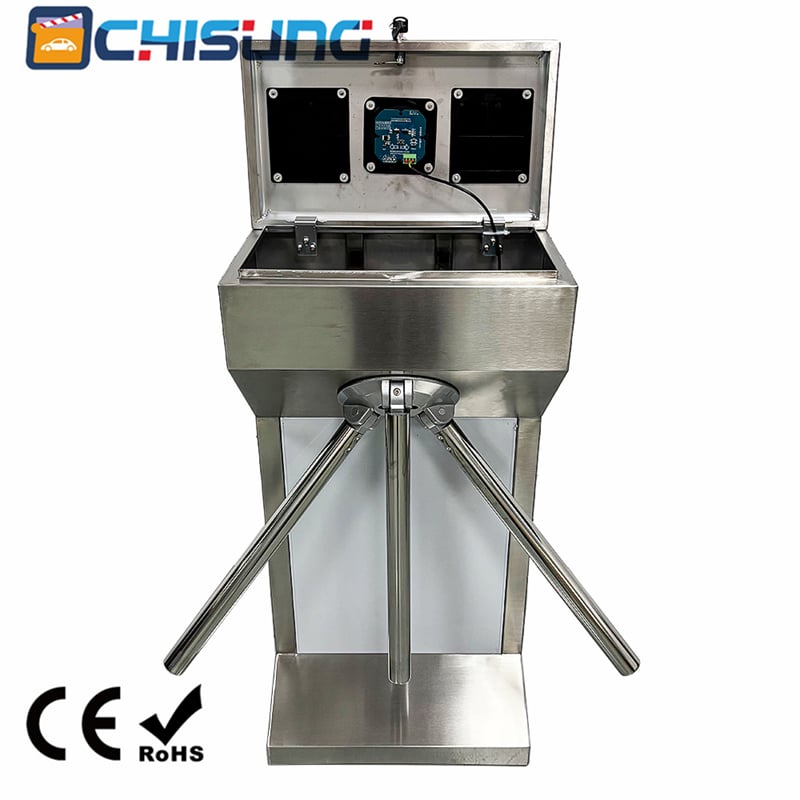

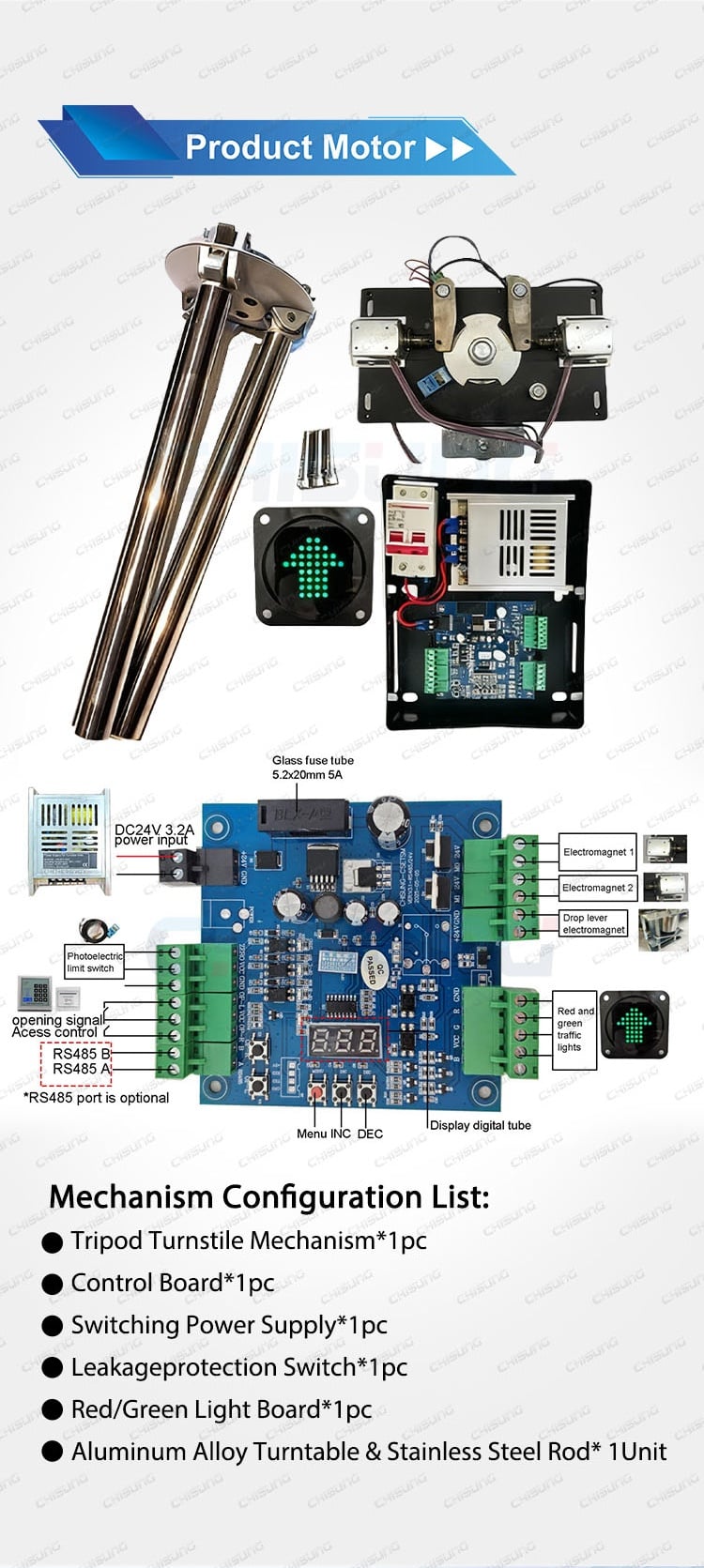

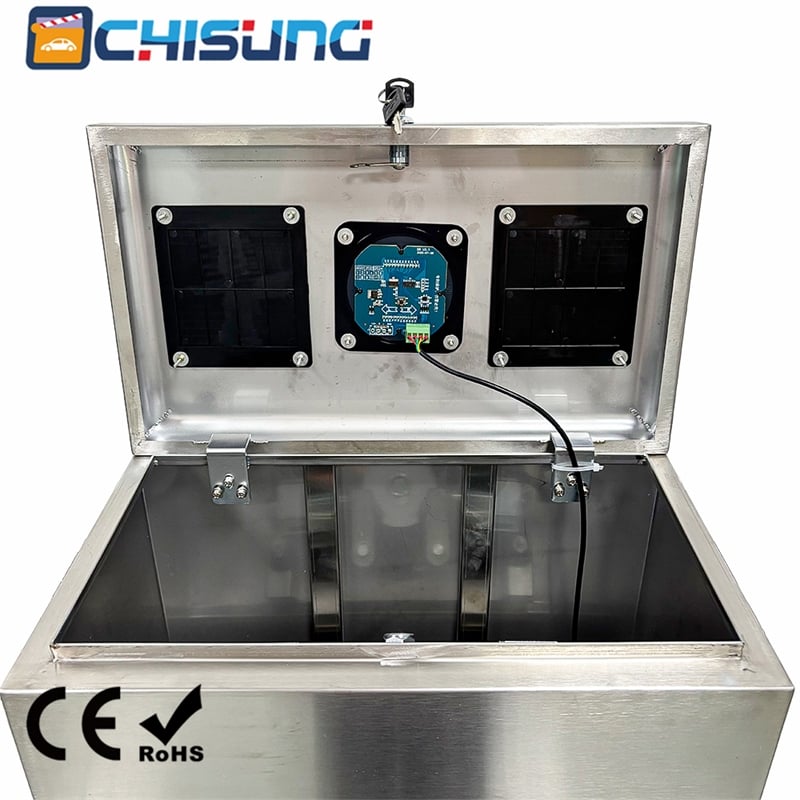

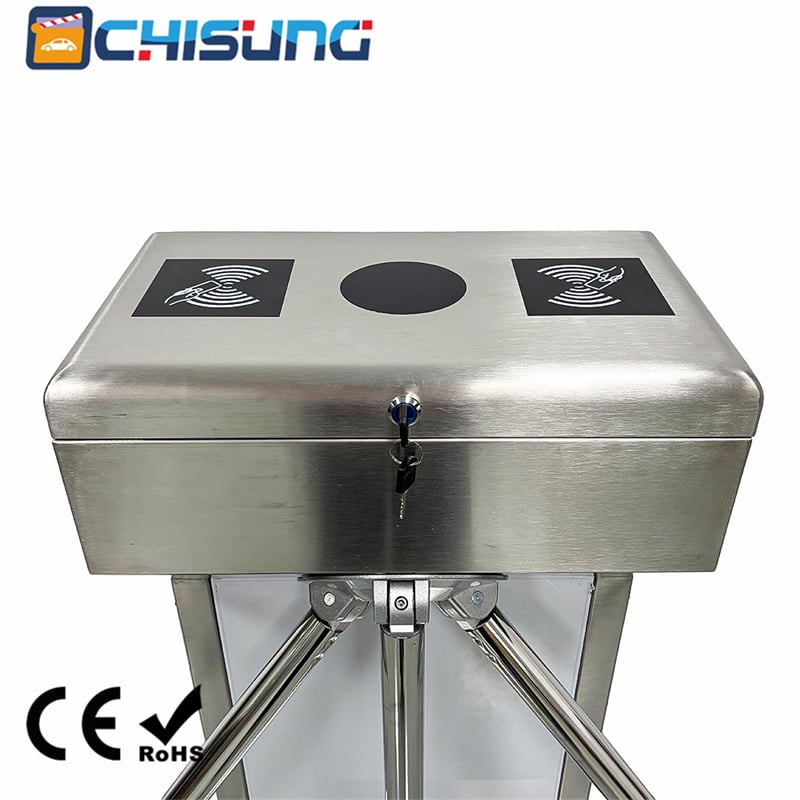

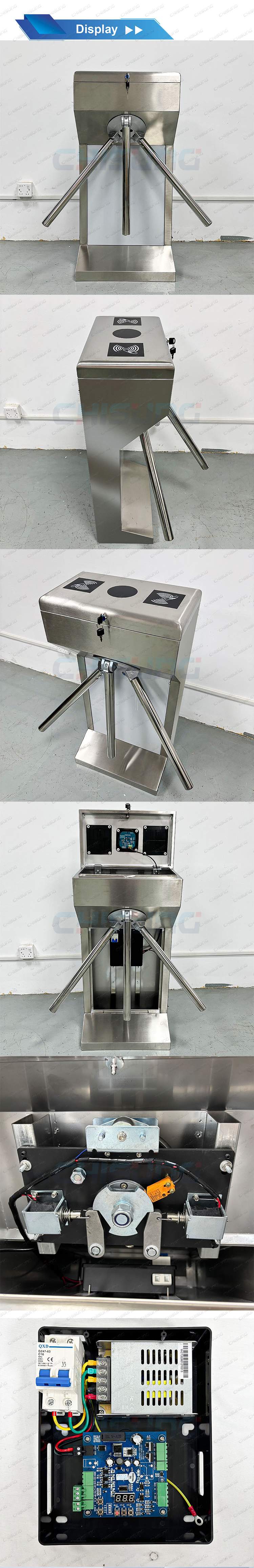

Full set of accessories included in standard package: tripod turnstile main body, semi-automatic mechanism, main control board, DC24V switching power supply, leakage protection switch, red-green traffic light board, aluminum alloy turntable and stainless steel tripod rods, English installation & operation manual. Pre-reserved wiring holes and lockable top maintenance cover for convenient internal wiring and daily inspection.
Applications:
This CSTSE424 tripod turnstile realizes standardized pedestrian access management, applicable to all commercial, industrial and public venues:
1．Residential & Real Estate: Residential Communities, Villa Compound Entrances
2．Commercial Places: Office Buildings, Shopping Malls, Hotel Lobby Access
3．Education: Schools, Campuses, Training Centers
4．Public Transport: Metro Stations, Bus Terminals, Ports
5．Industrial Zones: Factories, Industrial Parks, Construction Sites, Warehouses
6．Leisure & Sports: Scenic Spots, Parks, Stadiums, Exhibition Centers

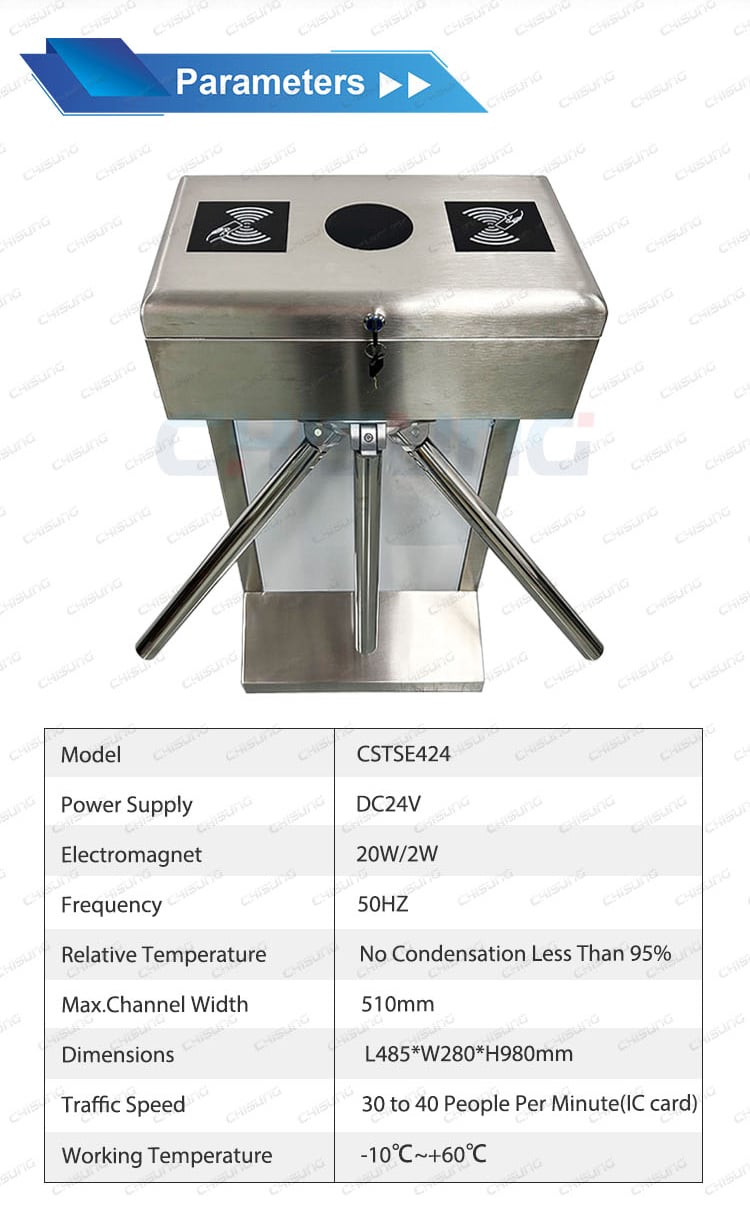

Specifications:
| Item | CSTSE424 Semi-automatic Tripod Turnstile Parameter |
| Model | CSTSE424 |
| Cabinet Material | 304 Stainless Steel, 1.2mm Thickness |
| Tripod Rod Material | 304 Stainless Steel, 500mm Length |
| Power Supply | DC24V |
| Electromagnet Spec | 20W/2W |
| Working Frequency | 50HZ |
| Max Channel Width | 510mm |
| Overall Dimension | L485W280H980mm |
| Passing Speed | 30~40 People Per Minute (IC Card Swiping) |
| Working Temperature | -10℃ ~ +60℃ |
| Relative Humidity | ≤95%, No Condensation |
| Passage Mode | Bidirectional, Adjustable Single-way Lock |

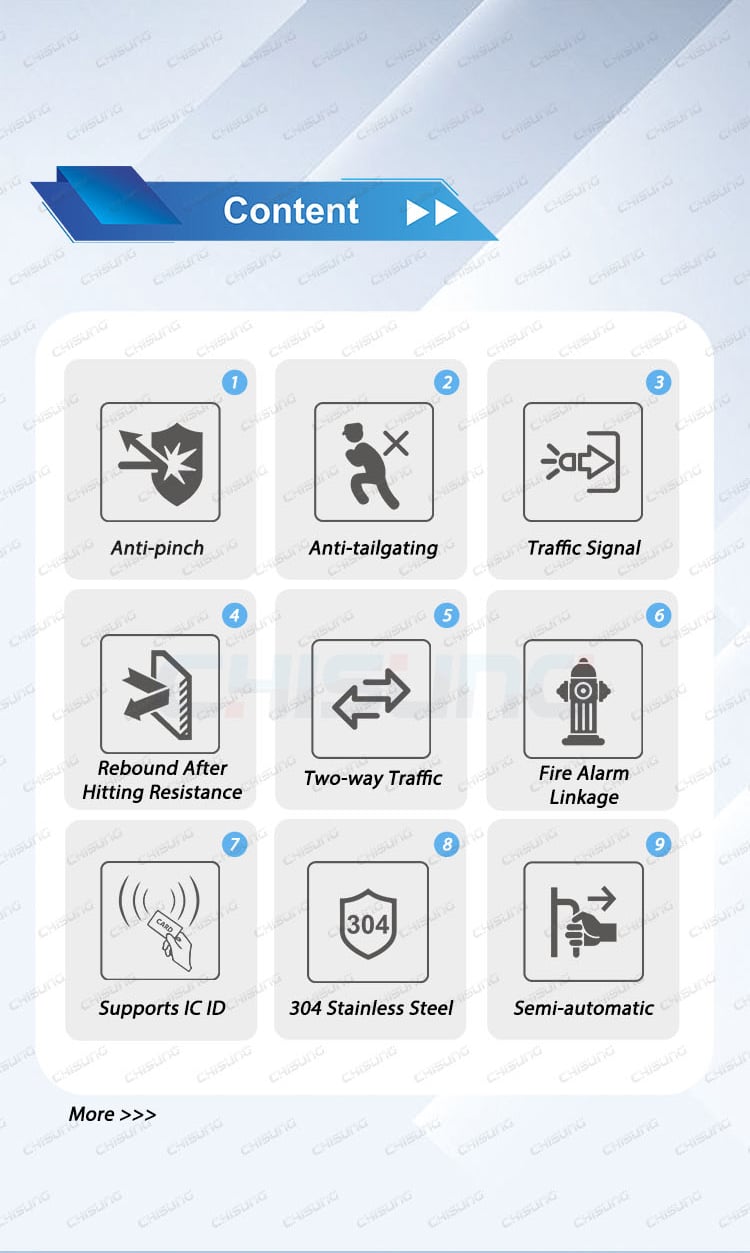

| Core Functions | Anti-tailgating, Anti-pinch Rebound, Fire Alarm Linkage, ID/IC Card Compatible, Traffic Signal Indicator |
| Optional Function | RS485 Networking Communication |
| Standard Configuration | Tripod Turnstile Main Unit, Mechanism, Control Board, DC24V Power Supply, Leakage Protection Switch, Traffic Light Board, Stainless Steel Tripod Rods, Manual |
Competitive Advantage:
1. High-Grade 1.2mm Thick 304 Stainless Steel, Better Durability Than Thin-Shell Competitors
Most cheap tripod turnstiles only use 0.8mm thin stainless steel which is easy to deform after long-term impact. Our 1.2mm thick cabinet and solid stainless steel tripod rods are anti-collision, anti-rust, suitable for high-flow public areas with long service life.
2. All-Round Safety Design Meets Global Public Safety Standards
Equipped with anti-pinch obstacle rebound, anti-tailgating one-person-one-pass rule, and fire alarm automatic drop arm function. When power cuts off or fire occurs, all channels open for evacuation, fully compliant with building safety regulations, a core advantage over basic low-cost turnstiles without emergency linkage.
3. Built-in Dual Card Reader Slots, Save Extra Installation Cost
Two reserved card reader windows on the top cover, no need to separately install external card readers on walls or poles. Installers can directly embed ID/IC readers into the turnstile cabinet, neater appearance and lower on-site construction labor cost.
4. Wide Temperature & Humidity Adaptability For Global Sales
Stable operation from -10℃ to +60℃ and damp environment without condensation. It can be sold to cold European countries, tropical Southeast Asia and coastal humid areas without extra waterproof modification, expanding distributor market coverage.
5. Complete Standard Kit, One-Stop Procurement Without Extra Parts
Every set includes full mechanical and electrical accessories: mechanism, control board, power supply, traffic light, protection switch and tripod rods. Many competitors only sell the empty cabinet separately, requiring buyers to purchase dozens of spare parts separately, increasing procurement and logistics cost.
6. Semi-automatic Mechanism Low Failure Rate & Low Maintenance Cost
Semi-automatic magnetic lock structure has fewer electronic components than fully automatic motorized turnstiles, less vulnerable to voltage fluctuation and dust interference. Suitable for schools, factories and construction sites with frequent pedestrian flow, greatly reducing after-sales maintenance complaints for distributors.
7. Expandable Optional RS485 Networking For Large-Scale Projects
Reserved RS485 communication port as optional upgrade, supporting multi-gate centralized management, real-time access data upload and remote parameter setting. It can match small community single-gate projects and large stadium/industrial park multi-channel integrated security projects at the same time, covering more customer order demands.
