CSY2G High Definition License Plate Recognition Camera All-in-one Machine 10.1” LED Display Screen
- Overview
- Recommended Products
- 99.8%+ recognition accuracy ensures seamless entry/exit.
- Starlight imaging + AI light adaptation for clear capture in any light.
- Wide-angle coverage ideal for large facilities.
- Integrated design (camera, display, voice) for easy maintenance.
- Smart fill light optimizes nighttime recognition.
- Simple installation minimizes disruption.
- Video stream recognition for fast, accurate traffic flow.
- 4-line LED display + customizable voice for promotions/updates.
- Aesthetic dark gray design blends with surroundings.
- High-speed wide-angle capture for moving vehicles.
- Consistent performance in varying lighting.
- Reduces wait times, boosting traffic efficiency.
- 99.8%+ recognition rate ensures virtually error-free identification, boosting security and efficiency.
- 2MP starlight sensor + dual-core CNN processor delivers crisp images in any light.
- Intelligent light adaptation handles backlight, glare, and darkness effortlessly.
- Red-green LED display with 4-line mode for high visibility.
- Customizable voice broadcasts for driver guidance.
- Plug-and-play installation with just 3 cables (Ethernet, power, gate opening).
- Software-adjustable fill light settings for tailored operation.
- Weatherproof dark gray housing for long-term outdoor use.
- All-in-one unit simplifies maintenance and cuts costs.
Product Information:
| Place of Origin | China,Shenzhen |
| Brand Name | CHISUNG |
| Model Number | CSY2G |
| Certification | CE |
| Minimum Order Quantity | 1unit |
| Price | 550USD |
| Packaging Details | Carton/Wooden,According to customer requirements |
| Delivery Time | 7-15days |
| Payment Terms | L/C ; T/T ; MoneyGram |
| Supply Ability | 3000units/Month |
Quick Detail:
License Plate Recognition Camera,
LPR Machine
LPR Camera
LPR Camera License Plate Recognition
License Plate Recognition
LPR System
ANPR LPR camera
LPR Parking System
Automatic Number Plate Recognition System
ANPR Camera
License Plate Recognition All-in-One Machine
Integrated LPR Device,
Intelligent Capture Unit for License Plates
License Plate Recognition System
Vehicle License Plate Recognition
CSY2 is an ultra-high-definition license plate recognition all-in-one machine specifically designed for intelligent capture and recognition at vehicle entrances and exits worldwide. Its classic dark gray, one-piece molded structure integrates a high-definition license plate recognition camera, outdoor high-brightness LED display module, built-in time-controlled fill light, intelligent voice module, and other core smart modules. This product ensures easy operation and debugging, helping parking lot operators reduce maintenance costs. It is widely used in various scenarios such as parking lot entrances and exits, residential complex entrances and exits, mall entrances and exits, and highway toll gates.
Description:

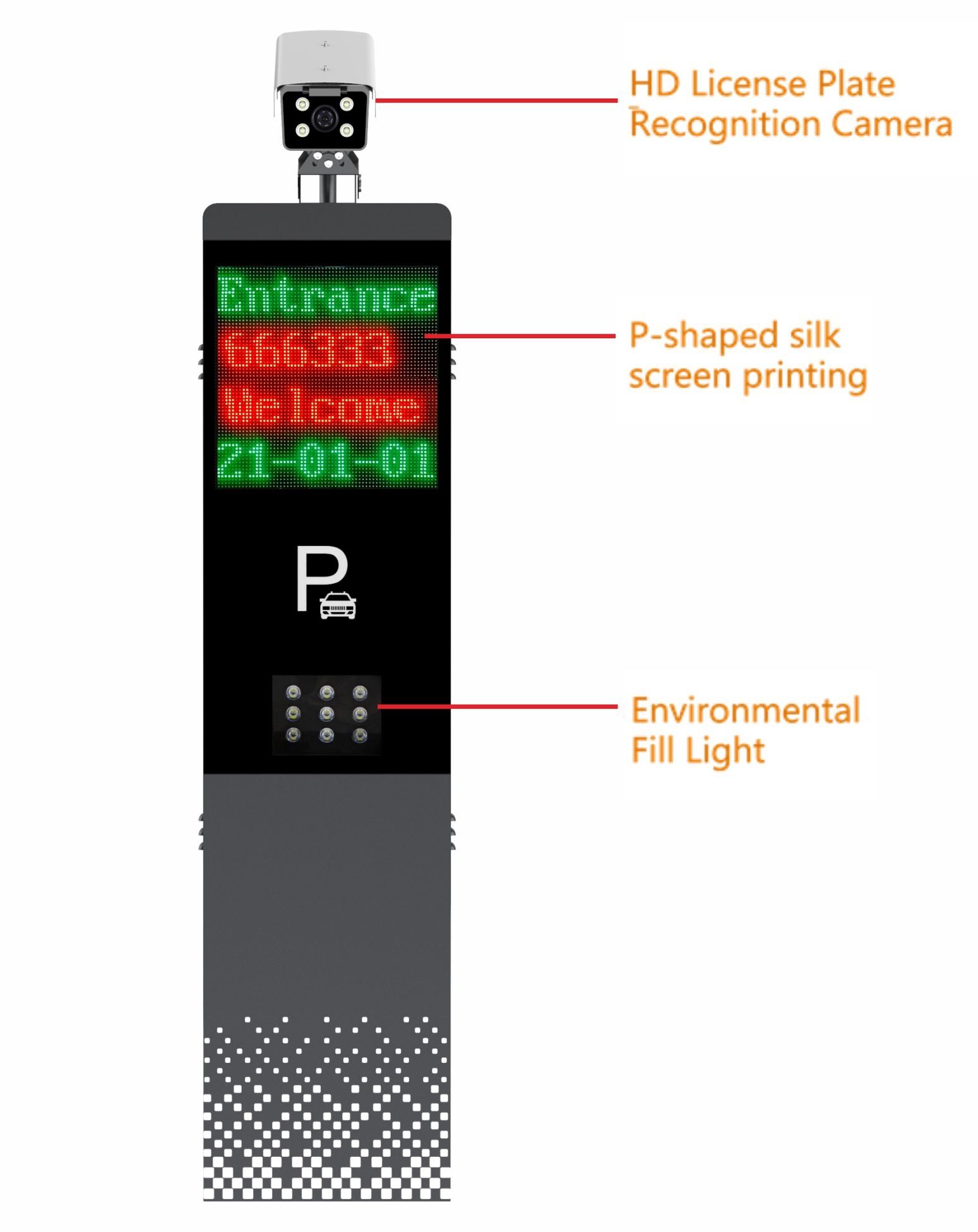

Structural Layout

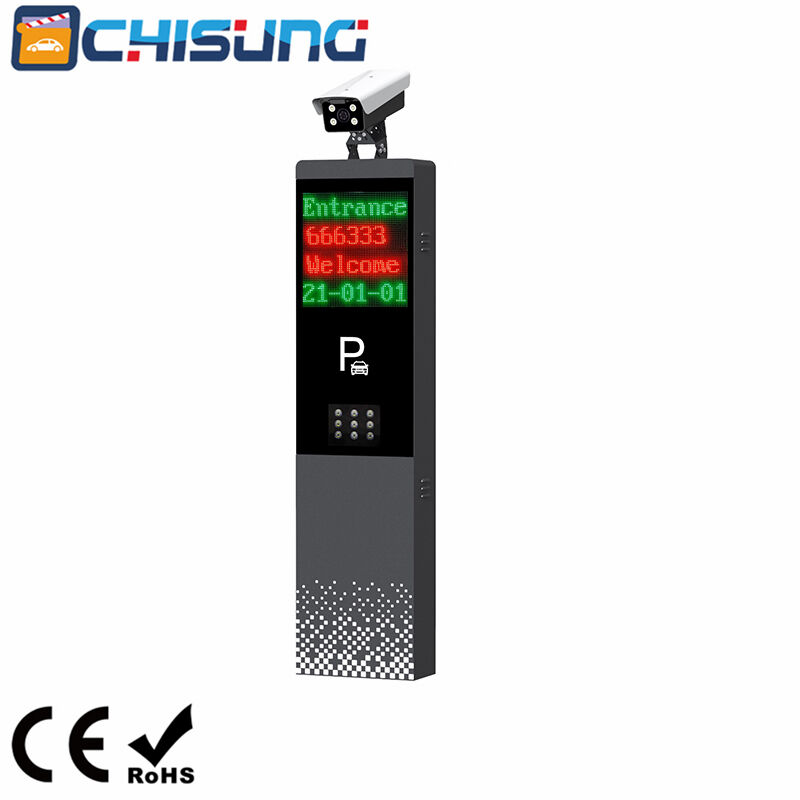

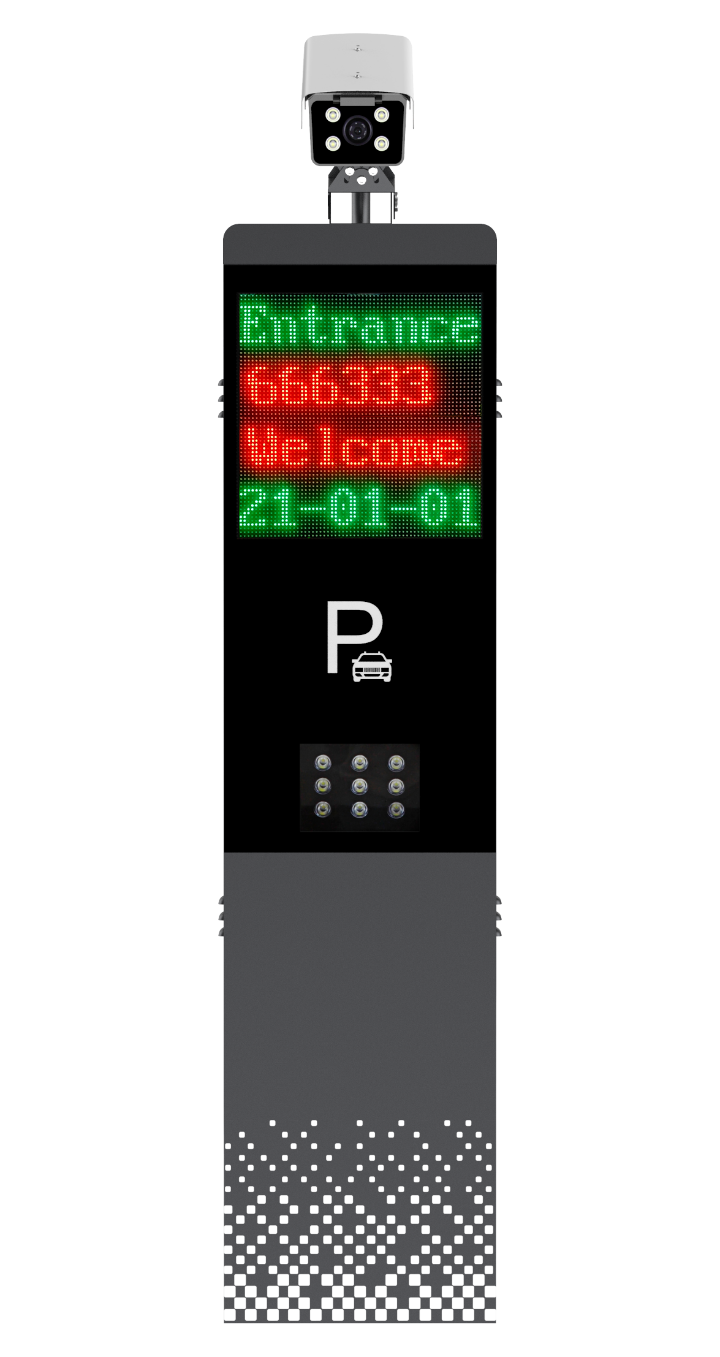

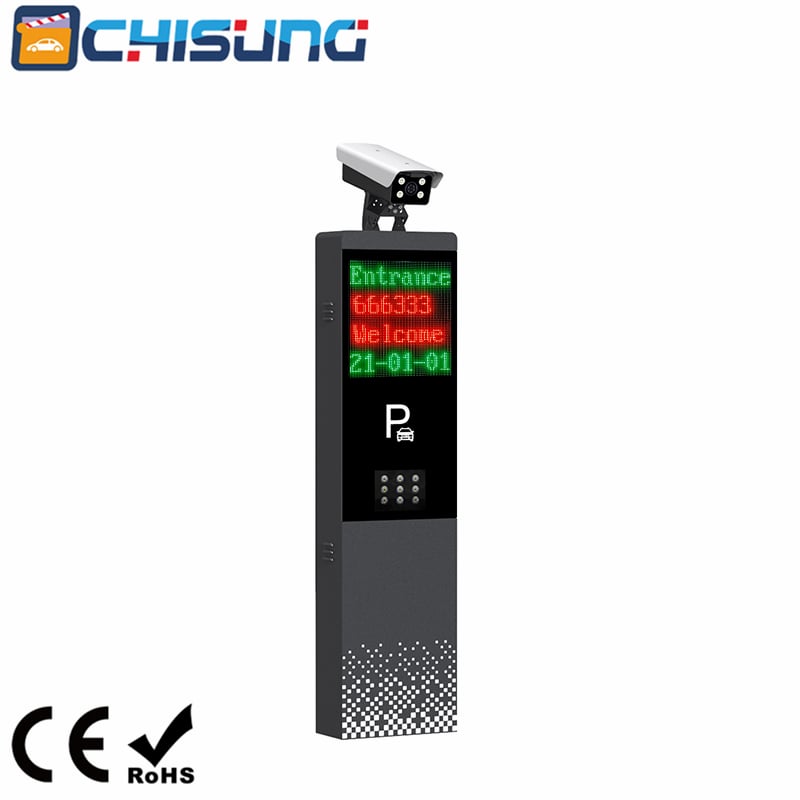

Product Photographs
 |
 |

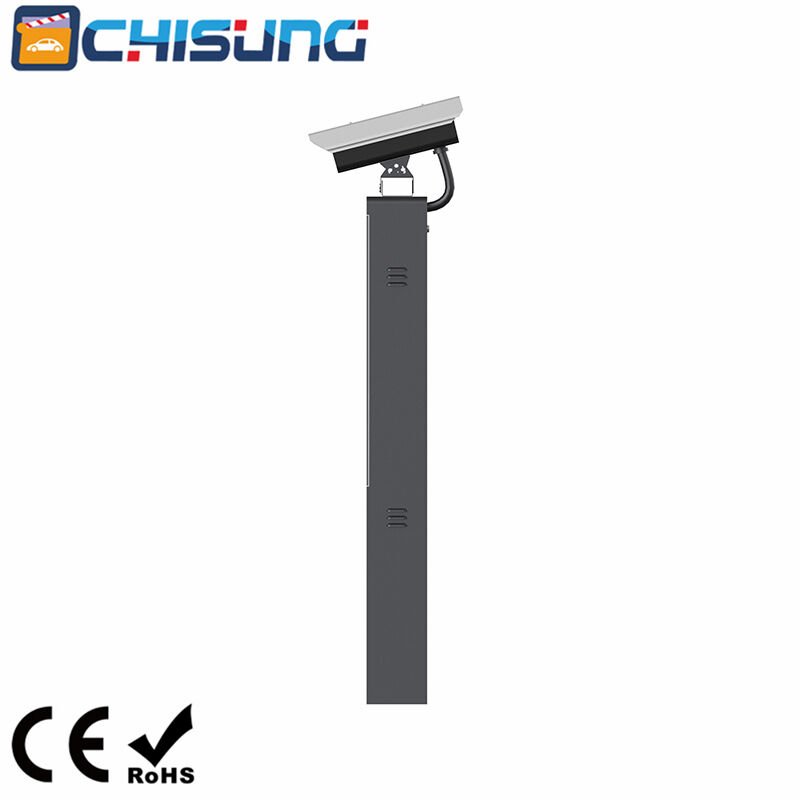

Side View |

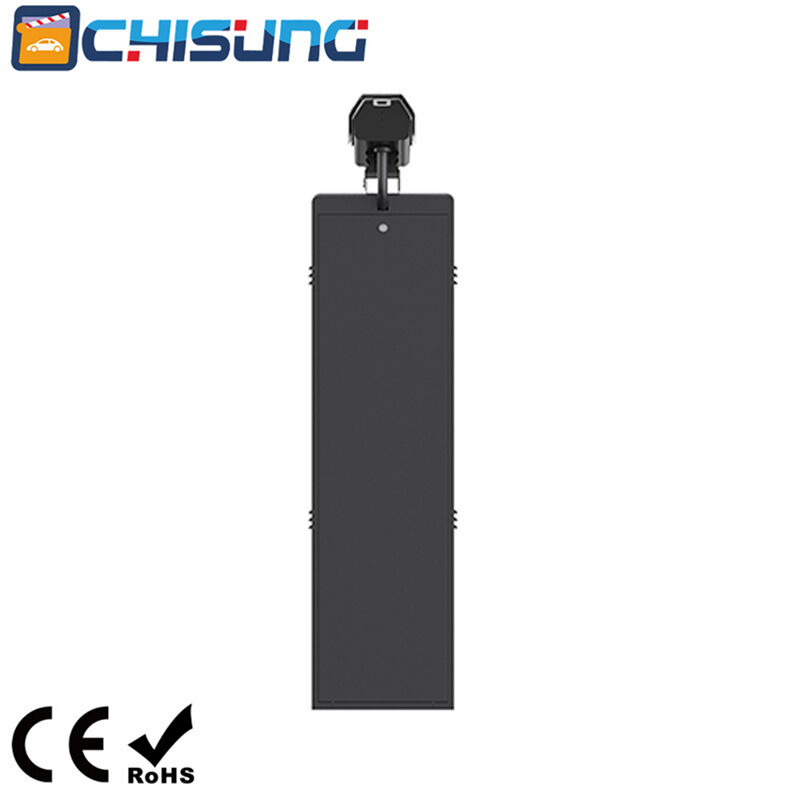

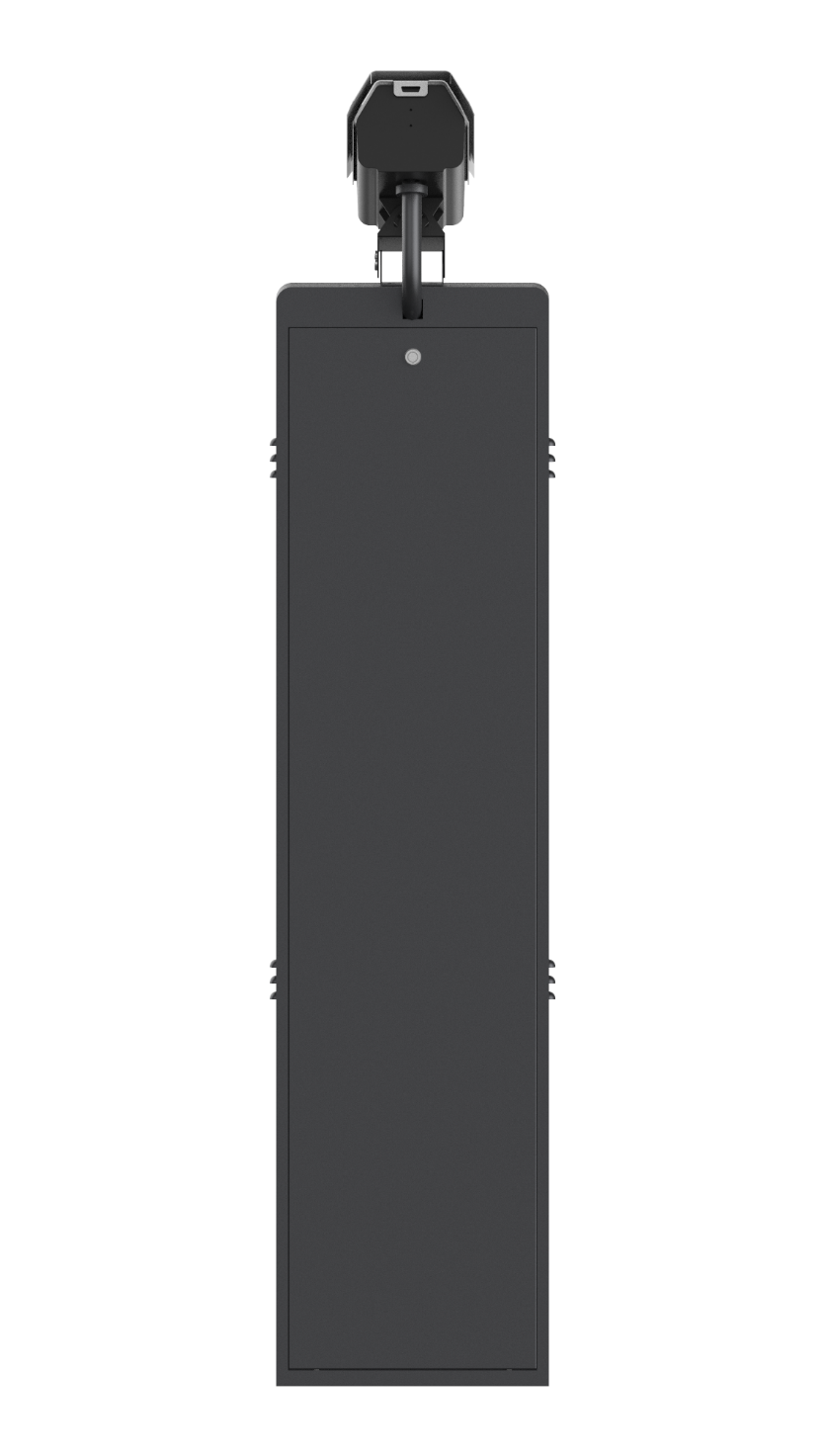

Rear View |
Product Features
●Excellent hardware architecture and stable license plate recognition algorithm, achieving a comprehensive recognition rate of over 99.8%.
●2 Megapixel starlight-level imaging with a dual-core processor for CNN acceleration.
●Intelligent imaging adjustment, automatically tracking and adapting to light changes, effectively handling challenging scenarios like backlight, frontlight, and ultra-low light. Fill lights are controlled based on image analysis algorithms for more precise illumination.
●Supports wide-angle recognition, expanding the range and adaptability of application scenarios.
●Video stream recognition ensures maximum recognition response speed and accuracy.
●The all-in-one machine adopts a dark color scheme for a more unified and coordinated appearance.
●Equipped with the T312 display module driver board.
●Features an upper red and lower green outdoor high-brightness display module with a 4-line display mode.
●Humanized voice broadcast allows for customizable volume levels and time periods.
●Software-controlled customization of fill light brightness levels and on/off time periods.
●Simple installation and commissioning requiring only one Ethernet cable, one power cable, and one gate opening cable.

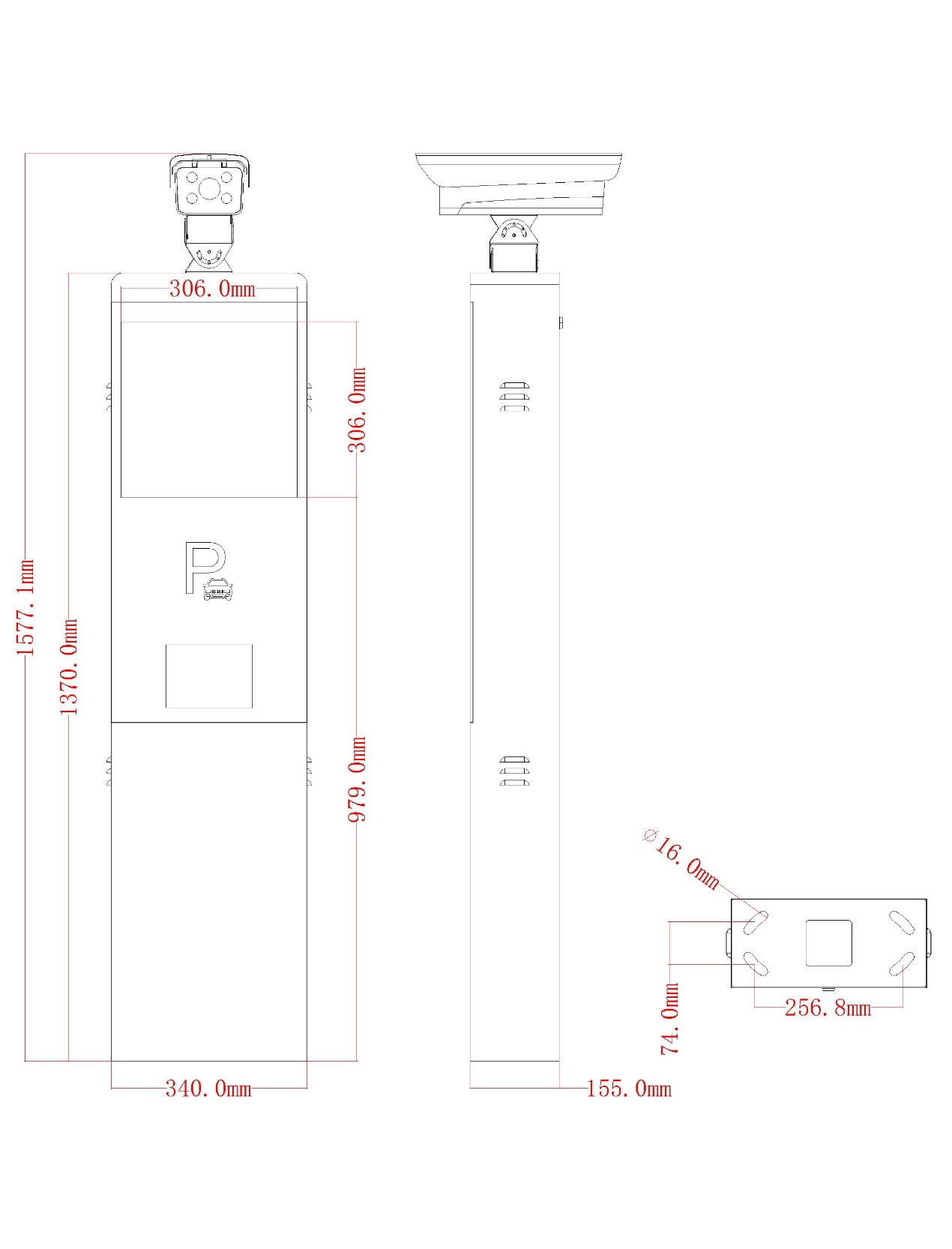

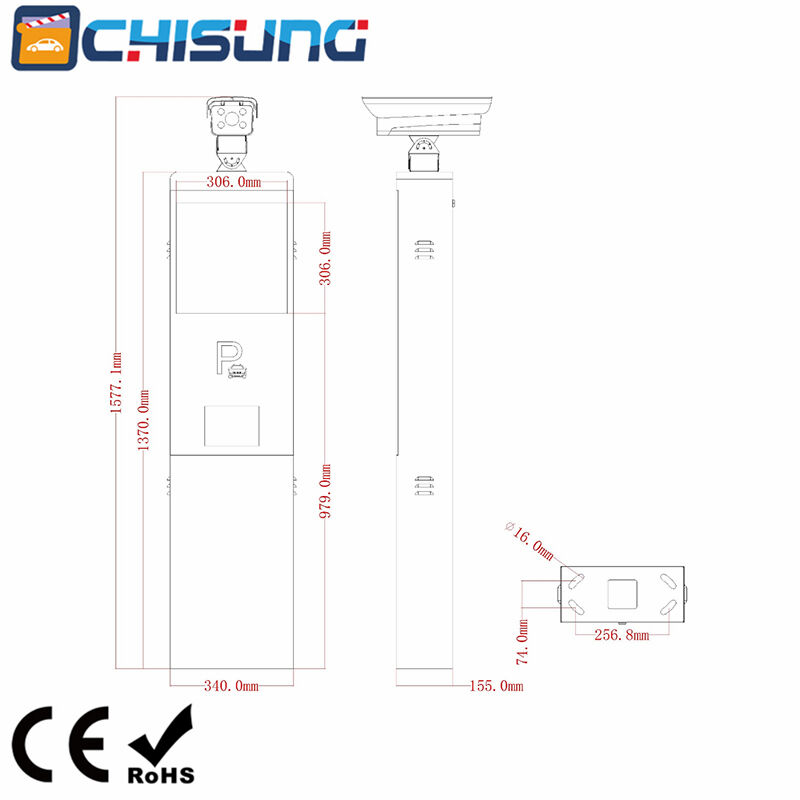

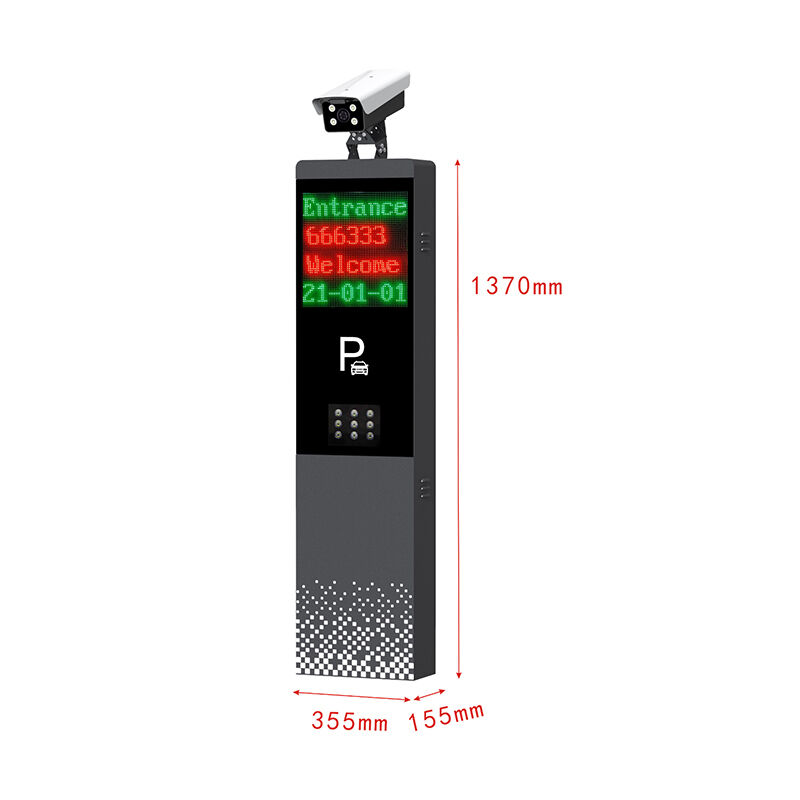

Dimensions and Mounting Hole Sizes

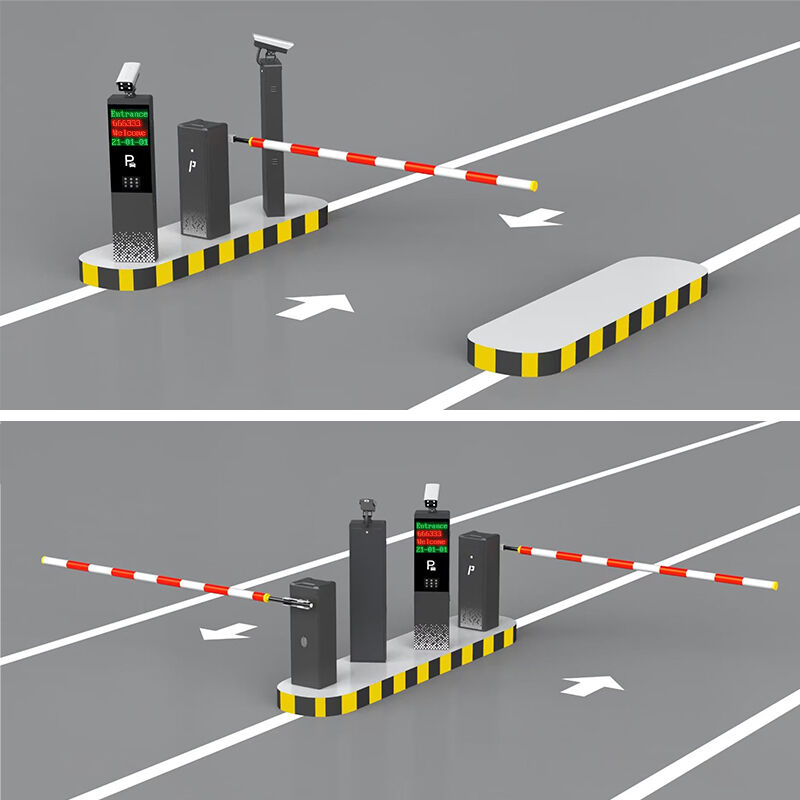

Applications:
CSY2 Ultra-HD License Plate Recognition All-in-One Machine: Smart Vehicle Access, Anywhere
Parking Lots
Residential Complexes
Malls
Highway Toll Gates
CSY2:A versatile,reliable solution for smarter vehicle access worldwide.
Specifications:
| Basic Parameters | ||
| Operating Voltage | AC220V±10% | |
| Operating Temperature | -20℃ to +60℃ | |
| Relative Humidity | ≤95% without condensation (at room temperature) | |
| Rated Power | ≤60W | |
| Communication Method | TCP/IP、RS485 | |
| Display Type | 10.1-inch outdoor high-brightness LCD screen | |
| Screen Resolution | 600*1024 | |
| Enclosure Protection Class | IP54 | |
| Material and Craftsmanship | High-strength carbon steel, sheet metal spraying | |
| Dimensions | 355*155*1370mm (Height * Width * Depth, excluding external camera) | |
| Camera Parameters | ||
| CPU | dual-core 900MHz processor+CNN hardware acceleration engine (0.5Tops) | |
| Image Sensor | 1/2.8" starlight-level CMOS | |
| Max Resolution | 1920(H)×1080(V) | |
| Lowest Illumination | 0.01Lux (Color) | |
| ISP | intelligent ISP,scene-adaptive | |
| Data Output | H265\H264\MJPEG\intelligent detection structured data output | |
| Standard Confifiguration | Standard 6mm prime lens; | |
| Comprehensive capturing recognition rate | Comprehensive capturing rate≥99.99%; comprehensive recognition rate≥90% | |
| License Plate Recognition Regions | Poland, Germany, France, Brazil, Kenya, Ukraine, Indonesia, Vietnam, Denmark, Israel, Romania, Moldova, | |
| Azerbaijan, Switzerland, Slovakia, Netherlands, Serbia, Uzbekistan, Turkey, Kyrgyzstan, Urkaine, Greatbritain, Italy, | ||
| Croatia≥90% | ||
| Monaco, Estonia, Czechrepublic, Portugal, Bulgaria, Luxembourg, Finland, Montenegro, Thailand, Slovenia, | ||
| Hungary, Latvia, Russia, Kazakhstan, Lithuania, Norway, Belgium, Cyprus, Sweden, Georgia, Belarus, Spain≥95% | ||
| Malaysia, Singapore, Taiwan, Hongkong≥98% | ||
| License Plate Recognition Function | White list of license plates, intelligent calibration | |
| Network Interface | 1-channel 10/100Mbps adaptive RJ45 | |
| Other Interfaces | IO output: 2-channel, IO input: 4-channel, RS485: 1-channel | |
| USB | 1 USB Type-A interface (optional 4G module) | |
| TF Card Slot | 1l TF card slot, supporting 512G at maximum) | |
| Service | Basic services, supporting various types of secondary development | |
| Fill Light Parameters | ||
| Number of LED Beads | 9 pieces | |
| Maximum Power | 10W | |
| Fill Light Control | Intelligent light sensitivity control, adjusts brightness based on ambient light intensity | |
| Fill Light Distance | Illuminance greater than 50LUX at a distance of 5 meters | |
| Adjustment Angle | Supported | |
| Basic Parameters | |||
| Operating Voltage | AC220V±10% | ||
| Operating Temperature | -20℃ to +60℃ | ||
| Relative Humidity | ≤95% without condensation (at room temperature) | ||
| Rated Power | ≤60W | ||
| Communication Method | TCP/IP、RS485 | ||
| Display Type | 10.1-inch outdoor high-brightness LCD screen | ||
| Screen Resolution | 600*1024 | ||
| Enclosure Protection Class | IP54 | ||
| Material and Craftsmanship | High-strength carbon steel, sheet metal spraying | ||
| Dimensions | 360*150*1490mm (Height * Width * Depth, excluding external camera) | ||
| Camera Parameters | |||
| CPU | dual-core 900MHz processor+CNN hardware acceleration engine (0.5Tops) | ||
| Image Sensor | 1/2.8" starlight-level CMOS | ||
| Max Resolution | 1920(H)×1080(V) | ||
| Lowest Illumination | 0.01Lux (Color) | ||
| ISP | intelligent ISP,scene-adaptive | ||
| Data Output | H265\H264\MJPEG\intelligent detection structured data output | ||
| Standard Confifiguration | Standard 6mm prime lens; | ||
| Comprehensive capturing recognition rate | Comprehensive capturing rate≥99.99%; comprehensive recognition rate≥90% | ||
| License Plate Recognition Regions | Poland, Germany, France, Brazil, Kenya, Ukraine, Indonesia, Vietnam, Denmark, Israel, Romania, Moldova, | ||
| Azerbaijan, Switzerland, Slovakia, Netherlands, Serbia, Uzbekistan, Turkey, Kyrgyzstan, Urkaine, Greatbritain, Italy, | |||
| Croatia≥90% | |||
| Monaco, Estonia, Czechrepublic, Portugal, Bulgaria, Luxembourg, Finland, Montenegro, Thailand, Slovenia, | |||
| Hungary, Latvia, Russia, Kazakhstan, Lithuania, Norway, Belgium, Cyprus, Sweden, Georgia, Belarus, Spain≥95% | |||
| Malaysia, Singapore, Taiwan, Hongkong≥98% | |||
| License Plate Recognition Function | White list of license plates, intelligent calibration | ||
| Network Interface | 1-channel 10/100Mbps adaptive RJ45 | ||
| Other Interfaces | IO output: 2-channel, IO input: 4-channel, RS485: 1-channel | ||
| USB | 1 USB Type-A interface (optional 4G module) | ||
| TF Card Slot | 1l TF card slot, supporting 512G at maximum) | ||
| Service | Basic services, supporting various types of secondary development | ||
| Fill Light Parameters | |||
| Number of LED Beads | 9 pieces | ||
| Maximum Power | 10W | ||
| Fill Light Control | Intelligent light sensitivity control, adjusts brightness based on ambient light intensity | ||
| Fill Light Distance | Illuminance greater than 50LUX at a distance of 5 meters | ||
Competitive Advantage:
CSY2 Ultra-HD License Plate Recognition All-in-One Machine: The Smart Choice for Vehicle Access
Unmatched Accuracy
Superior Imaging
Clear Communication
Easy Setup & Control
Durable & Integrated Design
Why CSY2?
A seamless, reliable solution for parking lots, malls, airports, and more—where every vehicle entry counts.
