CHISUNG CSSGO-02 DC24V Low Installation Swing Gate Opener, 250kg Max 2.5m Single Leaf, 400N Thrust DC24V Solar Compatible Aluminum Gate Motor with Built-in Electronic Limit Switch for Villa & Courtyard Gates
250kg / 2.5m Medium Swing Gate Support | DC24V Safe Low Voltage | Low Ground Mount Design | Built-in Electronic Limit Switch | Anti-Pinch Obstacle Detection | Solar & Backup Battery Ready | European Style Aluminum Housing | Manual Key Release for Power Failure
- Overview
- Recommended Products
Product Information
| Place of Origin: | China |
| Brand Name: | CHISUNG |
| Model Number: | CSSGO-02 |
| Certification: | CE |
Product Commercial Terms
| Minimum Order Quantity: | 1 |
| Packaging Details: | carton |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000sets/Month |
Quick Detail:
Swing gate opener
Automatic swing gate opener
Arm-type gate operator
Surface-mounted swing operator
Underground swing operator
Dual swing gate operator
swinging gate operator
Articulated arm gate operator
Electromechanical swing gate actuator
Remote-controlled swing gate opener
Swing gate motor
Low-energy swing gate operator
Powered swing gate operator
Linkage-type gate operator
Residential swing gate opener
Smart swing gate opener
Commercial-duty swing gate operator
Solar-powered swing gate opener

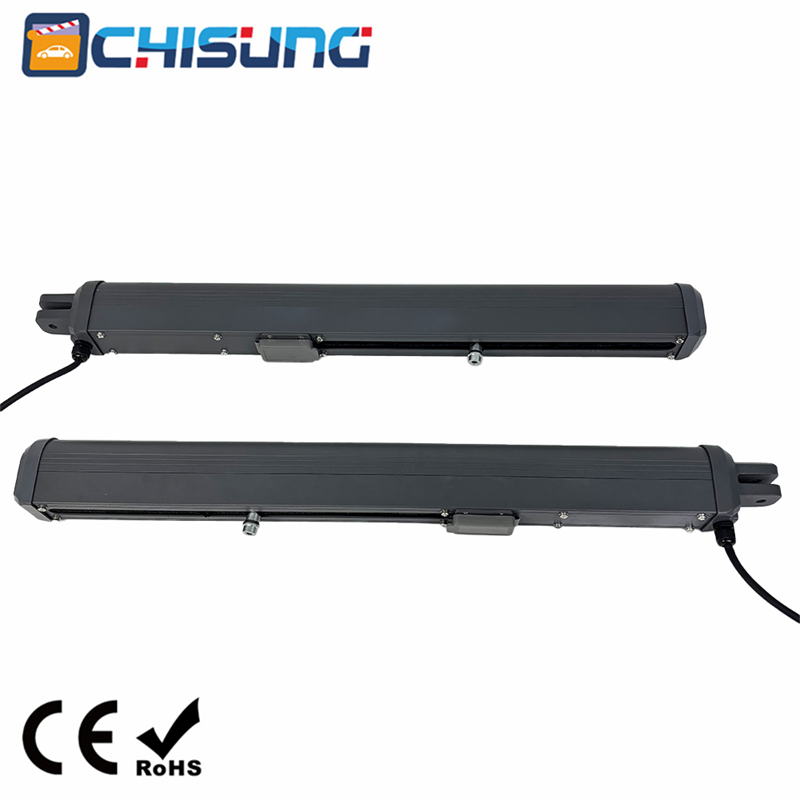

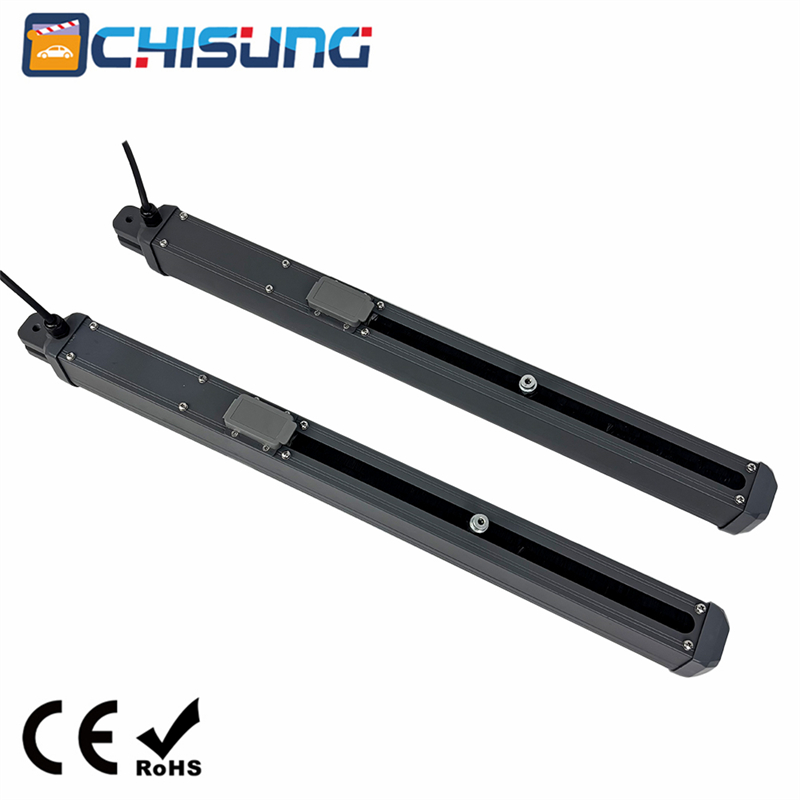

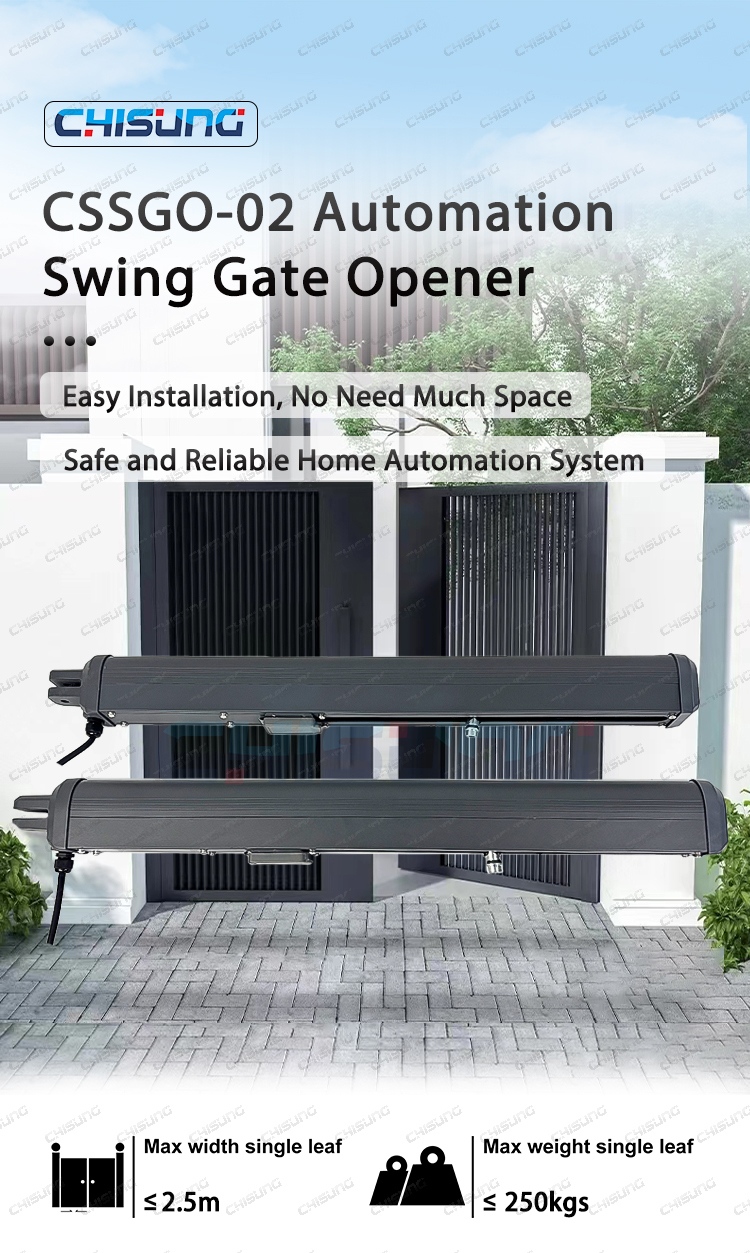

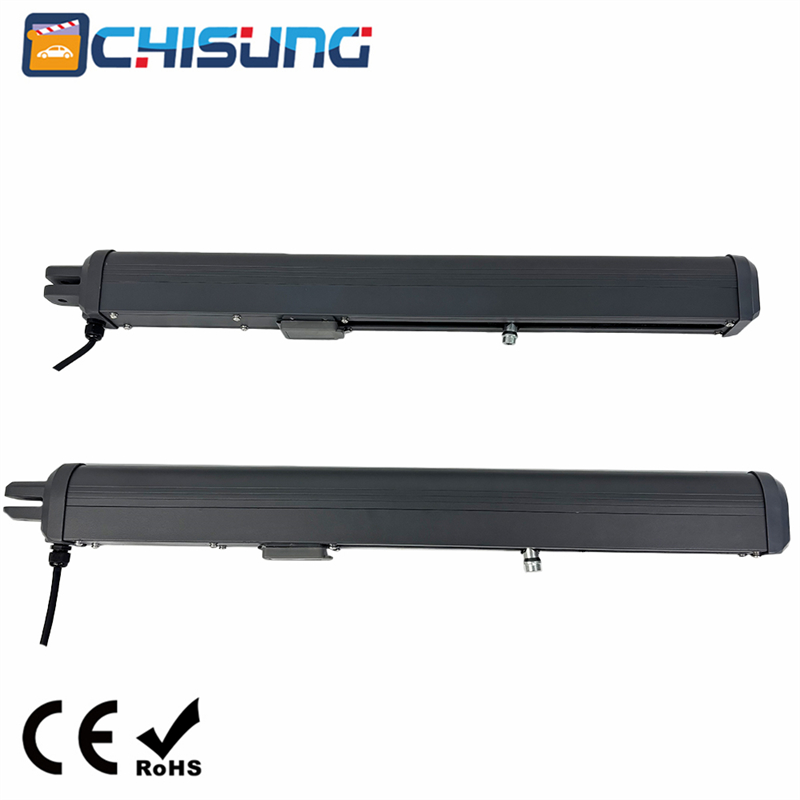

CSSGO-02-DC24V is a medium-duty DC24V swing gate automation motor designed for residential and light commercial swing gates up to 2.5m wide and 250kg. Adopting unique off-axis thrust structure supporting low near-ground installation, built-in electronic limit switch and CPU anti-pinch protection, this aluminum alloy gate opener delivers stable 400N thrust with low noise operation. It reserves wiring ports for solar panels and 12V backup batteries, compatible with multi-mode smart access control, ideal for villas, communities and courtyard wrought iron/aluminum swing gates.
Description:

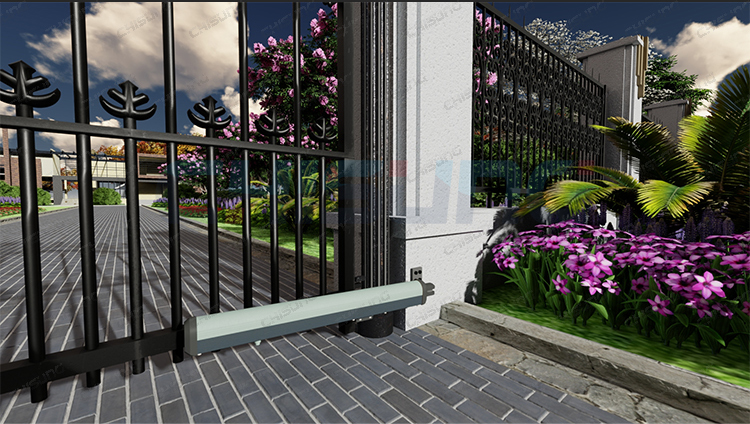

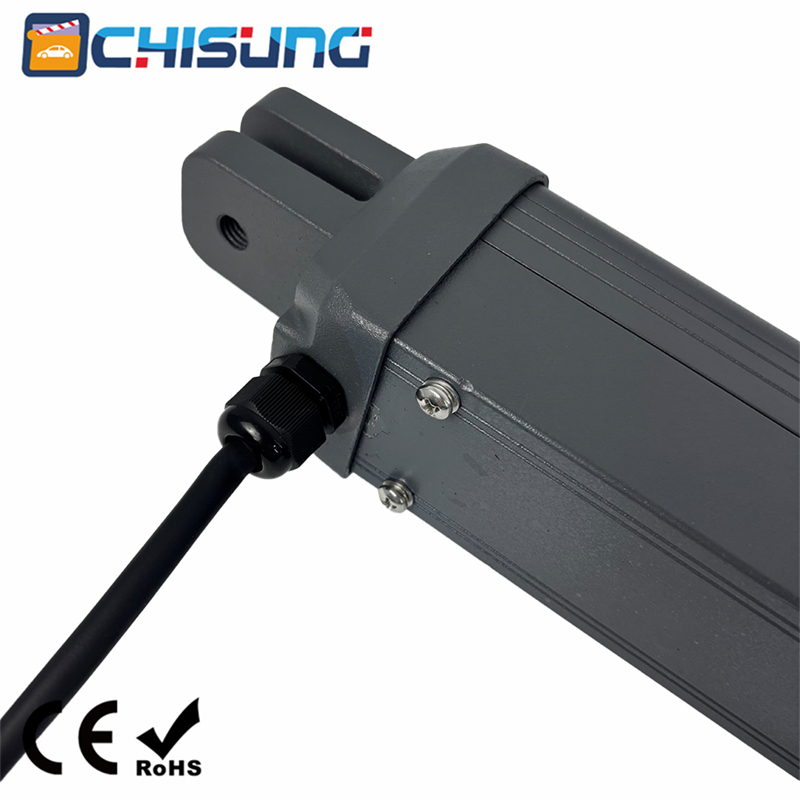

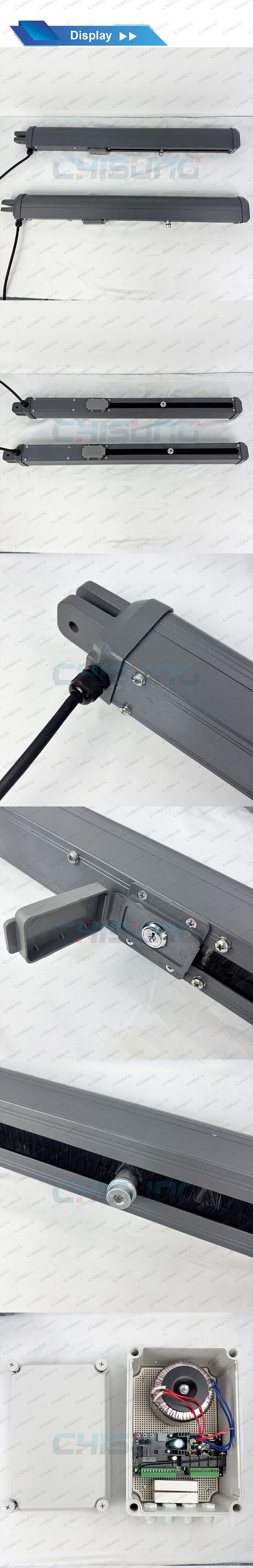

CSSGO-02-DC24V features a sleek European-style die-cast aluminum alloy housing with powder coated anti-rust finish, reaching IP45 waterproof & dustproof grade to withstand all outdoor weather from -20℃ to +70℃. The unique OFF-axis thrust operator design enables low installation close to ground, with horizontal cable exit to avoid messy wiring and save installation space greatly.

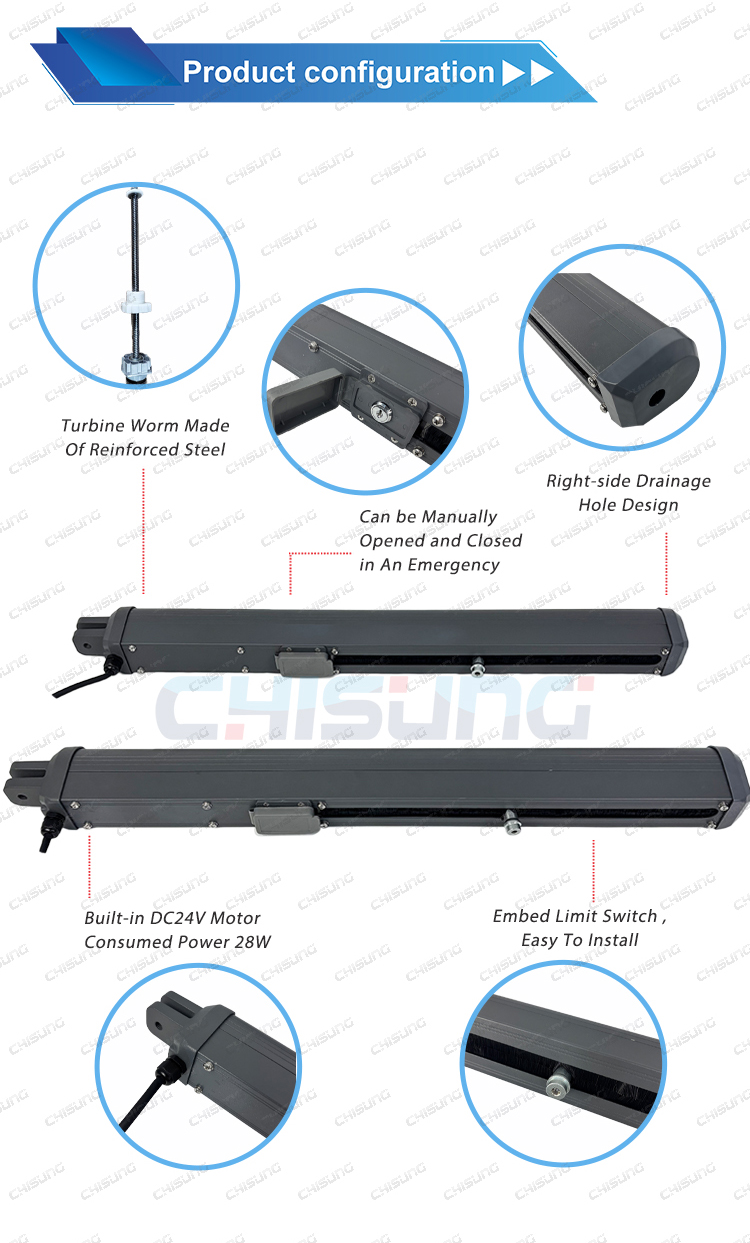

The core transmission system uses reinforced steel turbine worm and fully protected endless drive screw, durable for long-term frequent use (30% rated working frequency). Powered by a safe DC24V 28W low-consumption motor with only 2A operating current, it runs at 1.6cm/s linear speed and finishes 90° gate opening within 12 seconds with ultra-low noise.
Equipped with built-in electronic limit switch, users can freely adjust opening & closing travel to achieve precise stop without extra external accessories. Advanced CPU anti-obstacle anti-pinch protection automatically detects obstacles and reverses the gate to prevent clamping injuries, greatly improving family safety. A mechanical key release device is reserved on the motor body, allowing manual opening and closing during power outages.

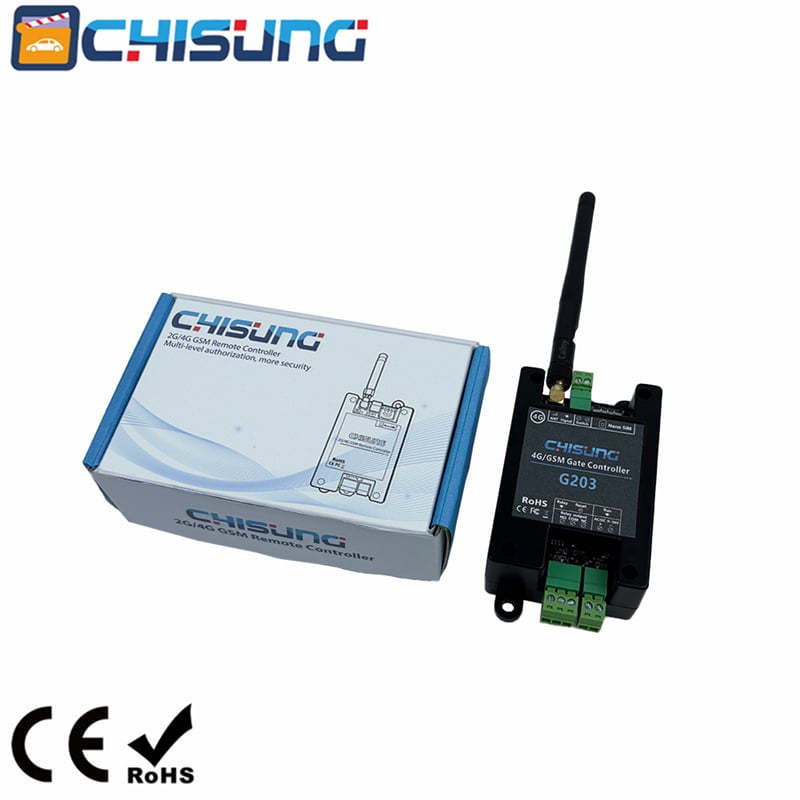

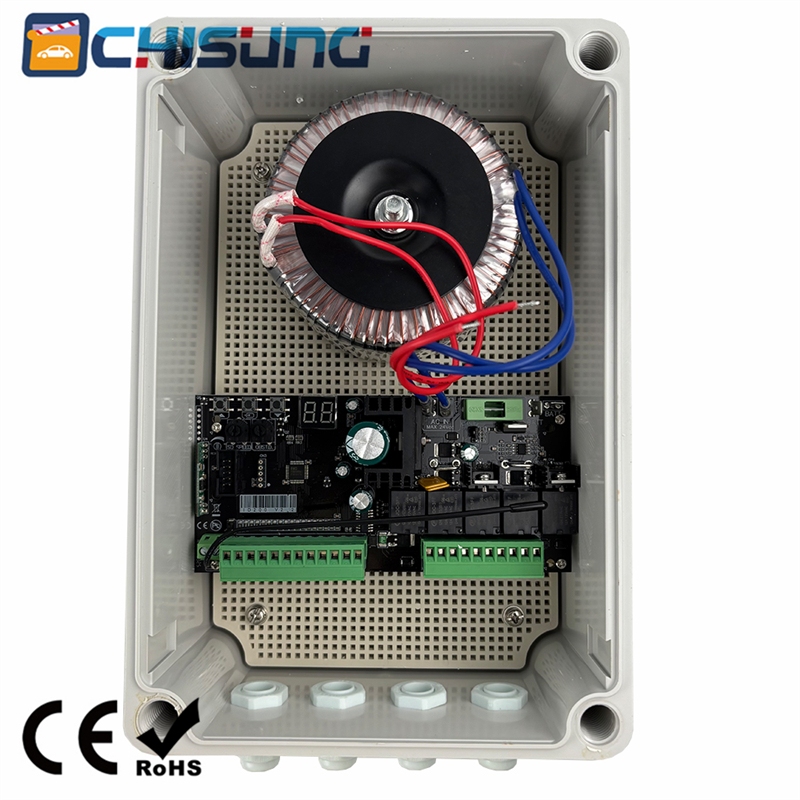

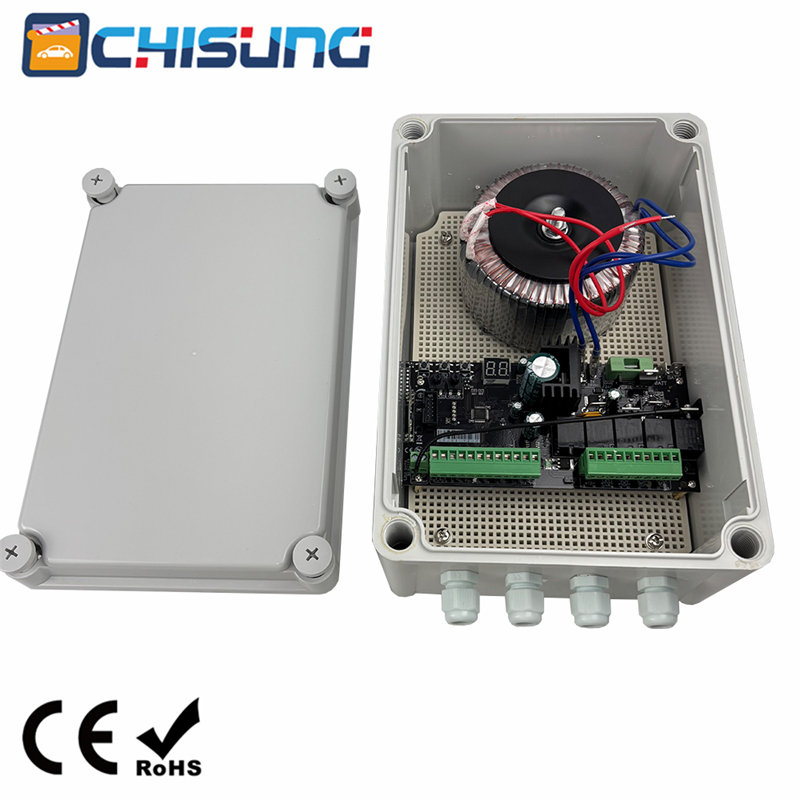

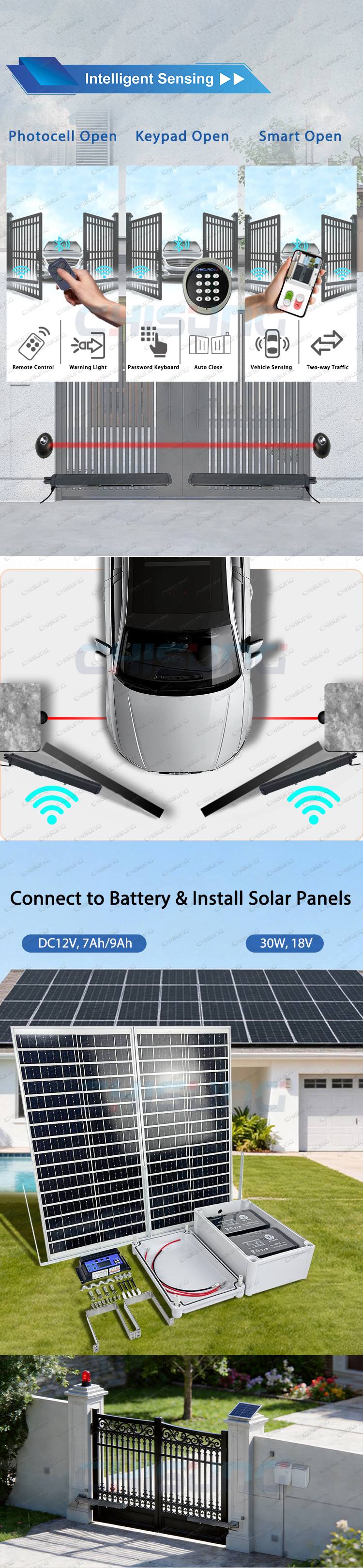

This model supports off-grid solar power system and dual 12V 9Ah series backup batteries, perfect for rural villas, remote courtyards and areas with unstable mains power. The matched control board supports multiple unlocking methods: remote control, Bluetooth keypad, vehicle loop detector, infrared photocell, GSM 4G module and mobile WIFI remote monitoring, meeting all smart home access demands.
All mounting brackets, clutch keys, remote transmitters and complete hardware fittings are included in the standard kit. Adjustable opening angles (90°/100°/110°/120°) and programmable auto-close delay (0~99s) adapt to most medium-sized aluminum, wooden and wrought iron swing gates. Adjustable running time overload protection prevents motor burnout from long-time operation.
Applications:
High-End Private Villa: Medium-sized courtyard wrought iron/aluminum swing driveway gates
Residential Compound: Community main & secondary entrance swing gates
Rural & Off-Grid Houses: Solar-powered independent gate automation without stable grid supply
Light Commercial Places: Small office access gates, club side gates, scenic area pedestrian gates
Public Auxiliary Entrances: School auxiliary gates, hospital side gates, small factory courtyard gates

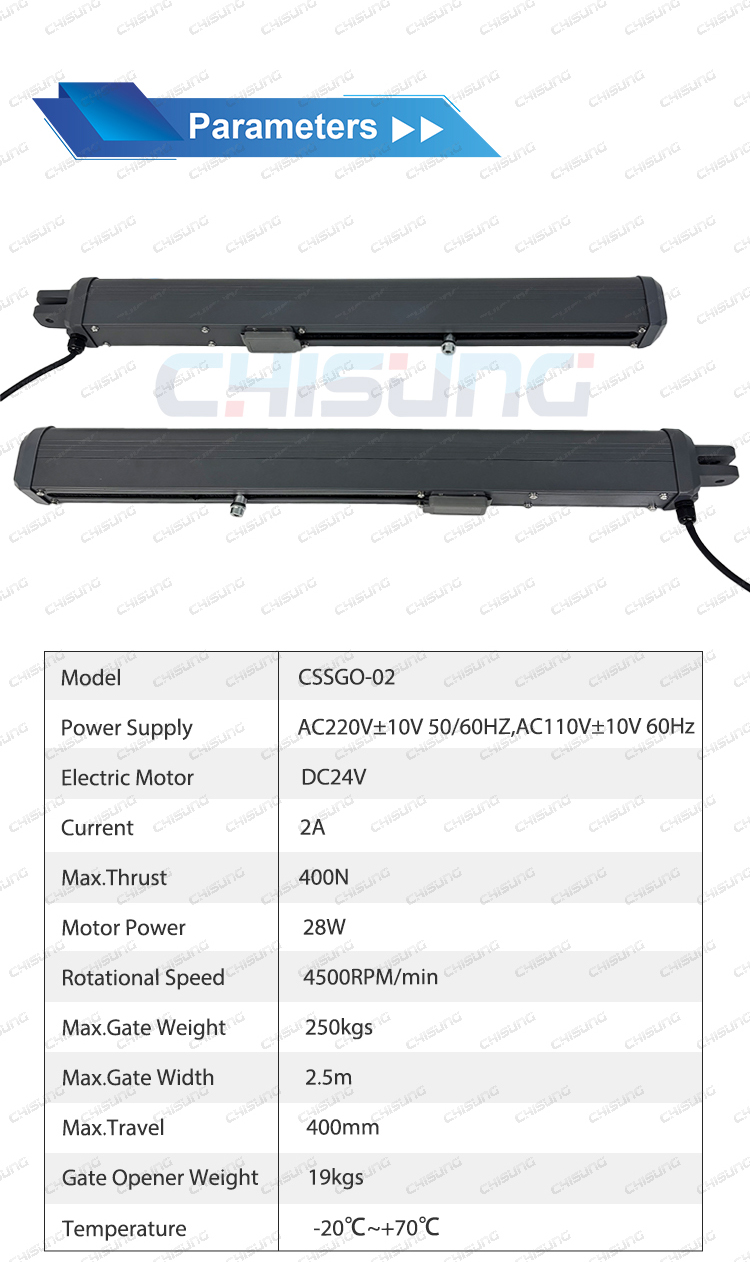

Specifications:
| Item | CSSGO-02-DC24V |
| Input Power Supply | AC220V±10V 50/60Hz / AC110V±10V 60Hz |
| Working Motor Voltage | DC24V |
| Rated Current | 2A |
| Motor Power Consumption | 28W |
| Max Single Leaf Gate Width | 2.5m |
| Max Single Leaf Gate Weight | 250kg |
| Linear Gate Speed | 1.6cm/s |
| Motor Rotational Speed | 4500RPM/min |
| Output Thrust | 400N |
| Max Rod Travel Stroke | 400mm |
| Opening Time for 90° | 12 seconds |
| Adjustable Opening Angle | 90°,100°,110°,120° |
| Programmable Auto Close Delay | 0~99 seconds adjustable |
| Running Time Protection | Adjustable overload protection |
| Operating Temperature | -20℃ ~ +70℃ |
| Working Humidity | ≤95% RH, non-condensing |
| Waterproof Grade | IP45 |

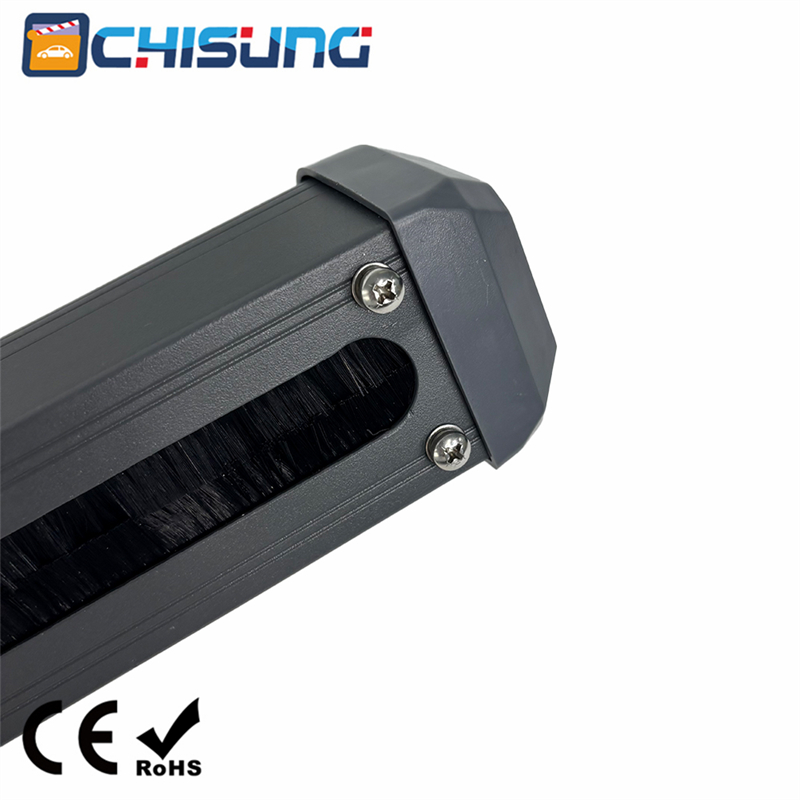

| Housing Material | Die-cast aluminum alloy shell + stainless steel tube, powder coating |
| Core Transmission | Reinforced steel turbine worm + endless drive screw |
| Limit Switch | Built-in electronic limit switch |
| Safety Function | CPU anti-pinch obstacle detection, manual key release |
| Solar & Backup Battery Support | Optional 30W 18V solar panel / 2pcs 12V 9Ah series batteries |
| Cycle Use Frequency | 30% |
| Overall Motor Dimension (L×W×H) | 87*89*374mm |
Competitive Advantage:

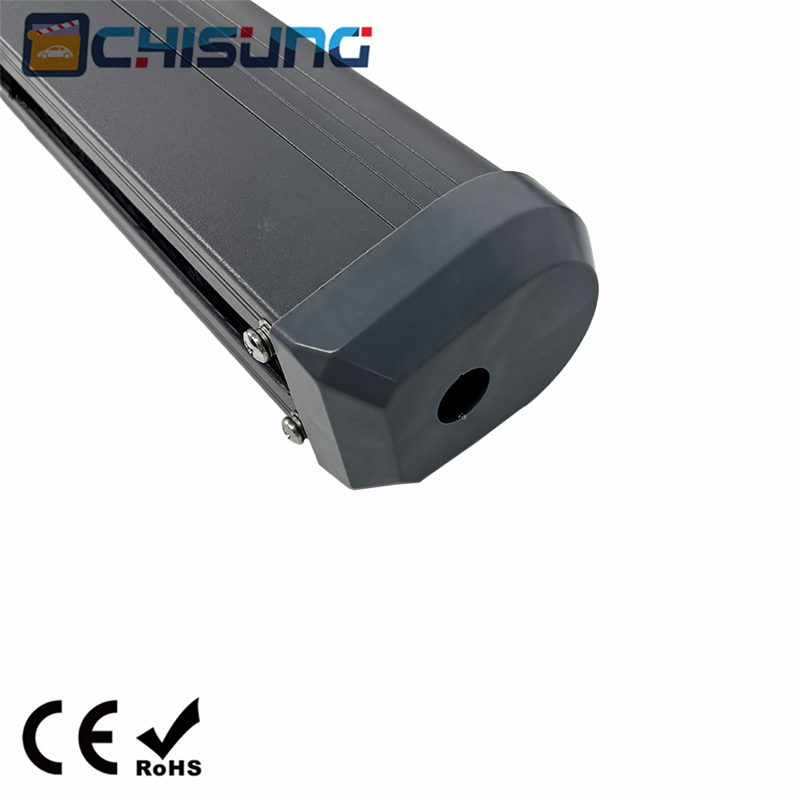

Unique Low Ground Installation Design Off-axis thrust structure supports near-ground mounting, horizontal cable outlet saves space and tidies wiring layout, more flexible than ordinary push rod gate openers.
Built-in Electronic Limit Switch, One-Step Calibration No extra external limit accessories required, freely adjust opening/closing stroke for accurate gate stop position.
CPU Intelligent Anti-Pinch Obstacle Protection Real-time force detection, automatically reverse gate when obstacles detected, effectively protect kids, pets and vehicles.
Safe DC24V Low Voltage + Solar Ready Off-Grid Solution Low 28W power consumption without electric shock risk; reserved solar/battery wiring ports for countryside & remote villas.
European Style All-Aluminum Weatherproof Housing Galvanized internal metal parts + powder coated outer shell, anti-rust, anti-UV, IP45 waterproof for year-round outdoor use.
Reinforced Steel Turbine Worm Drive System Fully covered endless screw structure, wear-resistant and long service life under frequent daily operation.

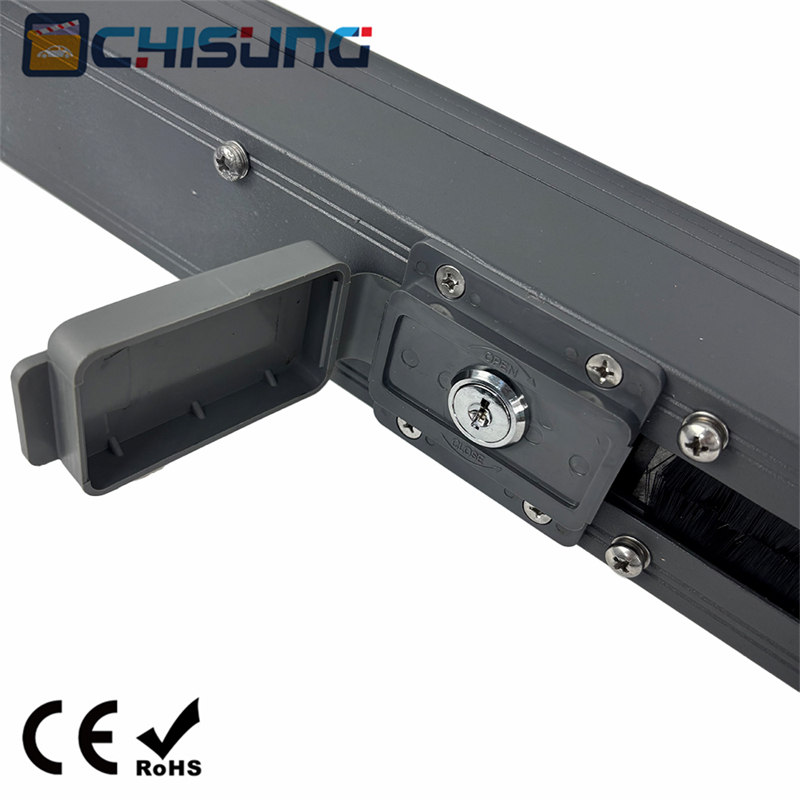

Emergency Manual Key Release Convenient mechanical clutch key to manually open/close gate when power cuts off, no stuck trouble.

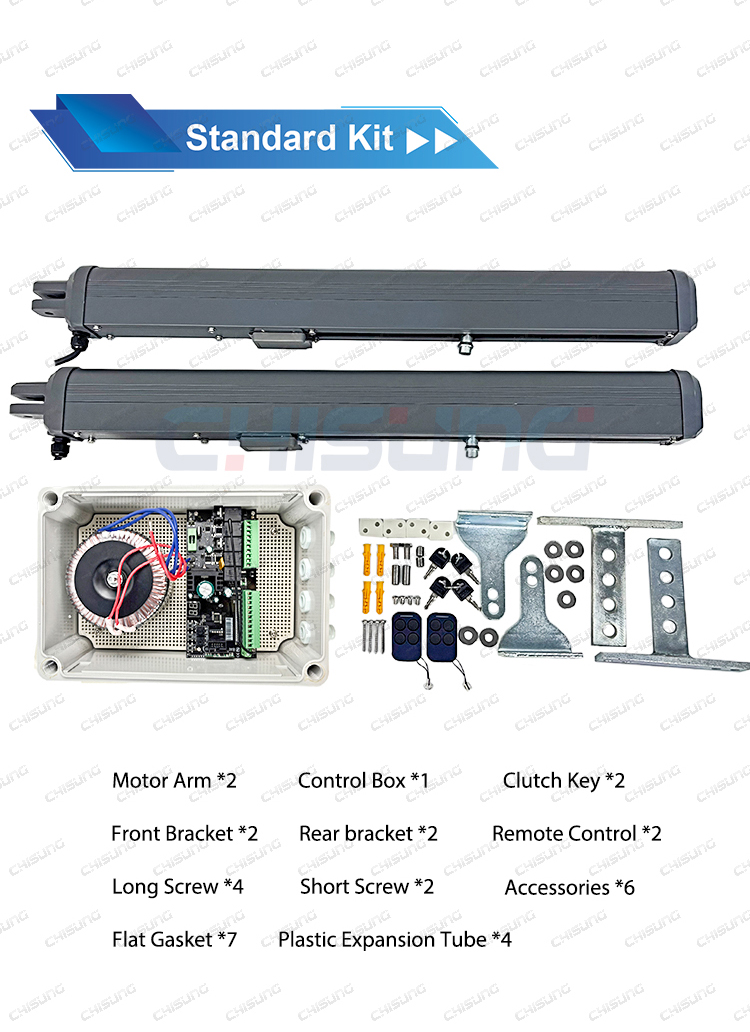

Complete Standard DIY Installation Kit Front/rear brackets, clutch keys, remotes, all bolts and gaskets fully equipped, no extra spare parts to purchase.
Tag:CSSGO-02
