Product Information
Place of Origin: |
China |
Brand Name: |
CHISUNG |
Model Number: |
CSSGO-04 |
Certification: |
CE |
Product Commercial Terms
Minimum Order Quantity: |
1 |
Price: |
Consult us |
Packaging Details: |
carton |
Delivery Time: |
7-15days |
Payment Terms: |
L/C ; T/T ; MoneyGram |
Supply Ability: |
3000sets/Month |
Automatic swing gate opener
Surface-mounted swing operator
Underground swing operator
Articulated arm gate operator
Electromechanical swing gate actuator
Remote-controlled swing gate opener
Low-energy swing gate operator
Powered swing gate operator
Linkage-type gate operator
Residential swing gate opener
Commercial-duty swing gate operator
Solar-powered swing gate opener
Linear Actuator gate opener

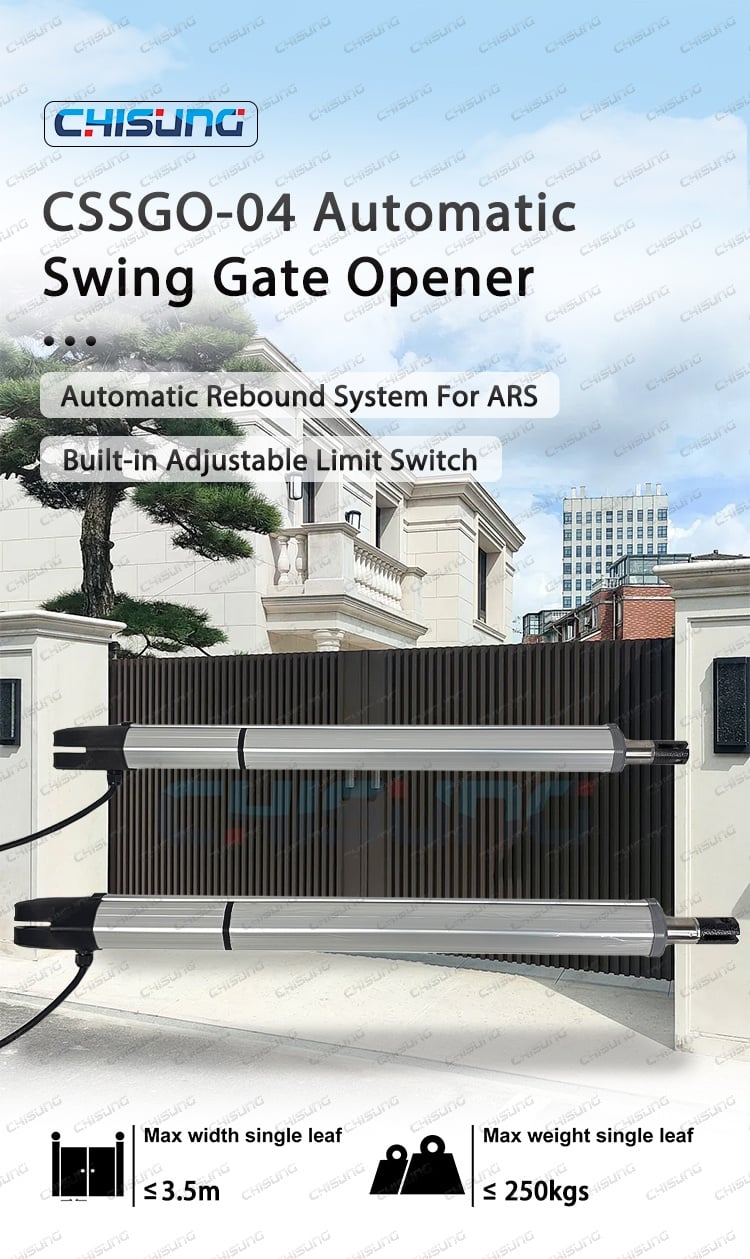

The CHISUNG CSSGO-04 Automatic Swing Gate Opener is a heavy-duty external gate automation system designed for residential and commercial swing gates. It handles single-leaf gates up to 3.5m wide and 250kg with smooth, reliable operation. Featuring ARS automatic rebound, adjustable limit switches, IP45 weatherproof housing, and compatibility with Bluetooth/WiFi/solar accessories, it offers secure, convenient, and low-maintenance access control for villas, communities, and industrial sites worldwide.
Description

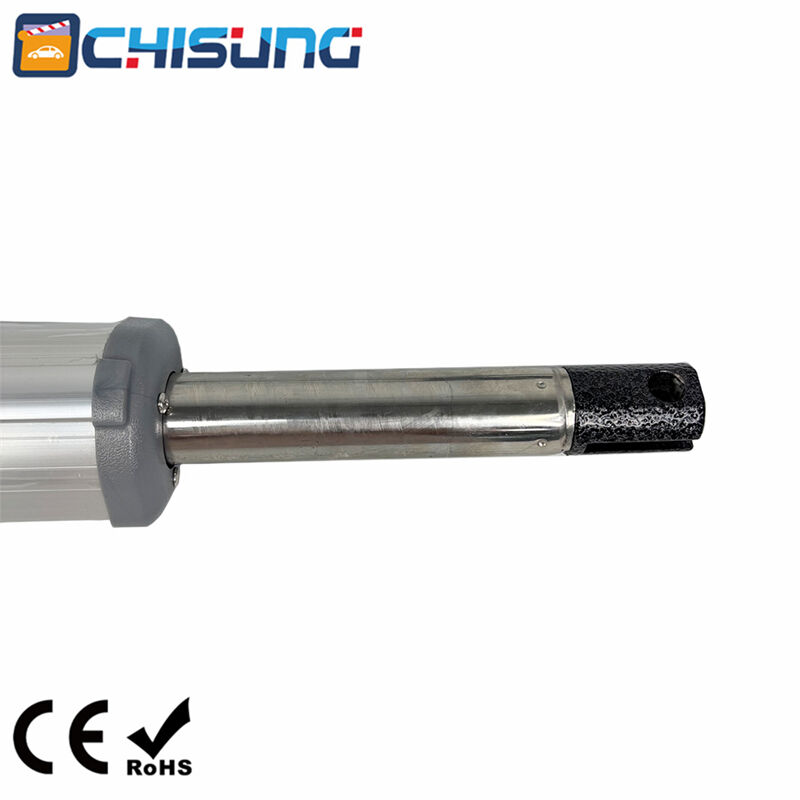

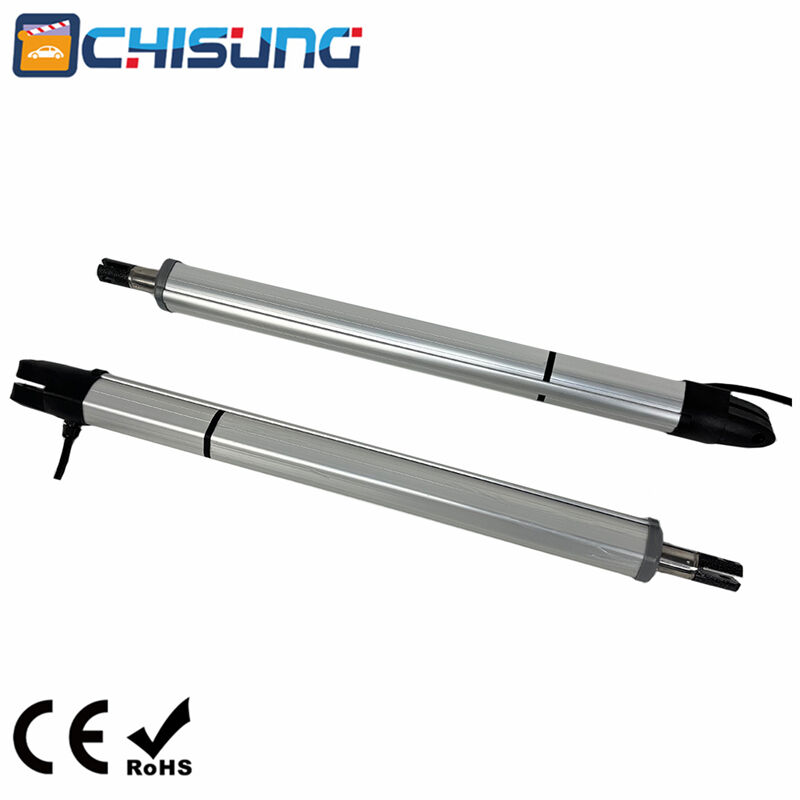

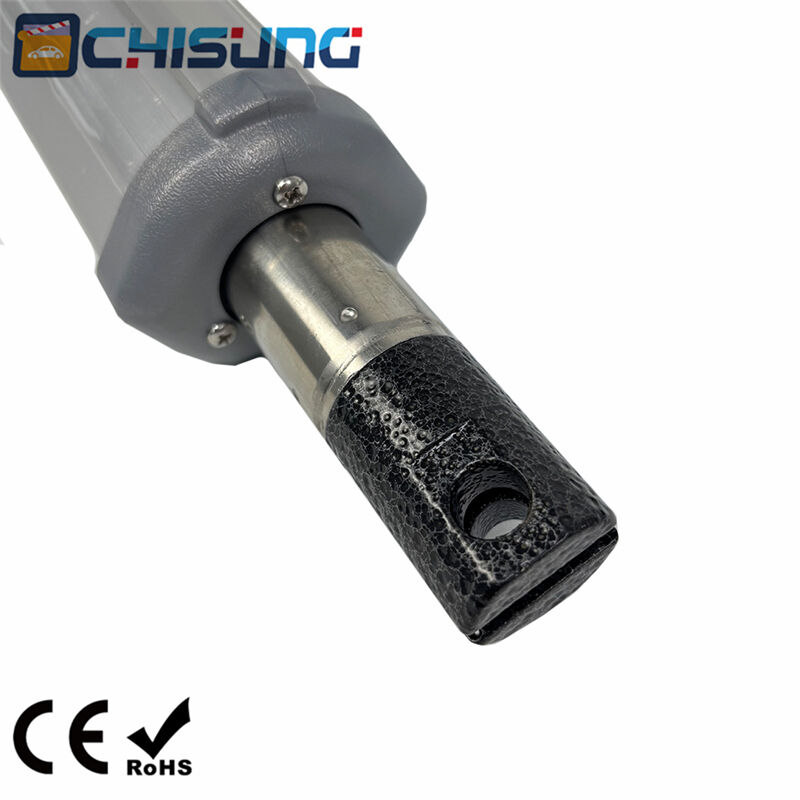

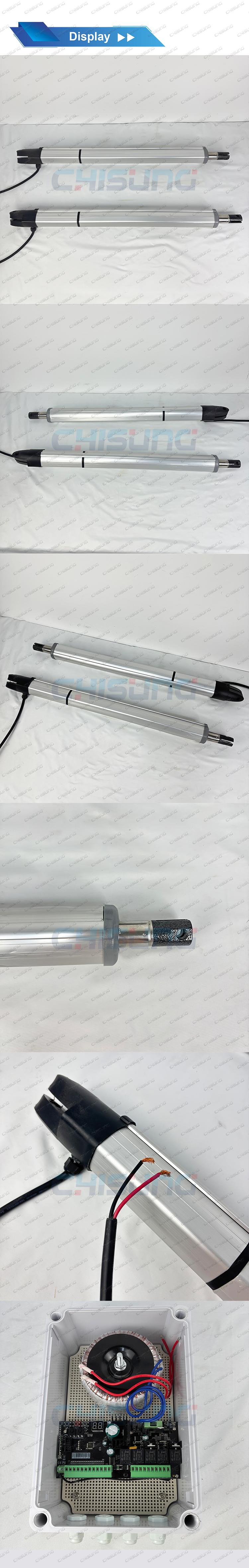

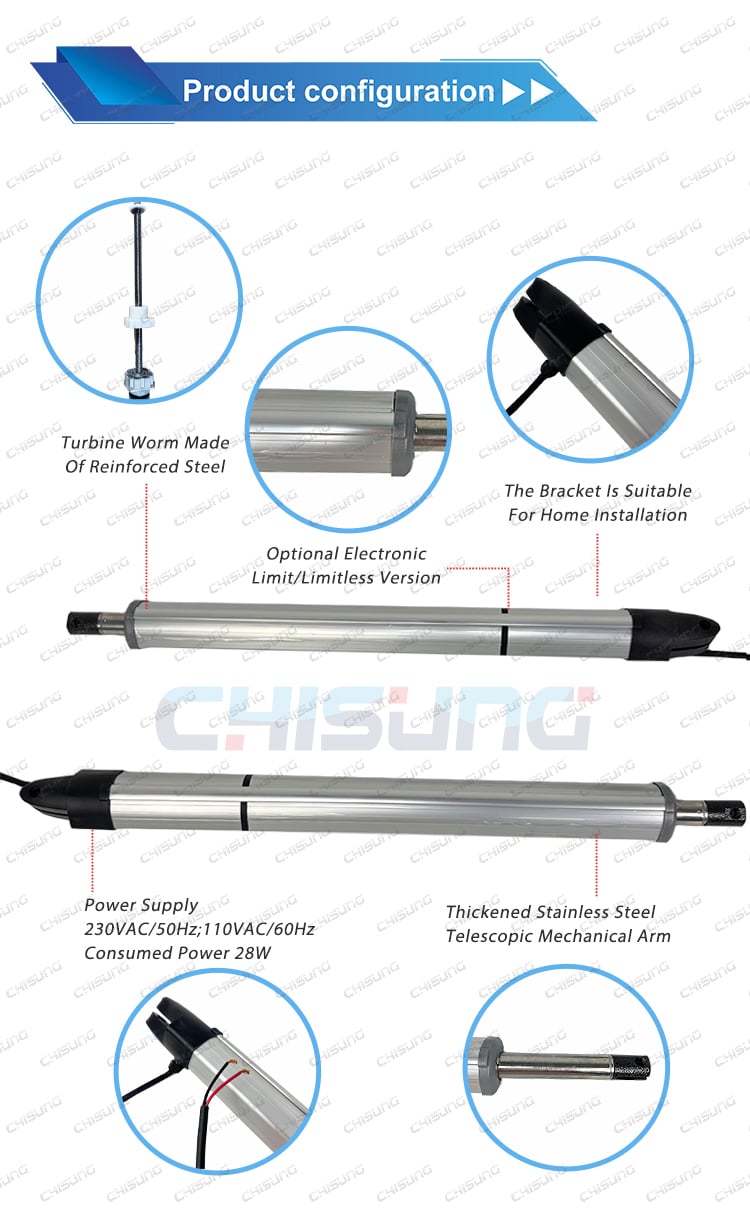

The CSSGO‑04 swing gate opener is built for durability and performance, with a robust aluminum alloy and stainless steel telescopic mechanical arm finished in powder coating for weather resistance. It’s rated IP45, making it suitable for outdoor installation in temperatures from -20℃ to +70℃ with no condensation.
Powered by a 28W motor delivering 400N thrust, it drives gates at 1.6cm/s, completing a full 90° opening in just 12 seconds. The reinforced steel turbine worm mechanism ensures long‑term stability and quiet operation.
Safety is prioritized with the ARS Automatic Rebound System, which reverses the gate immediately upon detecting obstacles, preventing damage and injury. Two built‑in adjustable limit switches ensure precise opening and closing positions, while an optional limitless version is available for custom installations.
Flexible power options include standard AC220V/110V operation, plus compatibility with 12V backup batteries and solar panels (optional) for off‑grid or power‑outage scenarios. Auto‑closing delay is programmable from 0 to 99 seconds, and opening angles can be set to 90°, 100°, 110°, or 120°.

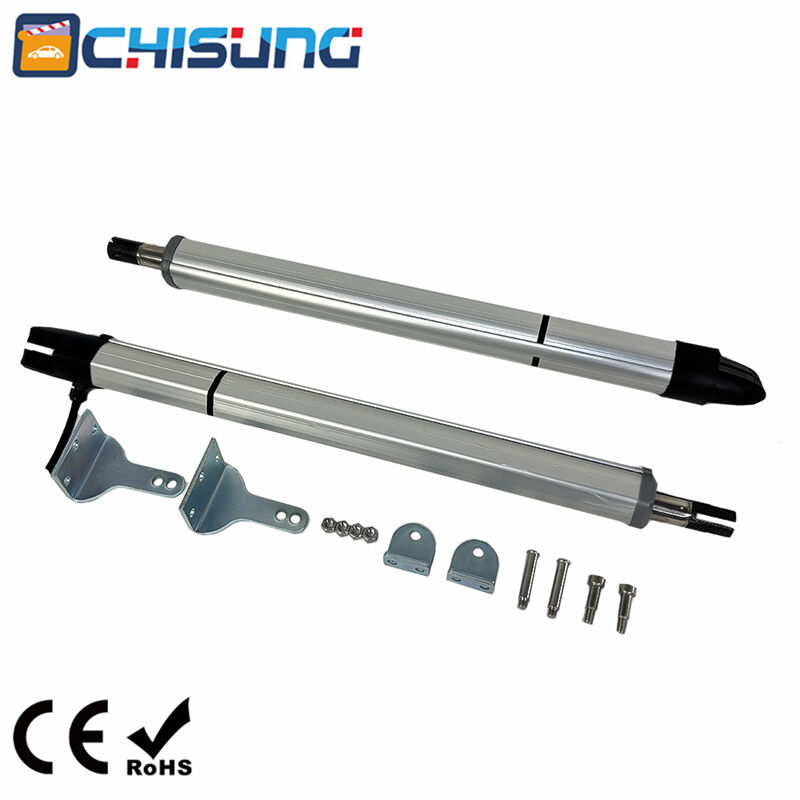

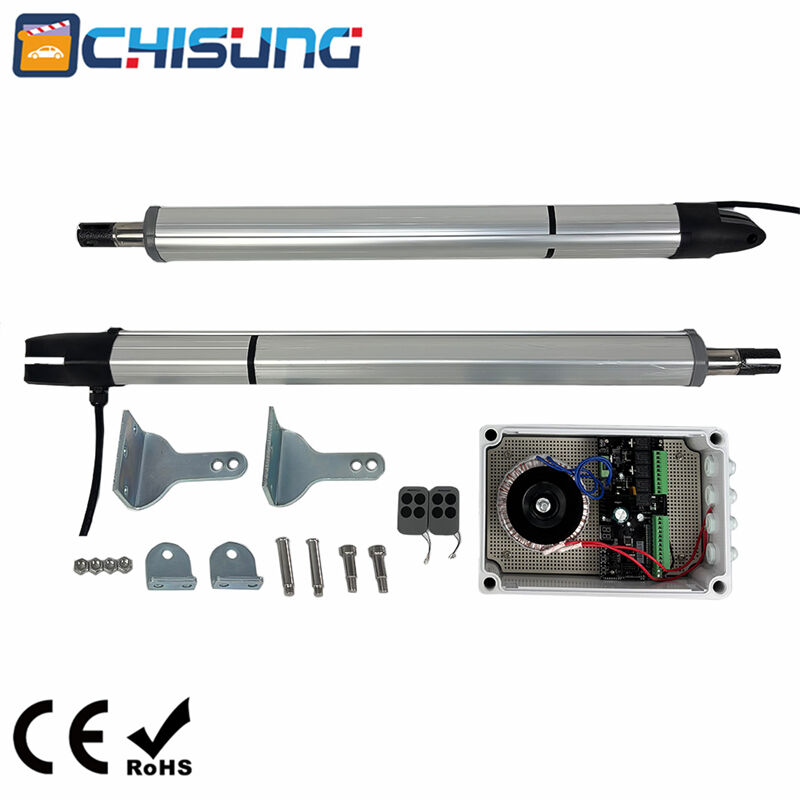

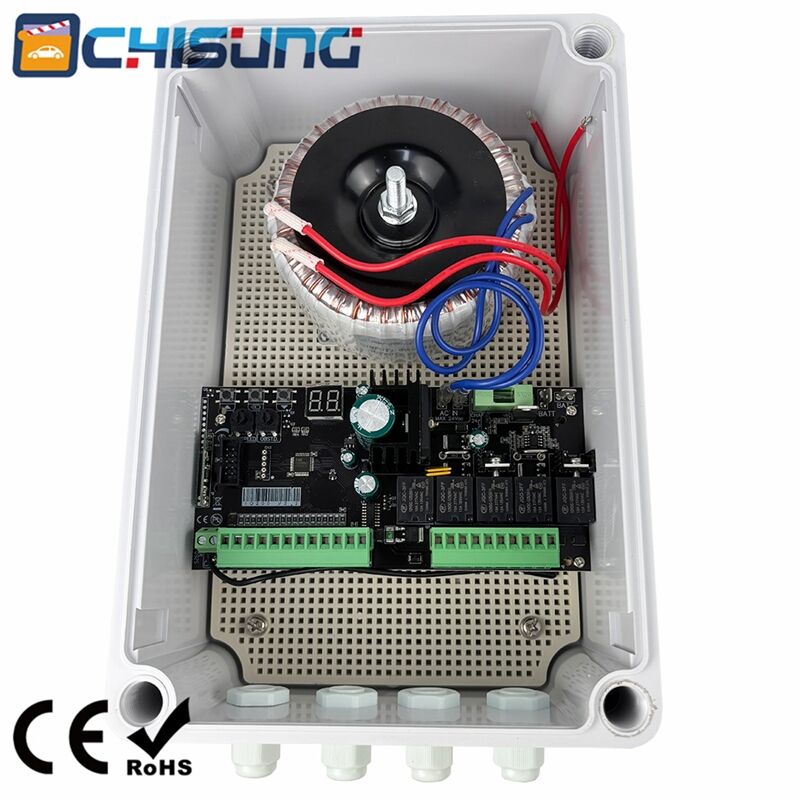

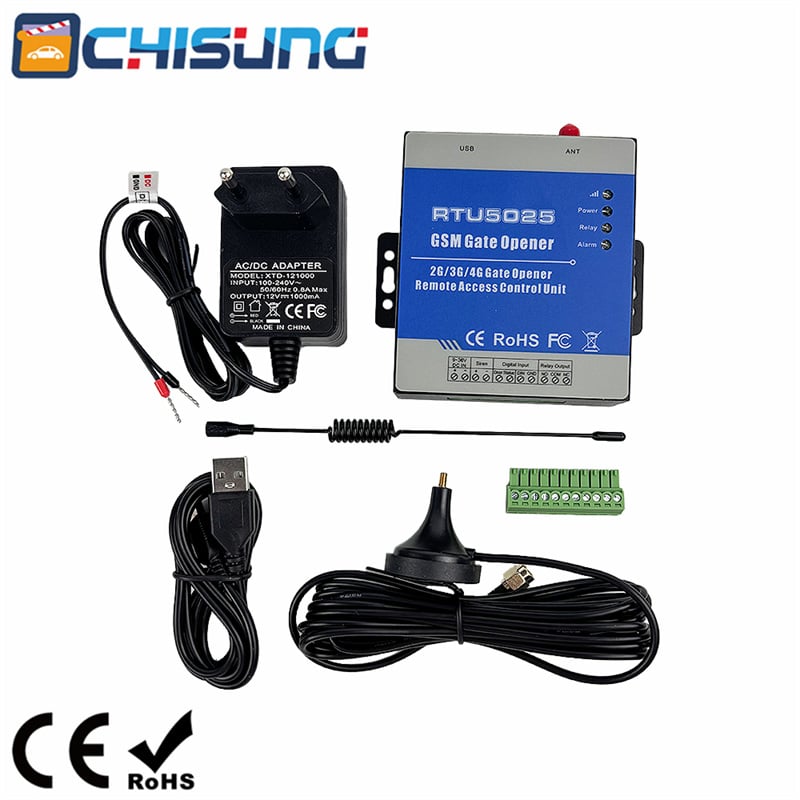

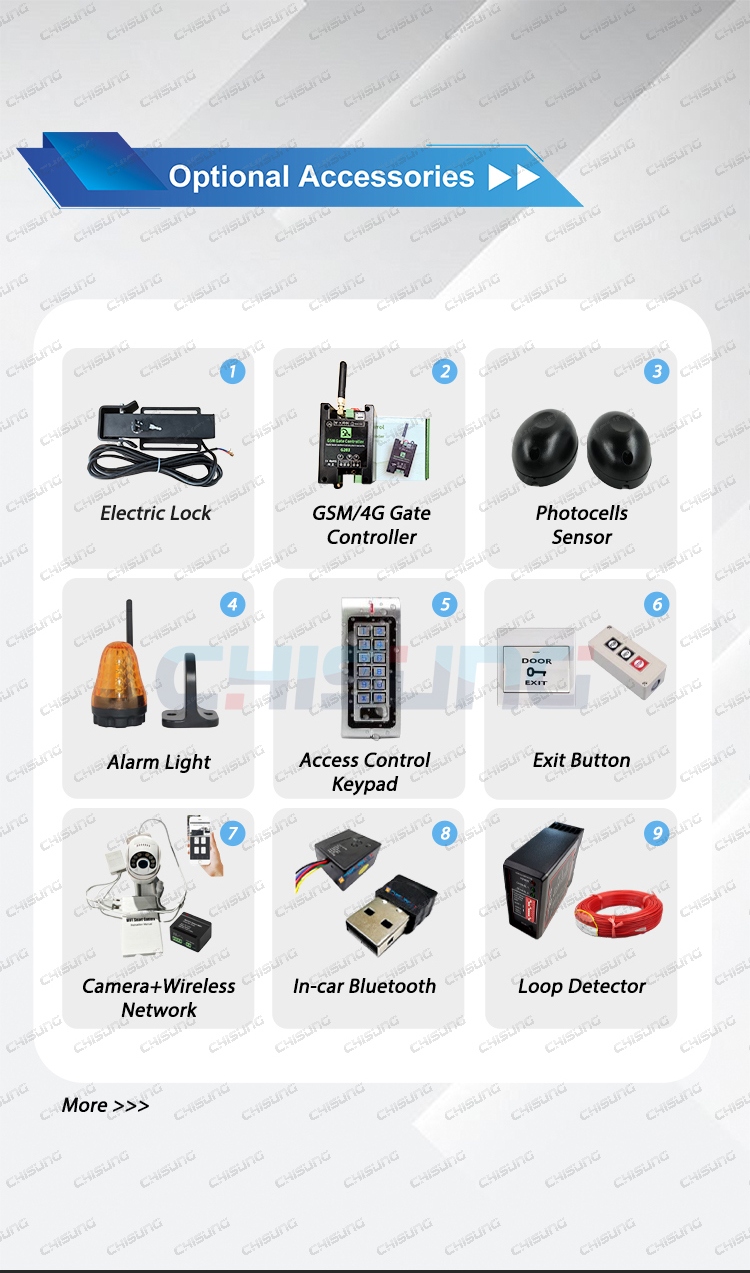

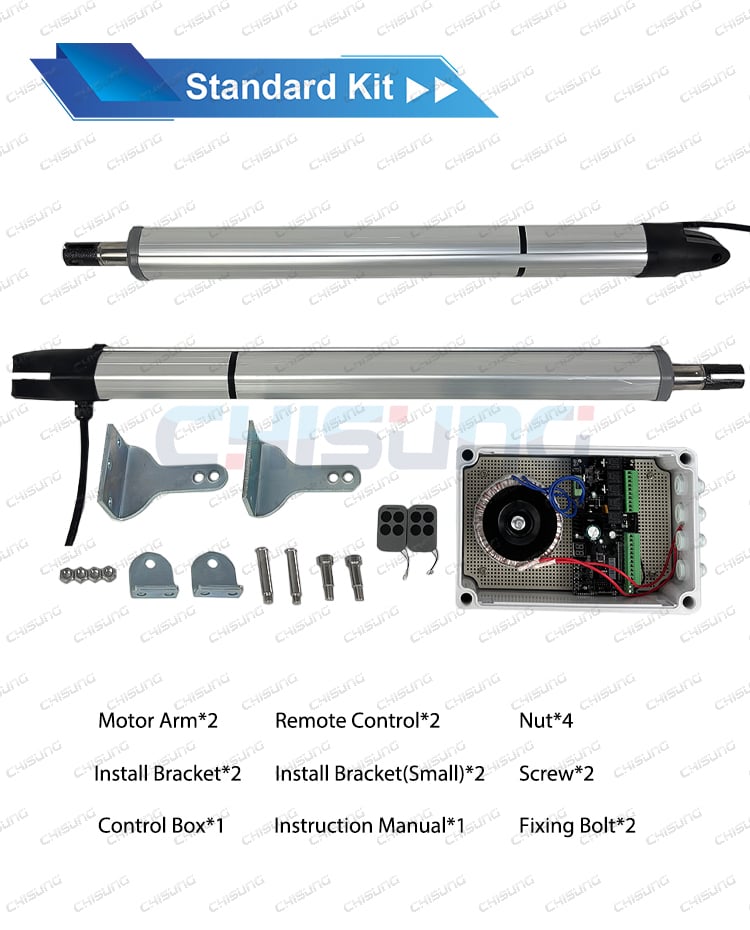

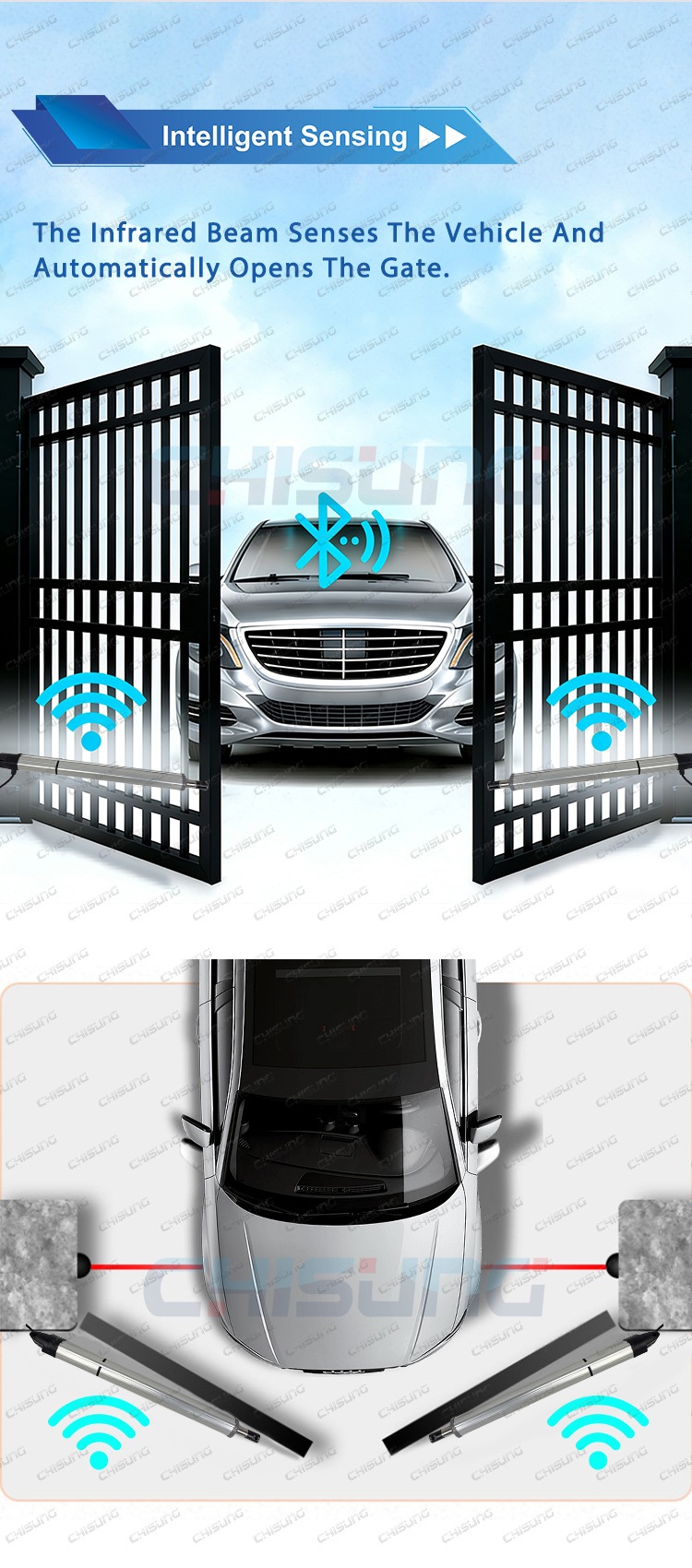

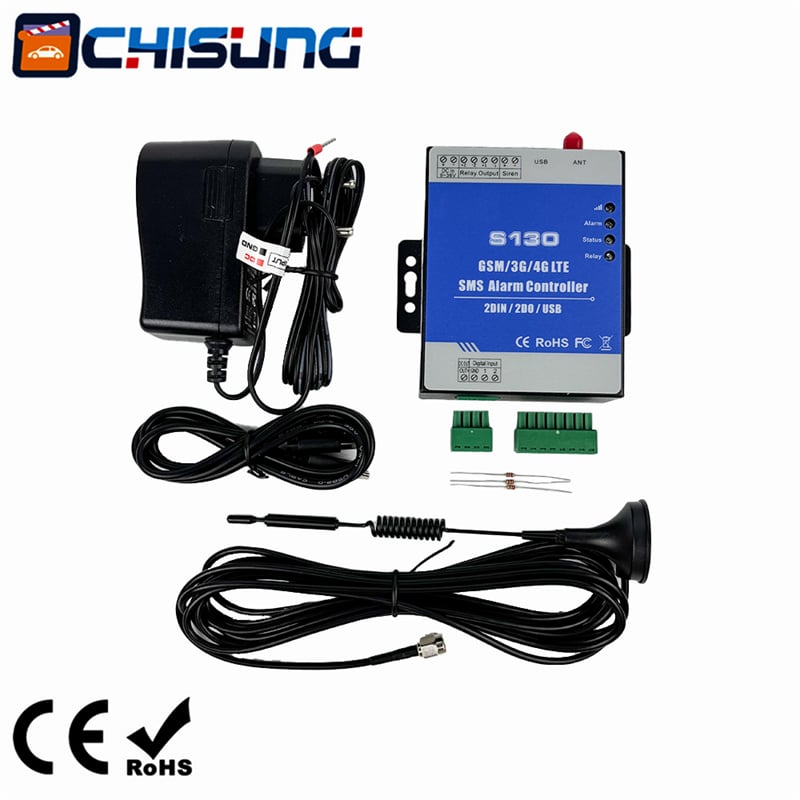

Control is versatile: the system supports remote control, and can be integrated with optional accessories like GSM gate controllers, access keypads, Bluetooth modules, and vehicle loop detectors. The standard kit includes two motor arms, a control box, mounting brackets, two remotes, and all hardware for quick installation.
With a 30% use frequency rating, it’s ideal for both light‑use residential and medium‑traffic commercial applications, offering reliable performance with minimal maintenance.
Applications
l Residential: Villa swing gates, home driveway gates, private property access control
l Communities: Neighborhood main gates, apartment complex security gates
l Commercial: School entrances, hospital service gates, office building perimeter gates
l Industrial: Construction site access, factory compound gates, warehouse vehicle entry points
l Special Use: Solarpowered offgrid properties, scenic area entrances, farm gates

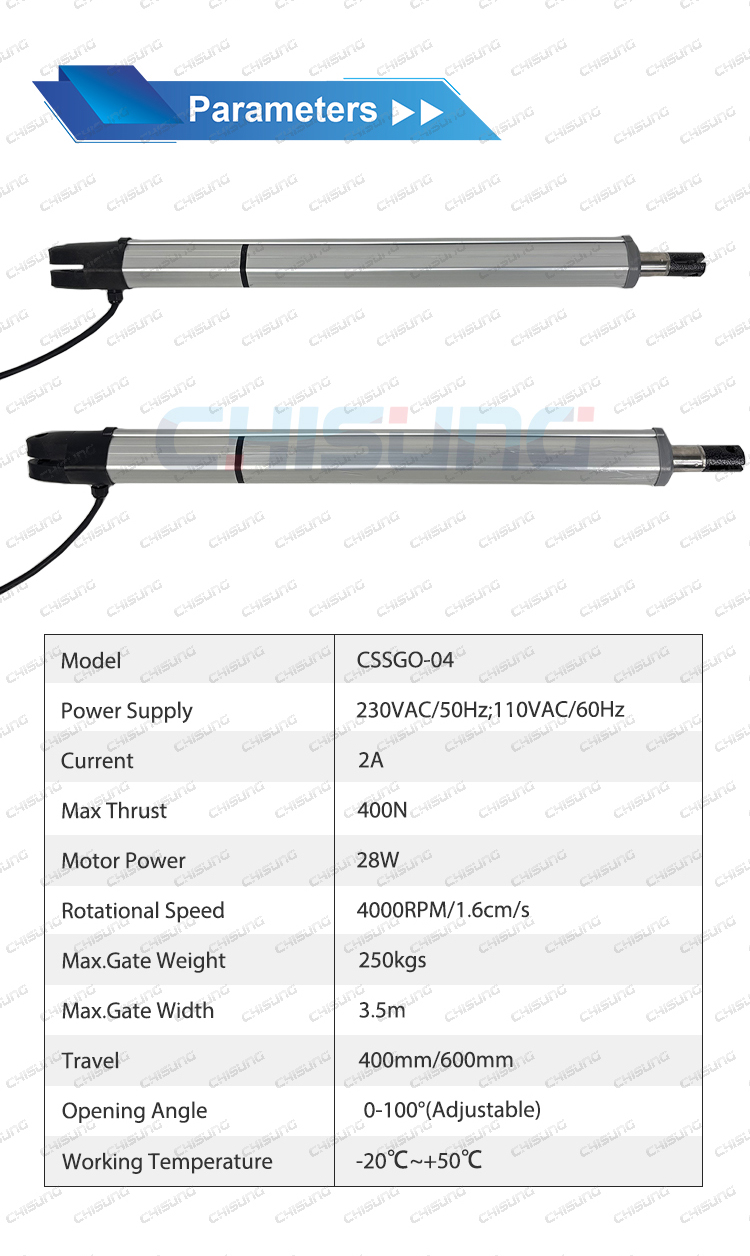

Specifications
Item |
Specification |
Model |
CSSGO04 |
Power Supply |
AC220V±10V 50/60Hz / AC110V±10V 60Hz |
Motor Power |
28W,DC24V electric motor |
Current |
2A |
Max Gate Weight (Single Leaf) |
250kg |
Max Gate Width (Single Leaf) |
3.5m |
Motor Speed |
4000RPM |
Linear Speed |
1.6cm/s |

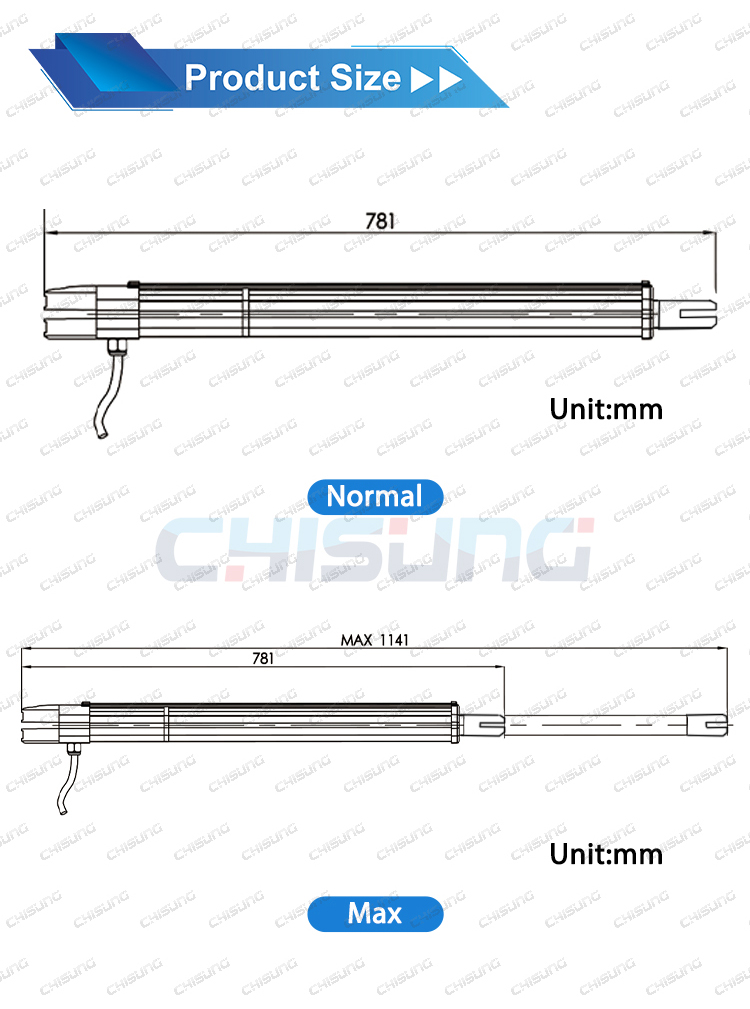

Arm Travel |
400mm / 600mm (optional) |
Opening Angle |
90°/100°/110°/120° (adjustable) |
Operating Temperature |
-20℃ ~ +70℃ |
Relative Humidity |
≤95% RH, noncondensing |
Protection Class |
IP45 |
Housing Material |
Aluminum alloy cover + stainless steel pipe, powdercoated |
Safety Features |
ARS automatic rebound, builtin limit switches |
AutoClose Delay |
Programmable 0–99 seconds |
Power Backup |
Supports 2x 12V 9Ah batteries or solar panel (optional) |
Package Contents |
2 motor arms, 1 control box, 2 remotes, mounting brackets, hardware, manual |
Competitive Advantage
Heavy-Duty Performance–Handles 250kg/3.5m gates with 400N thrust, ideal for large residential and commercial use.
All-Weather Durability–IP45 rated,powder-coated aluminum/stainless steel construction withstands rain, snow, and extreme temperatures.
Full Safety Suite–ARS anti-crash rebound, adjustable limit switches, and obstacle detection protect gates, vehicles, and people.
Flexible Power Options–Works with standard AC power, DC24V Motor plus optional battery/solar backup for off-grid reliability.
Versatile Control–Compatible with remotes, GSM controllers, keypads, and vehicle sensors for custom automation setups.
Low-Noise Operation–Reinforced steel worm gear design ensures smooth, quiet gate movement.
Cost-Effective Reliability–Durable components and minimal maintenance requirements deliver long-term value.
Easy Installation–Complete kit with clear instructions and adjustable mounting brackets for most swing gate designs.
