CHISUNG CSSGO-09 Heavy Duty Swing Gate Opener 300kg/500kg Max Single Leaf, 3.5m/4m Wide Gate, Built-in Electronic Limit & Super Capacitor, DC24V/AC220V Dual Power Automatic Gate Motor Kit
- Overview
- Recommended Products
Product Information
| Place of Origin: | China |
| Brand Name: | CHISUNG |
| Model Number: | CSSGO-09 |
| Certification: | CE |
Product Commercial Terms
| Minimum Order Quantity: | 1 |
| Price: | Consult us |
| Packaging Details: | carton |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C ; T/T ; MoneyGram |
| Supply Ability: | 3000sets/Month |
Quick Detail:
Swing gate opener
Automatic swing gate opener
Arm-type gate operator
Surface-mounted swing operator
Underground swing operator
Dual swing gate operator
Swinging gate operator
Articulated arm gate operator
Electromechanical swing gate actuator
Remote-controlled swing gate opener
Swing gate motor
Low-energy swing gate operator
Powered swing gate operator
Linkage-type gate operator
Residential swing gate opener
Smart swing gate opener
Commercial-duty swing gate operator
Solar-powered swing gate opener
Push Rod gate opener
Linear Actuator gate opener
Pusher Type gate opener
Gate Motor for Swing Gates
Auto Gate Opener
Electric Gate Operator
Commercial Gate Opener
Ram Arm Swing Gate Opener
Single Swing Gate Opener
Outdoor Gate Opener
Heavy Duty Swing Gate Opener
Heavy Duty Swing Gate Operator
Industrial Swing Gate Motor
Heavy Duty Electric Gate Operator
Electric Swing Gate Motor

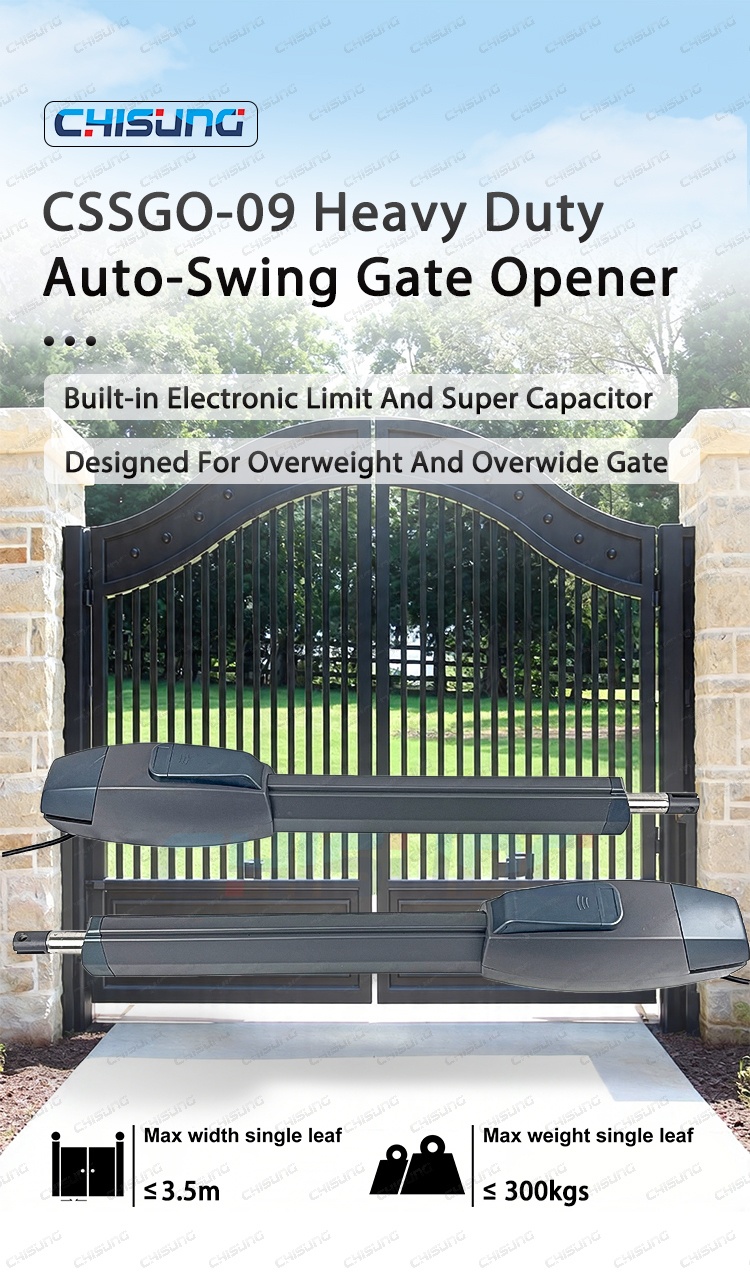

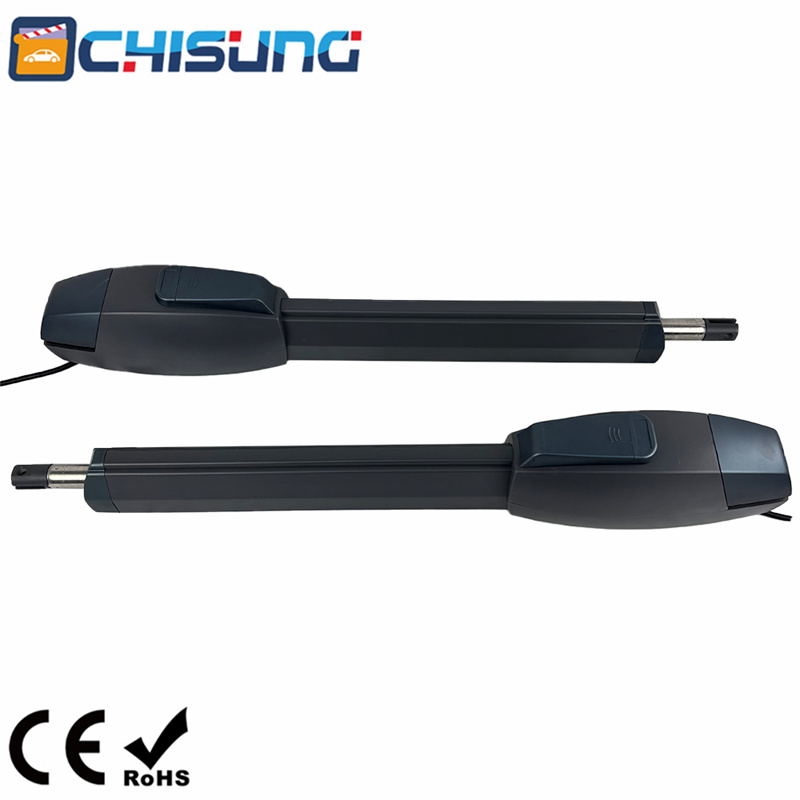

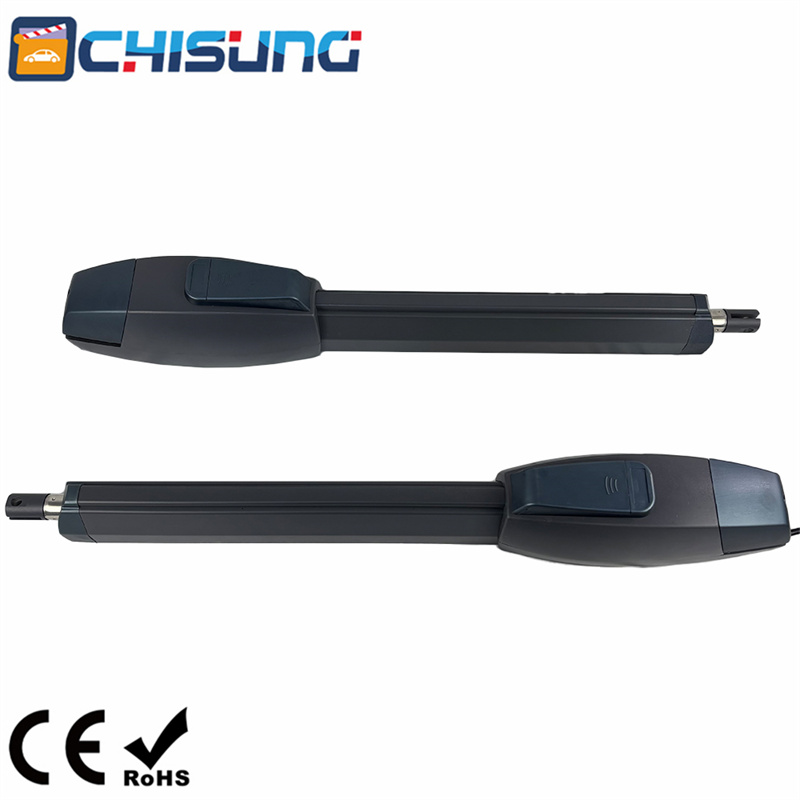

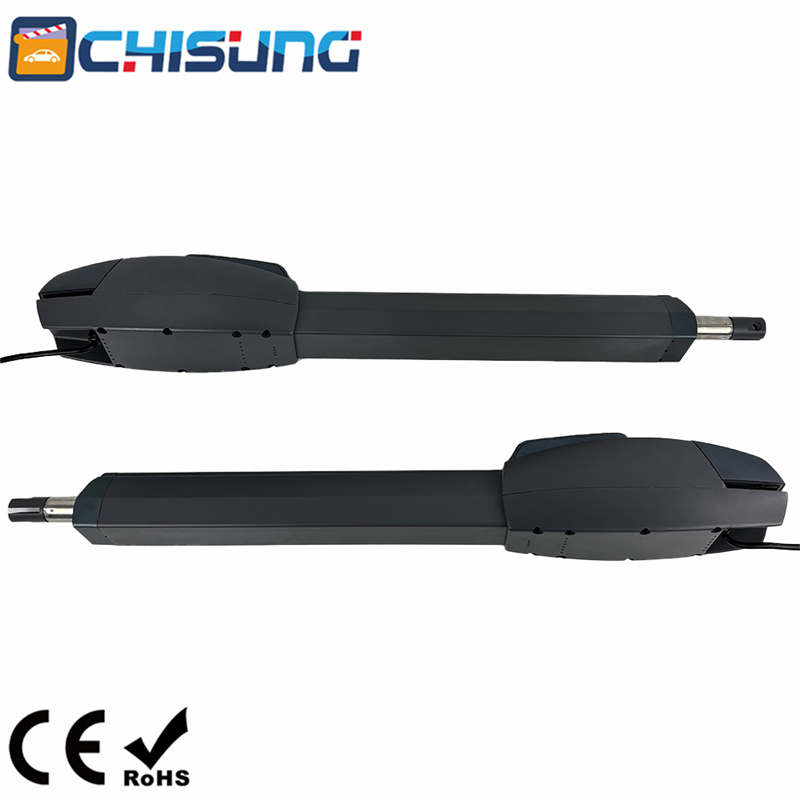

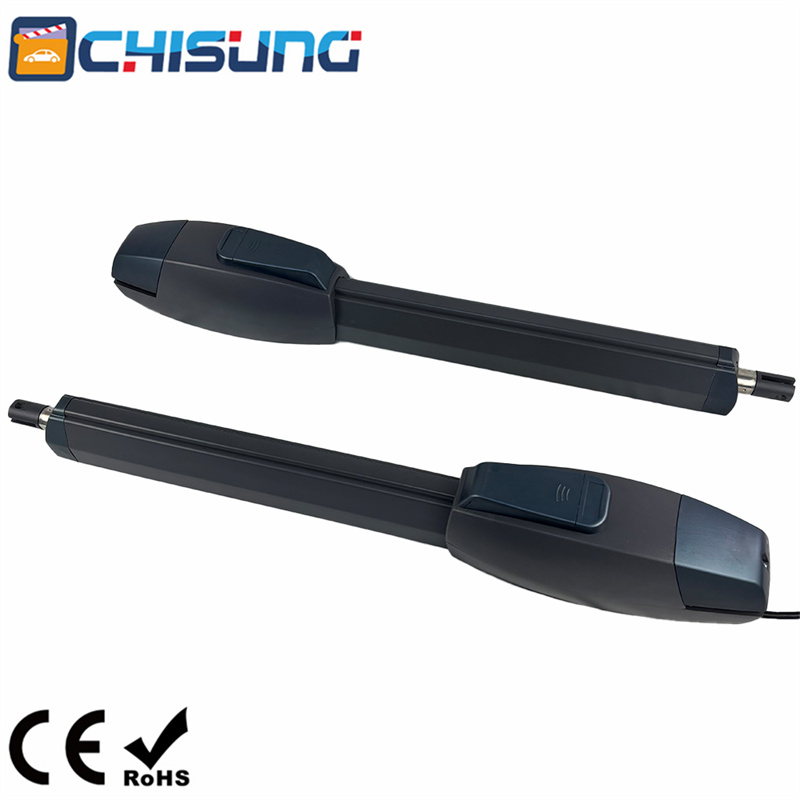

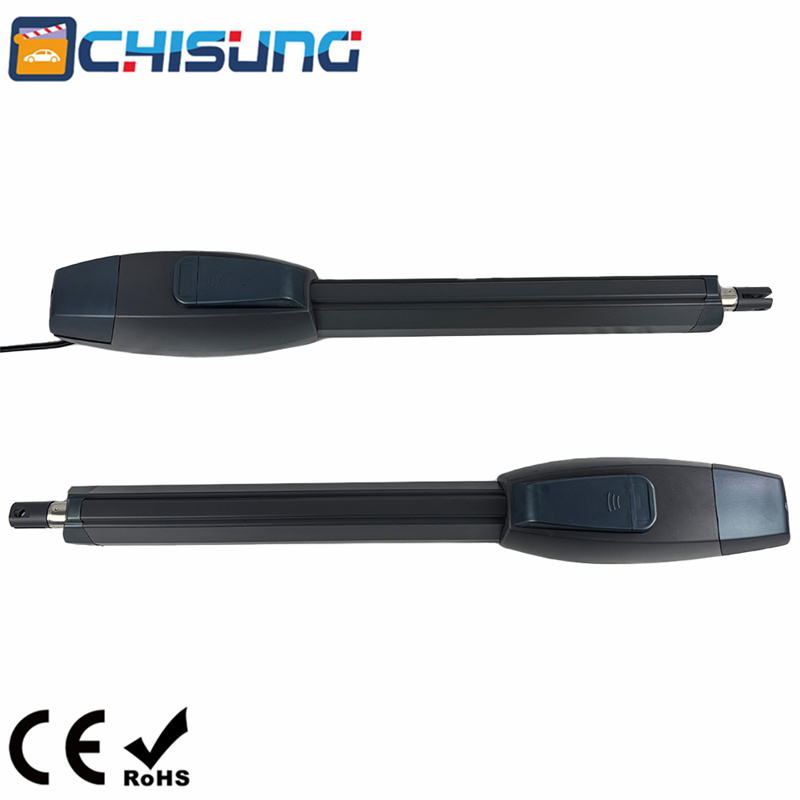

The CSSGO-09 heavy-duty swing gate opener is a professional external gate automation solution engineered for oversized, heavy-weight swing gates. Available in DC24V low voltage and AC220V high torque variants with two stroke lengths (400mm and 600mm), this gate motor supports single gate leaves from 3.0m to 4.0m wide and up to 500kg maximum weight. Equipped with built-in adjustable electronic limit switches and a built-in super capacitor, it delivers accurate open/close positioning and temporary operation during power outages. Its reinforced steel worm gear transmission provides powerful thrust up to 2800N, paired with a powder-coated aluminum housing and stainless steel telescopic arm for all-weather IP45 waterproof performance. Featuring wind-resistant self-locking, low-noise operation, anti-obstacle anti-pinch safety and emergency manual clutch release, this complete gate kit comes with all mounting hardware and works seamlessly with a full range of smart access accessories, ideal for luxury villas, residential communities, schools, hospitals, farms and commercial premises worldwide.
Description:
Powerful Heavy-Duty Performance for Oversized Gates
Our CSSGO-09 swing gate motor is built exclusively for extra-wide and overweight swing gates, covering two core specifications to match different gate sizes. The 400mm stroke model fits gates up to 3.5m wide and 300kg, while the extended 600mm stroke variant supports a maximum single leaf width of 4m and weight of 500kg. Two power options are available to meet global demand: safe DC24V 70W low voltage design with 1800N thrust for household villas, and industrial-grade AC220V 220V high-torque motor delivering 2800N strong thrust for heavy commercial iron & aluminum gates. With a stable 30% working cycle, it withstands daily frequent opening and closing without overheating.
Precise Electronic Limit + Super Capacitor Backup
Unlike basic mechanical limit gate openers, CSSGO-09 integrates an adjustable electronic limit switch, allowing users to freely customize opening and closing travel without extra spare parts, ensuring accurate stop position every time. The built-in super capacitor stores residual power, enabling one full open/close cycle during sudden power cuts to avoid gate stuck.
All-Weather Durable Construction

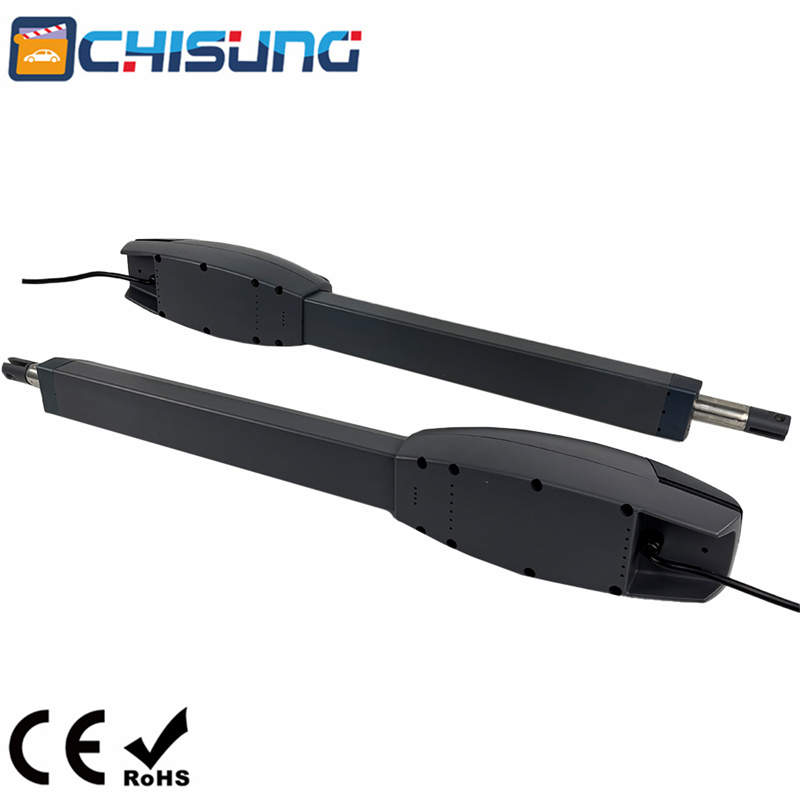

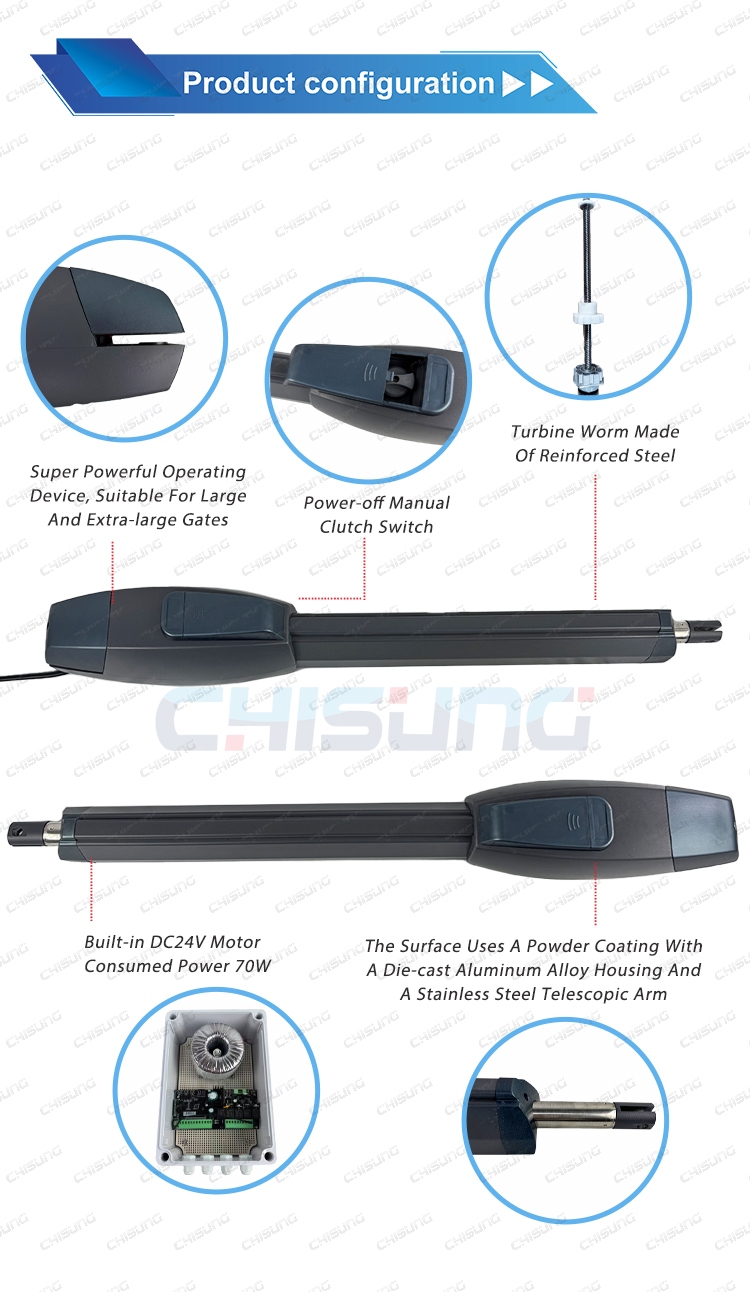

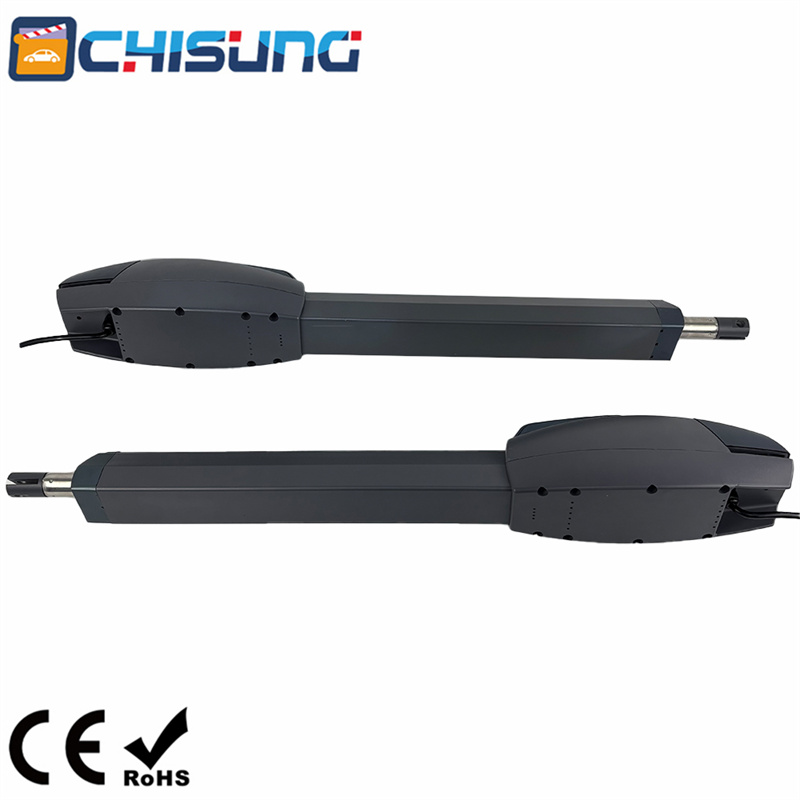

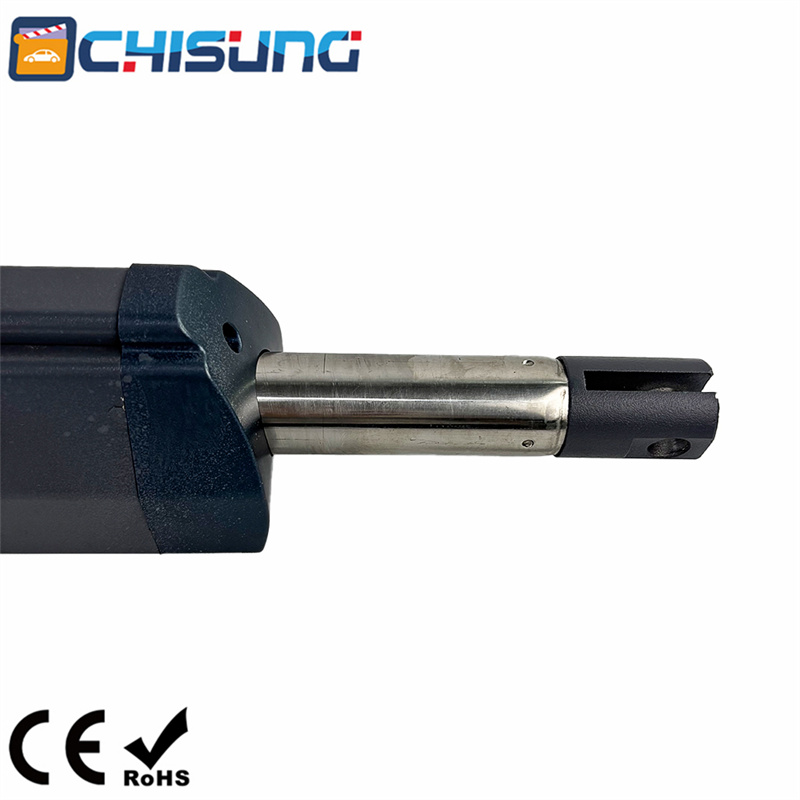

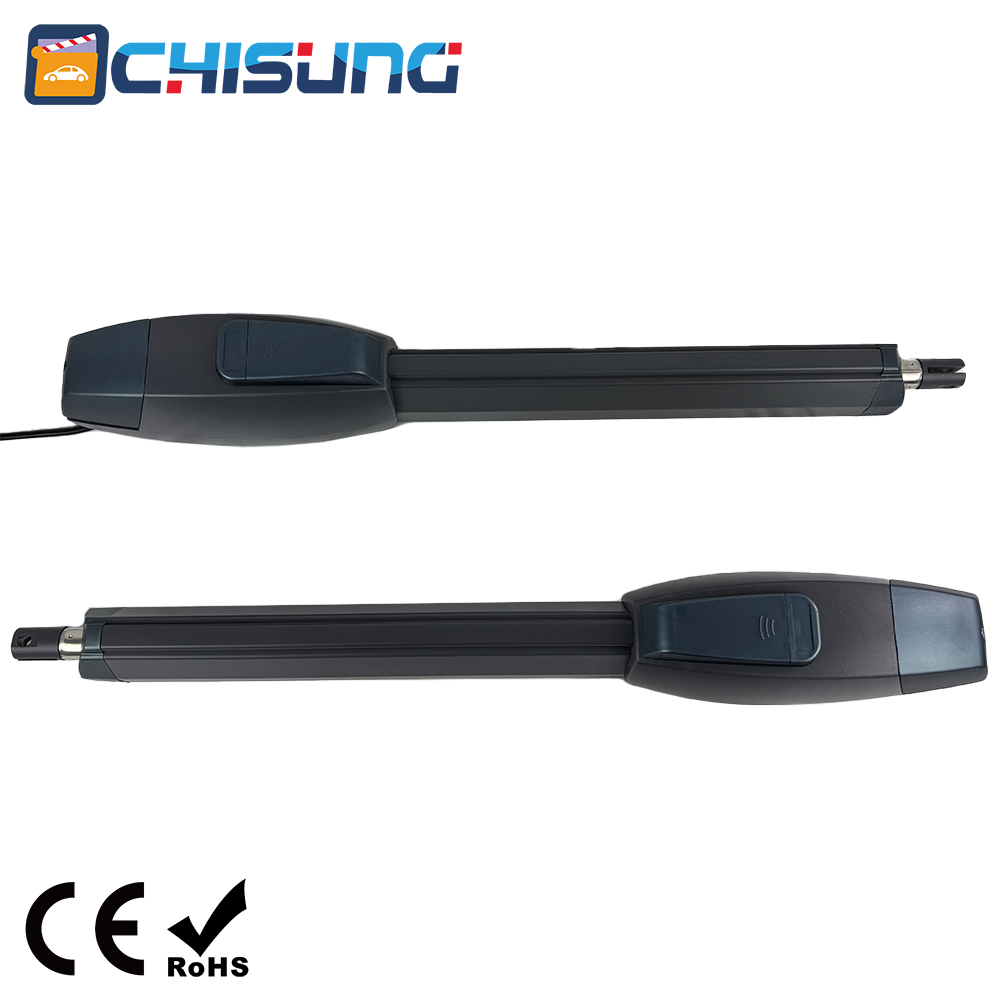

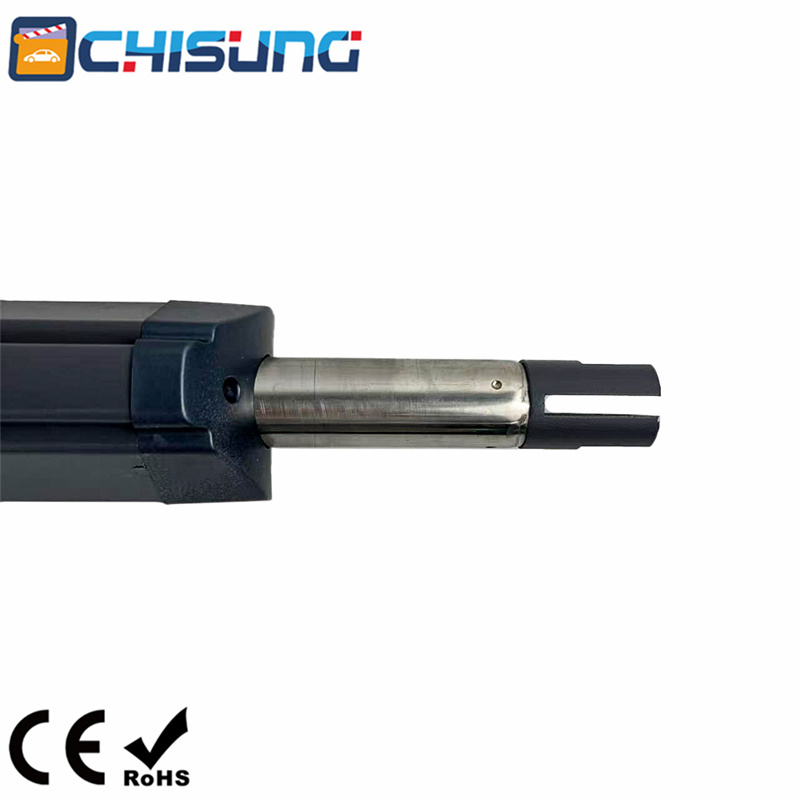

The whole motor body adopts die-cast aluminum alloy with anti-rust powder coating, matched with a thick stainless steel telescopic arm. The internal core transmission is reinforced steel turbine worm, fully sealed to block dust, rain and moisture, reaching IP45 waterproof grade. It stably operates in extreme climates from -20℃ cold winter to +70℃ hot summer, perfectly suitable for cold northern regions and high-temperature tropical areas.
Wind-Resistant Self-Locking & Ultra-Silent Smooth Running
The self-locking worm gear structure tightly locks the gate after closing, effectively resisting strong wind to prevent gate swaying or drifting. Optimized gear damping design cuts running noise drastically, delivering silent, smooth gate movement without harsh impact, creating a quiet courtyard environment.
Complete Safety Protection System
Anti-pinch obstacle detection: CPU real-time force sensing, the gate automatically reverses when touching obstacles to protect children, pets and vehicles;

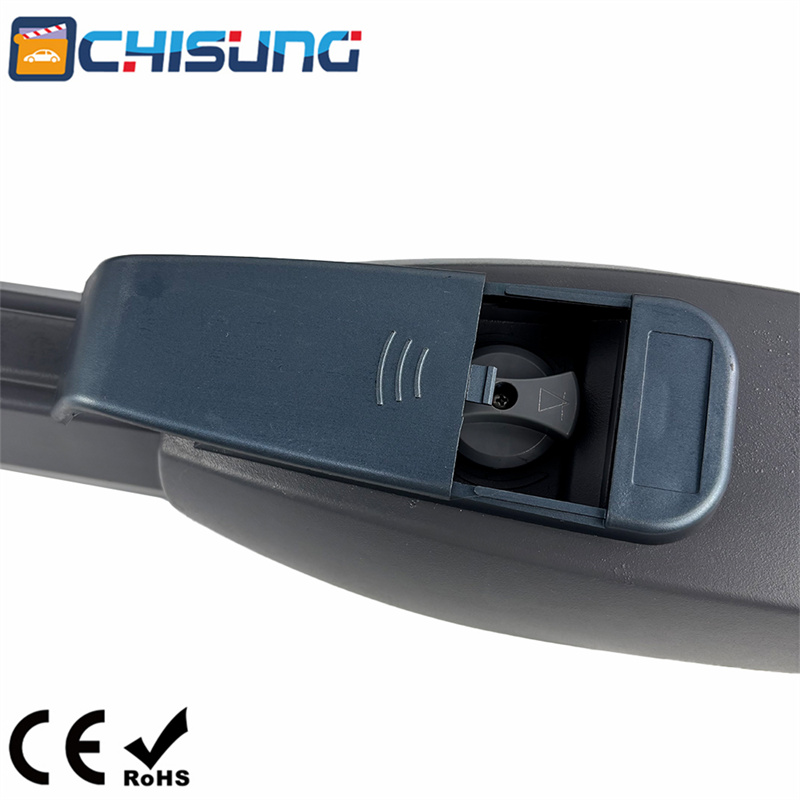

Emergency manual clutch release: a dedicated key switch on the motor head allows manual push-pull gate operation when power fails;
Adjustable running time protection to avoid motor burnout from long-time continuous operation.
Full Standard Kit & Rich Smart Expansion

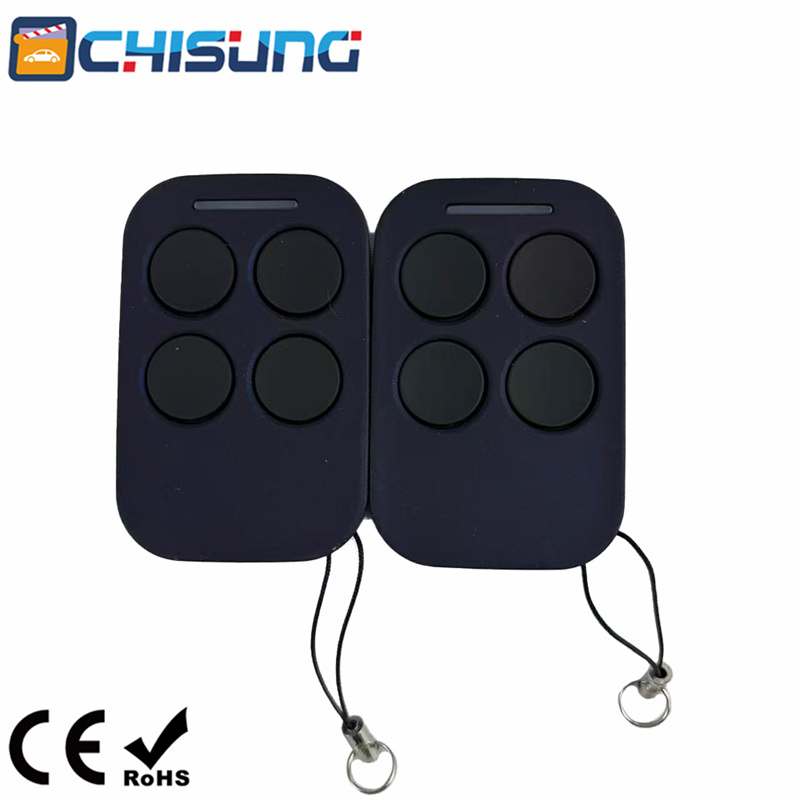

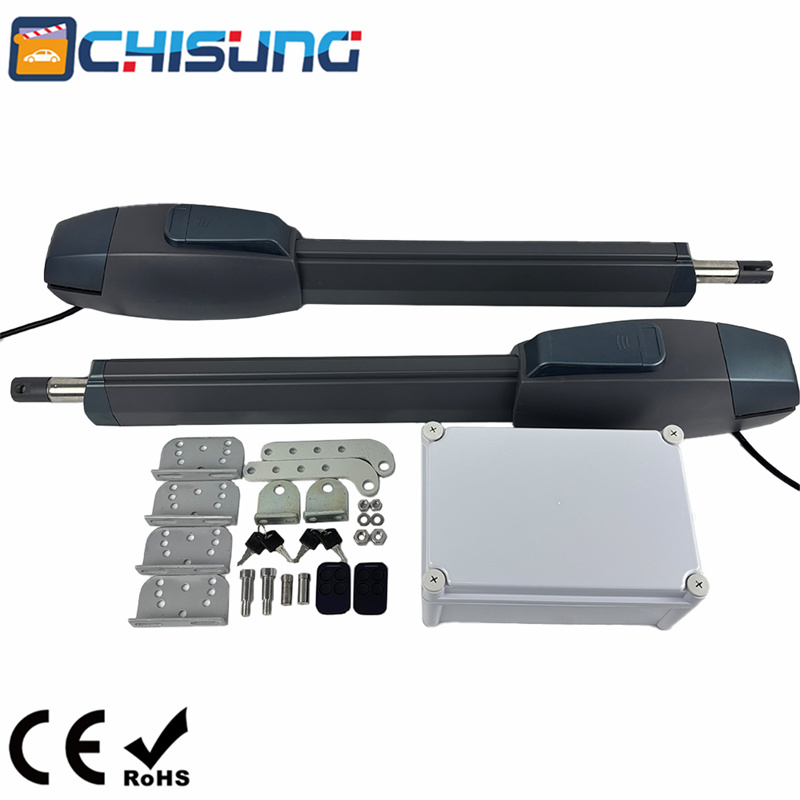

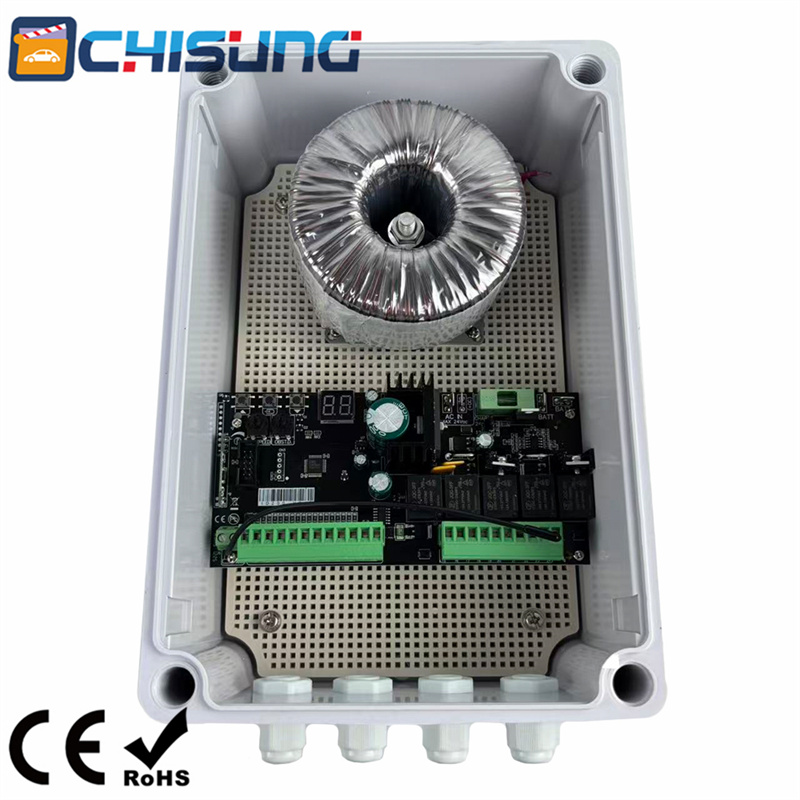

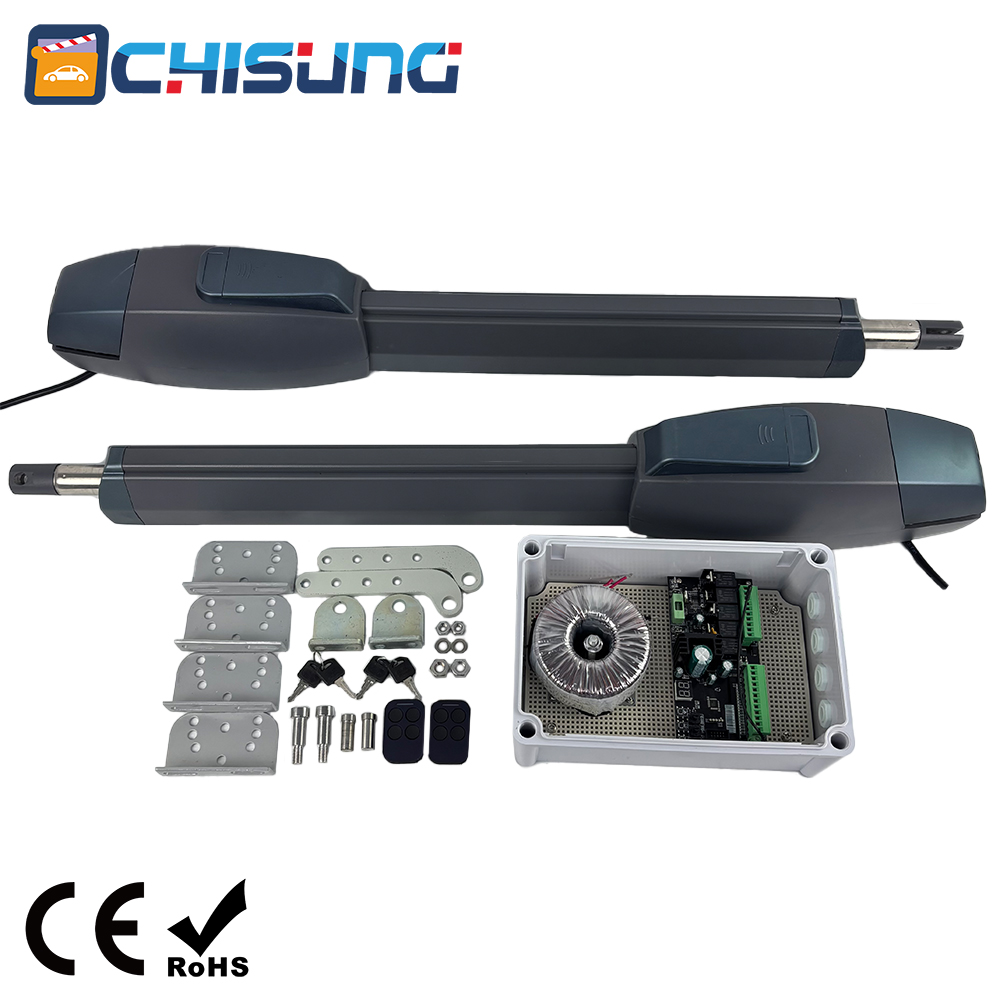

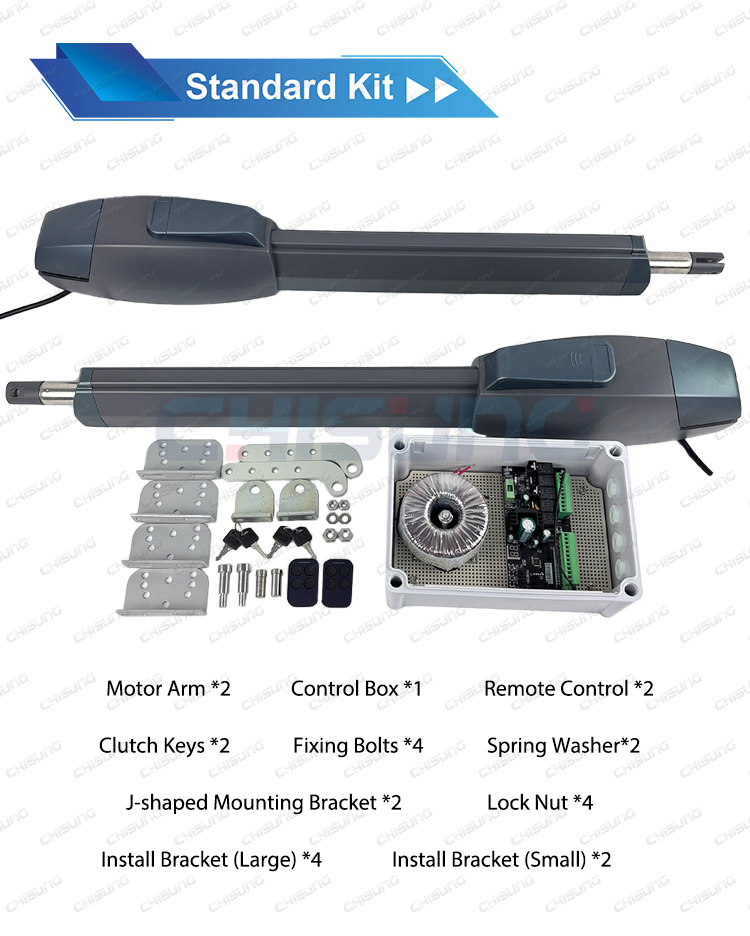

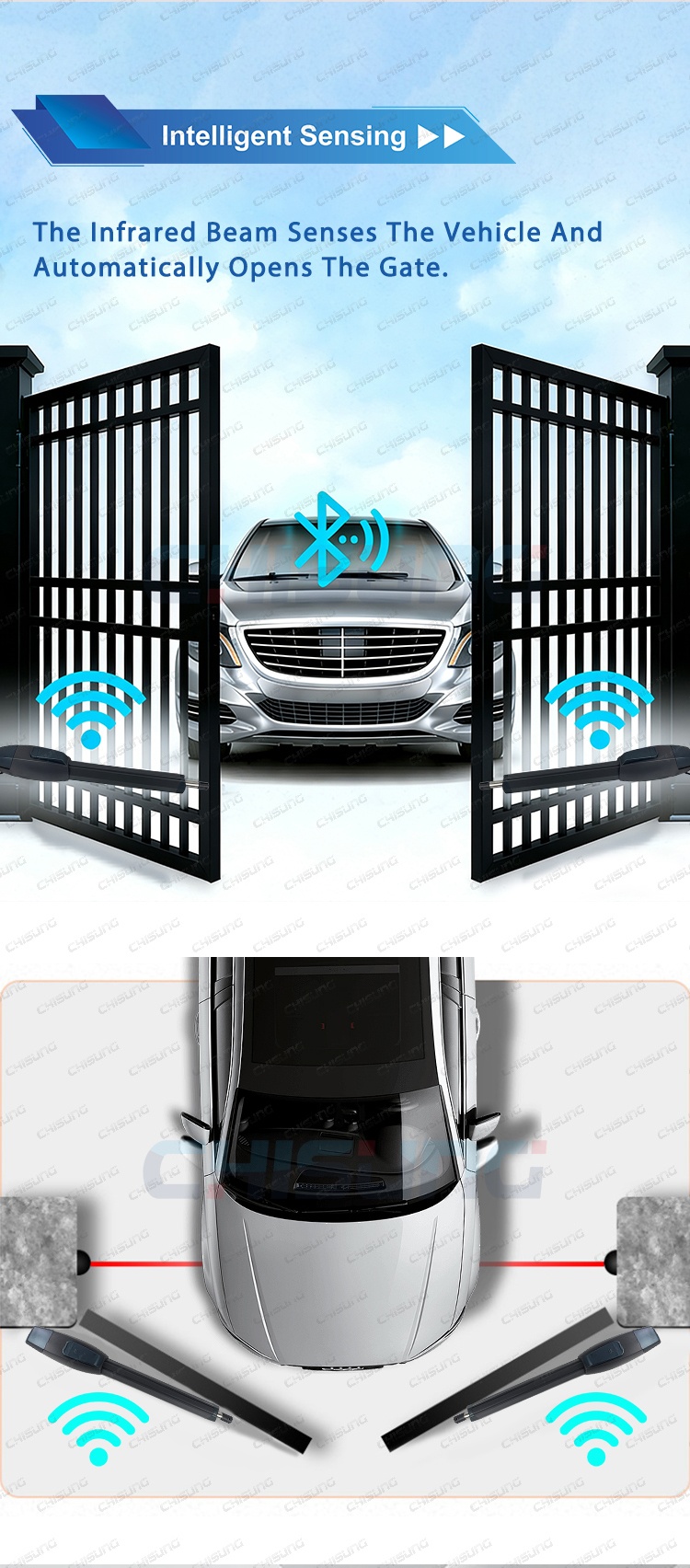

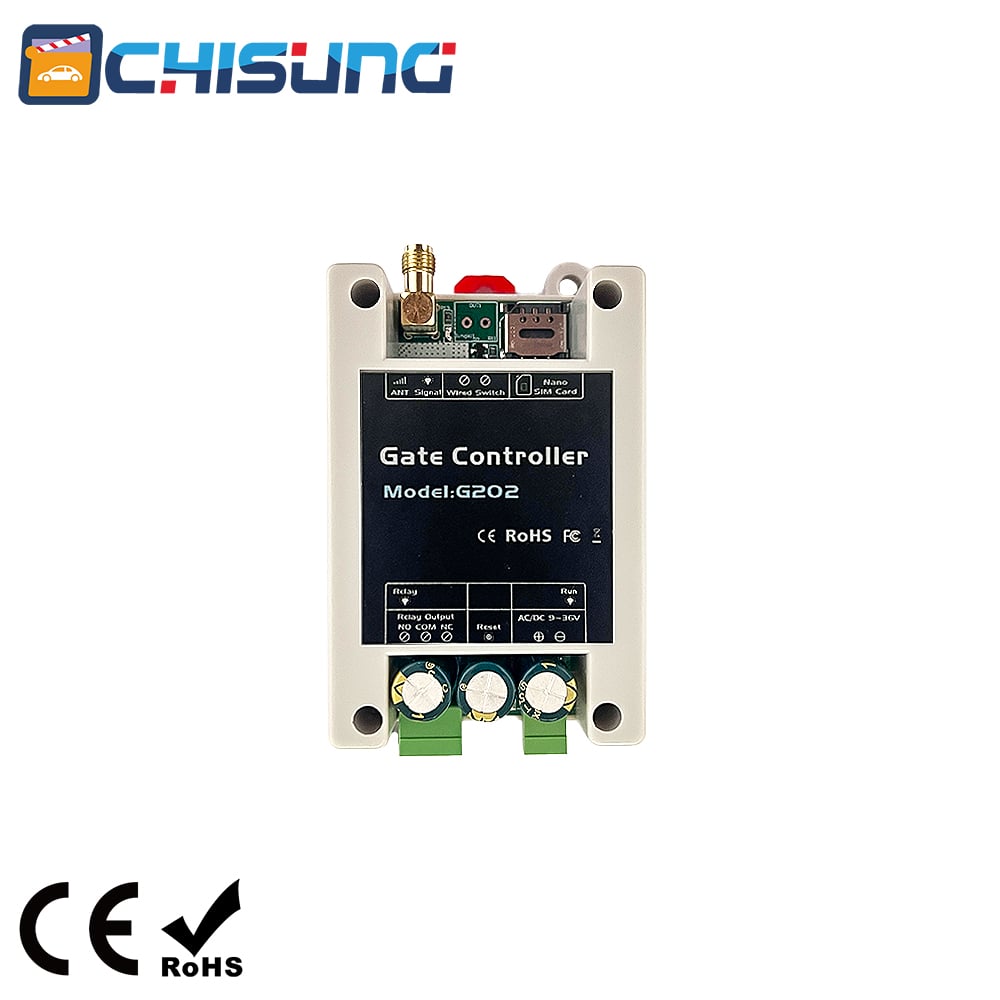

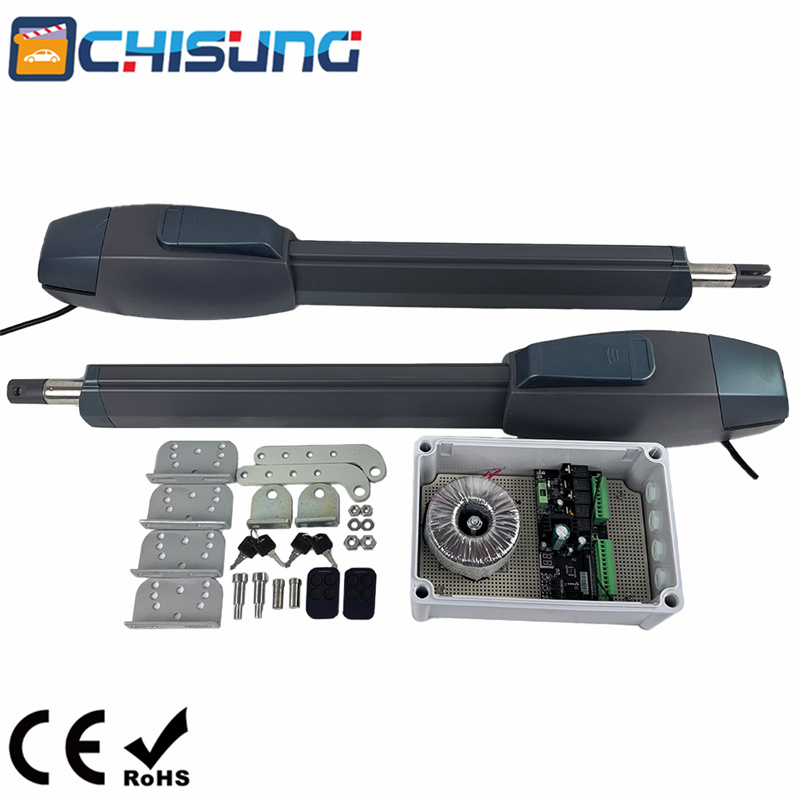

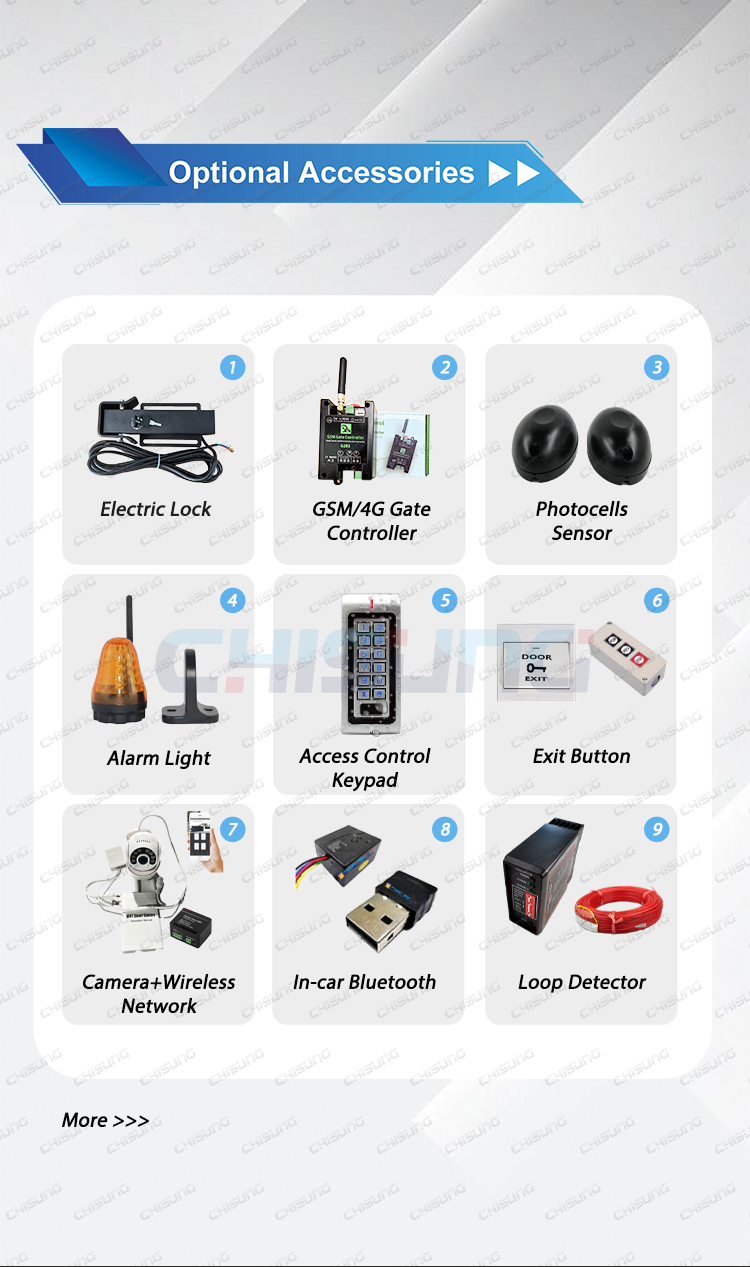

Every set ships with a complete DIY installation package, including dual motor arms, waterproof control box, 2 remote controls, clutch keys, full set of J-shaped & standard mounting brackets, bolts, washers and nuts, no extra hardware purchase required. The main control board reserves multiple signal ports, compatible with optional accessories: GSM 4G remote module, Bluetooth car sensor, access keypad, infrared photocells, exit button, alarm light, loop vehicle detector, electric lock and surveillance camera, supporting mobile phone remote control, automatic vehicle sensing and multi-user access management.
Flexible Installation & Multiple Opening Angles
Supports adjustable opening angles of 90°, 100°, 110°, 120°, adapting to various courtyard wall layouts. Horizontal cable outlet design arranges wiring neatly, and the low ground mounting structure saves installation space for different gate pillar conditions. Auto-close delay time can be programmed from 0 to 99 seconds to meet customized access demands.

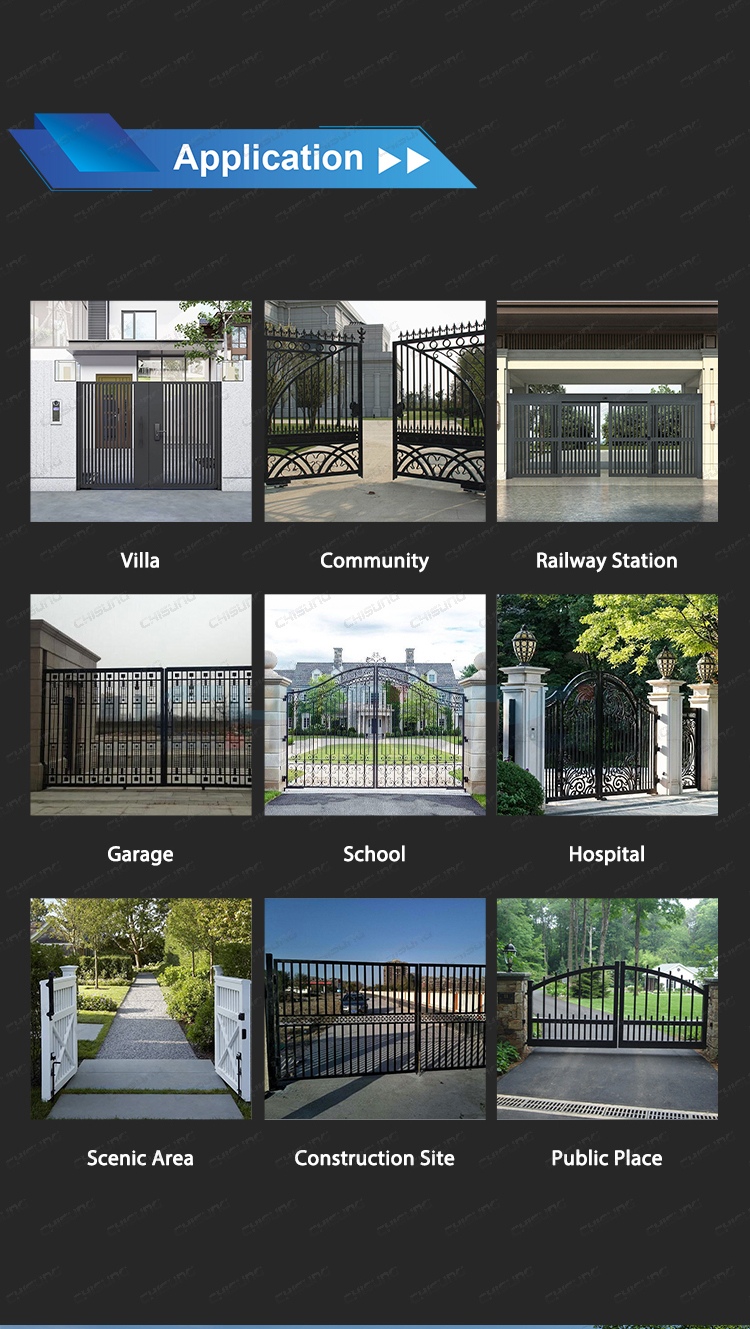

Applications:

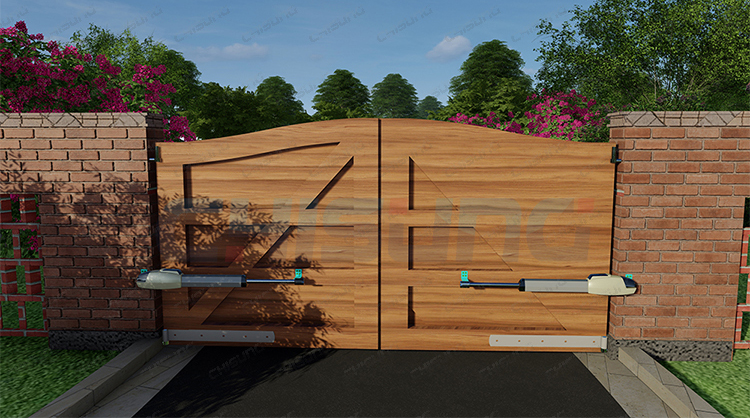

l Luxury Private Villas: Large aluminum, wrought iron and solid wood double swing driveway gates
l Residential Communities: Main entrance & secondary pedestrian swing gates
l Commercial Premises: Office parks, schools, hospitals, railway stations and shopping compound gates
l Industrial & Farm Sites: Factory courtyard gates, ranch heavy livestock isolation gates
l Public & Scenic Areas: Tourist attractions, parking lots, club and estate public access gates

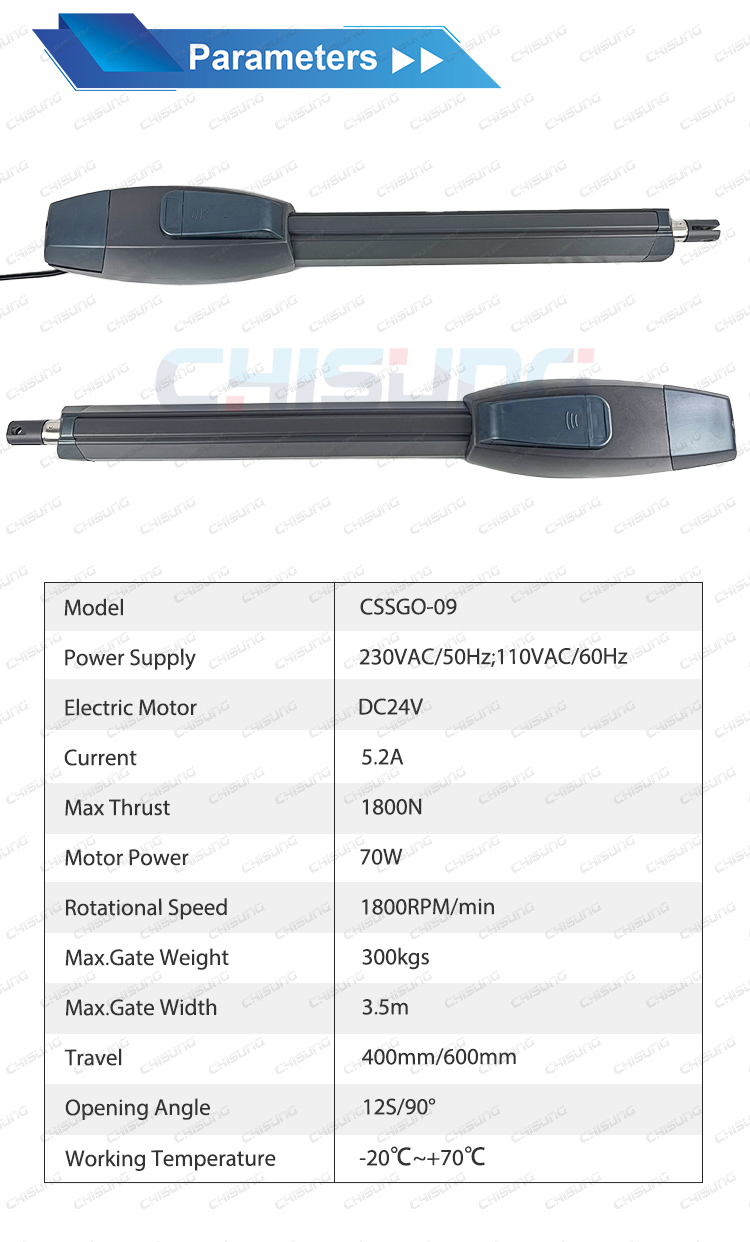

Specifications:
| Item | DC24V 400mm Stroke | AC220V 400mm Stroke |
| Power Supply | AC110V/230V 50/60Hz Input, Built-in DC24V Motor | AC110V/230V 50/60Hz Direct Drive |
| Working Current | 5.2A | 1.5A |
| Motor Power | 70W | 220W |
| Max Single Leaf Width | 3.5m | 3.5m |
| Max Single Leaf Weight | 300kg | 500kg |
| Max Thrust | 1800N | 2800N |
| Telescopic Stroke | 400mm | 400mm |
| Motor Rotational Speed | 1800RPM/min | 1450RPM/min |
| Gate Moving Speed | 1.6cm/s | 1.6cm/s |
| 90° Opening Time | 12 seconds | 12 seconds |
| Auto Close Delay | 0~99s Programmable | 0~99s Programmable |
| Opening Angle | 90°/100°/110°/120° Adjustable | Same |
| Operating Temperature | -20℃ ~ +70℃ | Same |
| Relative Humidity | ≤95%, No Condensation | Same |
| Protection Class | IP45 Waterproof & Dustproof | Same |
| Housing Material | Die-cast Aluminum Alloy + Stainless Steel Telescopic Arm, Powder Coated | Same |
| Limit Switch | Built-in Electronic Adjustable Limit Switch | Same |
| Rated Working Frequency | 30% | Same |
| Overall Motor Size | 950*124*139mm | 950*124*139mm |
| Full Set Packing Weight | 24kg | 24kg |
| Carton Size | 830*300*280mm | 830*300*280mm |
Competitive Advantage:
Multi-Spec Customization Covers All Market Demands
Most competitors only provide single stroke or single power version, while CSSGO-09 offers 4 complete variants: DC low voltage / AC high torque, short 400mm / long 600mm stroke. It covers light luxury villa 300kg gates and heavy industrial 500kg 4m ultra-wide gates, enabling one model to capture residential, commercial and farm market segments.
Upgraded Electronic Limit + Super Capacitor, Higher End Configuration
Most budget gate openers use cheap mechanical limit without power-off backup capacitor. Our built-in electronic limit delivers precise stroke adjustment, and the super capacitor solves stuck gate trouble during blackouts, greatly improving user experience and product added value.
Dual Safety & All-Weather Reliability Outperforms Ordinary Models
Integrated anti-pinch CPU protection + wind-resistant self-locking dual safety design, paired with IP45 full aluminum waterproof structure and -20℃ low temperature resistance. Many rival products lack anti-obstacle reverse function and cannot work normally in cold climates, leading to high after-sales failure rate.
Complete Standard Kit + Rich Smart Access Expansion
All mounting brackets, clutch keys and remotes are fully included in the standard package, customers do not need to purchase extra accessories separately. The control board reserves full ports for mainstream smart access devices (GSM, Bluetooth, loop detector, keypad), supporting smart home upgrade, which most entry-level gate openers cannot match.
Reinforced Heavy-Duty Transmission System for Longer Service Life
Adopts thickened reinforced steel turbine worm and fully sealed endless screw drive, with higher load capacity and wear resistance than plastic thin worm gears used by low-cost competitors. 30% rated working frequency ensures stable long-term operation and lower maintenance cost.
Low Noise & Space-Saving Installation Design
Optimized silent gear structure eliminates loud operating noise; low near-ground mounting and horizontal cable outlet design adapt to various gate pillar structures, easier for installers to construct compared with bulky vertical gate motors.
Factory Direct Supply with Stable Cost Advantage
We are original manufacturer with independent mold production, cutting intermediate dealer markup. Consistent quality control on aluminum casting, motor winding and circuit board production, supporting bulk wholesale, OEM & ODM customization for global distributors, installers and e-commerce sellers.
