S130 GSM SMS Alarm Controller, 2 Channel Digital Input, Remote SMS Control Relay, Power Failure Alert for Industrial & Farm Use
Global Quad-Band GSM 2G/4G | 2 DI Inputs | 2 Relay Outputs | SMS Arm/Disarm/Control | Built-in Backup Battery | CE RoHS FCC Certified
- Overview
- Recommended Products
Product Information
Place of Origin: |
China,Shenzhen |
Brand Name: |
CHISUNG |
Model Number: |
S130 |
Certification: |
CE |
Product Commercial Terms
Minimum Order Quantity: |
1unit |
Price: |
Consult Us |
Packaging Details: |
Carton/Wooden,According to customer requirements |
Delivery Time: |
7-15days |
Payment Terms: |
L/C ; T/T ; MoneyGram |
Supply Ability: |
3000units/Month |
Quick Detail:
GSM Relay
GSM Gate Opener
GSM Gate Controller
GSM Relay Control
GSM Remote Control
GSM Relay Switch
GSM Door Opener
GSM Door Controller
GSM Access Controller
GSM Access Control Unit
GSM Remote Switch
GSM Access Control Relay
GSM 3G 4G Gate Opener
GSM 3G 4G Cellular Gate Opener
GSM 3G 4G Gate Receiver
GSM 3G 4G Signal Sender
GSM 3G 4G Single Switch
GSM SMS Alarm Controller
GSM SMS Alarm Control Board
GSM Text Alert Controller
GSM Mobile SMS Alarm Unit
Wireless GSM SMS Alarm Controller
GSM SMS Remote Alarm Controller
Cellular SMS Alarm Control Module
GSM SMS Security Alarm Controller

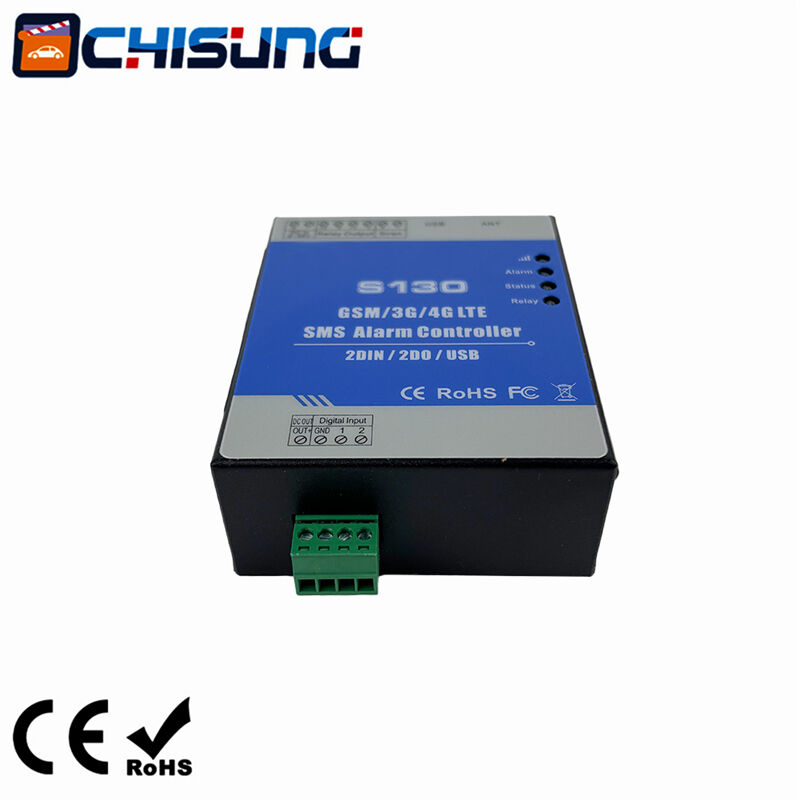

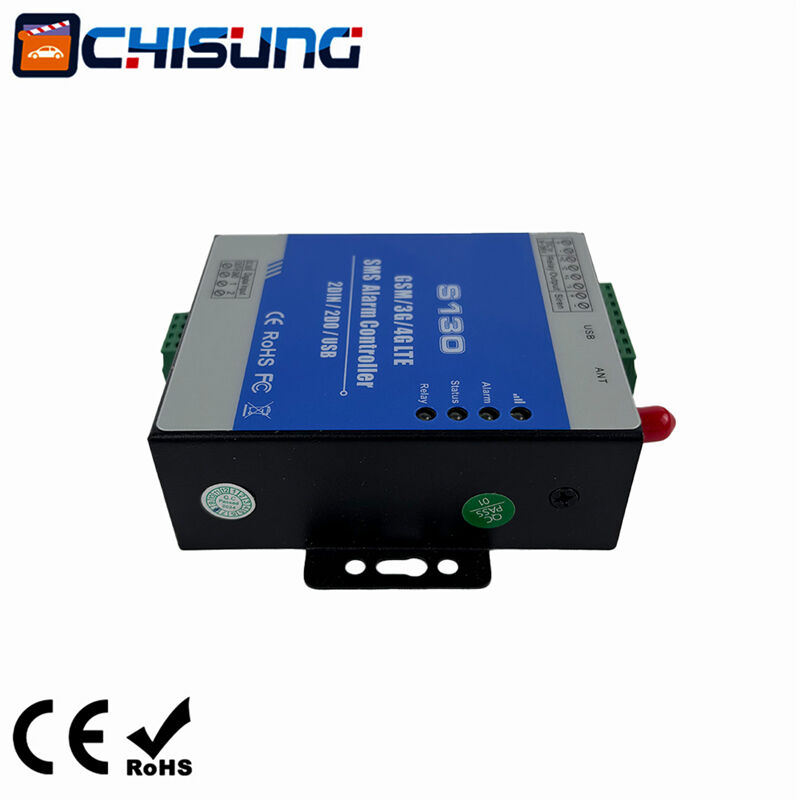

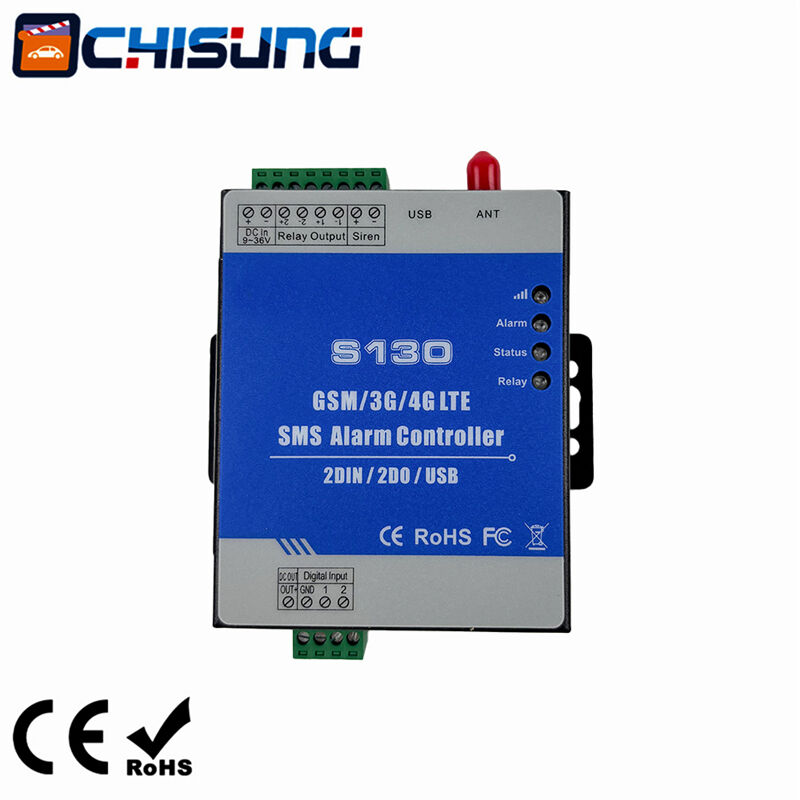

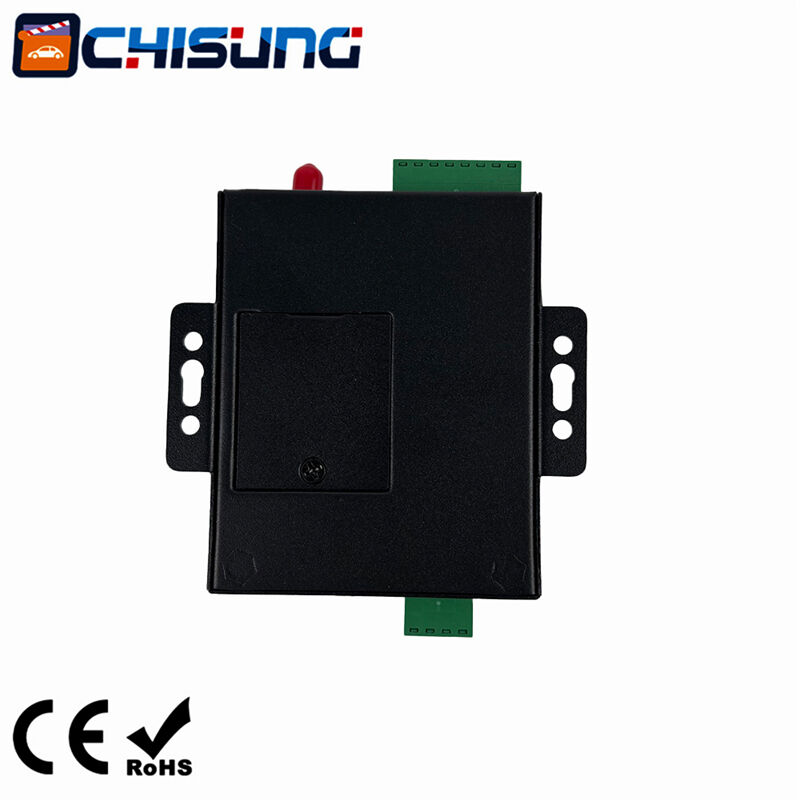

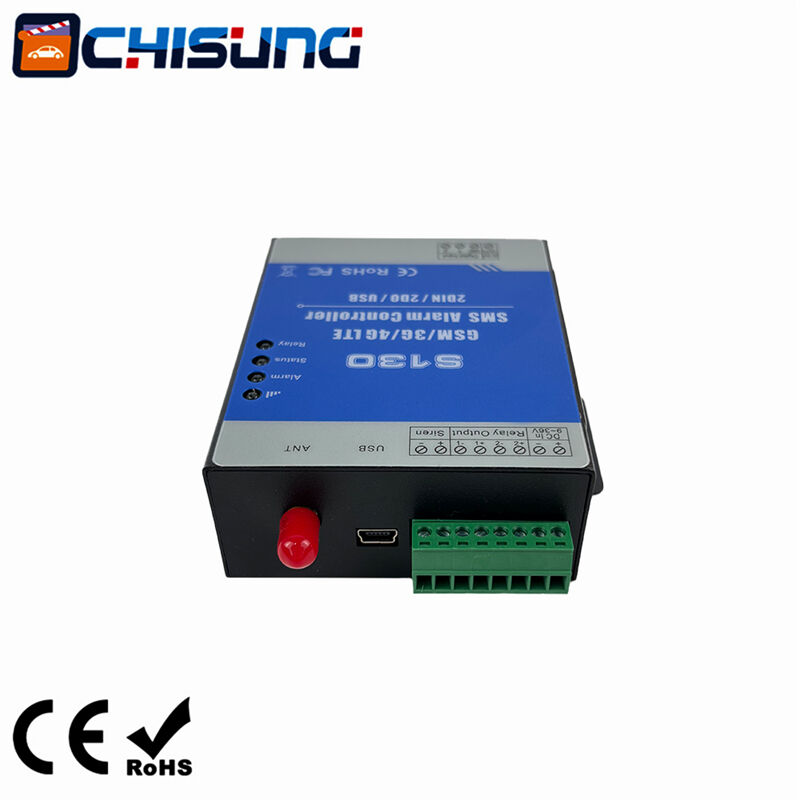

The S130 GSM SMS Alarm Controller is an industrial-grade, all-in-one remote monitoring, alarm notification, and equipment control unit designed for stable, long-term operation in unattended environments. Built with high-performance industrial components and a 32-bit MCU with a built-in watchdog for enhanced stability, it supports global quad-band GSM (850/900/1800/1900MHz) with optional 3G/4G LTE compatibility, ensuring reliable wireless connectivity across most countries and regions without distance limitations. This compact yet powerful unit integrates 2-channel digital inputs, 2 relay outputs, SMS command control, power failure detection, and a backup battery to provide a cost-effective, easy-to-deploy solution for security monitoring, environmental detection, and automatic equipment control.
Description:
S130–All-in-One SMS Alarm & Remote Control Solution
This series uses industrial-grade components and stable wireless communication to realize remote monitoring, automatic alarm, and equipment control via simple SMS commands. It supports three models to meet different I/O requirements: S130 (2DI). Users can arm/disarm, turn relay on/off, and check status via SMS anytime, anywhere.
Key Features
Multi-Channel Digital Input
Support NO/NC/EOL wiring modes; EOL mode prevents wire breakage or loose connection. Compatible with water level, temperature, door contact, motion, smoke, and water leakage detectors.
Dual Relay Output Control
1× alarm linkage relay + 1× SMS control relay. Relay supports 7A@125VAC / 20A@14VDC for driving pumps, lights, valves, sirens, and other equipment.
Simple SMS Command Operation
Use password + simple commands (AA/BB/CC/DD/EE) to arm, disarm, switch relay, and query status. Easy to use without professional training.
Power Failure & Recovery Alert
Automatically send SMS alerts when main power is lost or restored. Built-in 3.7V 900mAh backup battery supports over 24 hours of backup working time.
Security & Stability
4-digit password protection; supports up to 5 voice alarm numbers & 3 SMS alarm numbers. Timed inspection avoids SIM card balance failure.
PC Software Configuration
USB port for PC setting; parameters can be saved/loaded in batches. User-friendly interface for quick deployment.
How to Use
1. Preparation Before Use
2. Use a standard 3V SIM card without PIN code; ensure it has GSM network and SMS service.
3. Prepare a 9–24VDC power supply (12V recommended).
4. Default password: 1234; keep it safe before changing.
5. Connect the GSM antenna to the ANT port before power-on.
Applications:
l Unattended room, communication base station, ATM machine security
l Farm irrigation, water tank / oil tank level monitoring & pump control
l Factory equipment, power distribution room, temperature & humidity alarm
l Home / warehouse / shop security intrusion alarm
l Water leakage, smoke, power failure remote monitoring
l Outdoor equipment, pipeline, and facility status alarm
Specifications:
Item |
Details |
Model |
S130 (2DI) |
Users |
3000 |
Network |
2G,Quad-band GSM 850/900/1800/1900MHz; 4G LTE optional |
Input |
2 channels dry contact (NO/NC/EOL) |
Output |
2× relay: 7A@125VAC, 5A@125VAC, 20A@14VDC |
Power Supply |
DC 9–36V (DC12V/1.5A recommended) |
Power Consumption |
Normal: 50mA; Max: 500mA |
Backup Battery |
3.7V 900mAh (work ≥24h) |
Alarm Mode |
SMS + voice call + siren output |
SMS Commands |
AA(Arm), BB(Disarm), CC(Relay ON), DD(Relay OFF), EE(Query) |
Working Temp |
-20°C ~ +60°C |
Humidity |
20%–95% RH (non-condensing) |
Dimensions |
70×88×30mm |
Weight |
320g |
Certifications |
CE, RoHS, FCC |
Package |

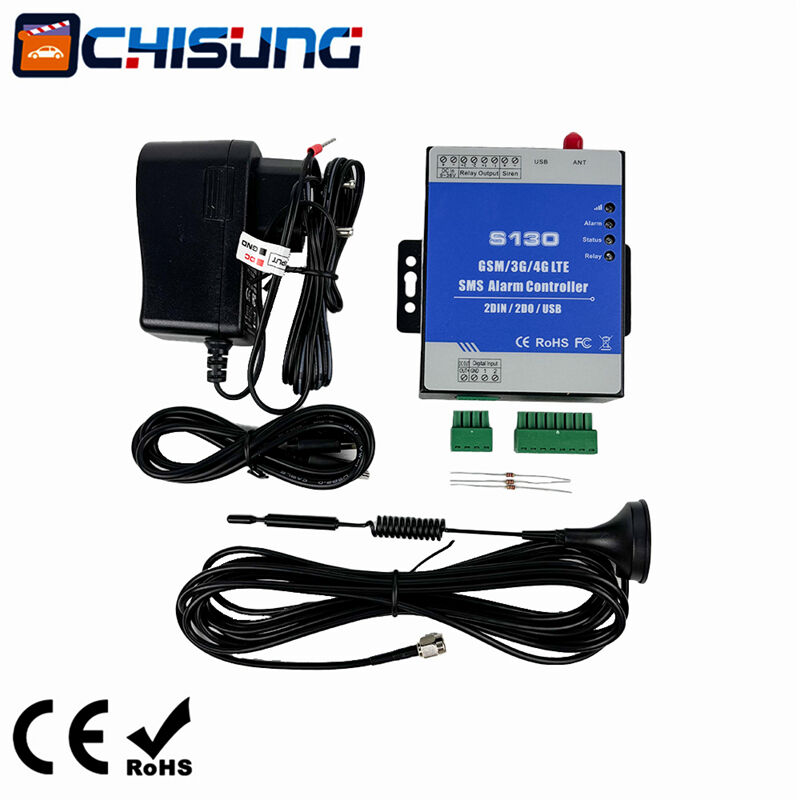

Host, antenna, power adapter, terminal, manual, software CD |
Competitive Advantage:
Model Selection Flexibility-2 DI options for small, medium, and large monitoring scenarios.
Industrial-Grade Reliability-Wide voltage, wide temperature, anti-interference, long-term stable operation.
EOL Line Anti-Theft Protection-Effectively prevent wire damage and false alarms.
Dual Relay & Dual Control-Linkage automatic control + SMS remote control, one machine for two purposes.
Power Failure Alarm + Battery Backup-Ensure 24/7 unattended safety.
Ultra-Simple SMS Operation-No APP, easy to use for global users.
PC Configuration & Batch Deployment-Save labor cost for engineering and wholesale users.
Certified & Globally Compatible-Quad-band, CE/FCC/RoHS, suitable for worldwide sales.
