CSYZM06 Sliding Barreir Gate Mechanism 6061 Aluminum +45#Steel DC24V 40W 5 Million Cycles Durability for Intelligent Sliding Gate Turnstile

Product Information:

Quick Detail:

sliding gate mechanism

sliding barreir gate mechanism

sliding turnstile mechanism

sliding turnstile gate mechanism

sliding gate movement

sliding barreir gate movement

sliding turnstile movement

sliding turnstile gate movement

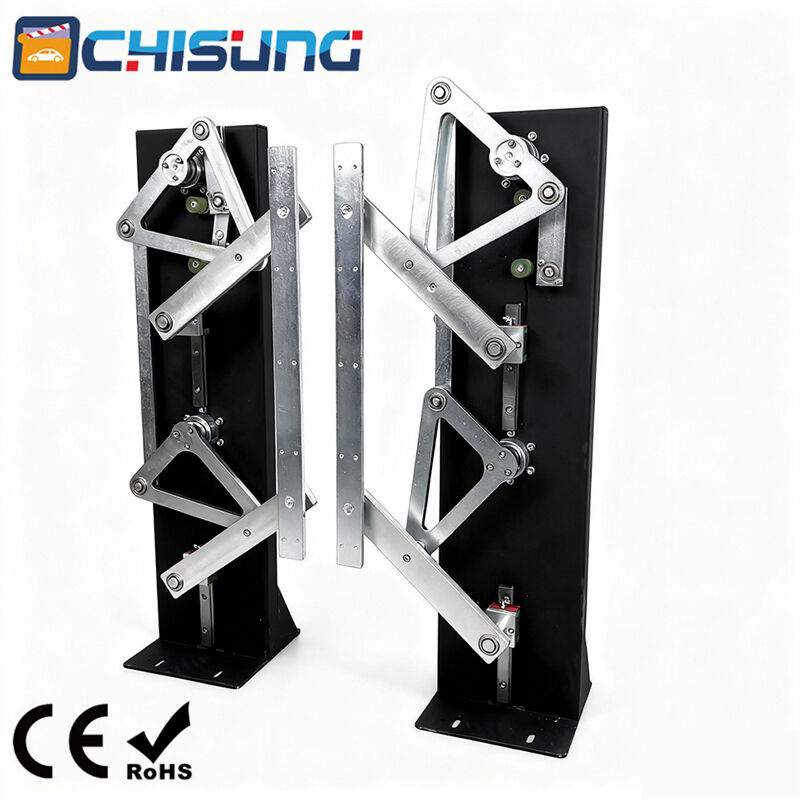

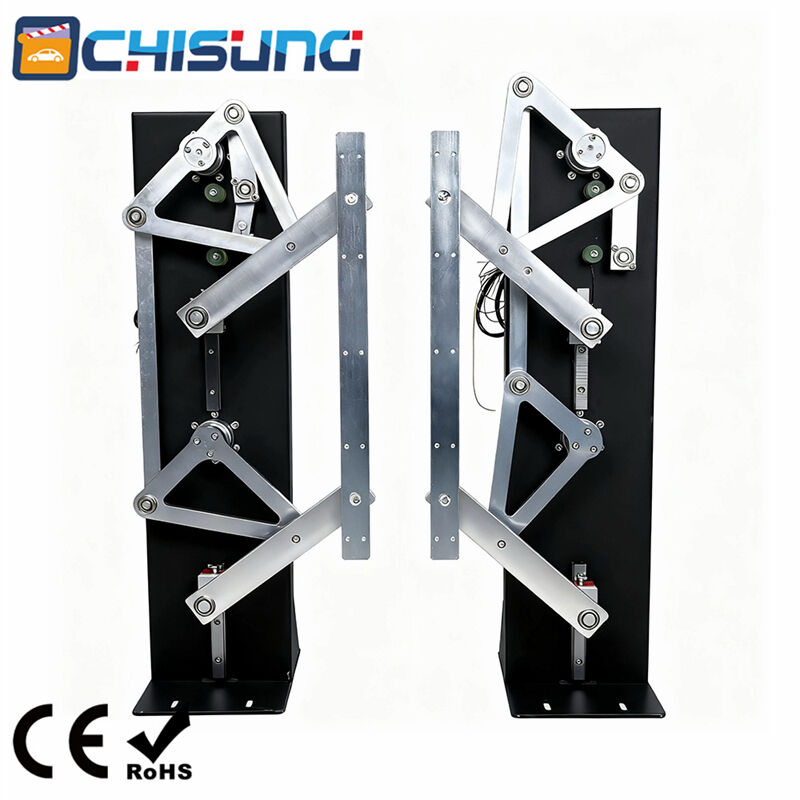

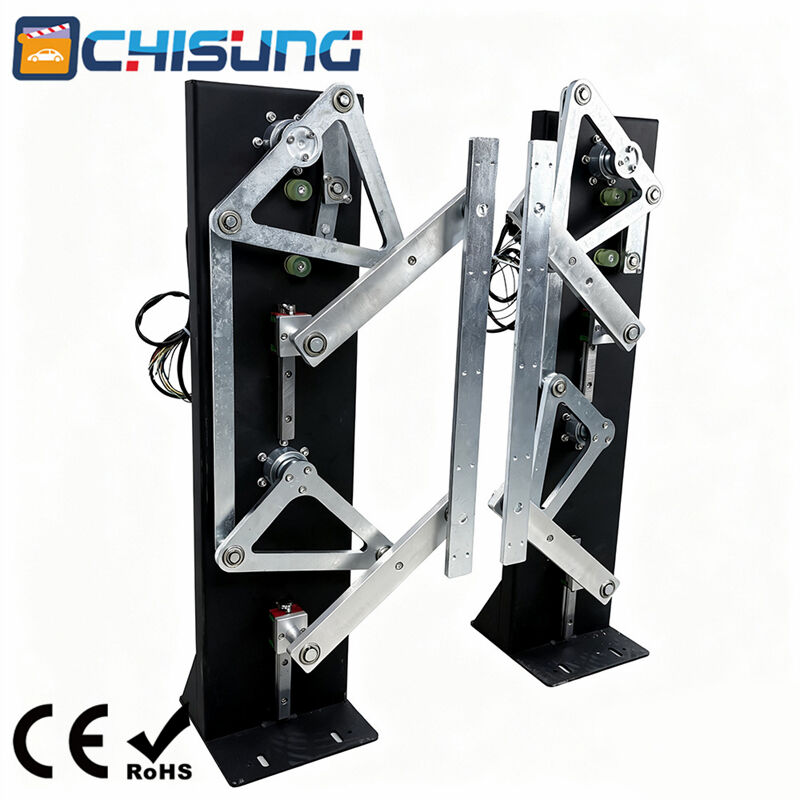

The sliding barrier gate mechanism, equipped with a brand DC brushless motor, is constructed from 6061 aluminum and 45# steel with anti-rust plating for enhanced durability. It features smooth operation via a brand-name DC brushless drive system. In safety mode, the gate automatically becomes a barrier-free passage during power outages. The motor-driven mechanism opens in a forward/backward rotating manner, supporting both unidirectional and bidirectional passage as per factory settings. It facilitates a passage rate of 40 people per minute in normally-closed mode and 60 people per minute in normally-open mode, making it ideal for intelligent sliding gates in high-traffic areas.

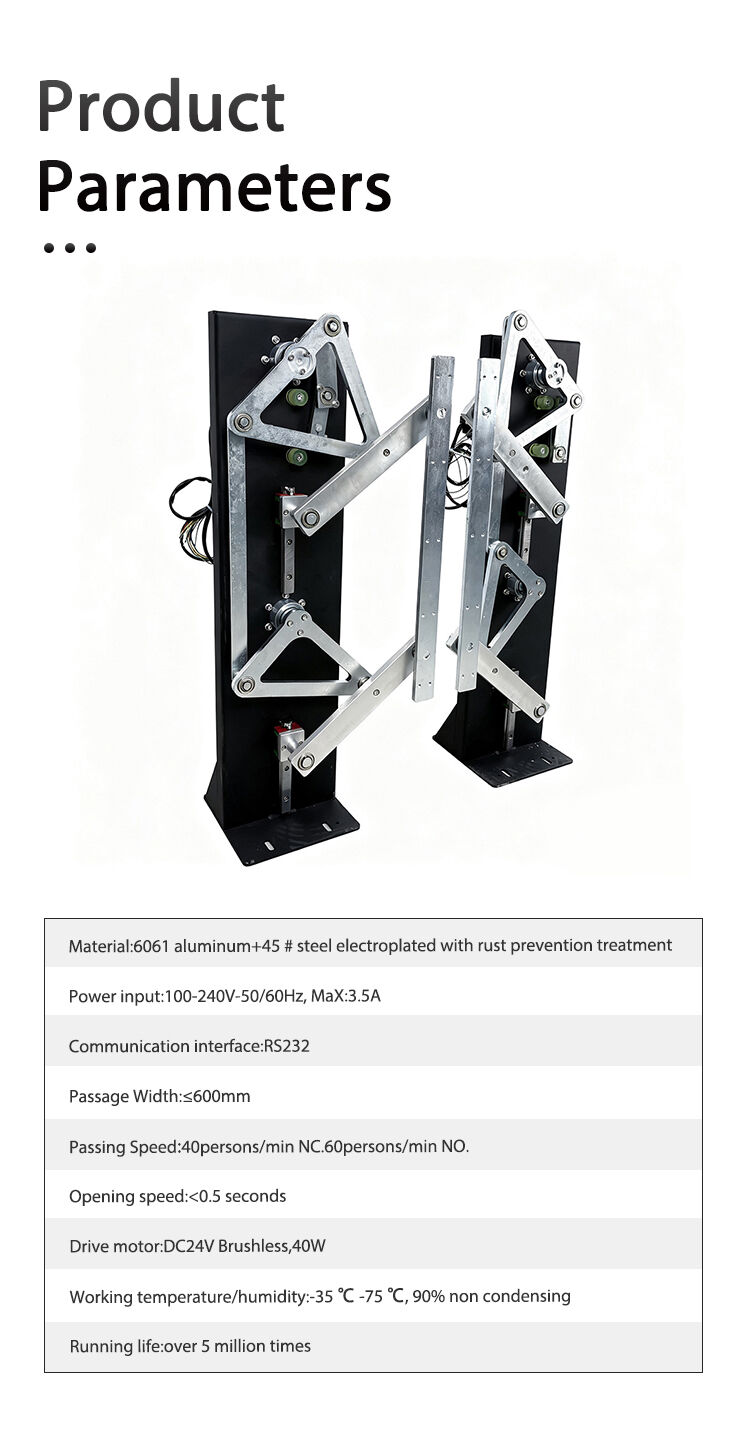

Key technical parameters include a power input of 100-240V AC (50/60Hz), RS232 communication interface, and at least 4 pairs of PNP NO infrared sensors. The drive motor operates at DC24V, 40W, ensuring a fast gate opening speed of less than 0.5 seconds. It functions reliably within a wide temperature range of -35°C to 75°C and humidity up to 90% non-condensing, with a long service life exceeding 5 million operations.

Description:

The mechanism supports various control methods, including external switches, barcode systems, ID/IC access control, fingerprint scanners, and facial recognition devices, offering multiple operating modes for flexible access management. Safety features encompass anti-pinch and anti-collision functions, automatic resetting, and tailgating prevention. Additionally, it is waterproof, UV-resistant, and capable of withstanding extreme temperatures.

Each package includes two sliding barrier gate mechanisms (for one channel), gate panels (optional acrylic or glass), one main control board, one secondary board, one power adapter, and optional supercapacitors.

Key Features

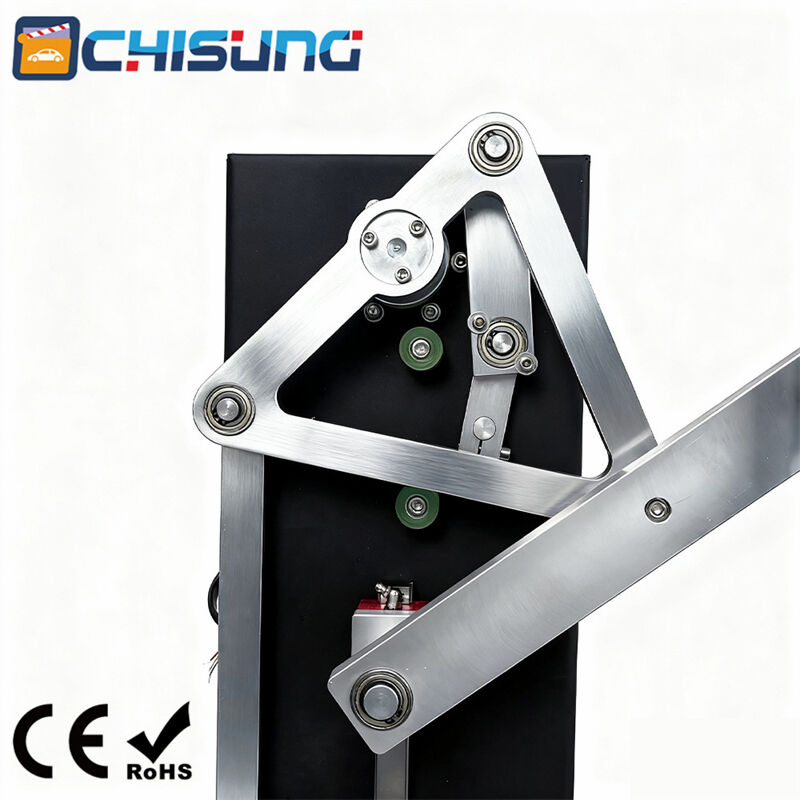

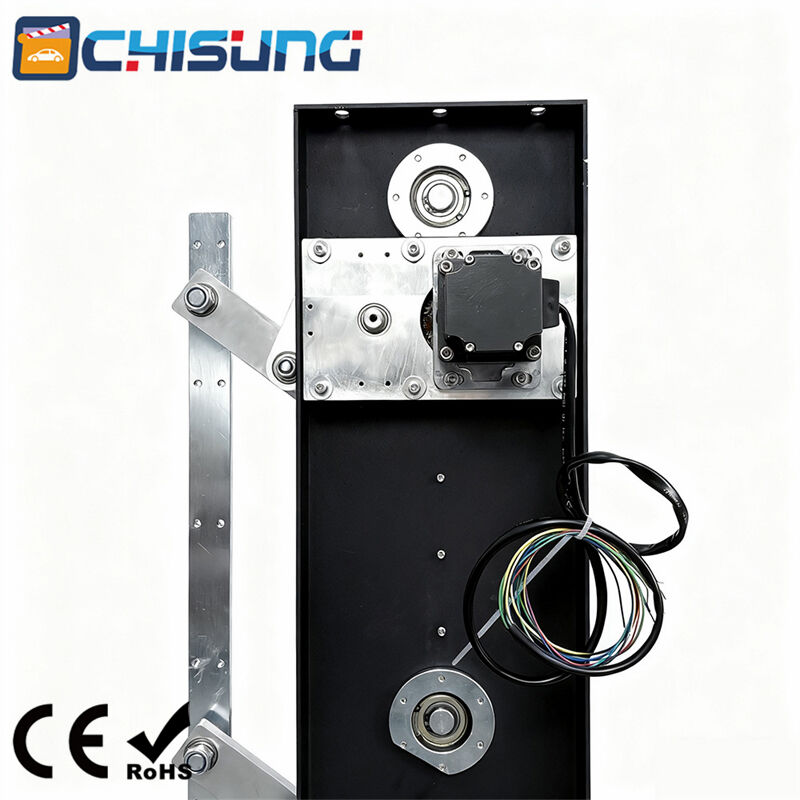

High-Performance Mechanism‌: The core components are made from 6061 aluminum and 45# steel with electroplated anti-rust treatment, providing excellent strength and corrosion resistance.

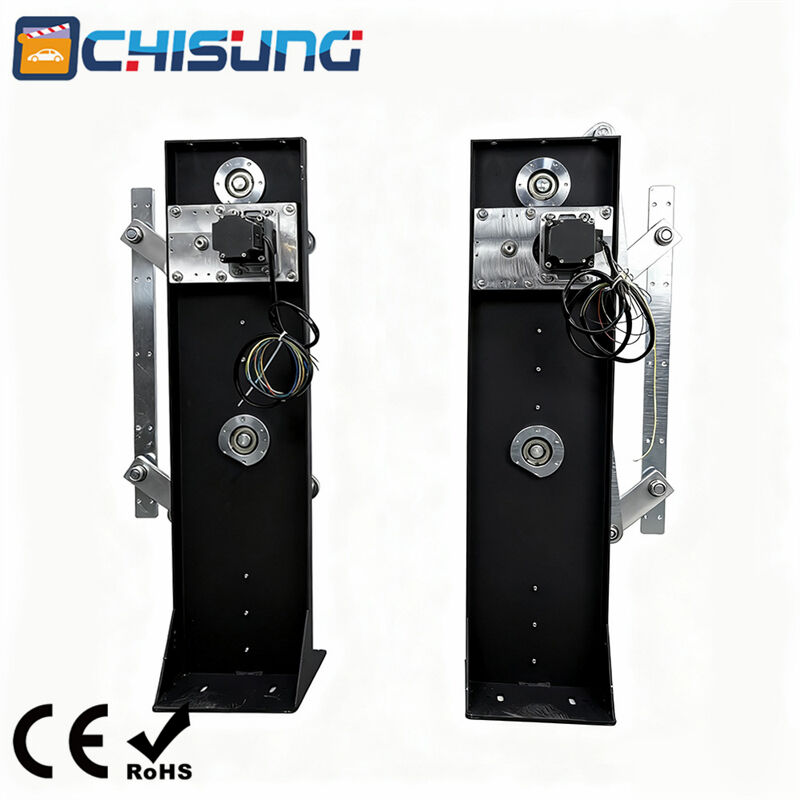

Efficient Drive System‌: Equipped with a brand DC brushless motor, offering smooth and reliable performance.

Safety Design‌: In the event of a power failure, the gate automatically switches to an unobstructed passage mode, ensuring uninterrupted flow and safety.

Motor-Driven Operation‌: The gate is driven by a motor, allowing for easy and controlled movement.

Flexible Opening Modes‌: Supports both unidirectional and bidirectional opening configurations (set at the factory), catering to different access control needs.

High Throughput‌: Capable of handling up to 40 people per minute in normally closed mode and 60 people per minute in normally open mode, ensuring efficient crowd management.

Wide Compatibility‌: Suitable for integration with intelligent sliding gate systems, enhancing overall security and access control efficiency.

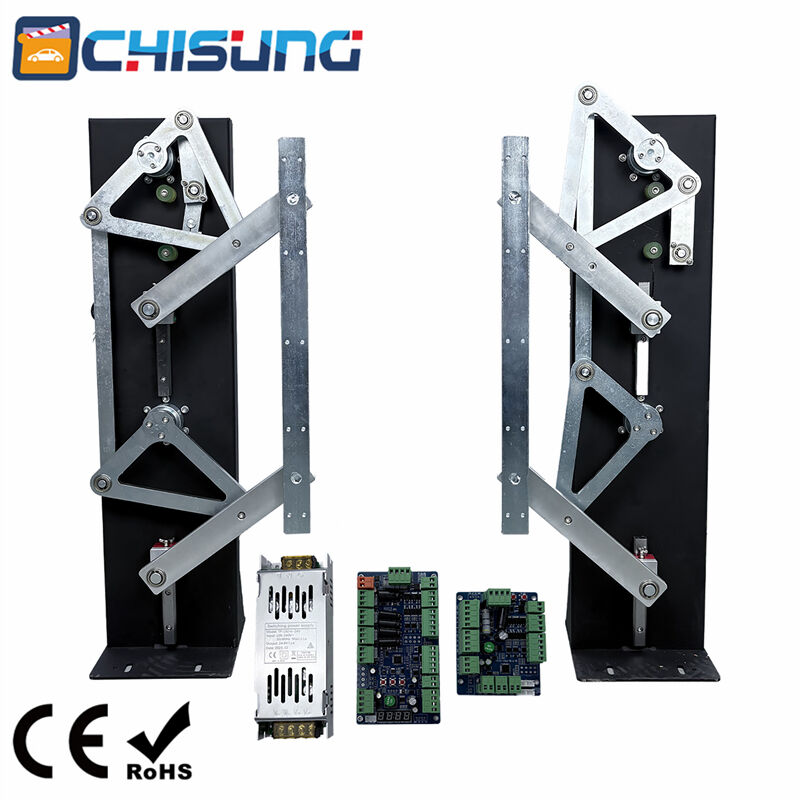

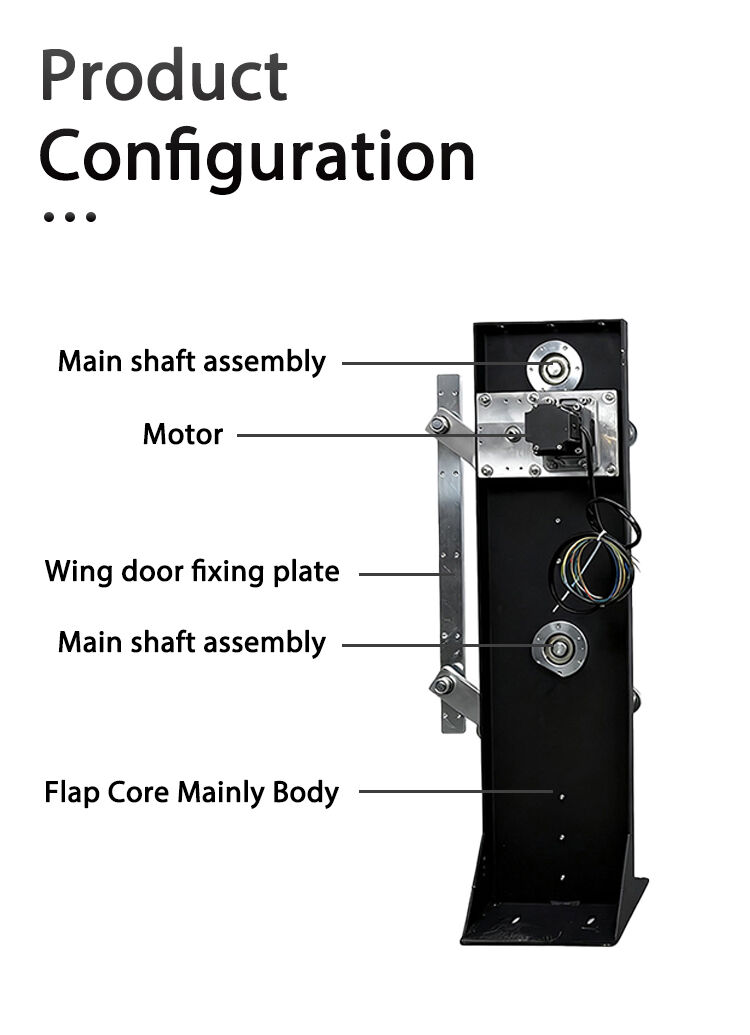

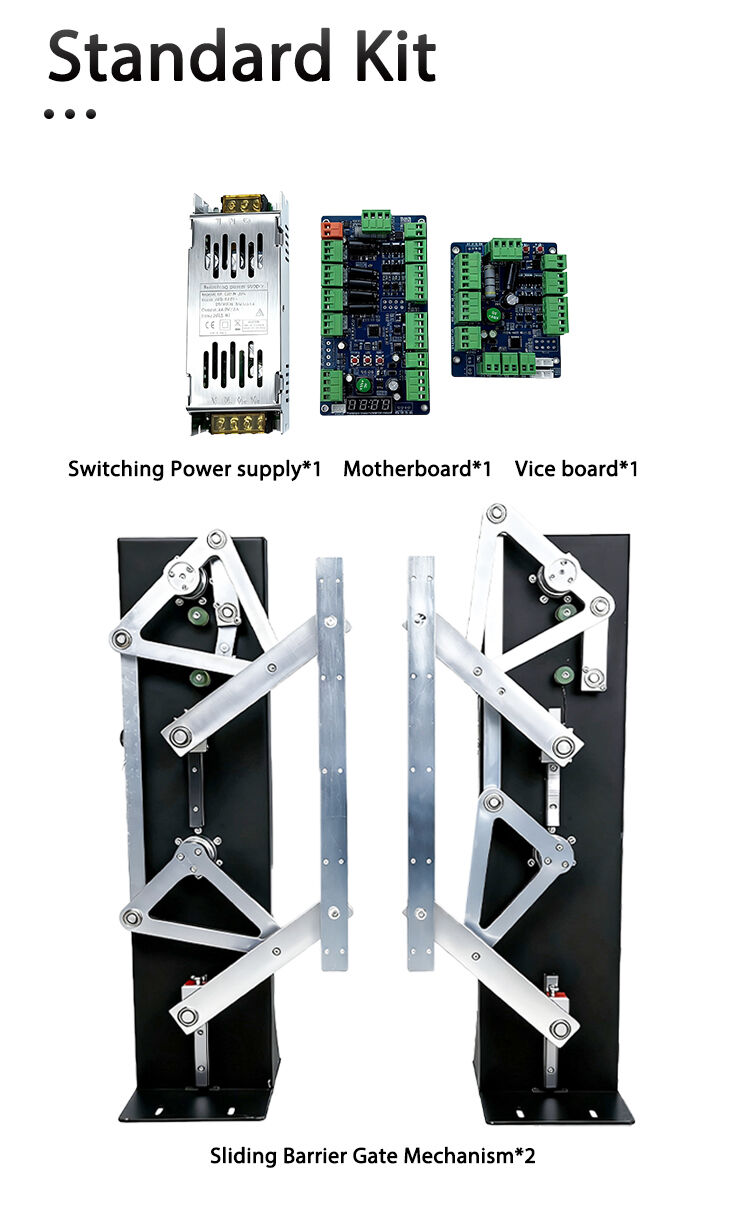

Product Configuration

• 2 sets of sliding gate mechanisms (for one channel)
• Gate panels (optional, available in acrylic or glass)
• 1 main control board and 1 auxiliary board
• 1 power converter
• Super capacitors (optional)

The CHISUNG Sliding Barrier Gate Mechanism is an ideal choice for enhancing security and managing access in commercial buildings, public facilities, and other high-traffic areas.

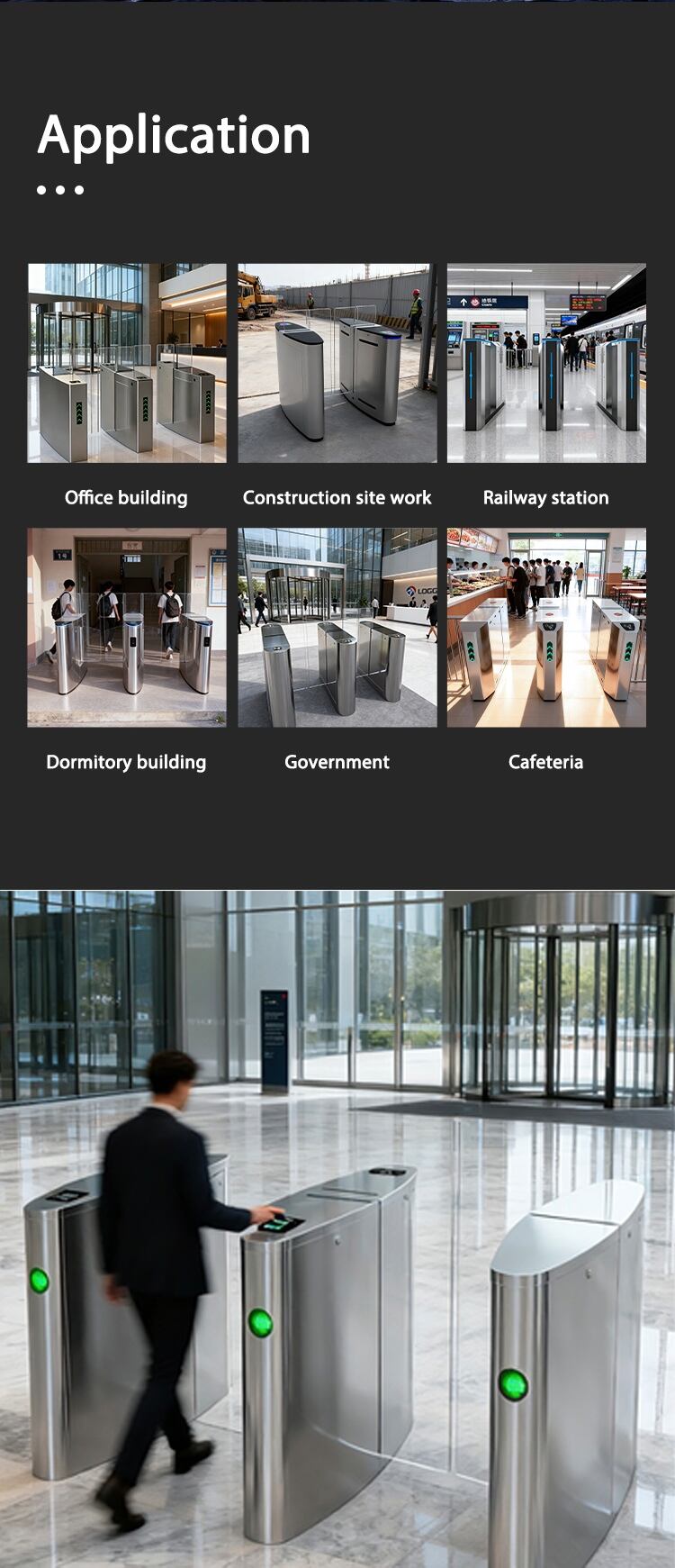

Applications:

1. High-Traffic Commercial Buildings:‌

In bustling commercial complexes where crowd management is crucial, the CHISUNG mechanism ensures smooth and efficient passage. With its high throughput capacity—40 people per minute in normally closed mode and 60 people per minute in normally open mode—it effectively handles peak-hour traffic while maintaining security. The mechanism's compatibility with various access control systems, such as ID/IC card readers, fingerprint scanners, and face recognition devices, allows for seamless integration and enhanced security measures.

2. Public Transportation Hubs:‌

At train stations, airports, or bus terminals, where people are constantly on the move, the CHISUNG sliding barrier gate provides a reliable and quick access solution. Its fast opening speed of less than 0.5 seconds minimizes waiting times, while the multiple operating modes—including bidirectional card reading with flow control and one-direction free passage—offer flexibility to suit different passenger flow patterns. The anti-rush function ensures that only authorized individuals can pass, preventing unauthorized entry during busy periods.

3. Corporate Campuses and Office Buildings:‌

For corporate environments that require secure yet efficient access control, the CHISUNG mechanism offers a perfect balance. Its automatic reset function cancels access permissions if not used within a set time, preventing unauthorized tailgating. Additionally, the anti-pinch and anti-collision features ensure the safety of employees and visitors, making it a trustworthy choice for daily use. The mechanism's ability to withstand extreme temperatures and humidity conditions makes it suitable for deployment in various geographical locations.

4. Stadiums and Event Venues:‌

During large-scale events, managing the influx of attendees efficiently is paramount. The CHISUNG sliding barrier gate mechanism, with its high throughput and multiple control options, can be integrated with ticket verification systems or biometric scanners to ensure quick and secure entry. The power failure handling feature guarantees uninterrupted passage even during unexpected outages, providing peace of mind to event organizers.

5. Residential Communities:‌

In gated communities or apartment complexes, where security and convenience are both important, the CHISUNG mechanism offers a reliable solution. Its compatibility with various access control methods, such as key cards or mobile apps, allows residents to enter effortlessly while keeping unauthorized individuals out. The mechanism's durability and resistance to harsh weather conditions ensure long-lasting performance with minimal maintenance.

Specifications:

Competitive Advantage:

Easy Integration‌: Standard switch signal input allows for convenient connection to external switches, barcode systems, ID/IC access control systems, fingerprint scanners, and face recognition devices.

Multiple Operating Modes‌: Offers various modes including bidirectional card reading, fingerprint or face recognition with flow control; bidirectional card reading with one direction prohibited; and one direction with card reading, fingerprint, or face recognition, while the other direction allows free passage via button or infrared sensor.

Anti-Pinch and Anti-Collision‌: During the reset process, if an obstacle is encountered, the motor stops automatically within a specified time and attempts to reset again after a default delay, with minimal force (≤2Kg).

Anti-Rush Function‌: The swing arm automatically locks when no opening signal is received, preventing unauthorized passage.

Automatic Reset‌: If no passage is made within a set time after receiving access permission, the system automatically cancels the user's access rights and resets to the initial state; also prevents tailgating.

Power Failure Handling‌: The passage automatically opens when power is lost and automatically closes when power is restored; the system is waterproof, sun-resistant, cold-resistant, and high-temperature resistant.

Tag:CSYZM06
